ZBAITU

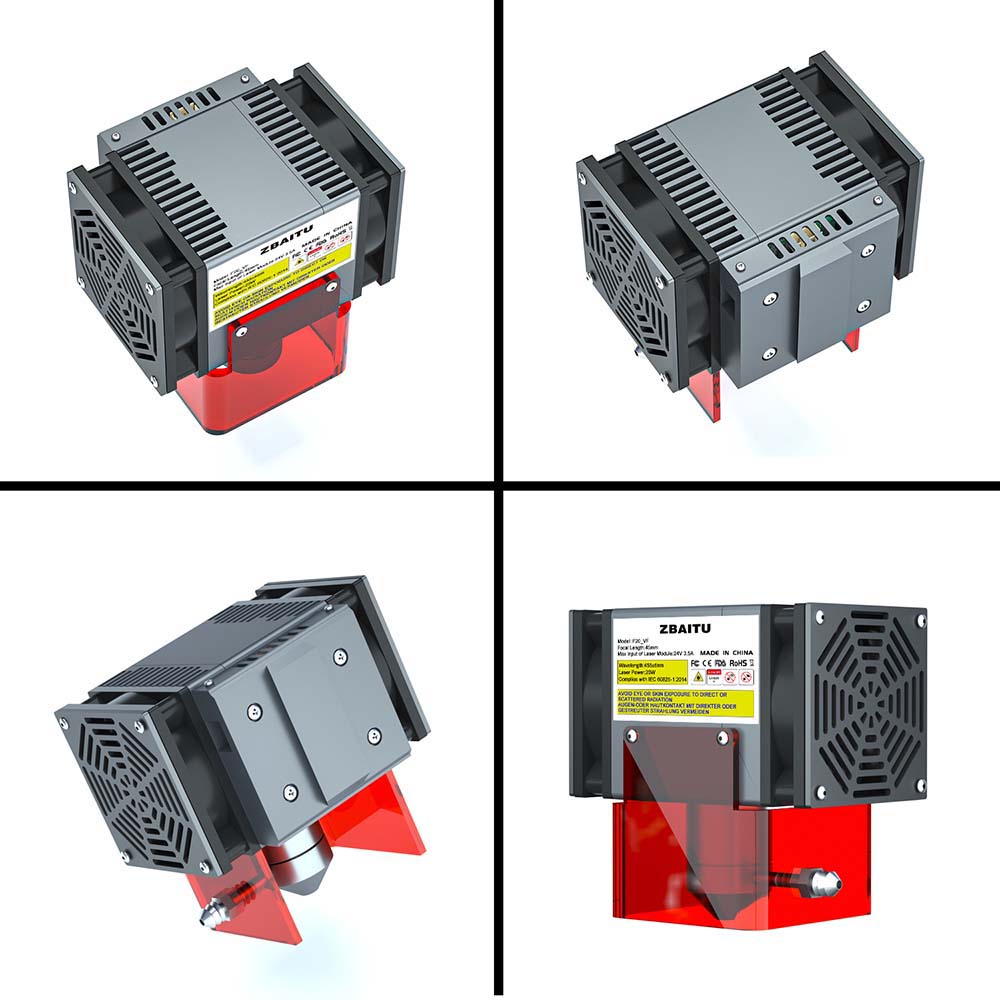

ZBAITU F20-VF Laser Module

ZBAITU F20-VF Laser Module

$544.06 USD
$544.06 USD
Sale Sold out

Where To Buy

Description

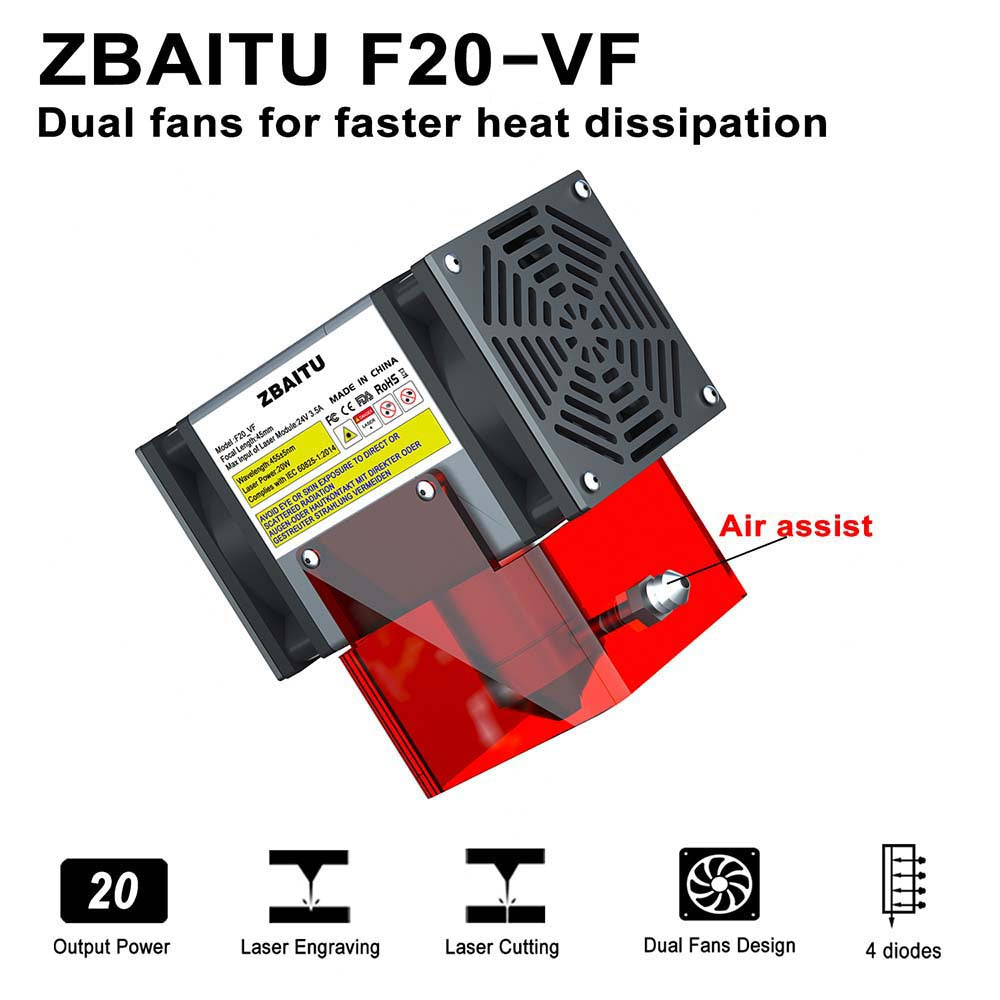

ZBAITU F20-VF highlights

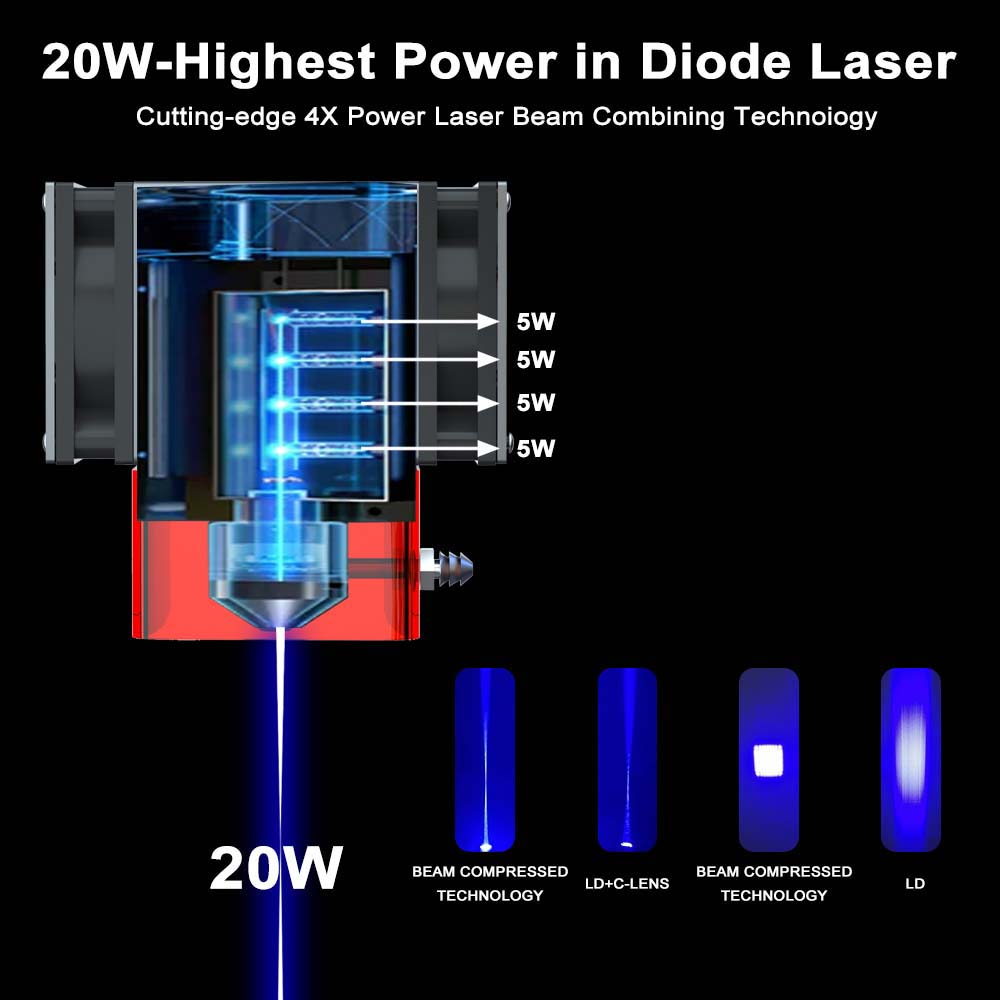

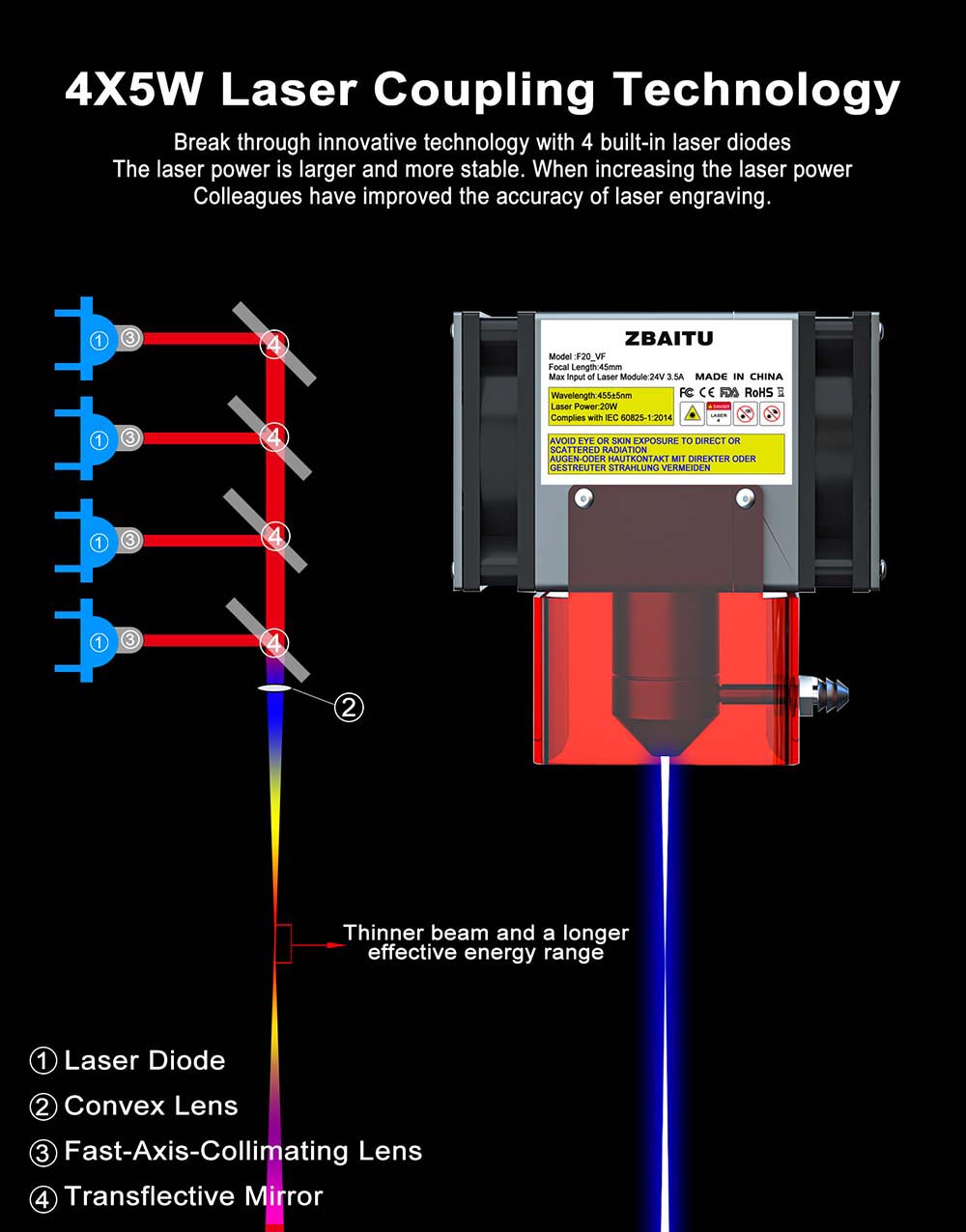

4-in-1 Diode High Energy and Faster Speed

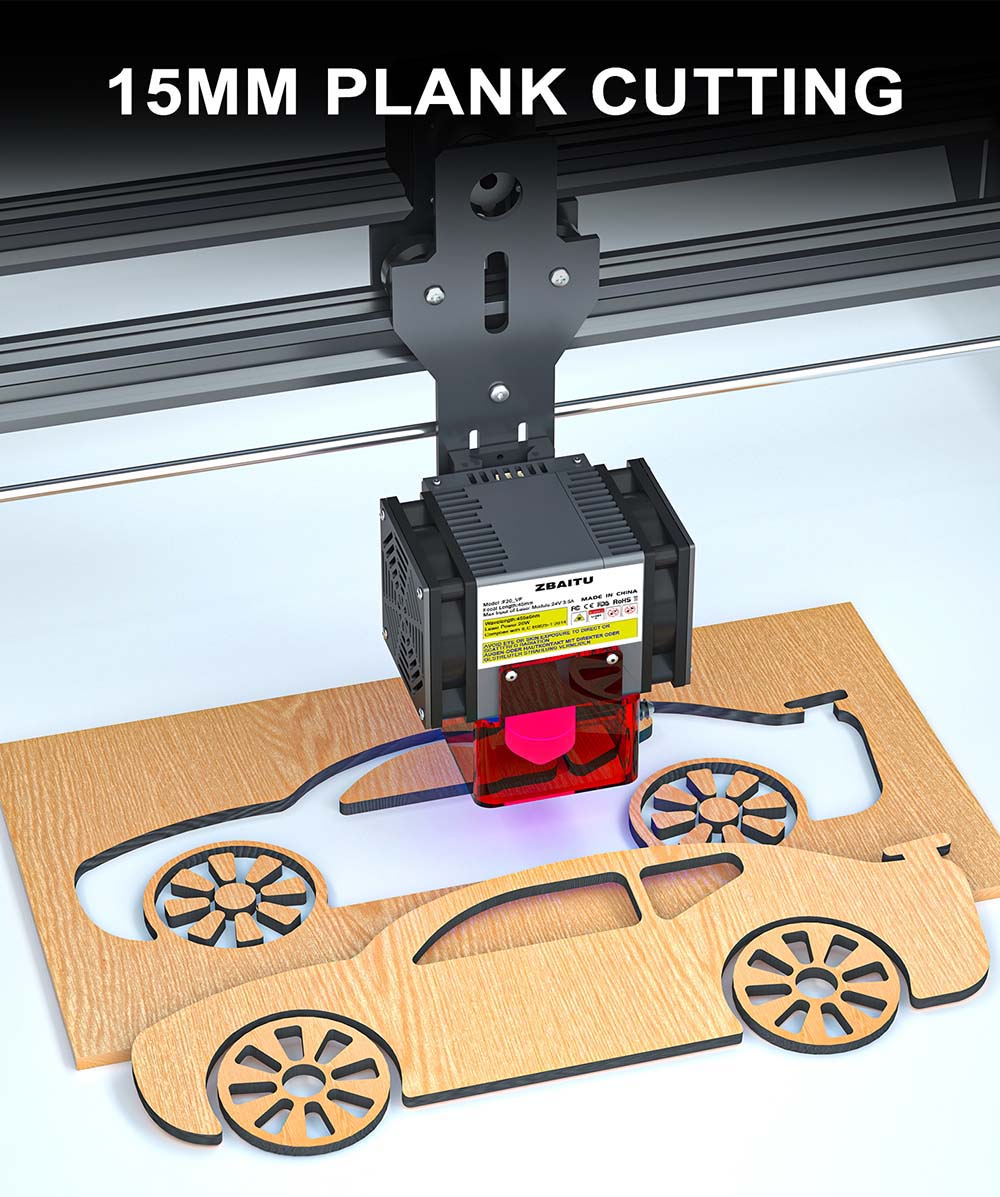

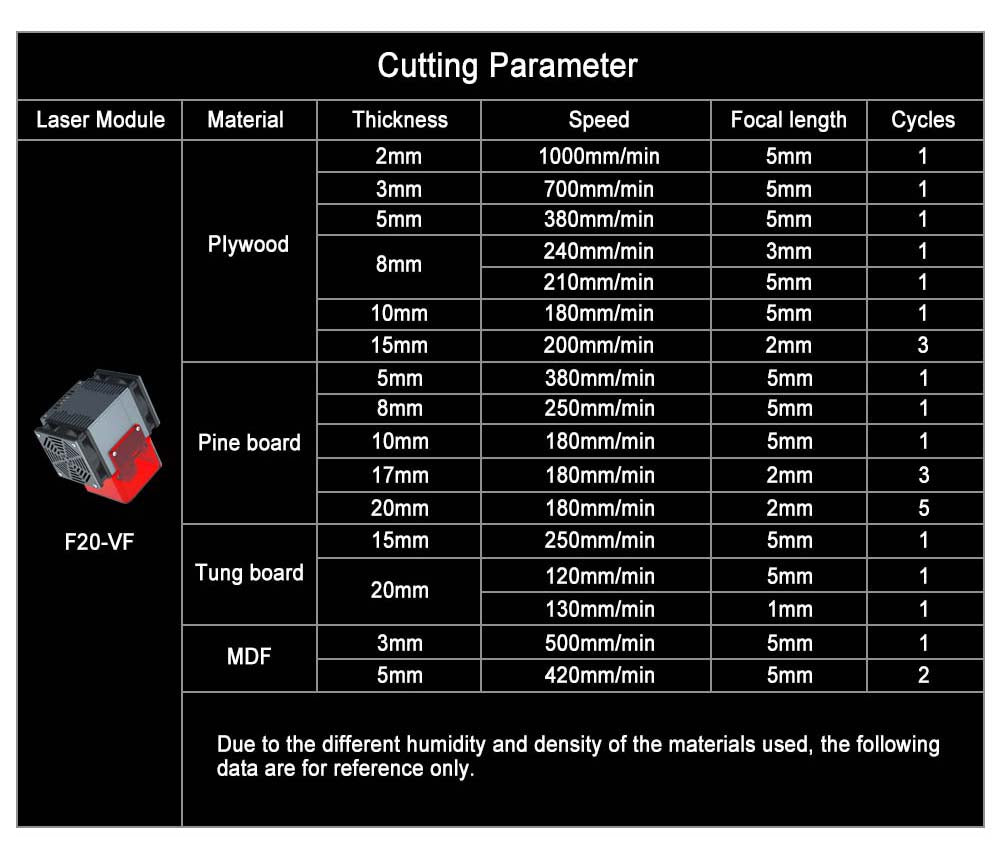

With the latest generation of four 5W laser coupling technology, it is able to cut off 12-15mm thick plywood, the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.

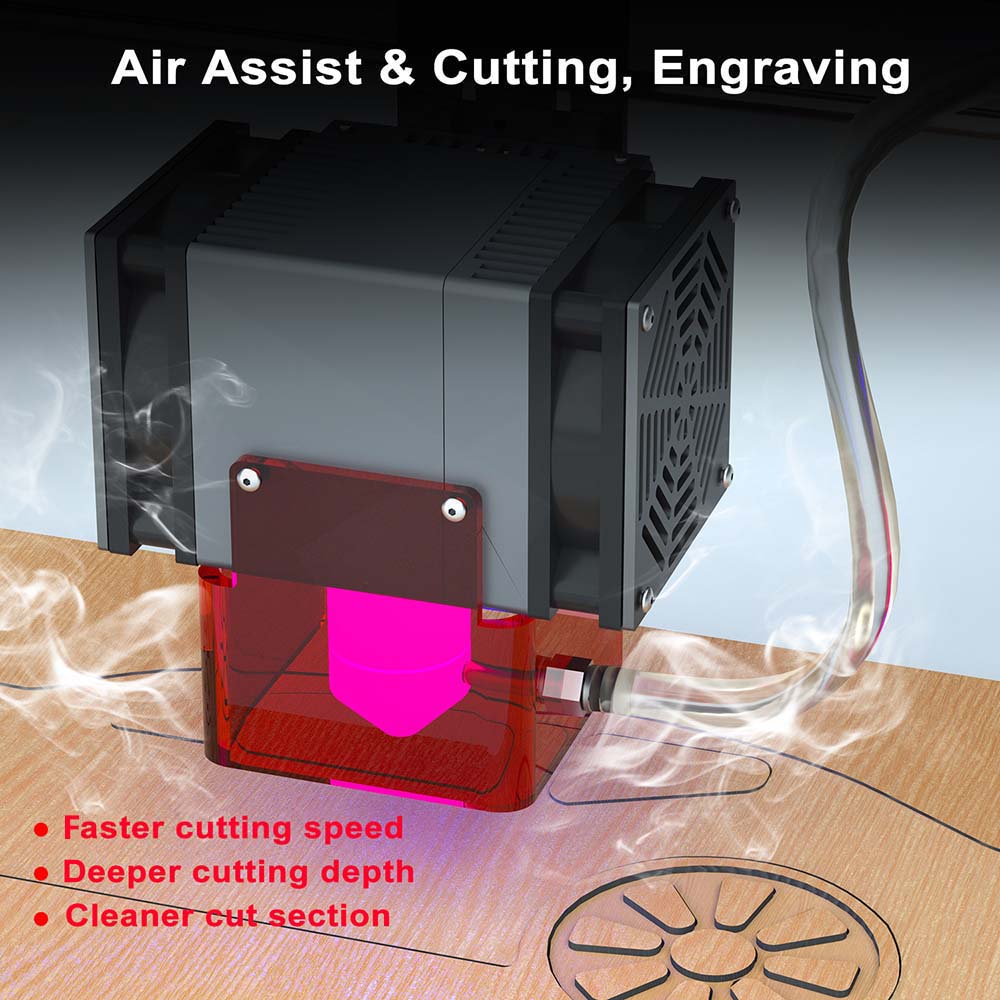

Updated Air Assist

The air intake has been increased from the original 3.5mm to 7mm, which can make the air intake meet the needs of cutting and engraving, and bring thinner cutting lines and faster cutting speed.

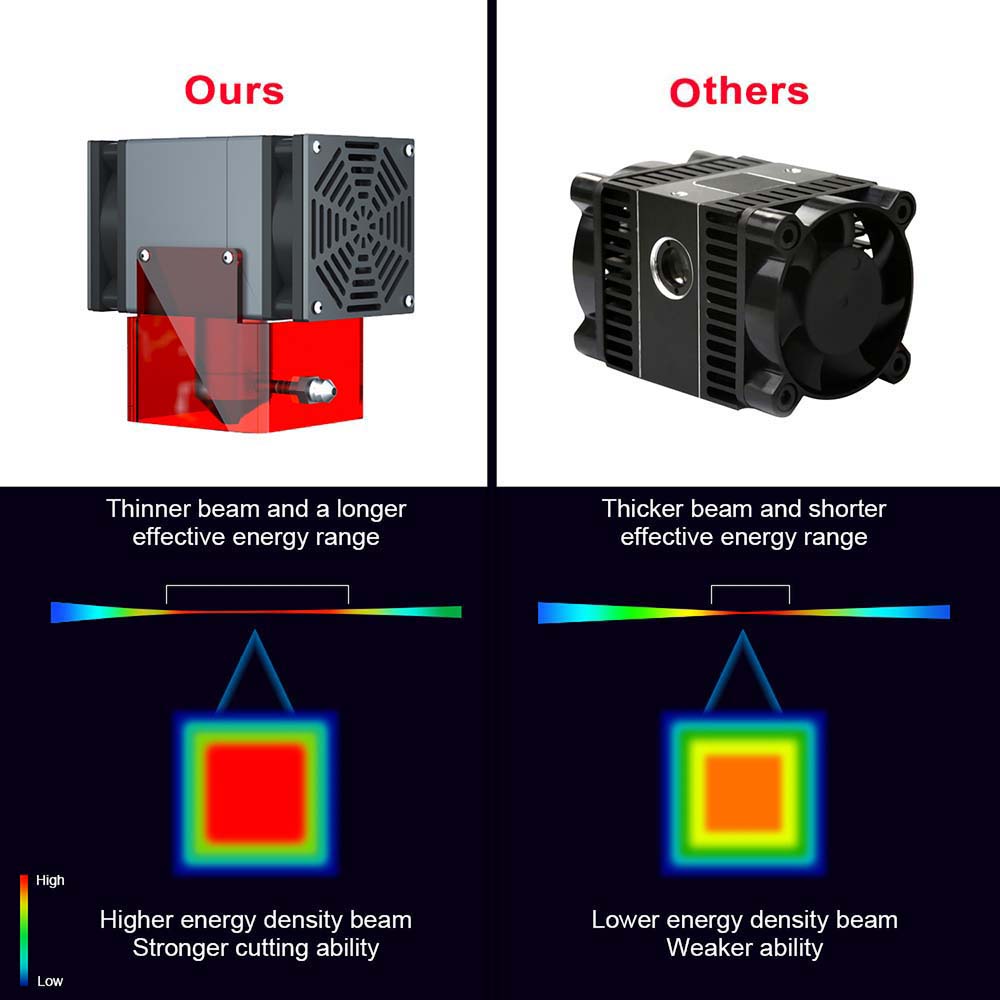

Fixed-focus Laser

No need to adjust the focus before engraving. The laser power of the fixed-focus laser is more stable than the zoom laser, and the focusing spot area is only 1/3 of other ordinary lasers.

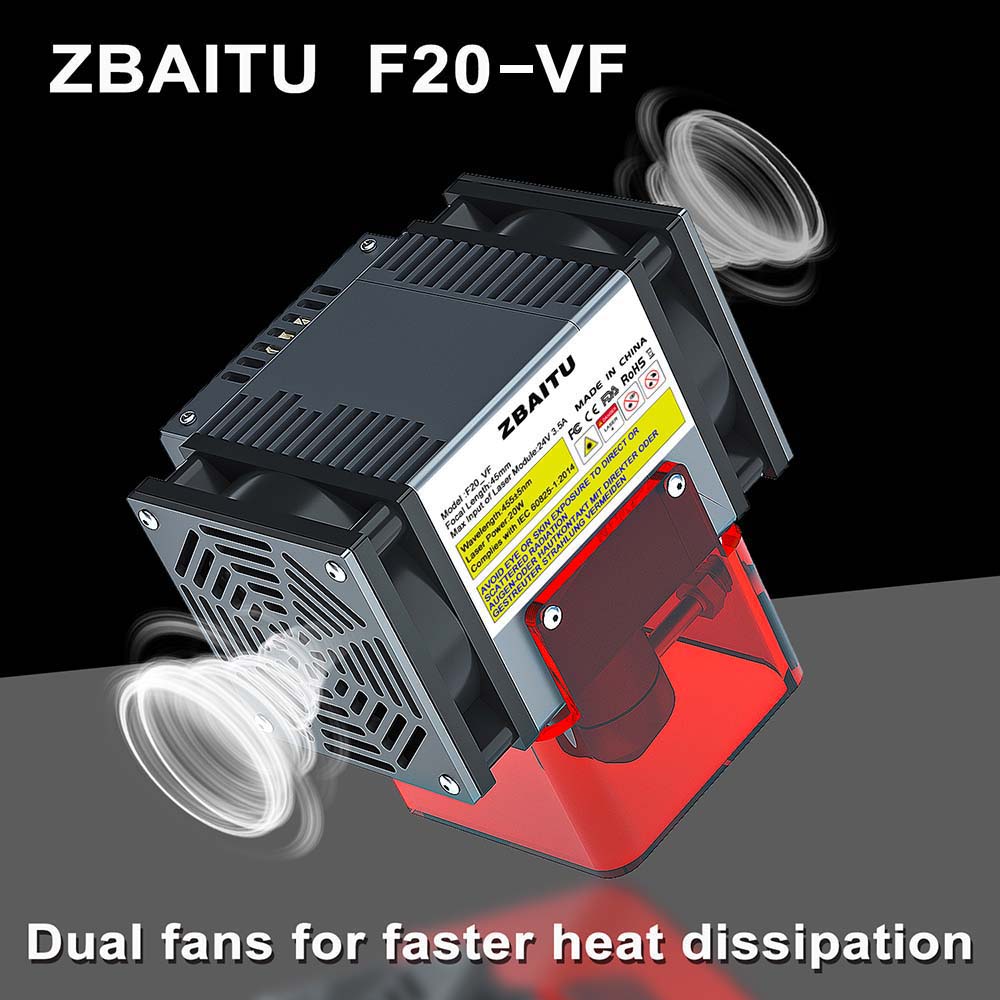

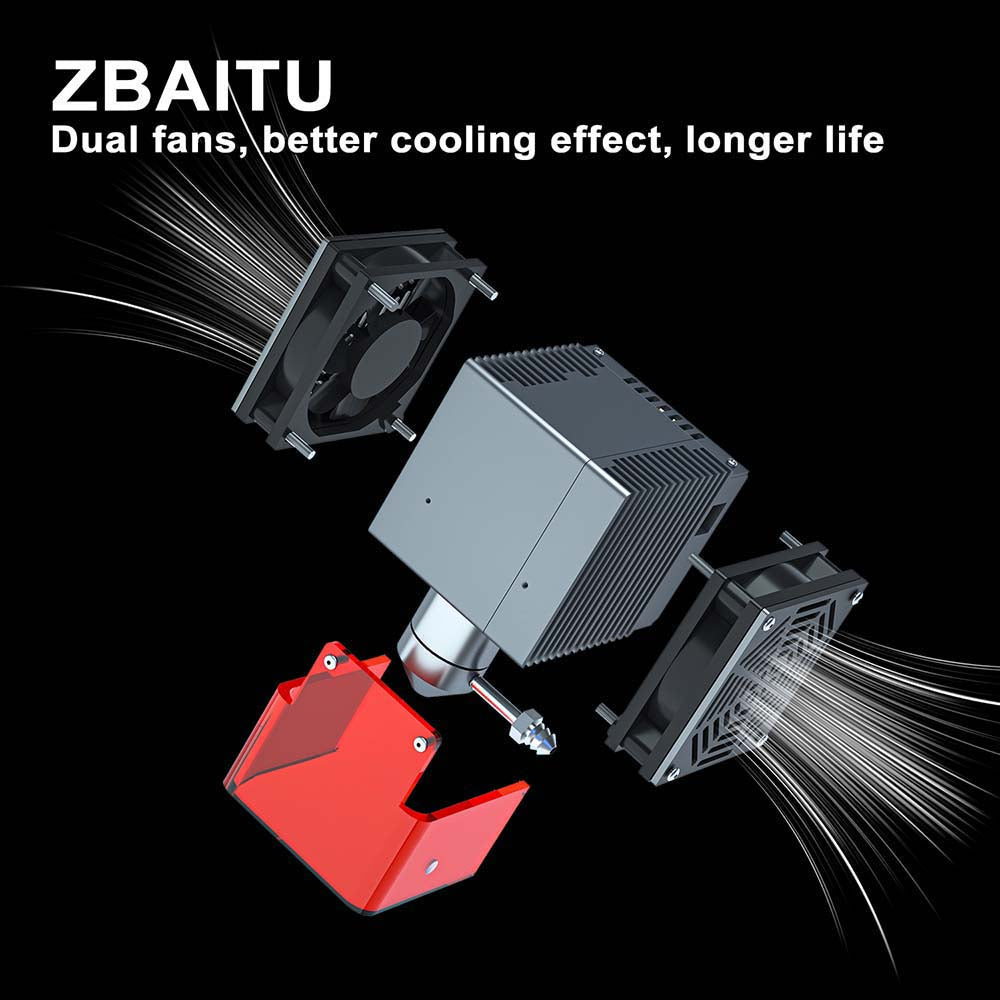

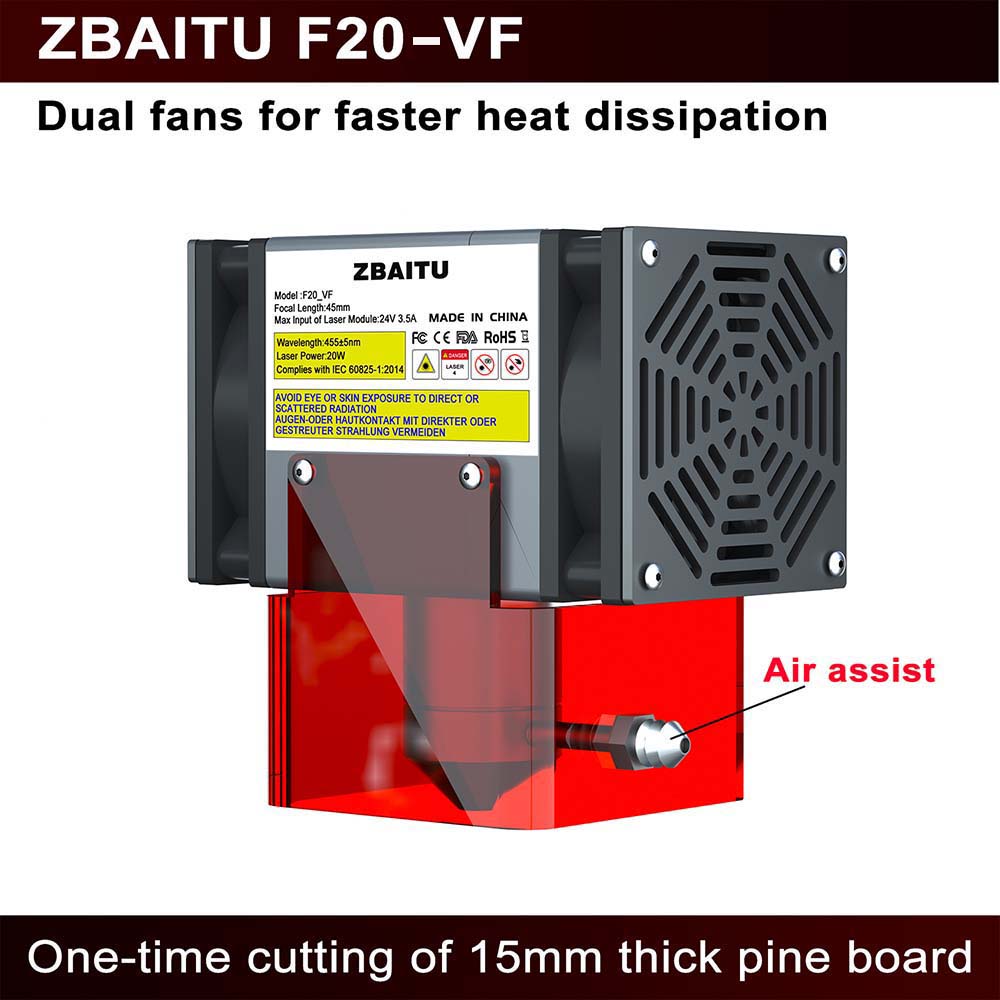

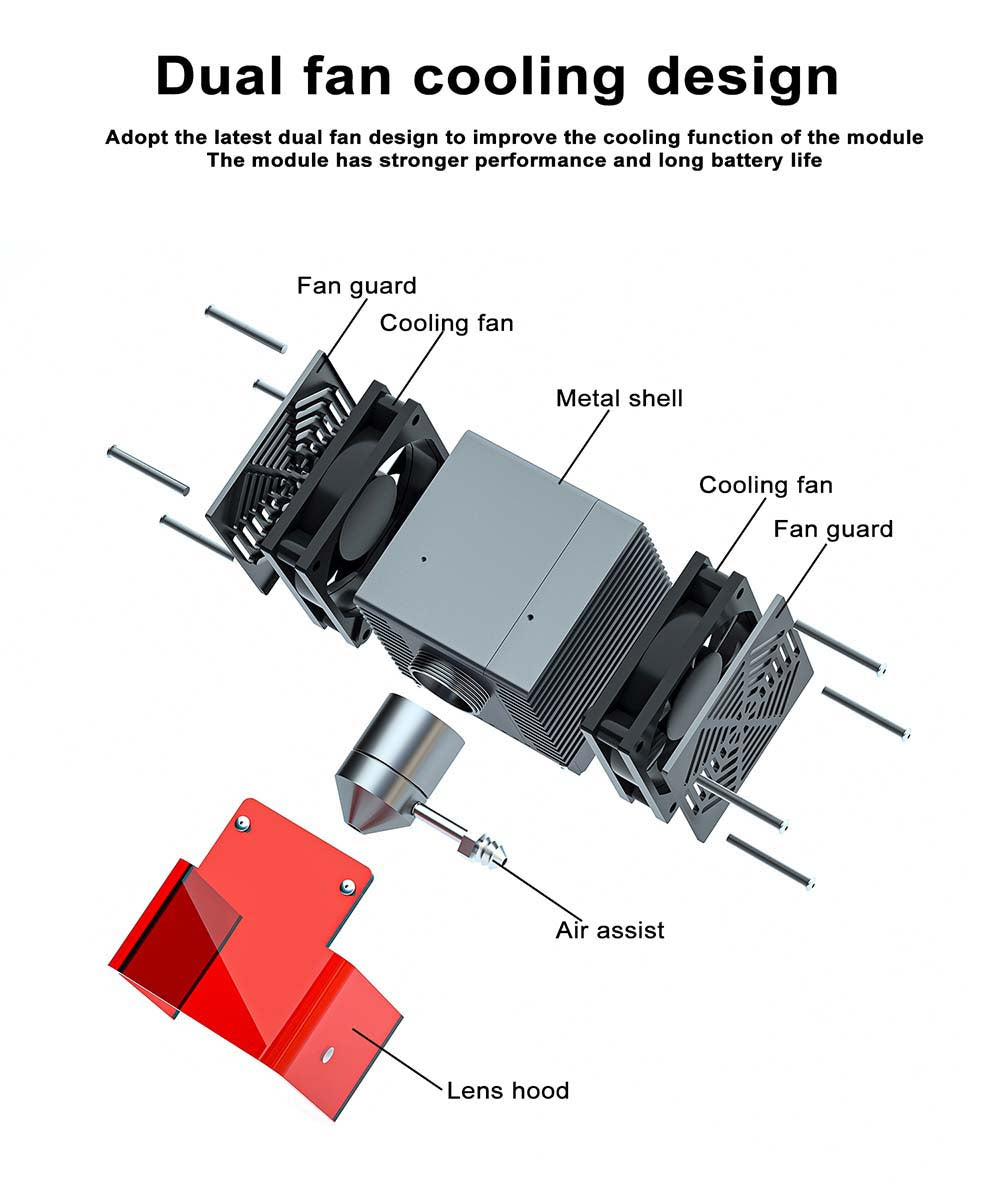

Dual Fans

The double-sided fan can effectively reduce the temperature when the laser is working, protect the driver of the laser, and prolong the service life of the laser.

Strong Compatibility

The F20-VF laser module can be installed on any engraving machine model of ZBAITU laser engraver M37, M81, or A40, and it can be used without any additional settings.

Comes with a 3 adapter cable in the box, this laser module is compatible with Ortur, NEJE, Two-Trees, Xtool, and Atomstack engraver as well.

Various Materials to Cut and Engrave

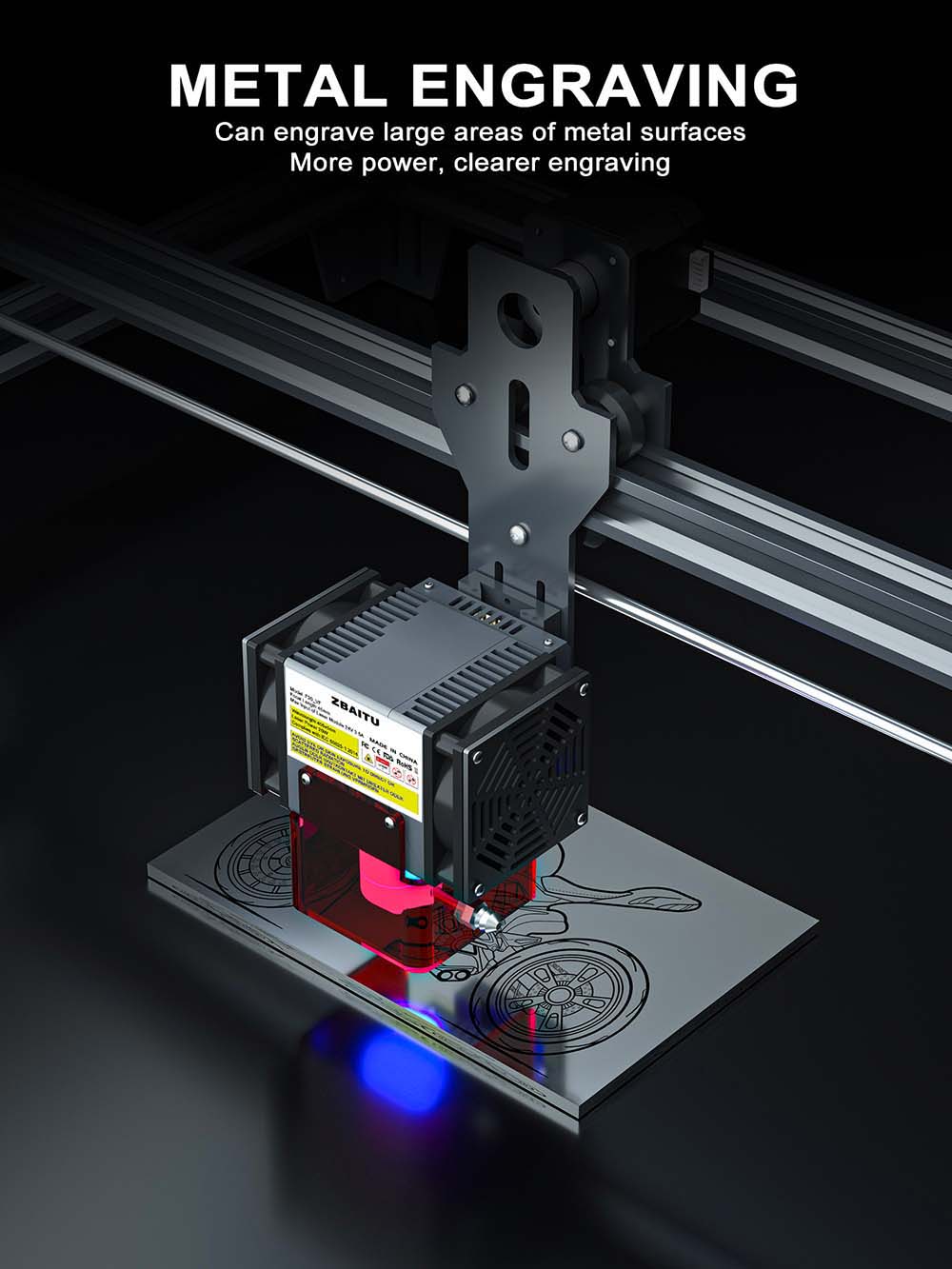

Engravable materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening utility knife. Cuttable materials are including cardboard, non-woven fabric, veneer, acrylic, and some thin plastic board.


ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans

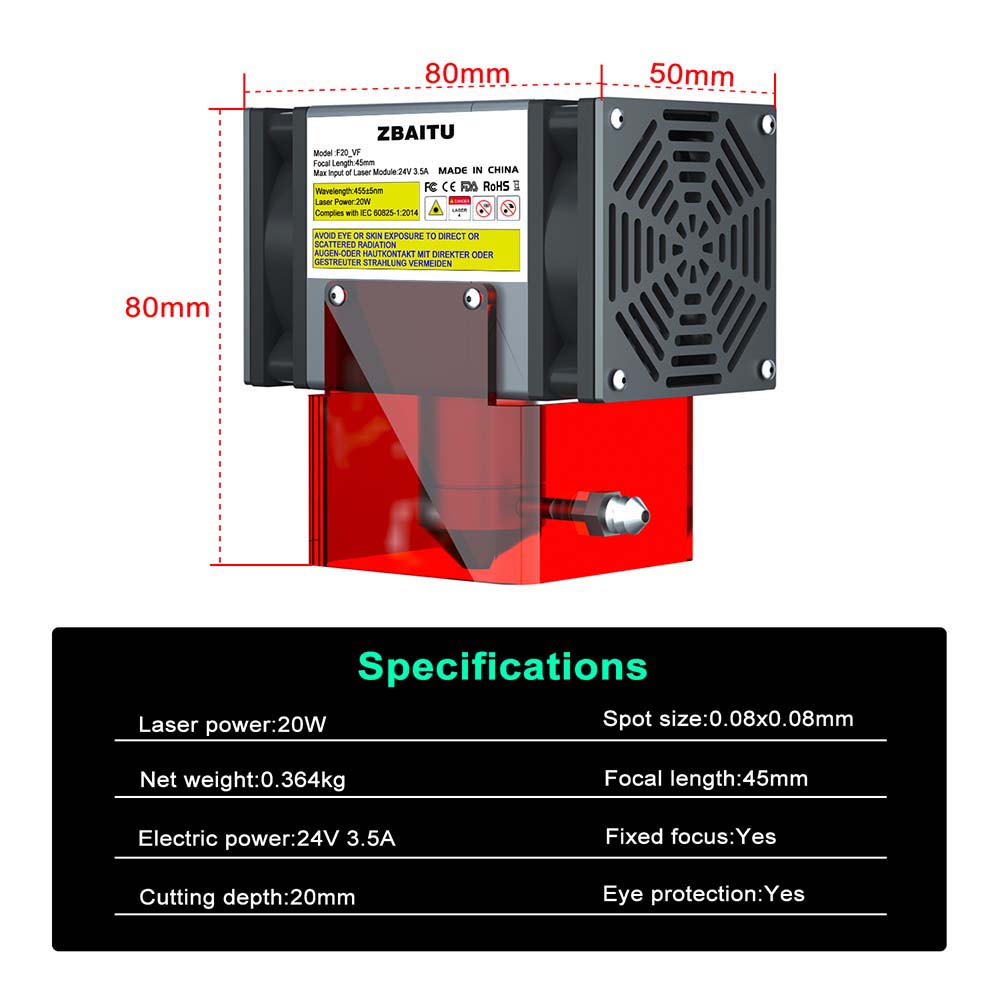

Specifications

General
Brand ZBAITU
Type Laser Module
Model F20-VF
Color Black + Red
Specification
Optical Output Power 20W
Product Material Aluminum 6061 Anode
Circuit Board Size 44x52mm
Circuit Board V/PWM Modulation Board
Wire Rod 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens φ6/glass
Fan 24V
Laser Beam Mode Spot
Working Mode Pulse Work
Light Spot Size 0.08x0.08mm
Wavelength 445±5nm
Engraving Accuracy 0.01mm
Working Time 10000H
Working Temperature 0 - 70 Celsius
Storage Temperature -40 - 85 Celsius
Sintering Temperature 2000 - 2400 Celsius
Weight & Size
Product Weight 358g
Package Weight 800g
Product Size(L x W x H) 8x5x5cm
Package Size(L x W x H) 18x15x7cm
Package Contents
1 x 20W Laser Module Kit
1 x User Manual
