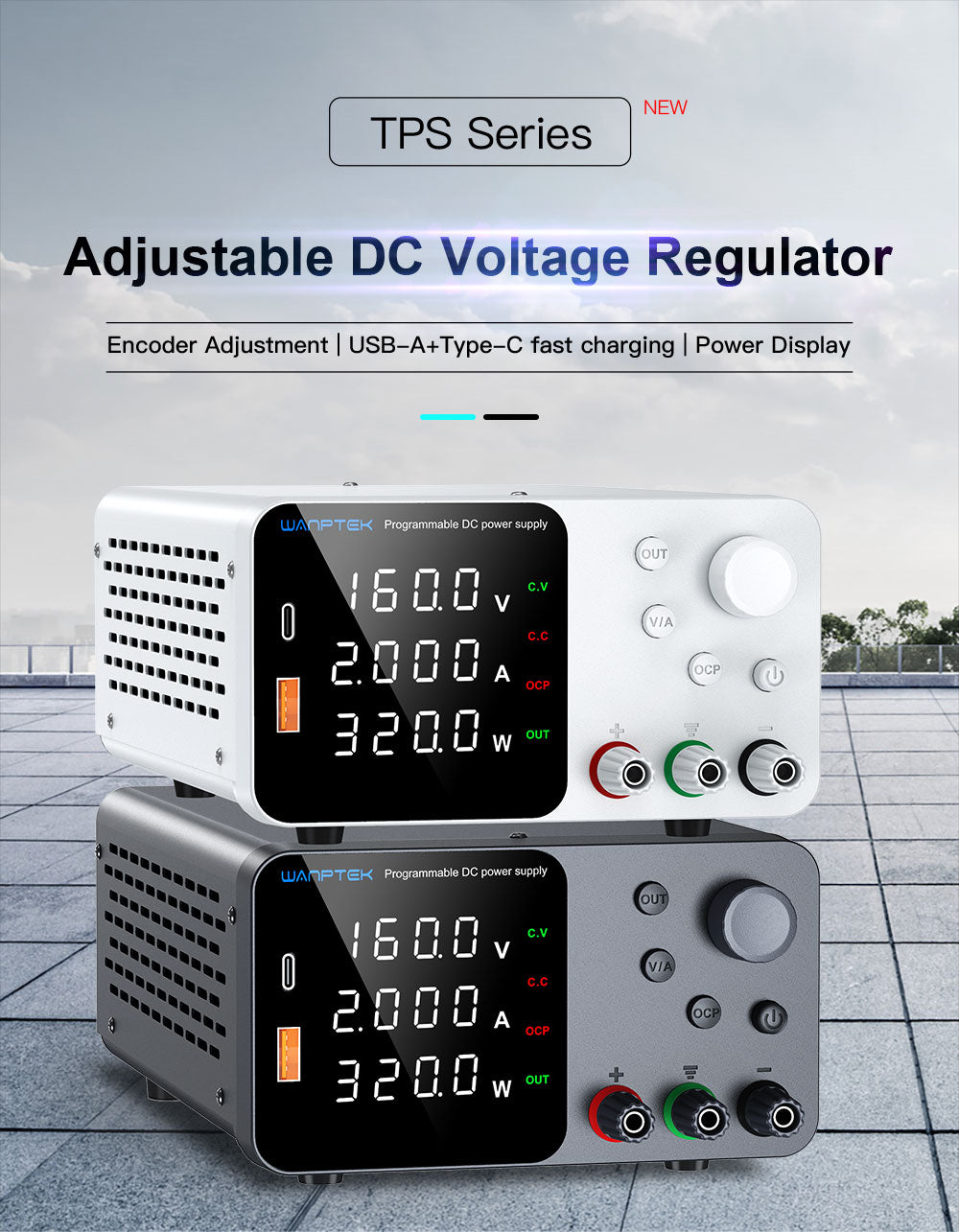

WANPTEK TPS1602 DC Power Supply

WANPTEK TPS1602 highlights

Powerful DC Power Supply

WANPTEK TPS1602 is a DC-regulated power supply with a three-window four-digit display, which can display voltage, current, and power at the same time. They are widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use.

USB-A/Type-C Fast Charge

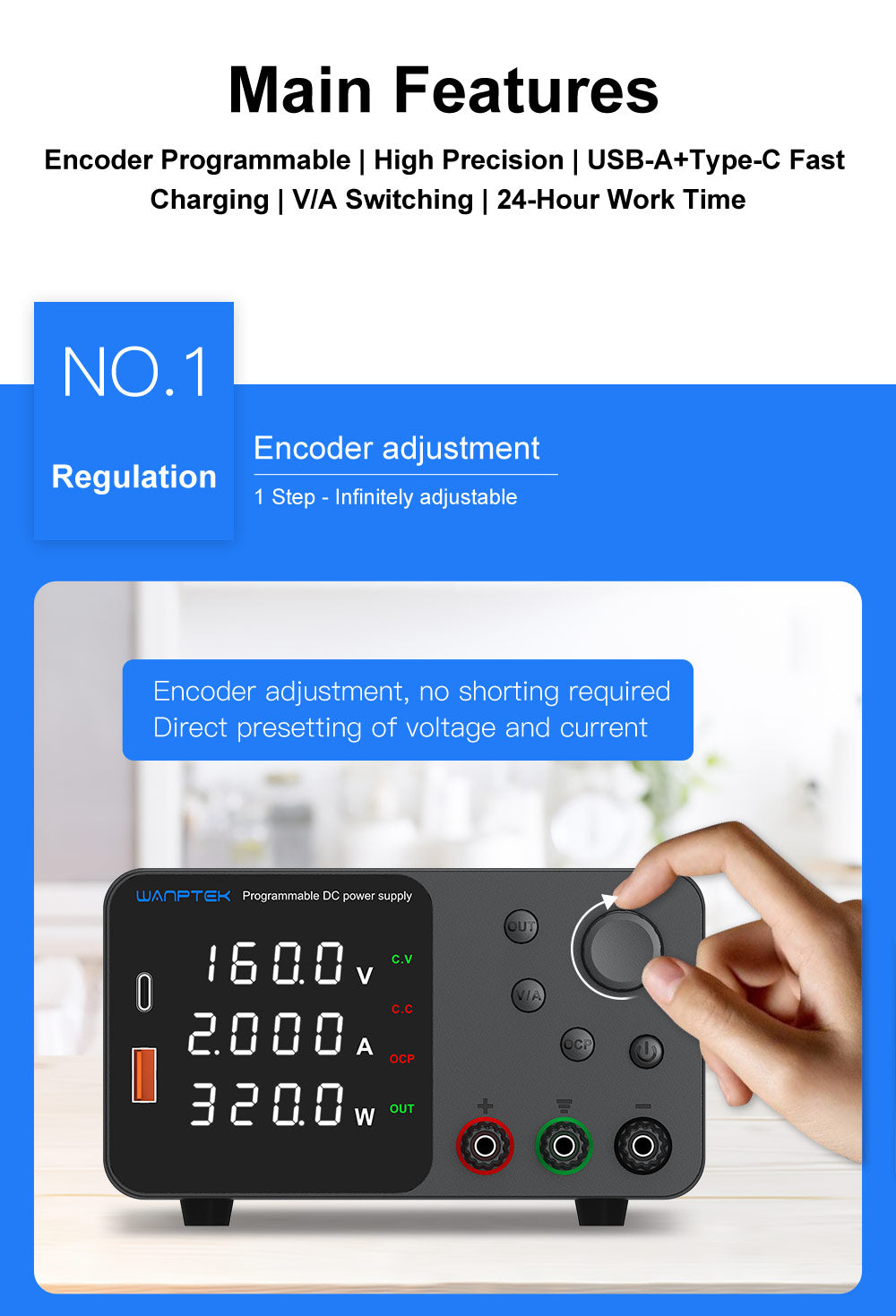

The output voltage and output current can be continuously adjusted between 0 and the nominal value by using the coding potentiometer, and the set value can be displayed in advance, which is convenient for use and adjustment. This machine has a USB-A/Type-C fast charging function and supports multiple fast charging protocols.

Safe and Easy to Use

It has perfect OCP short circuit protection and short circuit alarm stop output function. Temperature-controlled fan can dissipate heat. Low noise, long service life, small in size, and easy to operate.

General
Brand	WANPTEK
Type	DC Power Supply
Model	TPS1602
Color	White
Specification
Output Power: 320W
Output Voltage: 0 - 160V
Output Current: 0 - 2A
Auxiliary functions: USB-A/Type-C fast charging, support various fast charging protocols
Input voltage: AC230V ± 10% 50HZ
Working TEMP: 0 - 40 Celsius; Humidity: <80% RH
Storage TEMP: -10 - 70 Celsius; Humidity: <70% RH
C.V:
Voltage stability: 0.1% ± 3mV
Load stability: 0.2% ± 3mV
Ripple voltage: ≤ 0.5% Vp-p
C.C:
Current stability: 0.1% ± 3mA
Load stability: 0.2% ± 3mA
Ripple current: ≤0.5% Vp-p
Temperature Coefficient: ≤100ppm/℃

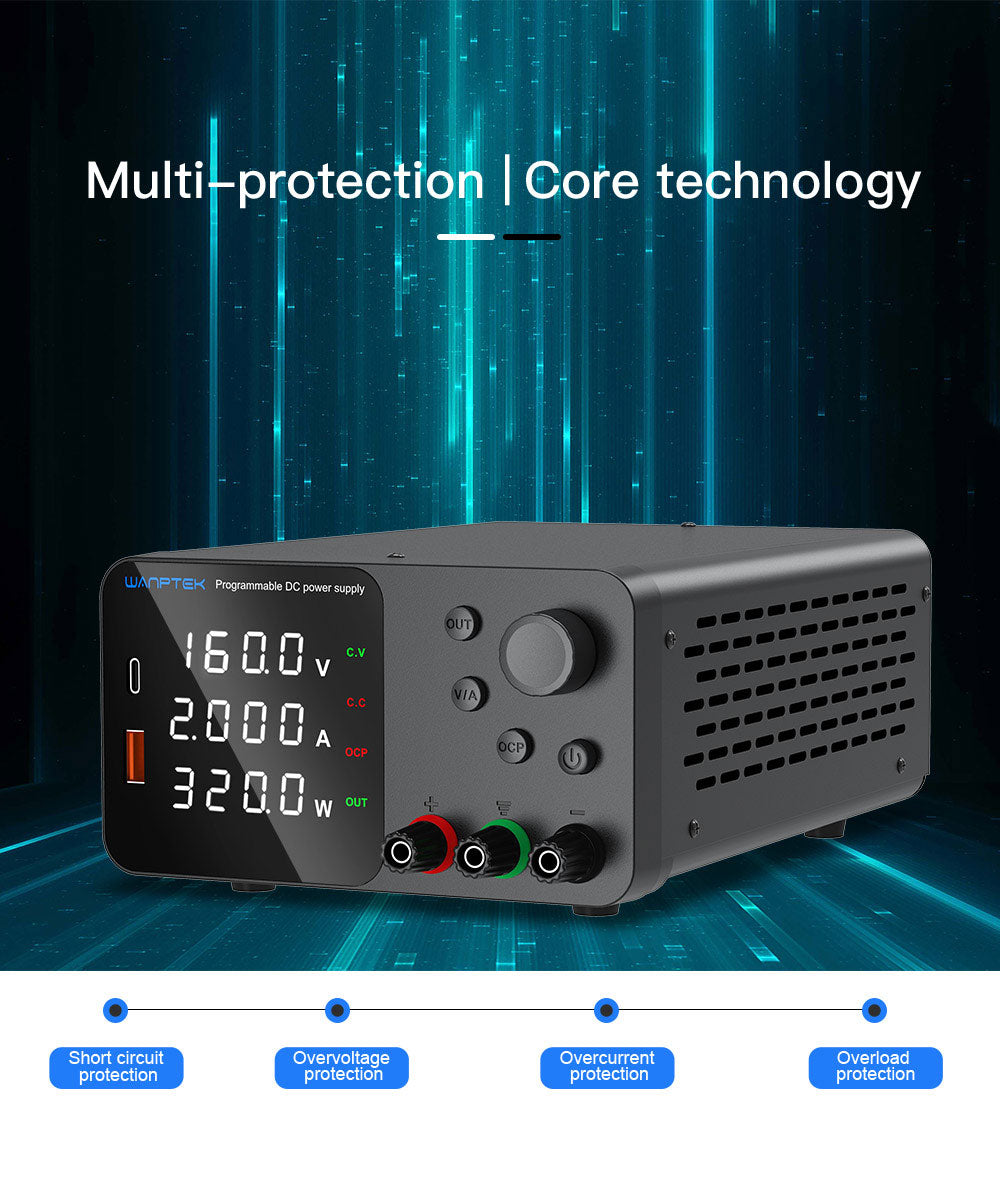

Protection mode: Current limiting protection/short circuit alarm stop output, self-recovery

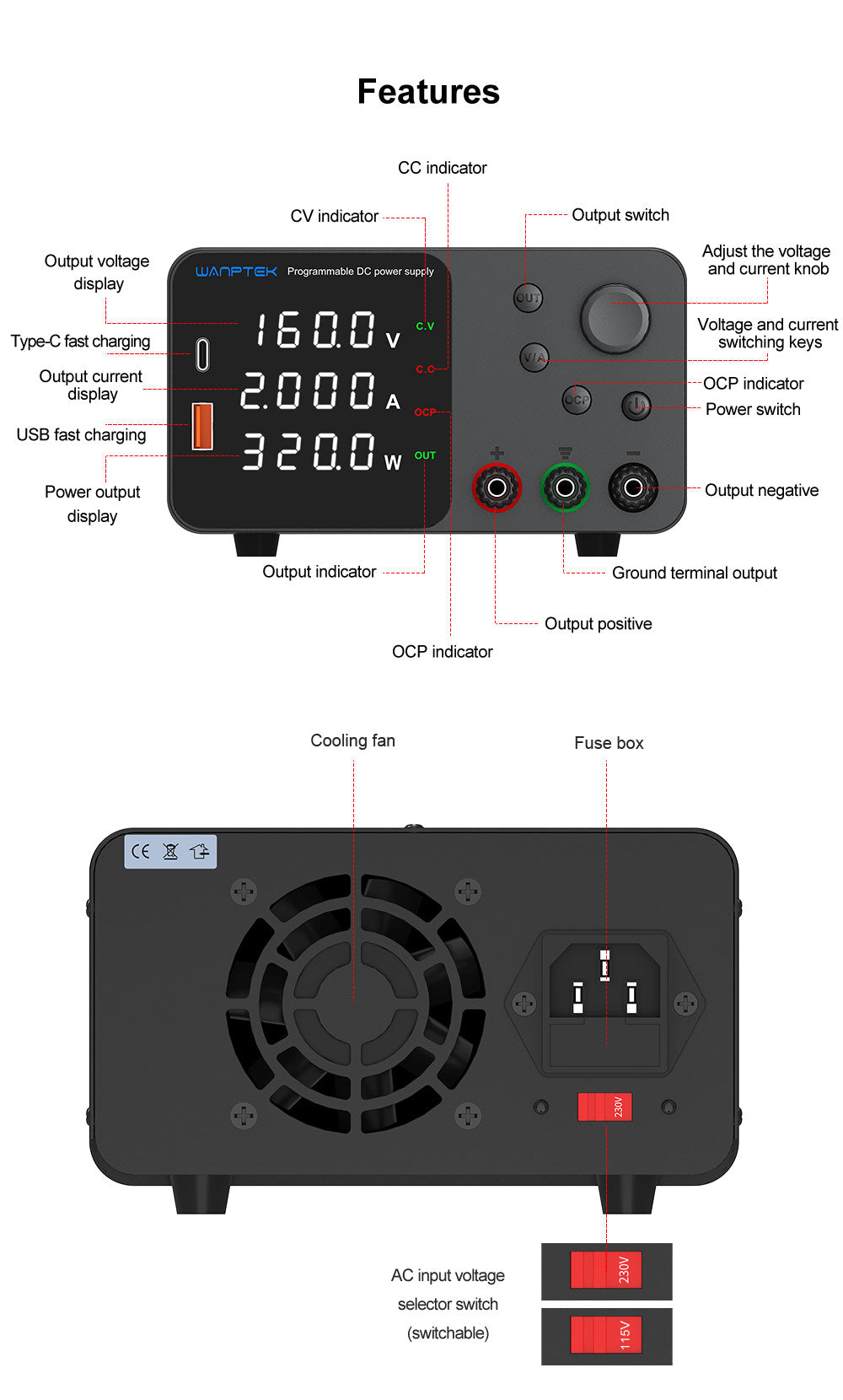

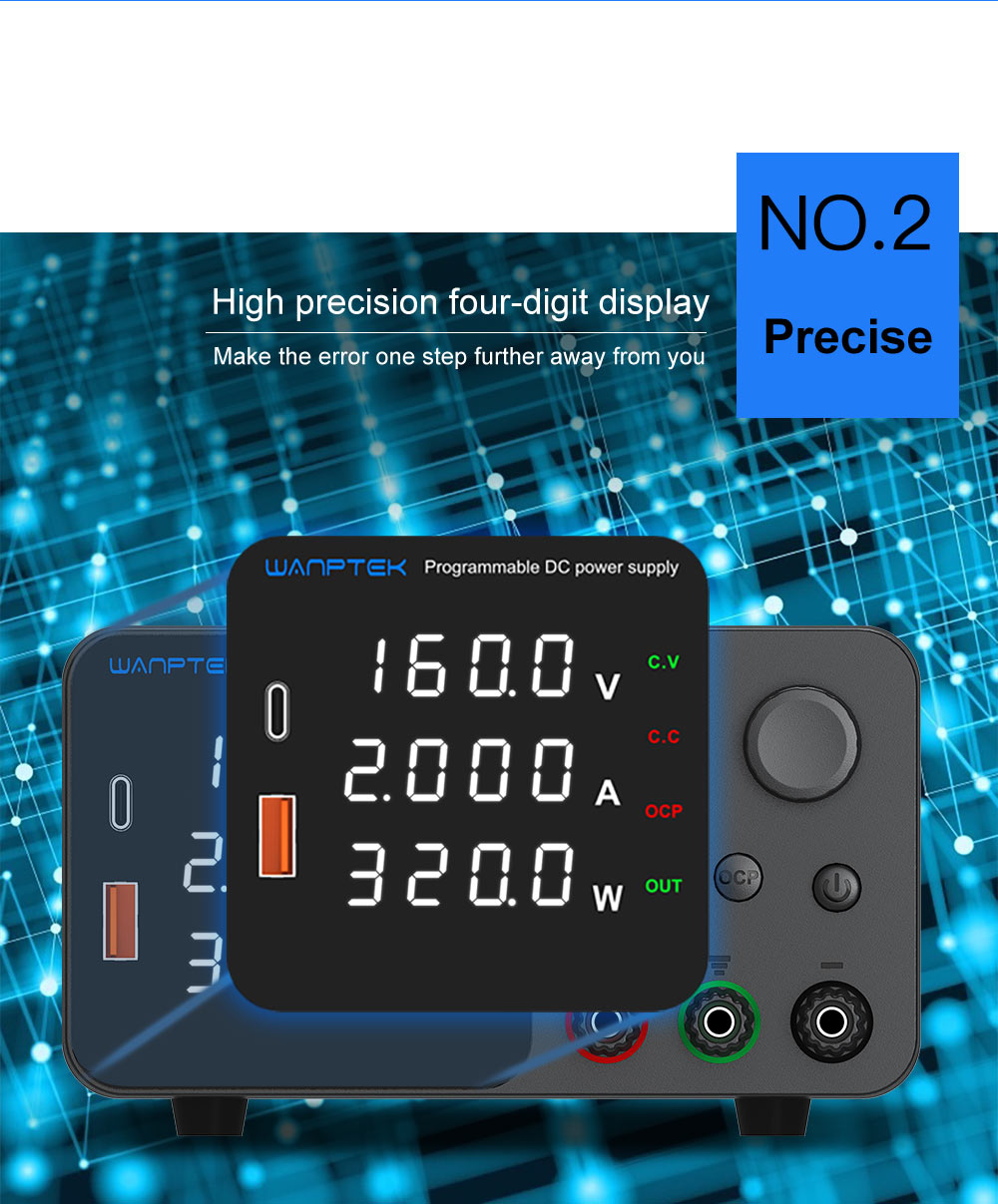

Display: Four-digit digital tube, three-window display
Accuracy: 0.5% ± digit
Resolution: Voltage: 0.01V; current: 0.001A
Weight & Size
Product Weight	1.2kg
Package Weight	1.6kg

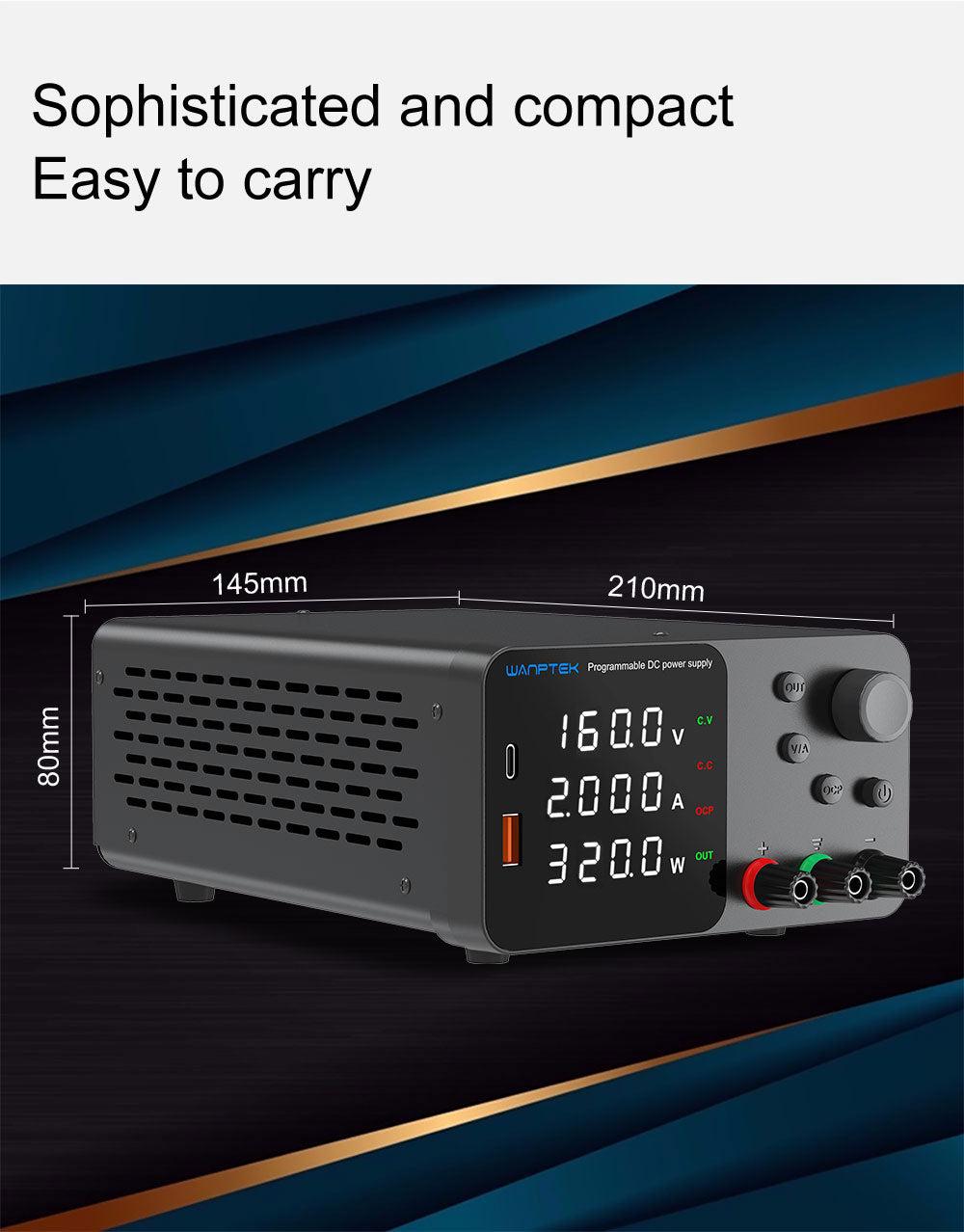

Product Size(L x W x H)	21x14.5x8cm
Package Size(L x W x H)	30x19.5x13.5cm

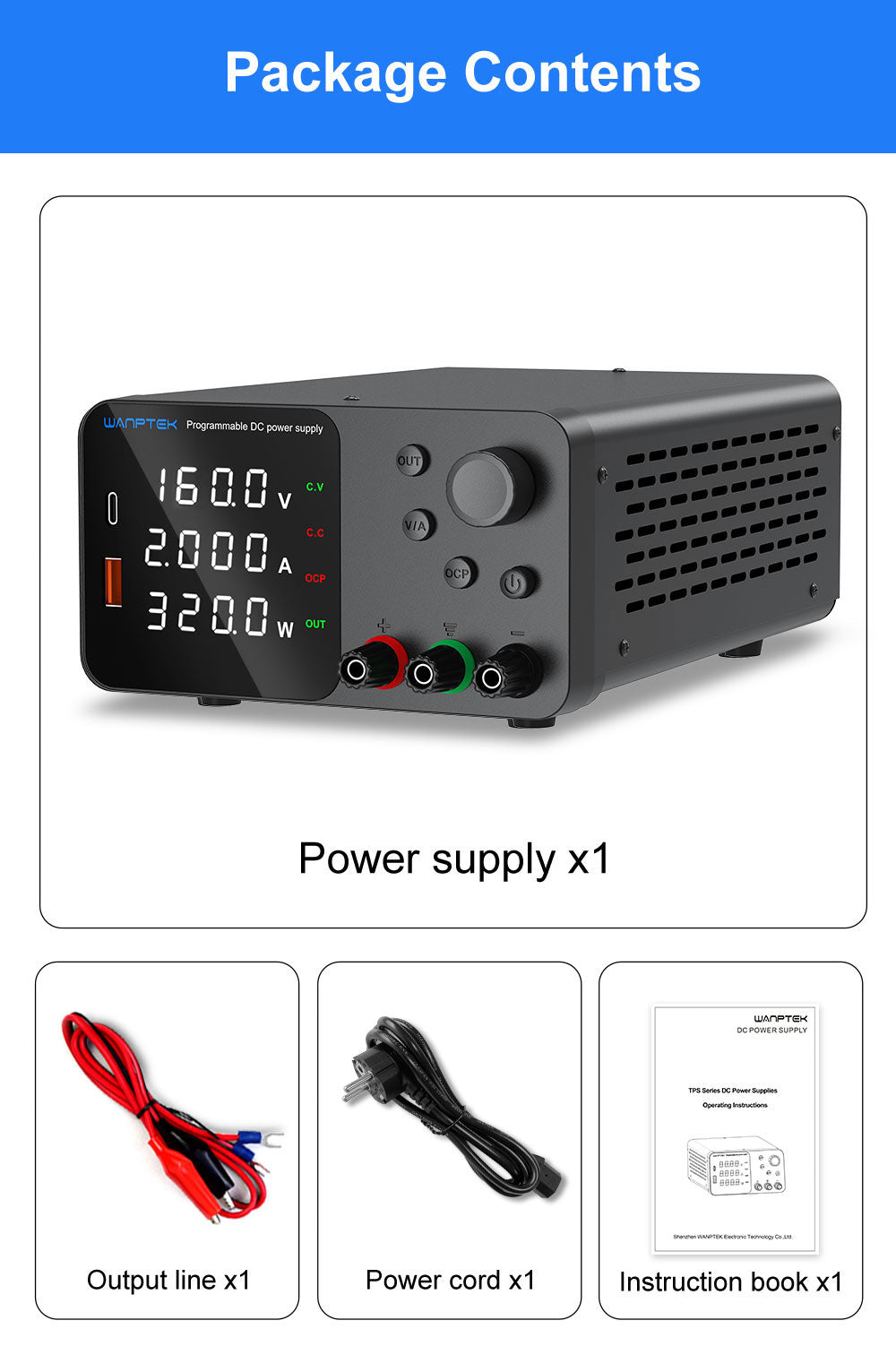

Package Contents
1 x DC Power Supply
1 x Output Line
1 x Power Cord
1 x User Manual
