WANPTEK DPS3010U DC Power Supply

WANPTEK DPS3010U highlights

High Precision DC Regulated Power Supply

The DPS series product is a high-precision switch type DC regulated power supply with 3 windows and 4 positions display, which can simultaneously display voltage, current, and power. It is widely used for mobile phone repair, computer repair, school and production line use

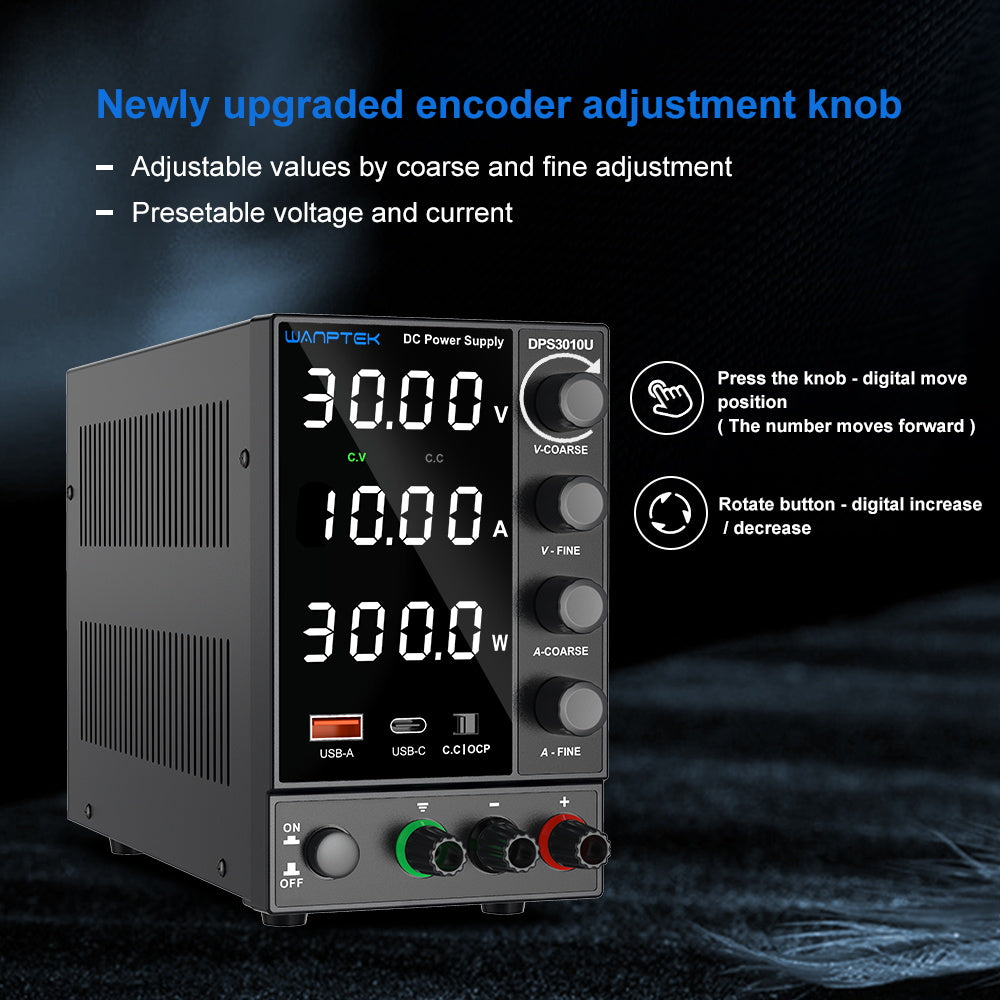

Encoder Adjustment, Safe Protection

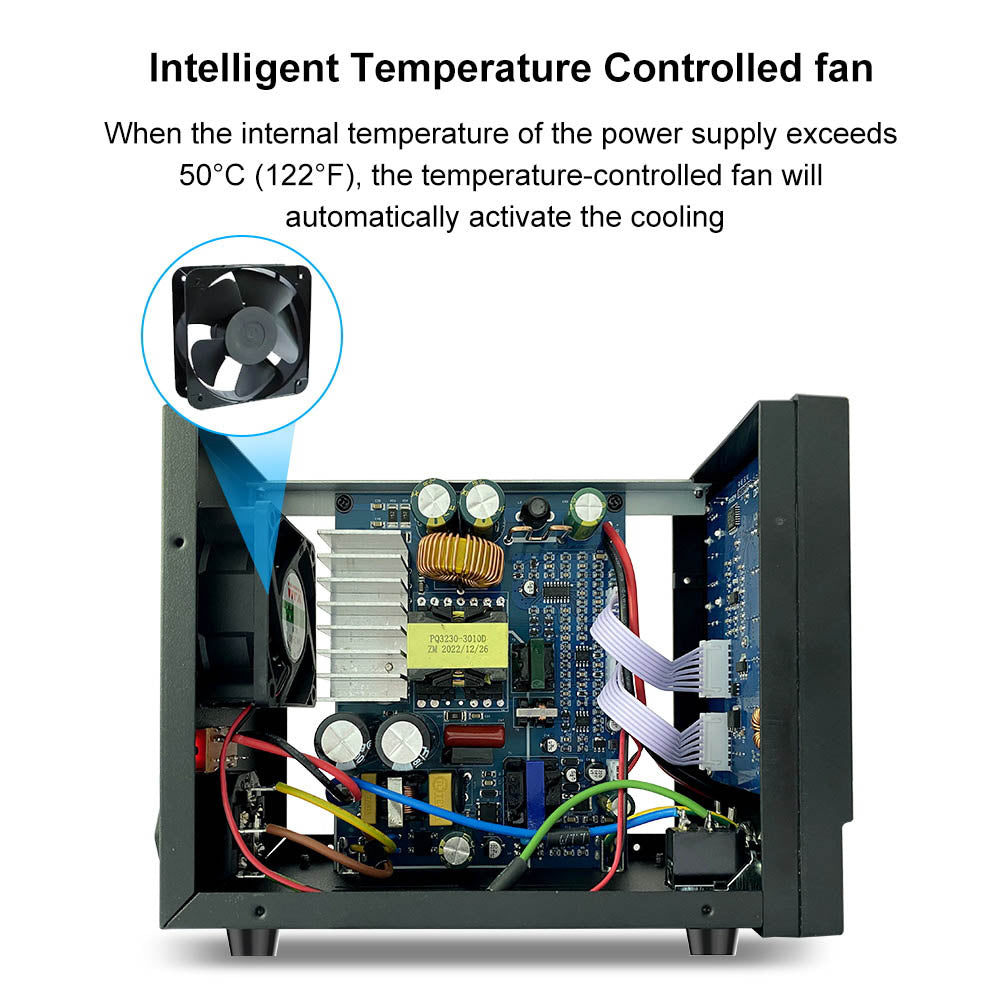

Its output voltage and output current can be continuously adjustable using an encoder. The stability and ripple coefficient of the power supply are very good, and the machine has a perfect OCP short-circuit protection circuit. Temperature-controlled fan for heat dissipation, low noise, and long service life.

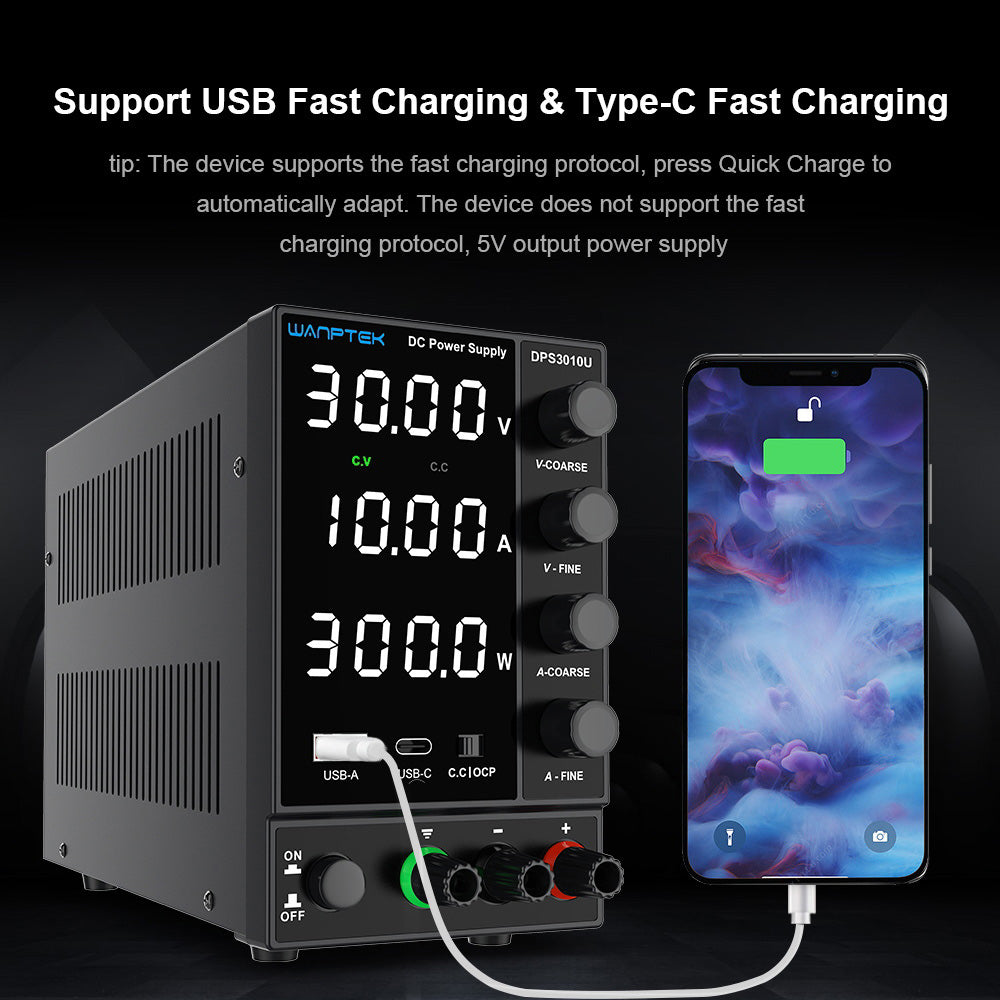

USB-A/Type-C Fast Charging

The auxiliary function includes USB-A/Type-C fast charging function. Its small size, beautiful design, convenient operation, and ability to work at full load for long periods are deeply loved by users.

General
Brand	WANPTEK
Type	DC Power Supply
Model	DPS3010U
Color	Black
Specification
Output Power: 300W
Output Voltage: 0 - 30V
Output Current: 0 - 10A
Auxiliary functions: USB-A/Type-C fast charging, supporting various fast charging protocols
Protection mode: Current limiting protection / short circuit alarm stop output, self-recovery

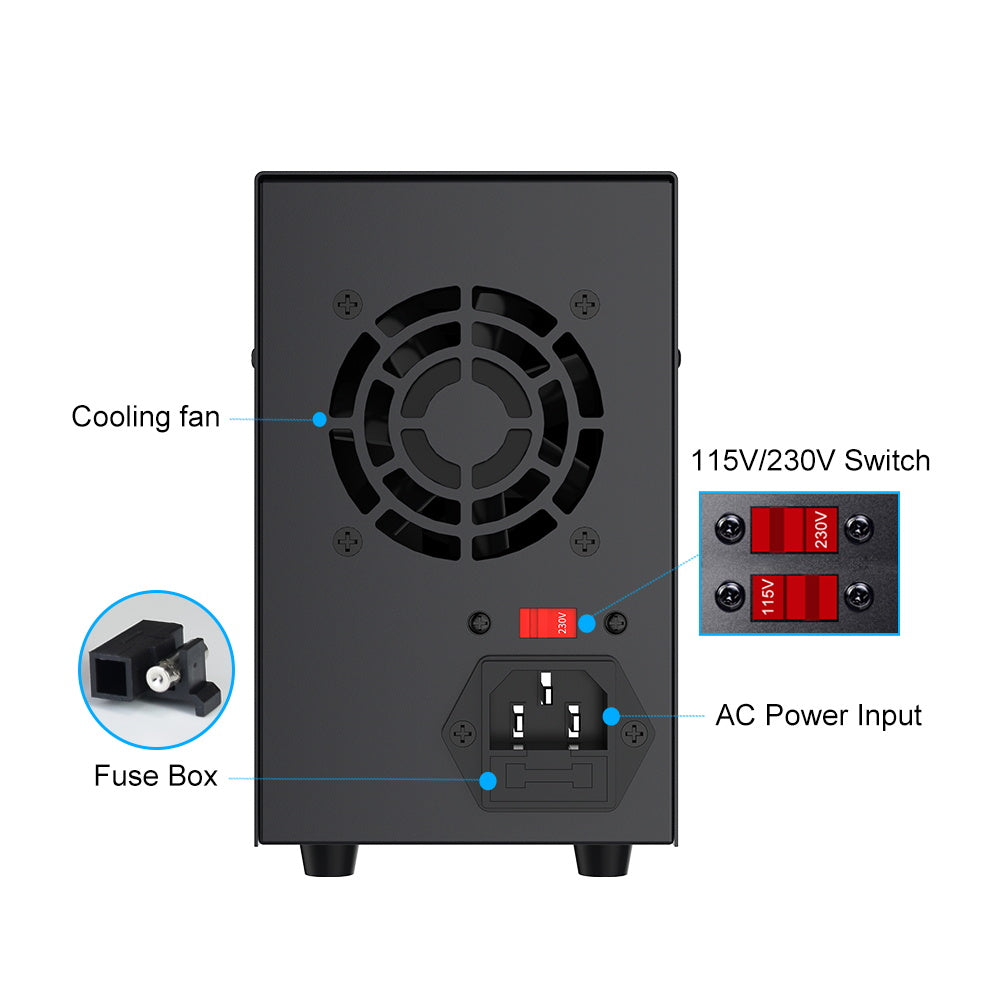

Input voltage: AC230V ± 10% 50Hz
Working TEMP: 0 - 40 Celsius; Humidity: <80% RH
Storage TEMP: -10 - 70 Celsius; Humidity: <70% RH
C.V:
Voltage stability: 0.1%±3mV
Load stability: 0.2%±3mV
Ripple voltage: ≤ 0.5% Vp-p
C.C:
Current stability: 0.1%±3mA
Load stability: 0.2%±3mA
Ripple current: ≤ 0.5% Vp-p
Recovery time: ≤500μS
Temperature coefficient: ≤100ppm/℃

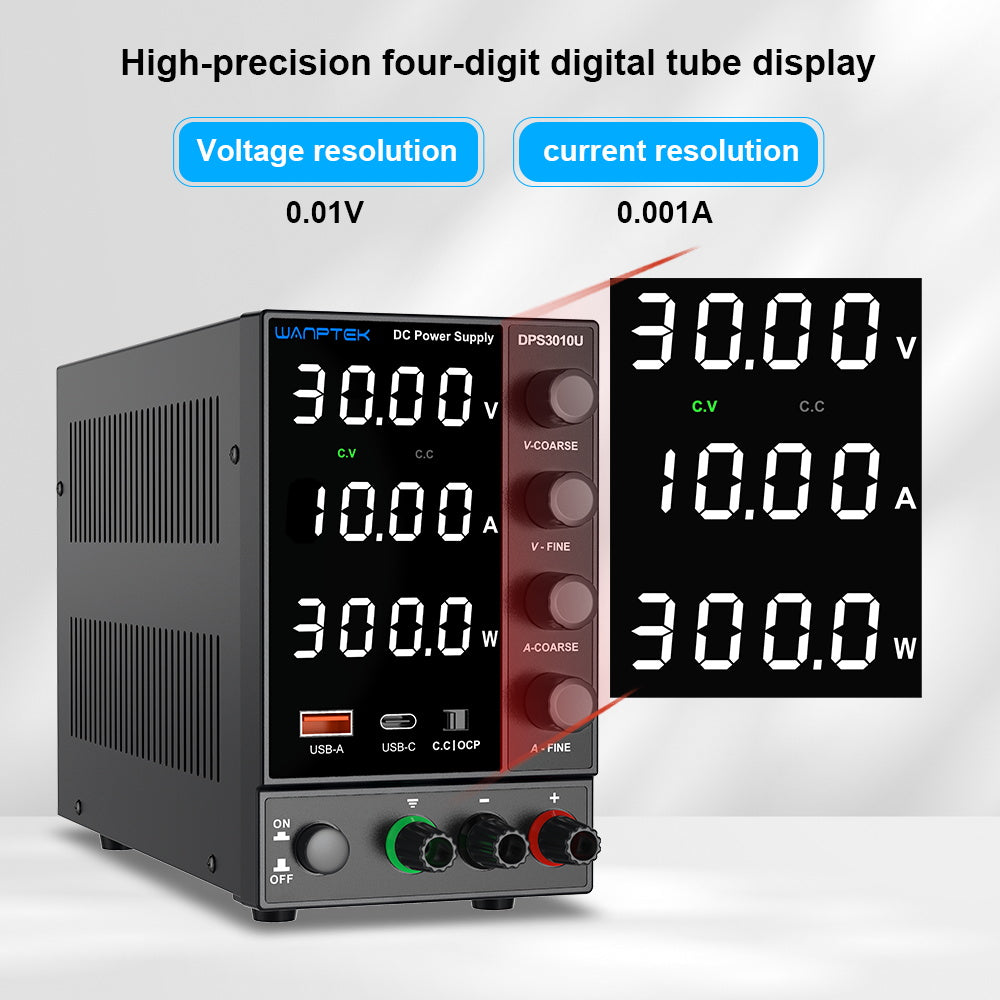

Display: 0.56 inch white light 4-digit digital tube display
Accuracy: 0.5% ± digit
Resolution: Voltage: 0.01V; current: 0.001A

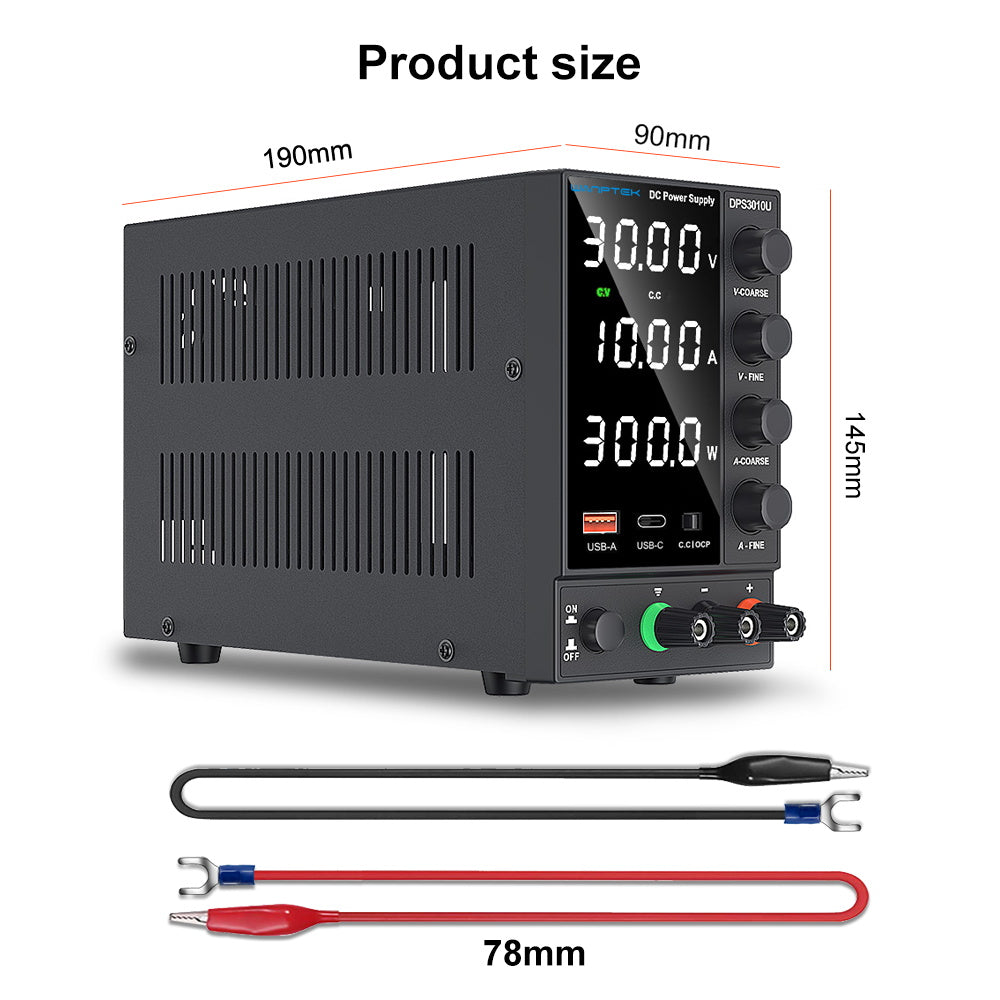

Weight & Size
Product Weight	1.2kg
Package Weight	1.6kg
Product Size(L x W x H)	190x90x145mm
Package Size(L x W x H)	265x135x195mm

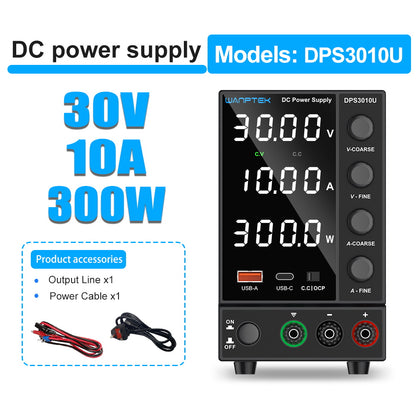

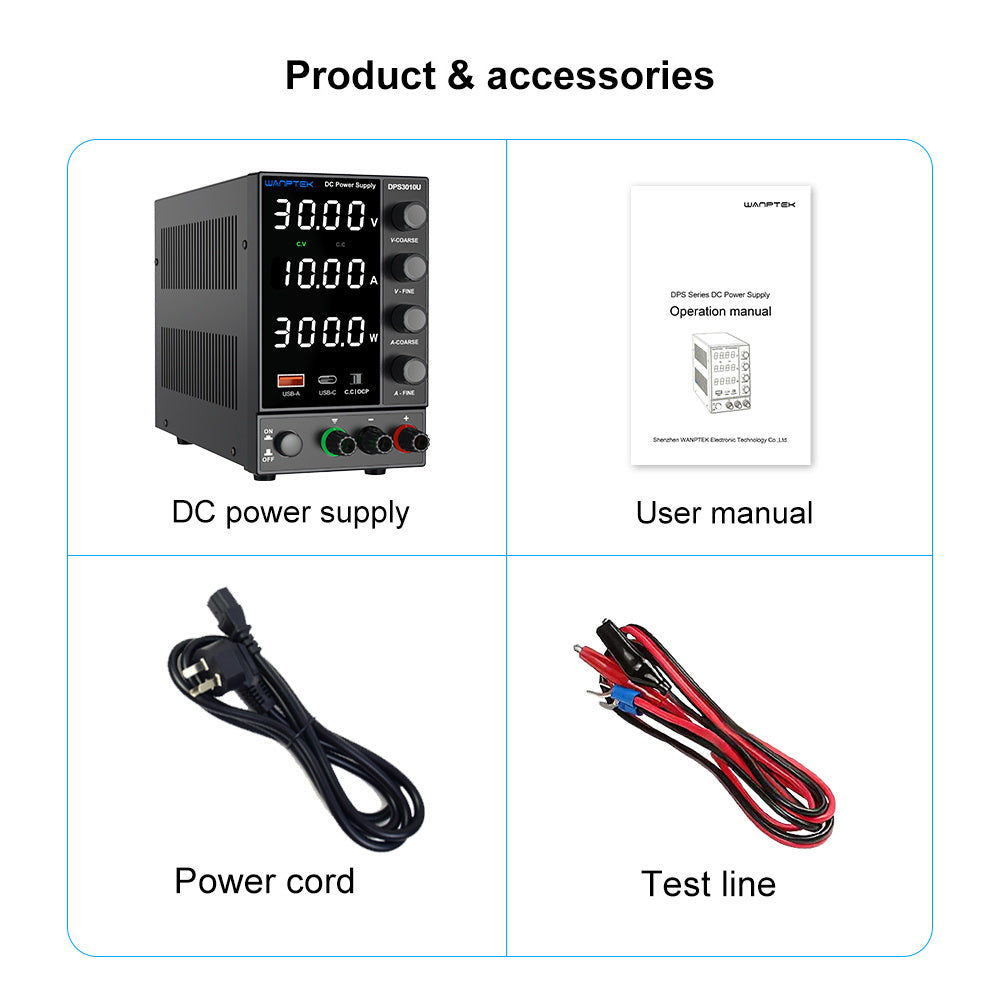

Package Contents
1 x DC Power Supply
1 x Power Cord
1 x Test Line
1 x User Manual
