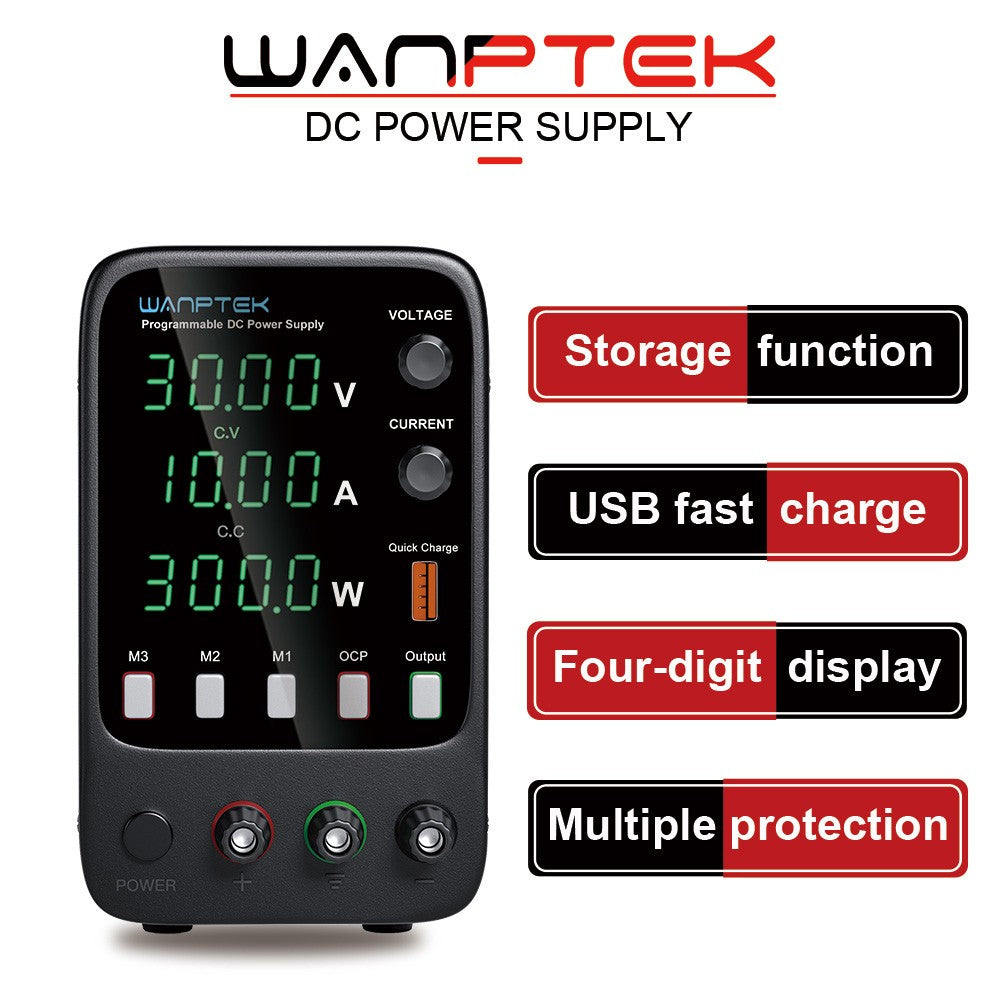

WANPTEK APS3010H highlights

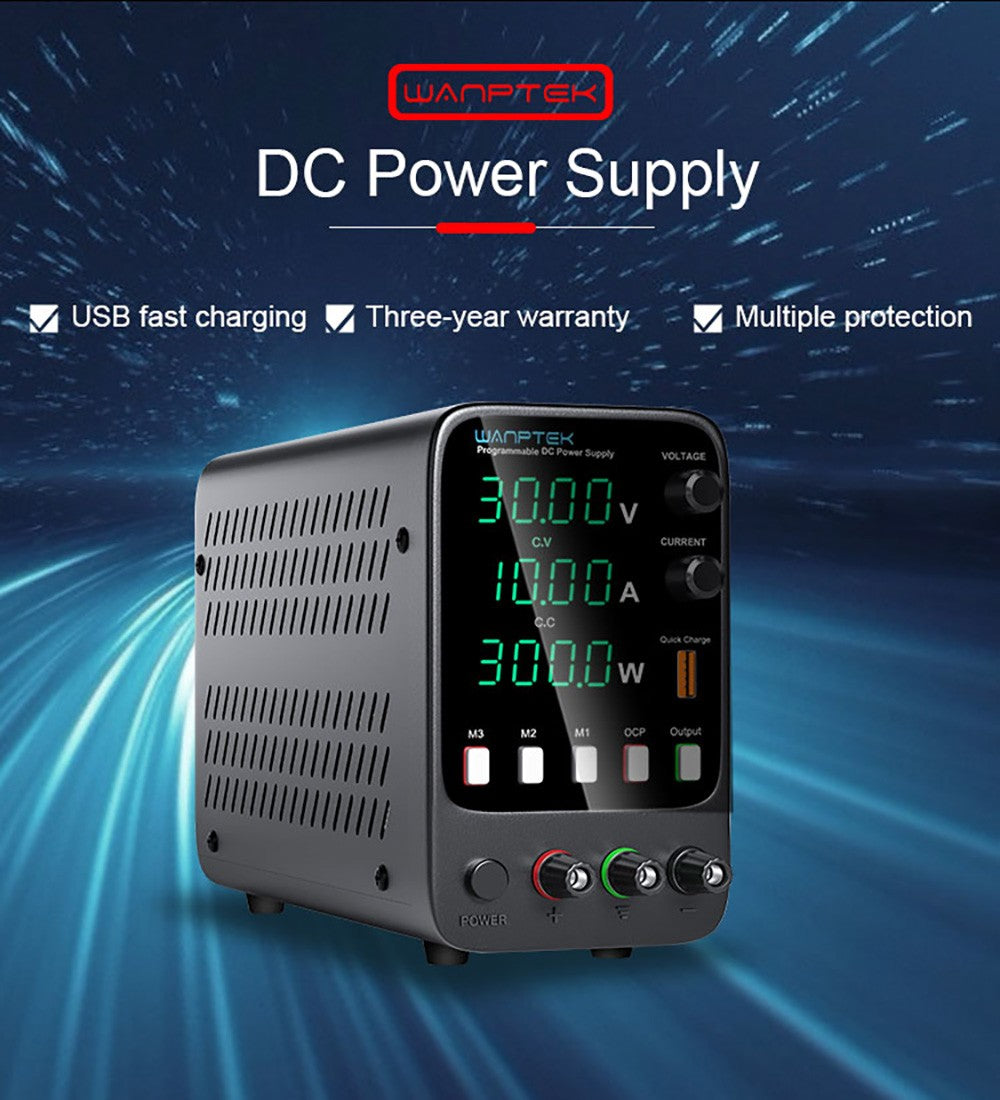

Powerful DC Power Supply

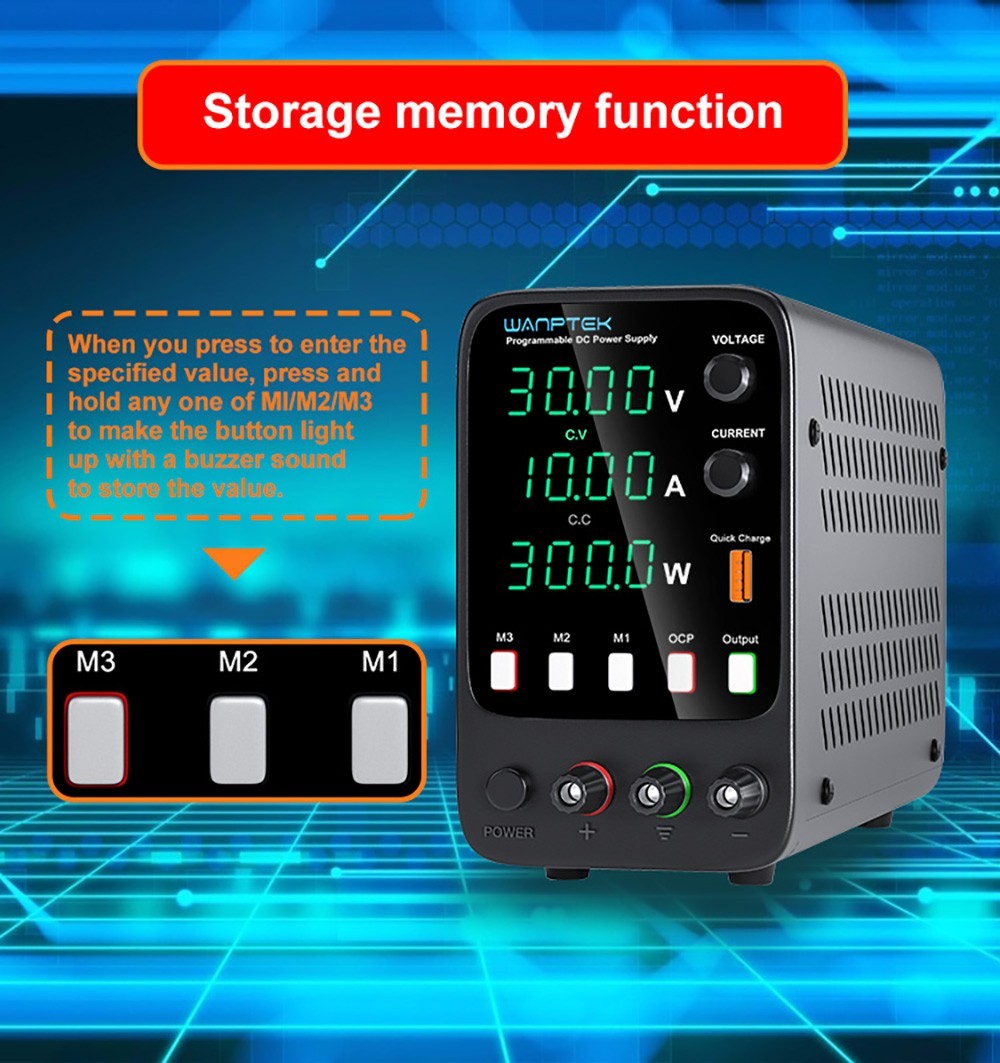

Wanptek APS3010H is a three-window four-digit display, with data storage, and program-controlled switch DC-regulated power supply, which can display voltage, current, and power at the same time. They are widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use.

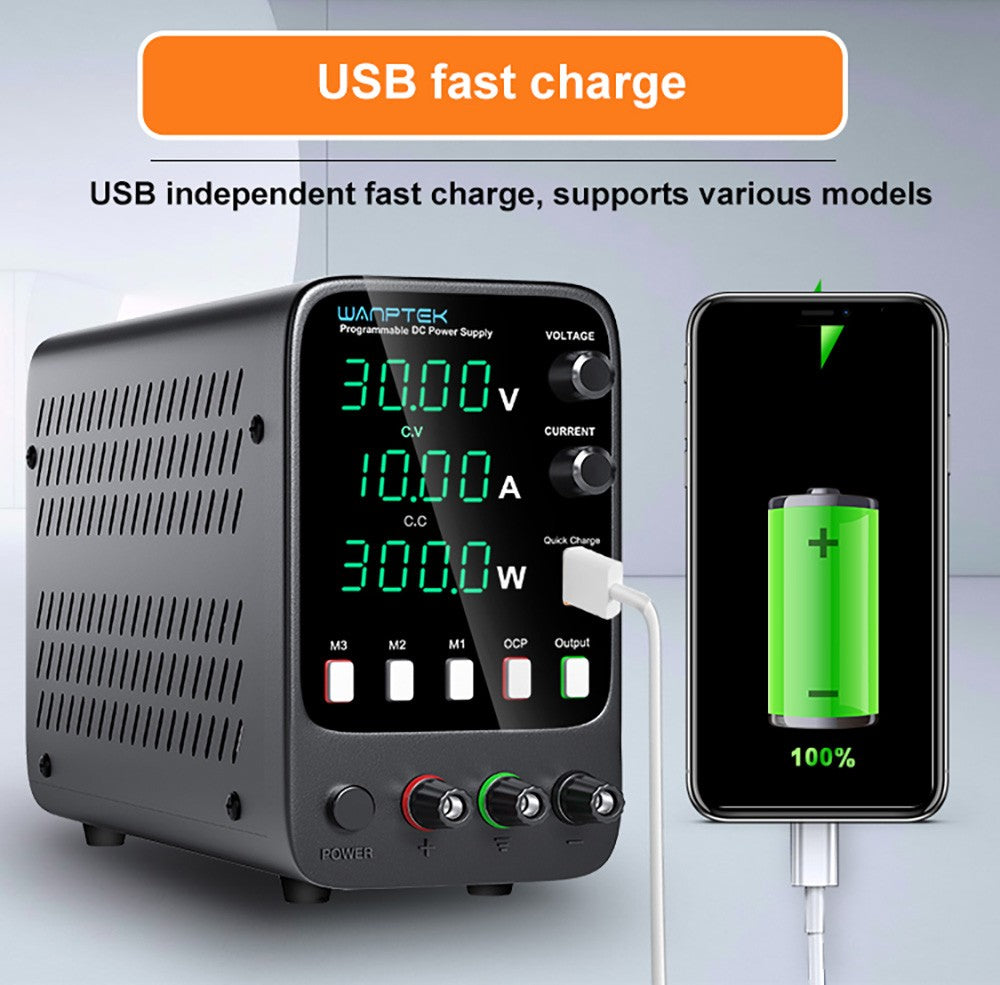

USB Fast Charge

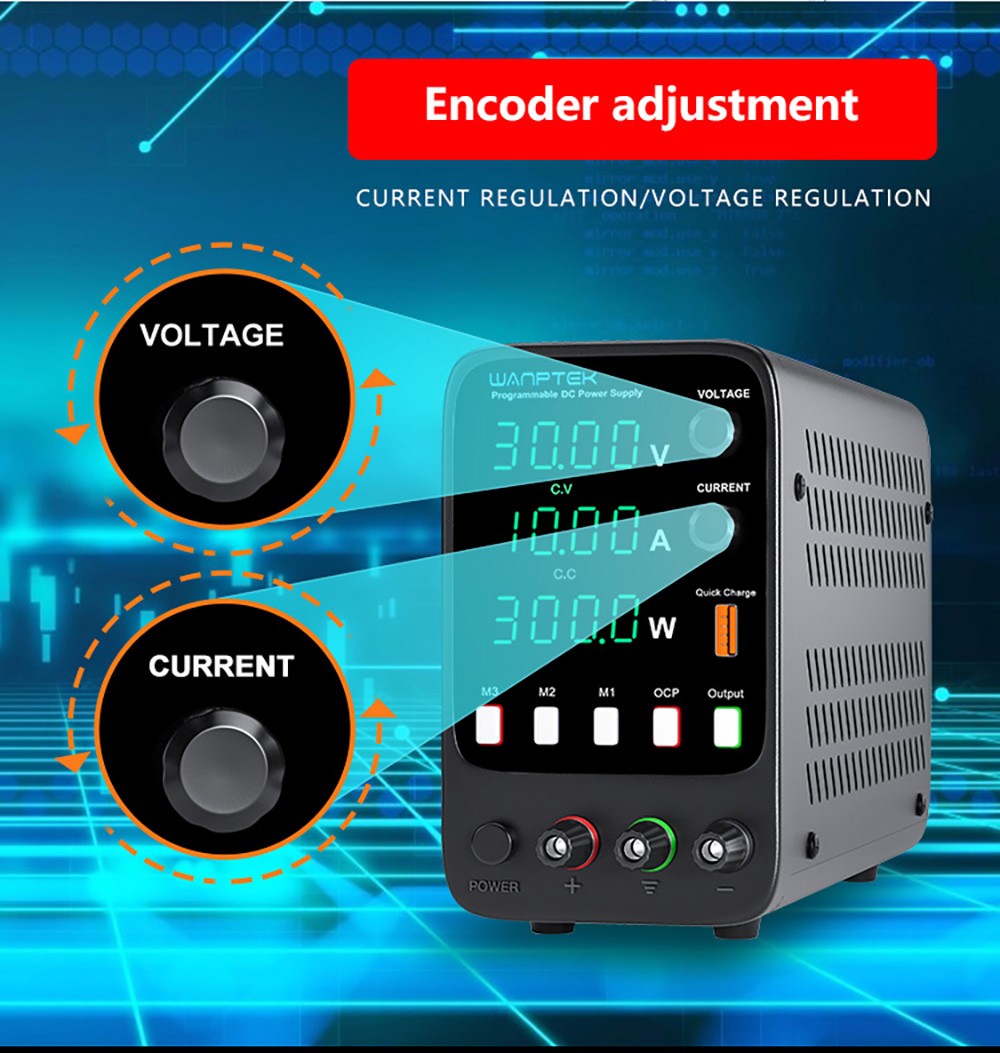

The output voltage and output current can be continuously adjusted between 0 and the nominal value by using the coding potentiometer, and the set value can be displayed in advance, which is convenient for use and adjustment. This machine has a USB fast charging function and supports multiple fast charging protocols.
Safe and Easy to Use
With perfect OVP and OCP short-circuit protection circuits, this product also provides a host computer communication function (optional), which is convenient for users to remotely control PC computers and other main control devices through USB data lines. The stability and ripple factor of the power supply are very good. It is small in size, beautiful in design, and easy to operate.
Specifications
Specifications
| General | |
|---|---|
| Brand | WANPTEK |
| Type | DC Power Supply |
| Model | APS3010H |
| Color | Black |
| Specification | |
| Output Voltage: 0-30V | |
| Output Current: 0-10A | |

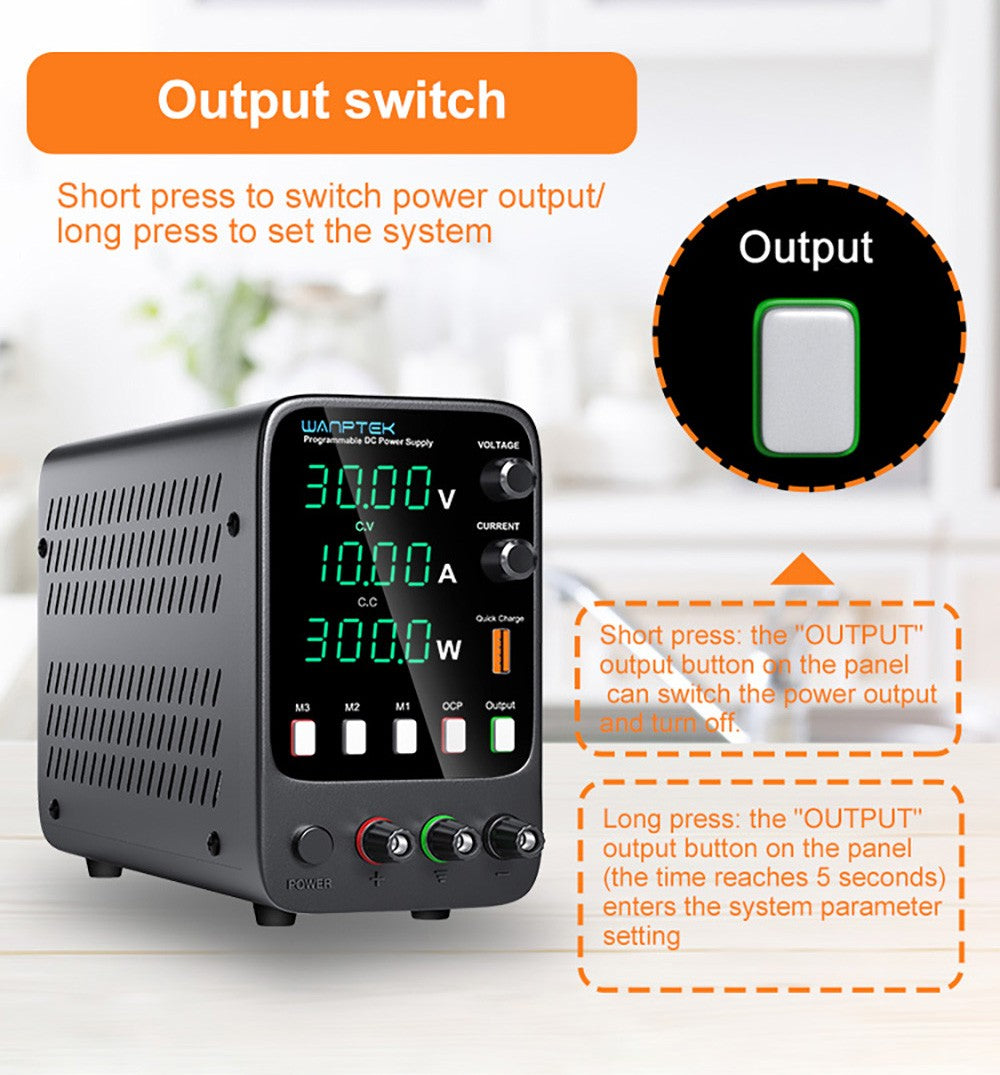

| Auxiliary functions: USB fast charging, output on and off, data storage, USB host communication (optional) | |

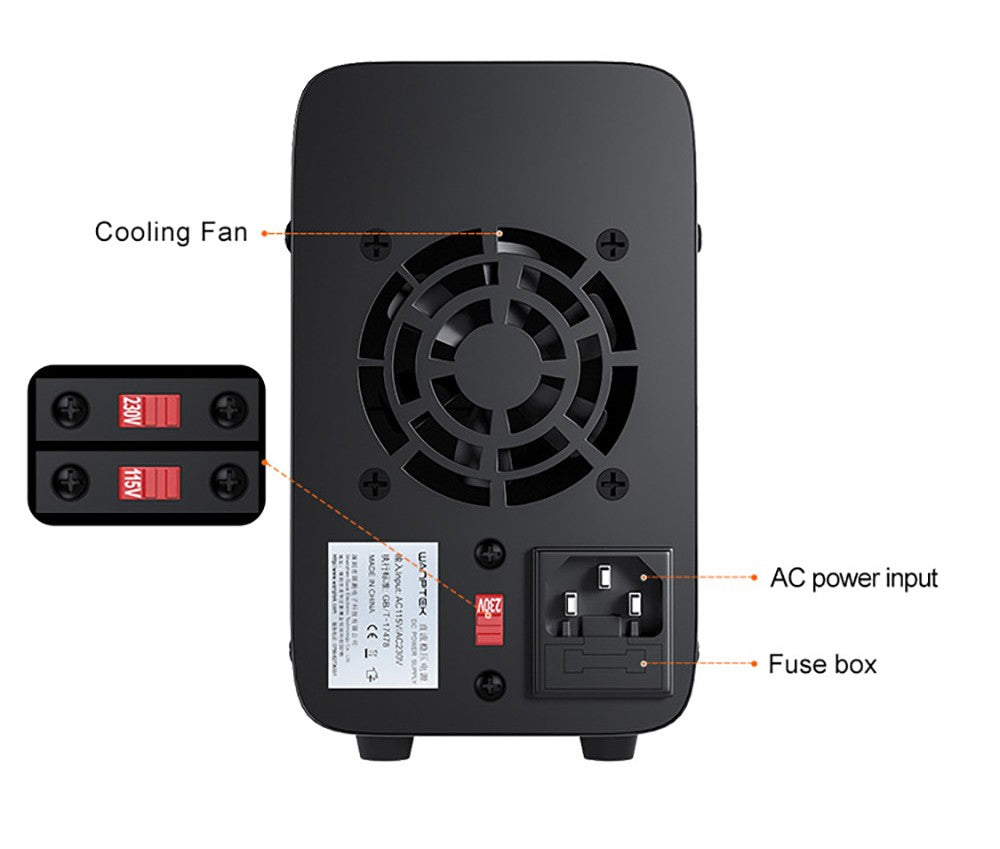

| Input voltage: AC 115V ± 10% 60 HZ | |
| Working TEMP: 0 - 40 Celsius; Humidity: <80% RH | |
| Storage TEMP: 10 - 70 Celsius; Humidity: <70% RH | |
| C.V: | |
| Voltage stability: ≤0.5% ±3mV | |
| Load stability: ≤0.5% ±3m | |
| Ripple voltage: ≤ 0.5% Vp-p | |
| C.C: | |
| Current stability: ≤0.5% ±3MA | |
| Load stability: ≤0.5% ±3MA | |
| Ripple current: ≤ 0.5% Vp-p | |
| Temperature Coefficient: ≤100ppm/℃ | |
| Protection mode: OVP overvoltage protection, OCP overcurrent protection, overtemperature protection, short circuit alarm stop output | |

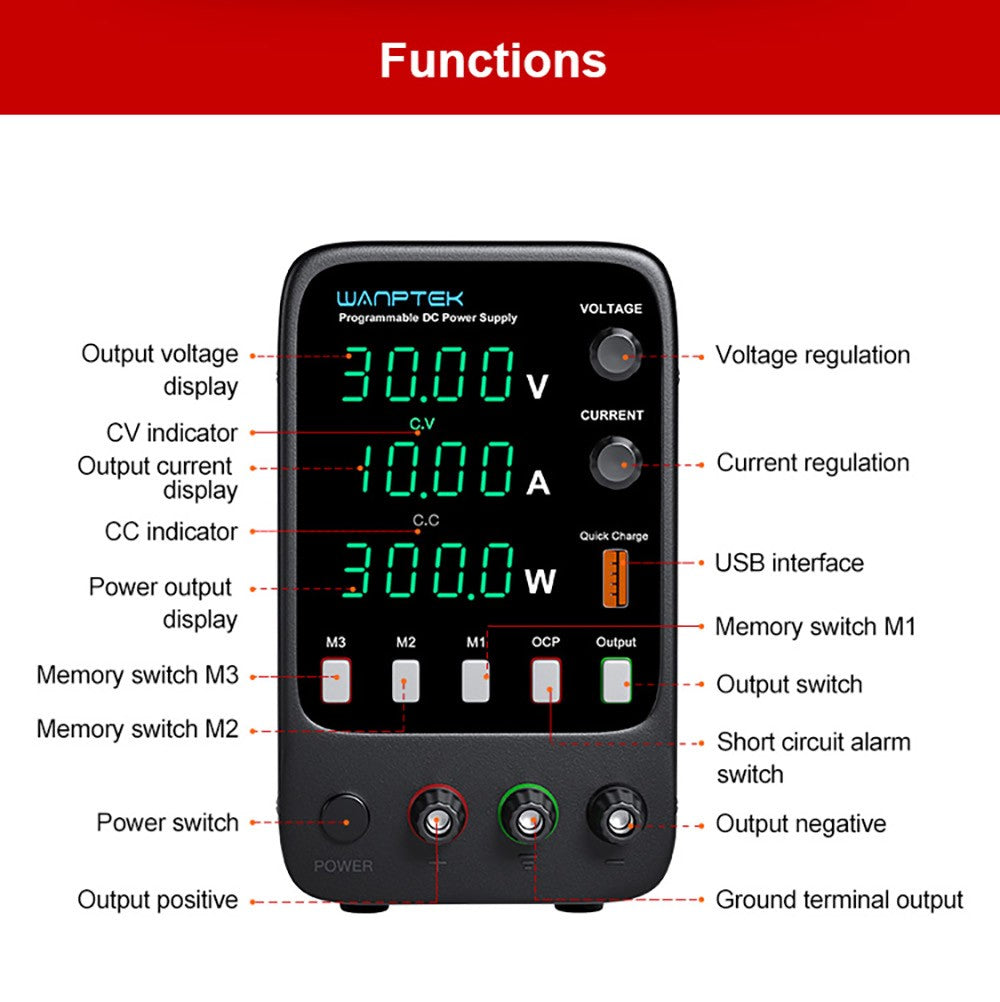

| Display: Four-digit digital tube, three-window display | |
| Accuracy: 0.5% ± digit | |
| Resolution: Voltage: 0.01V; current: 0.001A | |
| Weight & Size | |
| Product Weight | 1.15kg |
| Package Weight | 1.5kg |

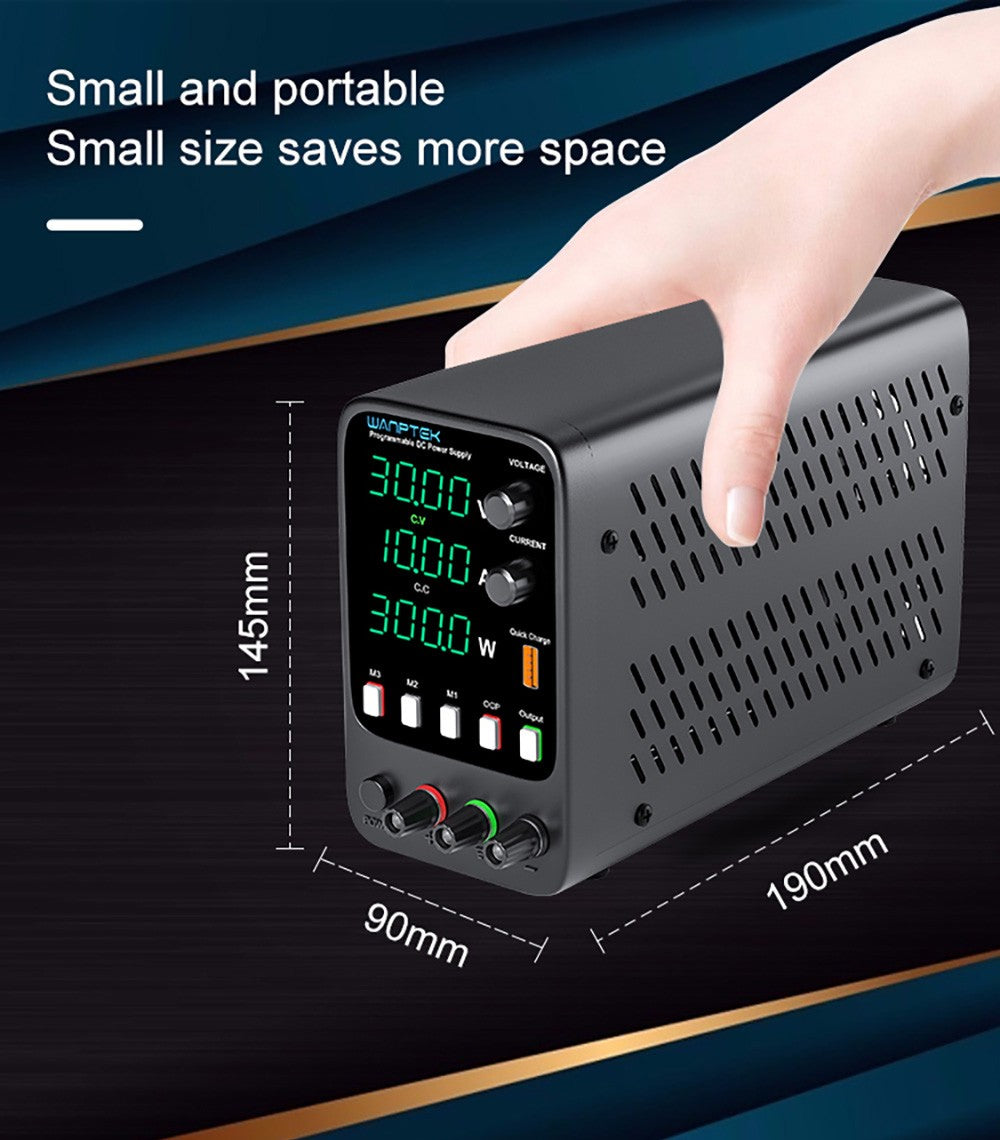

| Product Size(L x W x H) | 19x9x14.5cm |
| Package Size(L x W x H) | 26.5x13.5x19.5cm |

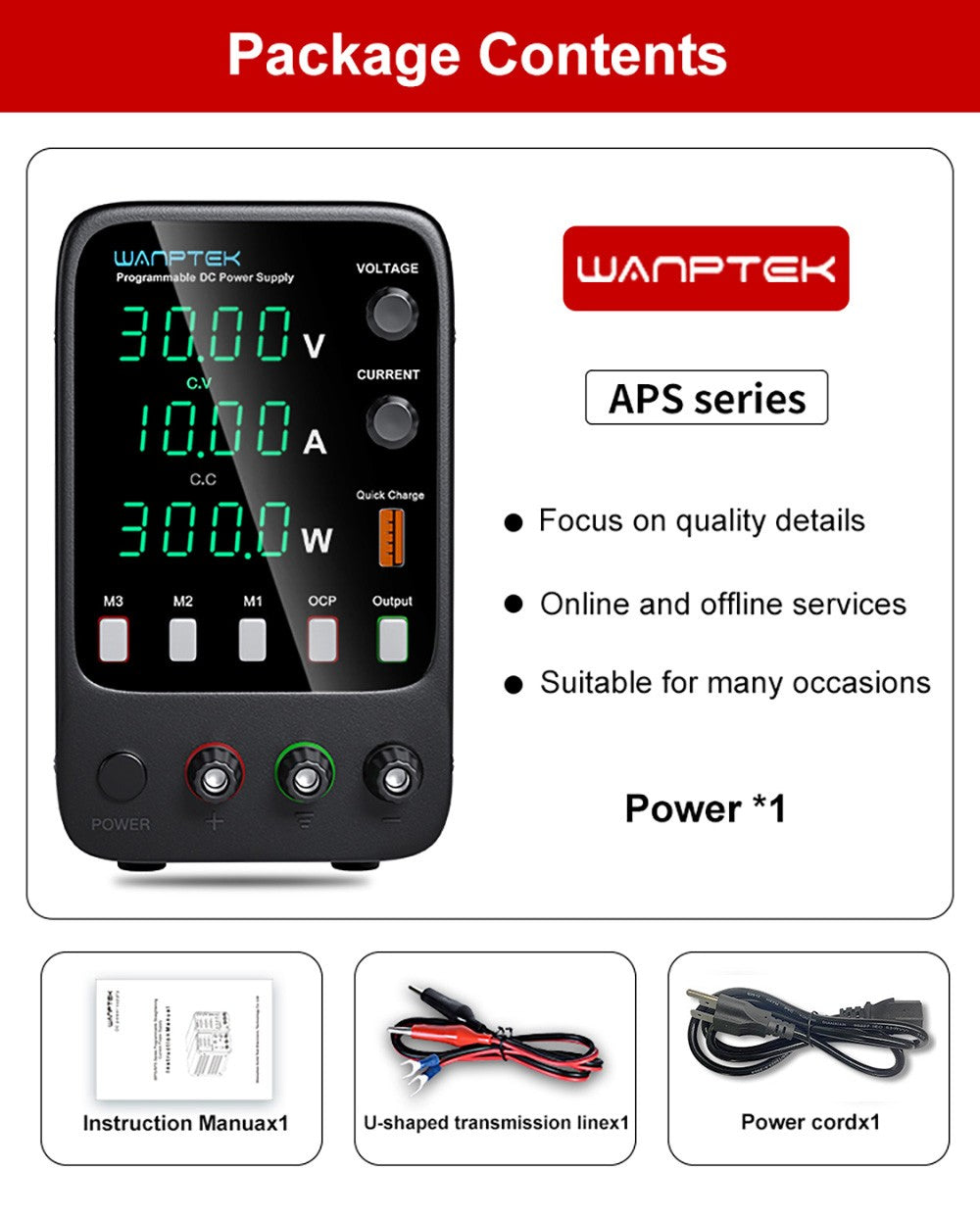

| Package Contents | |
| 1 x DC Power Supply | |
| 1 x U-shaped Transmission Line | |
| 1 x Power Cord | |
| 1 x User Manual | |
