TRIANGLELAB CHCB-OT Hotend
TRIANGLELAB CHCB-OT Hotend
Where To Buy
Where To Buy
Description
Description
TRIANGLELAB CHCB-OT highlights

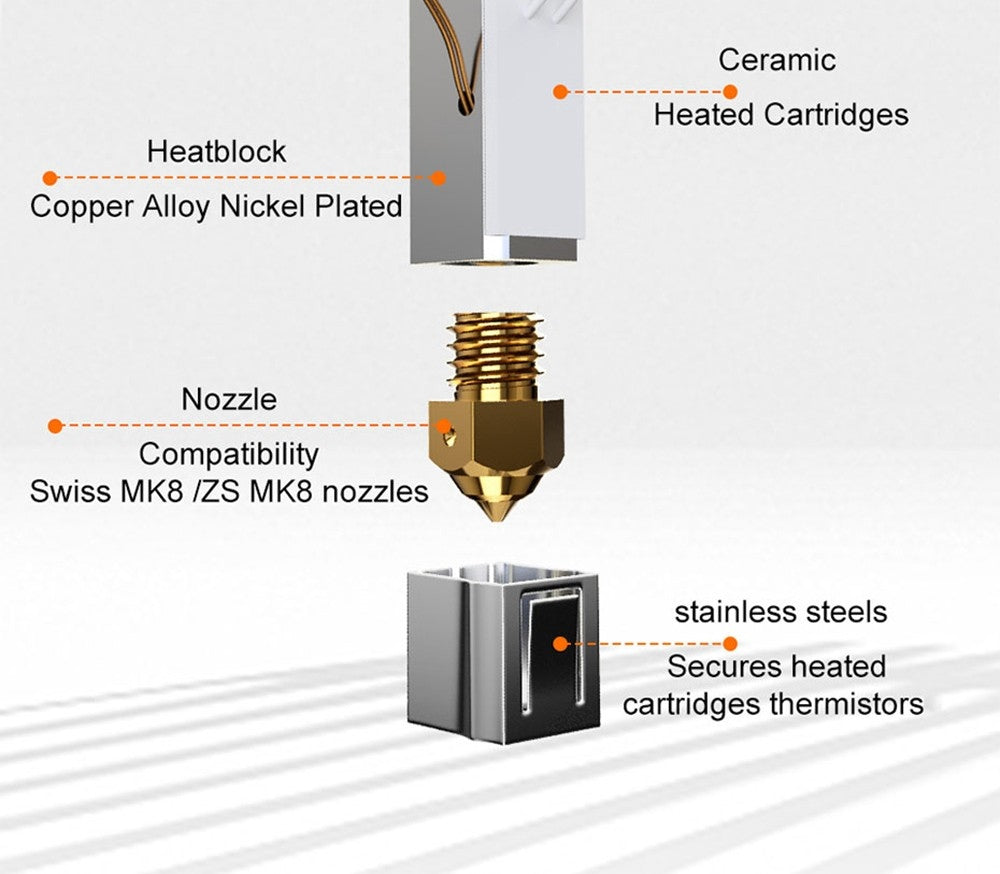

1. Planar contact heating elements have a more certain contact than ceramic heating ring contacts.
2. Compared to the original OT hotend heating elements and thermistors are easy to maintain and replace.

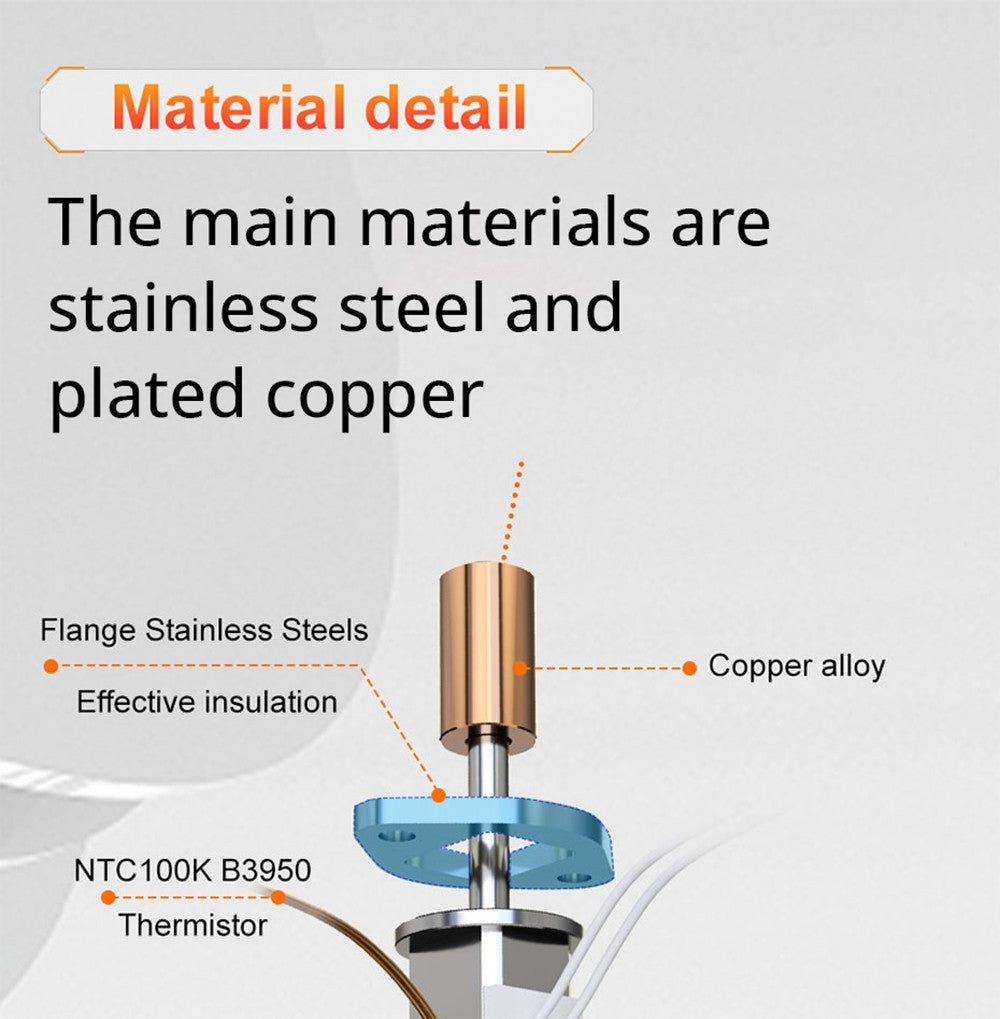

3. Separate design of fixed flange and heating core. The flange is made of a material with a low thermal conductivity to reduce the working temperature of the heat sink fixed with it by screws.

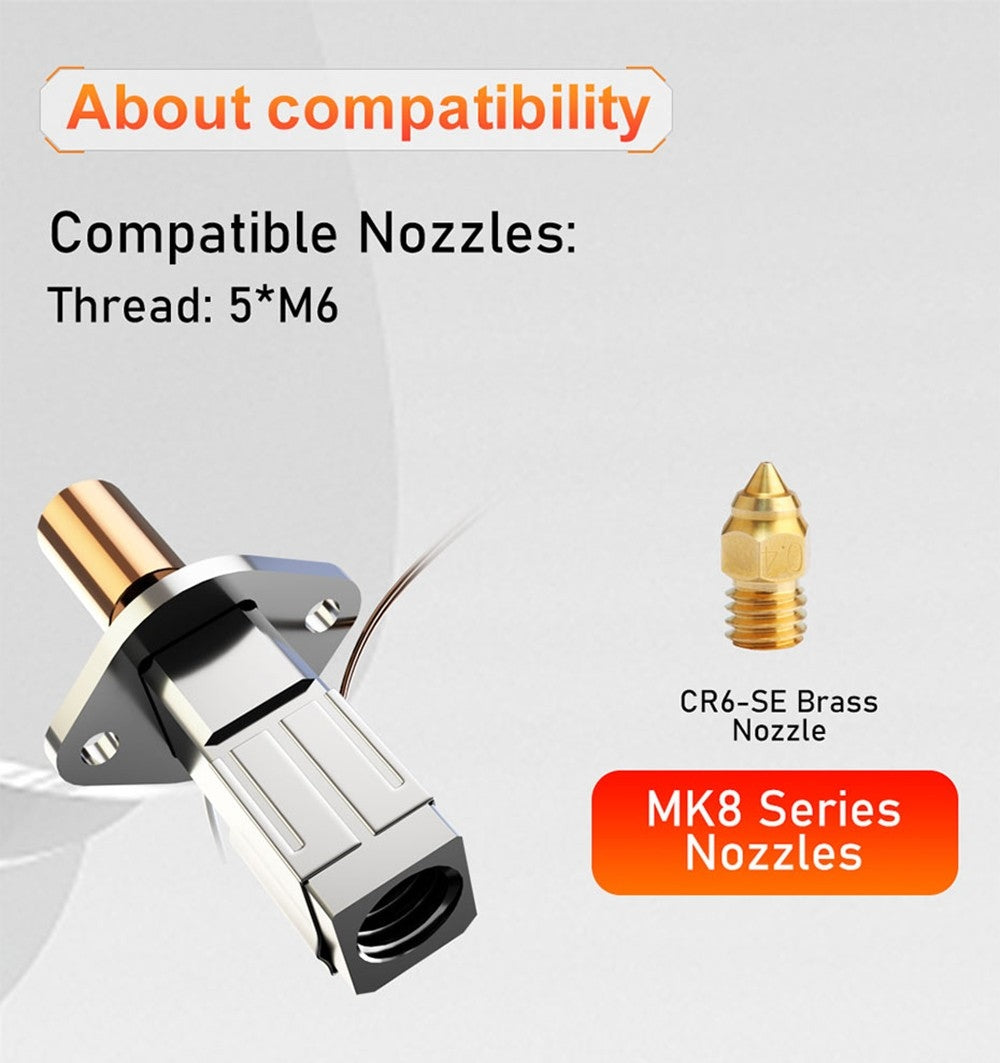

4. Compatible with various MK8 series nozzles that are readily available.
5. Can be installed on Creality CR-M4 or other Sprite extruder-equipped Creality printers.

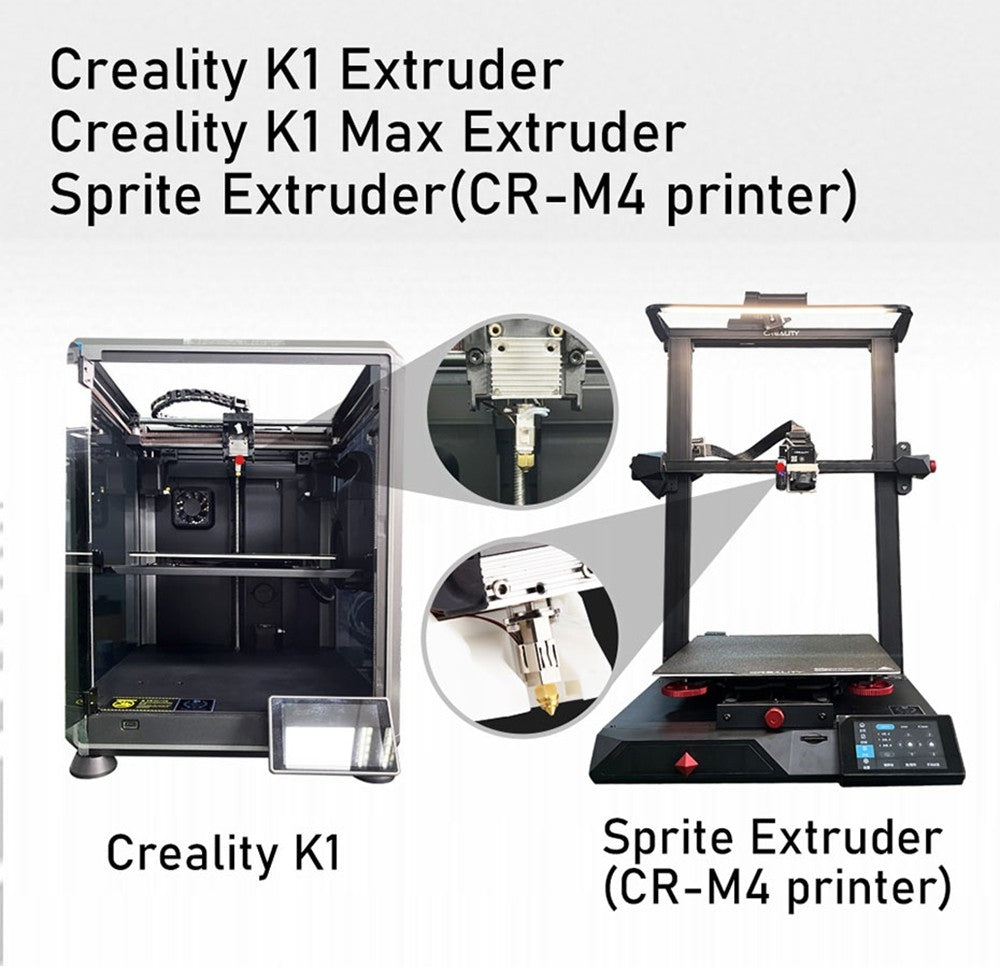

Compatibility:
For Creality K1/K1 max CR-M4 it is a drop-in replacement.

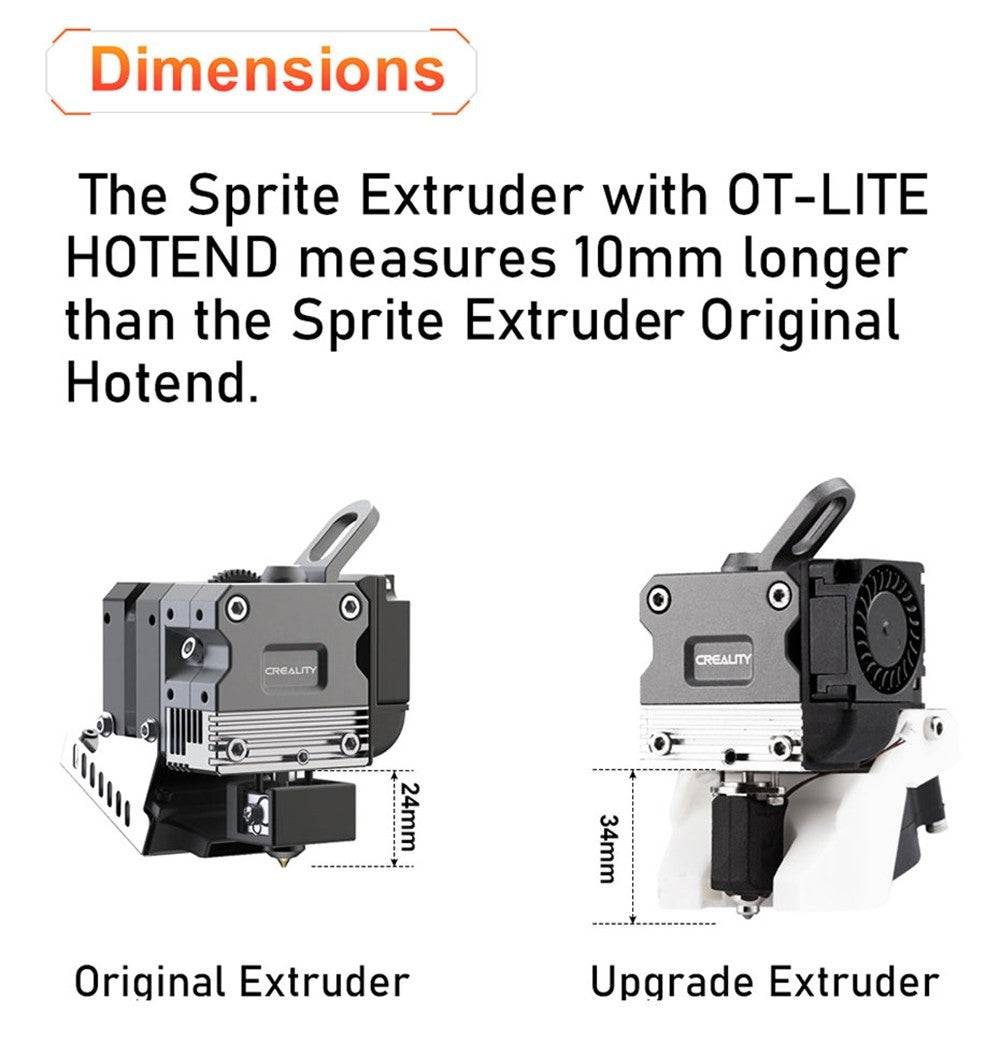

For other sprite extruder-equipped Creality printers, the overall height may be 10MM higher with this hotend installed, so you will need to use the print parts to move the original CR-TOUCH and 4010 cooling fan down 10mm.
Specifications
Specifications
| General | |
|---|---|
| Brand | Trianglelab |
| Type | Hotend |
| Model | CHCB-OT |
| Specification | |
| Heating element resistance value | 7.5-9.5 ohms |
| Nominal power | 24V 67W @24 Celsius (61-77W) |
| Thermistor | NTC 100Kohms B3950 1% (Choose 1 in marlin firmware) |
| Compatible Nozzle | MK8 Series Nozzles |
| Compatible 3D Printer | Creality CR-M4 or other Sprite extruder-equipped Creality printer |
| Weight & Size | |
| Package Weight | 0.54kg |
| Package Size(L x W x H) | 13x8x5cm |

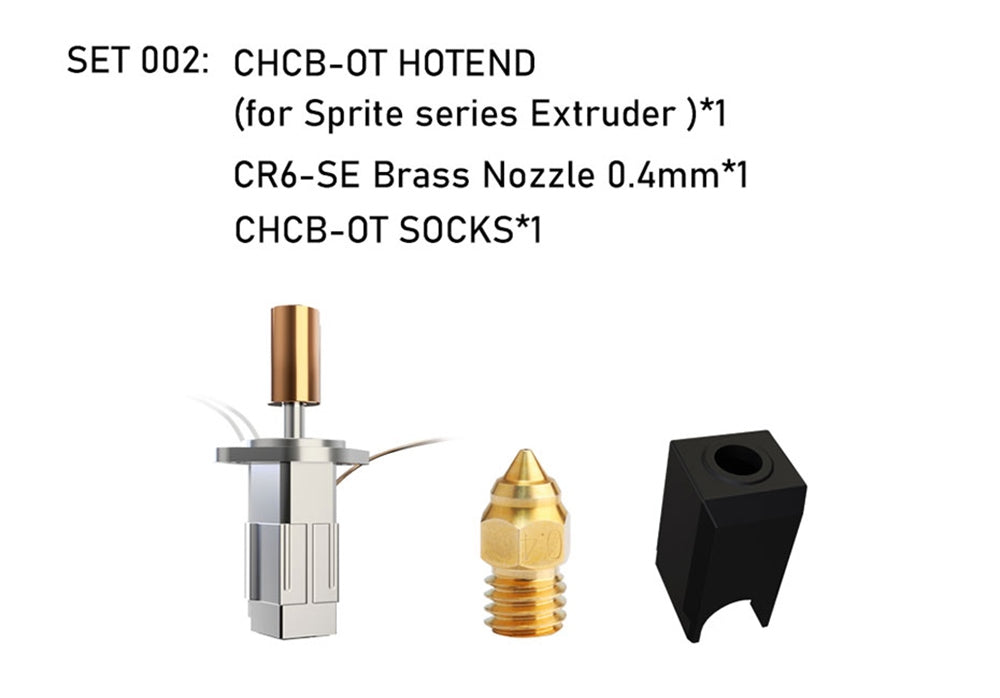

| Package Contents | |
| 1 x CHCB-OT Hotend (for Sprite Series Extruder) | |
| 1 x CR6-SE Brass Nozzle 0.4mm | |
| 1 x CHCB-OT Socks | |
*Price, description, package content and images are informative only, please check for details on website of concrete seller!
