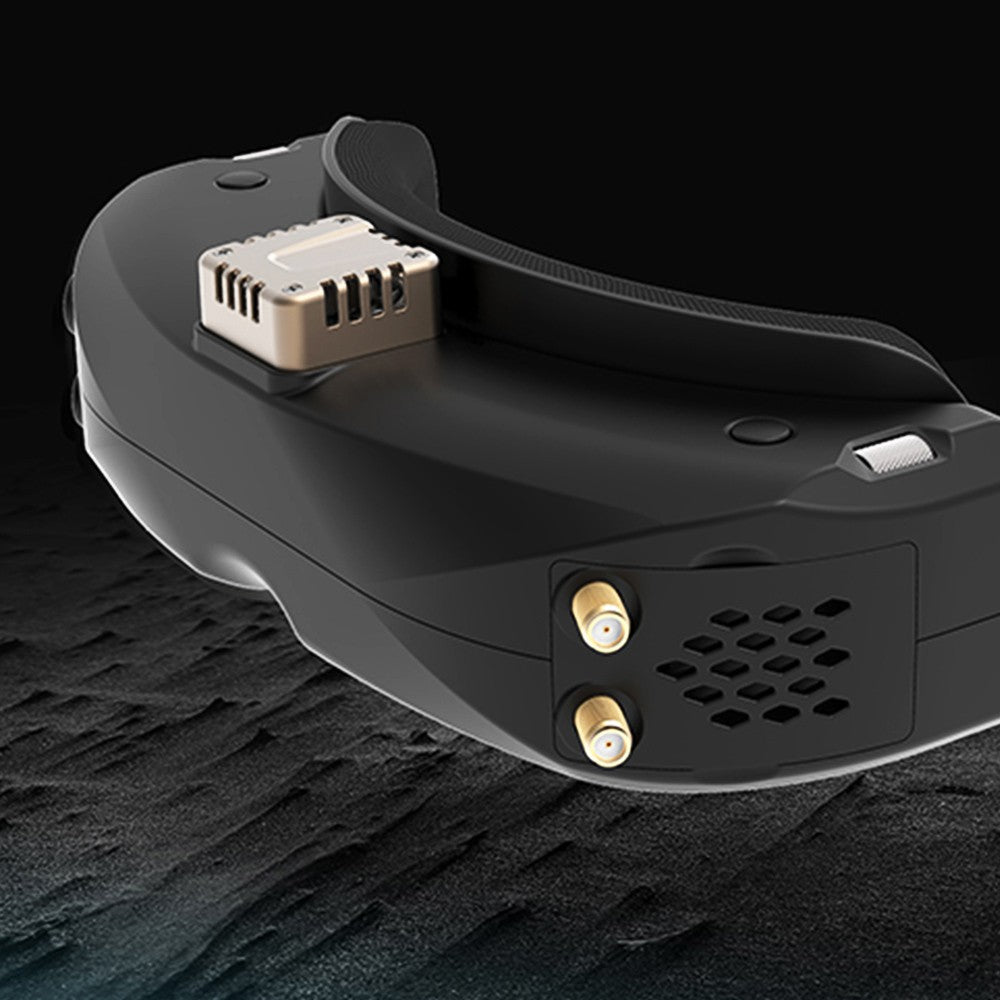

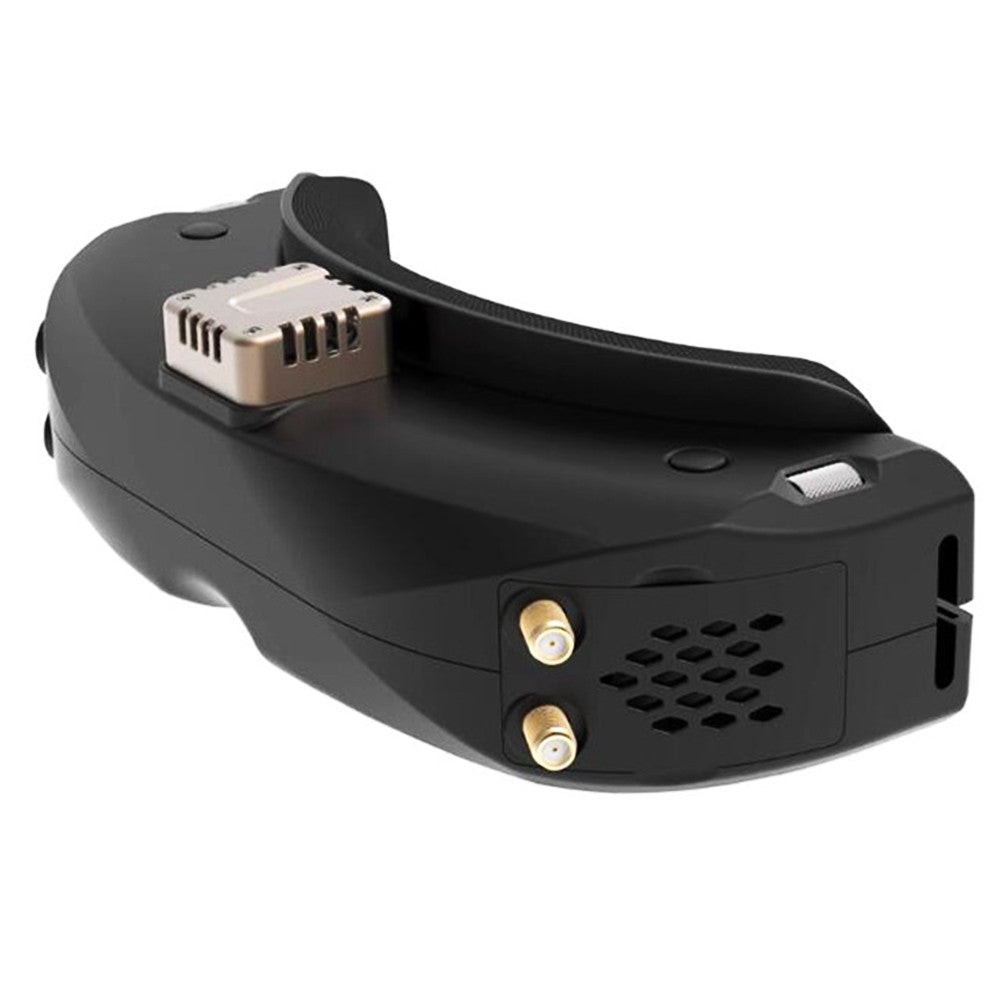

SKYZONE SKY04O FPV Goggle
SKYZONE SKY04O FPV Goggle
Where To Buy
Where To Buy
Description
Description

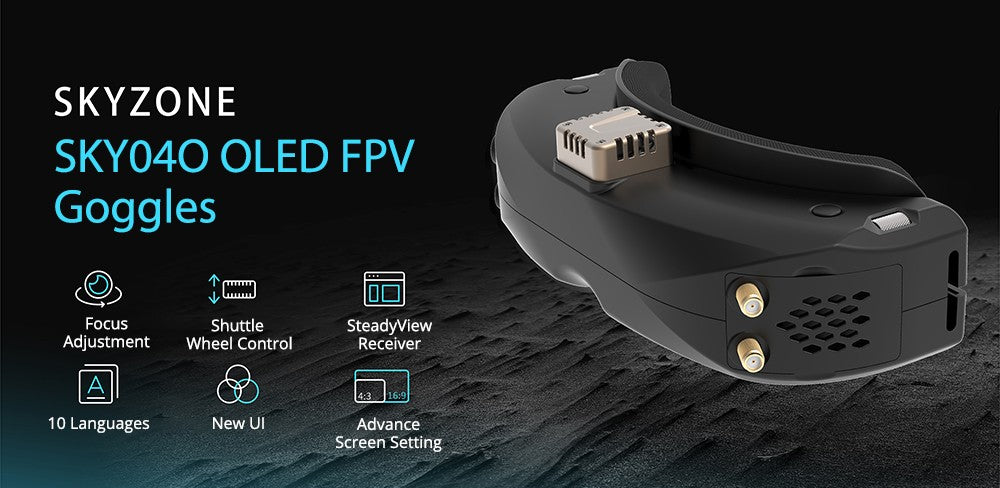

SKYZONE SKY04O highlights

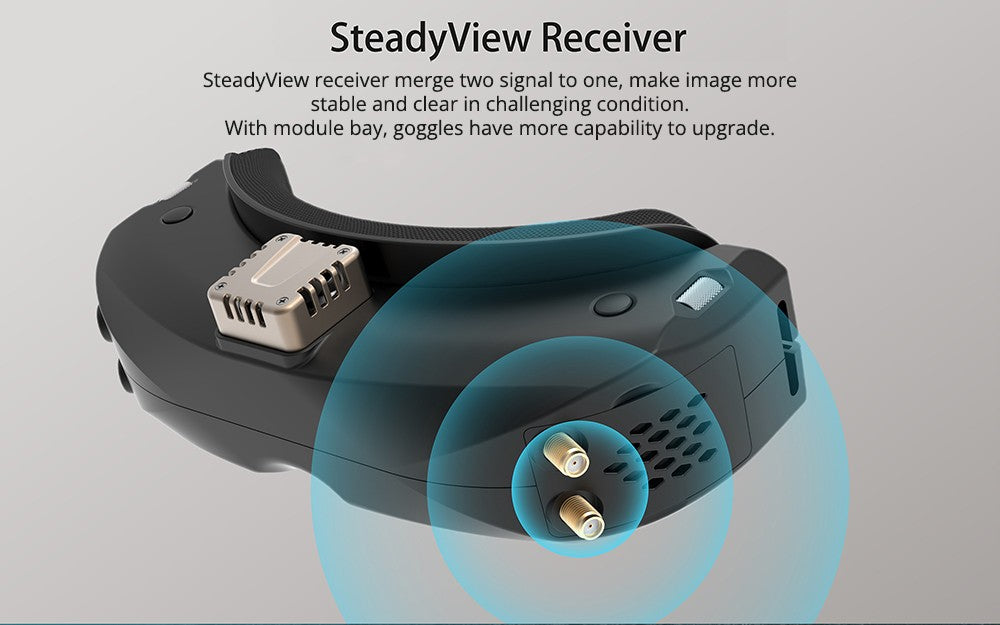

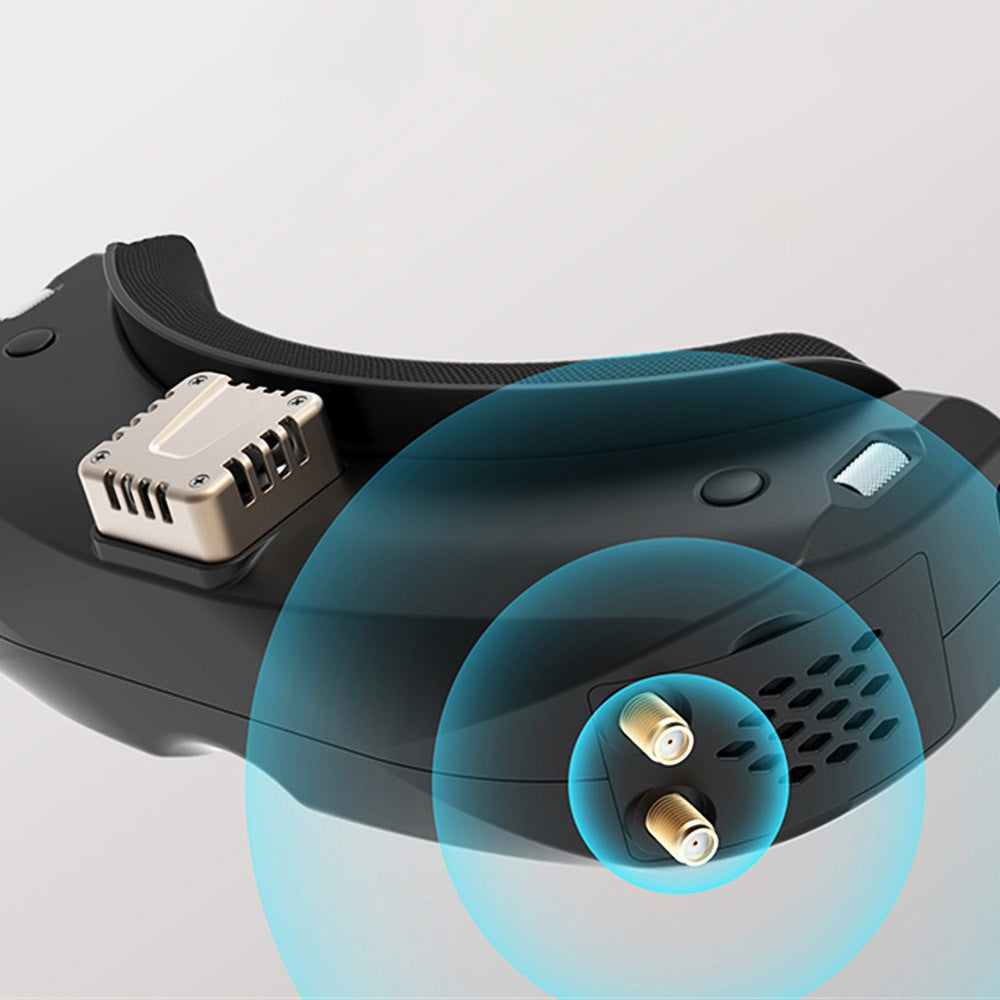

SteadyView Receiver
SteadyView receiver merges two signals to one, making image more stable and clear in challenging conditions. With module bay, goggles have more capability to upgrade.

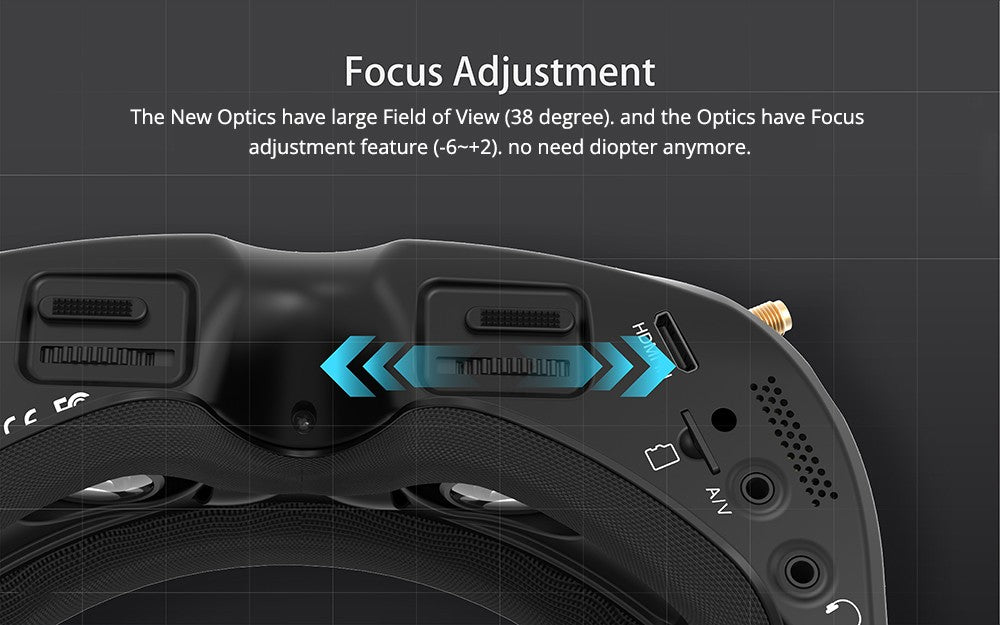

Focus Adjustment
The two optics have large field of view (38 degrees) and the optics have a focus adjustment feature (-6 to +2), so there is no need to diopter anymore.

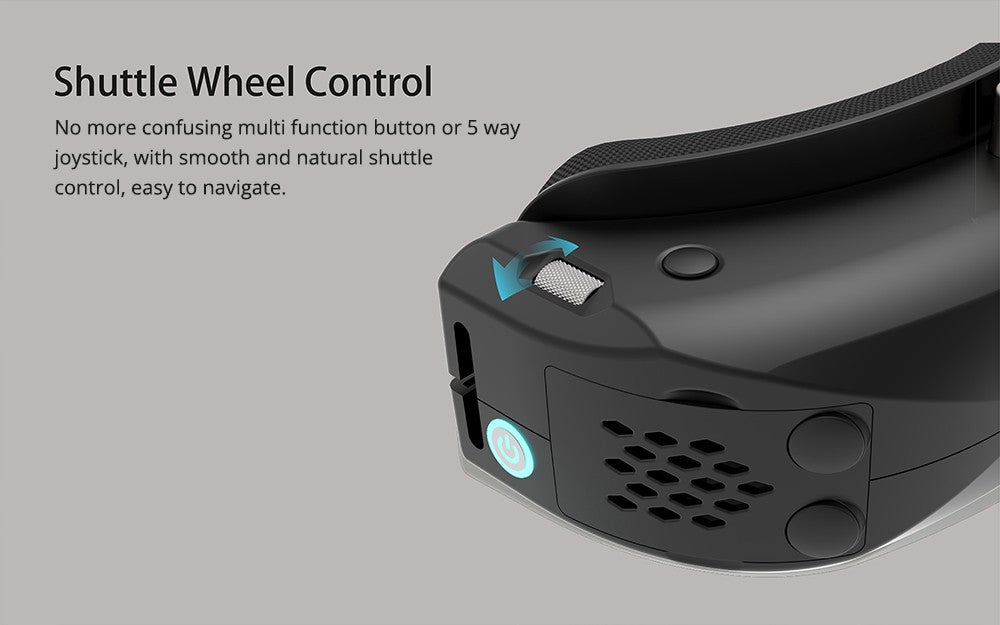

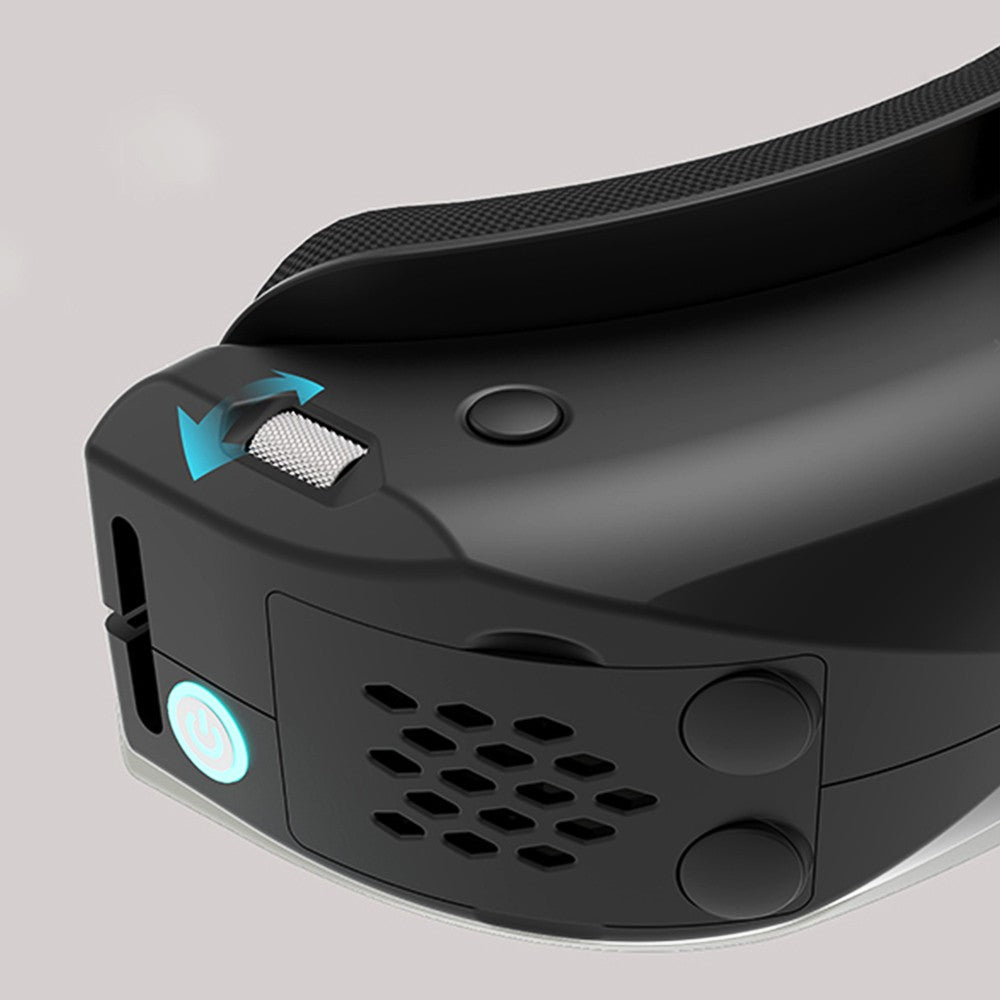

Shuttle Wheel Control
No more confusing multi-function button or 5-way joystick, with smooth and natural shuttle control, easy to navigate.

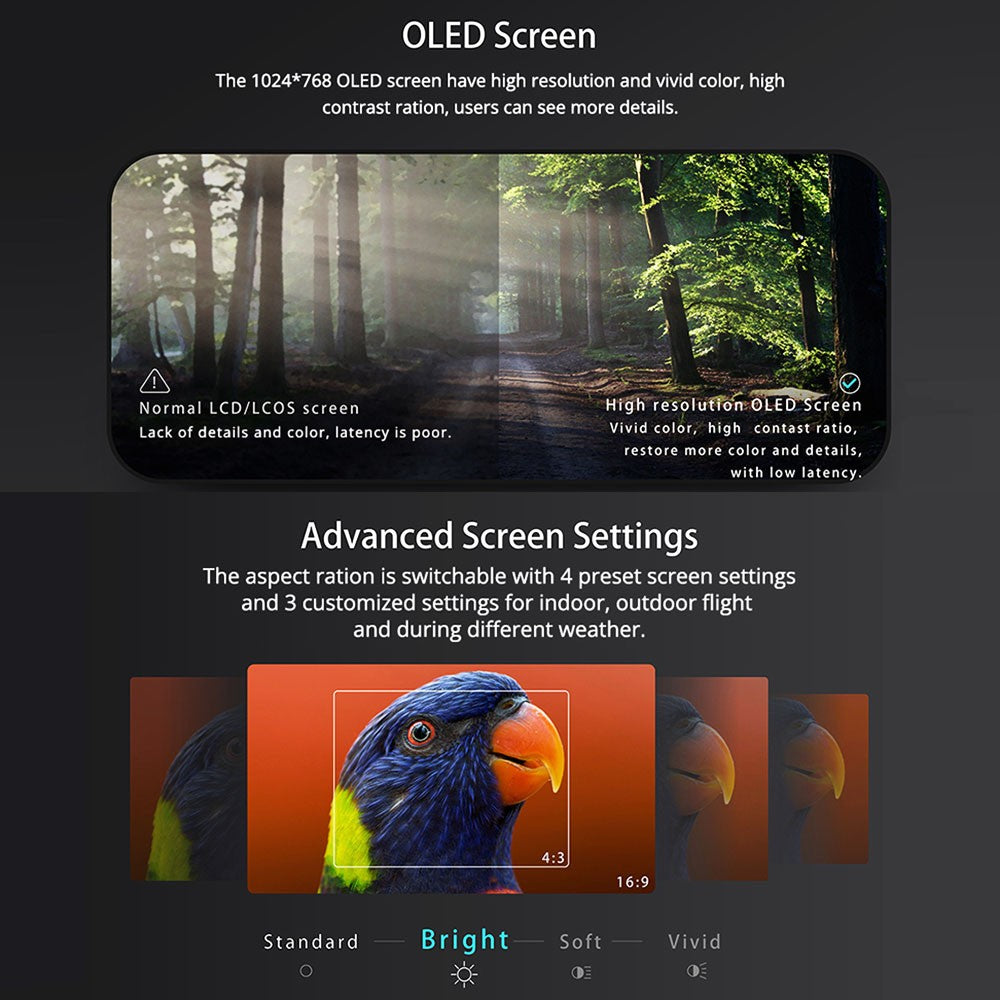

OLED Screen
The 1024*768 OLED screen has high resolution and vivid color. high contrast ratio, pilots can see more details.
Advanced Screen Setting
The aspect ration is switchable, and 4 preset screen settings and 3 customized setting for indoor, outdoor flight or various weather.
Specifications
Specifications
| General | |
|---|---|
| Brand | Skyzone |
| Type | FPV Goggle |
| Model | SKY04O |
| Color | Black |
| Specification | |
| Resolution | 1024*768 |
| Field of View | 38 Degree |
| Aspect Ratio | 4:3/16:9 |
| Diopter Adjustment Range | -6~+2 adjustable |
| Interpupillary Distance Adjustment Range | 58-71mm |
| Receiver | 5.8Ghz 48 Channels Steady View Fusion Receiver |

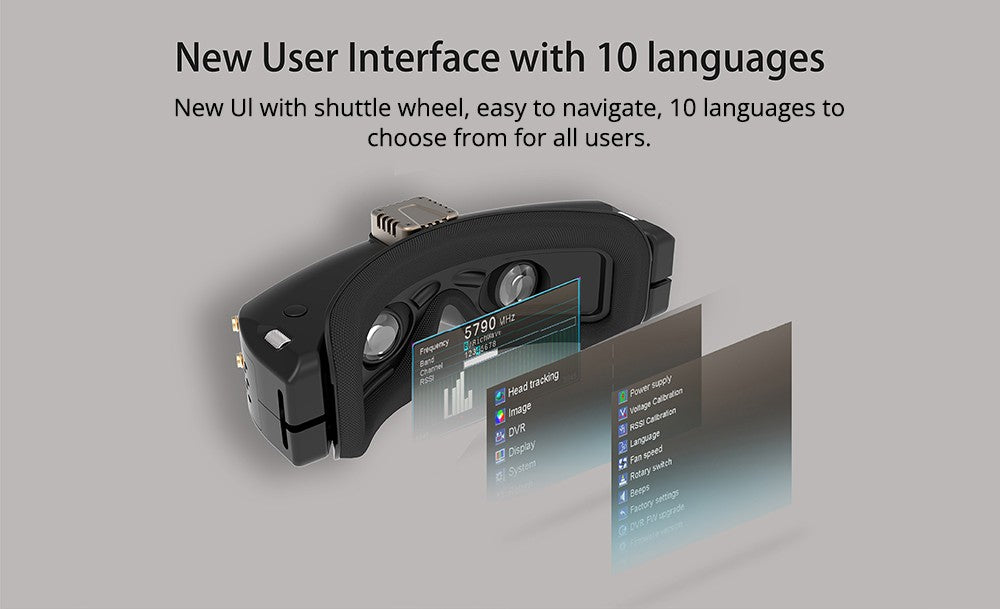

| Language | 10 Languages |
| Supply Voltage | DC6.5-25.2V/USB 5V |
| Power Consumption | 12V 720mA / 8.64W |
| Video Function | H264, 60FPS, MOV 6Mbps, SD supports up to 128Gb |
| Head Tracking | 3-axis Accelerometer, 3-axis Gyroscope |
| Weight & Size | |
| Product Weight | 400g |
| Package Weight | 800g |
| Product Size(L x W x H) | 18.5 x 7.5 x 6.7mm |
| Package Size(L x W x H) | 23 x 11 x 10cm |
| Package Contents | |
| 1x Goggles | |
| 1x Receiver Module | |
| 2x Faceplate | |
| 1xSponge with Velcro | |
| 1x Zipper Case | |
| 1x Power Cable | |
| 1x Headtracker Cable | |
| 2x 5.8GHz 2dD Antennas | |
| 1x Video/Audio Cable | |
| 1x USB-C Cable | |
| 1x User Manual | |
*Price, description, package content and images are informative only, please check for details on website of concrete seller!
