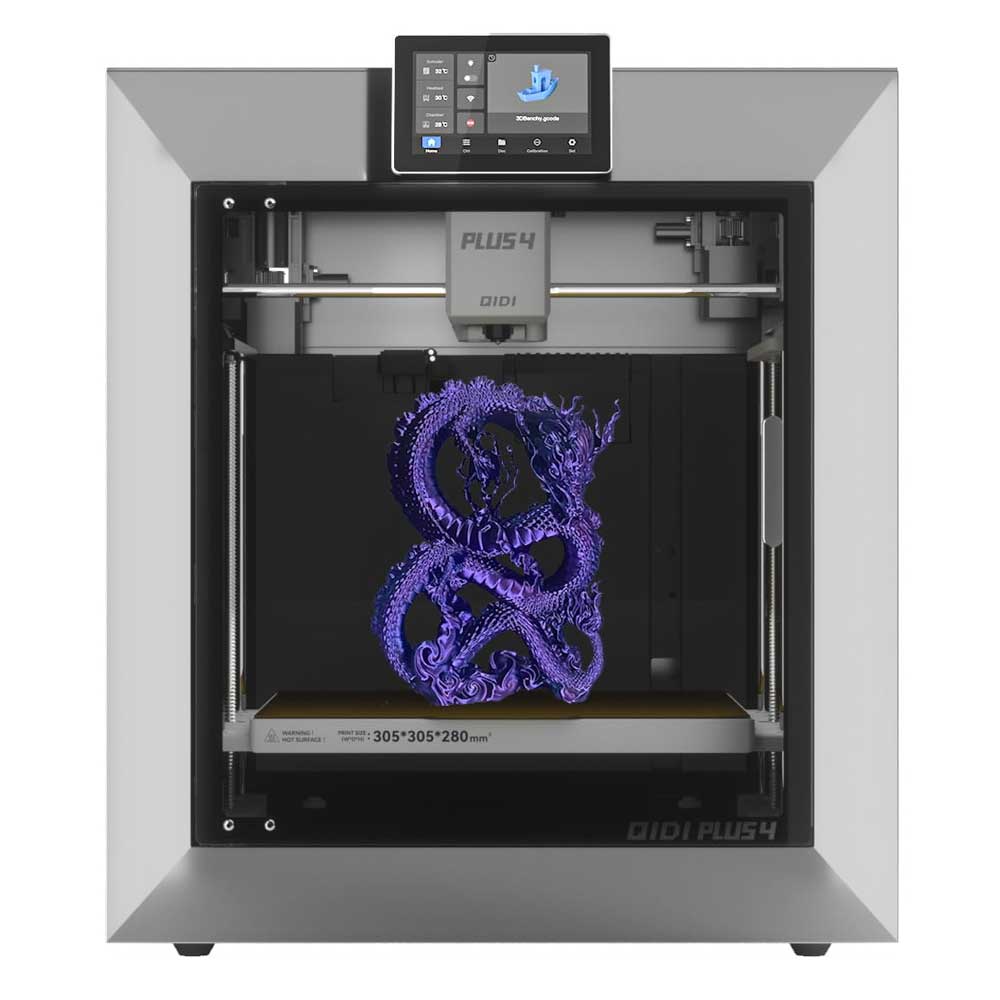

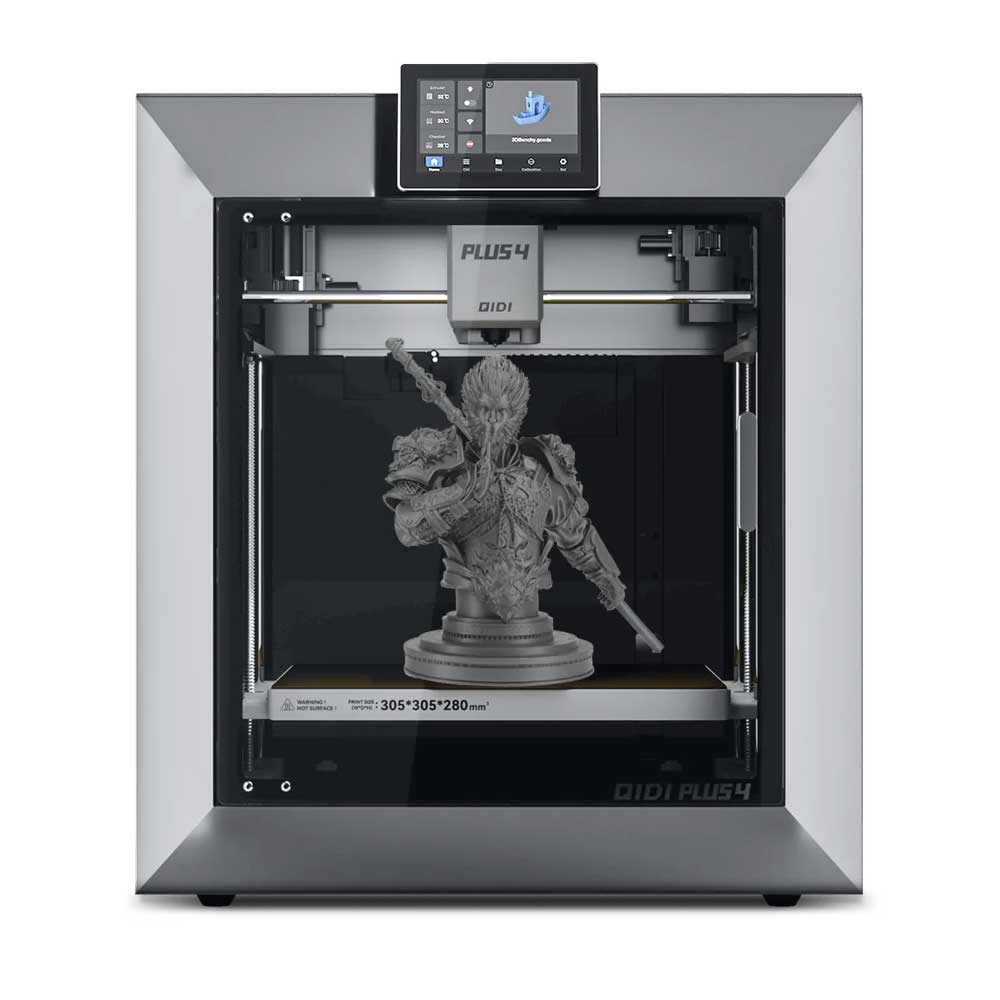

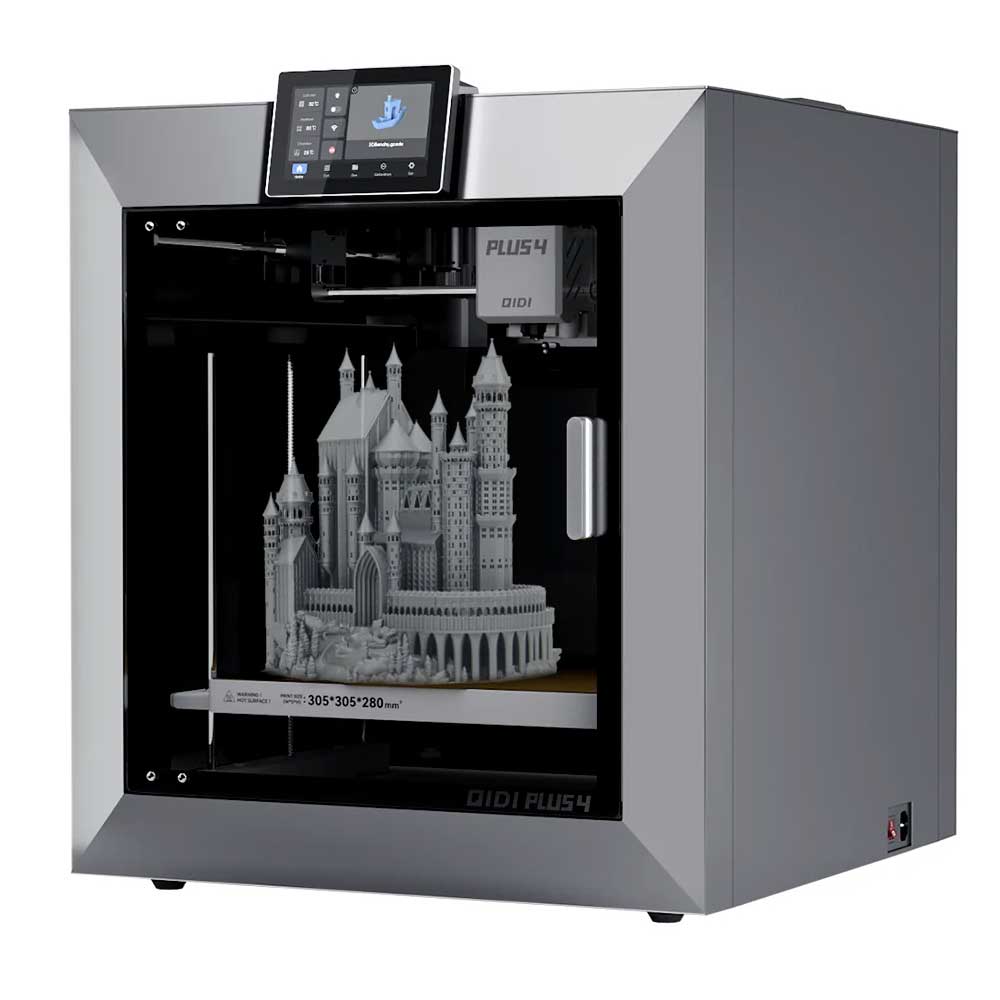

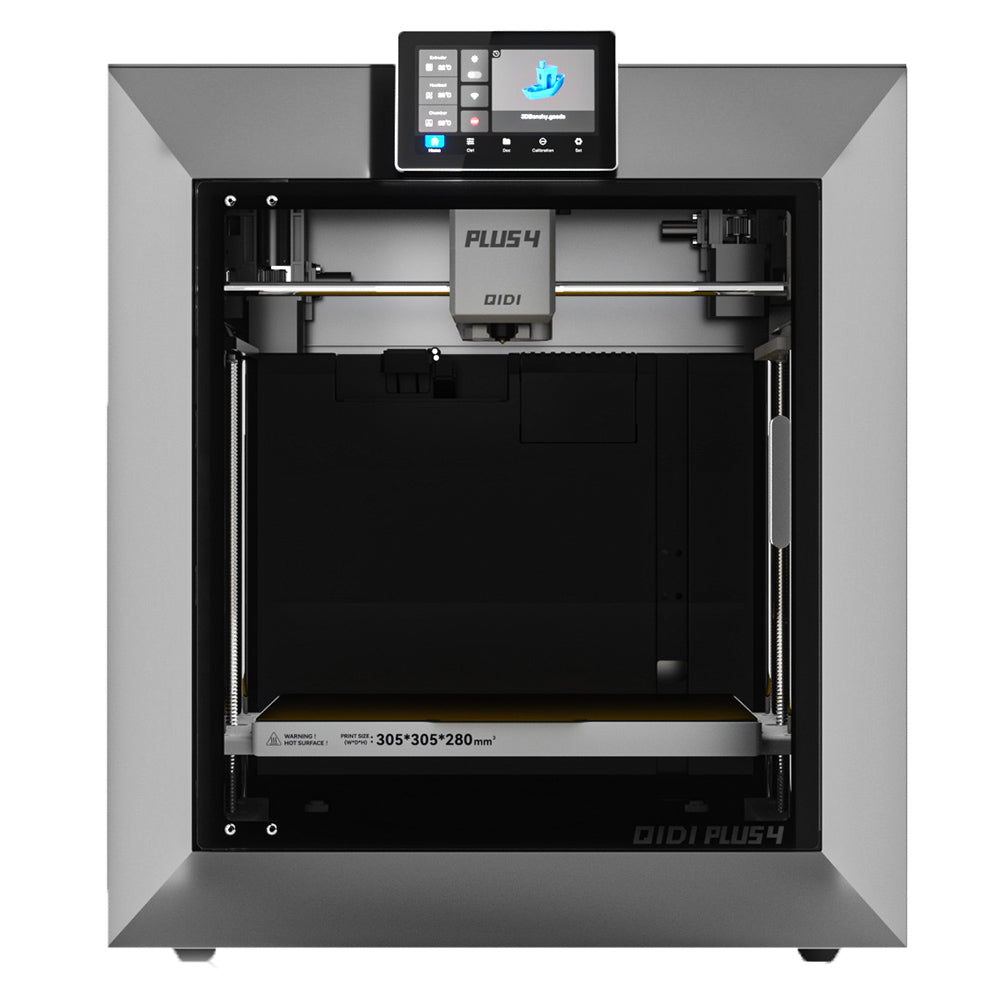

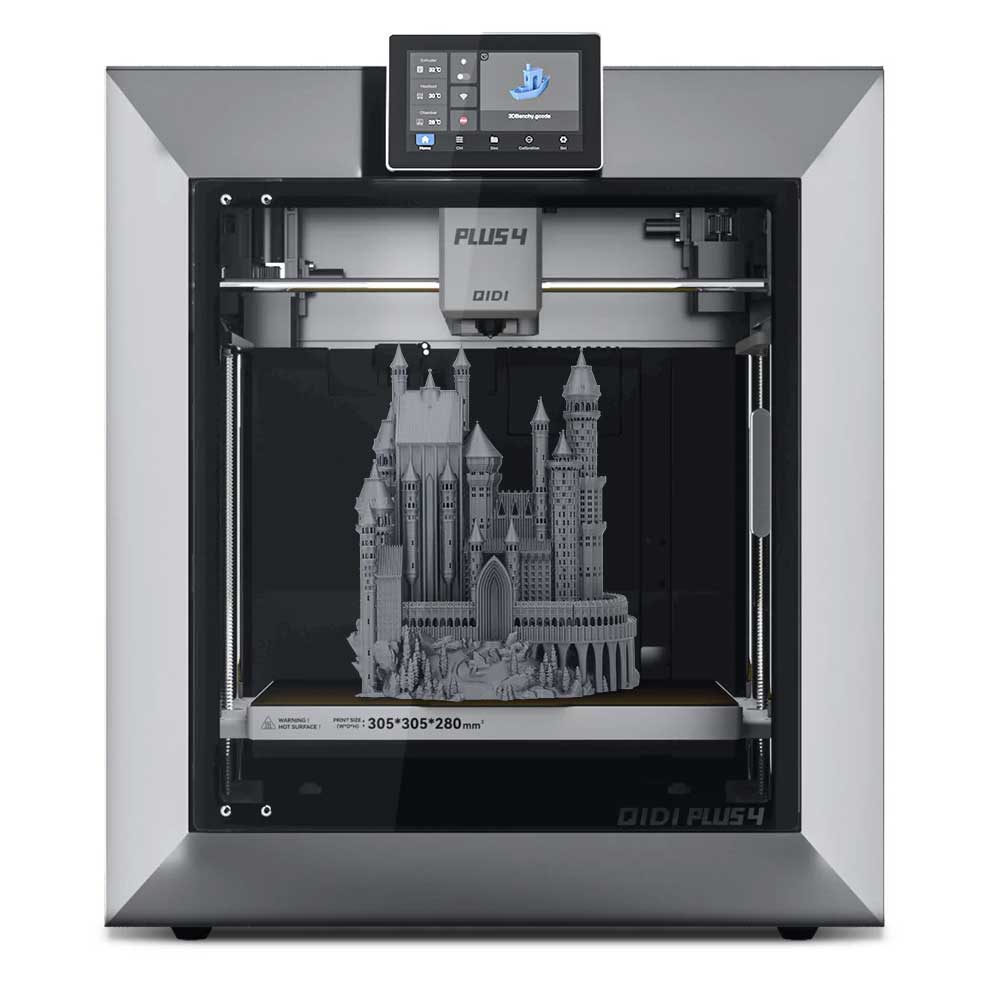

QIDI PLUS4 3D Printer

QIDI PLUS4 highlights

The QIDI Plus4 is the flagship CoreXY 3D printer featuring a revised active build chamber heating, reaching 65°C. QIDI uses a 400W heating element that reaches 65°C in just 8 minutes and distributes it evenly thanks to the air circulation fan.

The new bi-metal hotend with a 0.4mm nozzle made of hardened steel can now even reach 370°C. This is particularly advantageous for high-temperature filaments such as various nylon-carbon variants or especially PPS-CF in combination with the heated build chamber. Changing the nozzle or hotend is therefore no longer necessary.

• Print speed up to 600 mm/s with 20000 mm/s² acceleration
• CoreXY construction (plug & play)
• Automatic belt tension
• Fully automatic auto-leveling
• 5" touchscreen (800 x 480)
• Active build space heating up to 65°C
• Clipper ex works (including resonance compensation)
• Activated carbon filter
• Built-in 1080p camera
• Supports multicolor system

305 x 305 x 280 mm build volume, 10mm guide rails, hardened steel direct drive extruder

The build space size for the Plus series has increased to 305 x 305 x 280 mm. Instead of 8mm, there are now 10mm guide rails and a 6mm thick print bed with PEI spring steel plate. QIDI uses hardened steel for the gears of the direct drive extruder (gear ratio: 8:9:1) and integrates a filament cutter. This means that an automatic loading and unloading process for filament is now available. I missed this when testing the QIDI X-MAX 3. There is also now an automatic nozzle self-cleaning function.

With the QIDI Plus4, the manufacturer has made further improvements: technically through improved active build space heating, a revised hotend, and a larger build space, but also visually! The QIDI Plus4 simply looks good. If it is just as well made and prints, this could be a big step forward for QIDI – especially if the customized Klipper software harmonizes perfectly with the Orca slicer.

QiDi Plus 4

Every Detail is Perfectly Printed

Evolutionary Highlights

Toolhead Performance Upgrade

Nozzle heats up to 370'C for high-temp printing.

Second-gen 80W bimetal hotend for advanced filament handling.

Active Chamber Heating

• 400W Ultra-high heating efficiency
• 8mins to 65C Chamber Temp
• Air circulation design
• Perfectly balanced chamber temperature with a powerful turbofan

Comprehensive System Upgrade

• Start Control on Whatever Device You Prefer
• The Open-source latest VO.12 Klipper
• New Ul and software features

Machine Drive System Upgrade

Dual independent motors and 10mm linear shafts and screws.

Upgraded to a 6mm aluminum bed for enhanced flatness.

Toolhead Performance Upgrade

• Newly upgraded multi-metal composite nozzle with hardened tip
• Easily handle high-temperature filaments

• New Toolhead Cooling System
• Integrated Throat Nozzle Design

Active Chamber Heating

• 400W Ultra-high heating efficiency - 8min to 65C Chamber Temp
• Dual-layer insulation
• Air circulation design



Double-layer insulation

• More stable and uniform chamber temperature
• more energy-efficient

Machine Drive System Upgrade

• No More Size Limits

Full-size print volume increases to 305*305mm

• Dual independent Lead Screw Motors

Dual Independent motors and 10mm linear shafts and screws

• Upgraded to a 6mm aluminum bed for enhanced flatness
• Comprehensive filament detection system



• Filament Runout Detection
• Filament Tangle Detection



Compatible with QIDI Box

a multi-filaments automatic feeding box launching in Q1 2025.

1080P Camera

Timelapse support for sharing your prints and easy remote monitoring

QIDI Studio

New slicing software with wider compatibility, ideal for multicolor systems

QIDI Mobile Application

Remote 3D printer access anytime, skip failed prints and reduce filament waste
