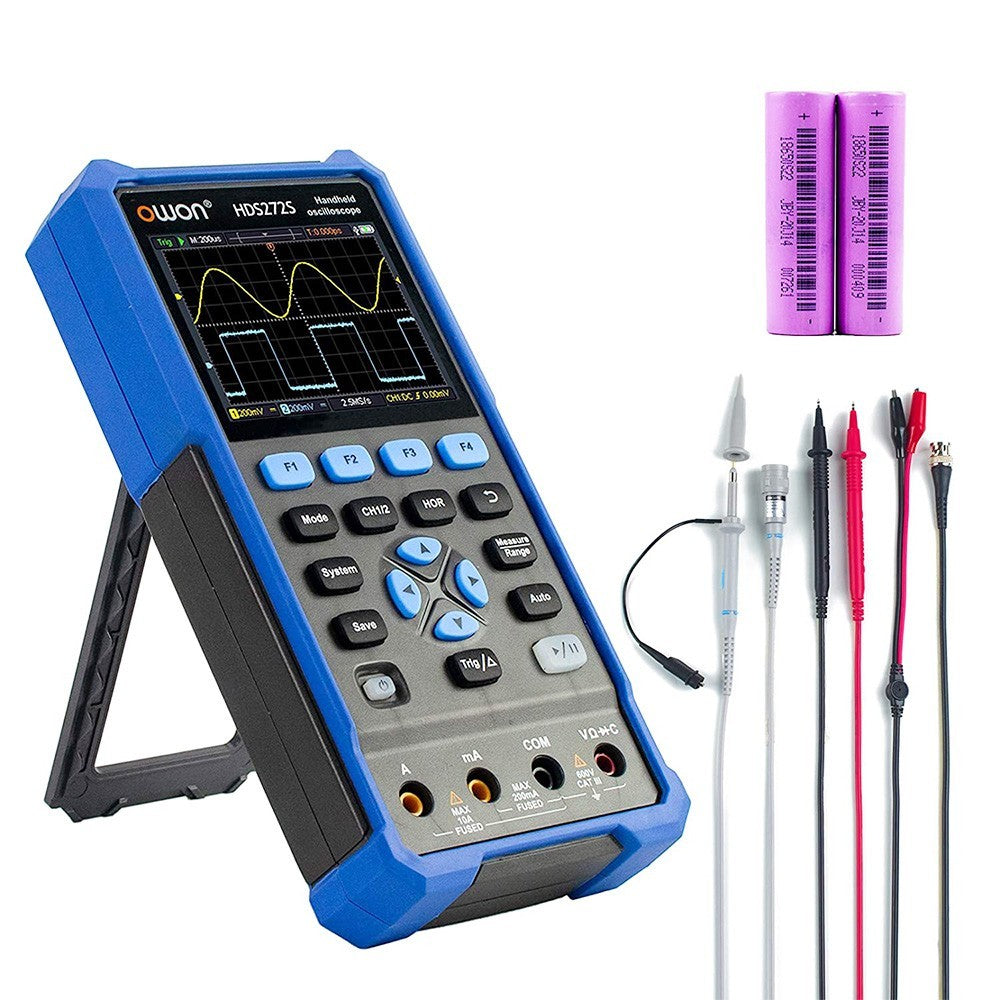

OWON HDS272S 3 in 1 Digital Oscilloscope

OWON HDS272S highlights

3-in-1 Handheld Oscilloscope
OWON HDS272S is not only a digital oscilloscope but also a multimeter and a waveform generator. It is easy to operate and is suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.

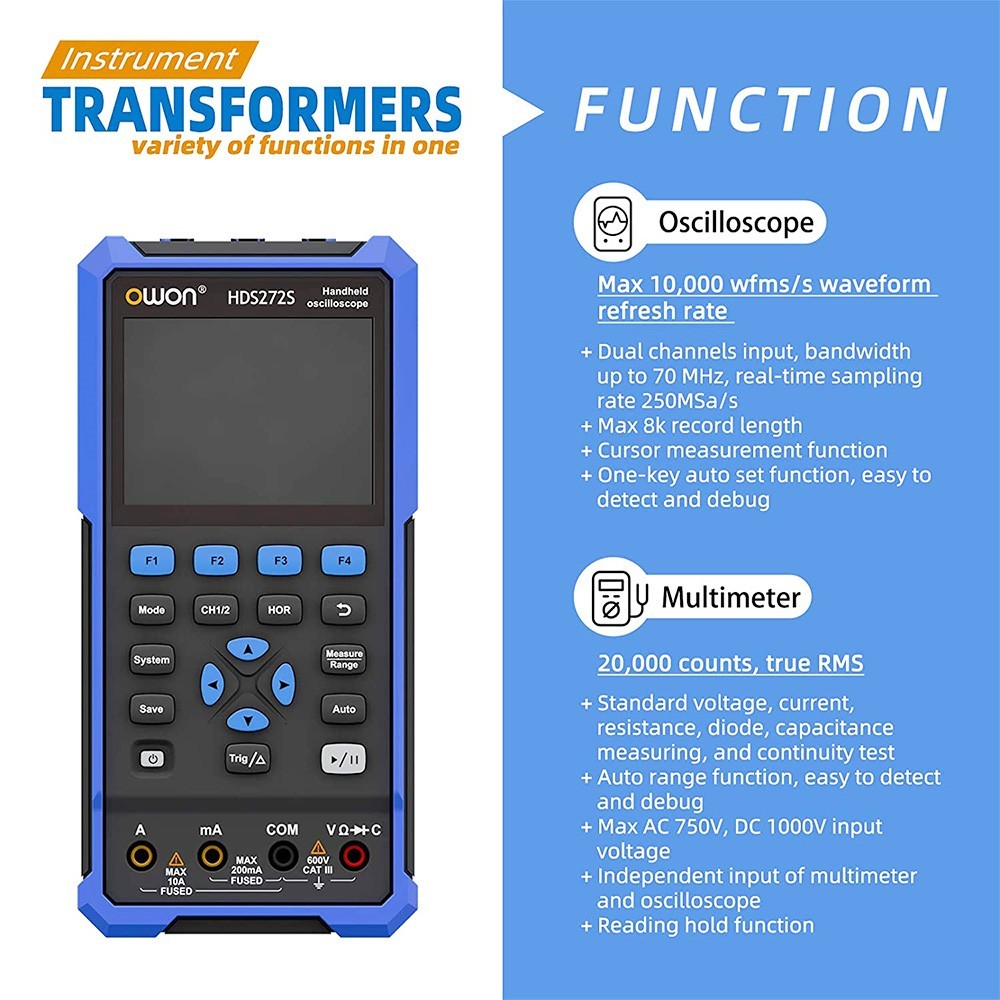

Digital Oscilloscope Functions
Features dual-channel input, 70MHz bandwidth, 250MSa/s real-time sampling rate, and max 8k record length. It also has a cursor measurement function and one key auto set function, easy to detect and debug.

Multimeter Functions
20000 counts true RMS multimeter features an auto-ranging function and reading hold function, it can be used to measure standard voltage, current, resistance, diode, capacitance, and continuity test. It configures max AC 750V and DC 1000V input voltage. Independent input of multimeter and oscilloscope support relative measurement function.

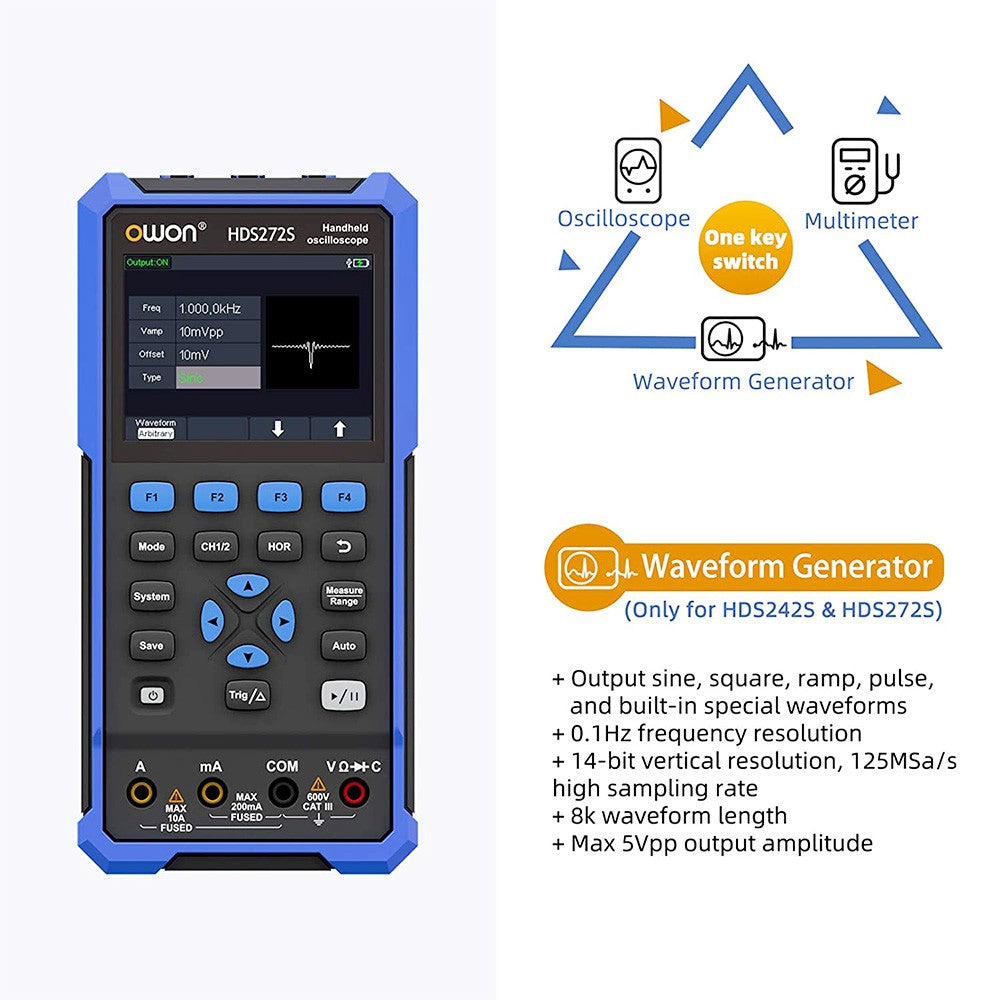

Waveform Generator Functions
Features max 25MHz frequency output, 0.1Hz resolution, 14-bit  vertical resolution, 125MSa/s high sampling rate, 8K waveform length, and max 5Vpp output amplitude. It can output sine, square, ramp, pulse, and built-in special waveforms.
