CREALITY 10W Laser Laser Module Kit
CREALITY 10W Laser Laser Module Kit
Where To Buy
Where To Buy
Description
Description
CREALITY 10W Laser highlights
- 0.06mm High Precision

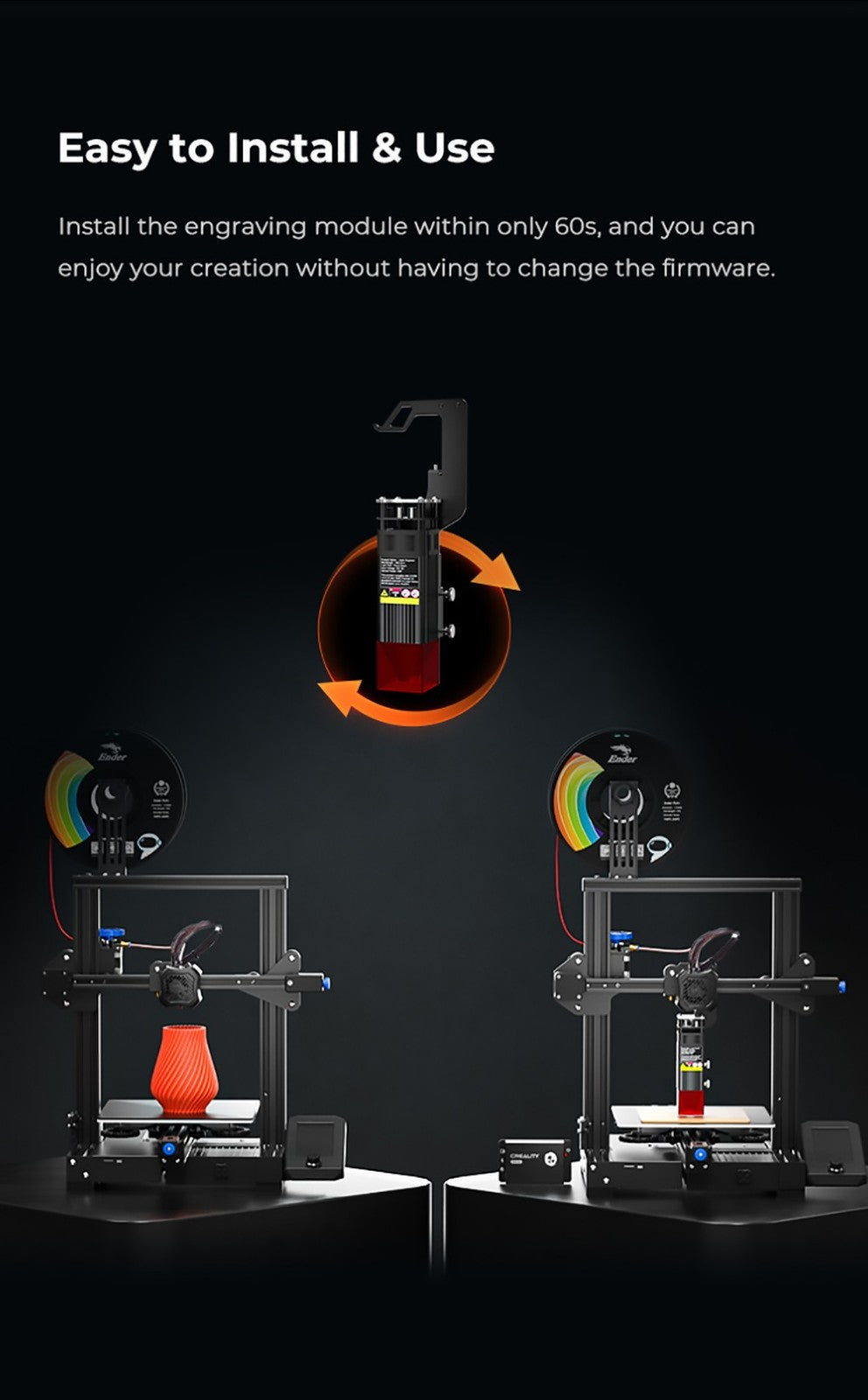

- Designed for Ender 3 S1/S1 Pro/S1 Plus/V2 Neo/Max Neo/V2

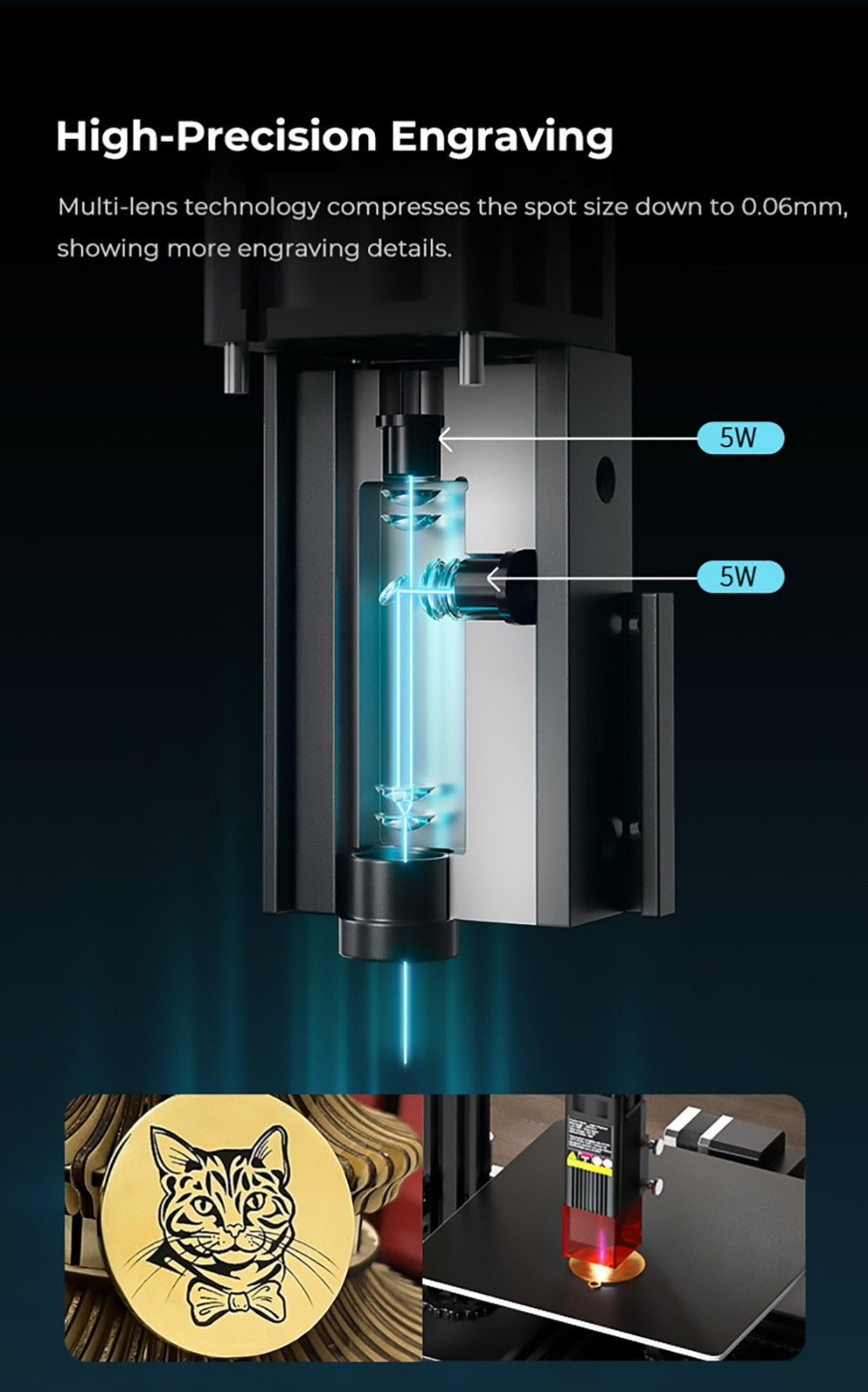

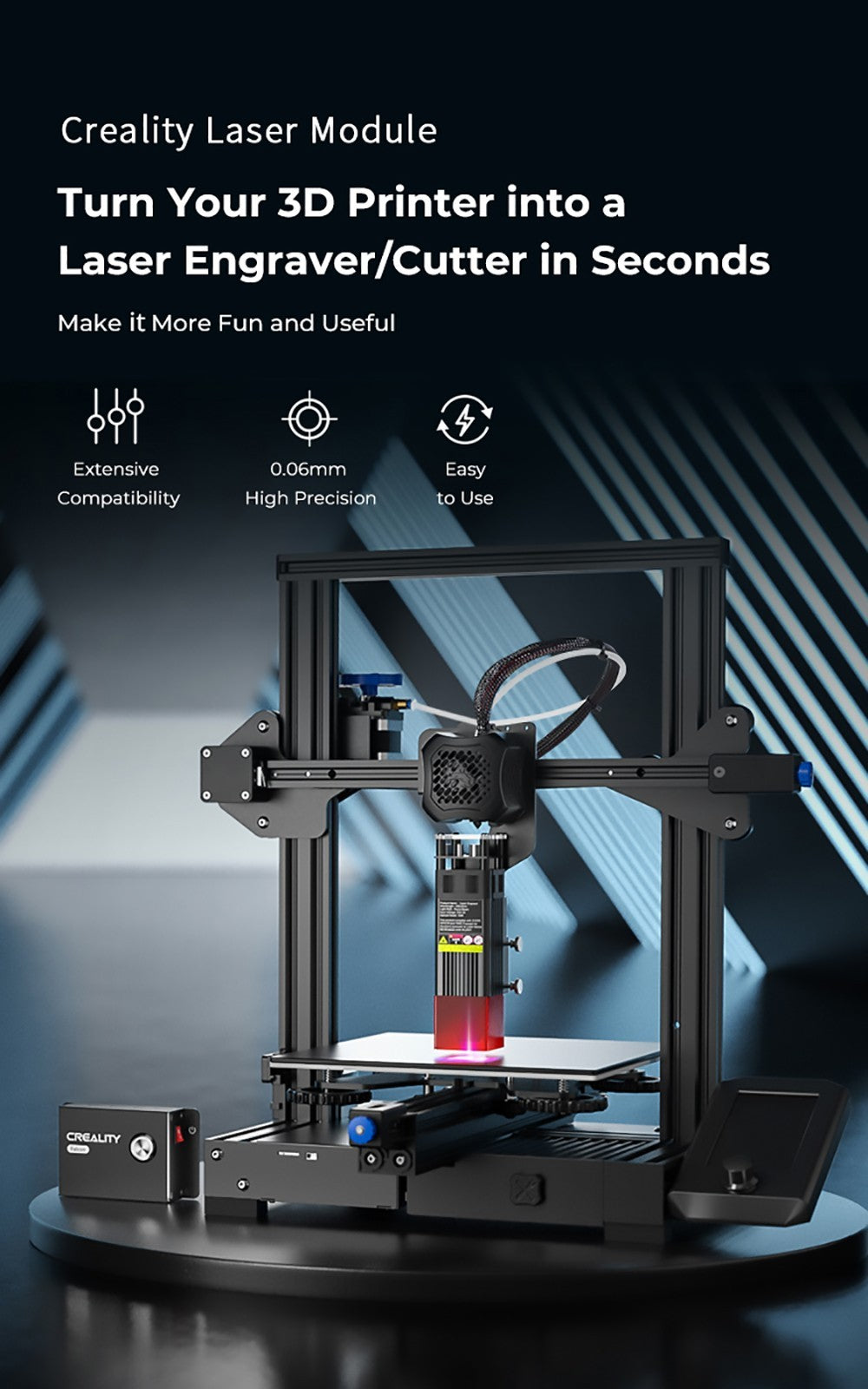

High Precision Laser Module Kit
With 0.06mm high precision, this 10w laser head can offer a better engraving process and produce more excellent work. Also, you are able to turn your 3D printer into a laser engraver in seconds due to this laser module kit.

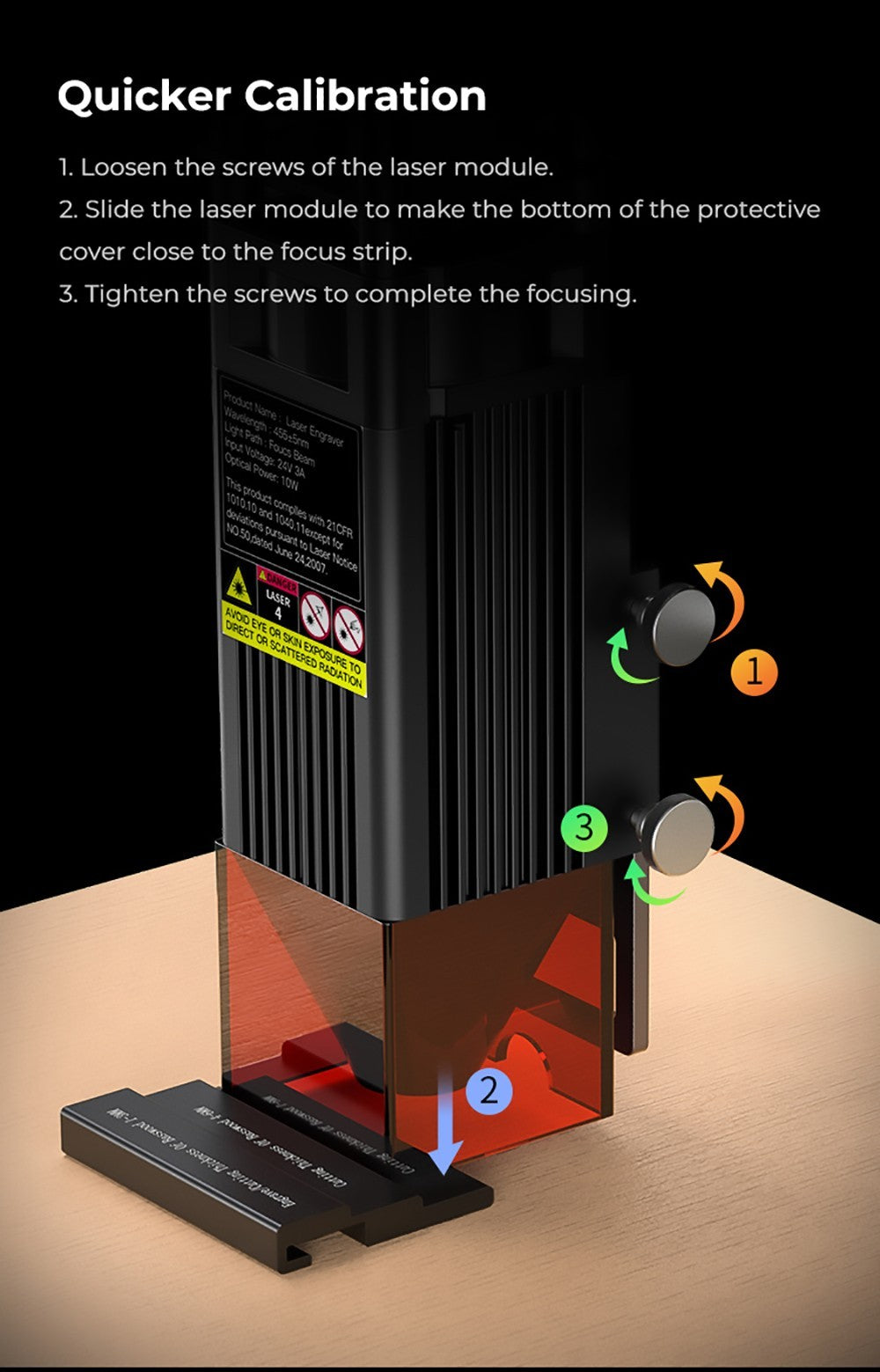

Quicker Calibration
Loosen the screws of the laser module.
Slide the laser module to make the bottom of the protective cover close to the focused strip.
Tighten the screws to complete the focusing.

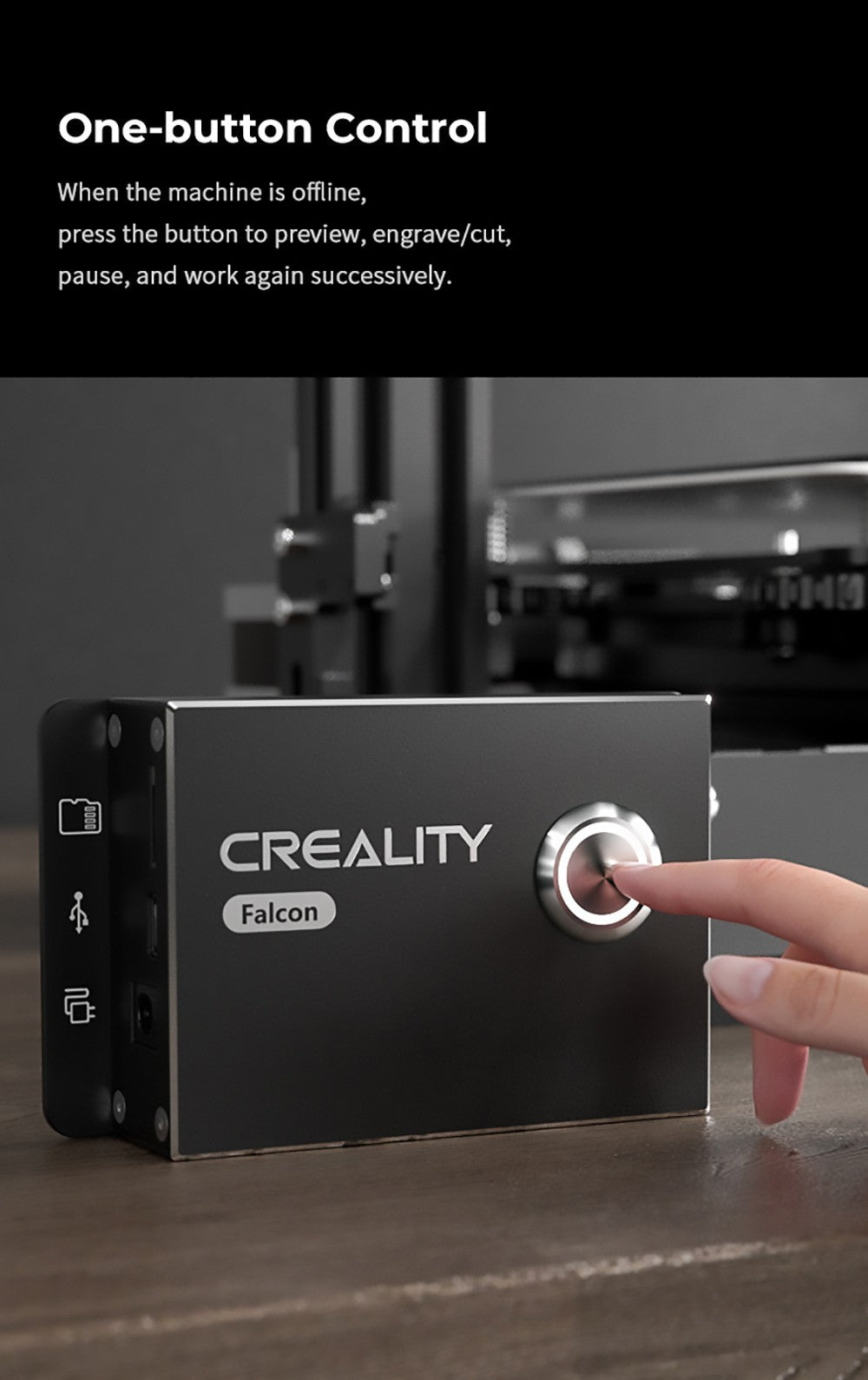

One-Button Control
When the machine is offline, press the button to preview, engrave/cut, pause, and work again successively.

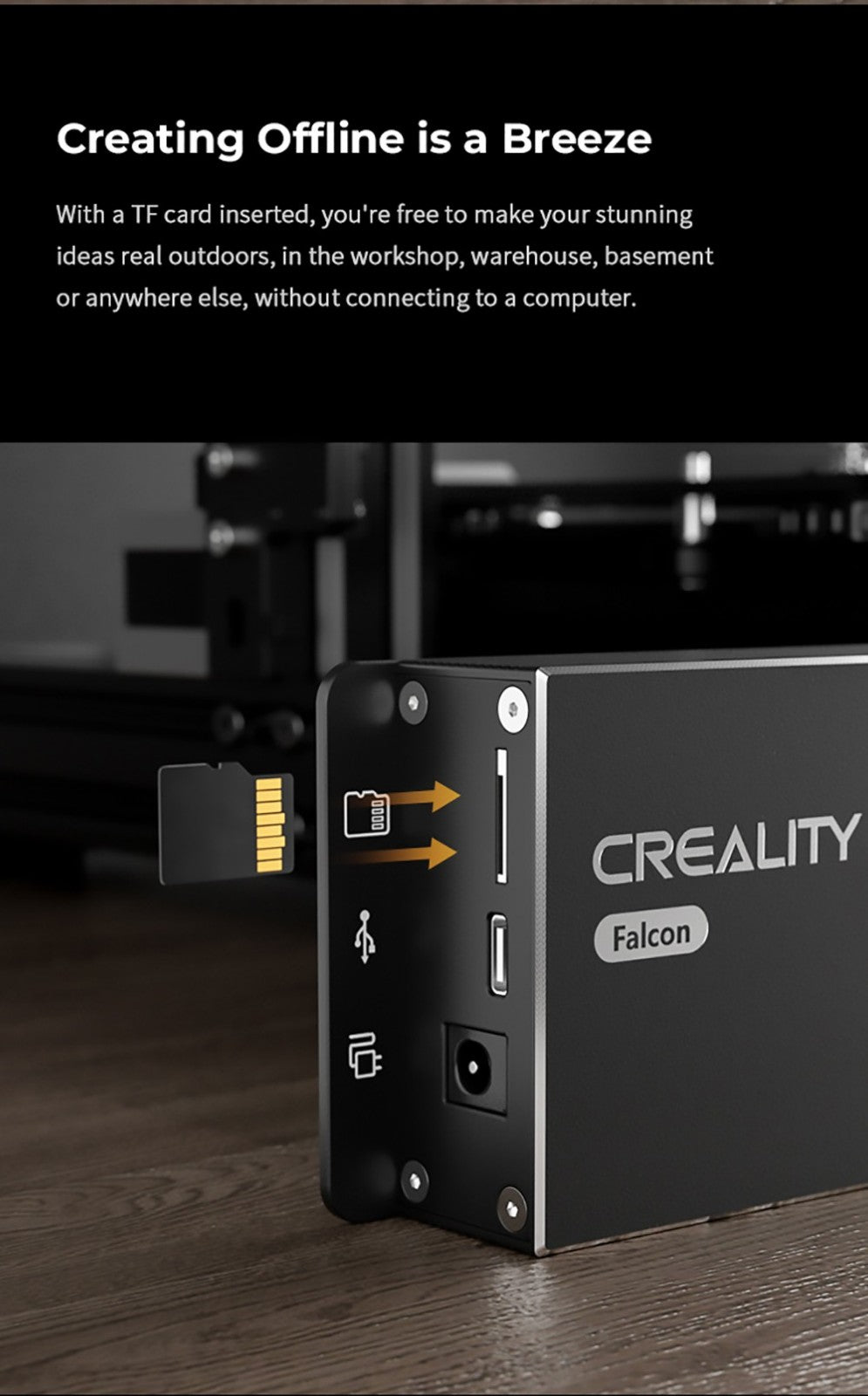

Creating Offline is a Breeze
With a TF card inserted, you're free to make your stunning ideas real outdoors, in the workshop, warehouse, basement, or anywhere else, without connecting to a computer.

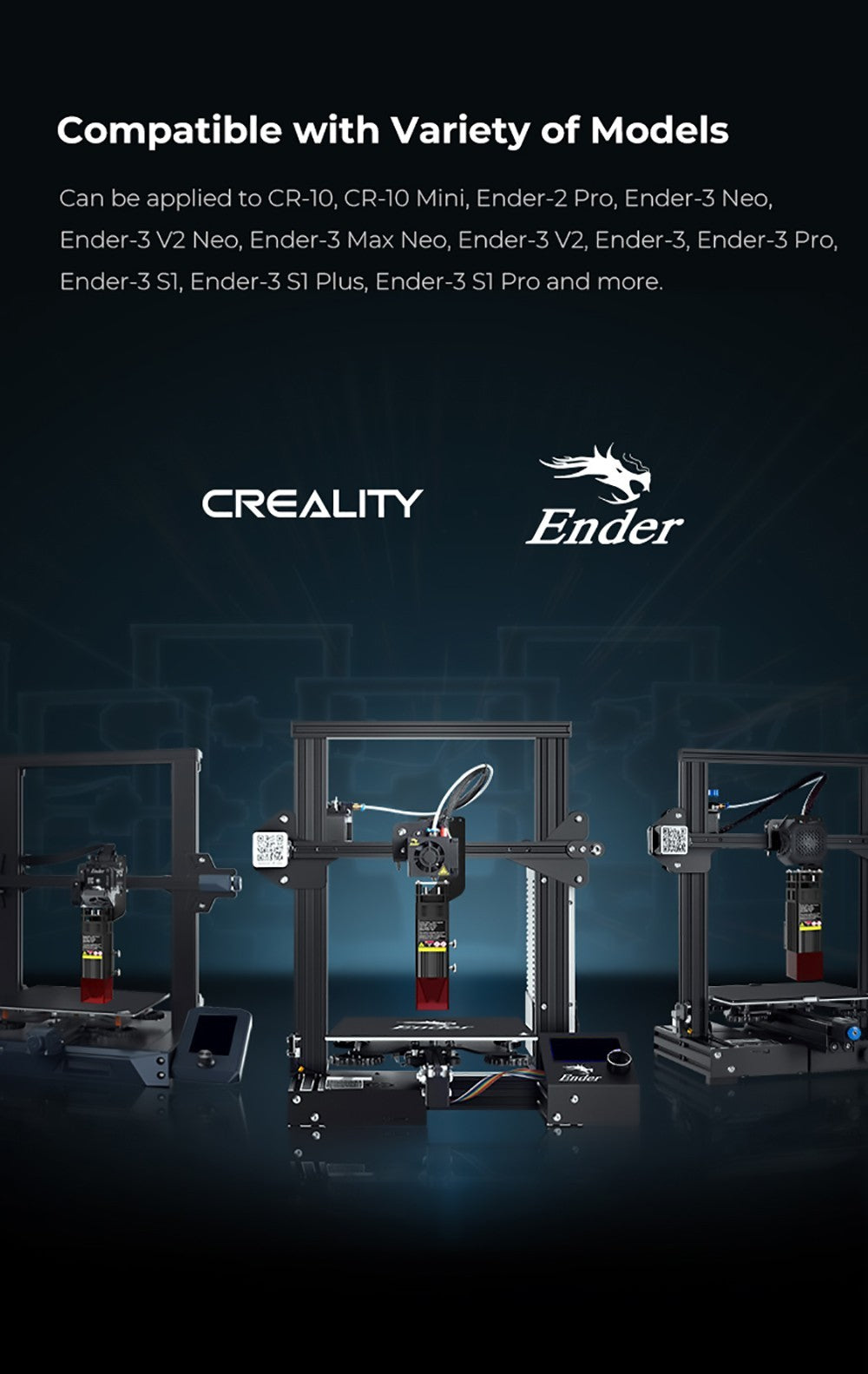

Wide Compatible
It can be applied to CR-10, CR-10 Mini, Ender-2 Pro, Ender-3 Neo, Ender-3 v2 Neo, Ender-3 Max Neo, Ender-3 V2, Ender-3, Ender-3 Pro, Ender-3 S1, Ender-3 S1 Pro, Ender-3 S1 Plus and more.

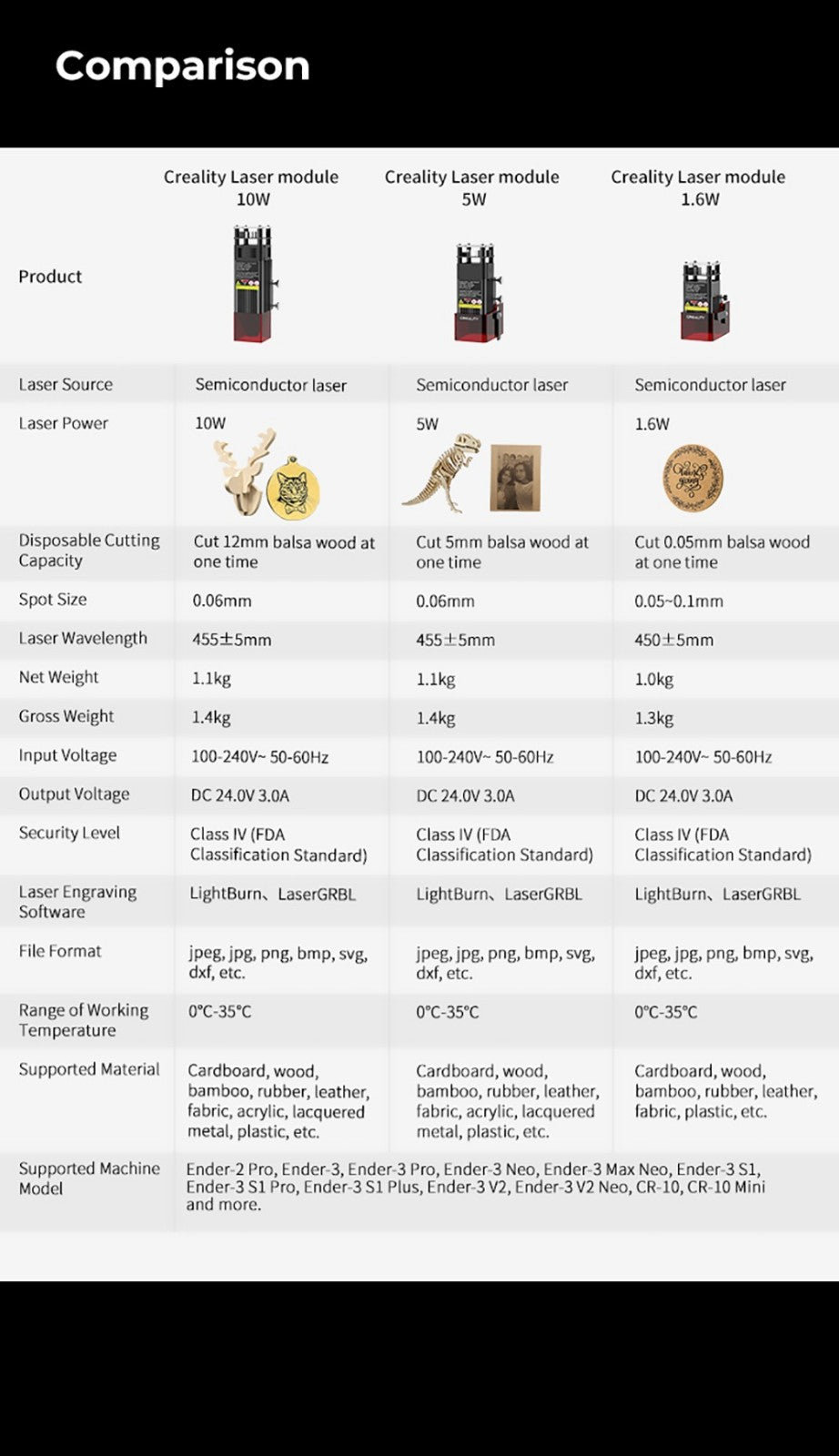

Specifications
Specifications
| General | |
|---|---|
| Brand | Creality |
| Type | Laser Module Kit |
| Model | 10W Laser |
| Specification | |
| Laser Source | Semiconductor laser |
| Laser Power | 10W |

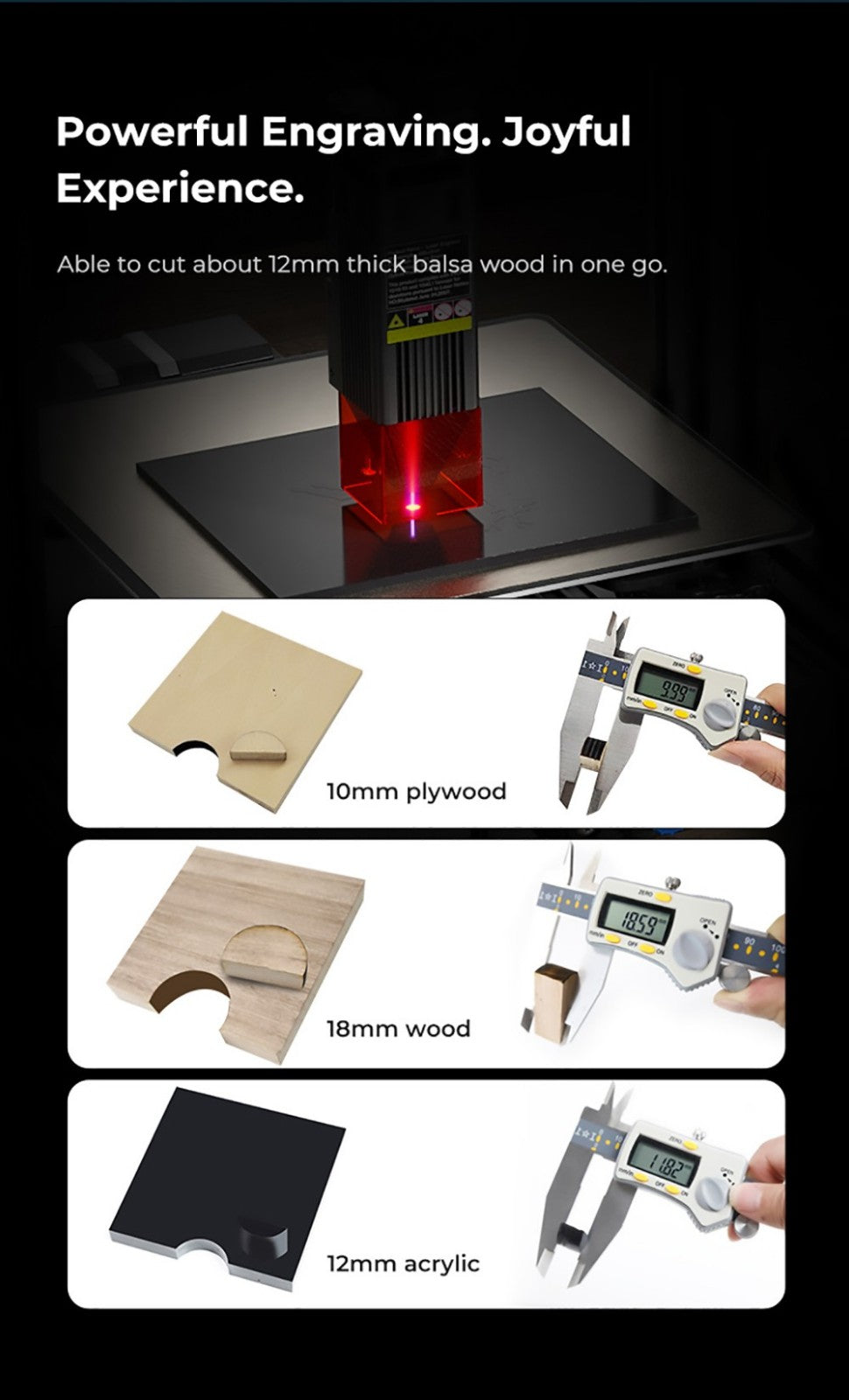

| Disposable Cutting Capacity | can cut 12mm balsa wood at one time |
| Spot Size | 0.06mm |
| Laser Wavelength | 455±5nm |
| Input Voltage | 100-240V, 50-60Hz |
| Output Voltage | DC 24V 3A |
| Security Level | Class 4 |
| Laser Engraving Software | LightBurn, LaserGRBL |
| File Format | jpeg, jpg, png, bmp, svg, dxf, etc. |
| Range of Working Temperature | 0-35 Celsius |
| Supported Material | Cardboard, wood, bamboo, rubber, leather, fabric, plastic, acrylic, lacquered metal, etc. |
| Supported Machine Model | CR-10, CR-10 Mini, Ender-2 Pro, Ender-3 Neo, Ender-3 v2 Neo, Ender-3 Max Neo, Ender-3 V2, Ender-3, Ender-3 Pro, Ender-3 S1, Ender-3 S1 Pro, Ender-3 S1 Plus and more. |
| Weight & Size | |
| Product Weight | 1.1kg |
| Package Weight | 1.36kg |
| Package Size(L x W x H) | 34*25*8cm |

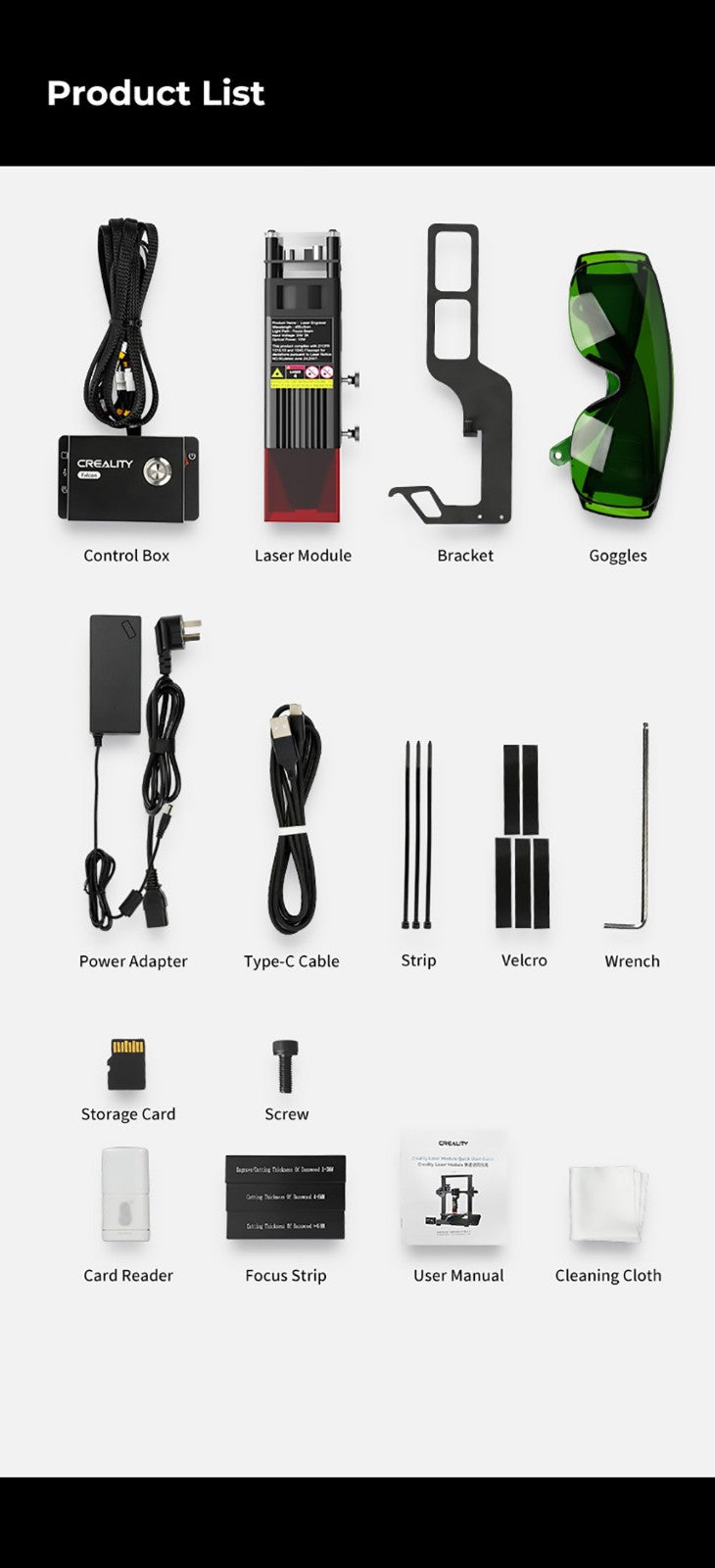

| Package Contents | |
| 1 x Laser Module | |
| 1 x Control Box | |
| 1 x Bracket | |
| 1 x Goggles | |
| 1 x Power Adapter | |
| 3 x Strips | |
| 5 x Velcro | |
| 1 x Type-C Cable | |
| 1 x Card Reader | |
| 1 x Storage Card | |
| 1 x Wrench | |
| 1 x Cleaning Cloth | |
| 1 x Screw | |
| 1 x Focus Strip | |
| 1 x User Manual | |
