Description
Description
BSIDE U6 highlights

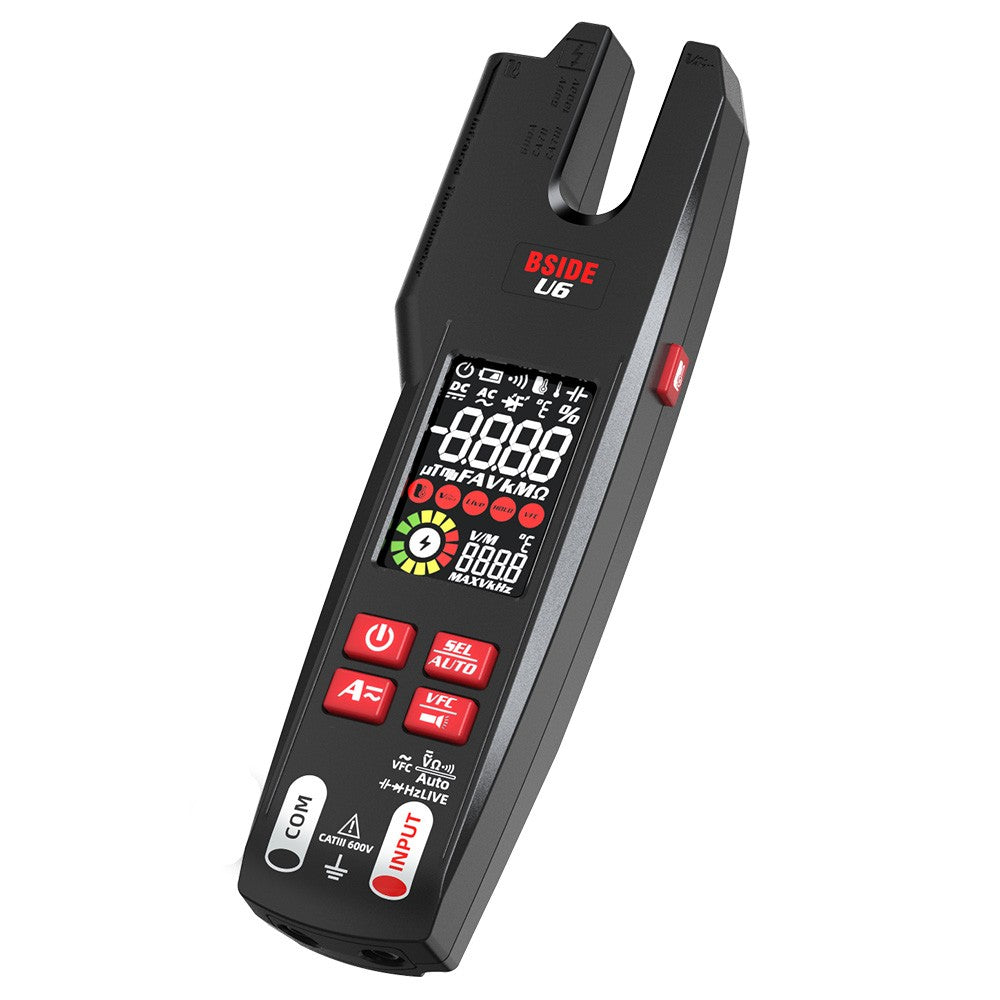

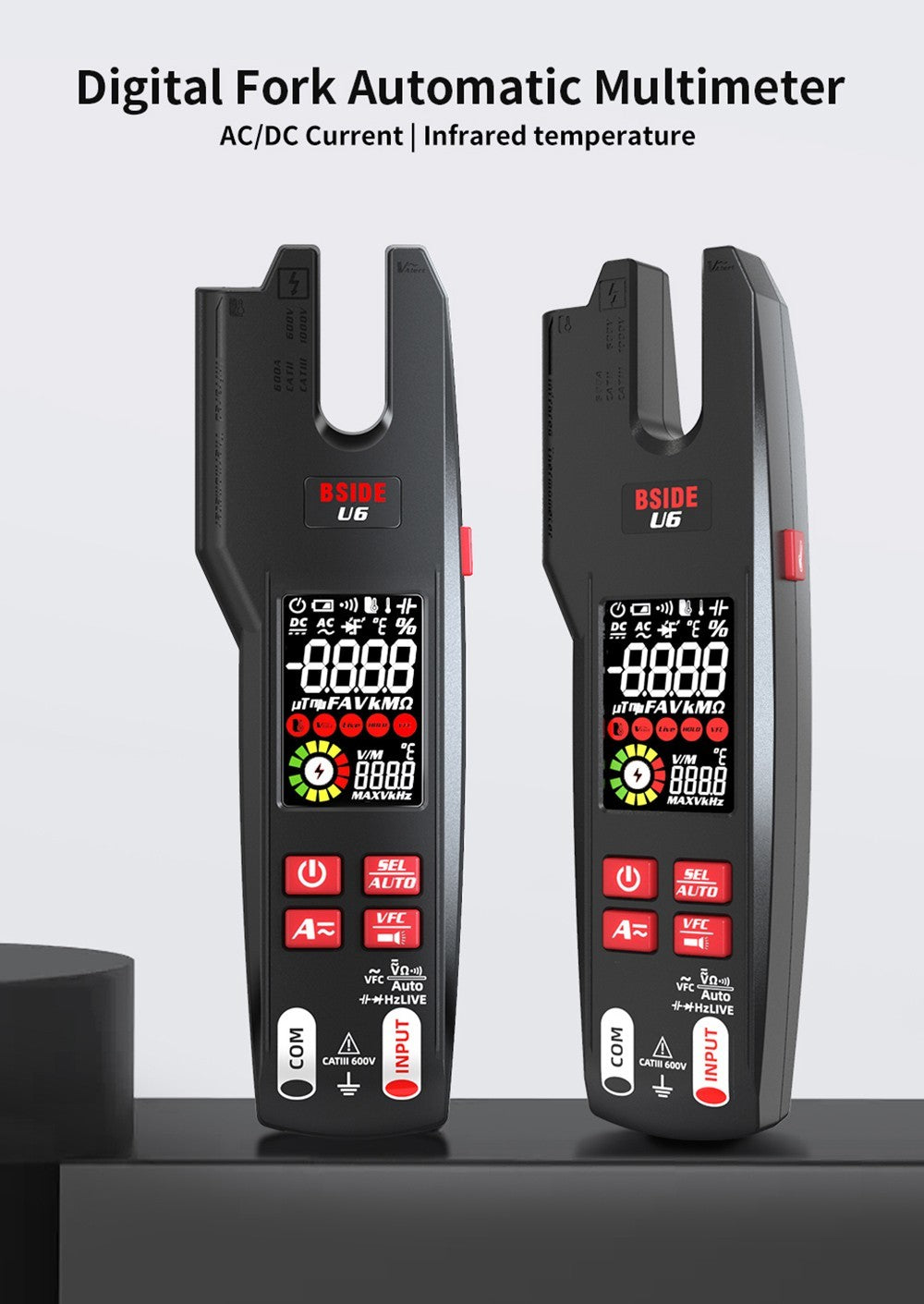

Multifunctional Clamp Meter

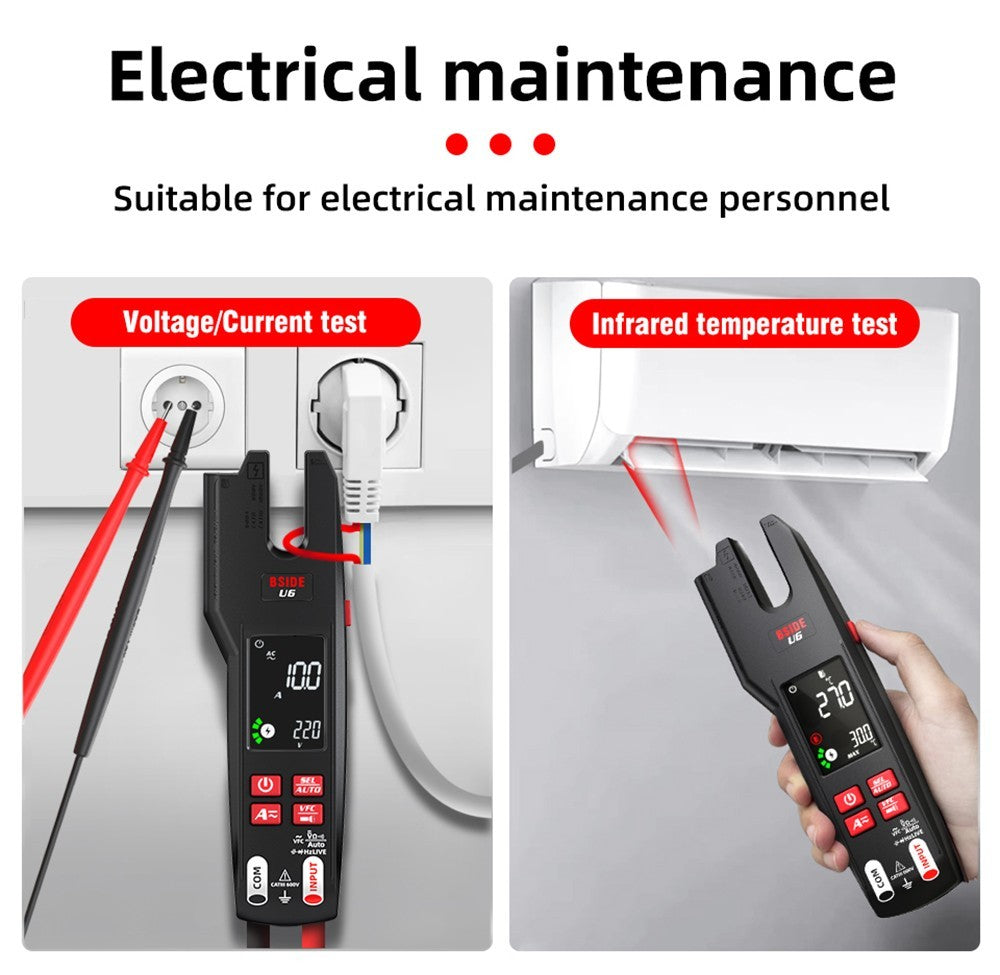

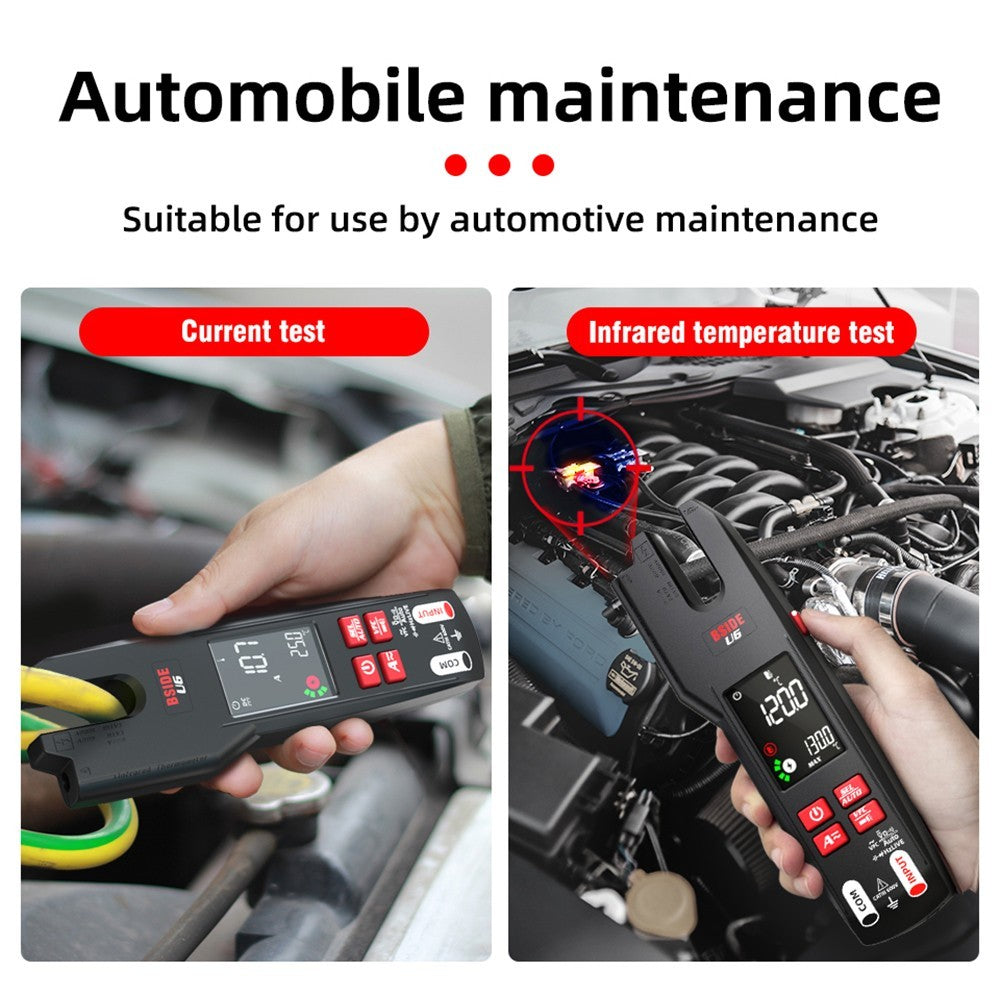

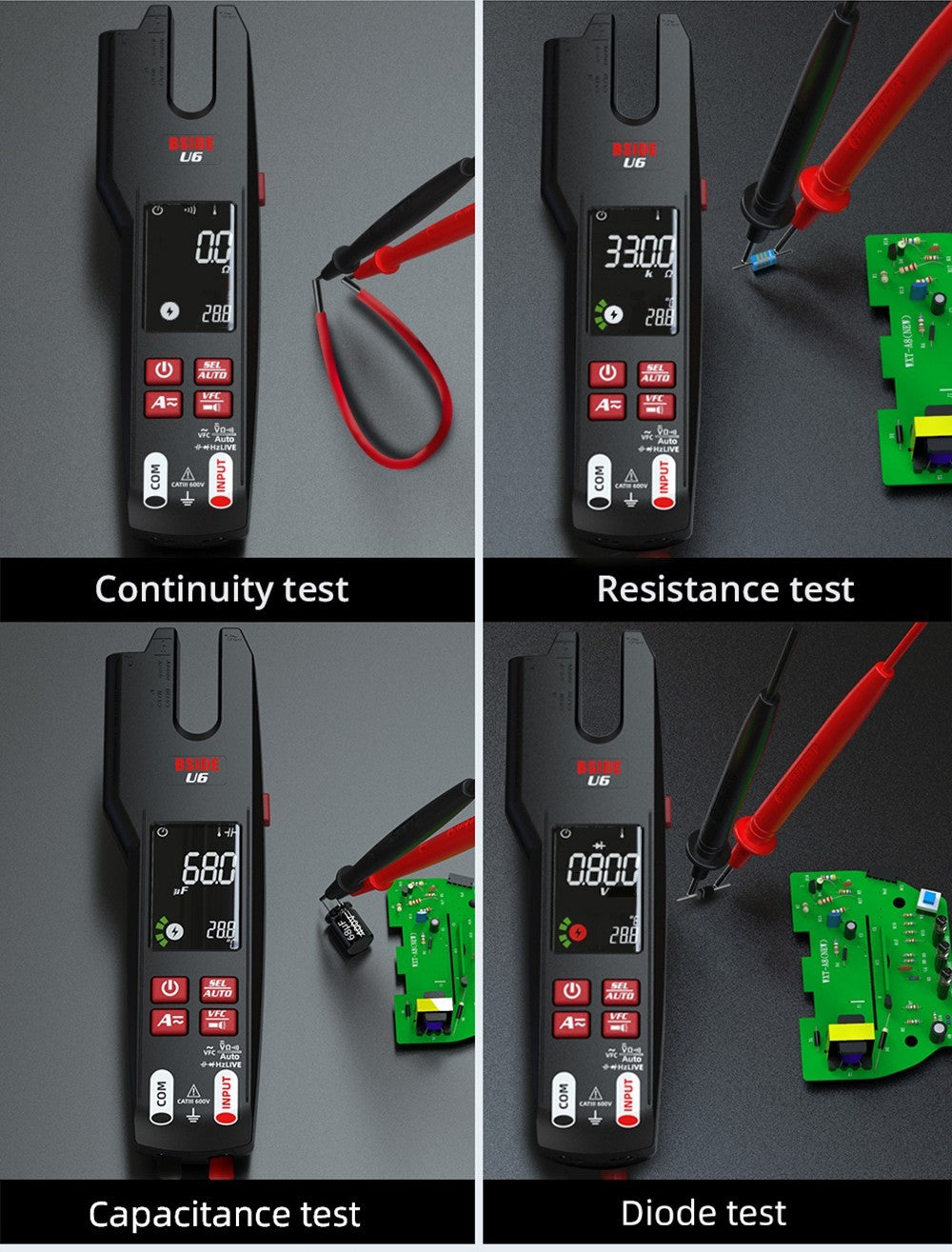

This is a powerful multimeter that can test DC/AC voltage, DC/AC current, capacitance, resistance, diode, frequency, continuity, temperature, zero/live wire, VFC voltage, etc. It is widely used in mechanical repair, electricians, home use, car repair, and so on.

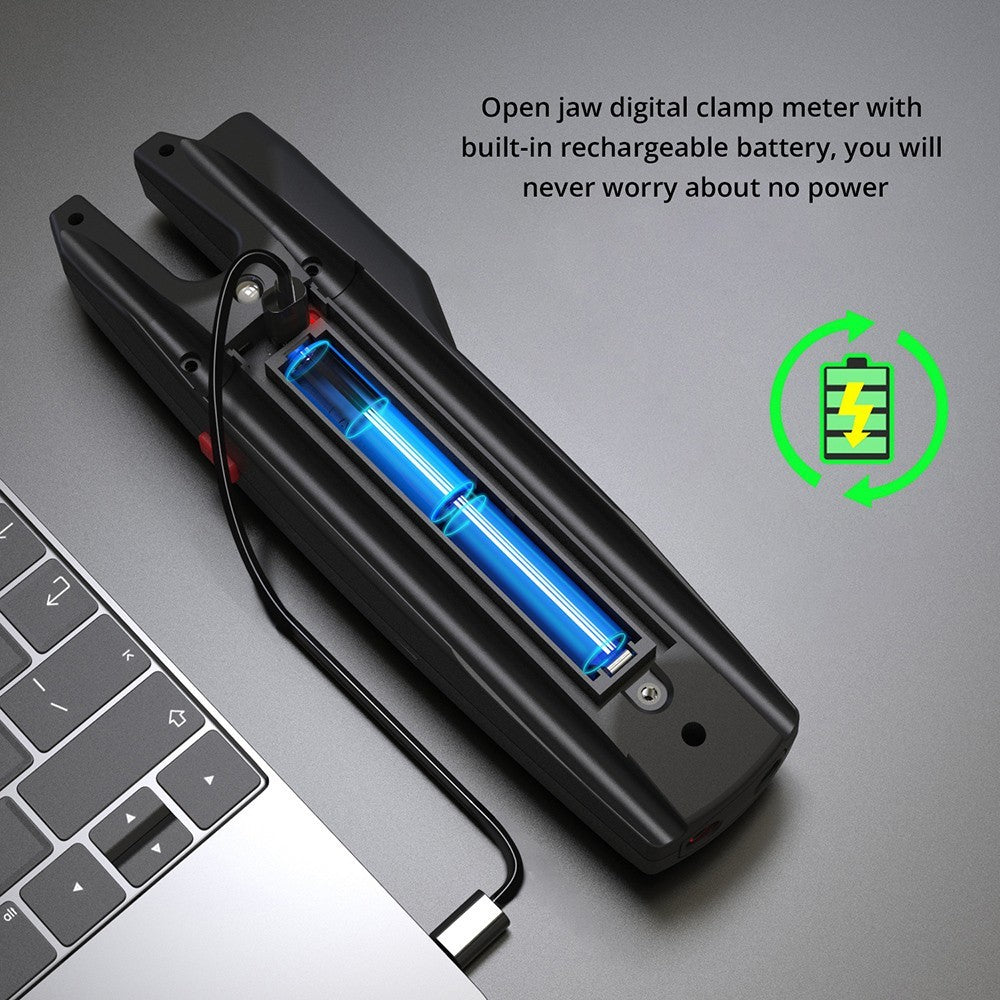

Rechargeable Battery
BSIDE U6 digital clamp meter has a built-in rechargeable battery, so you will never worry about no power.

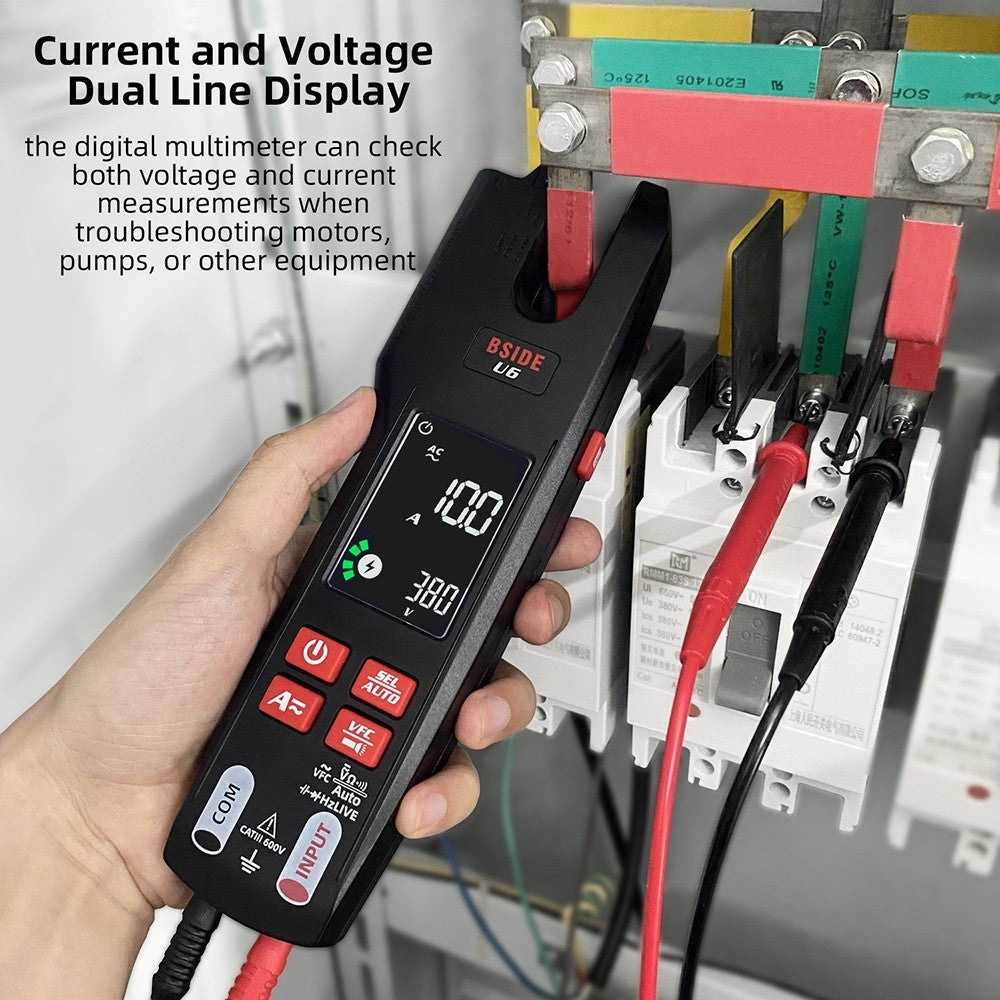

Current and Voltage Dual Line Display

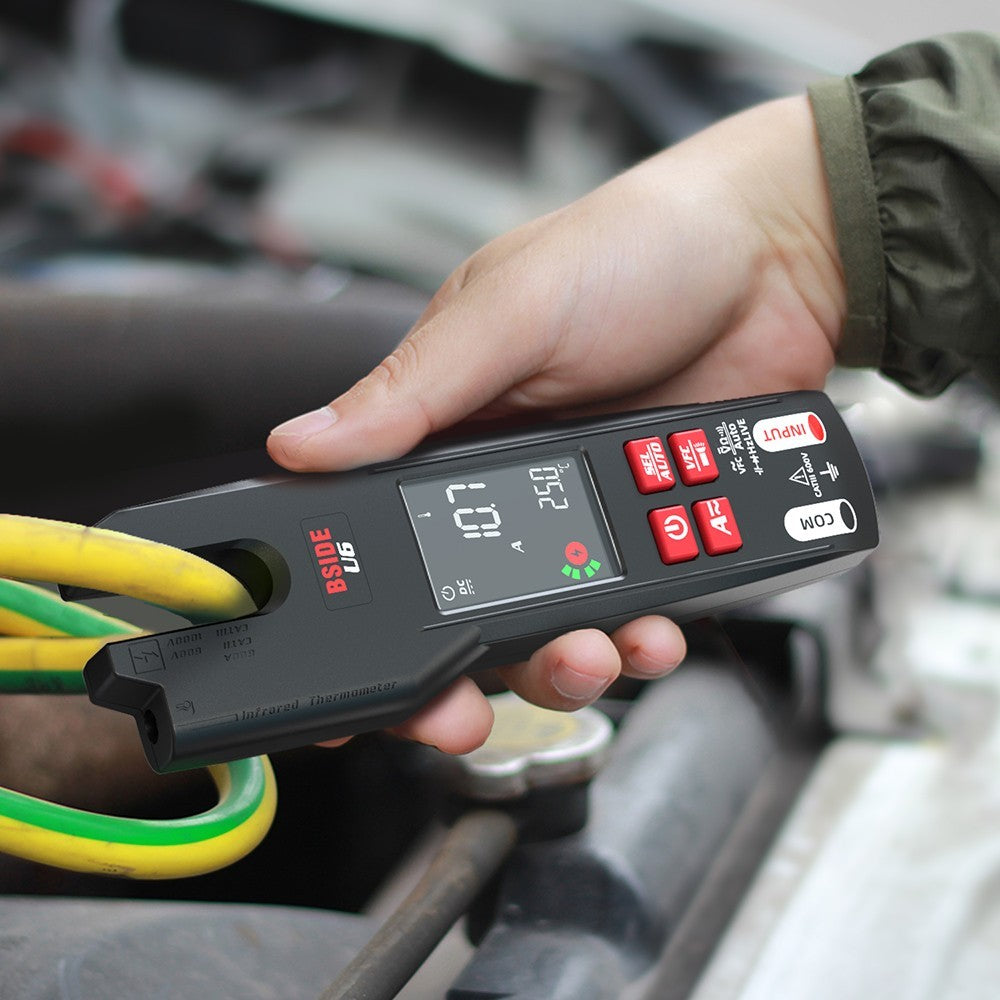

The digital multimeter can check both voltage and current measurements when troubleshooting motors, pumps, or other equipment.

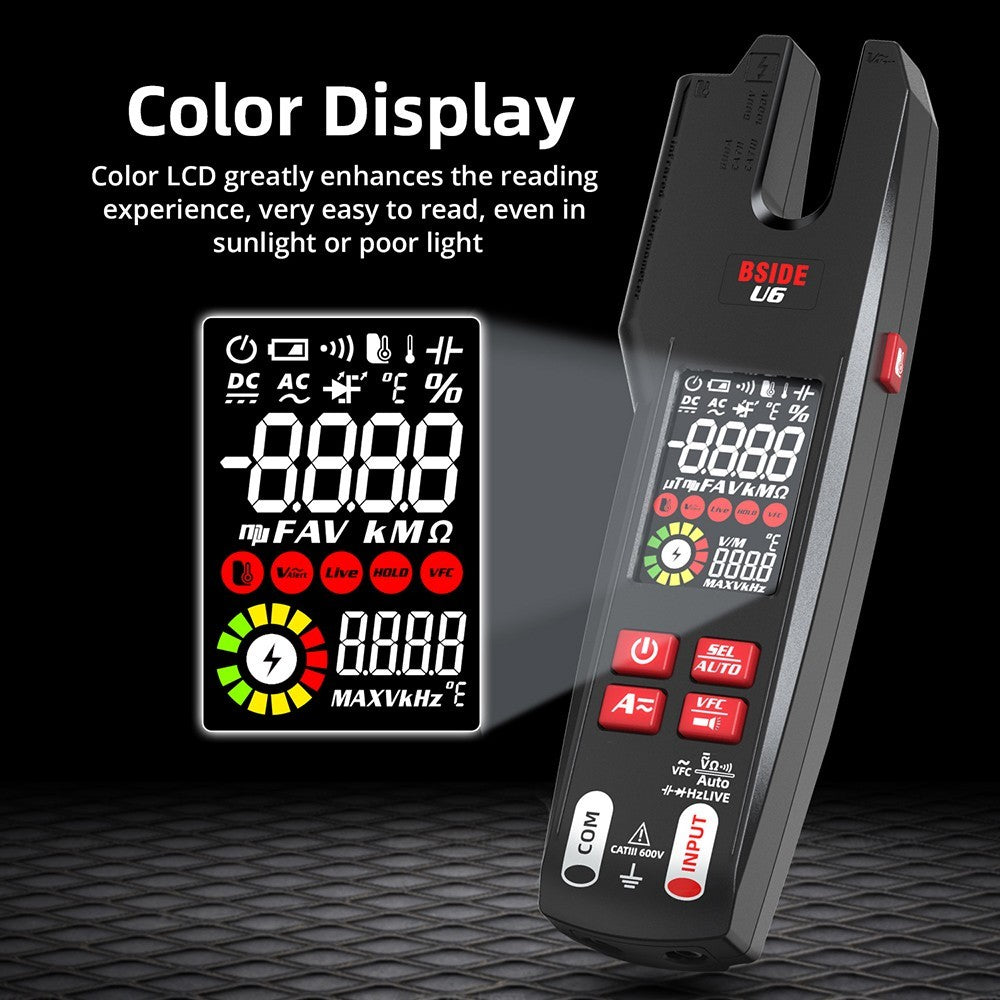

Color LCD Display
Color LCD greatly enhances the reading experience, very easy to read, even in sunlight or poor light.
Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Multimeter |
| Model | U6 |
| Color | Black |
| Specification | |

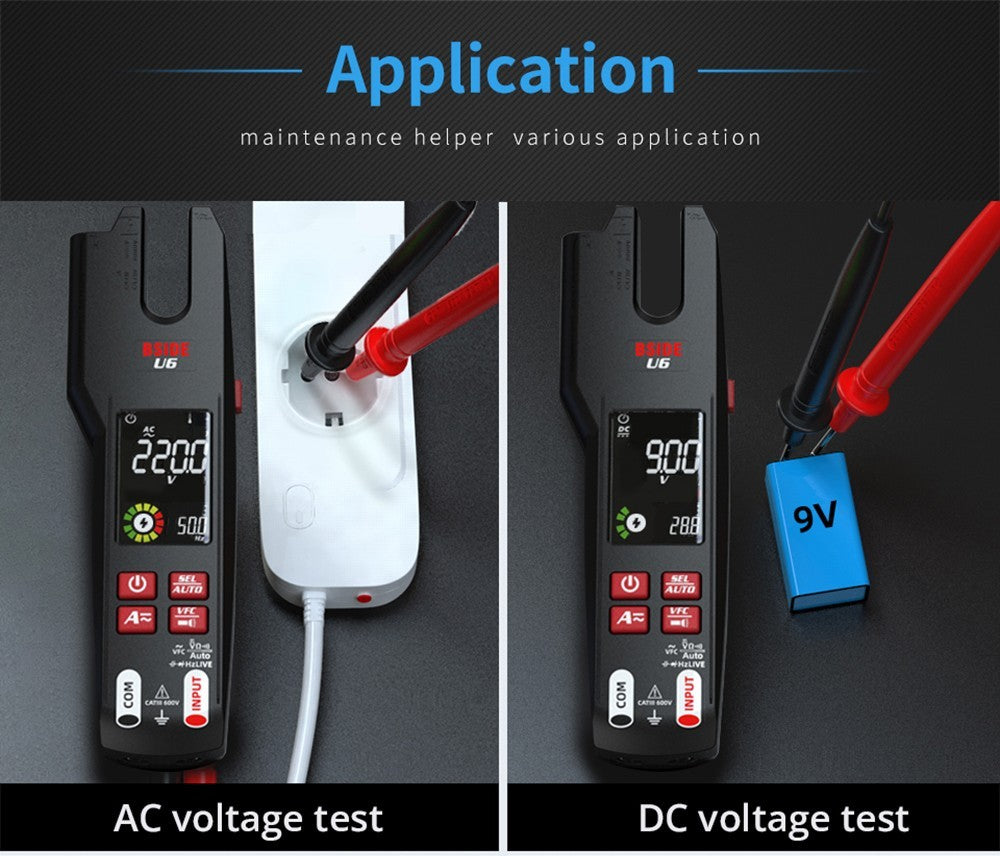

| DC Voltage: | |
| Range: 0-620V (DC Mode), 0.5-620V (DC Mode) | |
| Resolution: 0.001V | |
| Accuracy: ± (0.8%+3) | |
| AC Voltage: | |

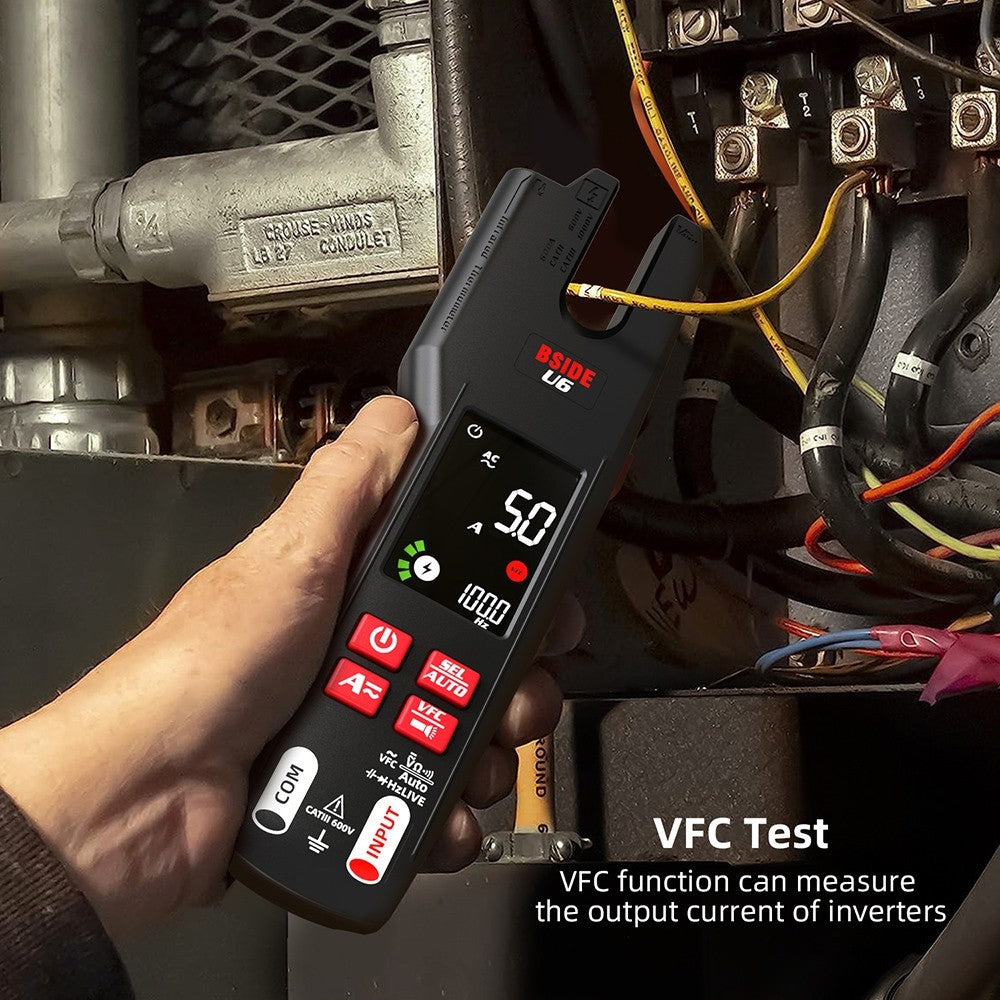

| Range: 0-620V (DC Mode), 0.5-620V (DC Mode); 0-620V (VFC Mode) | |
| Resolution: 0.001V; 0.1V | |
| Accuracy: ± (1.2%+5); ± (4.0%+3) | |
| Resistance: | |
| Range: 0-10MΩ | |
| Resolution: 0.1Ω | |
| Accuracy: ± (1.2%+3) | |

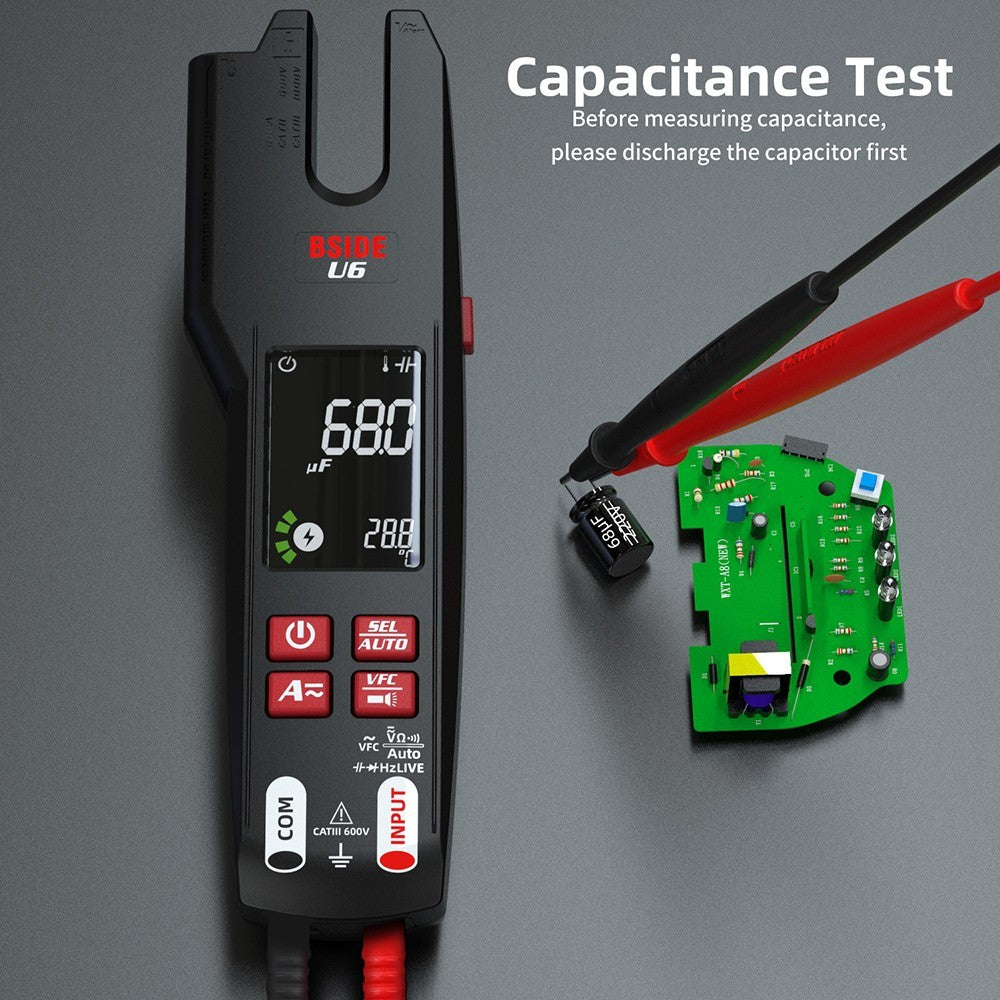

| Capacitance: | |
| Range: 0.5μF-1000μF, 1000μF-10mF | |
| Resolution: 0.1μF | |
| Accuracy: ± (3.5%+8), ± (4.5%+10) | |
| Current: | |
| Range: 1-600A DC, 1-600A (AC, 40-200Hz); 1-600A (VFC, 40-200Hz) | |
| Resolution: 0.1A | |
| Accuracy: ± (2.5%+5), ± (4.0%+5) | |
| Frequency: | |
| Range: 10-1000Hz | |
| Resolution: 1Hz | |
| Accuracy: ± (2.0%+10) | |

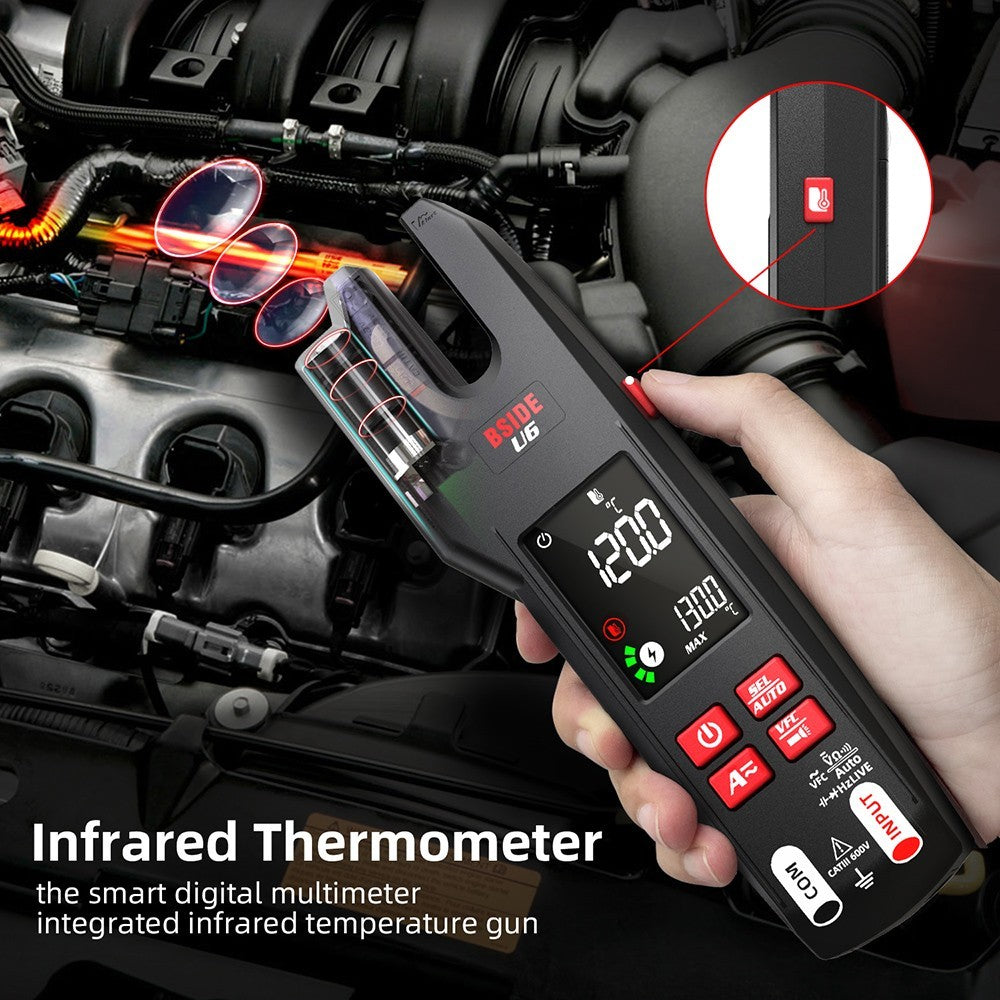

| Infrared Temperature Measurement: | |
| Range: -20 - 0 Celsius (-4 - 32 Fahrenheit), 0 - 400 Celsius (32 - 752 Fahrenheit) | |
| Resolution: 0.1 Celsius/Fahrenheit | |
| Accuracy: ± (3.0%+2 Celsius/Fahrenheit), ± (2.2%+3 Celsius/Fahrenheit) | |
| Temperature | |
| Range: 0-50 Celsius | |
| Resolution: 0.1 Celsius/Fahrenheit | |
| Accuracy: ± 2 Celsius/Fahrenheit | |
| Continuity: If the resistance is 30Ω, the buzzer sounds | |
| Diode: measure diodes within 2.0V | |
| Alert: Yes | |
| Live Wire Check: yes | |
| Auto power off: 5 minutes | |
| Flashlight: yes | |
| Power: 2 x AA nickel-metal hydride battery or Alkaline battery | |
| Weight & Size | |
| Product Weight | 216g |
| Package Weight | 516g |

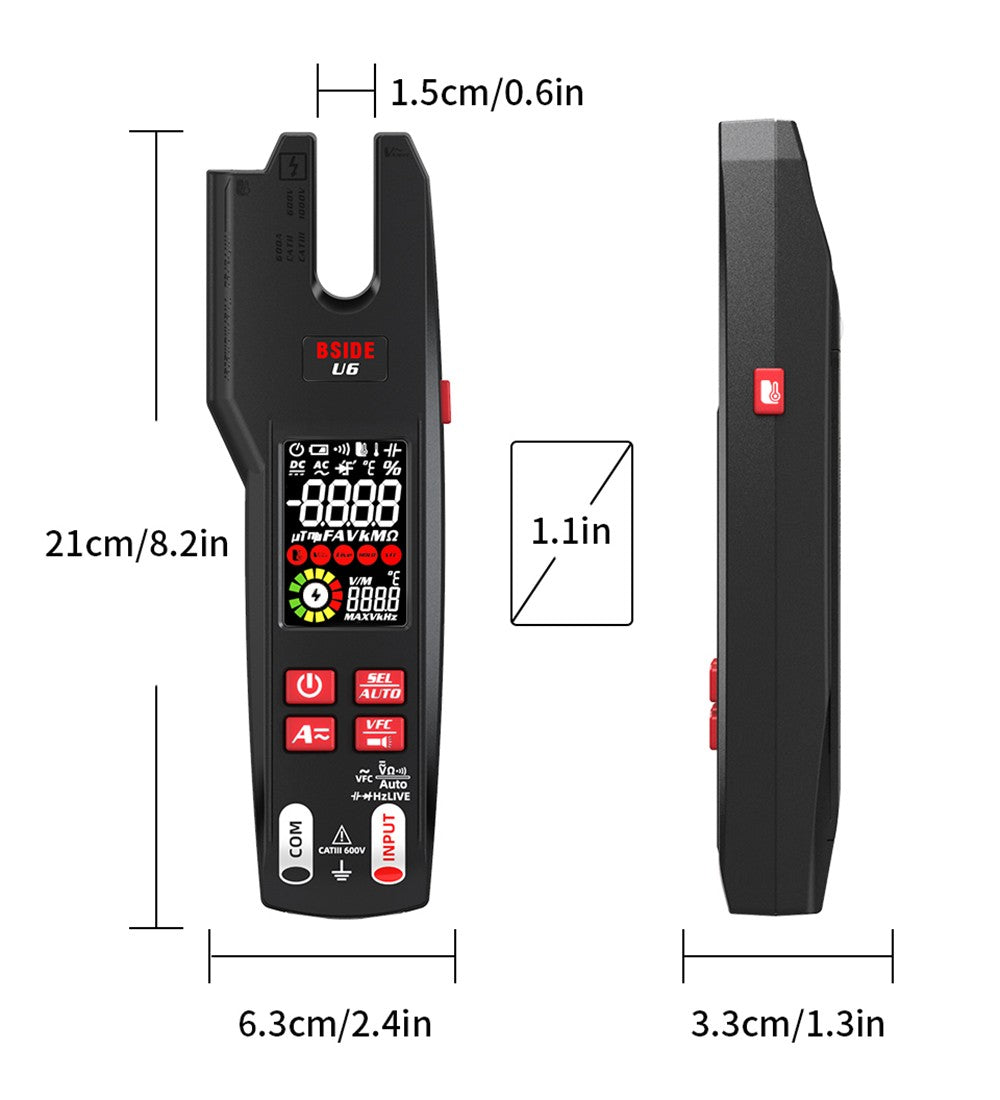

| Product Size(L x W x H) | 210x63x33mm |
| Package Size(L x W x H) | 232x130x52mm |

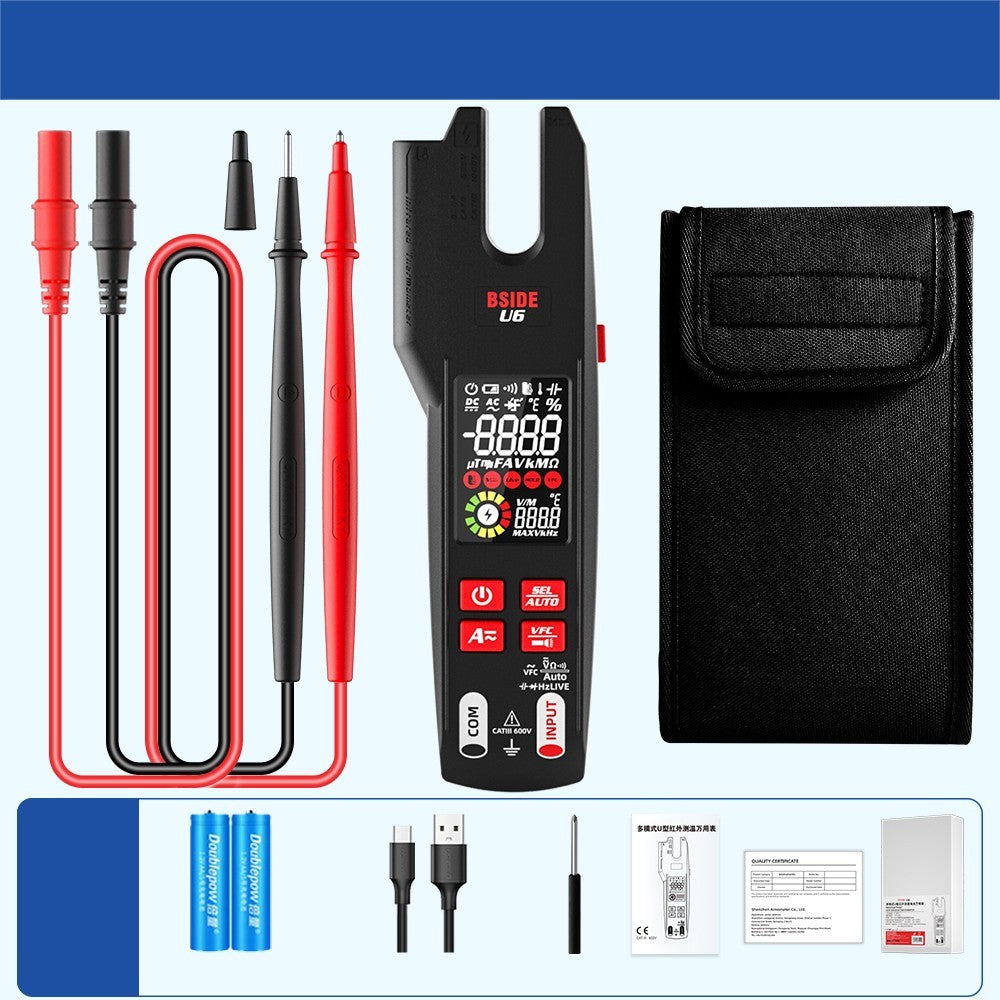

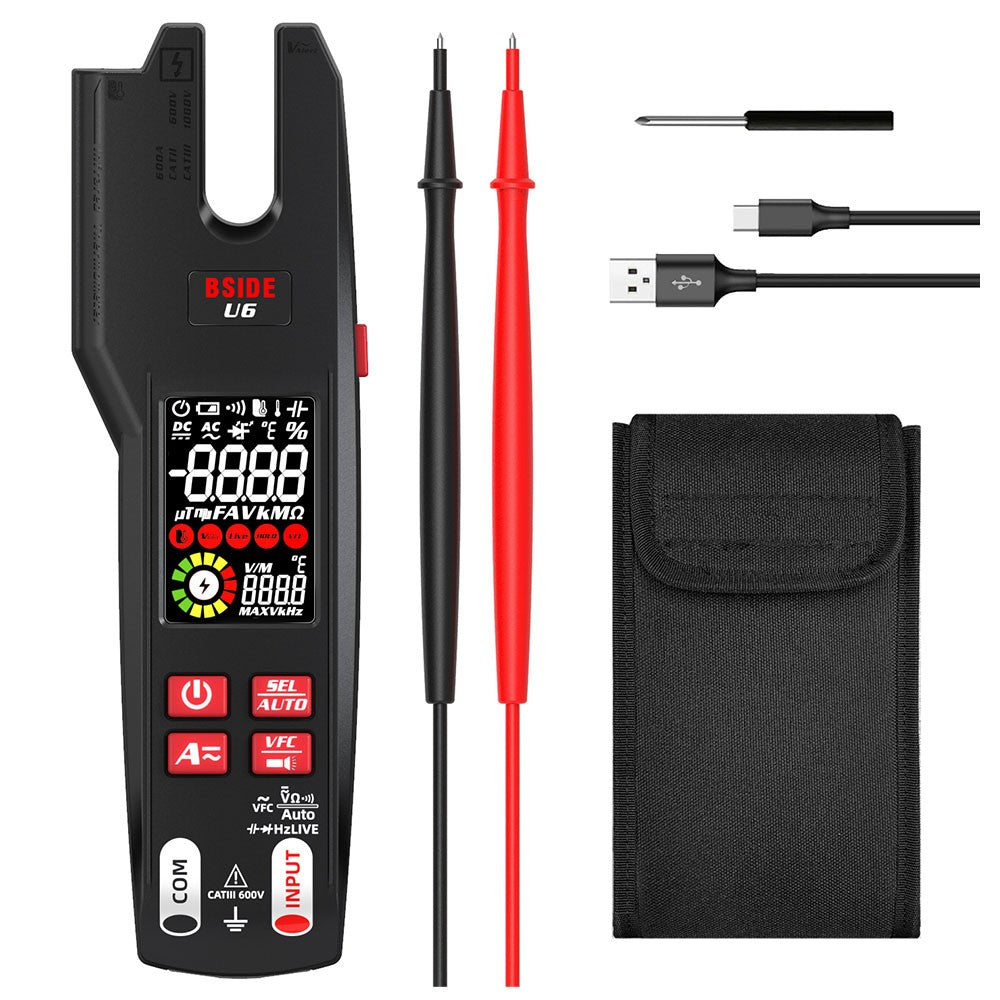

| Package Contents | |
| 1 x Multimeter | |

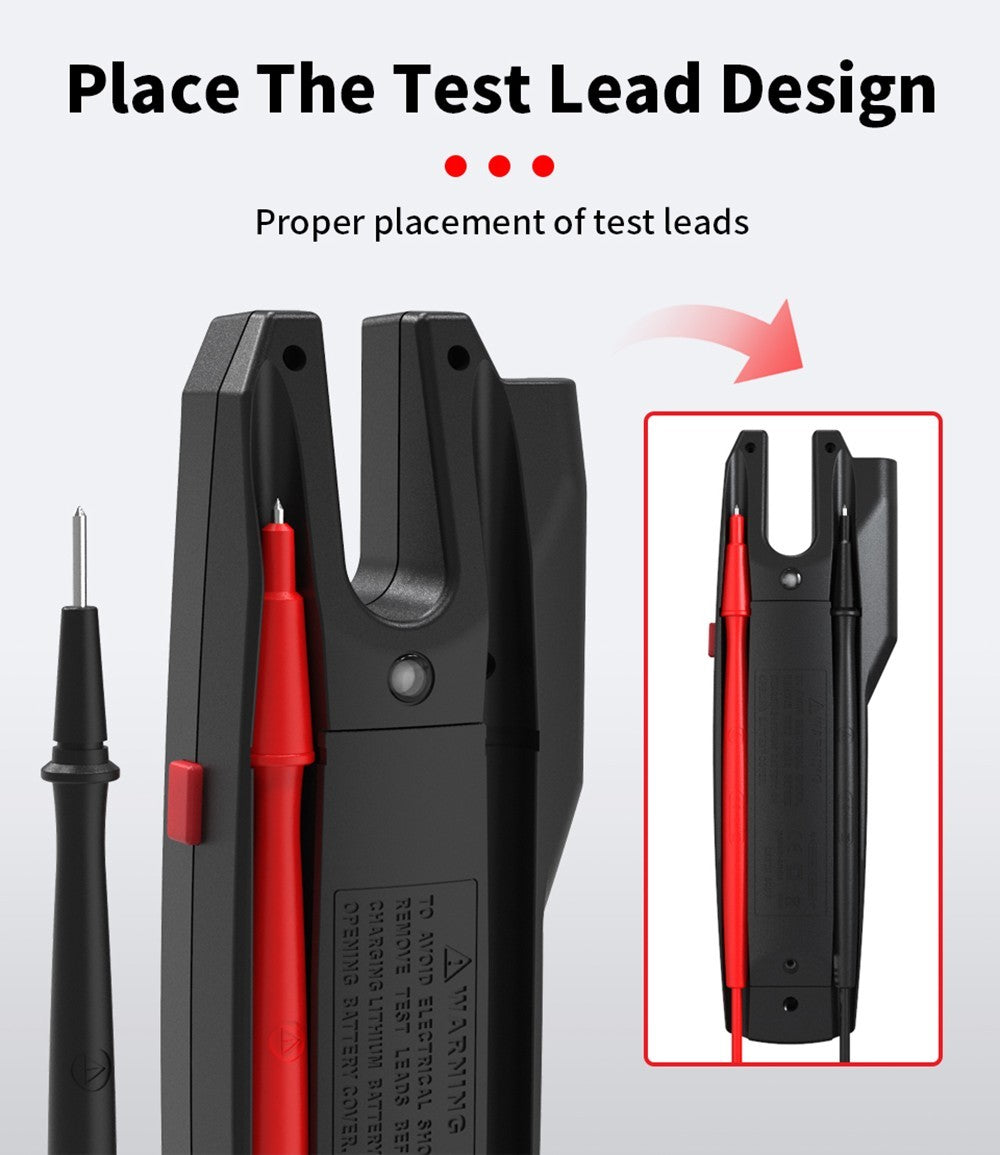

| 1 x Test Lead | |
| 1 x Tool Kit | |
| 1 x Screwdriver | |
| 1 x Charging Cable | |
| 2 x 1.2V AA NiMH Rechargeable Batteries 800mAh | |
| 1 x User Manual | |
