BSIDE U1 Clamp Multimeter
BSIDE U1 Clamp Multimeter
Where To Buy
Where To Buy
Description
Description
BSIDE U1 highlights

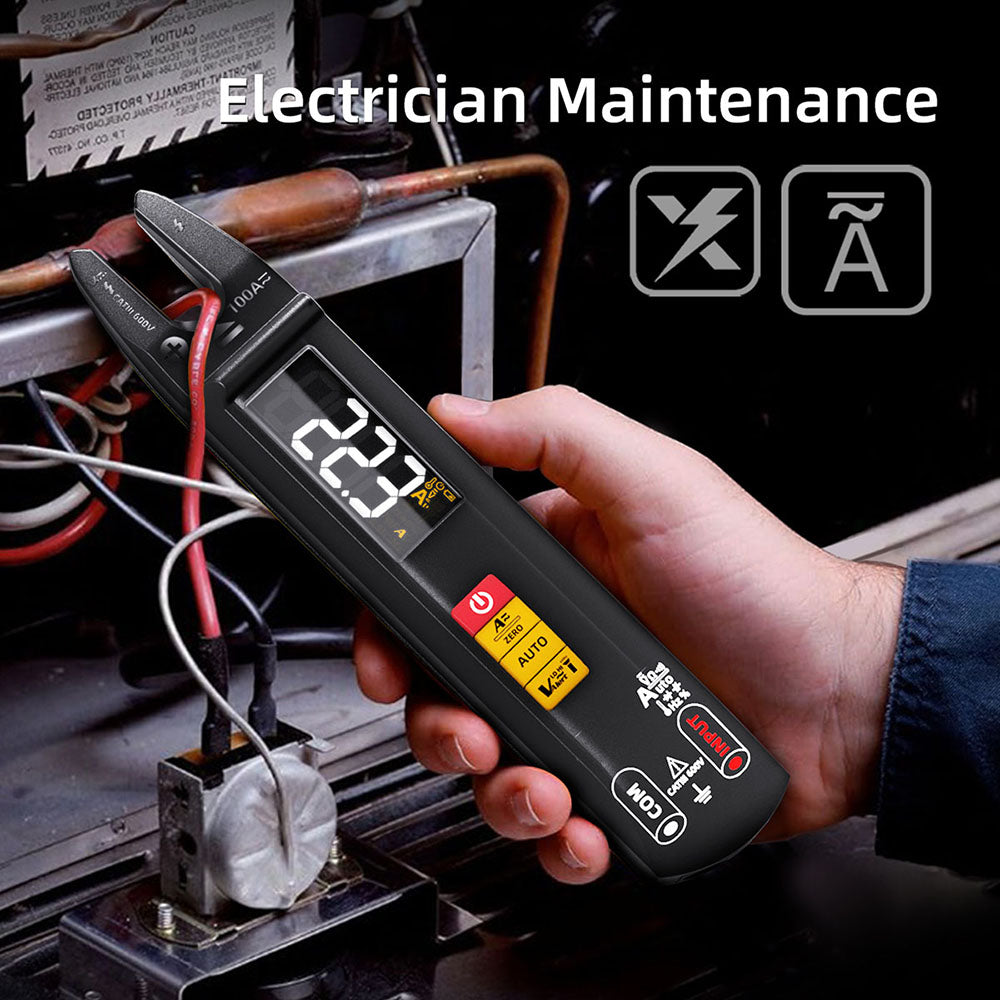

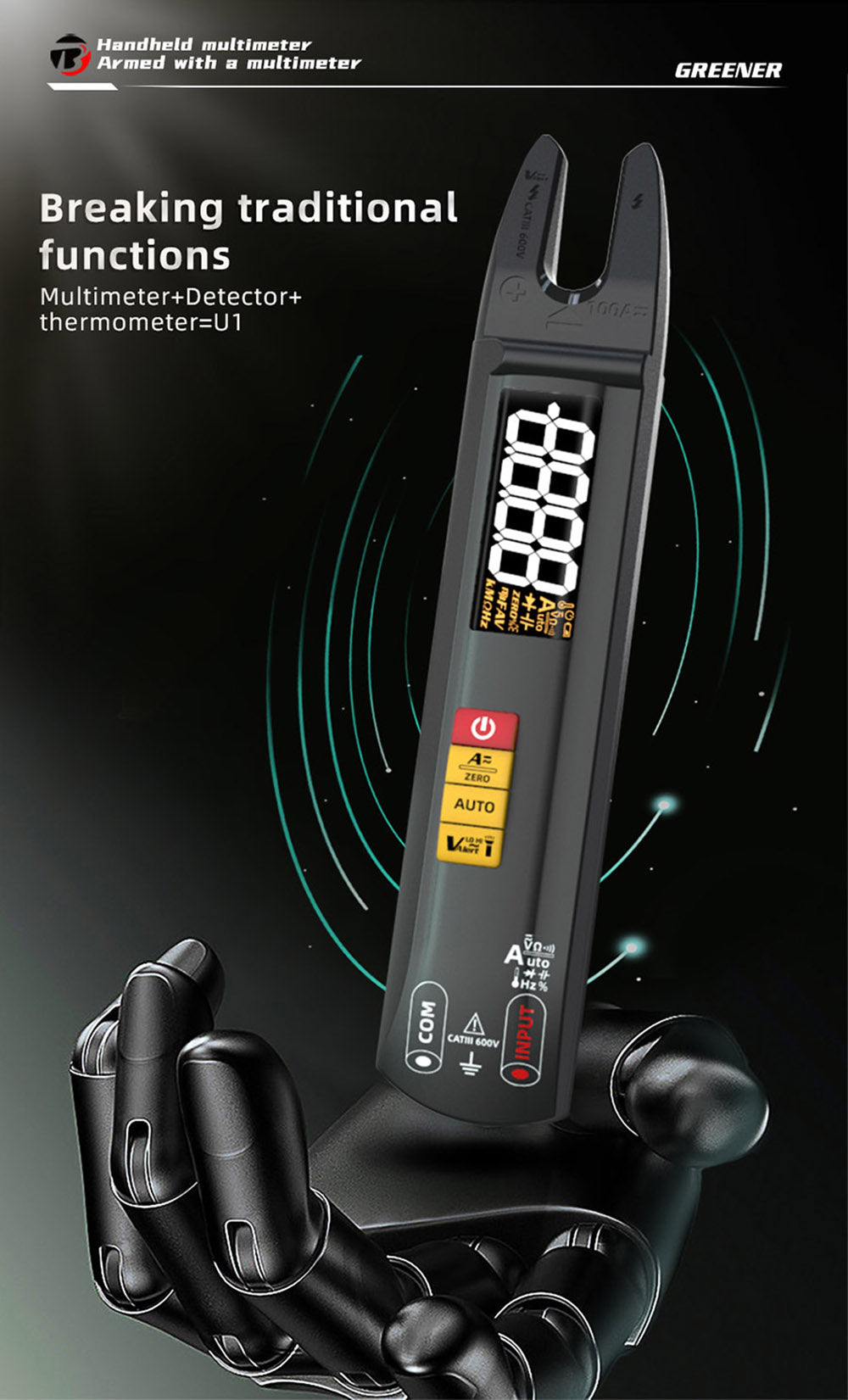

1. Electric pen current multimeter 3-in-1 function electric pen + current clamp + multimeter.
2. Lithium battery power supply is convenient and lasts longer to use.

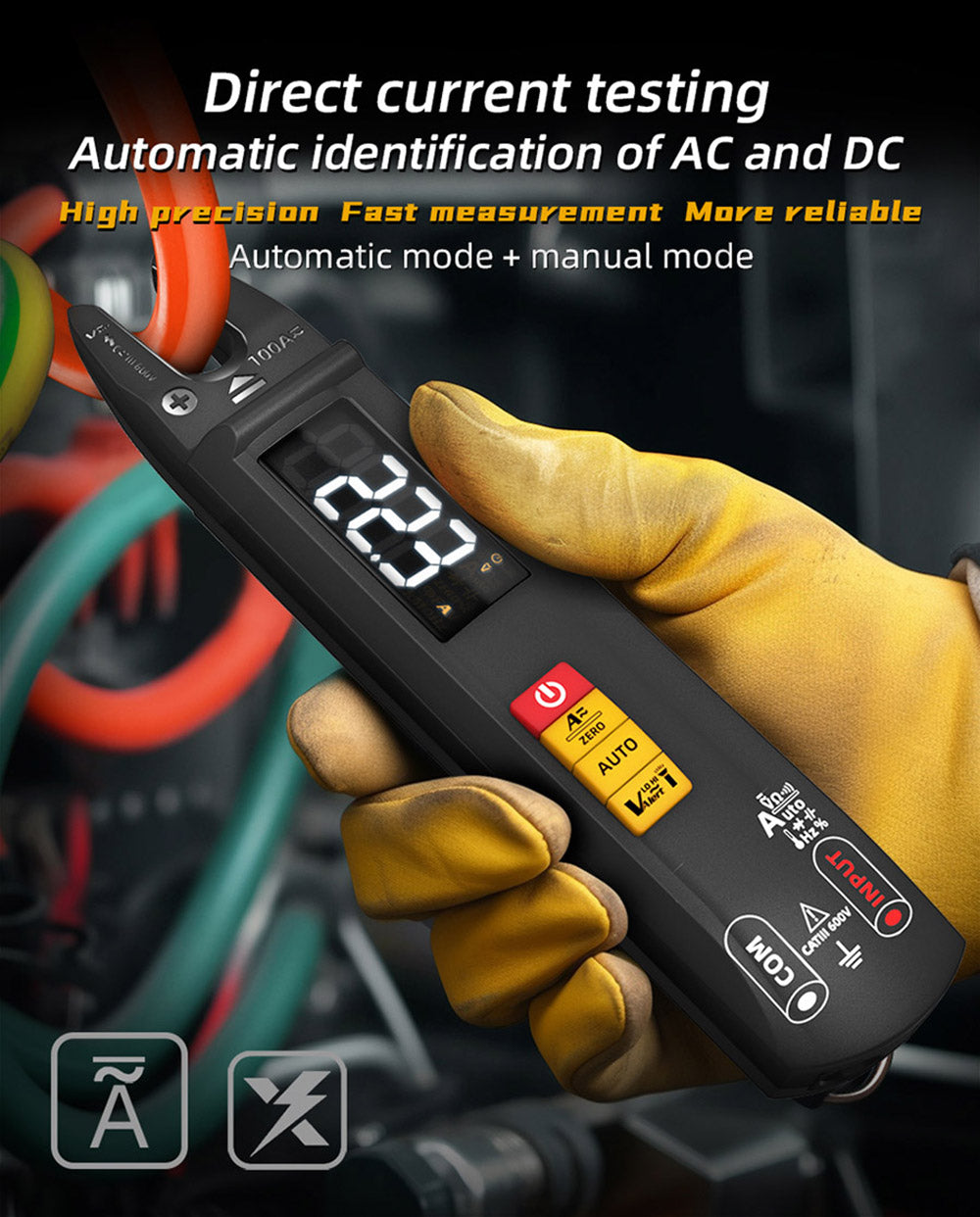

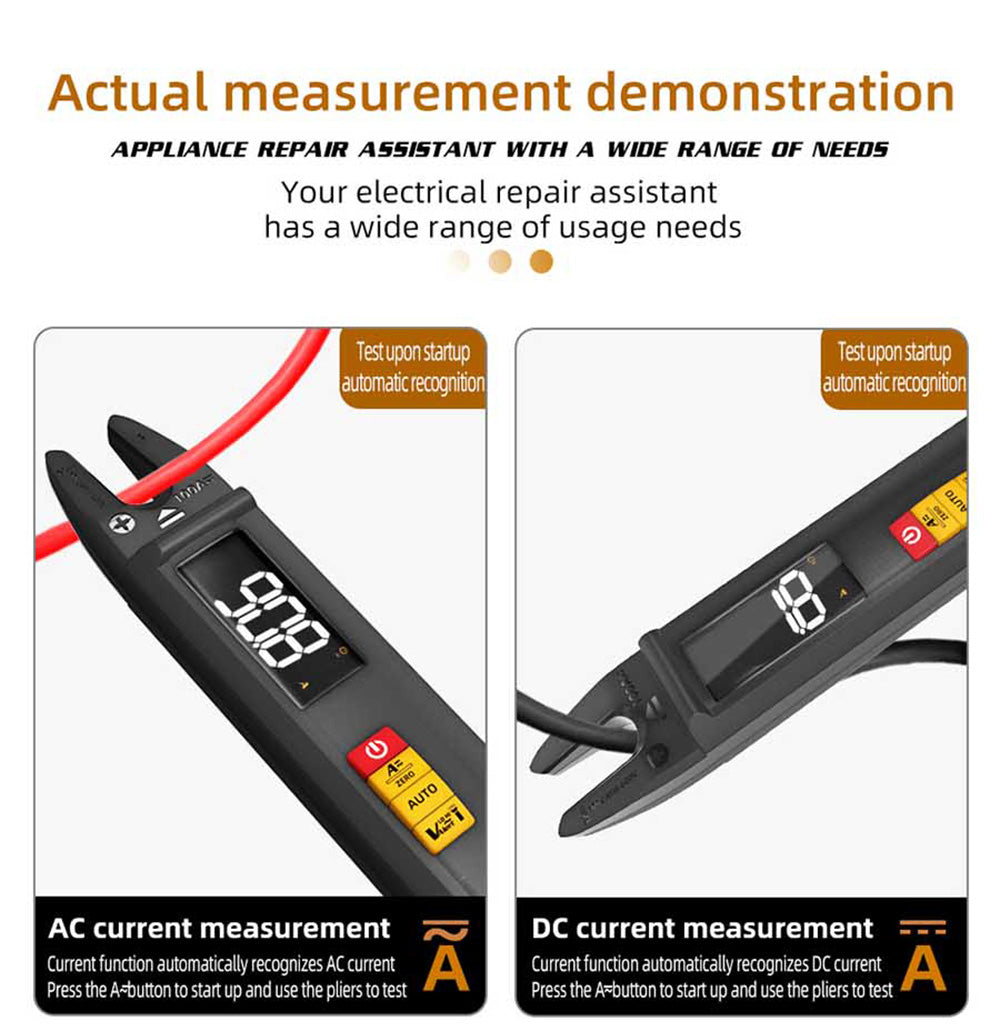

3. The current sensor supports the range of 0.5 to 100 amps, can automatically identify AC and DC currents, and can also be switched manually.
4. Support DC manual zero mode.

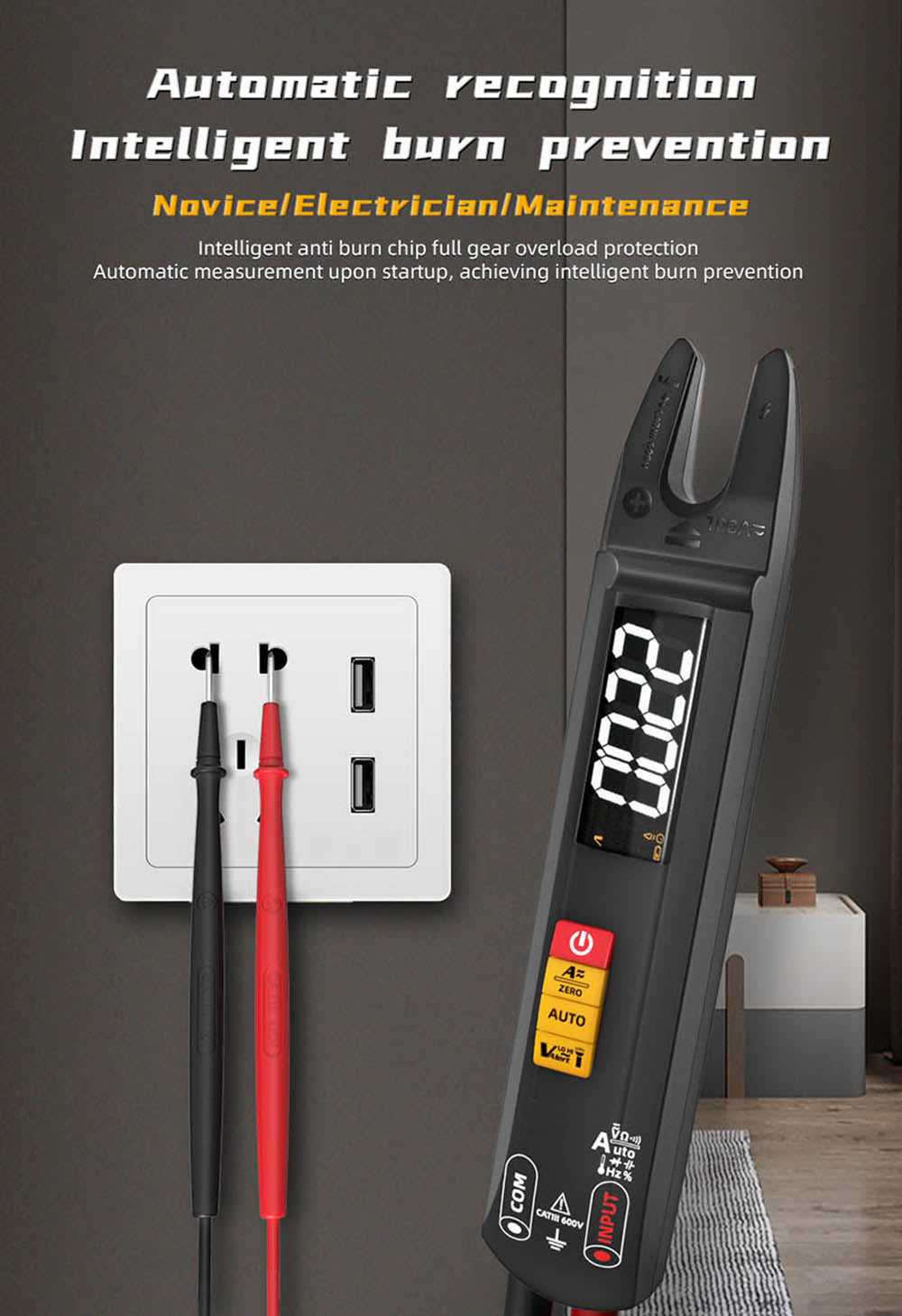

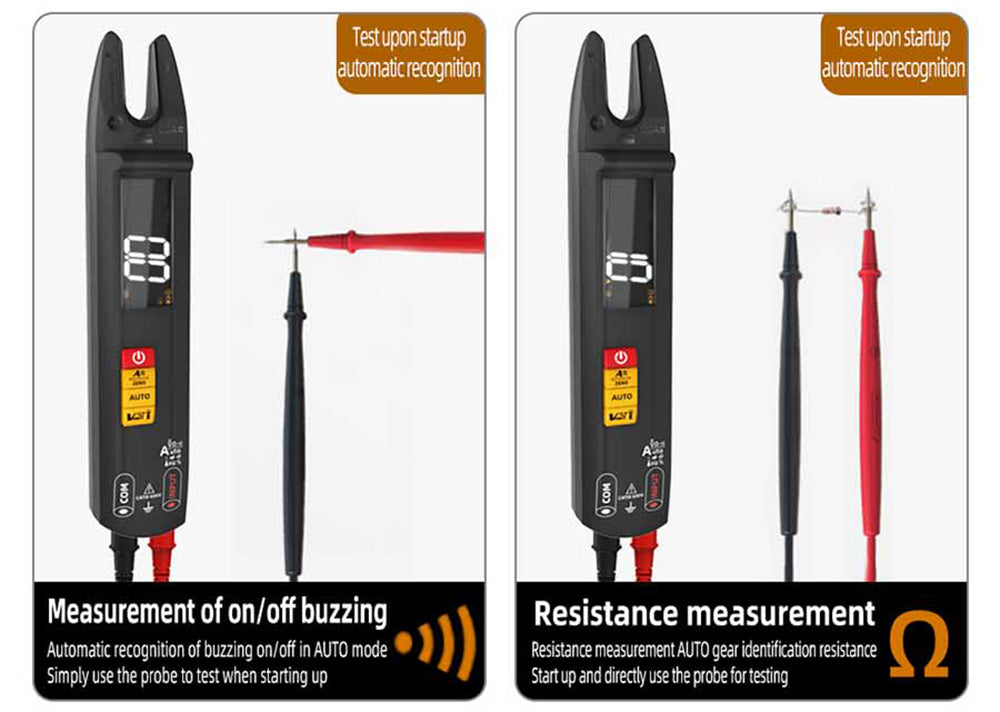

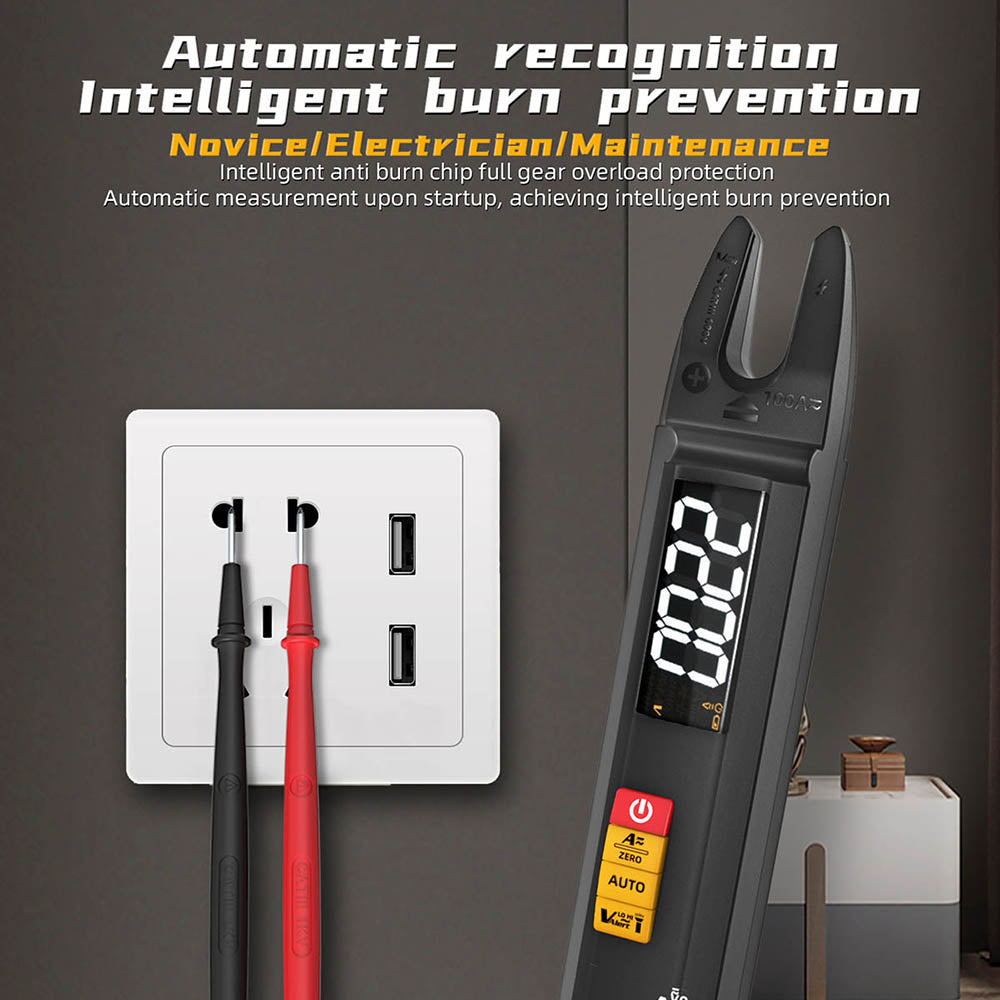

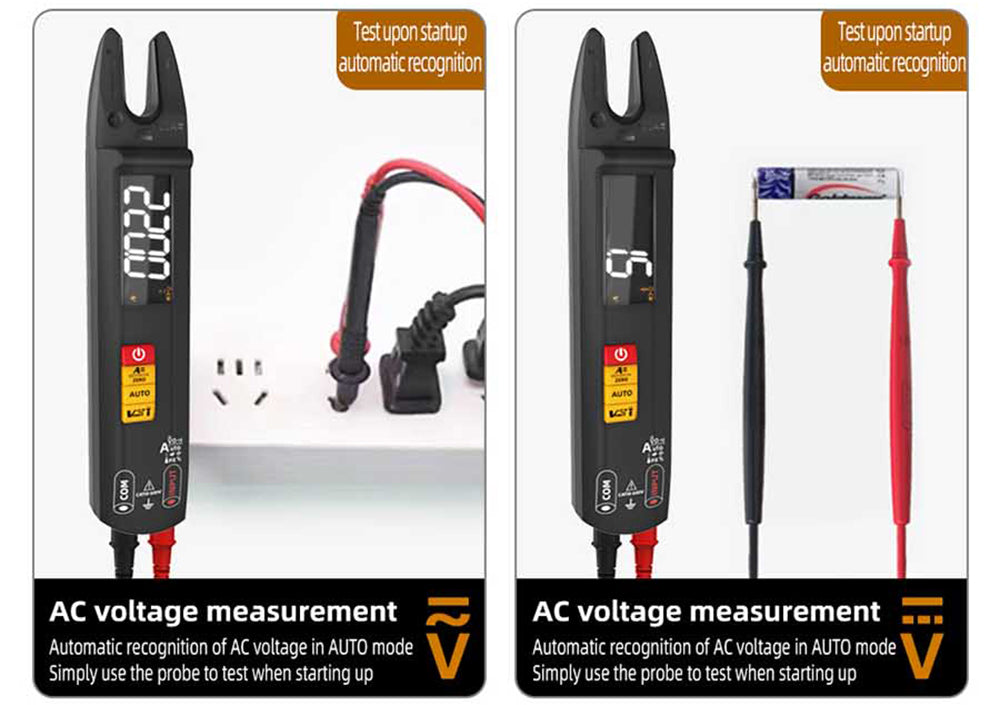

5. Support voltage/resistance/on/off automatic identification.

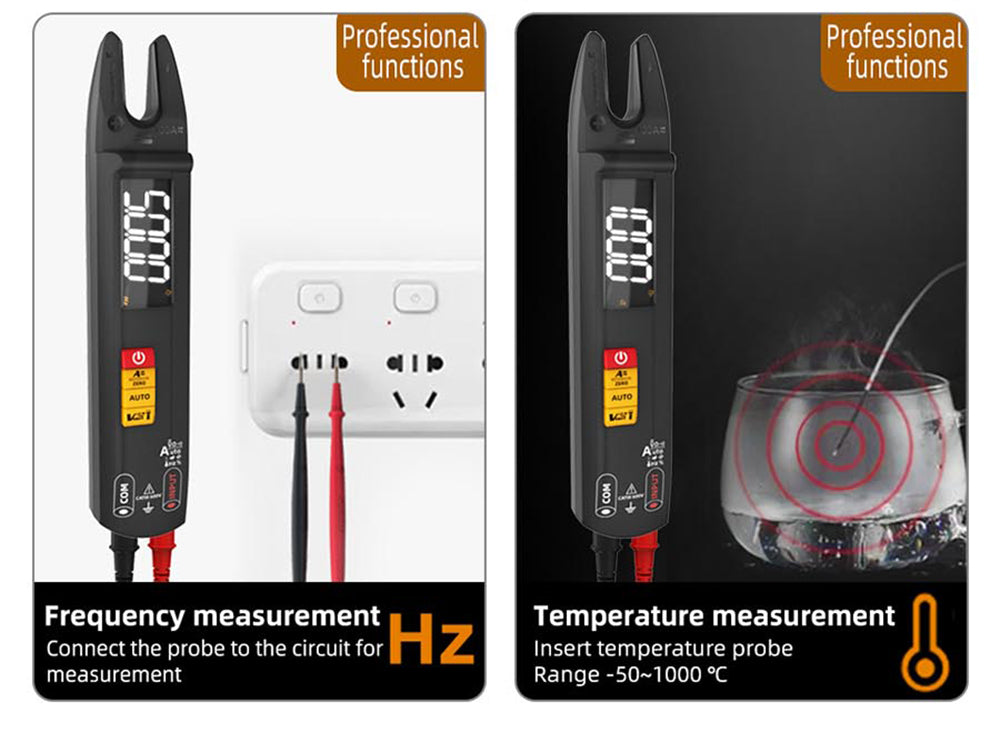

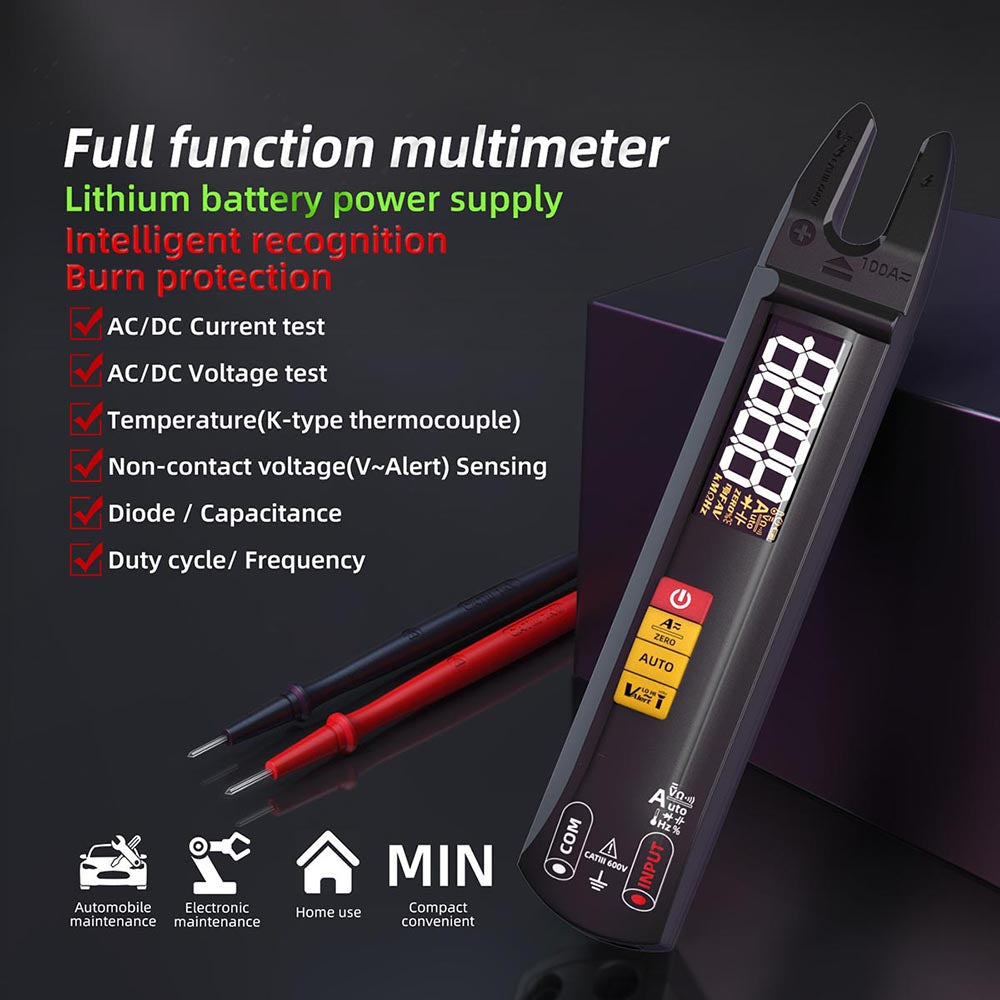

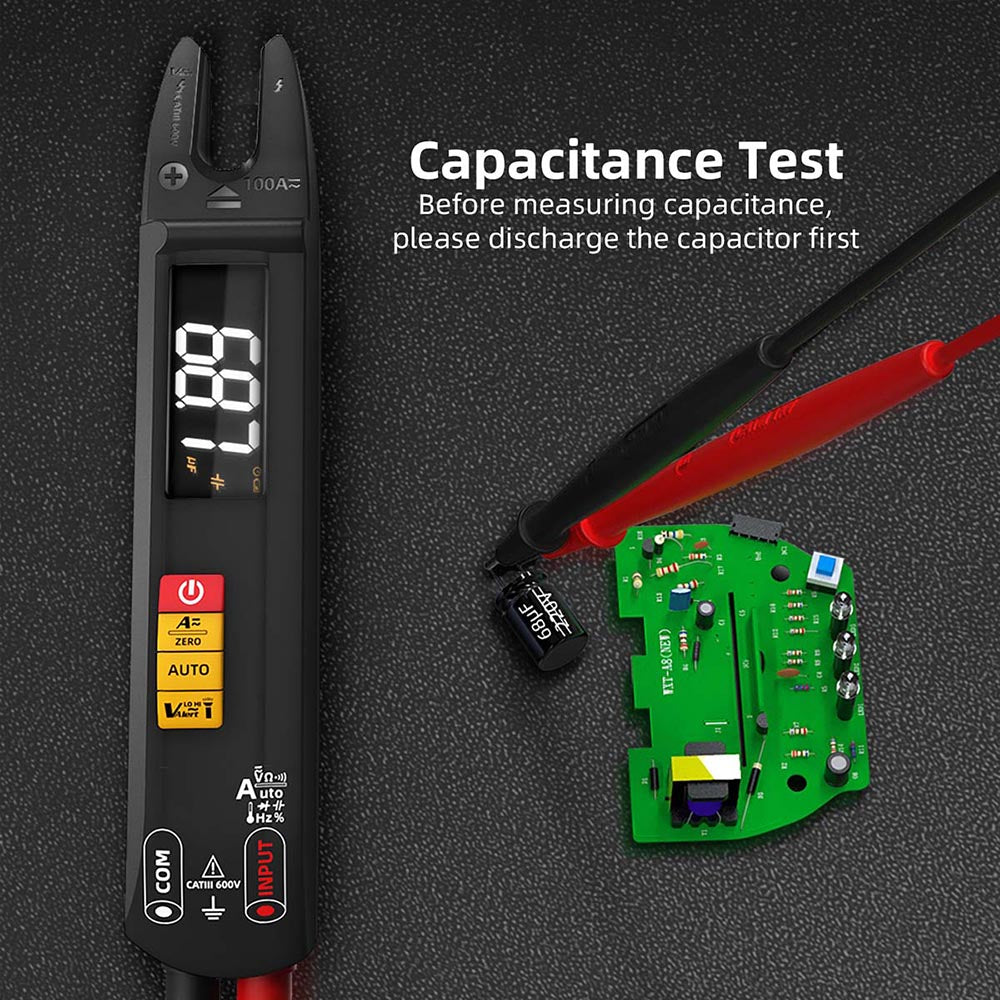

6. Multimeter function supports voltage, resistance, on/off, diode, capacitance, frequency, duty cycle, temperature.

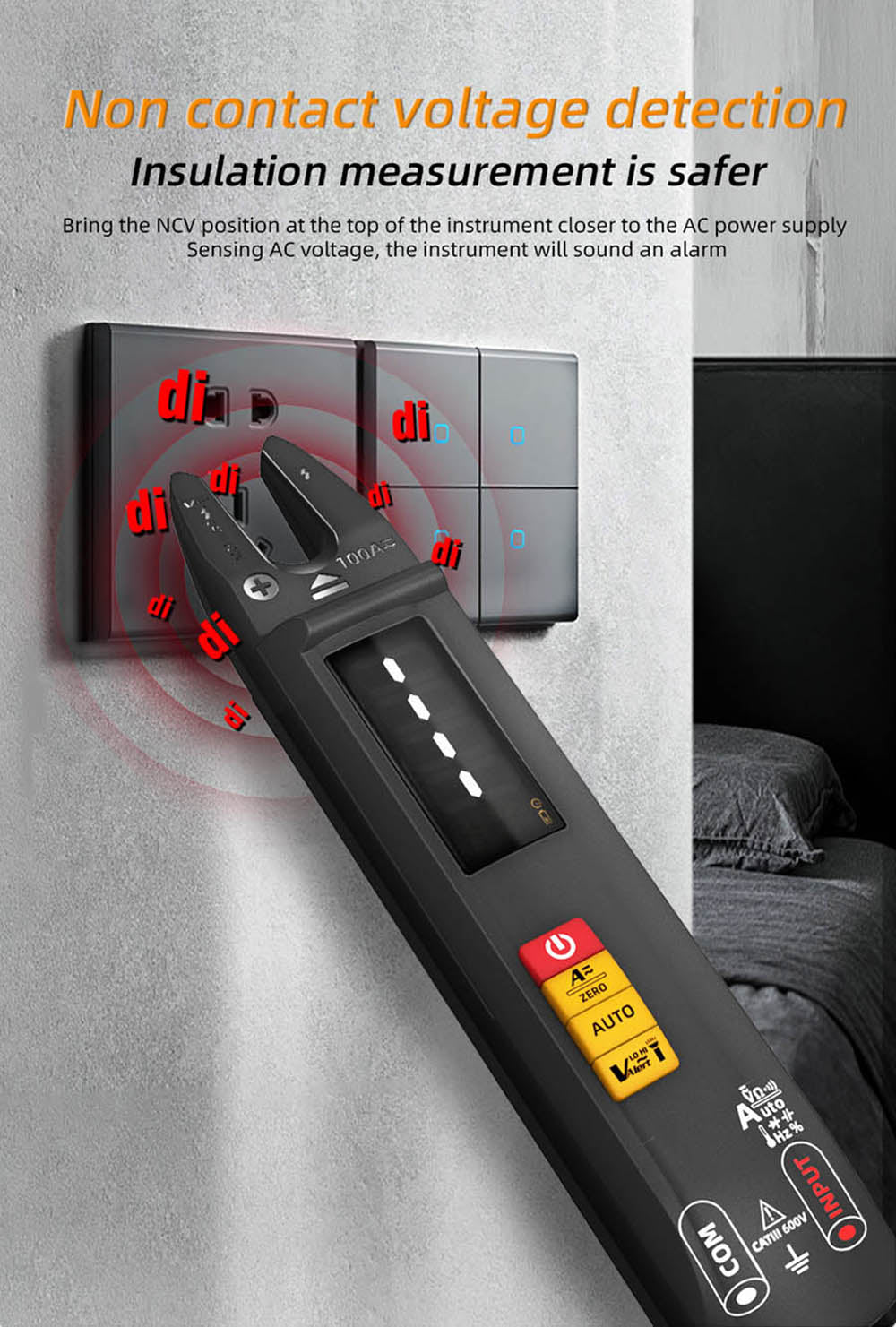

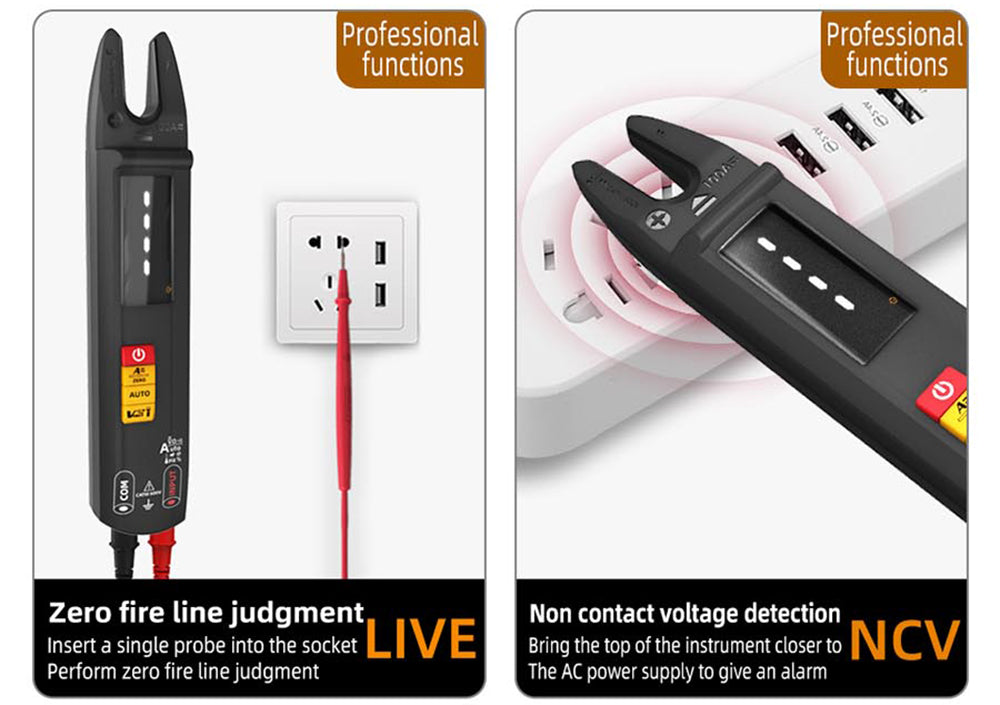

7. Non-contact testing current and non-contact detection of AC voltage (low sensitivity mode).

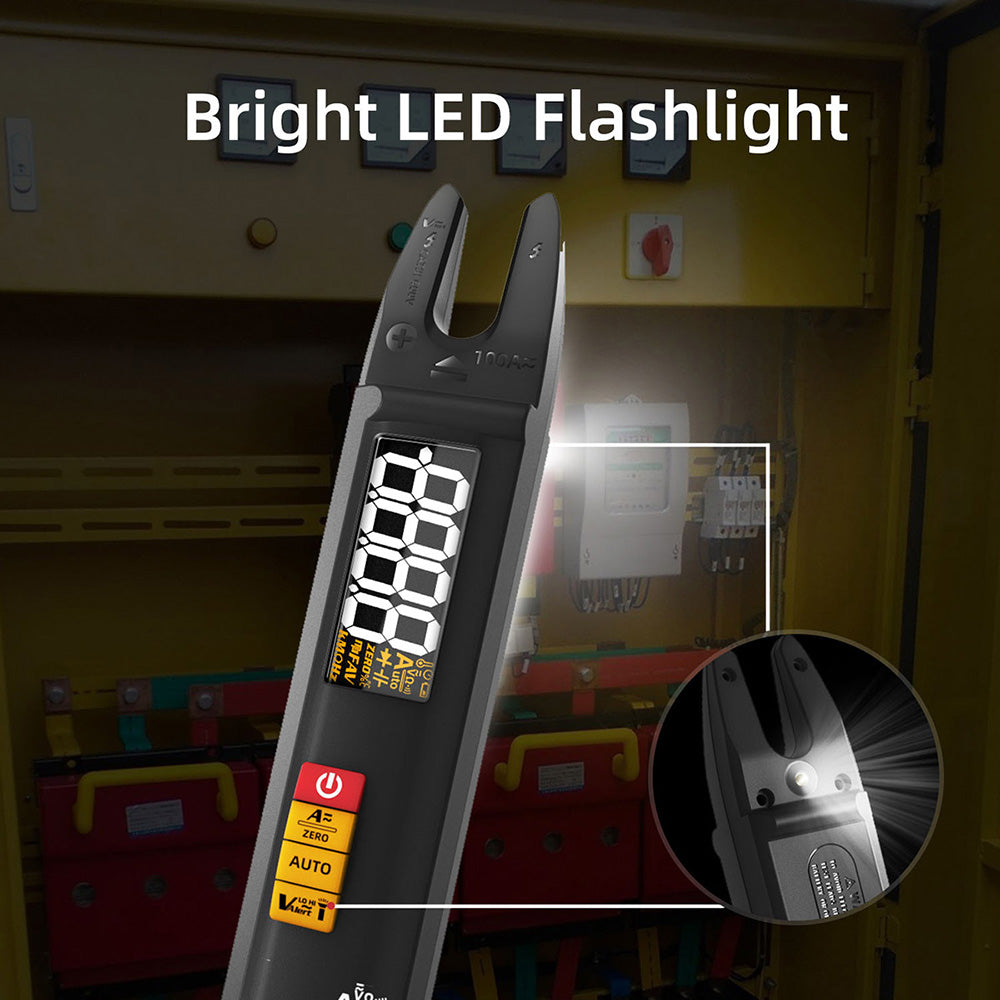

8. Night light function.
9. Support to turn on and cancel the auto-off function.

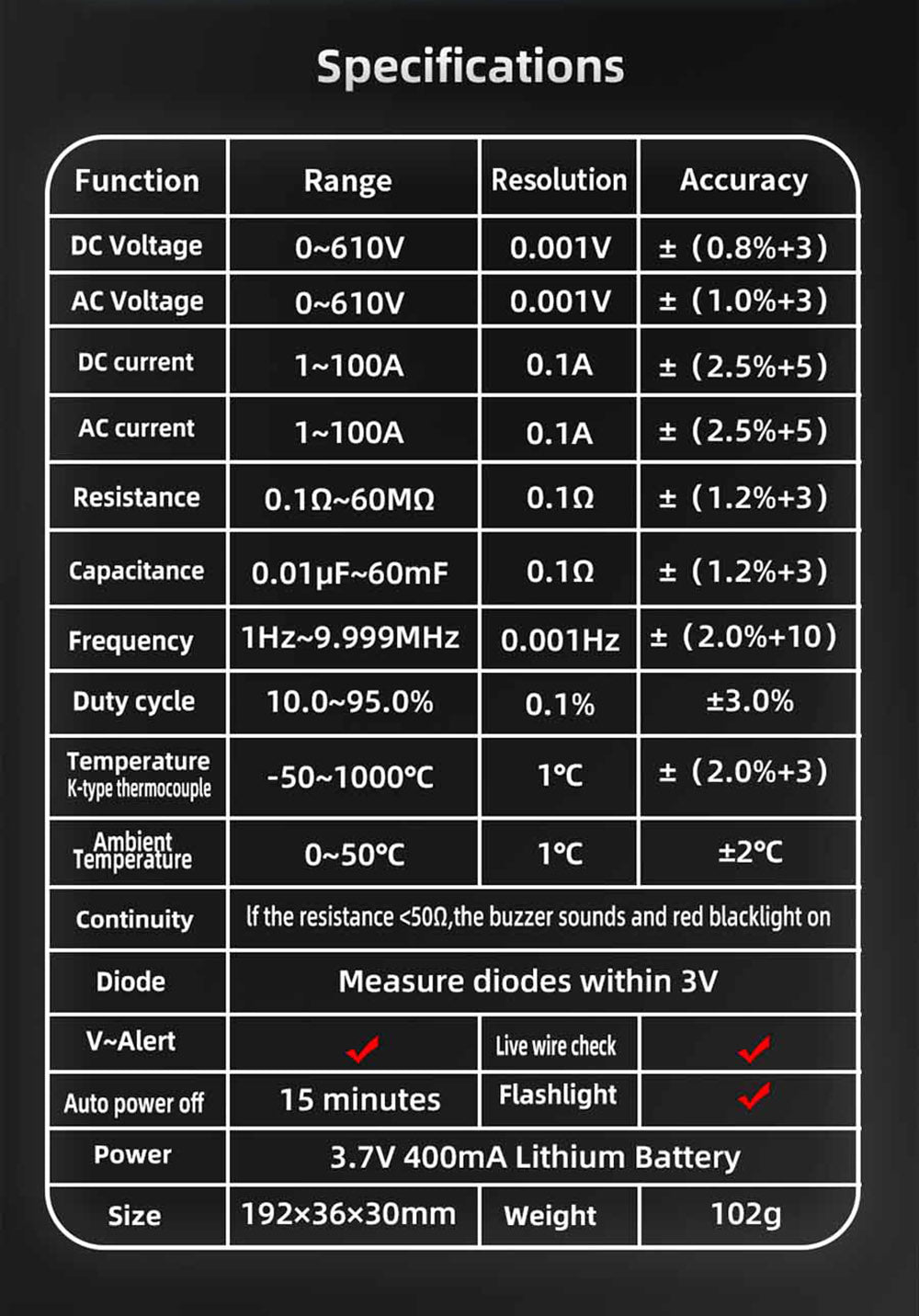

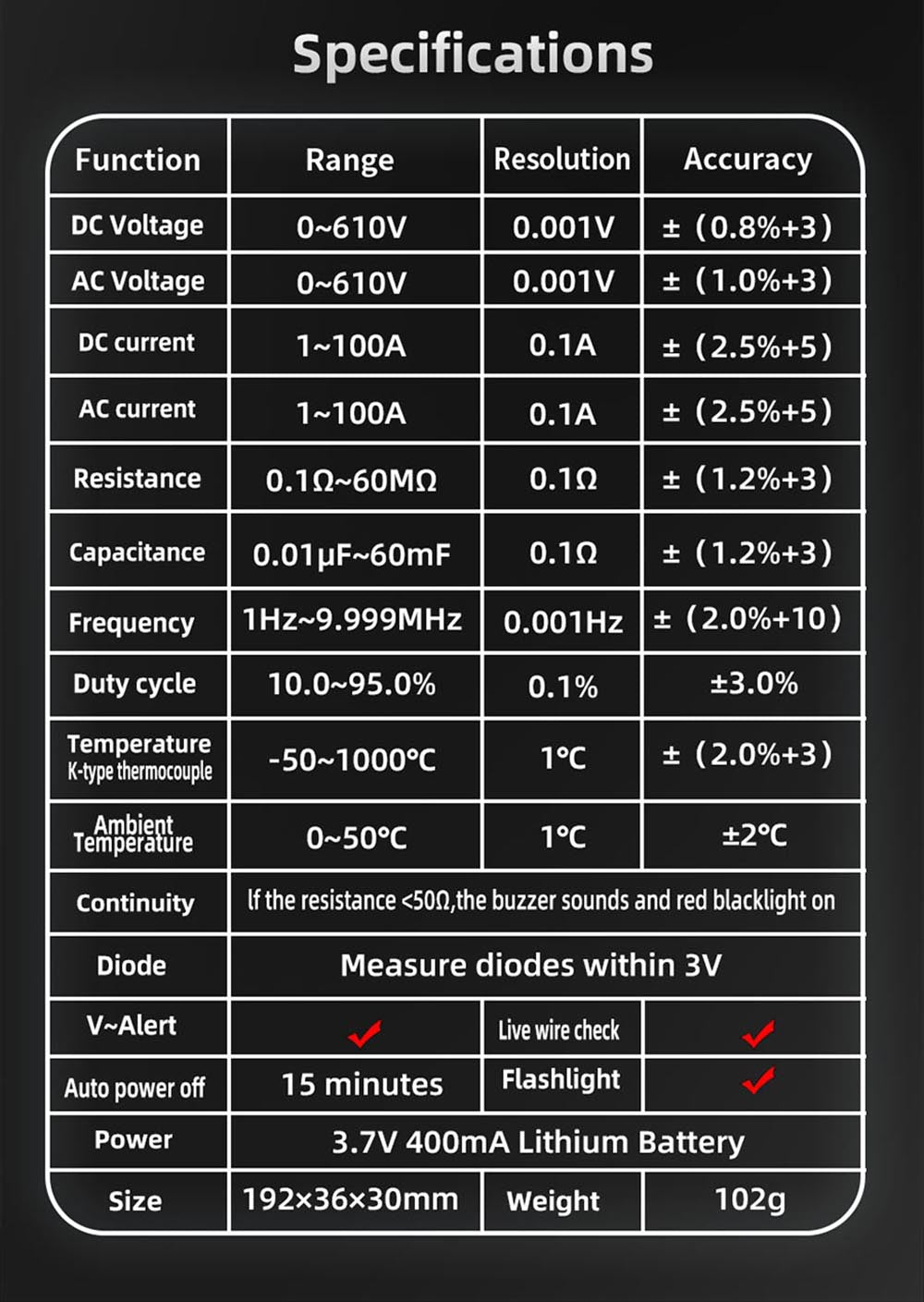

Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Clamp Multimeter |
| Model | U1 |
| Color | Black |
| Specification | |
| DC Voltage | 0-610V, 0.001±(0.8%+3) |
| AC Voltage | 0-610V, 0.001±(1.0%+3) |
| DC current | 1-100A, 0.1A±(2.5%+5) |
| AC current | 1-100A, 0.1A±(2.5%+5) |
| Resistance | 0.1Ω-60MΩ, 0.1Ω±(1.2%+3) |

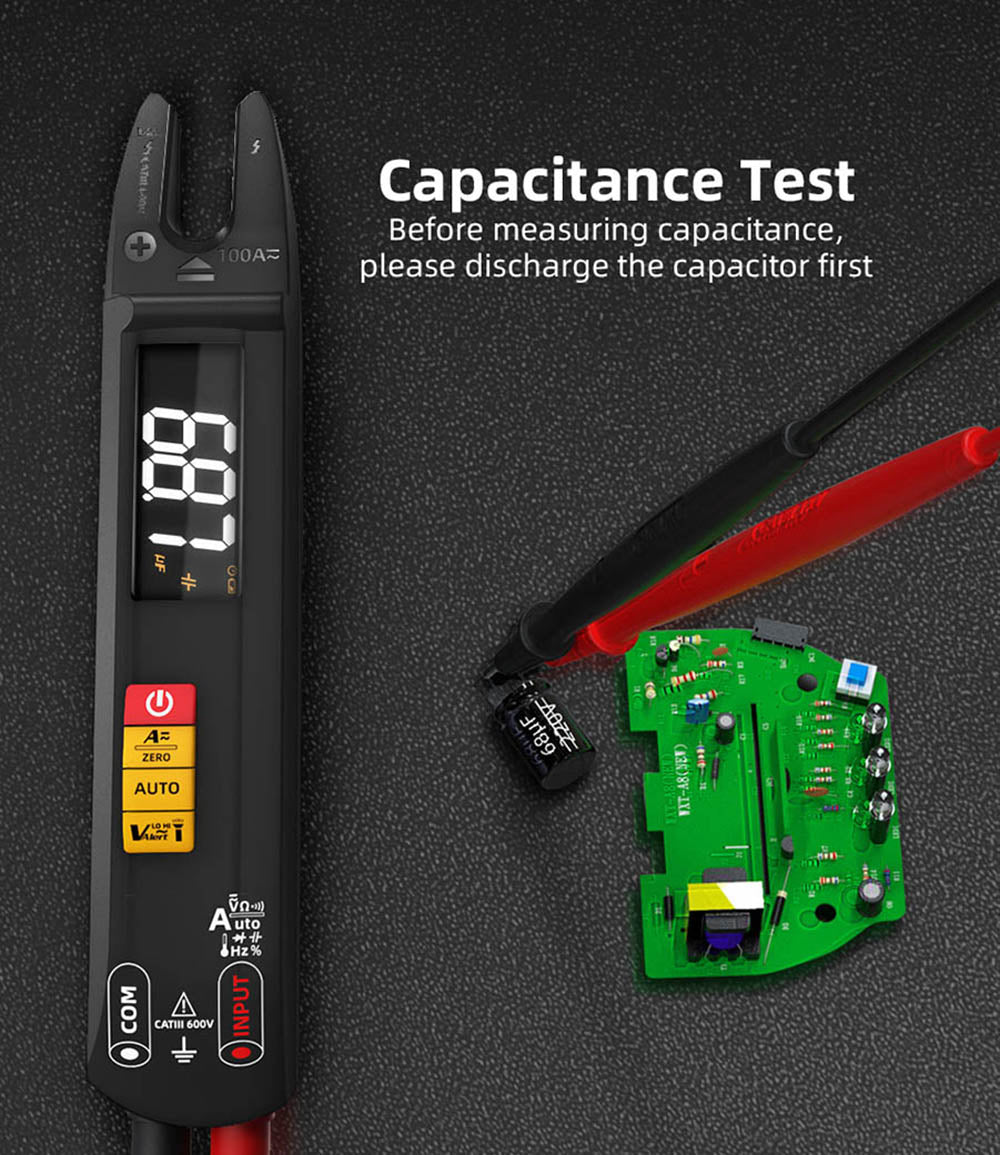

| Capacitance | 0.01μF-60mF, 0.1Ω±(1.2%+3) |
| Frequency | 1Hz-9.999MHz, 0.001Hz±(2.0%+10) |
| Duty cycle | 10.0-95.0%, 0.1%±3.0% |
| Temperature K-type thermocouple | -50-1000°C, 1°C±(2.0%+3) |
| Ambient Temperature | 0-50°C, 1°C±2.0°C |
| Continuity | If the resistance <50Ω, the buzzer sounds and red blacklight on. |

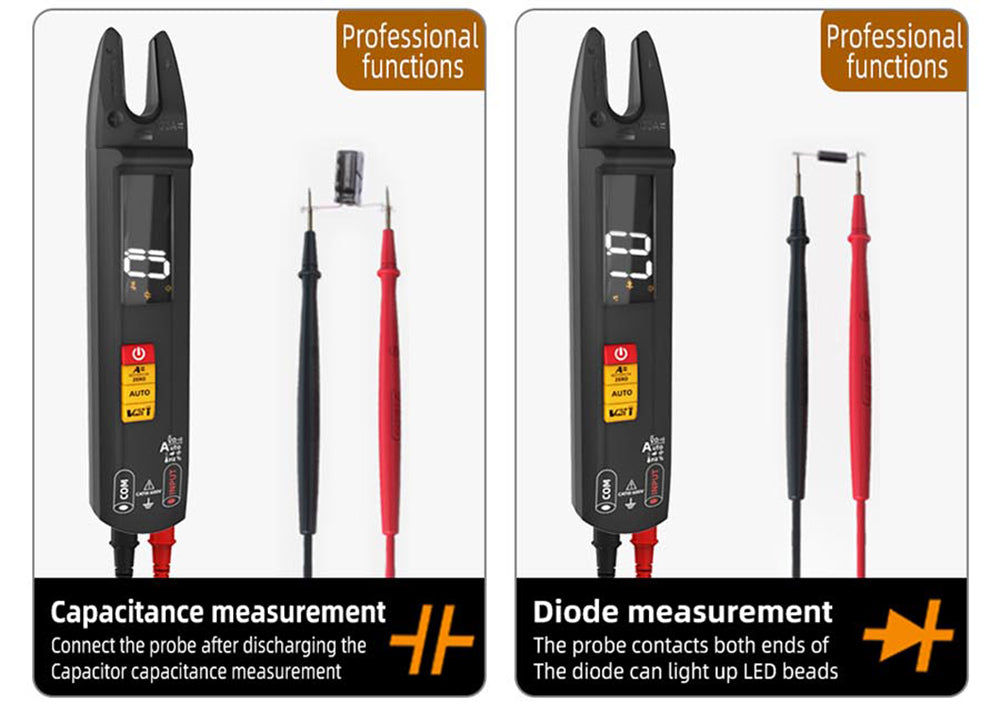

| Diode | Measure diodes within 3V |
| V~Alert | Yes |
| Live Wire Check | Yes |
| Flashlight | Yes |
| Auto power off | 15 minutes |

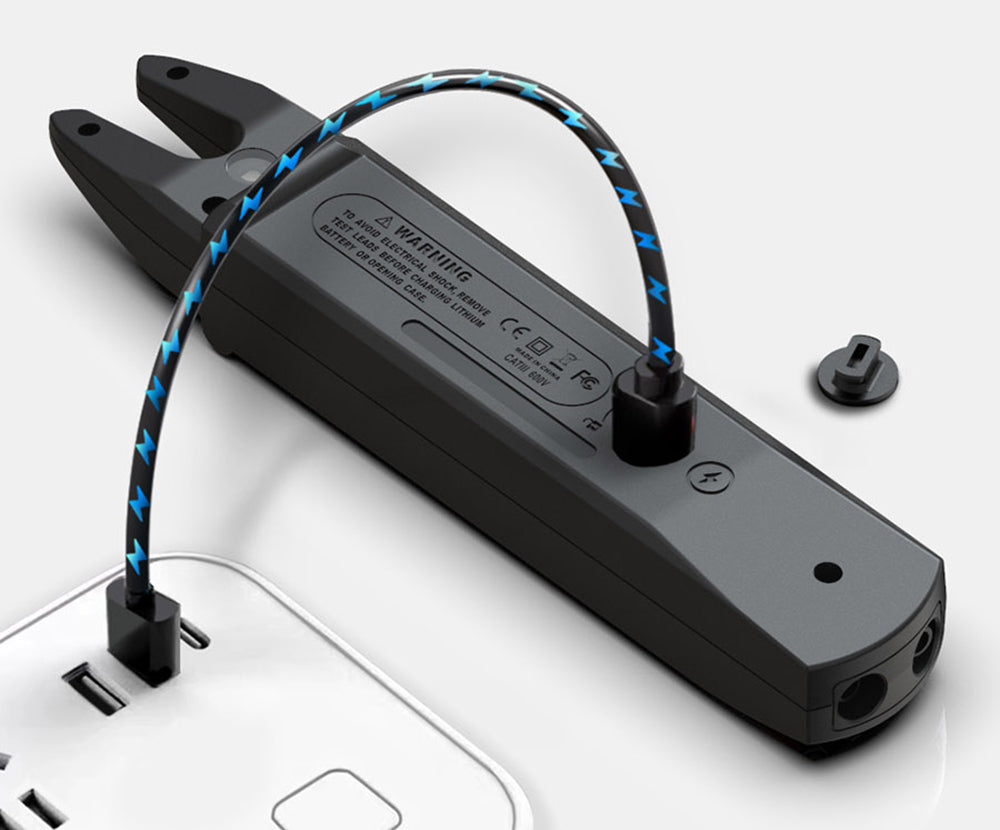

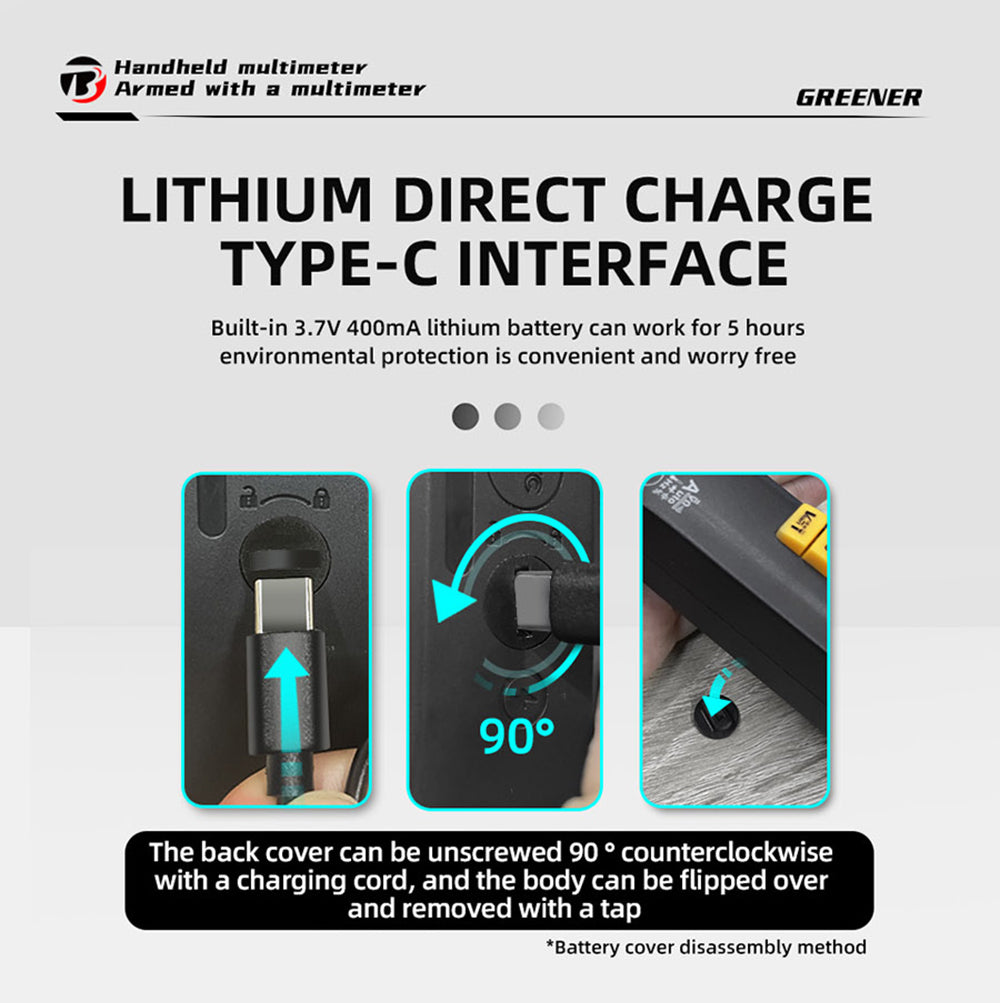

| Power | 3.7V 400mA Lithium Battery |
| Weight & Size | |
| Product Weight | 0.14kg |
| Package Weight | 0.279kg |

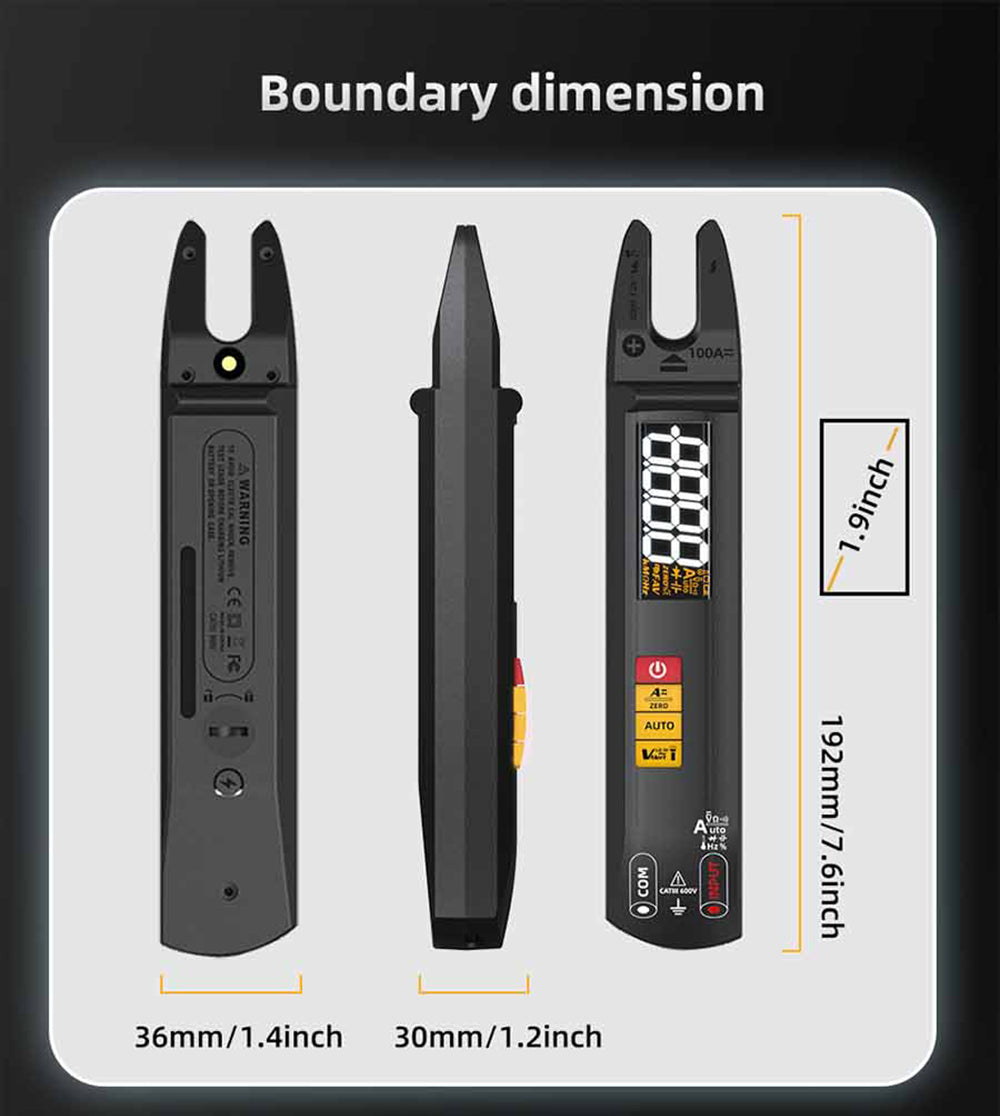

| Package Size(L x W x H) | 200*85*43mm |

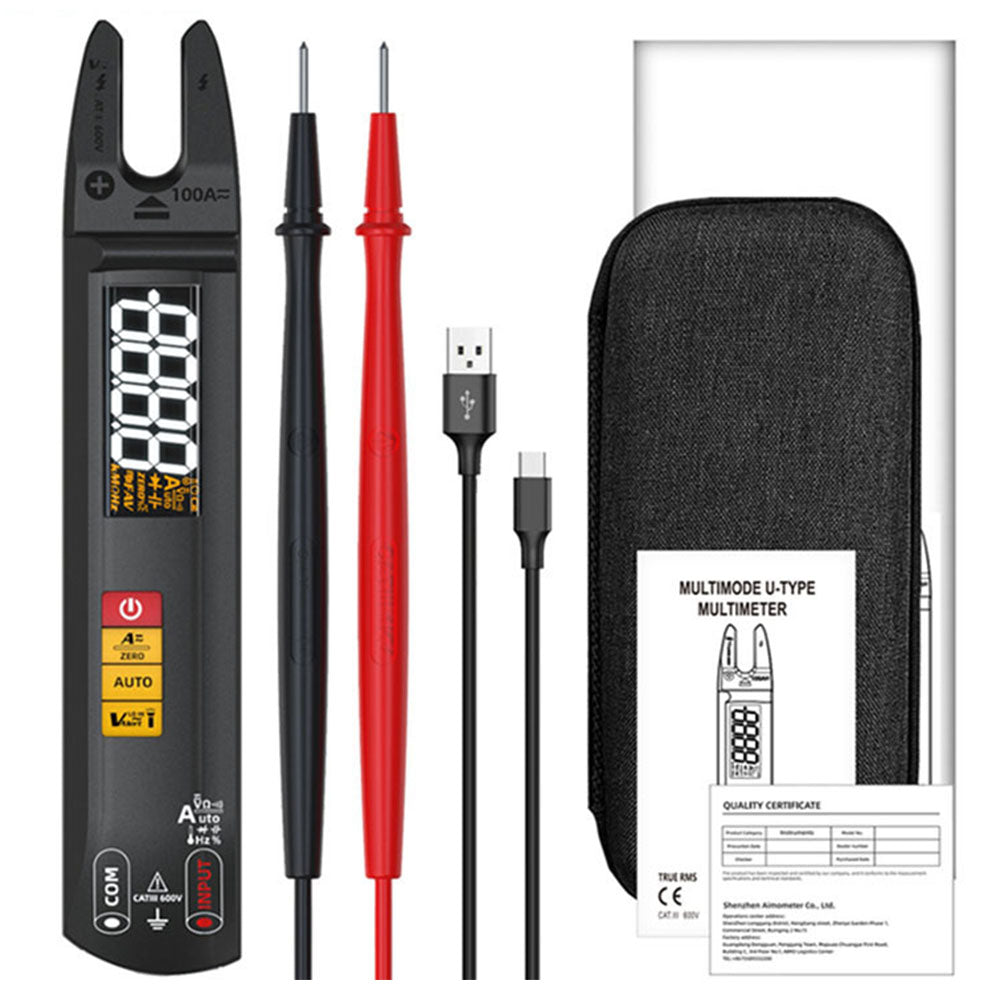

| Package Contents | |
| 1 x Clamp Multimeter | |
| 1 x User Manual | |
*Price, description, package content and images are informative only, please check for details on website of concrete seller!
