BSIDE T2X highlights

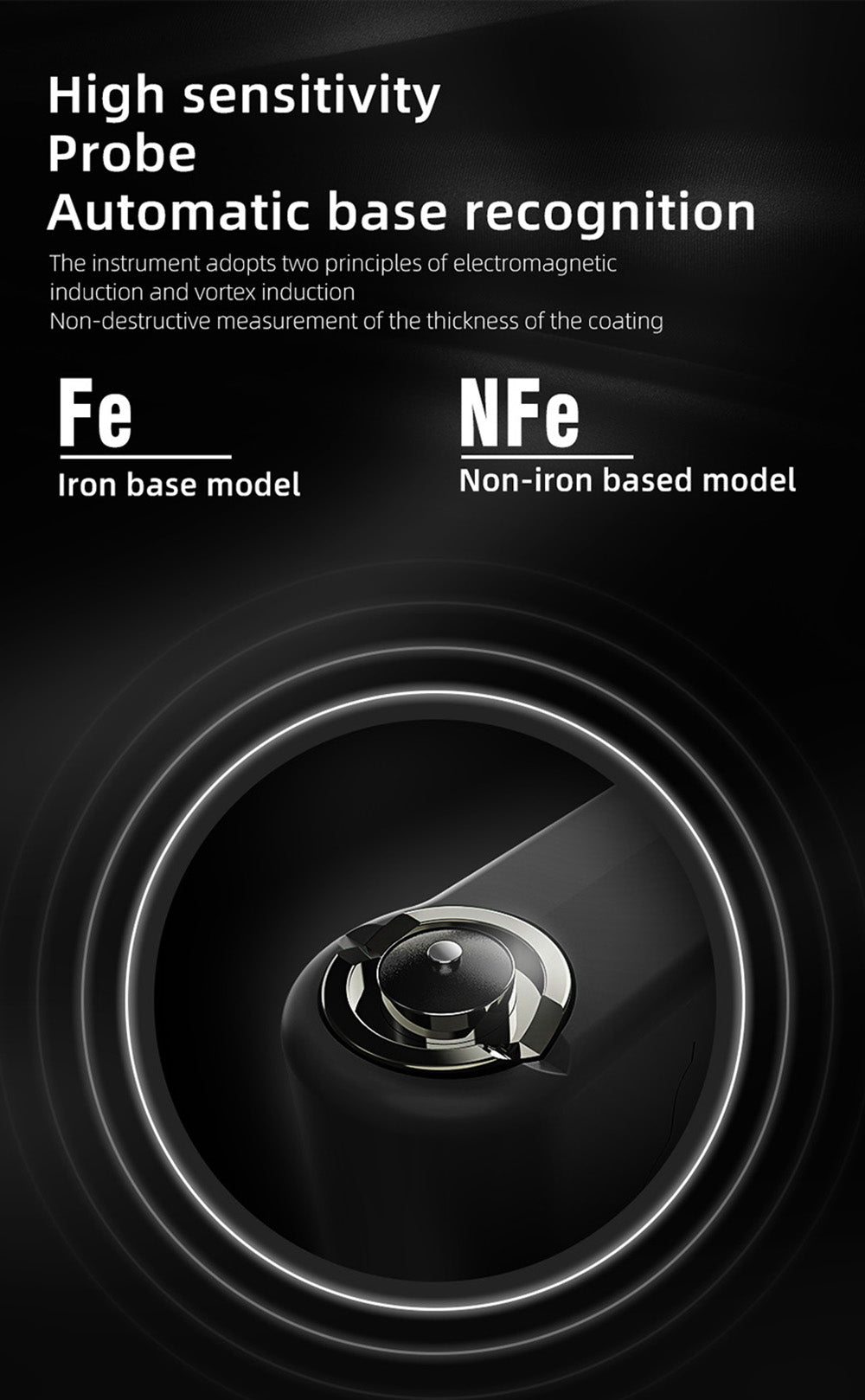

NFe-Probe/Eddy Current
The paint depth tester can measure the thickness of nonconductive coating layers covering the nonferrous substrate, such as enamel, rubber, paint, varnish, and plastic anodic-oxide layer covered on the nonferrous substrates (aluminum, brass, zinc, tin, and nonmagnetic stainless steel).
Fe-Probe/Magnetic Induction
The car paint mill thickness gauge can measure the thickness of non-magnetic coating layers on magnetic substrates, such as aluminum, chrome, copper, enamel, rubber, and paint on magnetic substrates (steel, iron, alloy, and magnetic stainless steel).
High Precision
Mearsuring range: 0-1500µm (0-59.1mils); Resolution: 0.1µm/0.01mils; Accuracy: Fe-probe ±(3%+2µm), NFe-probe ±(3%+2µm). µm and mil units are switchable.
Wide Application

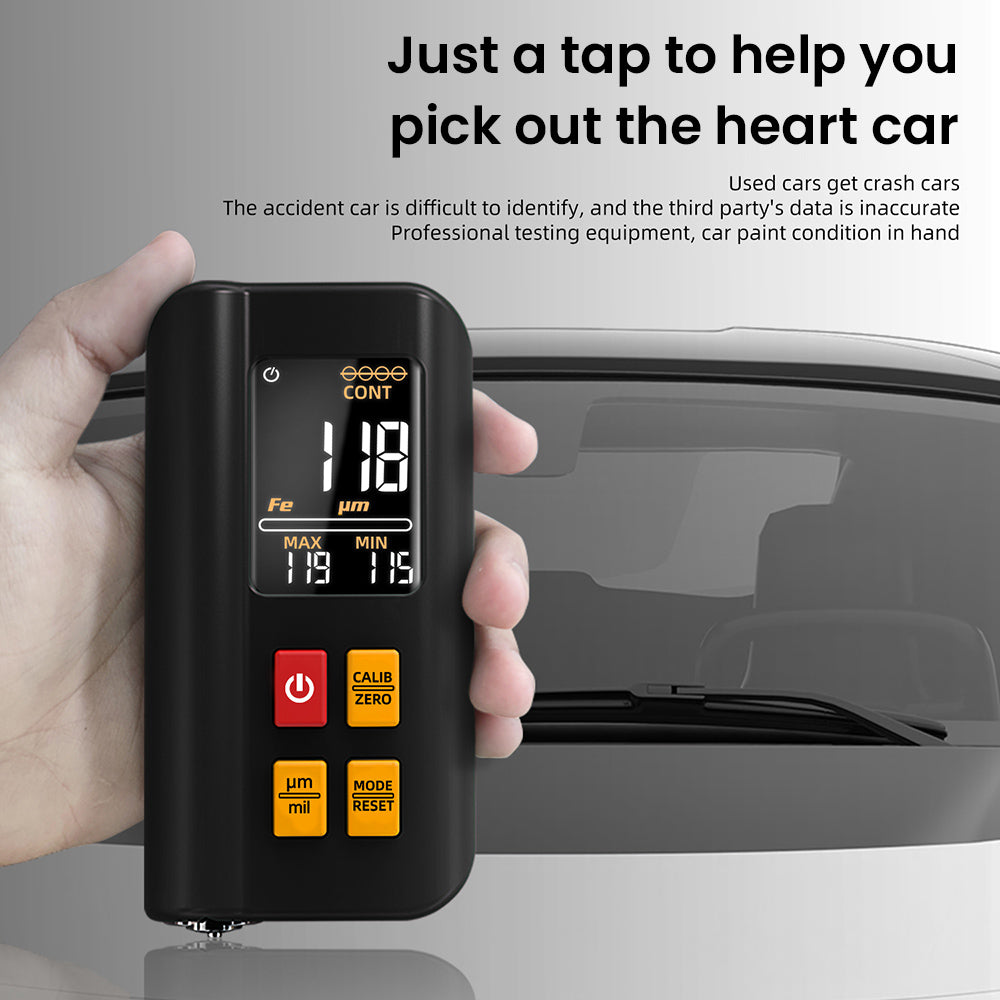

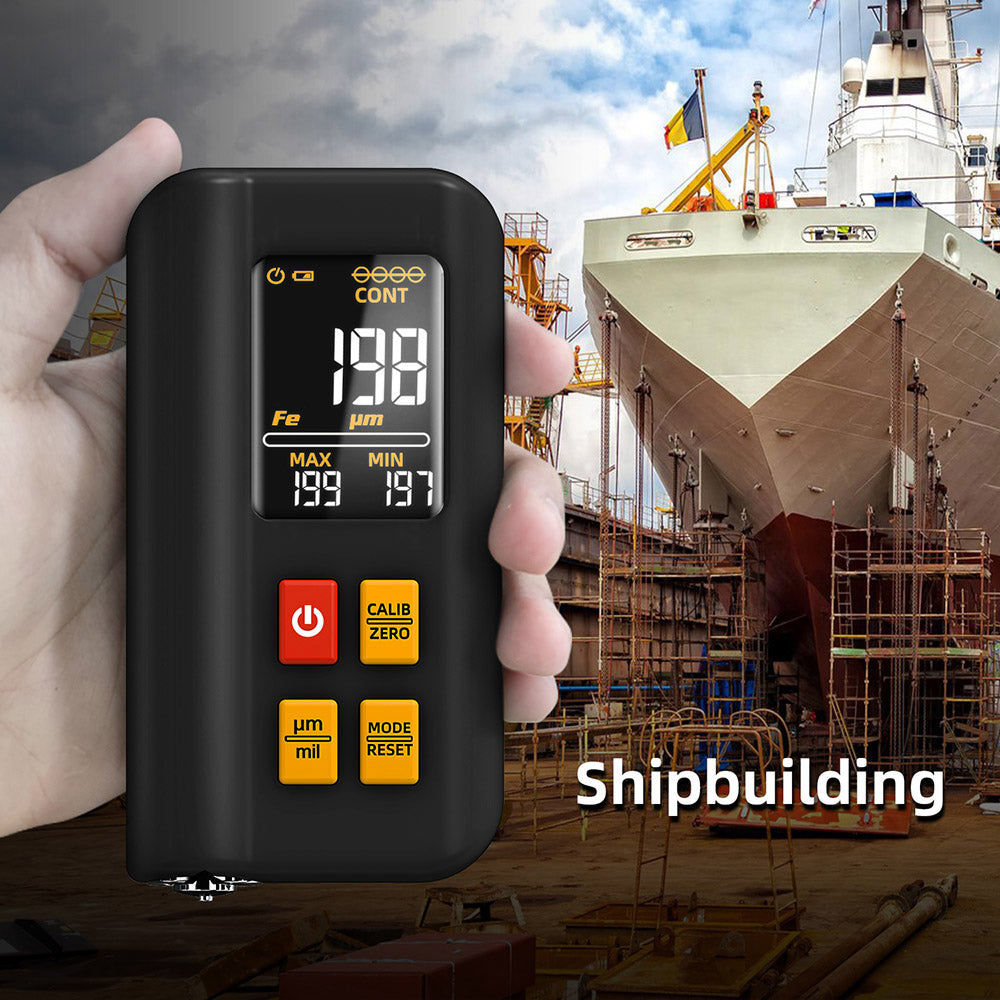

The digital coating thickness meter is widely used in manufacturing companies, shipbuilding, aircraft industries, metal machinery industries, chemical industry, and especially in automobile/car trading.

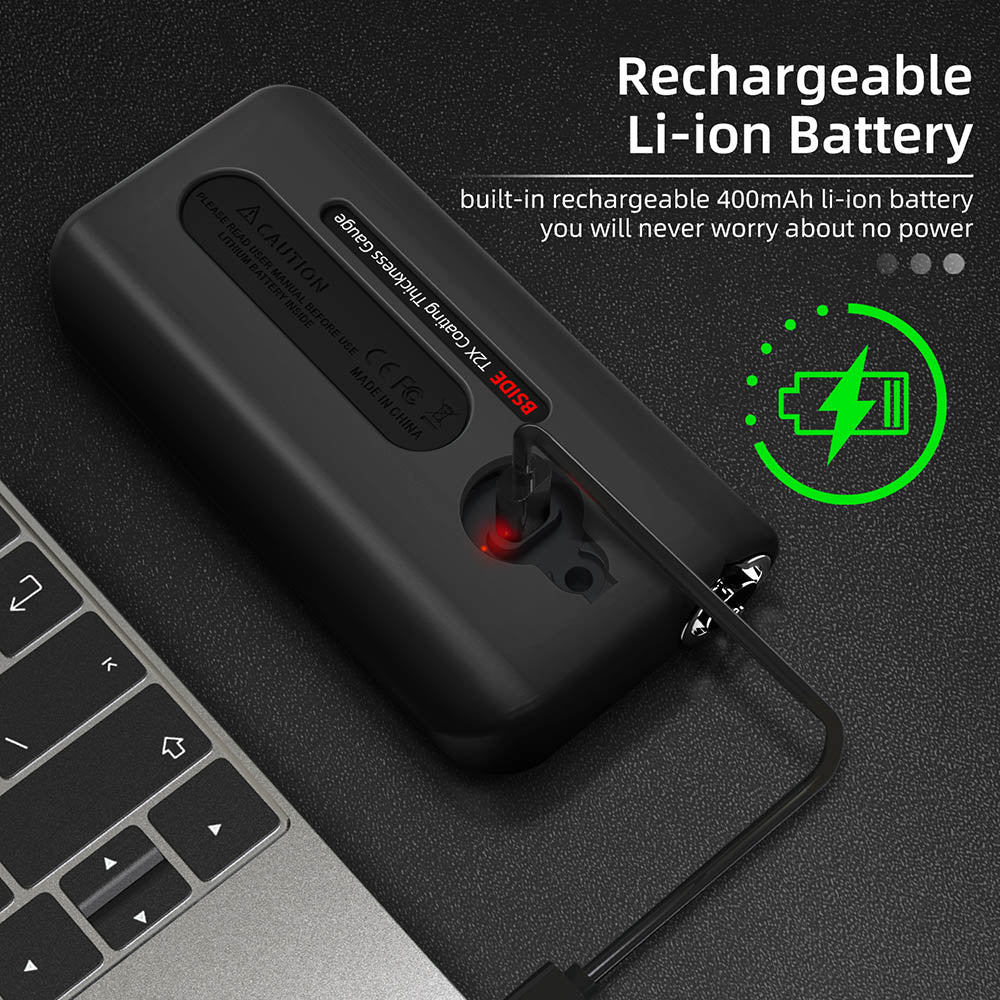

Rechargeable and Convenient
The BSIDE rechargeable coating thickness gauge comes with a rechargeable battery and a charging cable, ensuring that you never have to worry about running out of power during your measurements.

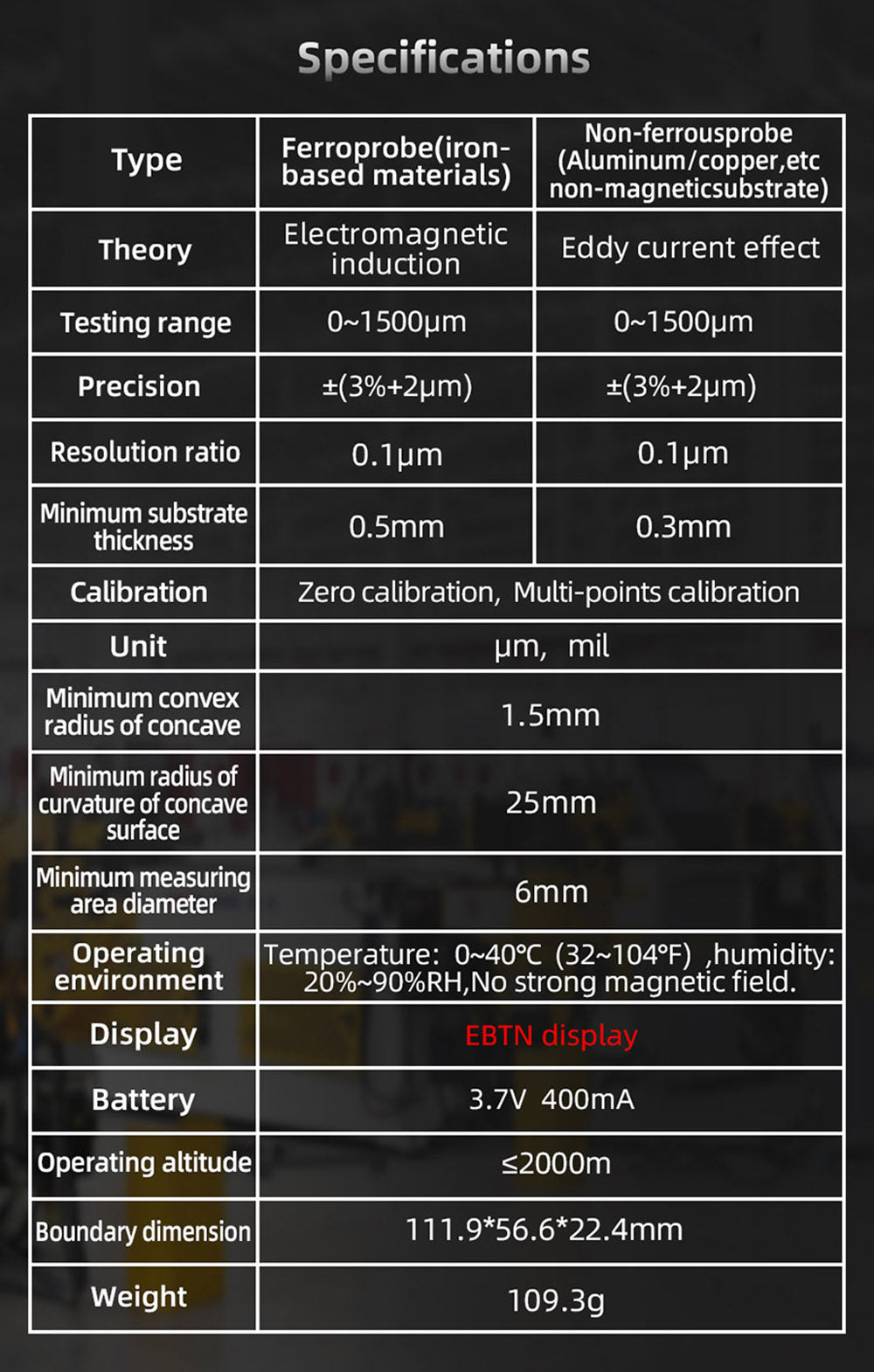

Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Coating Thickness Gauge |
| Model | T2X |
| Color | Black |
| Specification | |

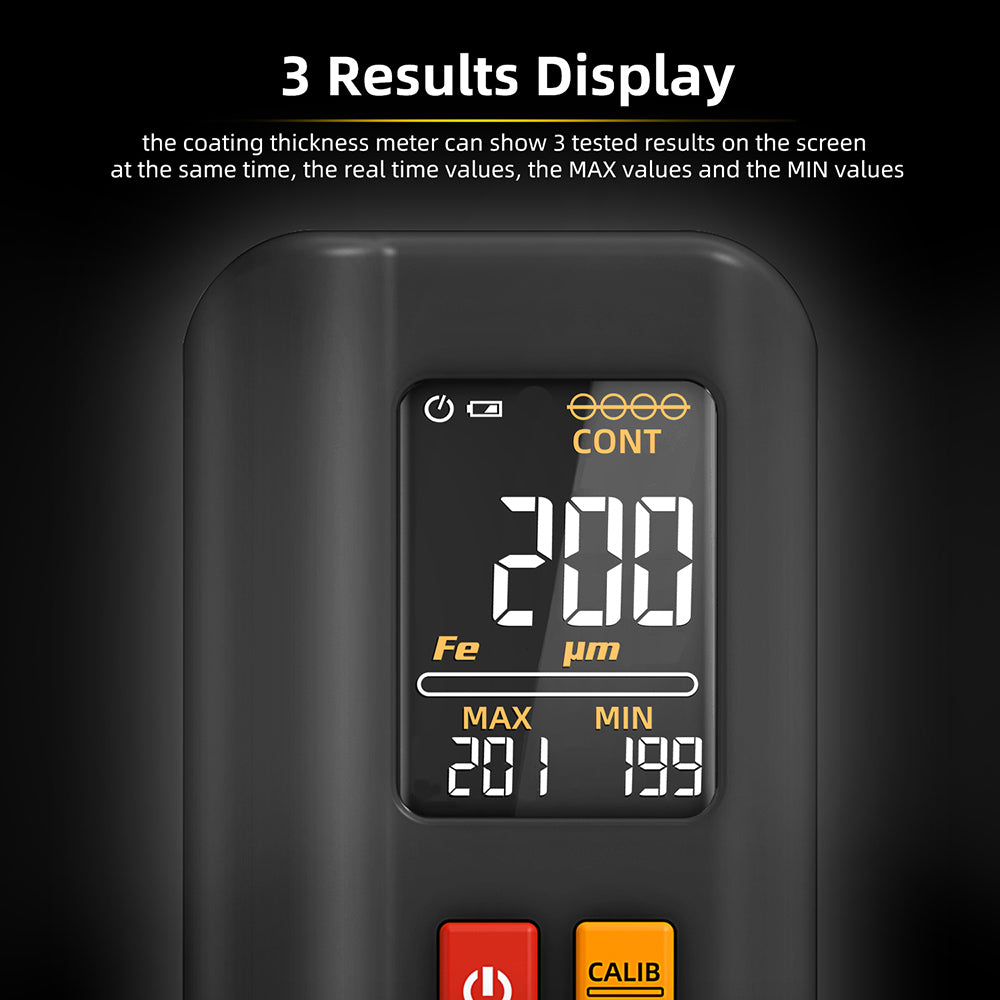

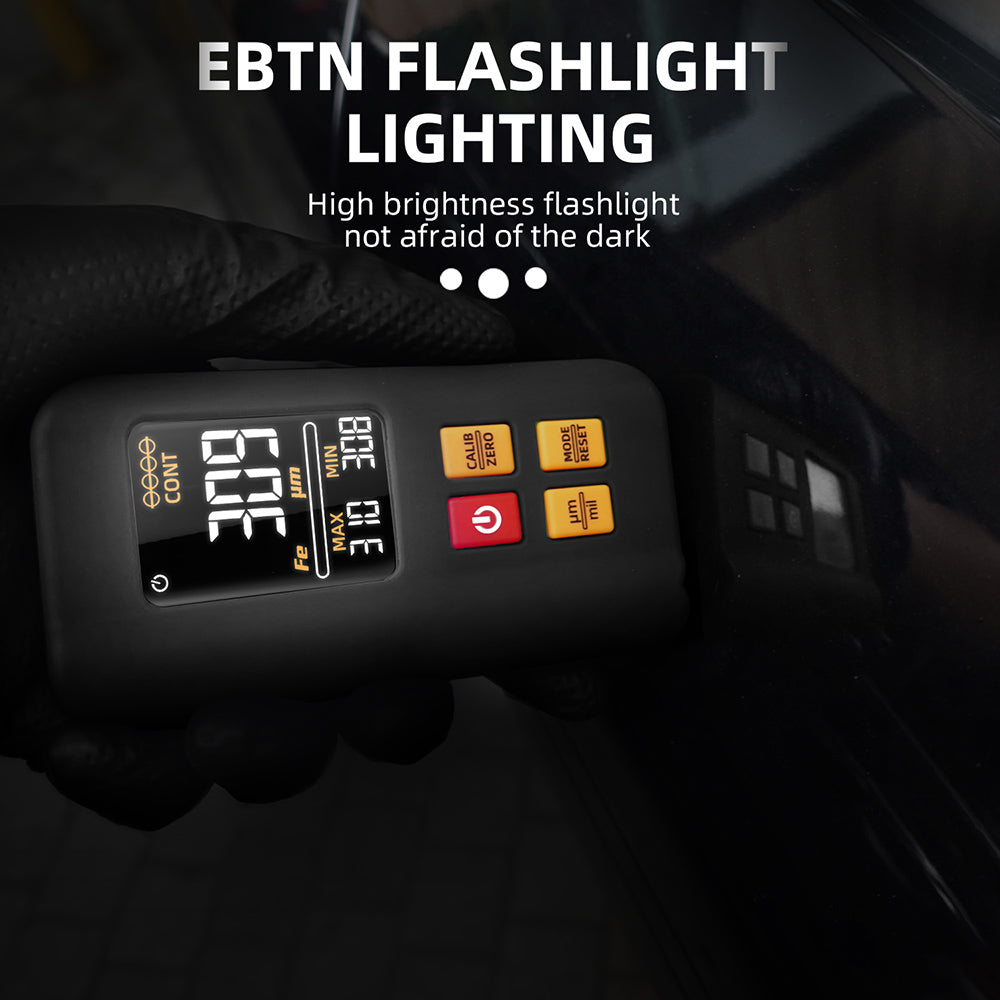

| Display | LCD screen |
| Battery pressure indication | LCD screen |
| Power supply | built-in 3.7V 400mA battery |
| Working altitude | maximum 2000 meters |
| Fe probe (iron base) | electromagnetic induction |
| NFe probe (aluminum/copper and other non-magnetic substrates) | eddy current effect |
| Test range | 0 to +(3%+2μm) |
| Accuracy | +(3%+2μm) |
| Resolution | 0.1μm |
| Minimum substrate thickness | 0.5mm |

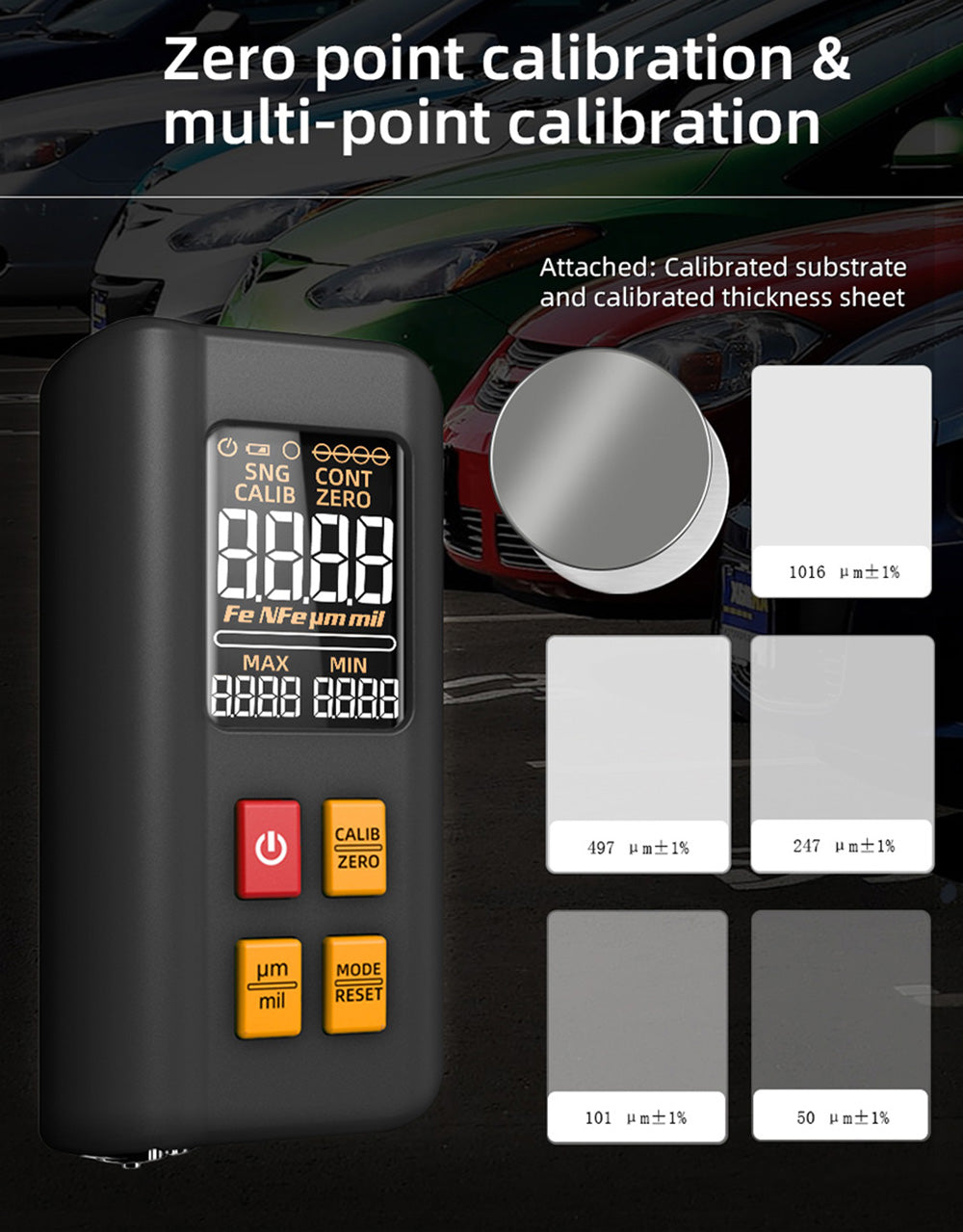

| Calibration | Zero calibration, multi-point calibration |
| Units | μm microns, mil mils |
| Minimum convex radius of curvature | 1.5mm |
| Minimum concave radius of curvature | 25mm |
| Minimum measurement area diameter | 6mm |
| Temperature | 0-40°C(32-104°F) |
| Humidity | 20%~90%RH; No strong magnetic field |
| Weight & Size | |
| Product Weight | 109.3g |
| Package Weight | 241g |

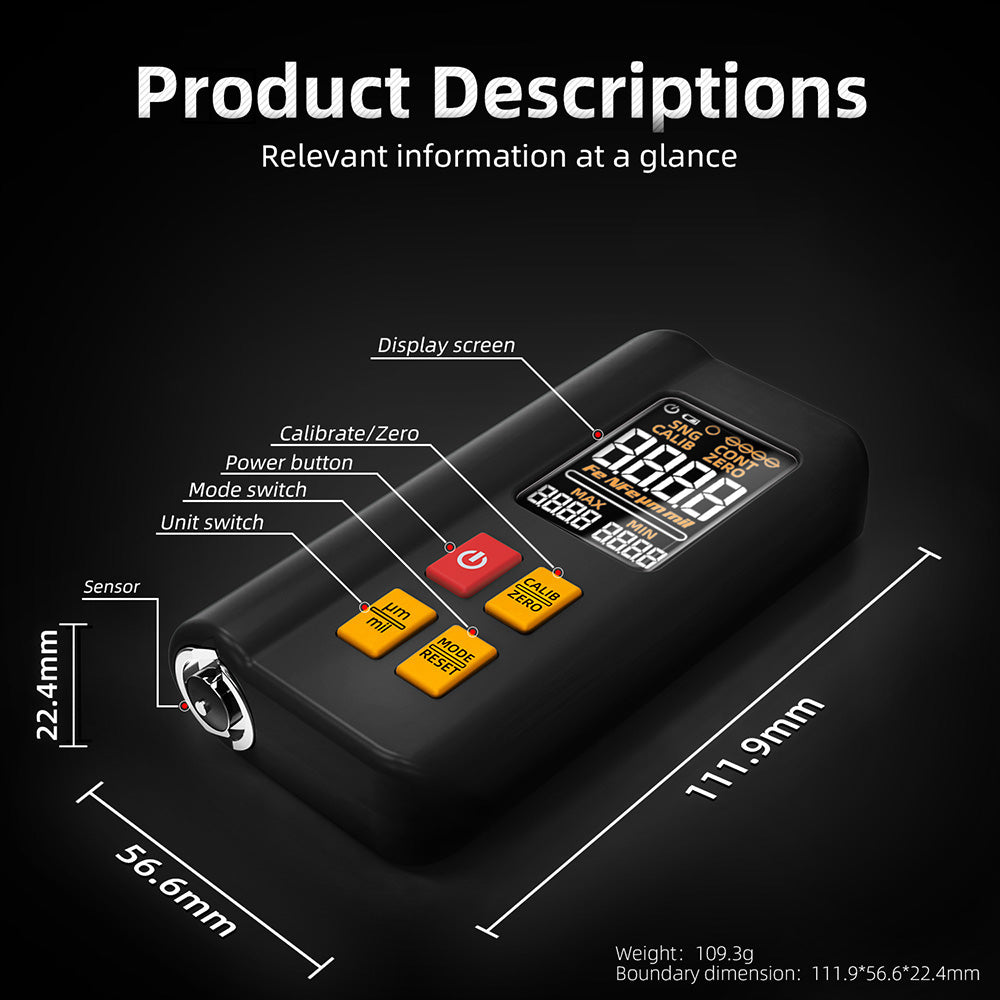

| Package Size(L x W x H) | 135*87*45mm |

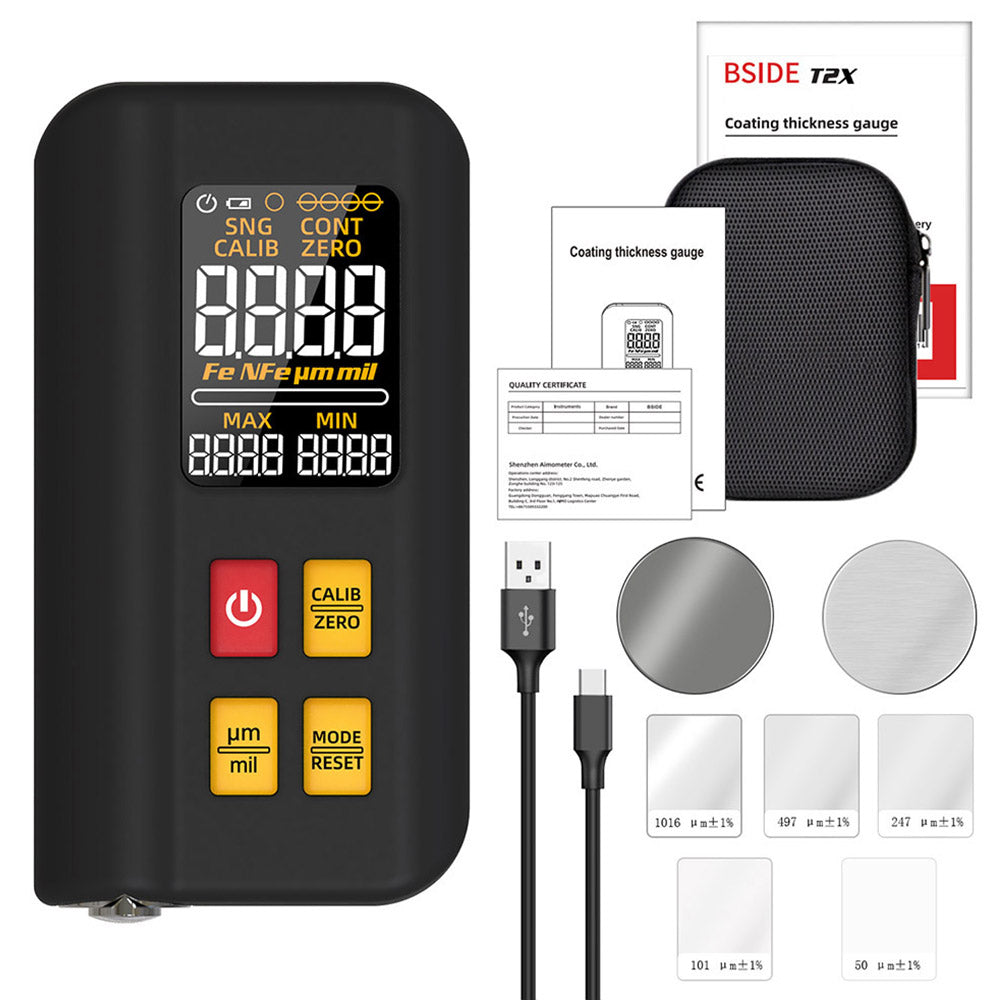

| Package Contents | |
| 1 x Coating Thickness Gauge | |
| 1 x EVA Bag | |
| 1 x User Manual | |
