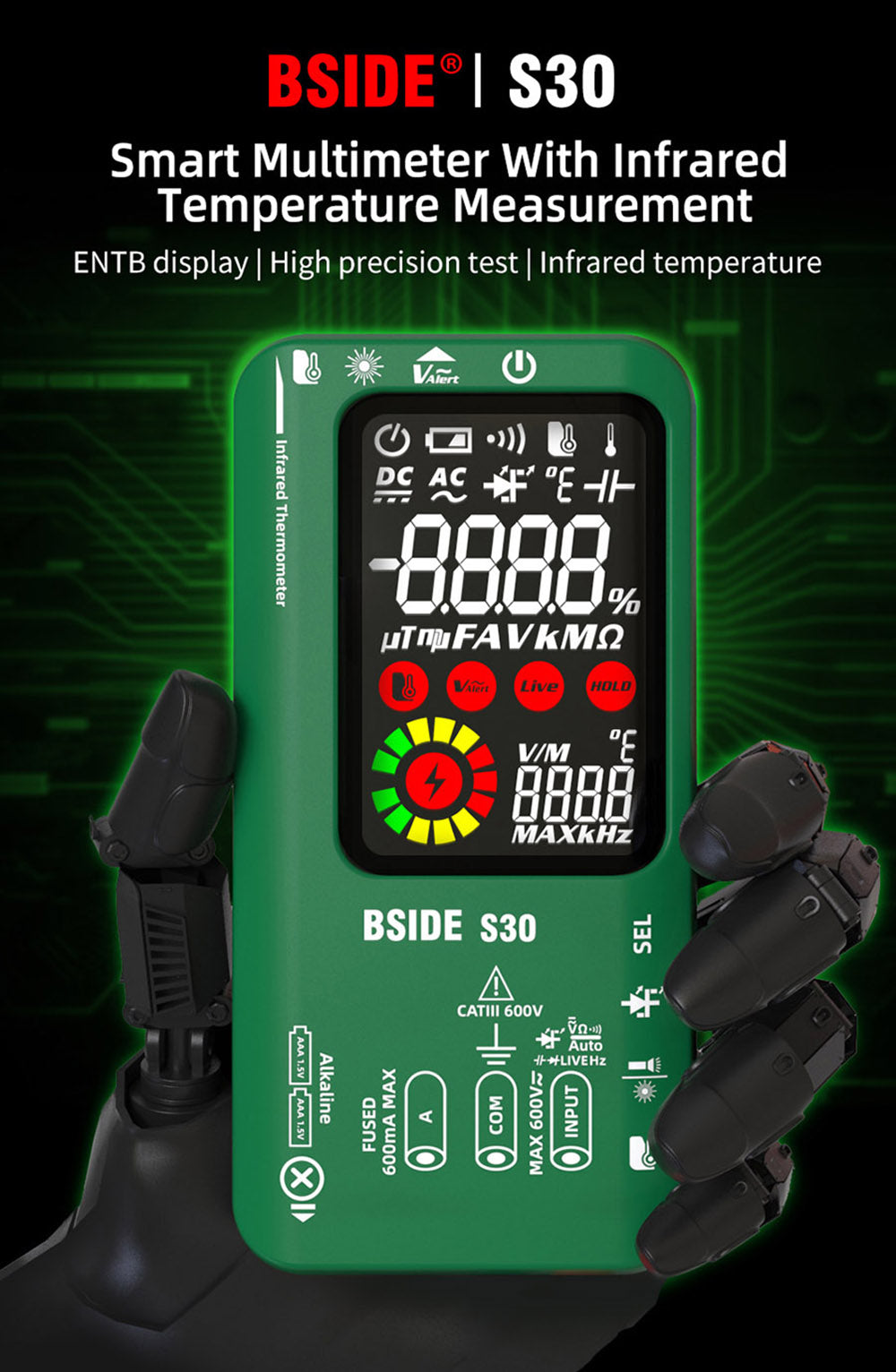

BSIDE S30 Digital Multimeter
BSIDE S30 Digital Multimeter
Where To Buy
Where To Buy
Description
Description
BSIDE S30 highlights

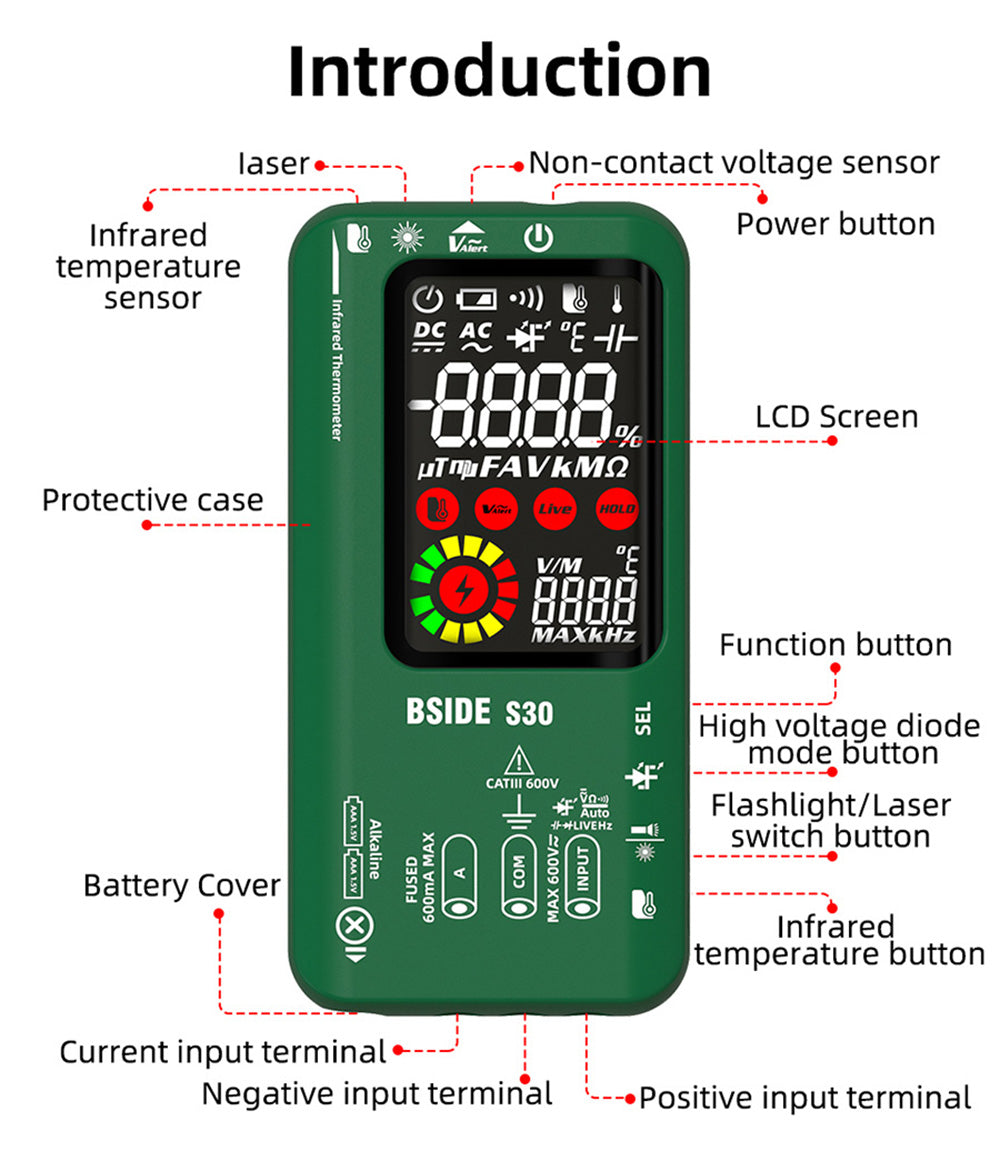

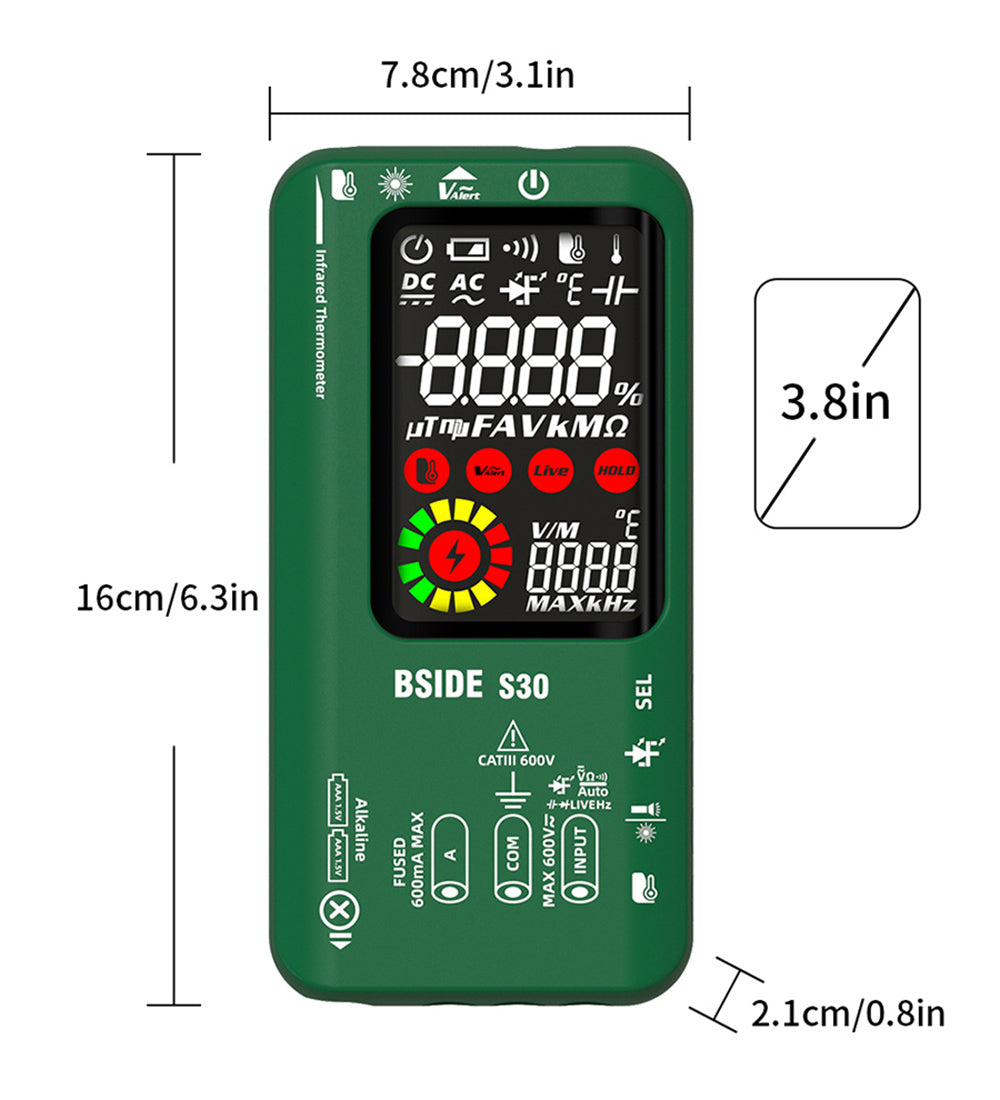

Concise Appearance
Compact and portable body, three-dimensional design, with a full-wrap silicone cover, protective and comfortable to grip. The combination of silicone cover and EVA storage bag is easy to carry and does not occupy space, saying goodbye to the traditional bulky and difficult-to-carry.
3.5-inch Color Display
IMD process screen, 3.5-inch large-size LCD color display with large font, very suitable for middle-aged and elderly electricians to use, easy to operate.

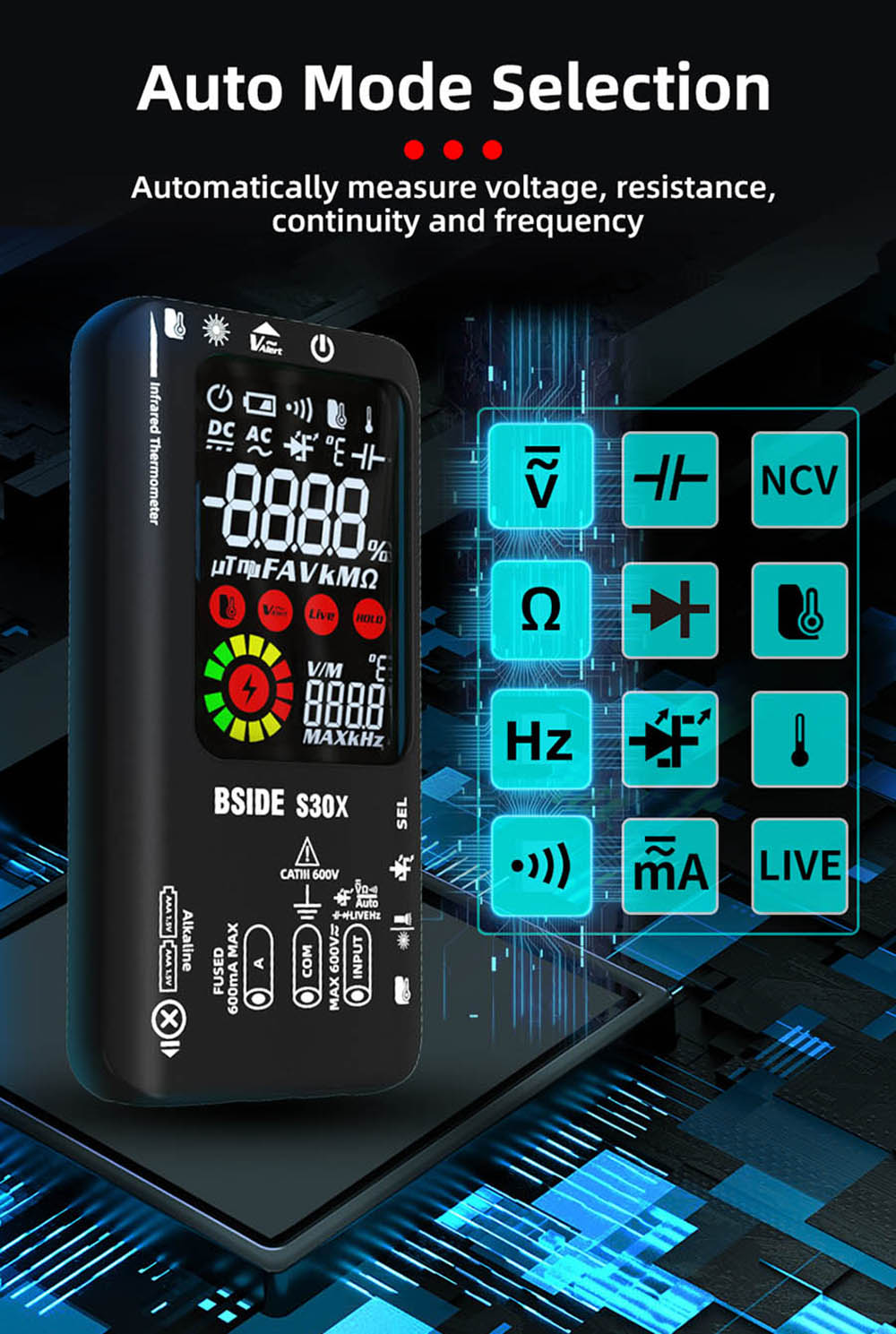

Intelligent Auto Identification

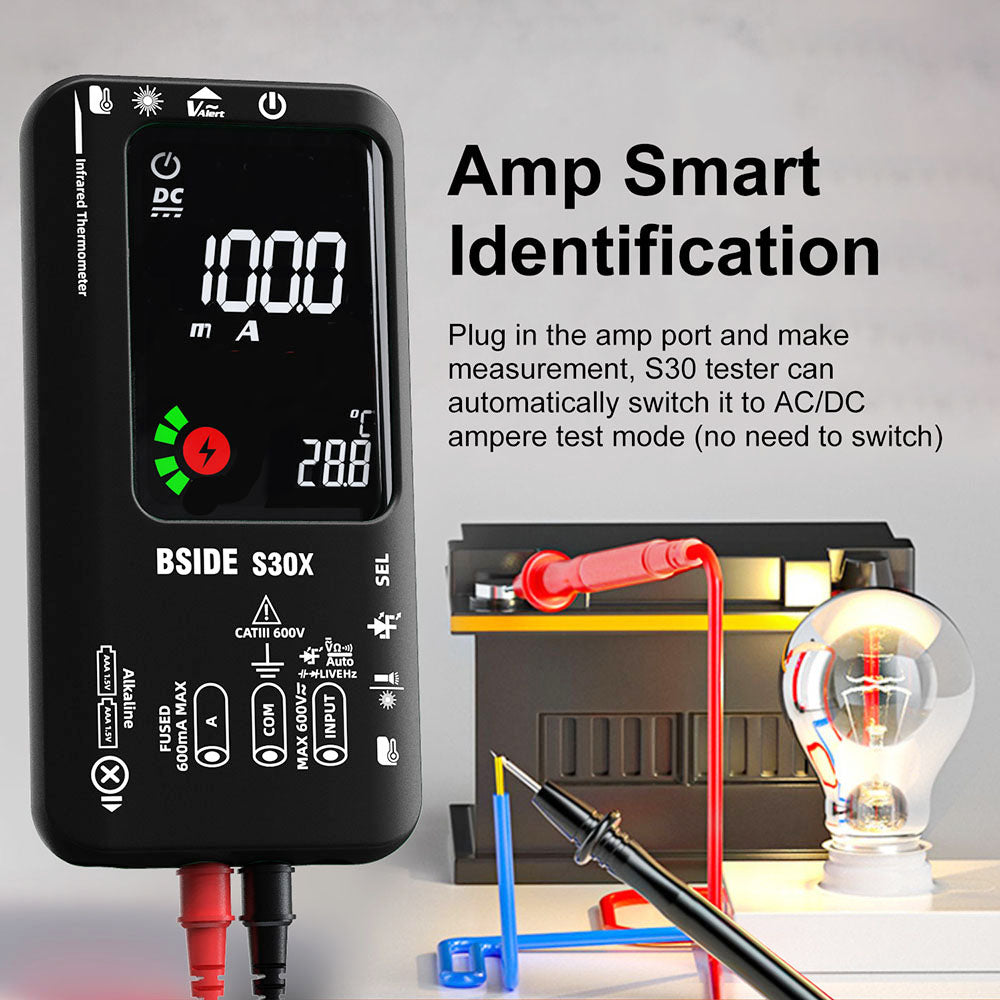

Auto-ranging, high-speed chip, no need to shift, say goodbye to cumbersome, no delay. Pluggable pen design, the current, voltage, resistance, and continuity will be automatic identification. Insert the test pen into the current jack for automatic switching.

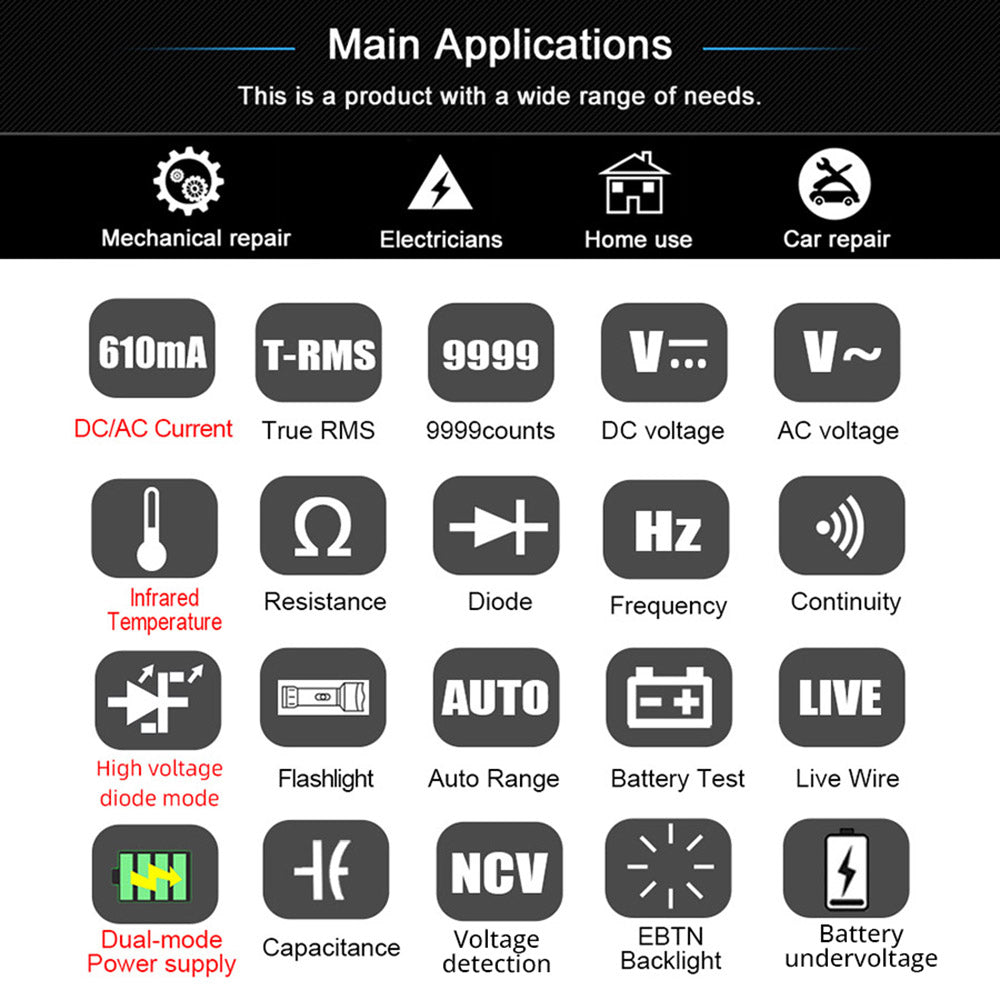

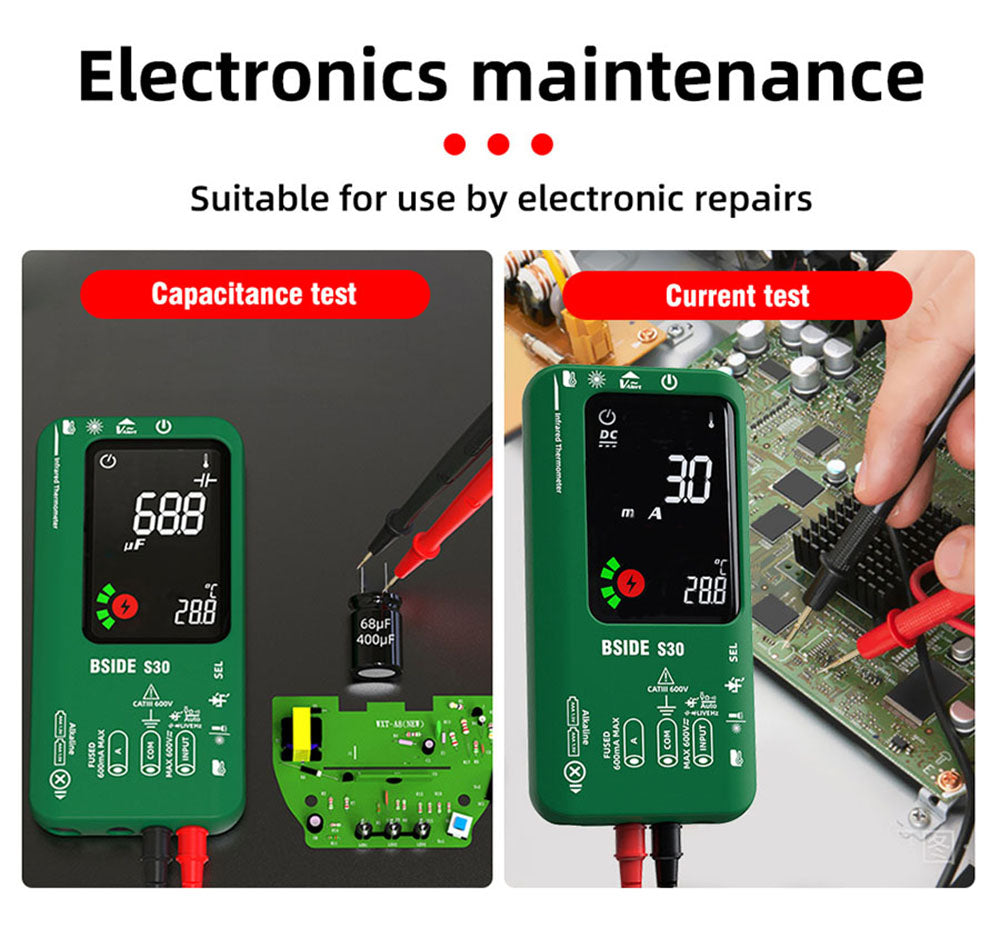

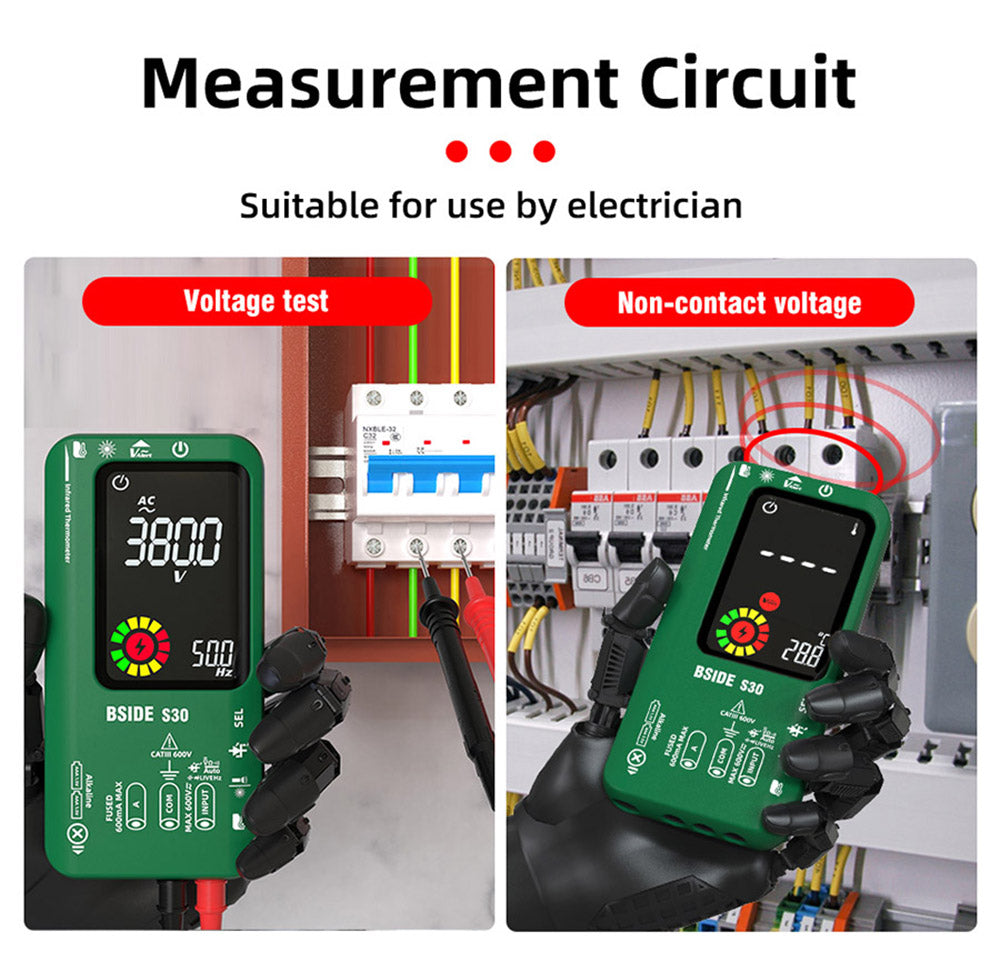

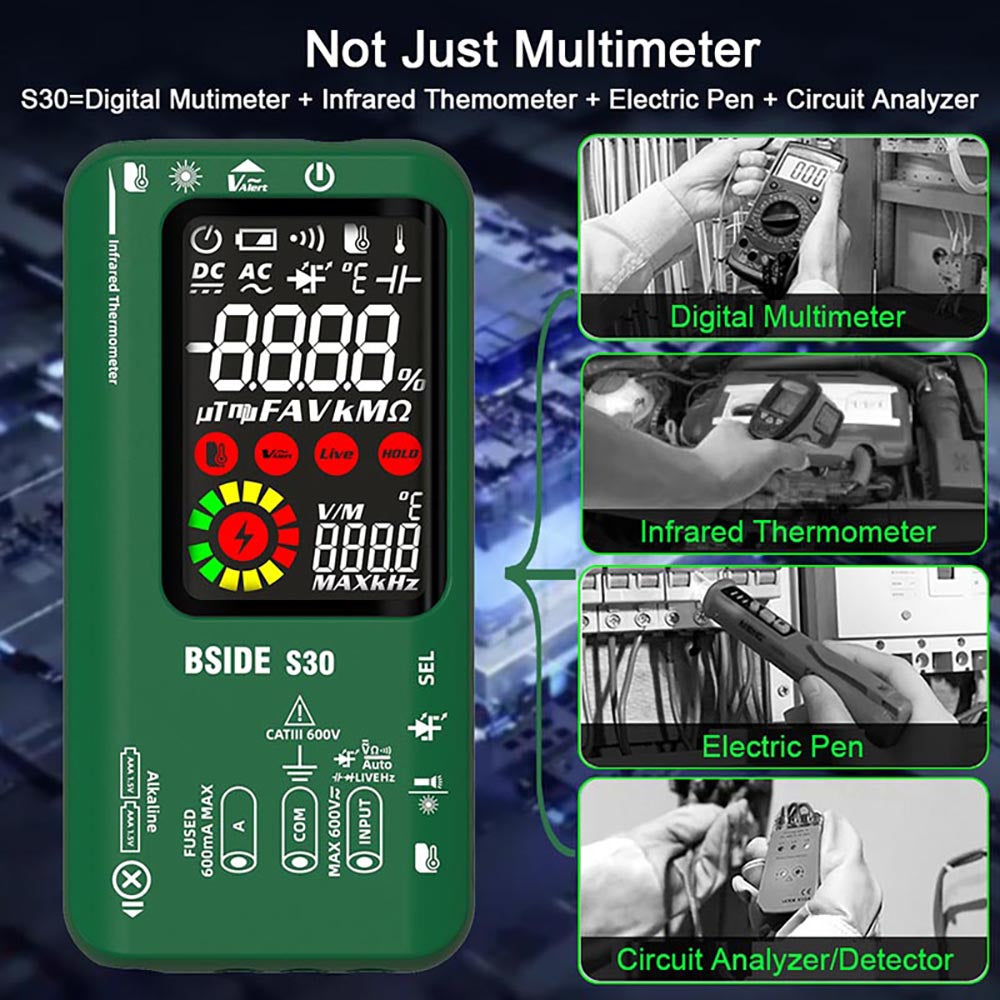

Multi-functional Design
It can be used to measure AC/DCvoltage, AC/DCcurrent, resistance, capacitance, diode, on-off, frequency, duty cycle, and non-contact infrared temperature measurement. Support True RMS 9999 counts, NCV non-contact measurement, LIVE wire firewire judgment, VFC inverter voltage test, laser level indication, V-alert AC voltage detection, V-alert alarm, two sensitivity adjustment, battery test, data storage, automatic shutdown, and night illumination function.

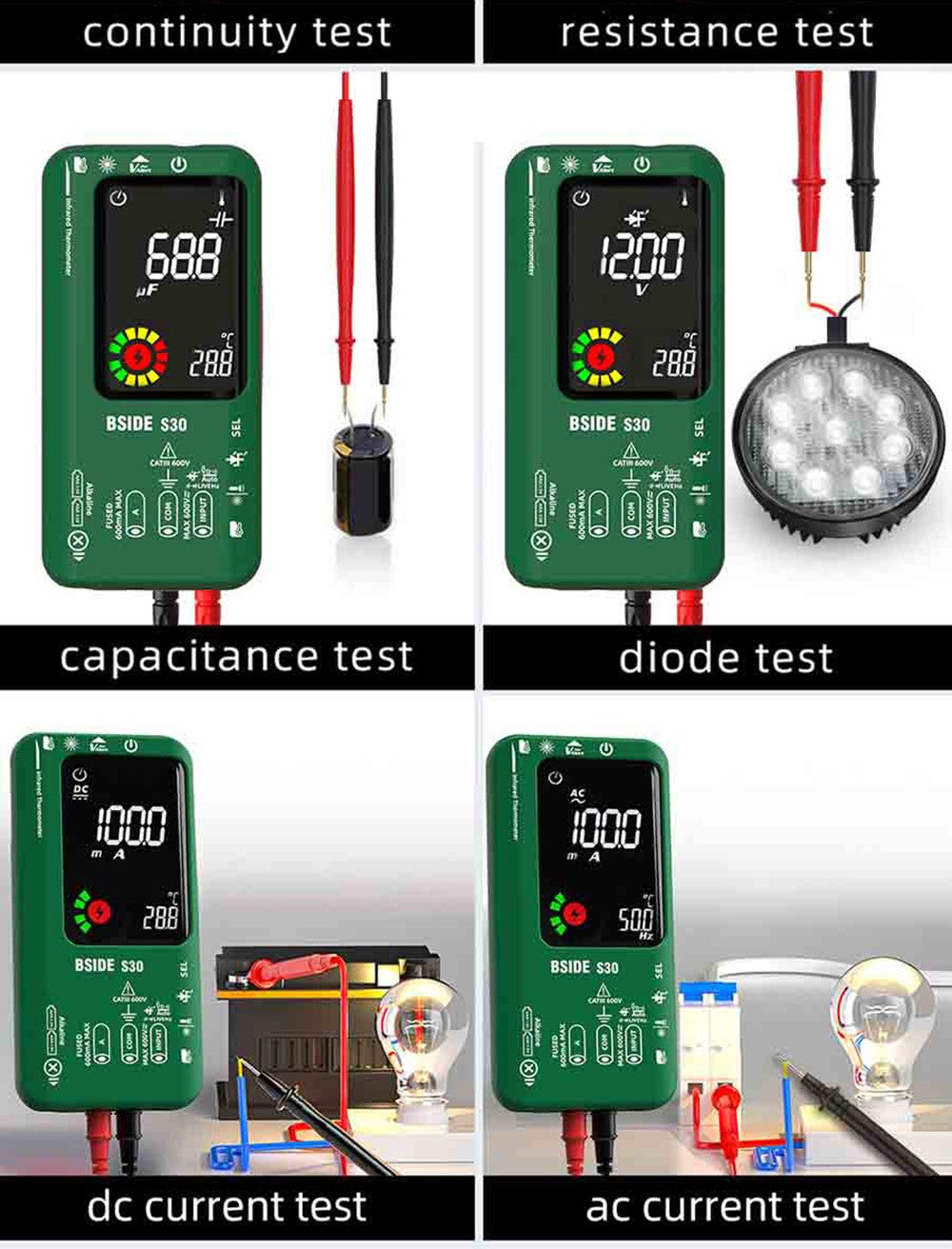

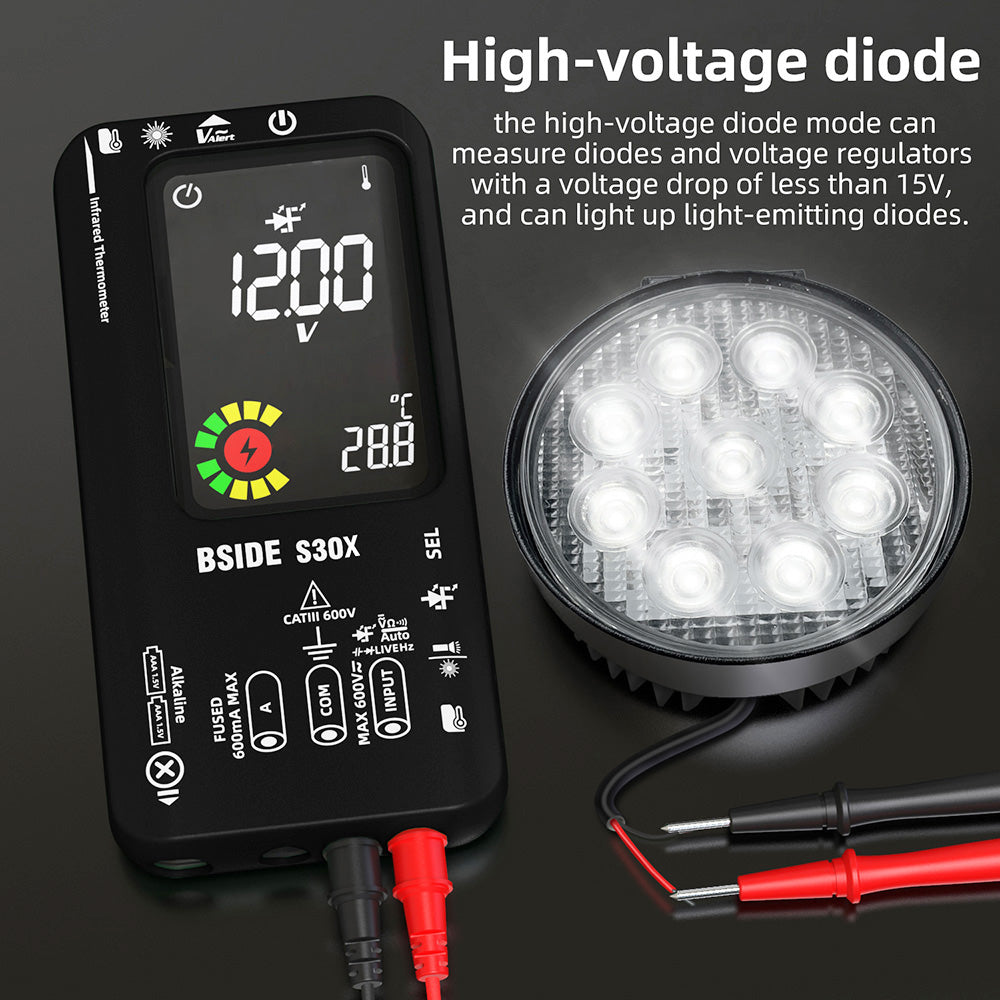

LED & Diode Test Function

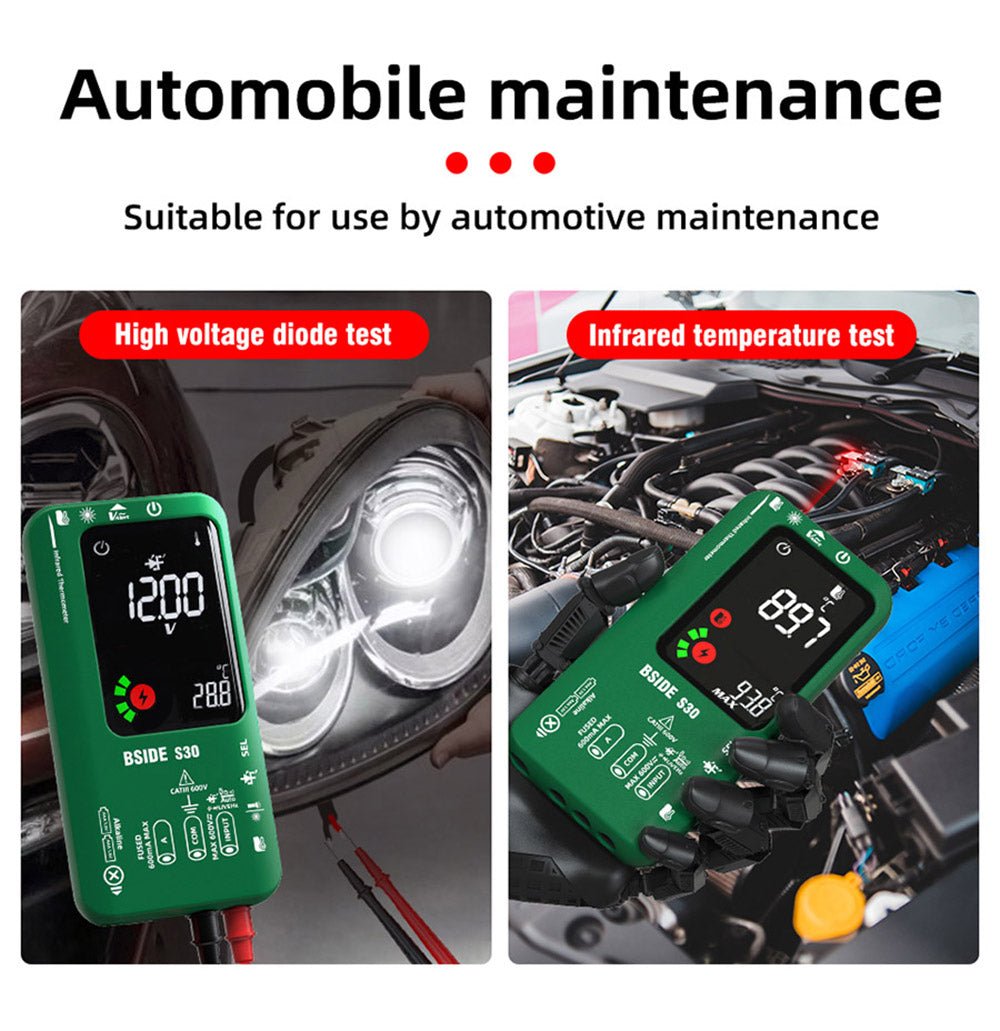

Support LED light-emitting diode test and light up the light-emitting LED within 16V, test the LED's operating voltage and current, test the fixture radiator temperature and surface temperature of LED, overhaul the control circuit boards of the LED lighting system, and can also be used in the automotive lighting system. Cover various types of diode tests, such as rectifier diodes, voltage regulator diodes, and light-emitting diodes, with a maximum test voltage of about 16V.

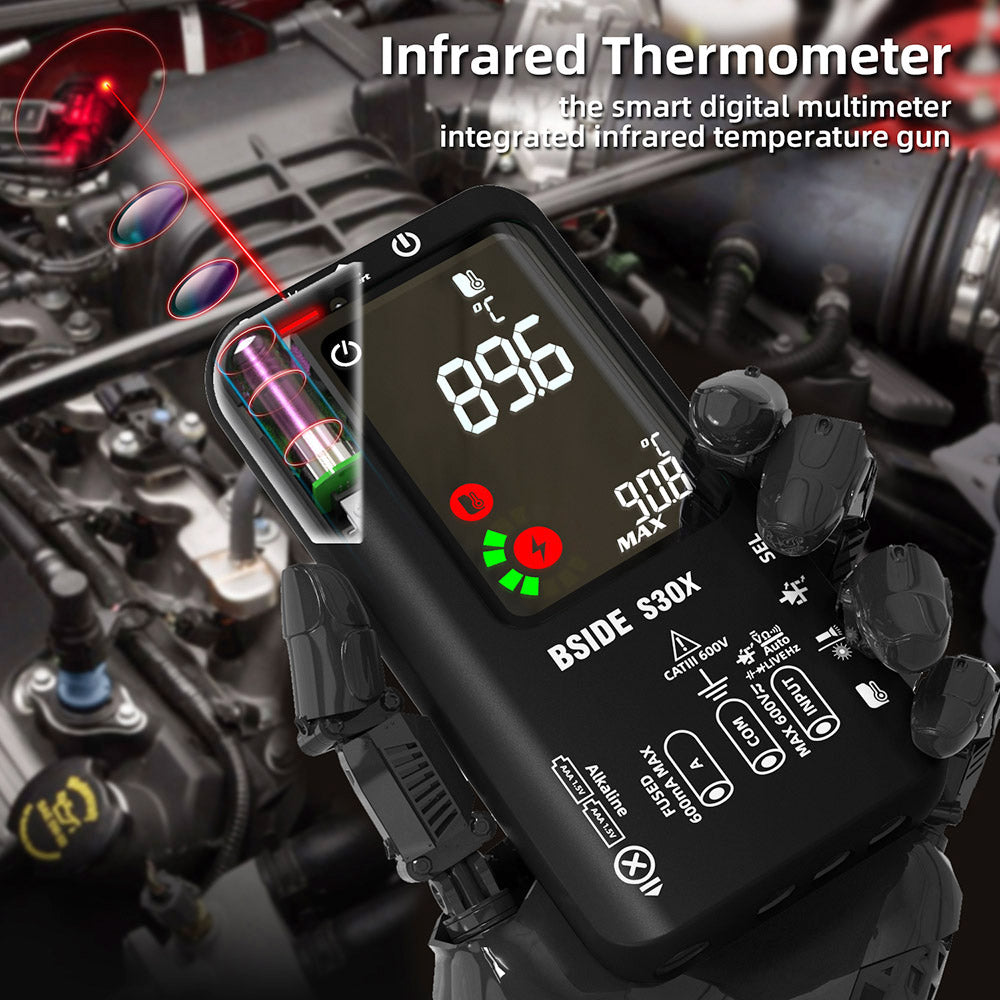

Infrared Temperature Measurement
Non-contact infrared temperature measurement mode, temperature dual-screen display, you can see the maximum temperature value on the screen during the scanning process, non-contact testing of the maximum temperature of the current wiring bus connection, to find out whether there is a false welding or loose.
Laser Level Indicator
It can be used on-site as a target positioning point to facilitate communication between field personnel, to meet the overhaul of catⅢ 600V high safety standards 380V power distribution box, and global testing and maintenance.

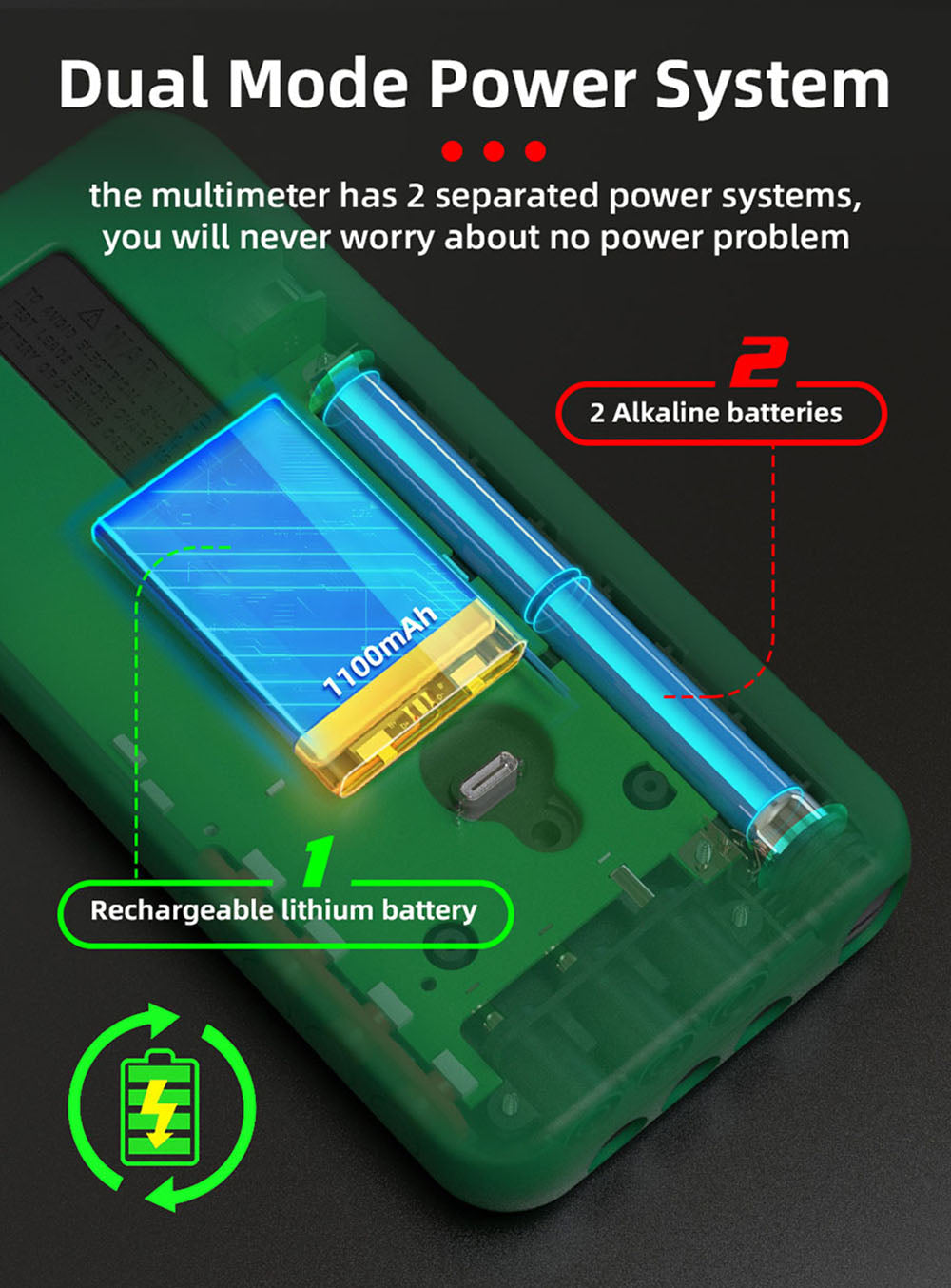

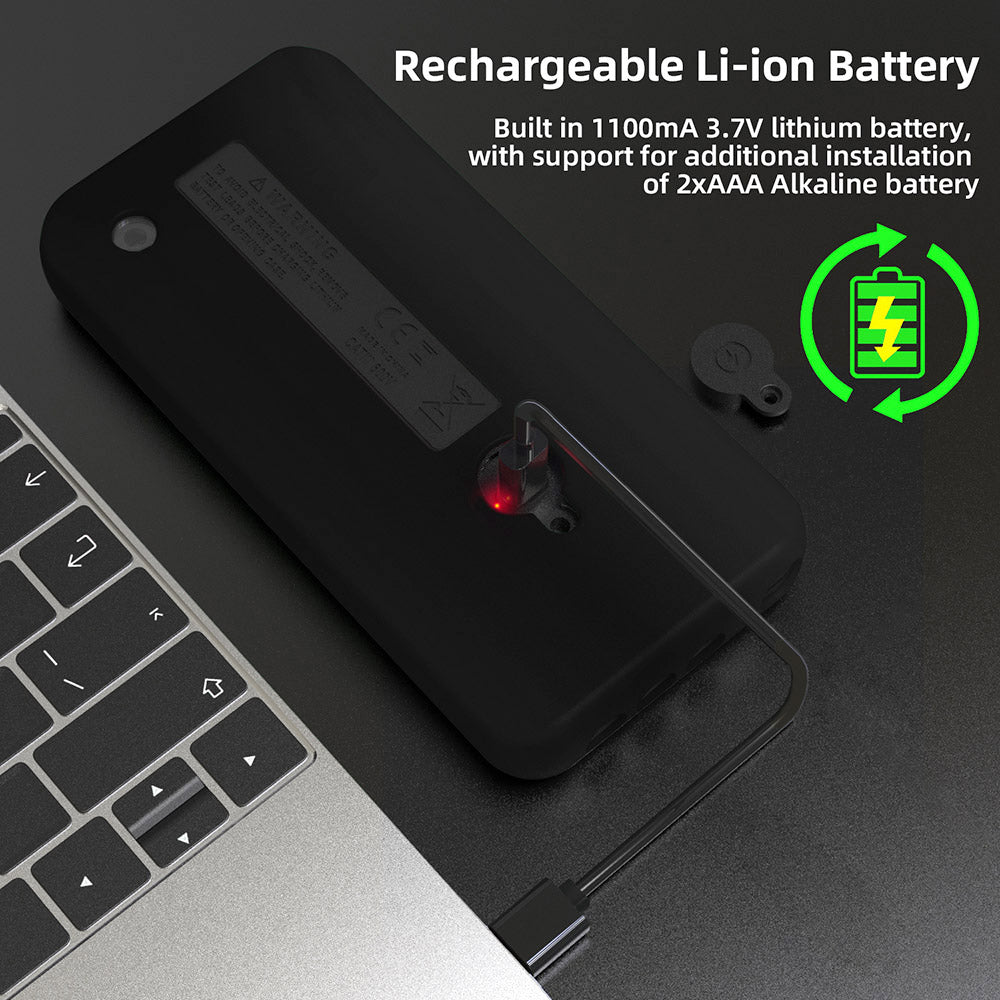

Power Supplying System
Adopts dual-mode power supplying system, support powered by the built-in 3.7V lithium battery or 2 AAA alkaline batteries (not included) to meet various needs. The multimeter prioritizes the use of the lithium battery for power supplies, after detecting the lithium battery power depletion, it will automatically switch to a dry battery for power supply.

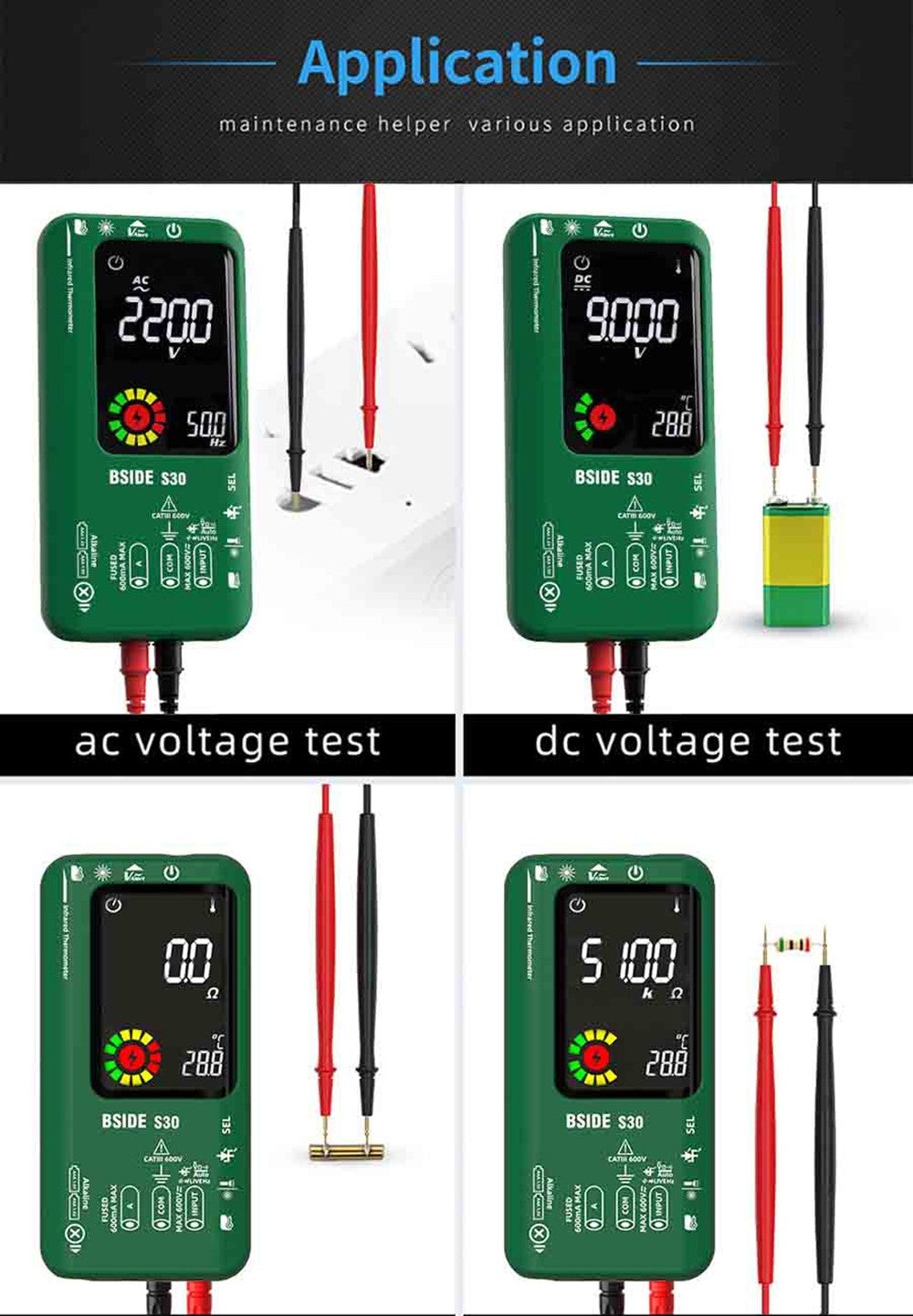

Widely Applications
Widely used in the electrical testing industry, electrician industry, electronic overhaul industry, LED industry, auto repairing industry, and so on.
Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Digital Multimeter |
| Model | S30 |
| Color | Black |
| Specification | |
| Material | ABS |
| Battery | 1 built-in 3.7V, 1100mAh lithium battery (included), or can be powered by 2 AAA batteries (not included) |
| DC Voltage | 0-620V (DC Mode), 0.5-620V(Auto Mode), 0.001V ±(0.8%+3) |

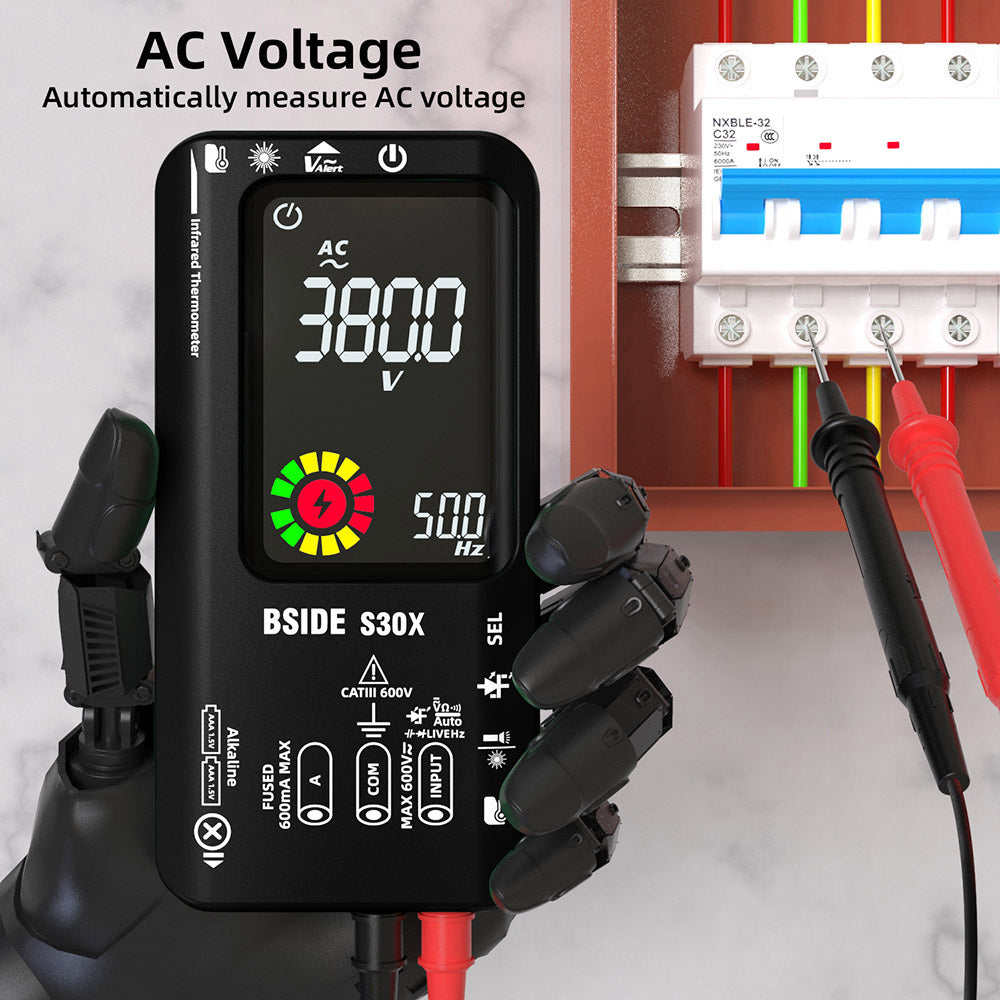

| AC Voltage | 0-620V (AC Mode), 0.8-620V(Auto Mode), 0.001V ±(1.2%+5) |
| Resistance | 0.0Ω-9.999MΩ, 0.1Ω ±(1.2%+3) |

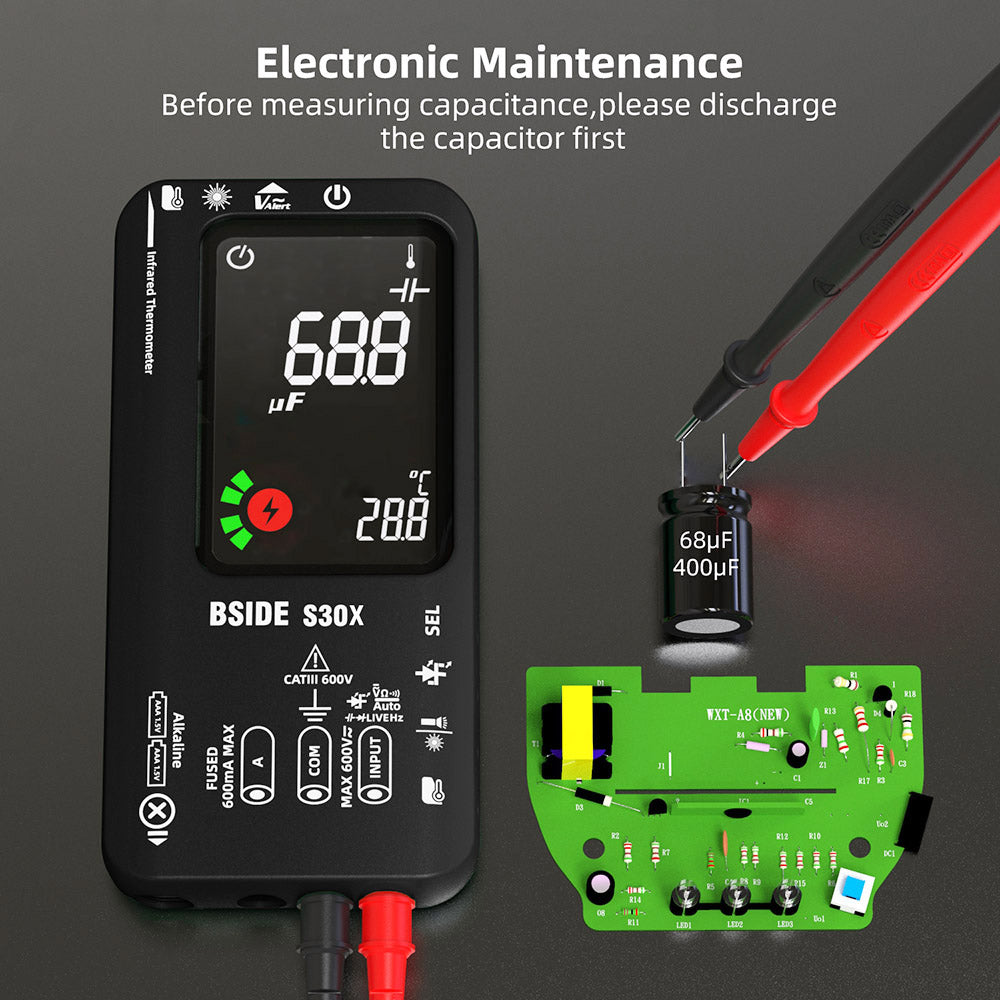

| Capacitance | 0.5μF-999.9μF, 0.1μF ±(3.5%+8); 1000μF-9999μF, 1μF ±(4.5%+10) |
| AC Current | 1-610mA(40-200Hz), 0.1mA±(2.0%+3) |
| DC Current | 1-610mA, 0.1mA +(1.5%+3) |
| Frequency | 10.0-99.9Hz 0.1Hz, 100-1000Hz 1Hz ±(1.0%+5) |
| Infrared temperature measurement | -20°C to 0°C(-4°F to 32°F, 0.1°C(°F)±(3.0%+2°C(°F)); 0℃-400°C(32℉-752℉), 0.1°C(℉) ±(2.5%+3°C(℉)) |
| Temperature | 0-50C, 1°C(°F), ±2°C(°F) |
| Continuity | If the resistance is 300 the buzzer sounds |
| Low voltage diode mode | Measure diodes within 2.0V |
| High voltage diode mode | Open circuit voltage 15V, test current 1mA.(Online testing is prohibited, otherwise, high-voltage output may damage low-voltage devices) |
| V-Alert | support |
| Live wire check | Support |
| Auto power off | 5 minutes |
| Flashlight | Support |
| Weight & Size | |
| Product Weight | 245g |
| Package Weight | 450g |
| Package Size(L x W x H) | 185*100*50mm |

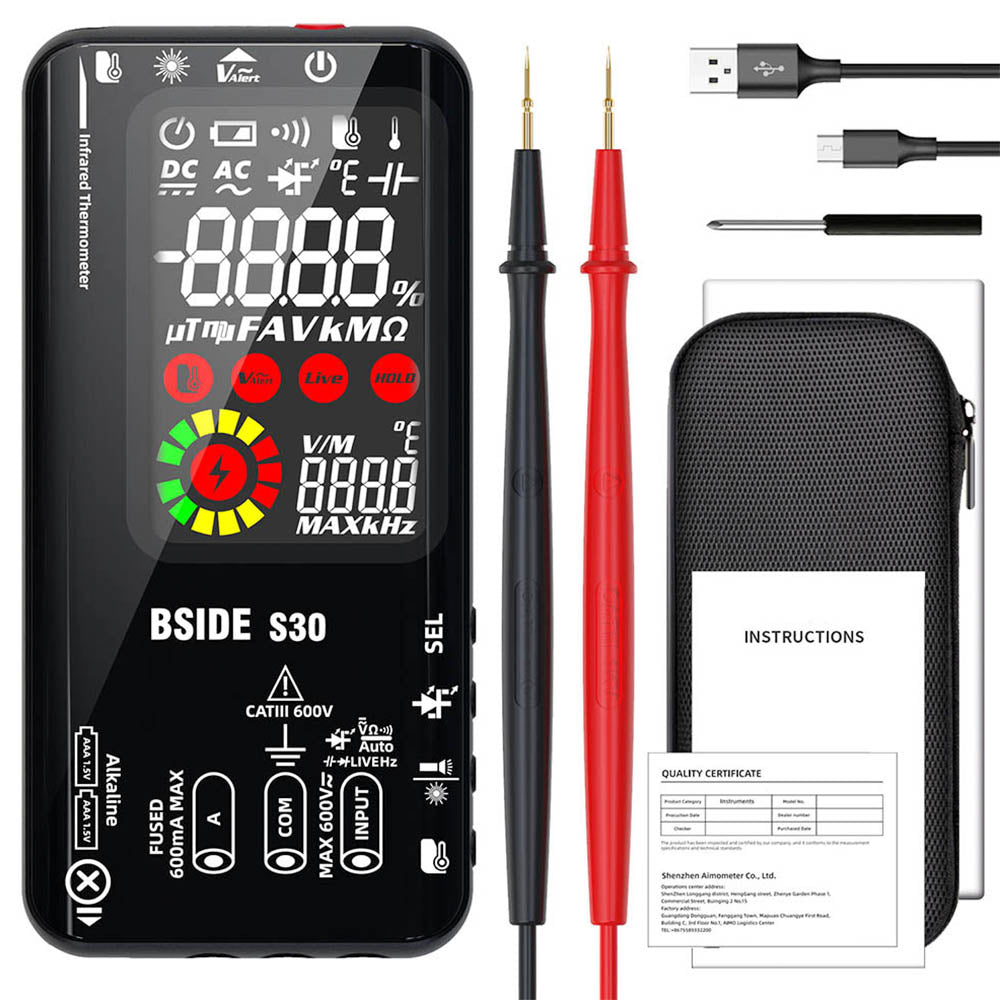

| Package Contents | |
| 1 x Digital Multimeter | |
| 1 x User Manual | |
