BSIDE S20 highlights

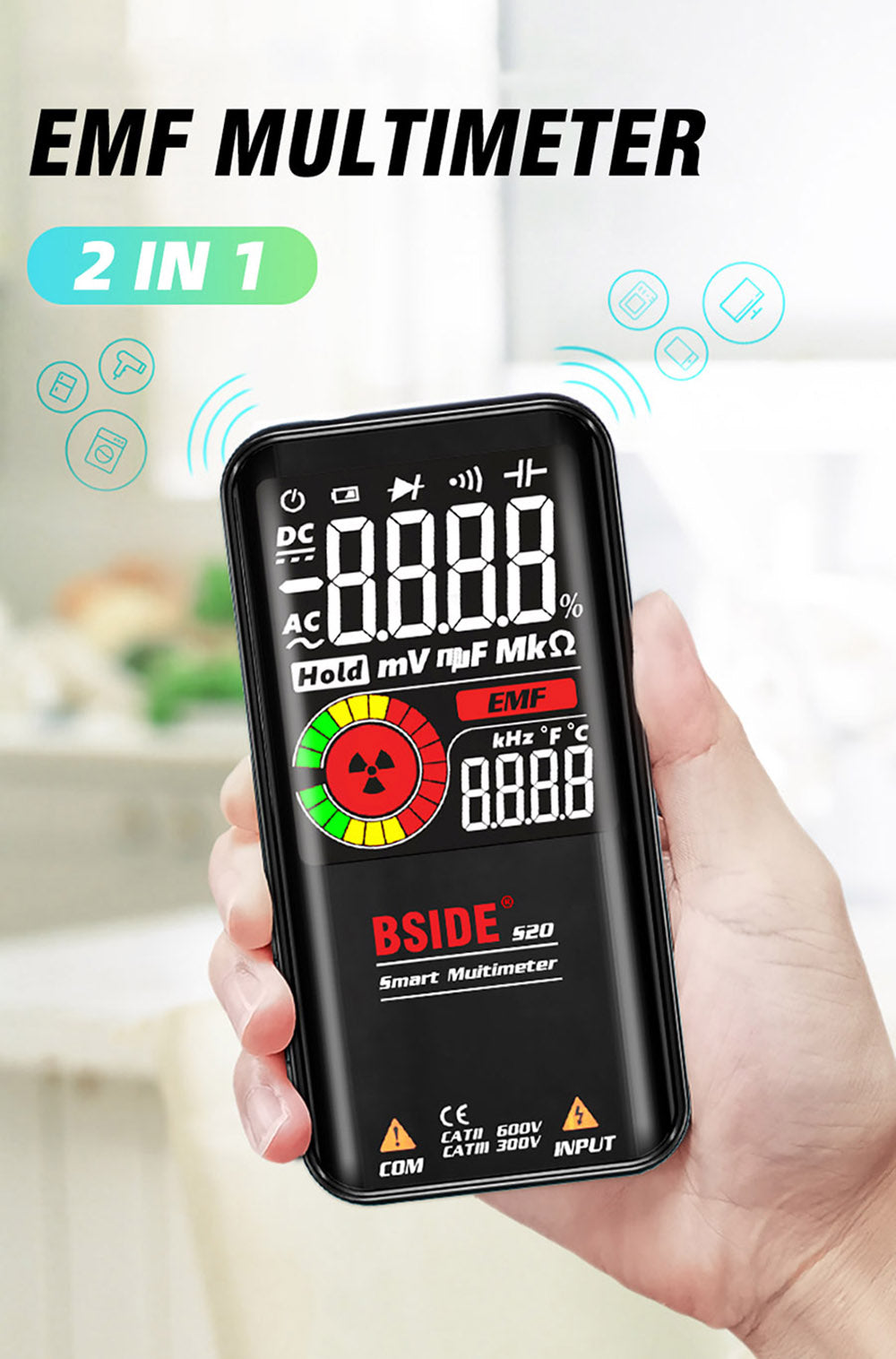

2-in-1 EMF Multimeter
The digital tester has the function of an Electromagnetic Field Radiation Detector and Universal Meter, which is very suitable for professionals and household use.
Wide Test Range

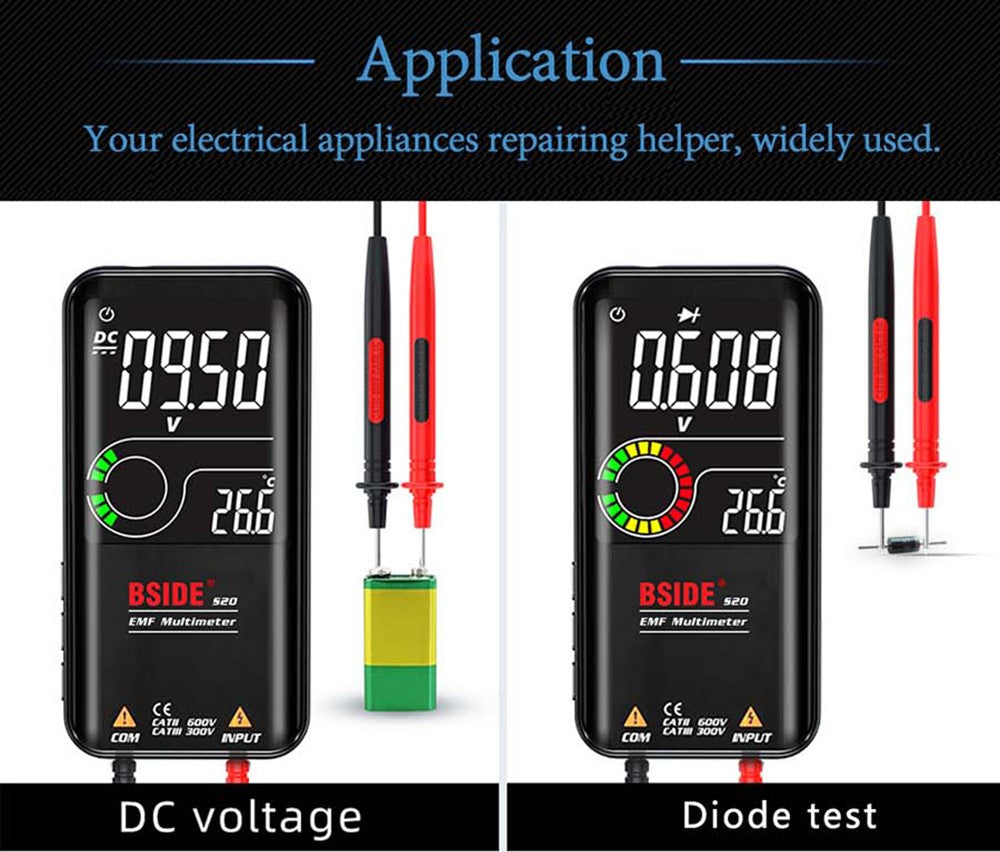

The universal meter can measure AC/DC voltage, resistance, capacitance, frequency, diode, continuity, firewire recognized, etc.
Household Electromagnetic Radiation Detection

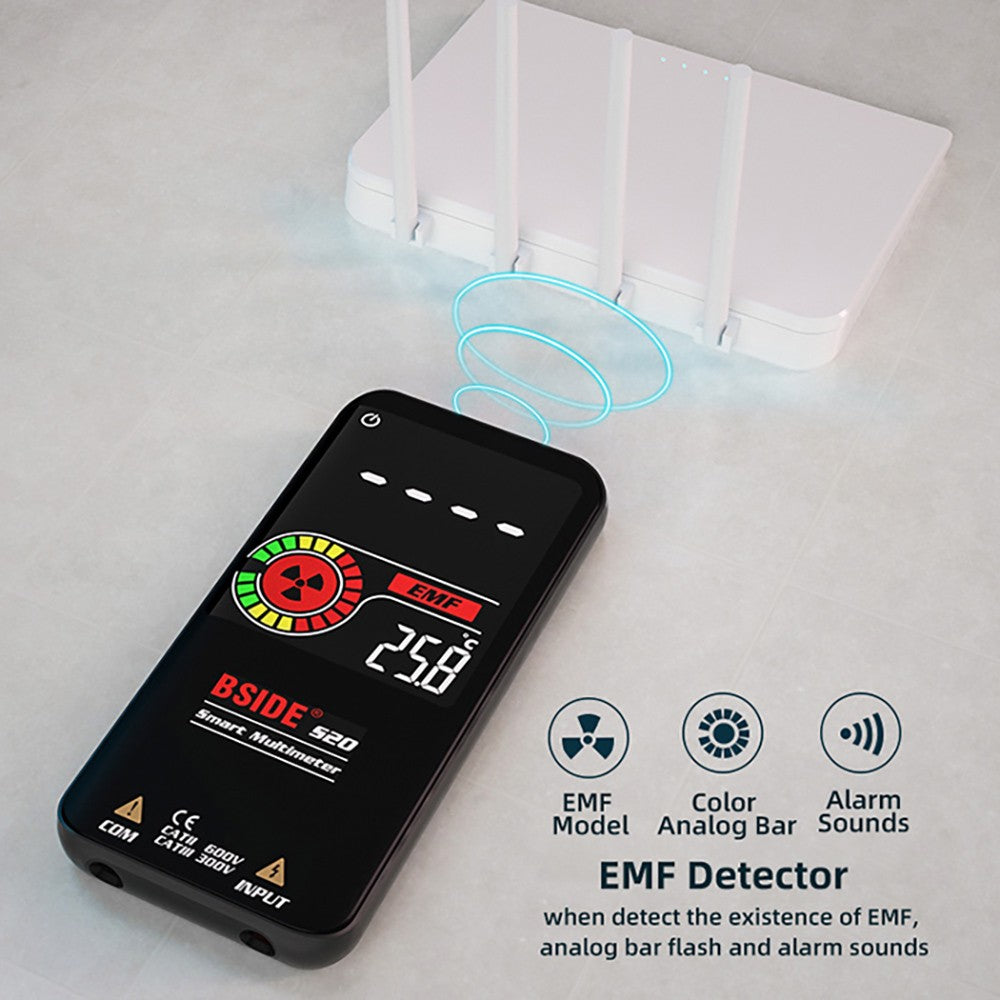

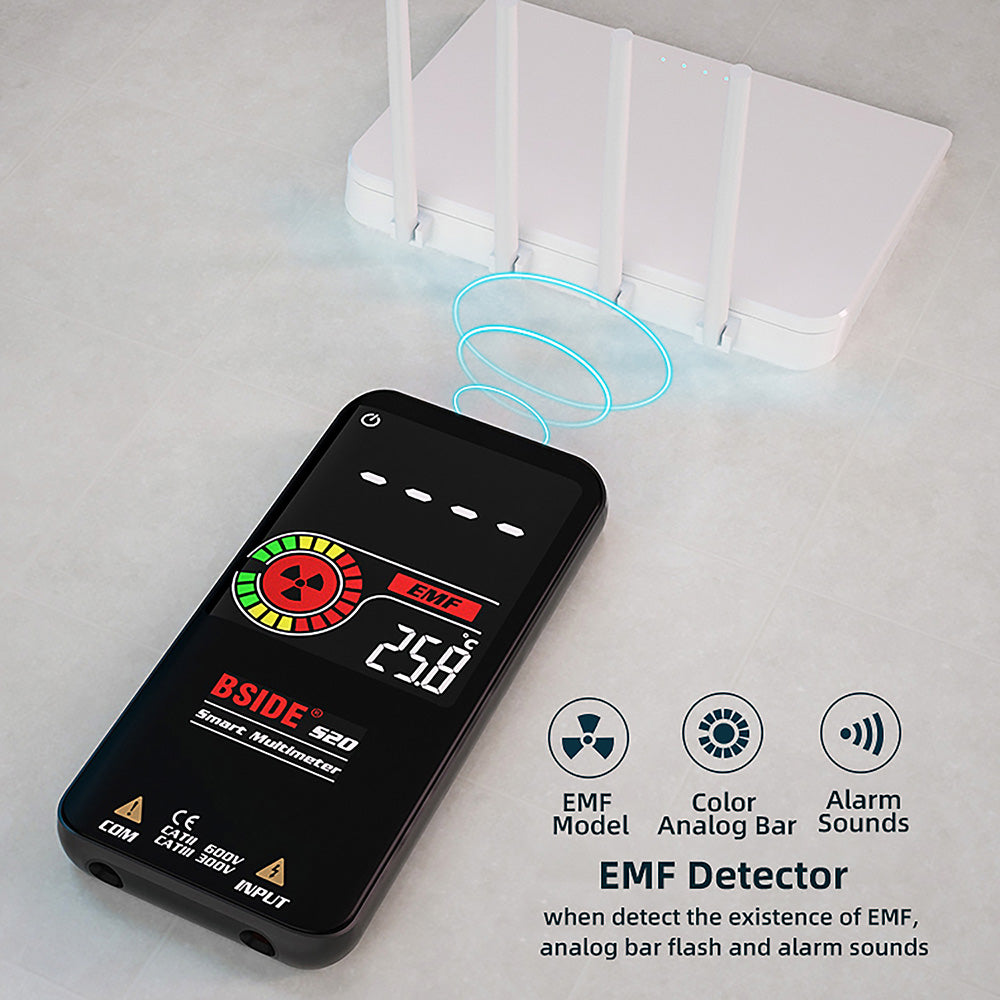

Top induction area to identify high-frequency electromagnetic radiation emitted by microwave oven, electric fan, or air conditioner. And has an icon & 3-color analog bar graph displayed once the electromagnetic radiation is recognized, and the buzzer sounds simultaneously.
Smart Functions

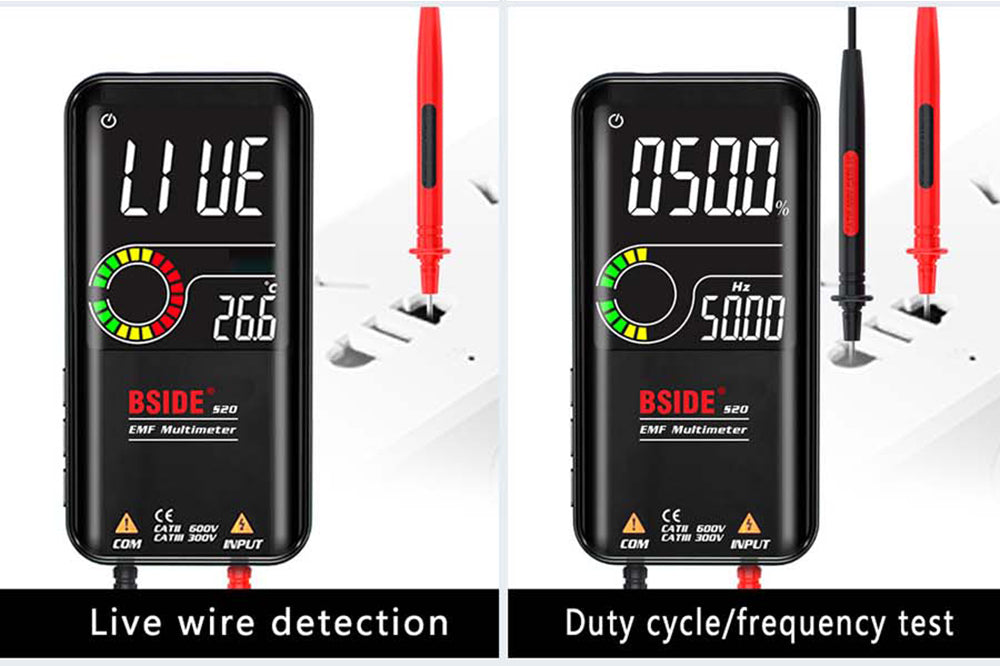

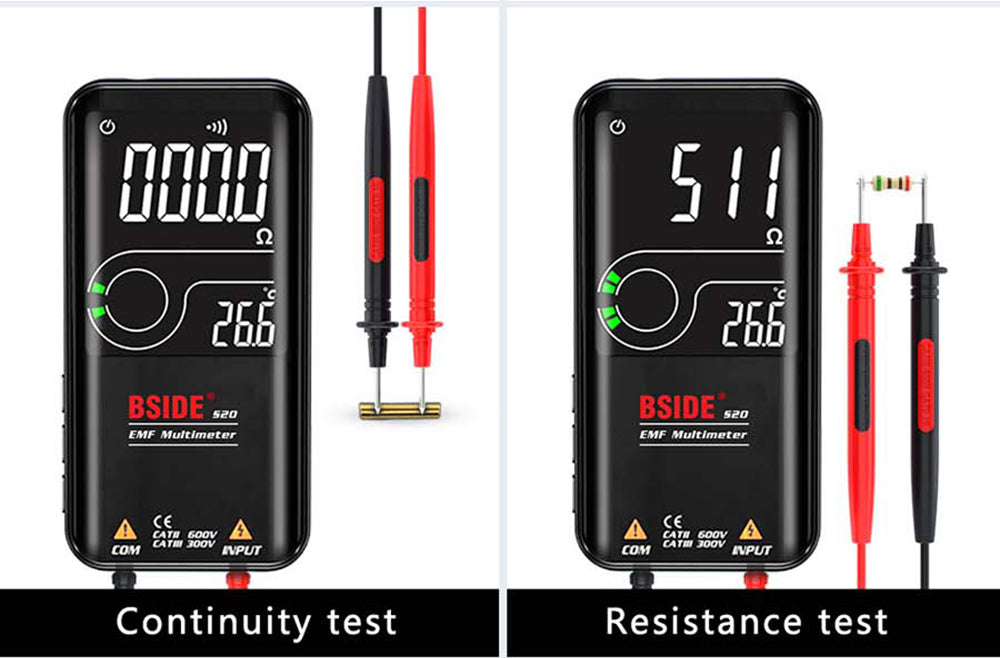

Automatic identification of AC voltage, DC voltage, and resistance at auto mode; measuring diodes within 1.0V; when the resistance is less than 30Ω, the buzzer will sound up at the continuity function; and the buzzer sounds when the live voltage signal is recognized.

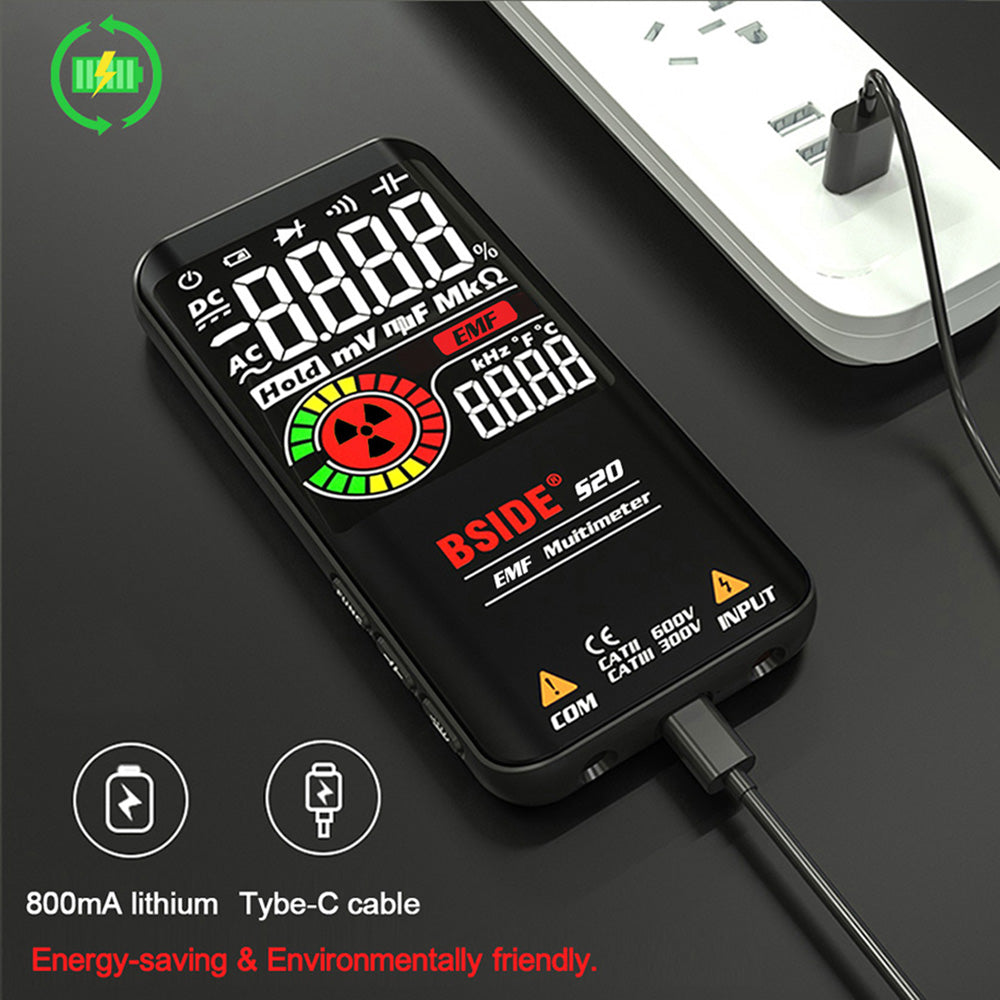

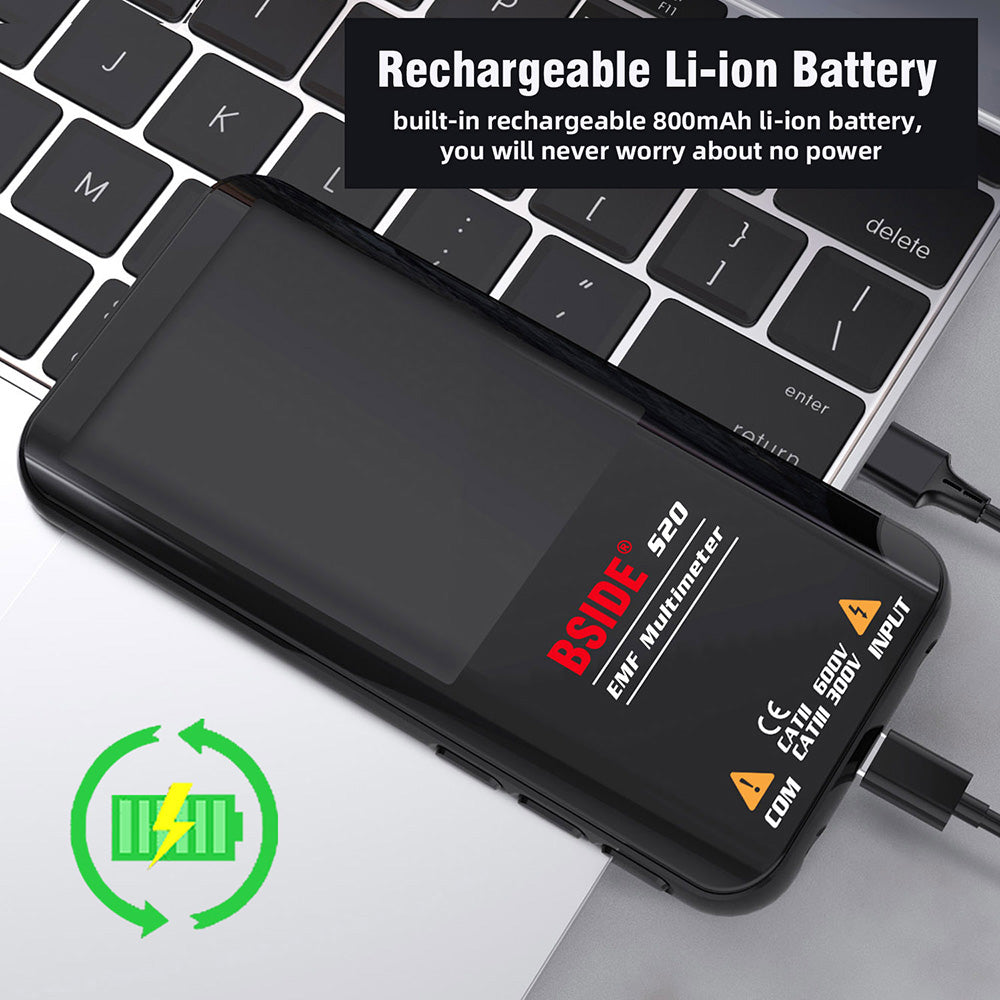

Rechargeable Li-ion Battery
Built-in 800mAh rechargeable lithium battery, convenient to use and recharge. Auto power off when there is no signal input within 5 minutes.

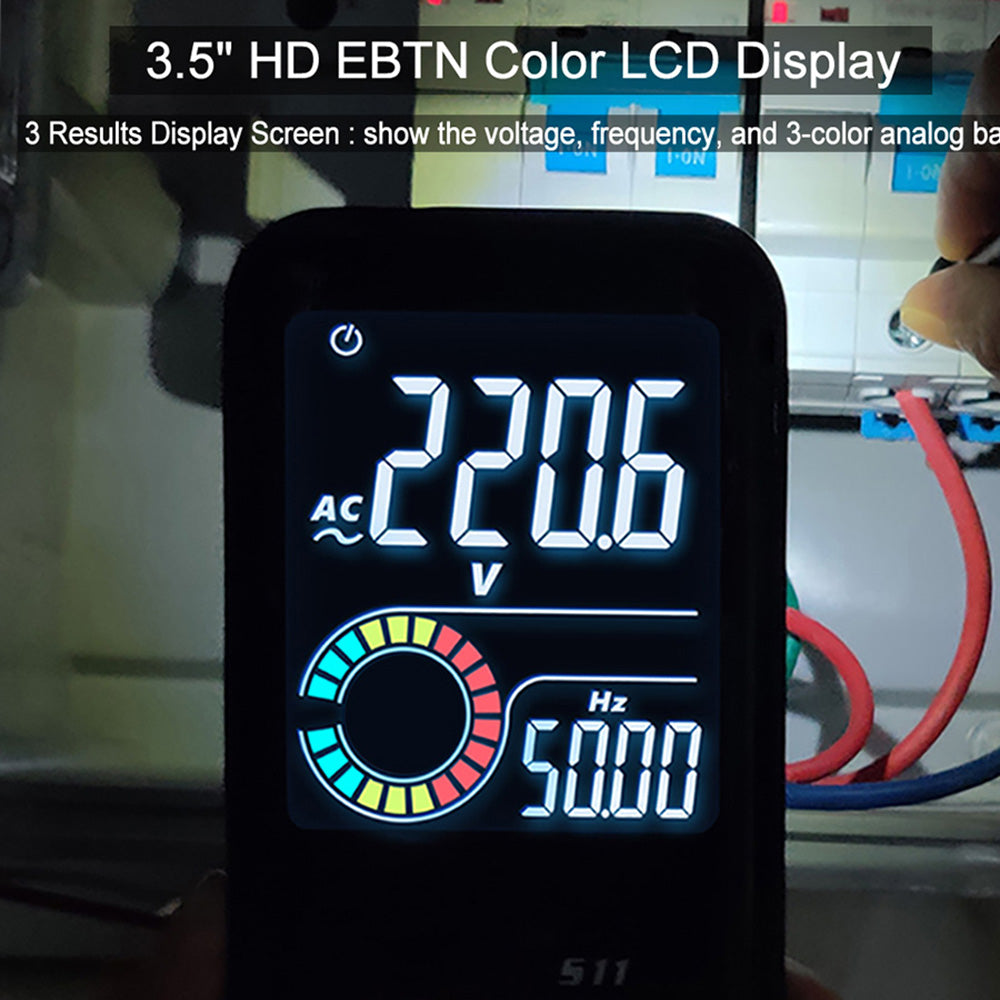

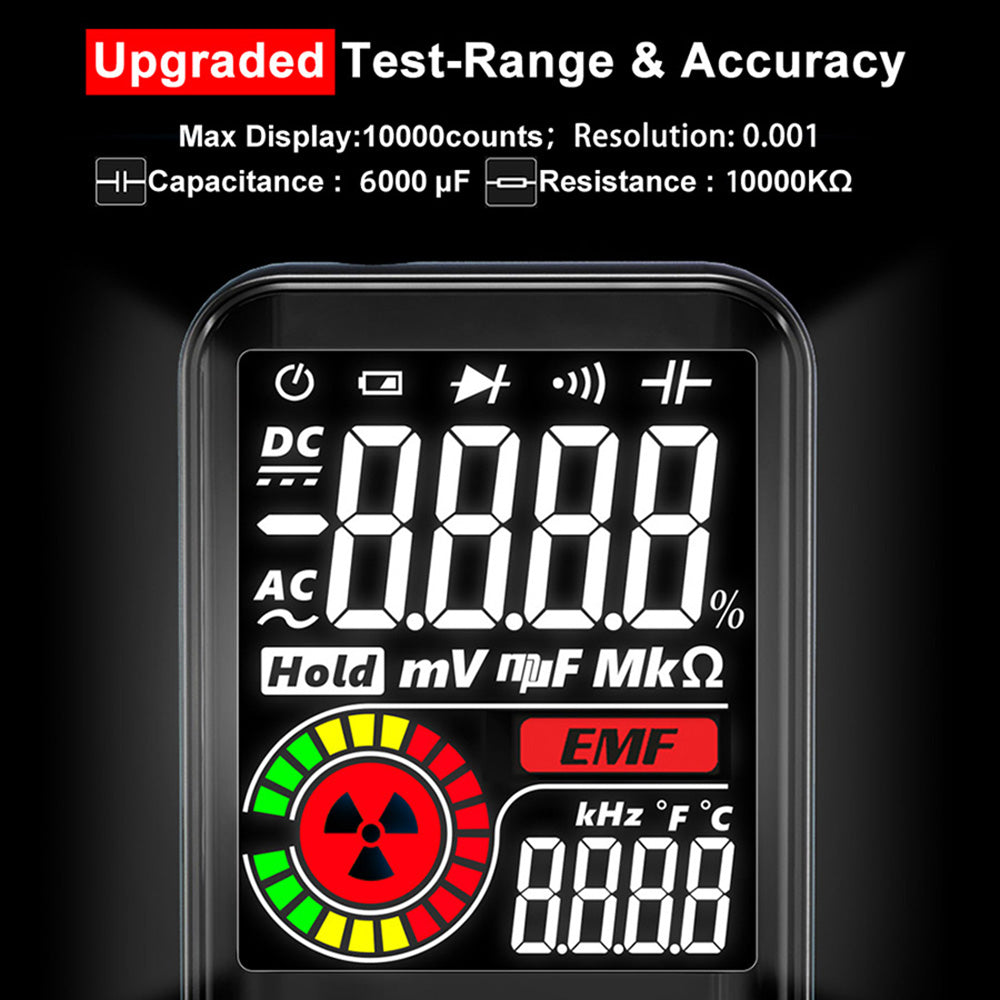

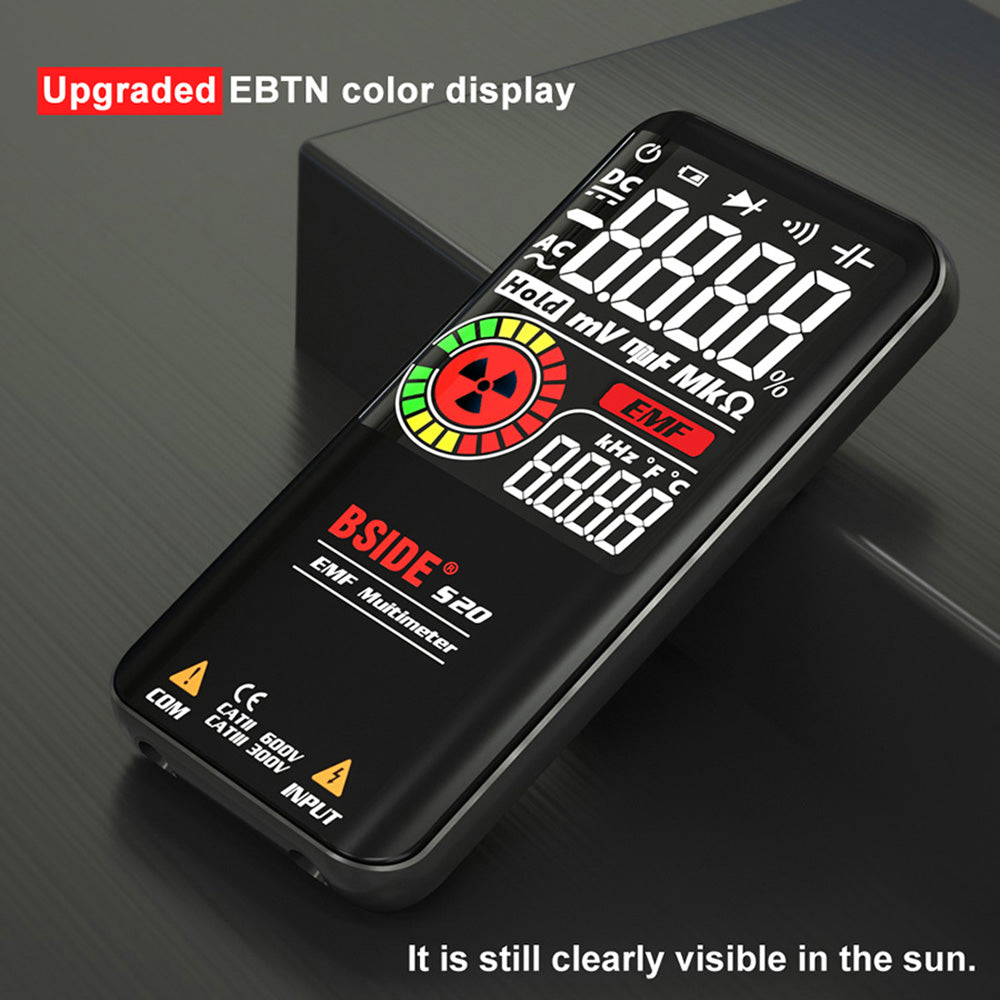

High Precision Display
Auto-ranging with 9999 counts smart multimeter with data hold function, and the 3.5-inch large EBTN colored LCD greatly enhance the reading experience, the value is very easy to read even under the sunlight or poor light conditions.

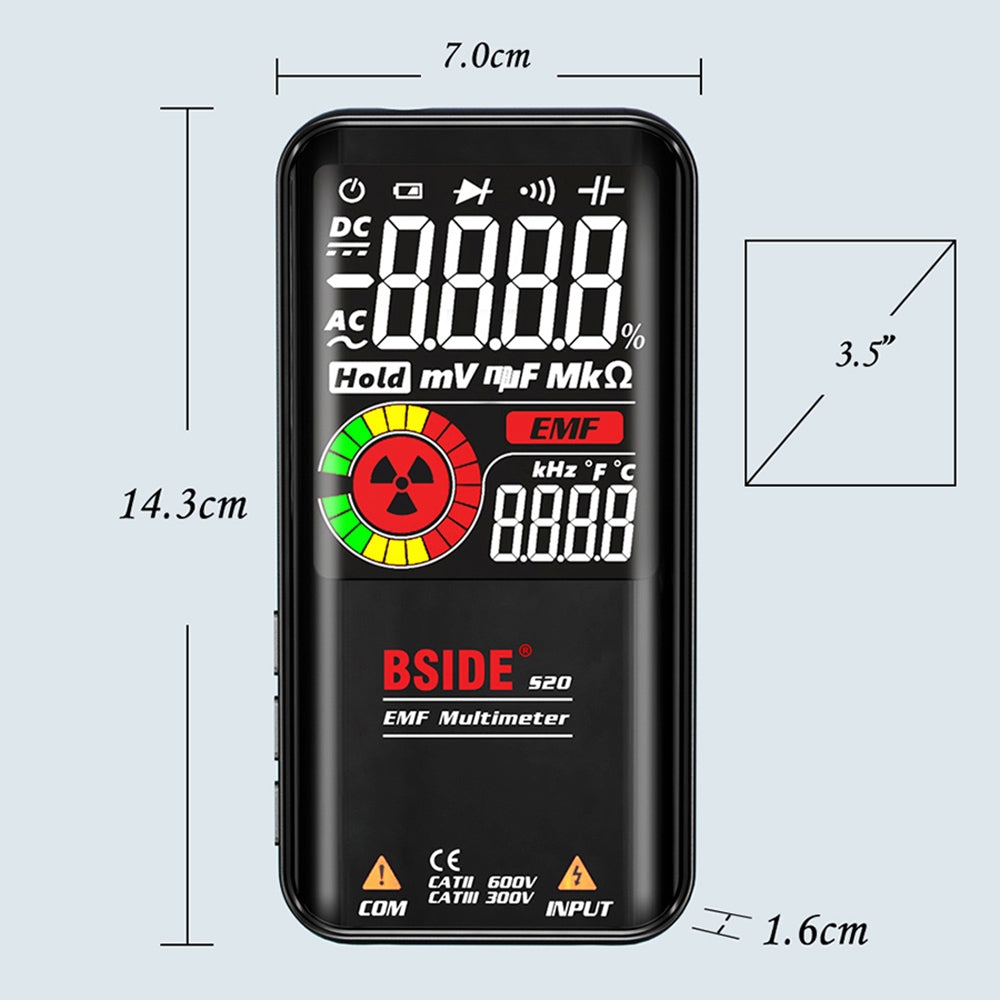

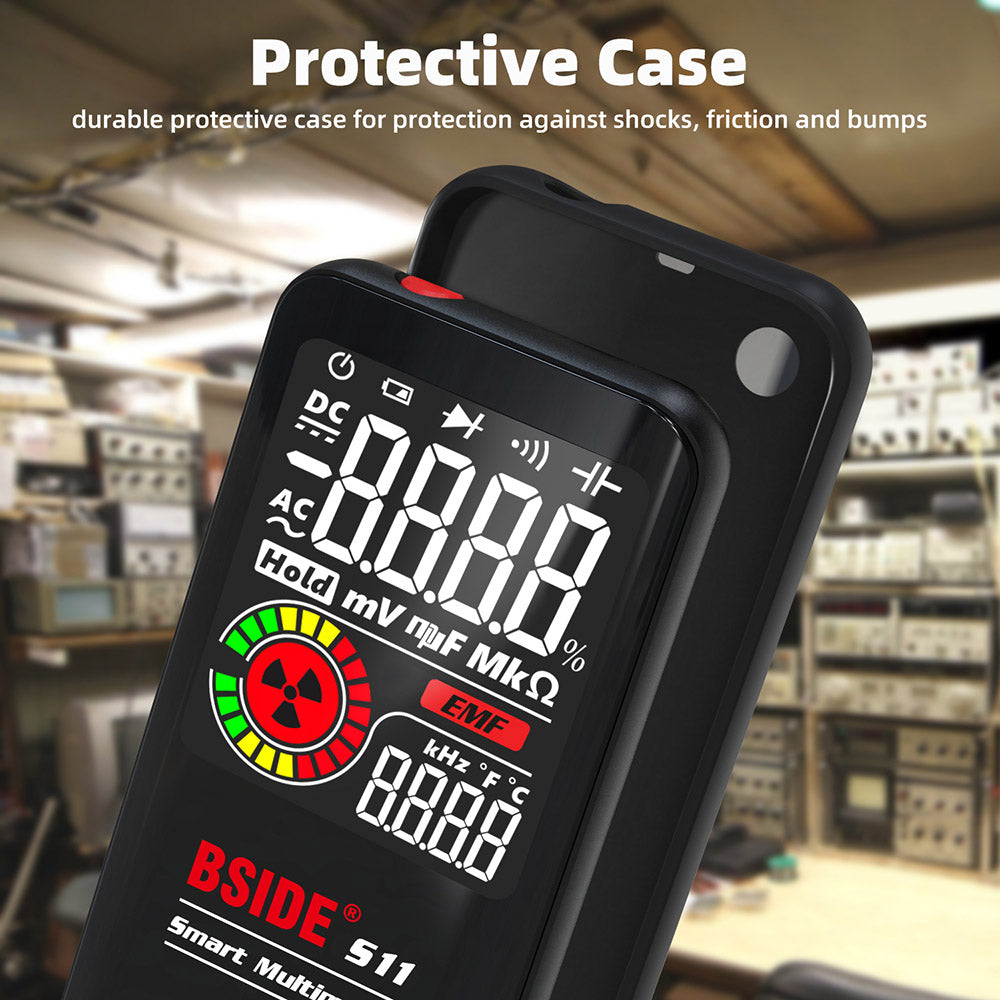

Pocket Size
compact portable size designed with a detachable durable sleeve, and a storage pouch for protecting it against shocks, friction, and bumps.

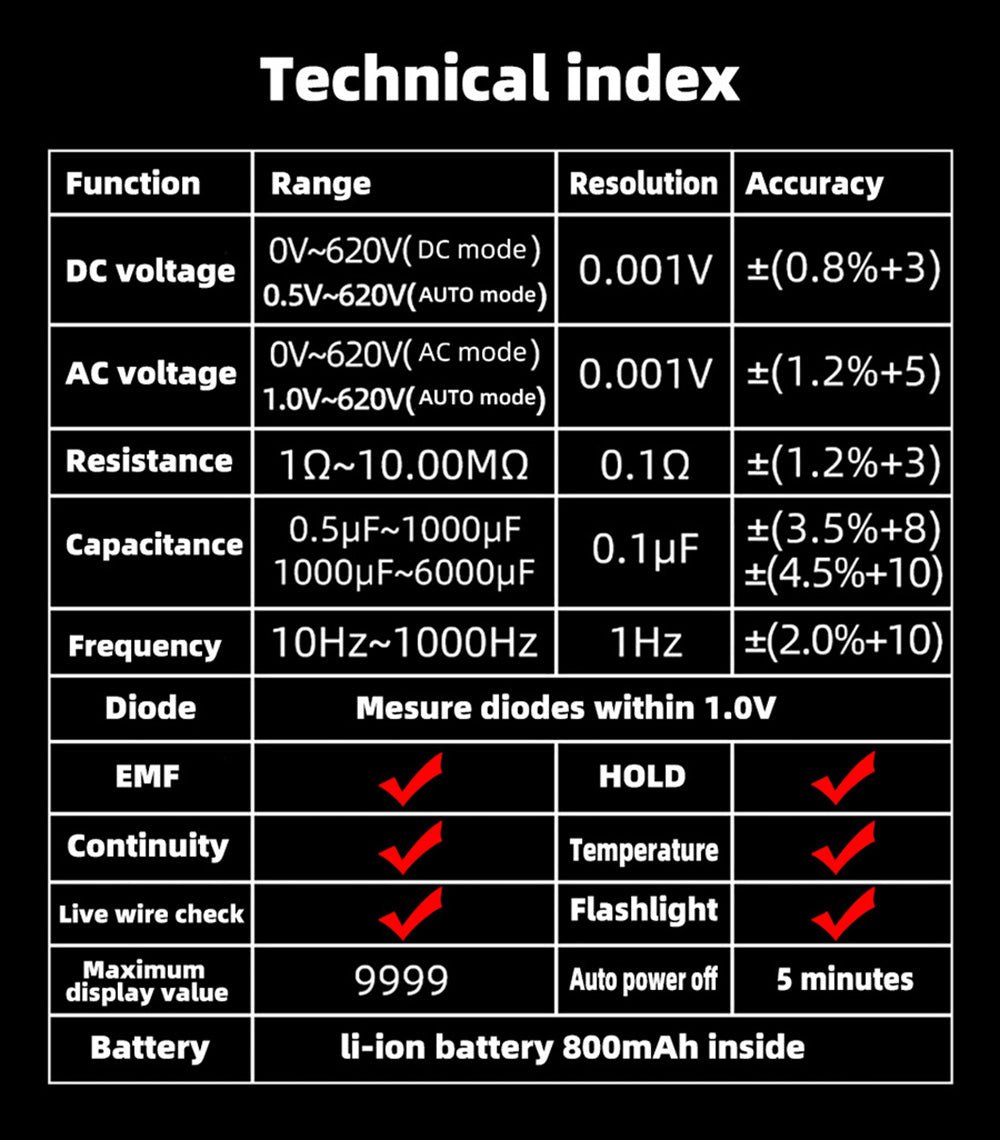

Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Electromagnetic Radiation Detector |
| Model | S20 |
| Color | Black |
| Specification | |
| DC Voltage | 0-620V(DC mode), 0.5-620V(Auto mode) |
| AC Voltage | 0-620V(AC mode), 1.0-620V(Auto mode) |
| Resistance | 1Ω-10.00MΩ |

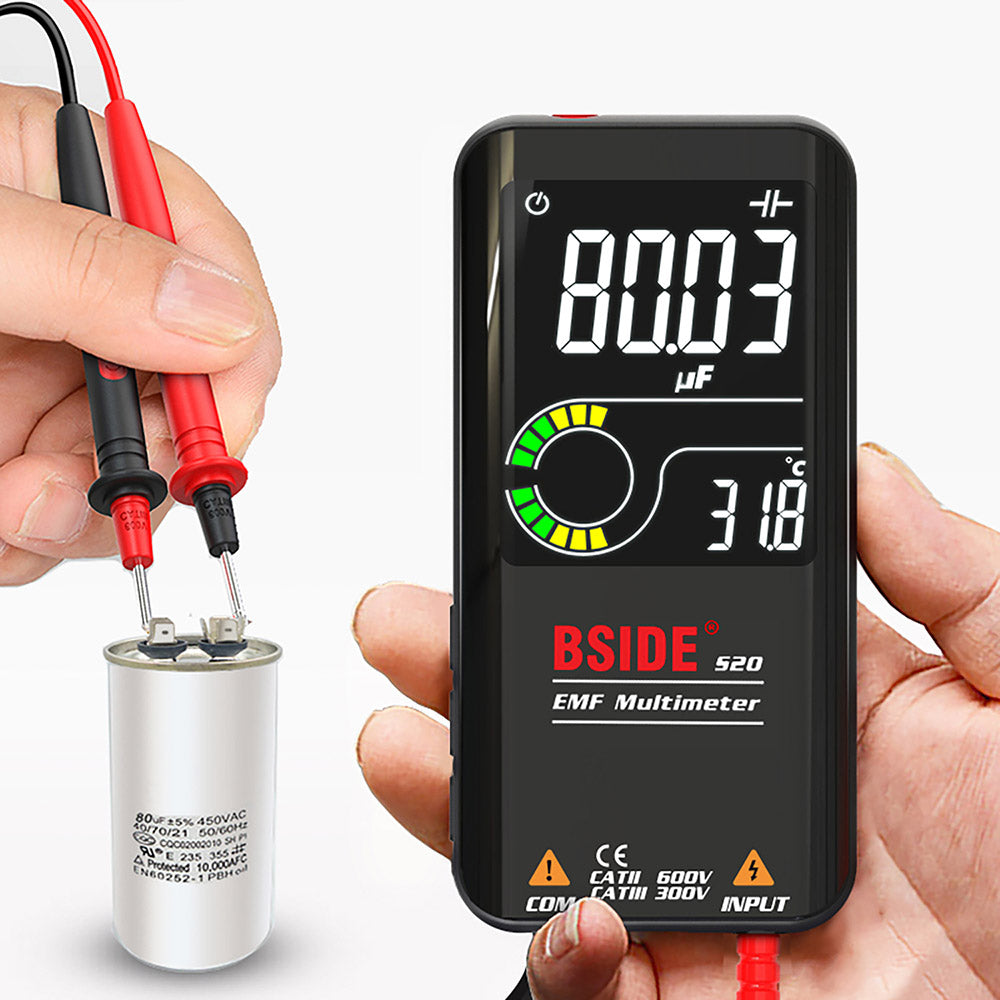

| Capacitance | 0.5-1000μF, 1000-6000μF |
| Frequency | 10-1000Hz |
| Diode | Measure diodes within 1.0V |
| EMF Detection | Yes |
| Continuity Buzzer | Yes |
| Firewire Recognize | Yes |
| Data Hold | Yes |

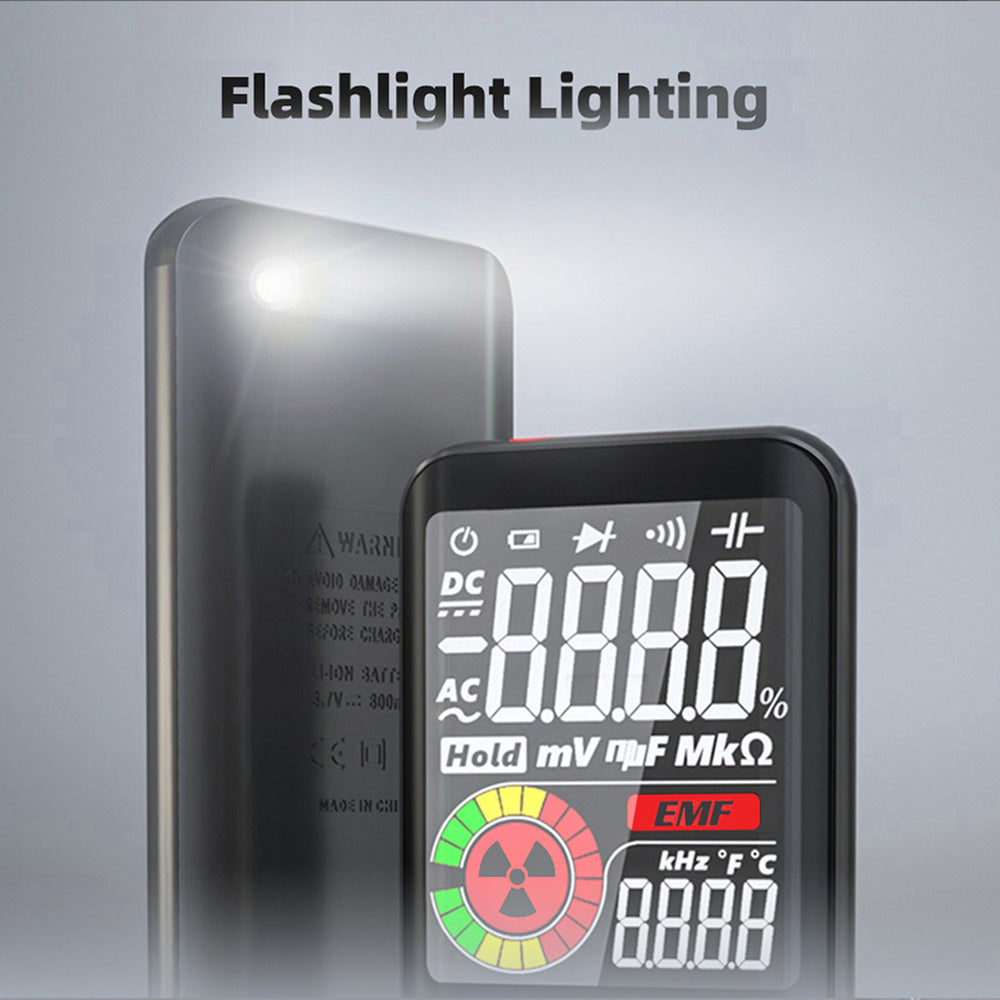

| Flashlight | Yes |
| Environmental Temperature | Yes |
| Safety Level | CAT.II 600V, CAT.III 300V |
| Range | Auto range |
| Display | Color LCD |
| Max. Display | 9999 digits |
| Sampling Time | About 0.4 seconds |
| Auto Power-off | 5 minutes |
| Operate Environment | 0-40°C, 0-80%RH |
| Storage Environment | -10-60°C, 0-70%RH |
| Operate Altitude | ≤2000m |
| Battery | 1 * 3.7V 800mAh li-ion battery |
| Weight & Size | |
| Product Weight | 140g |
| Package Weight | 311g |
| Package Size(L x W x H) | 170*95*45mm |

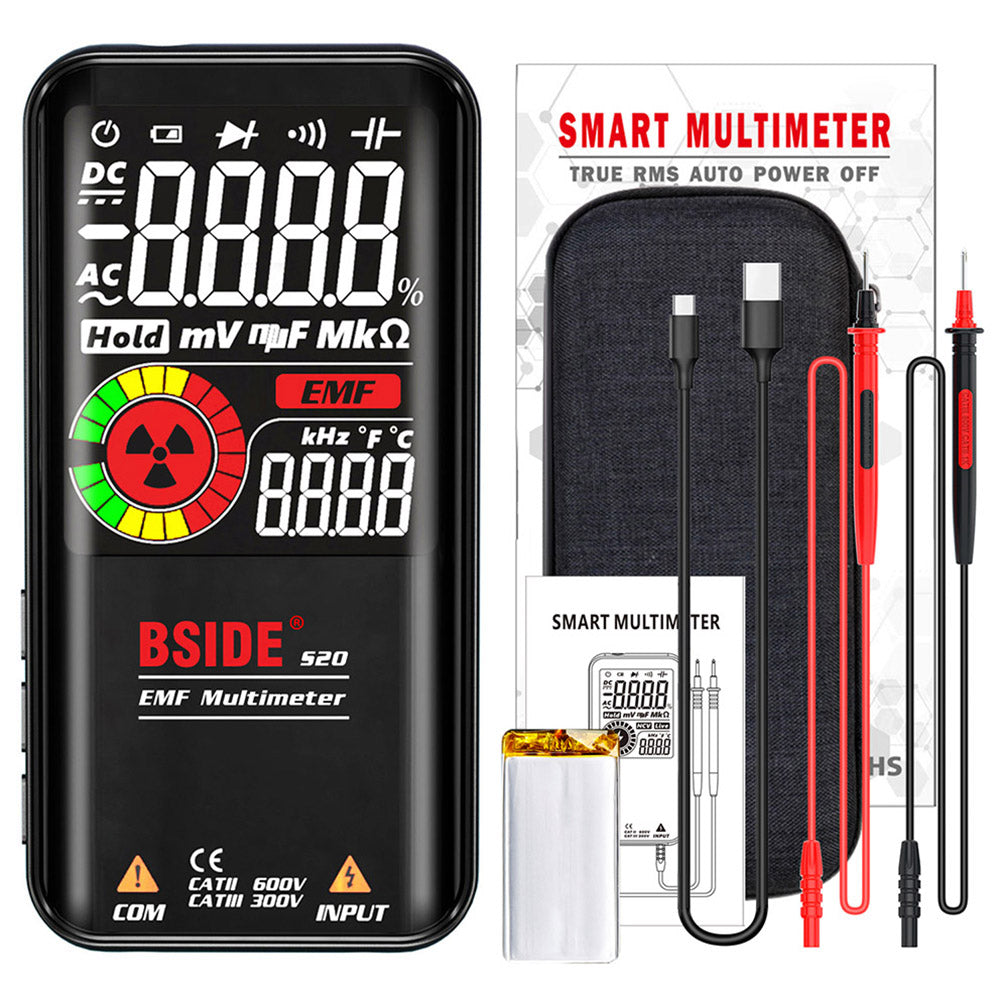

| Package Contents | |
| 1 x Electromagnetic Radiation Detector | |
| 1 x User Manual | |
