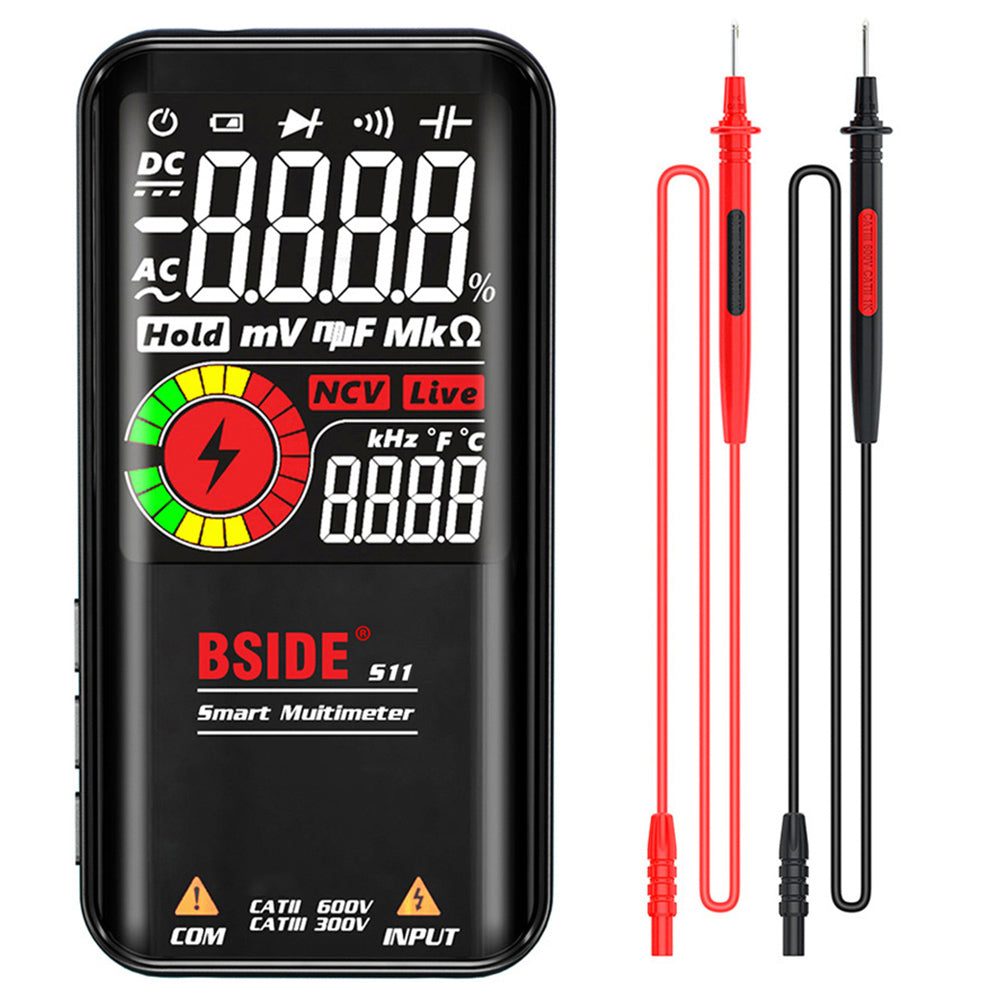

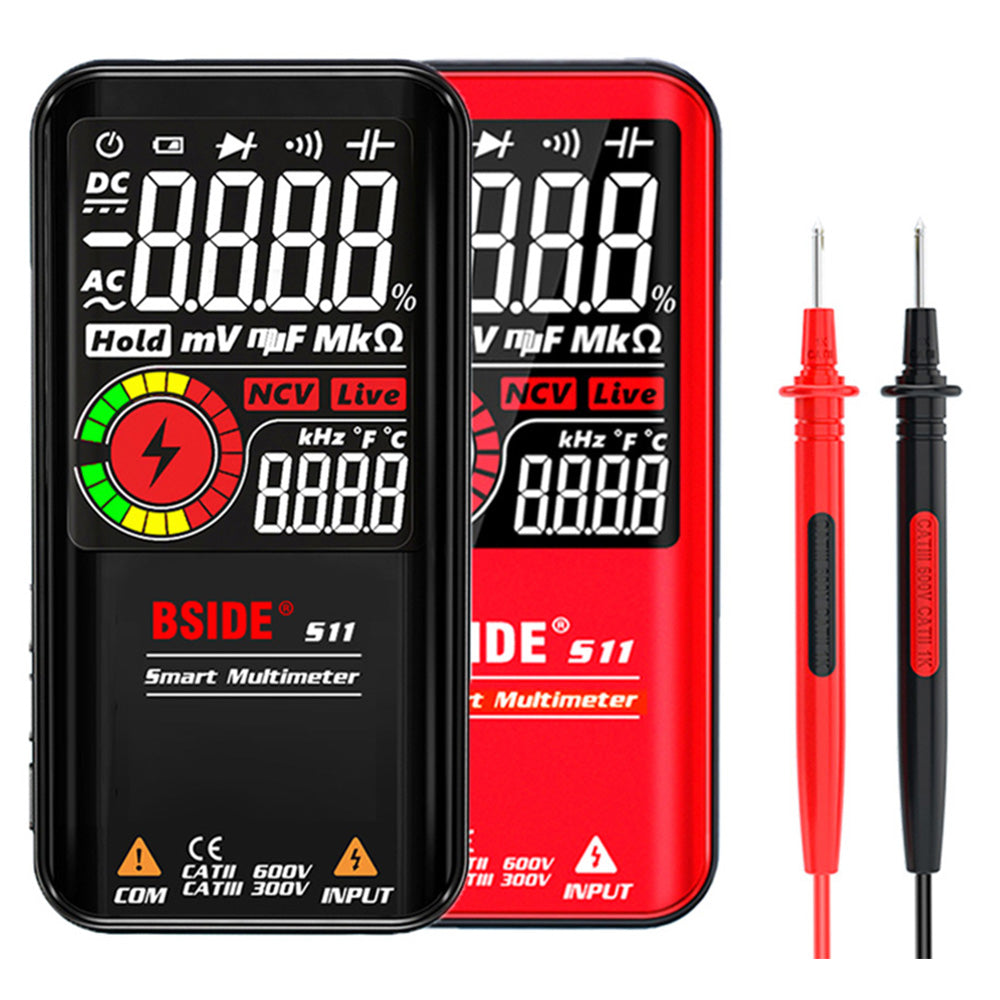

BSIDE S11 Digital Multimeter

BSIDE S11 highlights

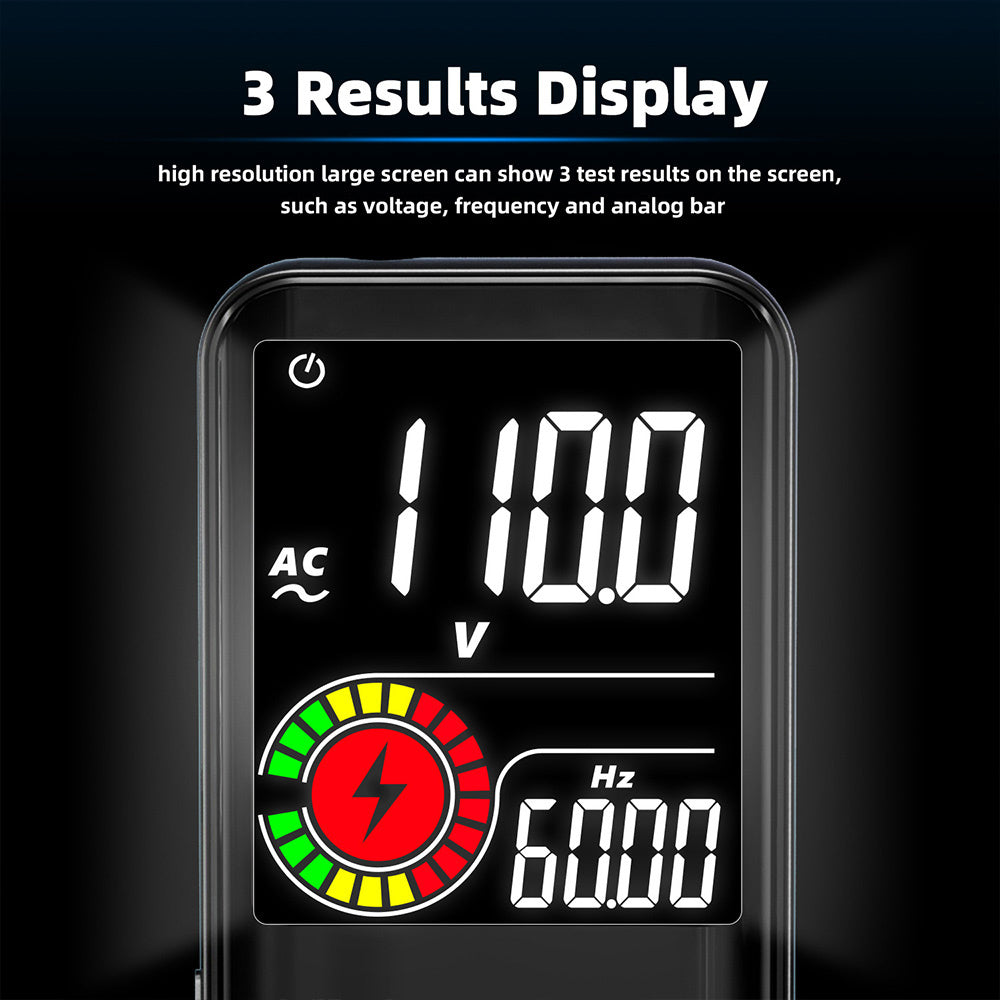

1. The 3.5-inch large display design leaves an excellent user experience for buyers; the easy-to-use/single button to switch design is well recognized by buyers; the ultra-thin body design is very portable.

2. Exquisite appearance/ reliable performance/ complete functions, can meet the needs of different groups of people and is very suitable as a gift.

General
Brand	BSIDE
Type	Digital Multimeter
Model	S11

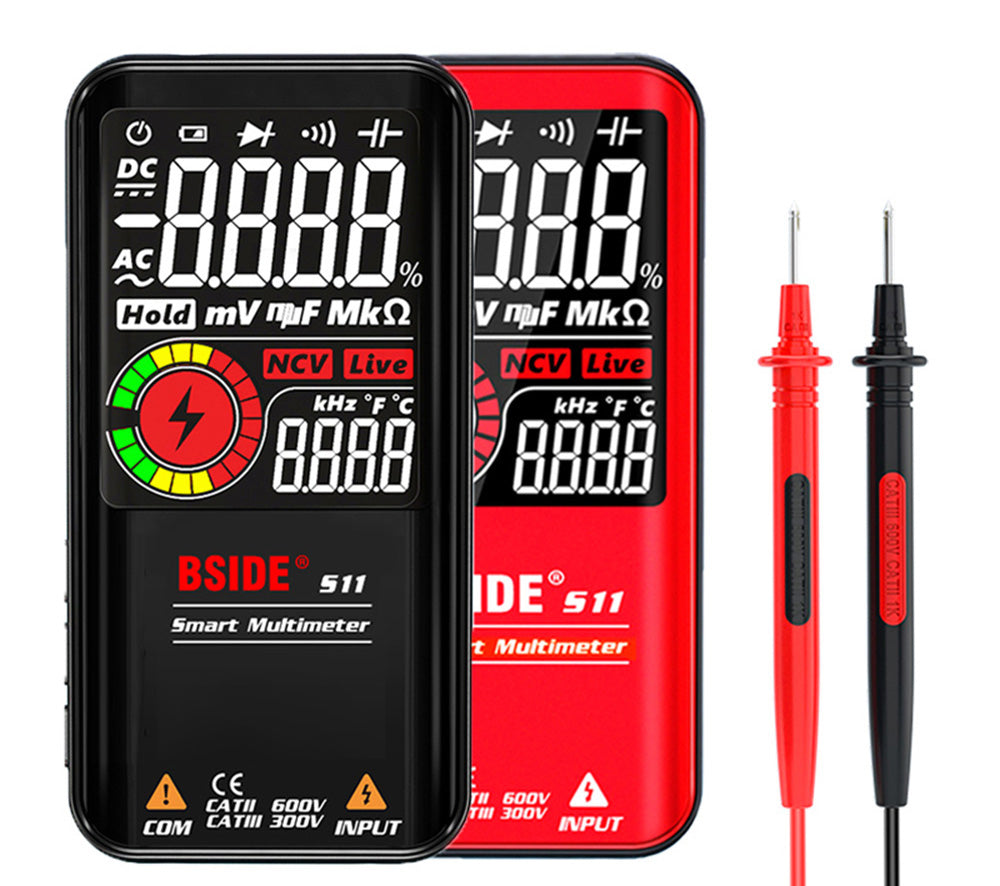

Color	Black
Specification
Display: 9999 counts

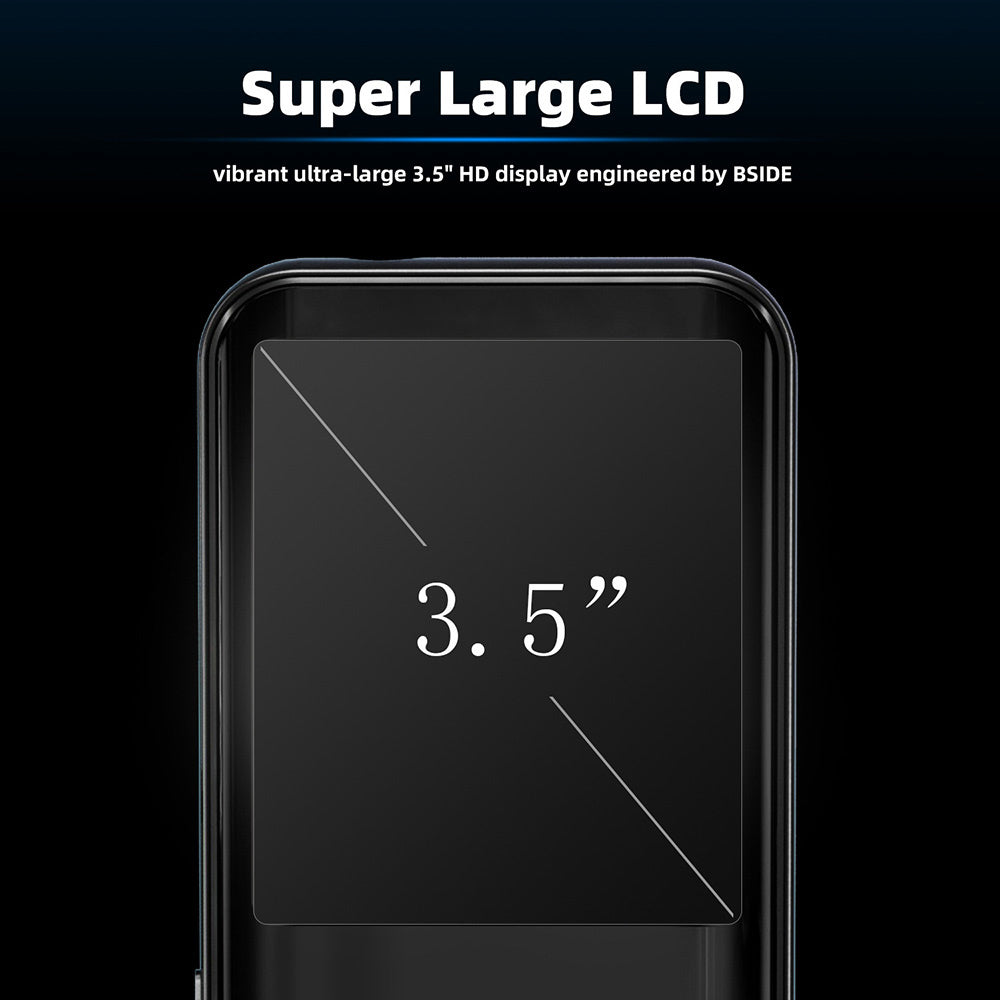

Screen: 3.5inch
DCVoltage: 0~620V±(0.5%+3); Resolution: 0.001V
ACVoltage: 0~620V±(0.5%+5); Resolution: 0.001V
Resistance: 1Ω-999.9Ω±(2.0%+5); 1kΩ-60MΩ±(1.0%+3); Resolution: 0.11Ω
Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V);
Resolution: 0.001Hz
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%
Diode: Auto-identify diode if less than 3.0V
V-Alert(non-contact voltage detection): beep alarm sounds
Live Check: alarm beep sounds, LCD screen display stripe
Continuity: If the resistance is less than 30Ω, the beeper sounds.
Power: Built-in 3.7V 800mAh rechargeable lithium battery
Weight & Size
Product Weight	119g
Package Weight	320g
Package Size(L x W x H)	169*95*44mm

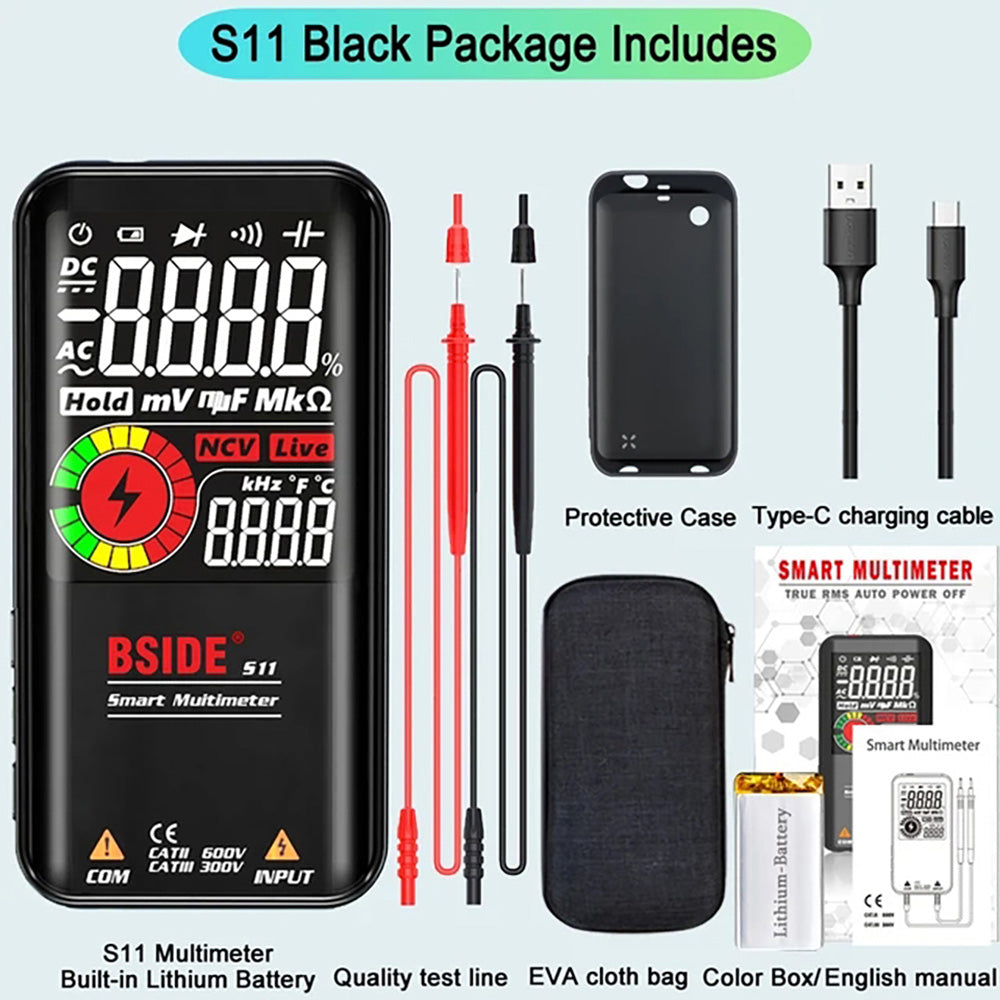

Package Contents
1 x Digital Multimeter
2 x Quality Test Line
1 x Cloth Bag
1 x Type-C Charging Cable

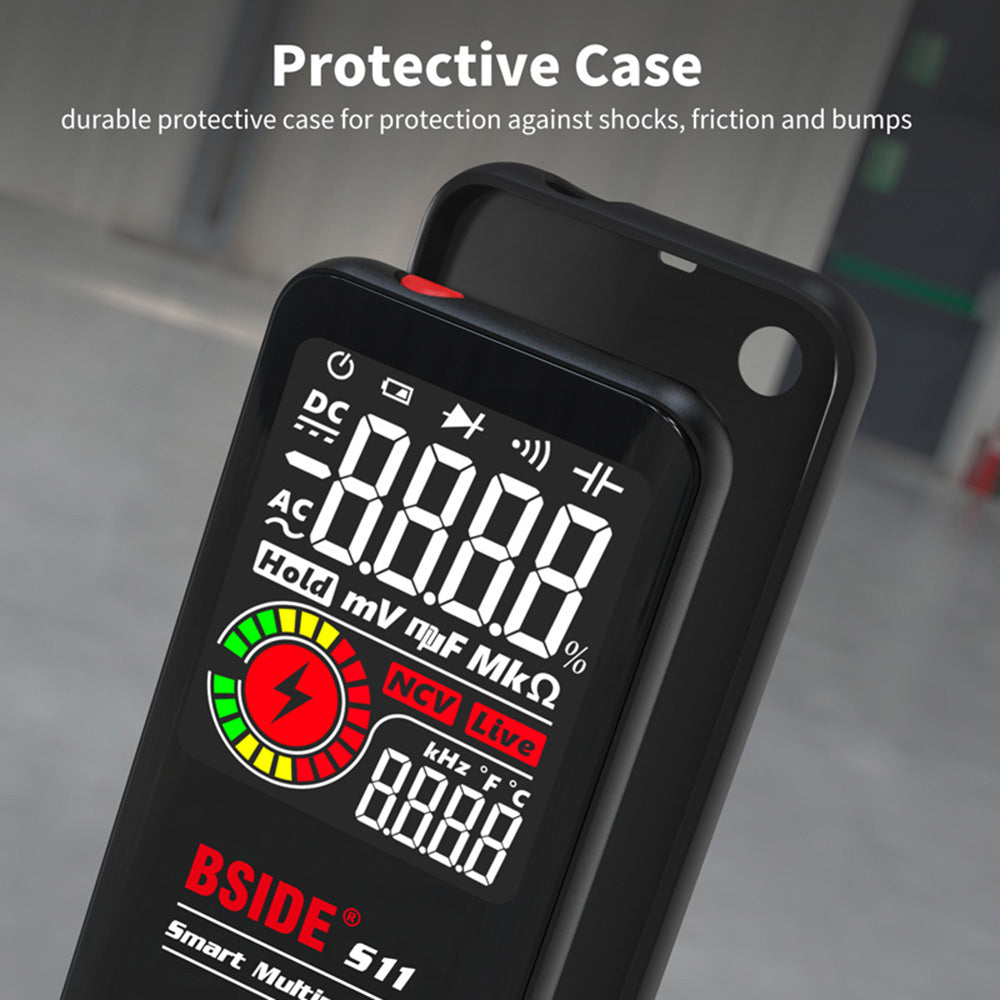

1 x Protective Case
1 x User Manual
