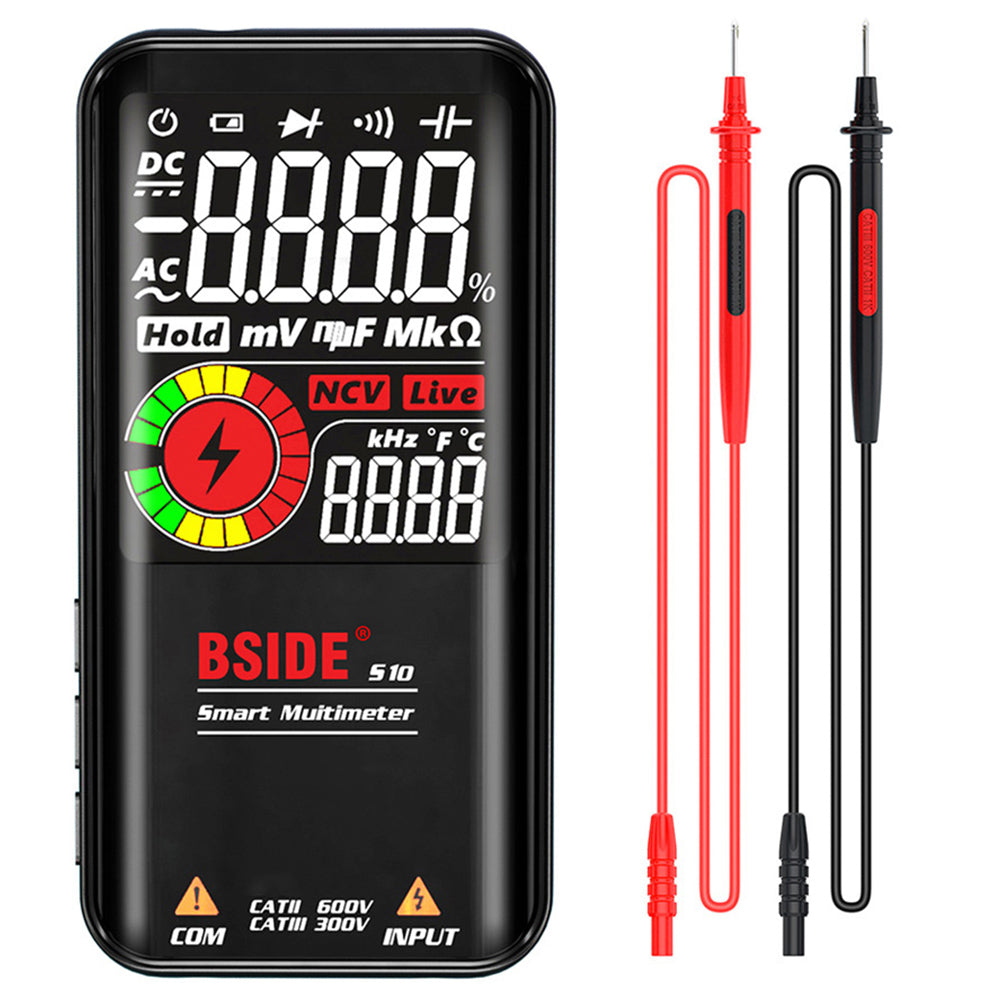

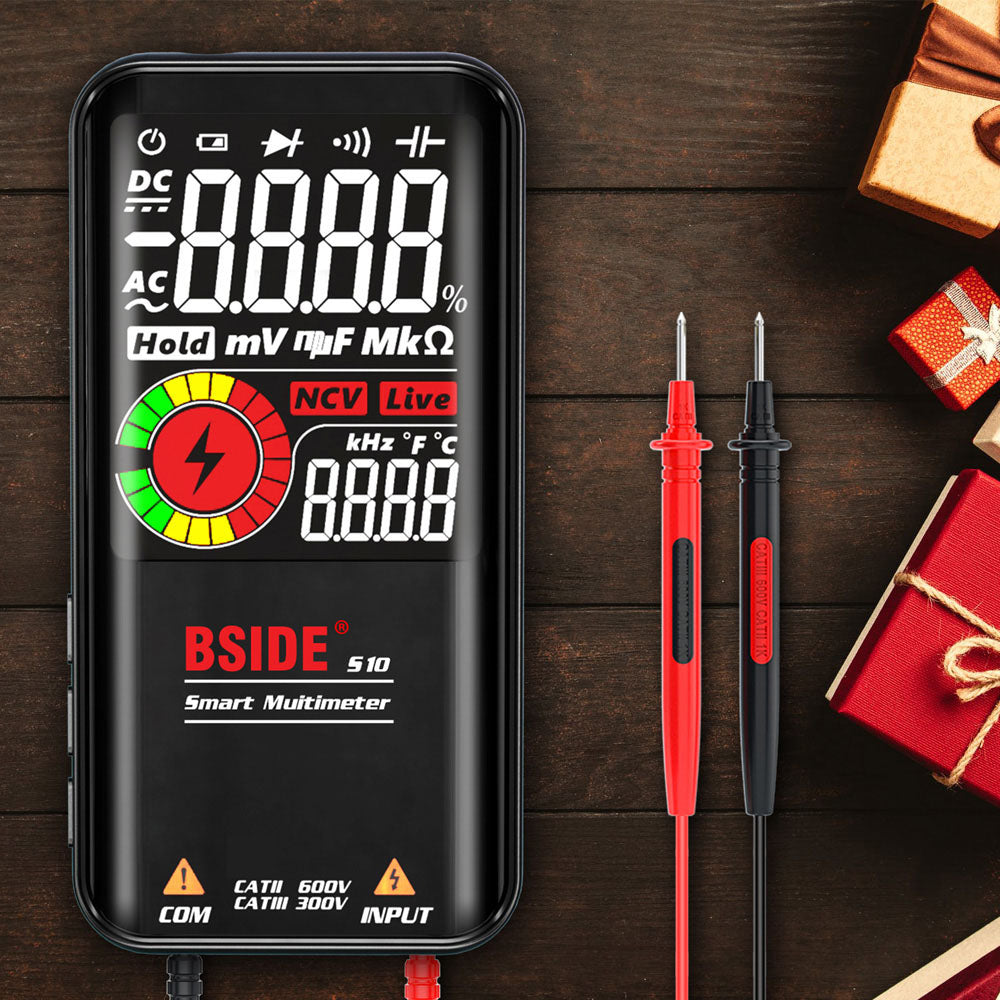

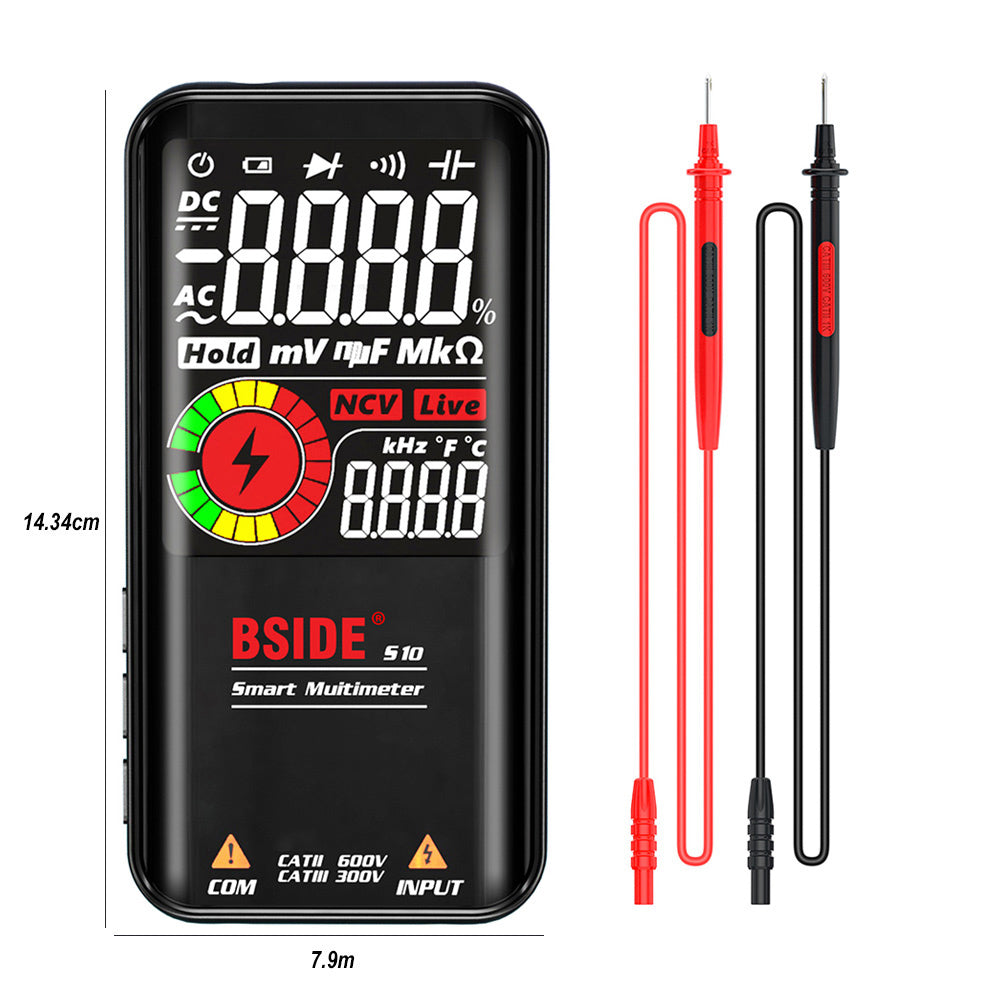

BSIDE S10 Digital Multimeter

BSIDE S10 highlights

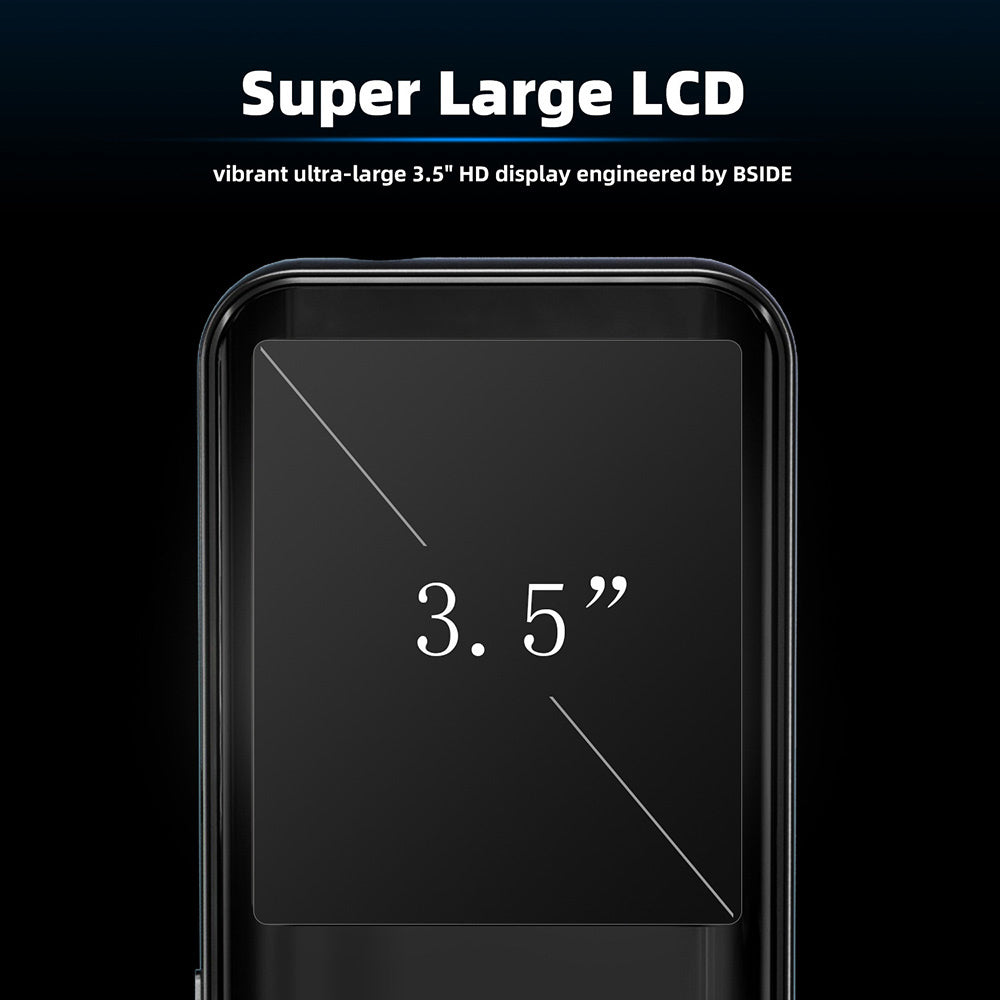

1. 3.5" super large LCD HD display, very easy to read.

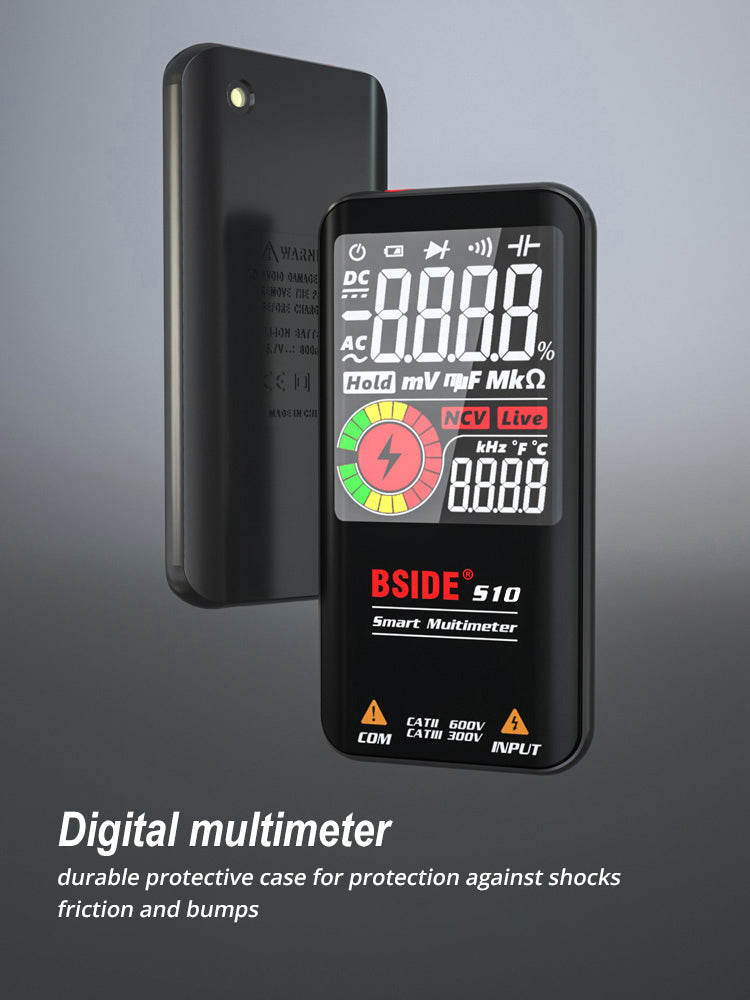

2. Durable protective case for protection against shocks, friction, and bumps.

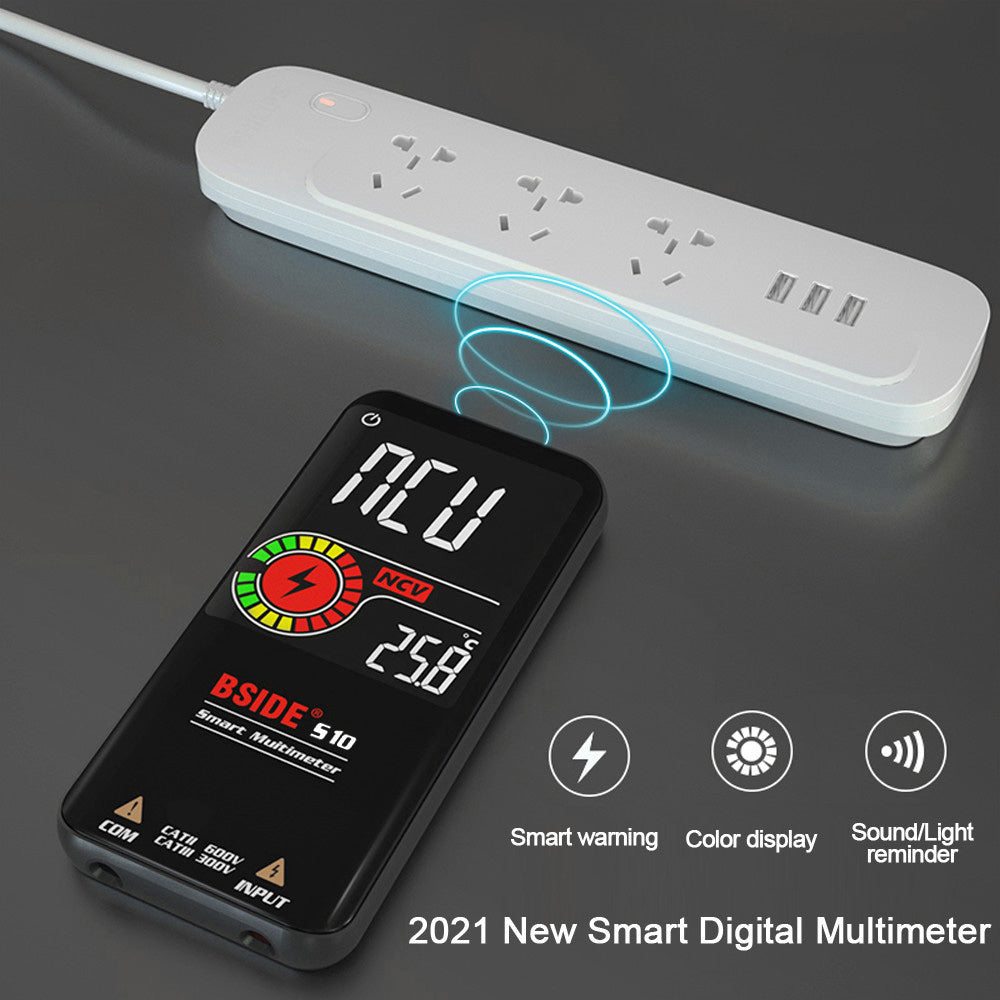

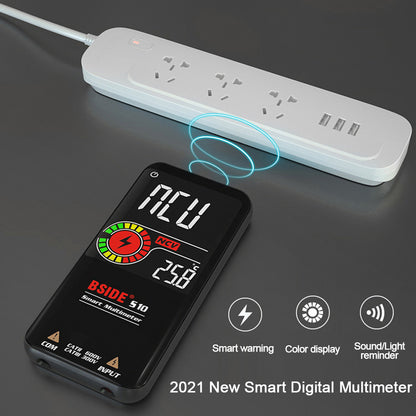

3. Non-contact AC voltage detection, top sensor probe design, much safer to identify AC voltage.

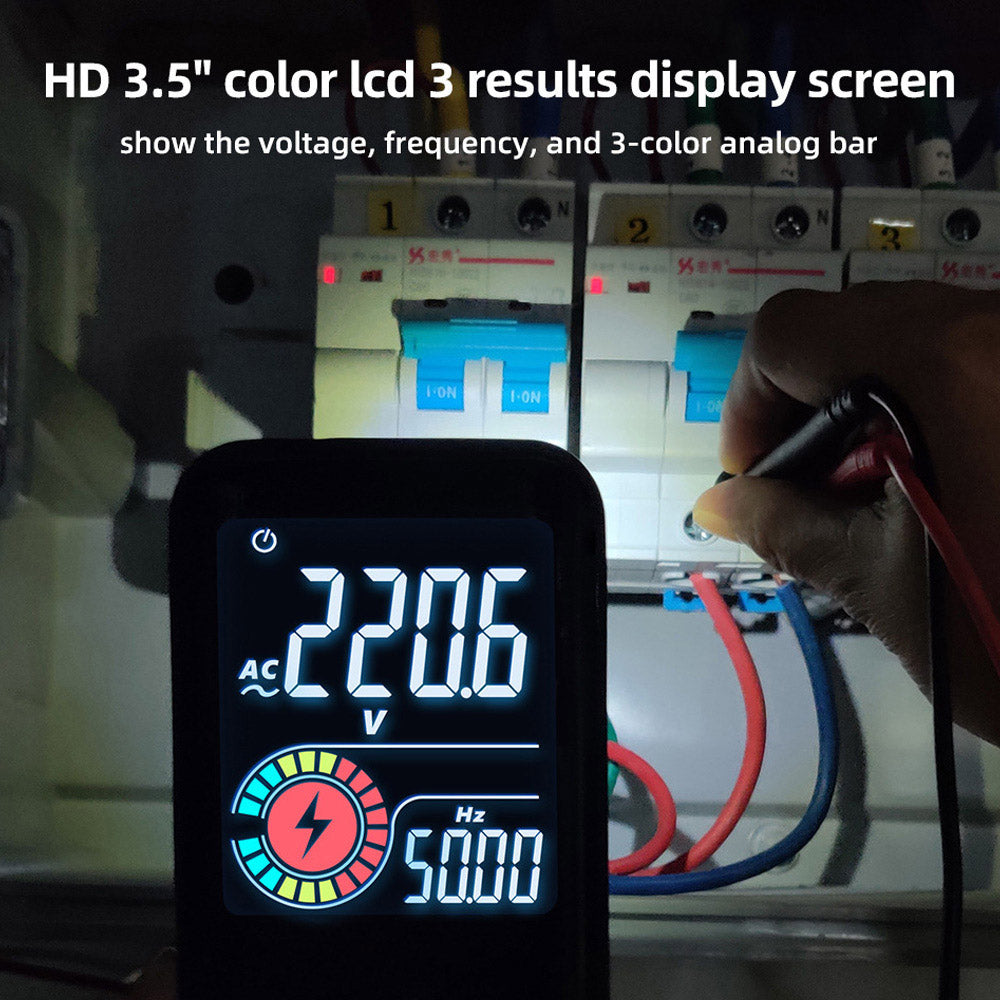

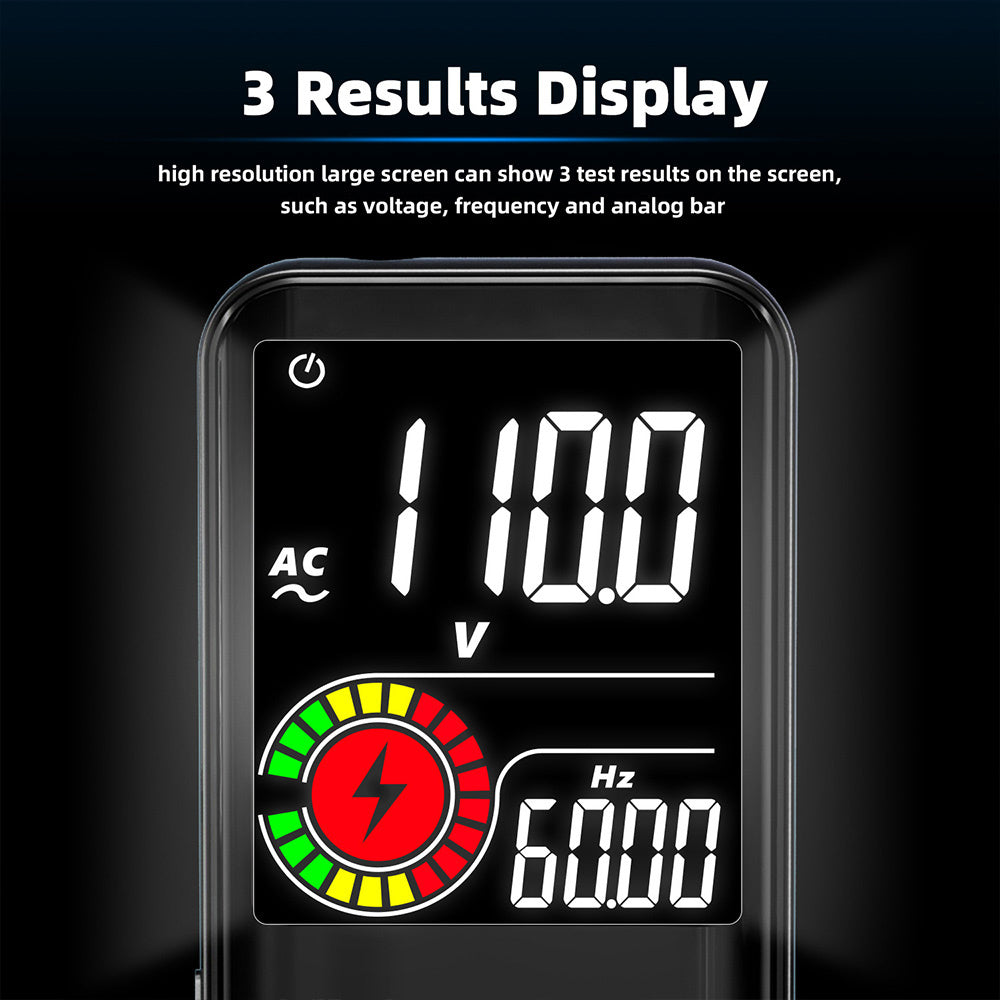

4. The high-resolution large screen can show 3 test results on the screen, such as voltage, frequency, and analog bar.

General
Brand	BSIDE
Type	Digital Multimeter
Model	S10
Color	Black
Specification
Display: 9999 counts
Screen: 3.5 inches
Resolution: 0.11Ω
Power: 2 x 1.5V AAA batteries (not included)
Diode: Auto-identify diode if less than 3.0V
DC Voltage: 0.8V-620V ±(0.5%+3), Resolution: 0.001V
AC Voltage: 2.2V-620V ±(0.5%+5), Resolution: 0.001V
Resistance: 1Ω-999.9Ω ±(2.0%+5), 1kΩ-60MΩ ±(1.0%+3)
V-Alert(non-contact voltage detection): Beep alarm sounds
Live Check: Alarm beep sounds, LCD screen display stripe
Continuity: If the resistance is less than 30Ω, the beeper sounds
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V), Resolution: 0.1%
Capacitance: 1nF-999.9nF ±(6.0%+5), 1uF-99.99mF ±(3.0%+3), Resolution: 0.001nF
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz
Weight & Size
Product Weight	112g
Package Weight	227g
Package Size(L x W x H)	155*85*40mm

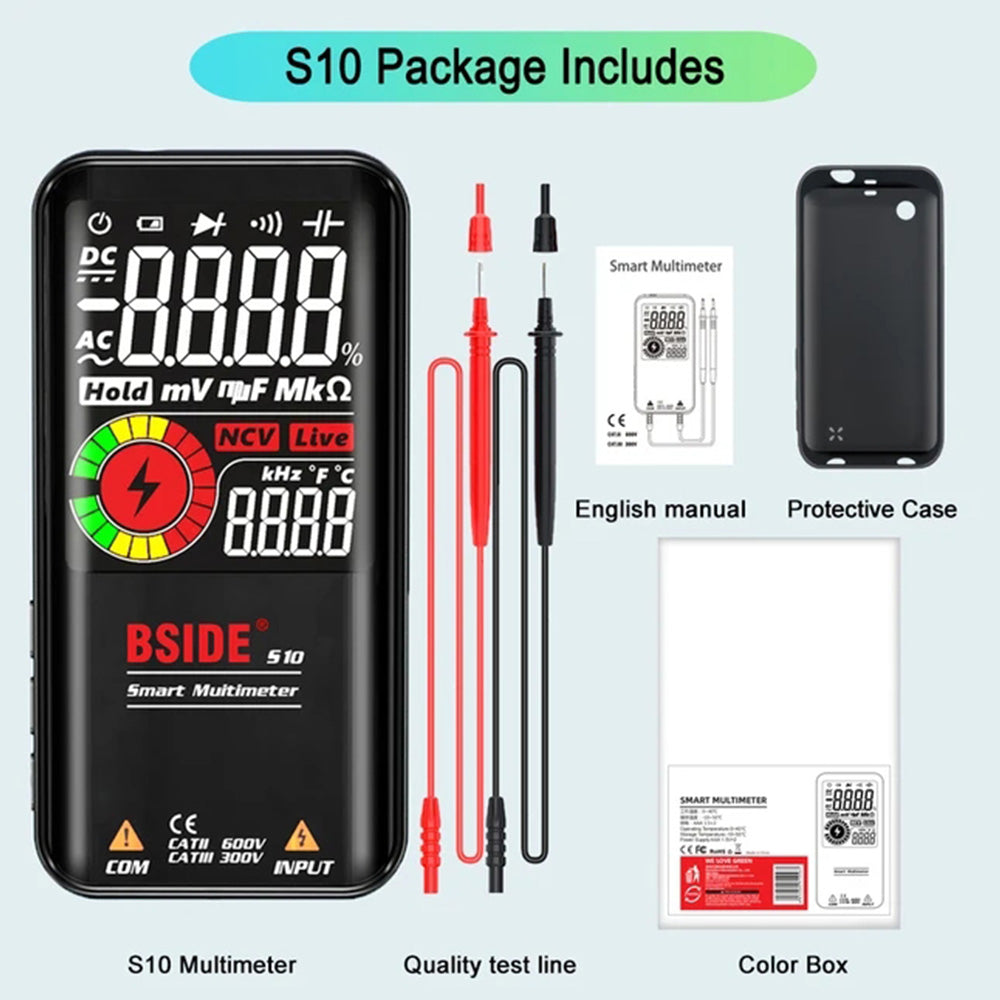

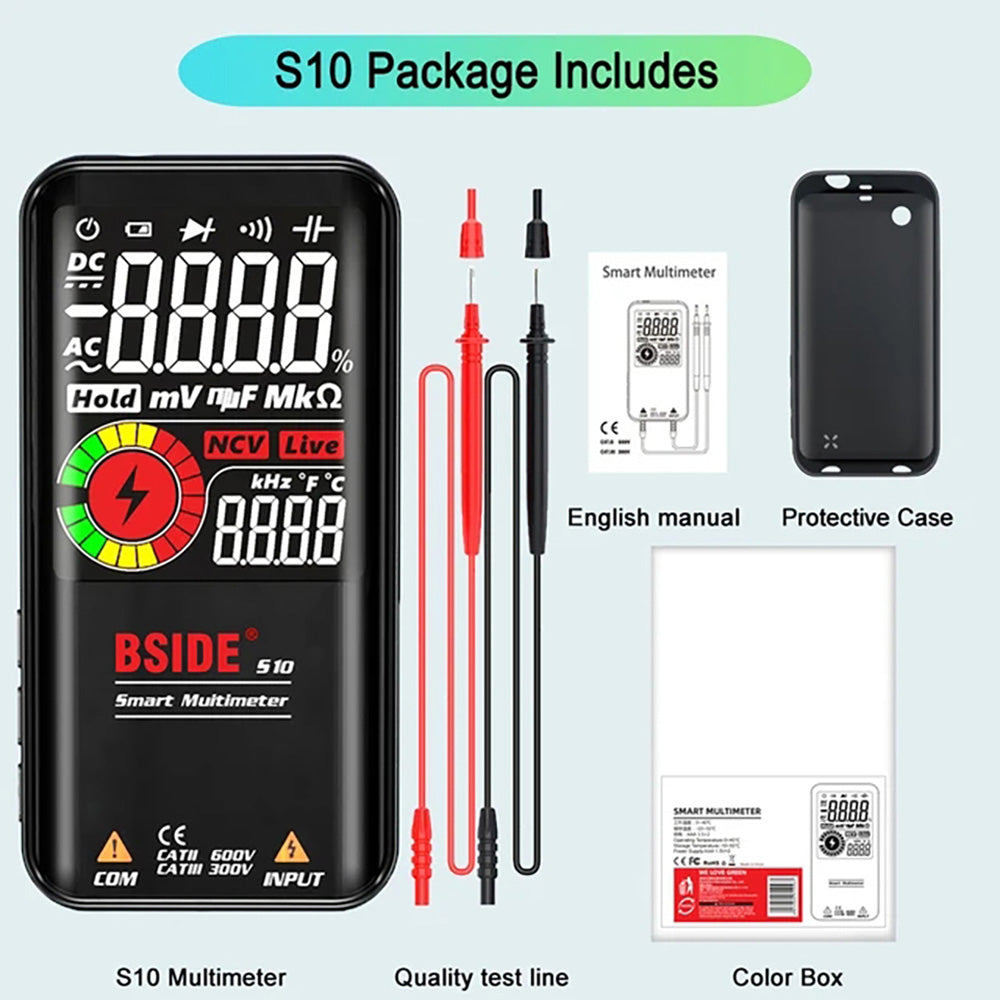

Package Contents
1 x Digital Multimeter
2 x Quality Test Line
1 x Color Box
1 x Protective Case
1 x User Manual
