BSIDE OT3 Oscilloscope
BSIDE OT3 Oscilloscope
Where To Buy
Where To Buy
Description
Description
BSIDE OT3 highlights

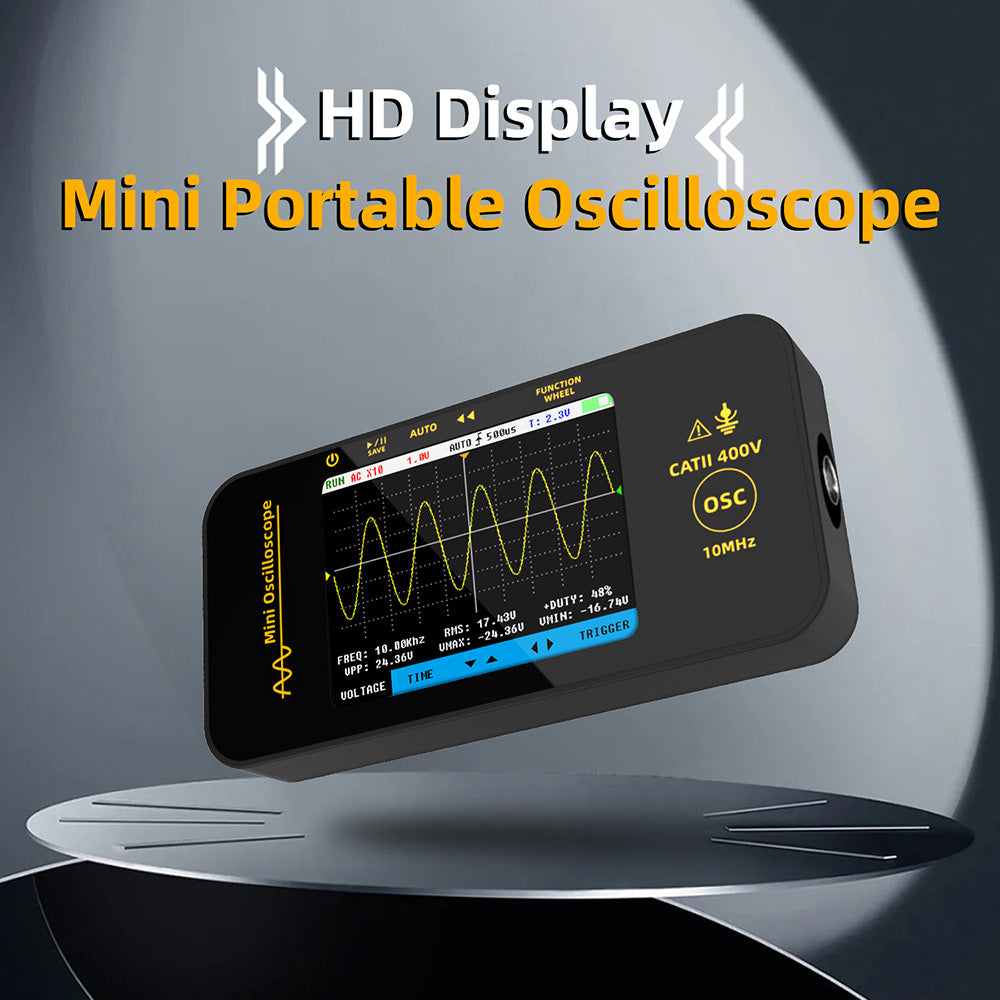

High-Resolution Display
The BSIDE Mini OT3 Oscilloscope features a 3.2" TFT color screen with a resolution of 320 x 240 pixels, providing clear and detailed visuals for precise measurements and analysis.

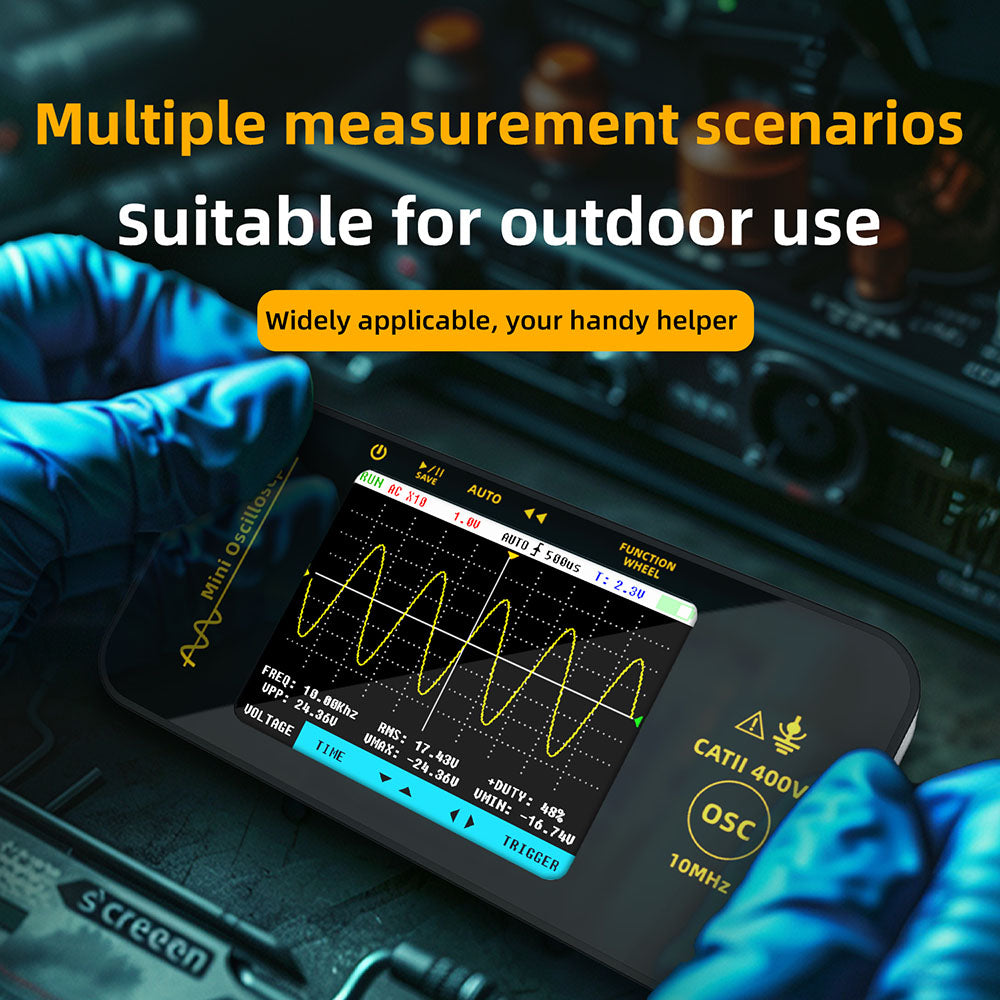

Compact and Lightweight

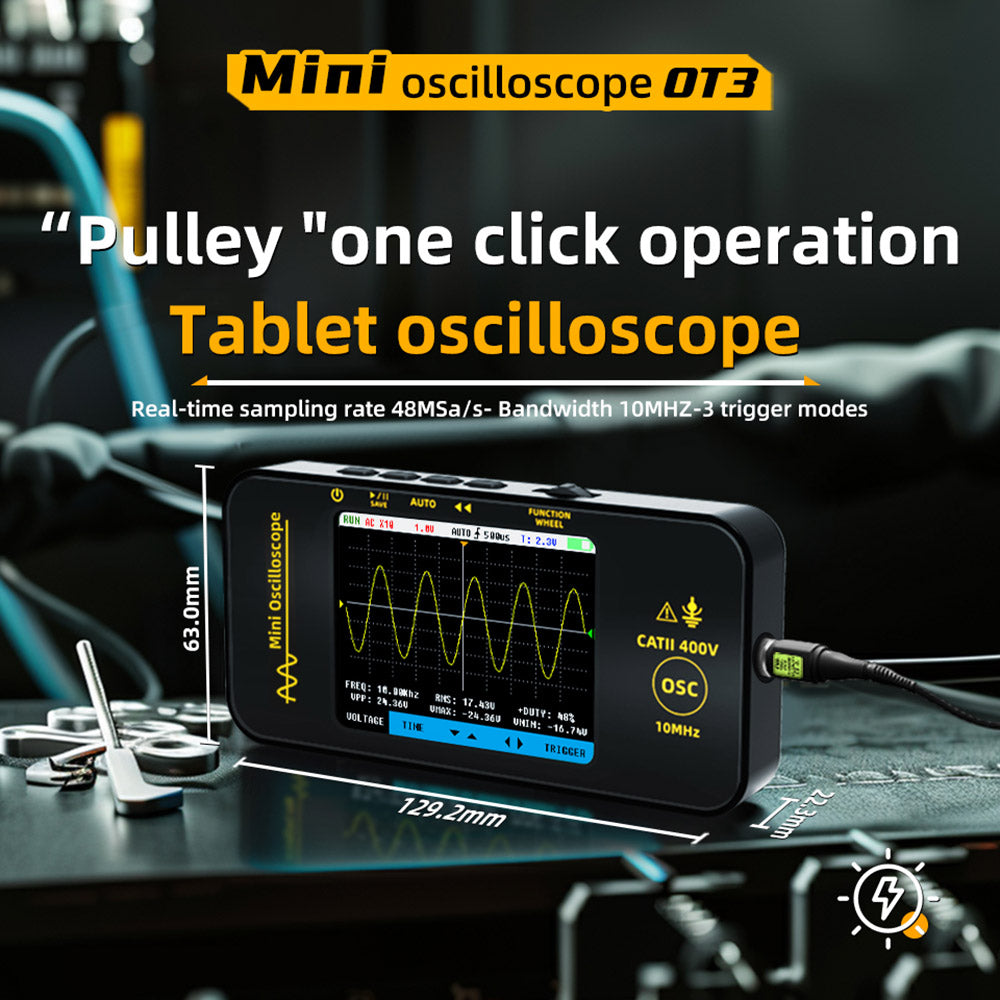

With dimensions of 129.2 x 63.0 x 22.3 mm and a weight of just 166g (battery included), this oscilloscope is highly portable and convenient for fieldwork and on-the-go diagnostics.
Versatile Input Options
The device supports both DC and AC input coupling with a maximum input voltage of up to ±400V, catering to a wide range of testing scenarios and ensuring compatibility with various signals.
Real-Time Sampling
The oscilloscope offers a real-time sampling rate of 48MSa/s, enabling accurate and fast signal capture for dynamic and transient events.
User-Friendly Features
Equipped with functionalities such as automatic shutdown, low battery warning, screen backlight, and data retention, the oscilloscope ensures ease of use and efficient power management.

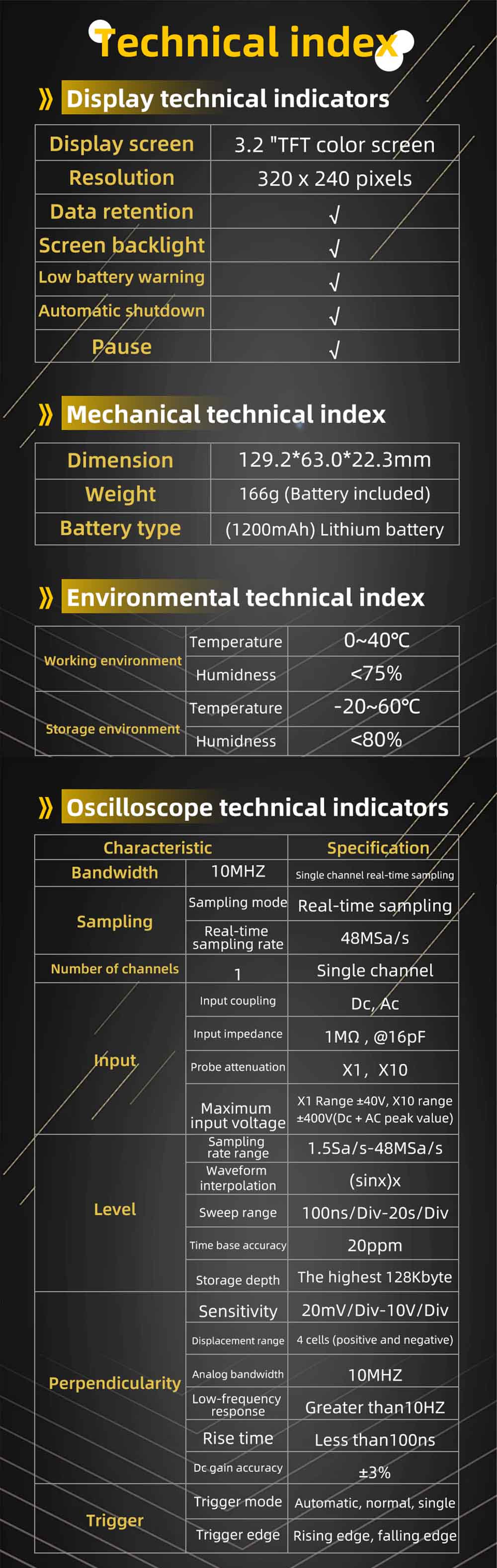

Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Oscilloscope |
| Model | OT3 |
| Color | Black |
| Specification | |
| Display Technical Indicators: | |
| Display Screen: 3.2" TFT color screen | |
| Resolution: 320 x 240 pixels | |
| Data Retention: Yes | |
| Screen Backlight: Yes | |
| Low Battery Warning: Yes | |
| Automatic Shutdown: Yes | |
| Pause: Yes | |
| Mechanical Technical Index: | |

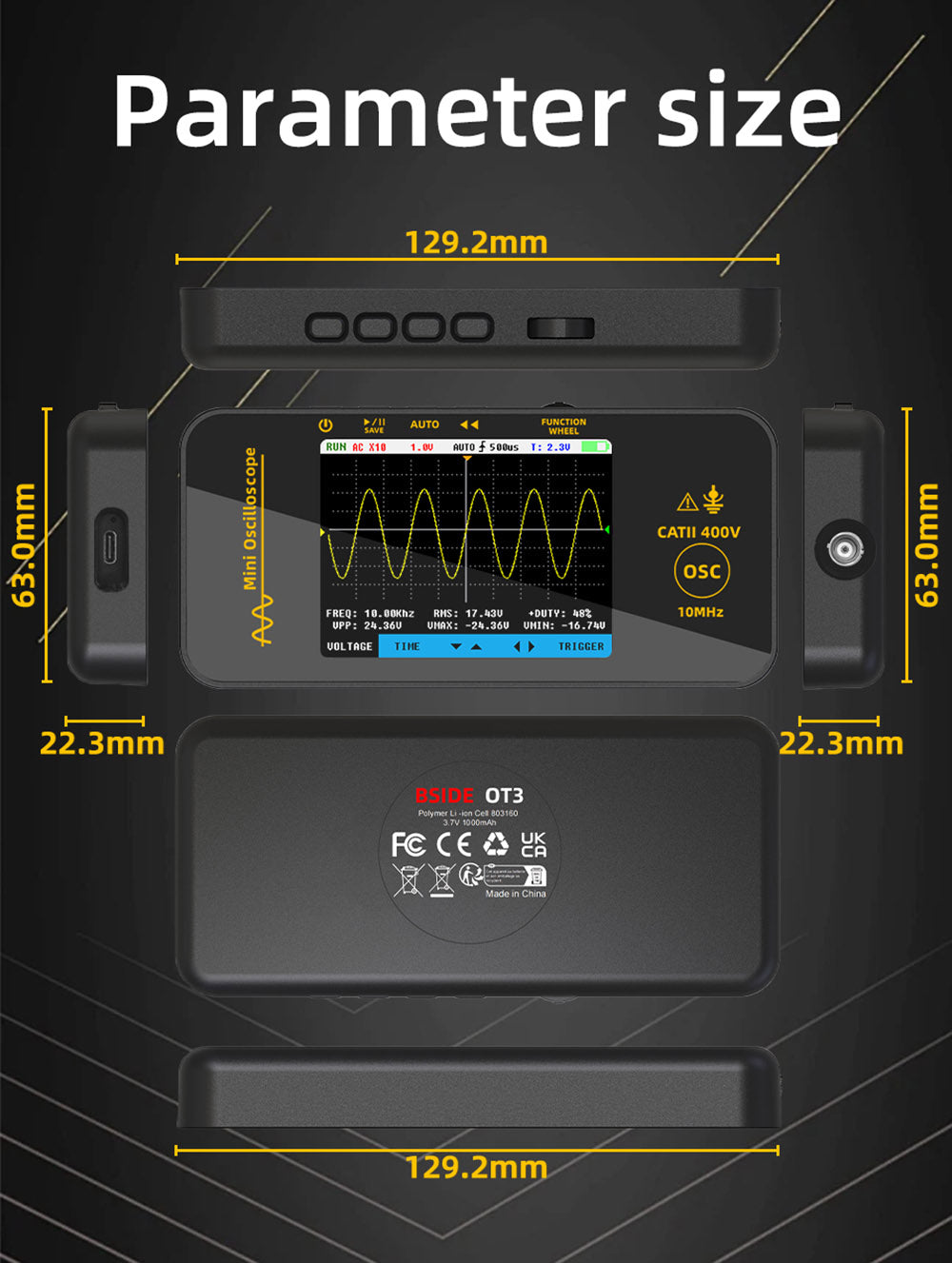

| Dimension: 129.2 x 63.0 x 22.3 mm | |
| Weight: 166g (battery included) | |

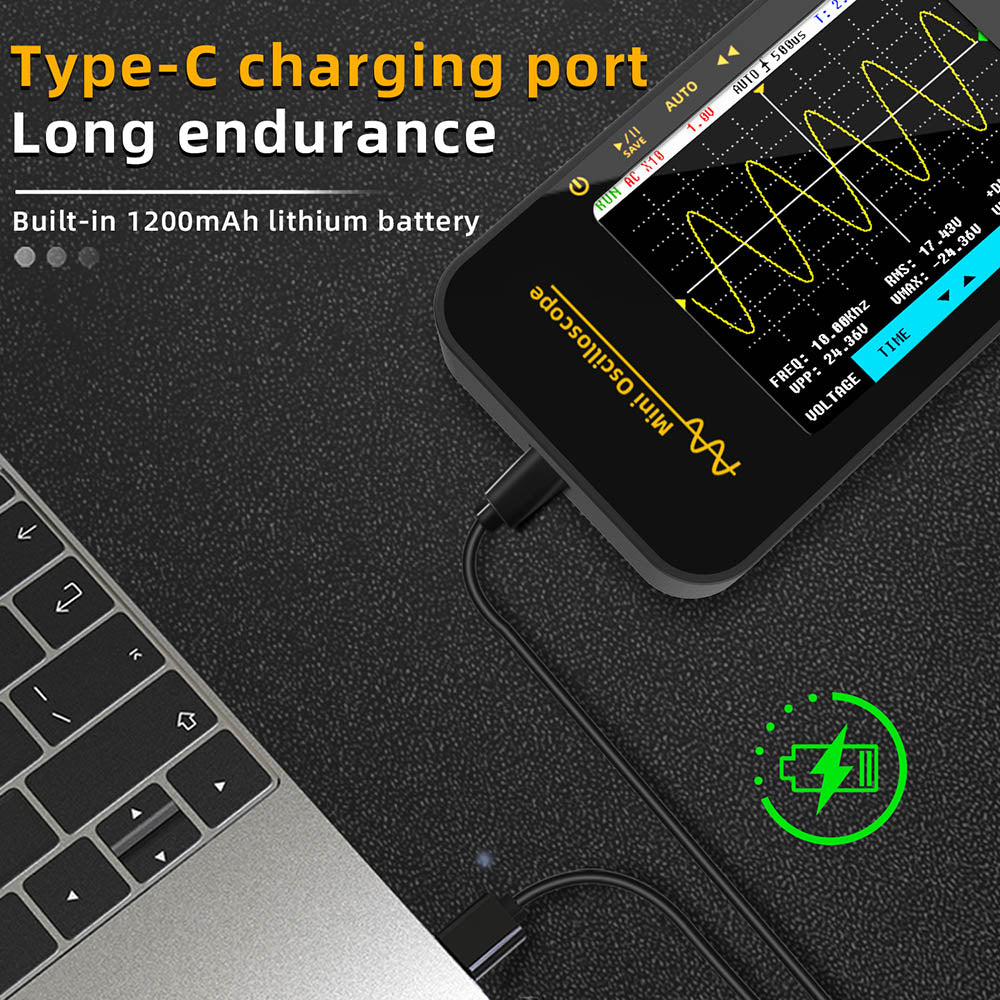

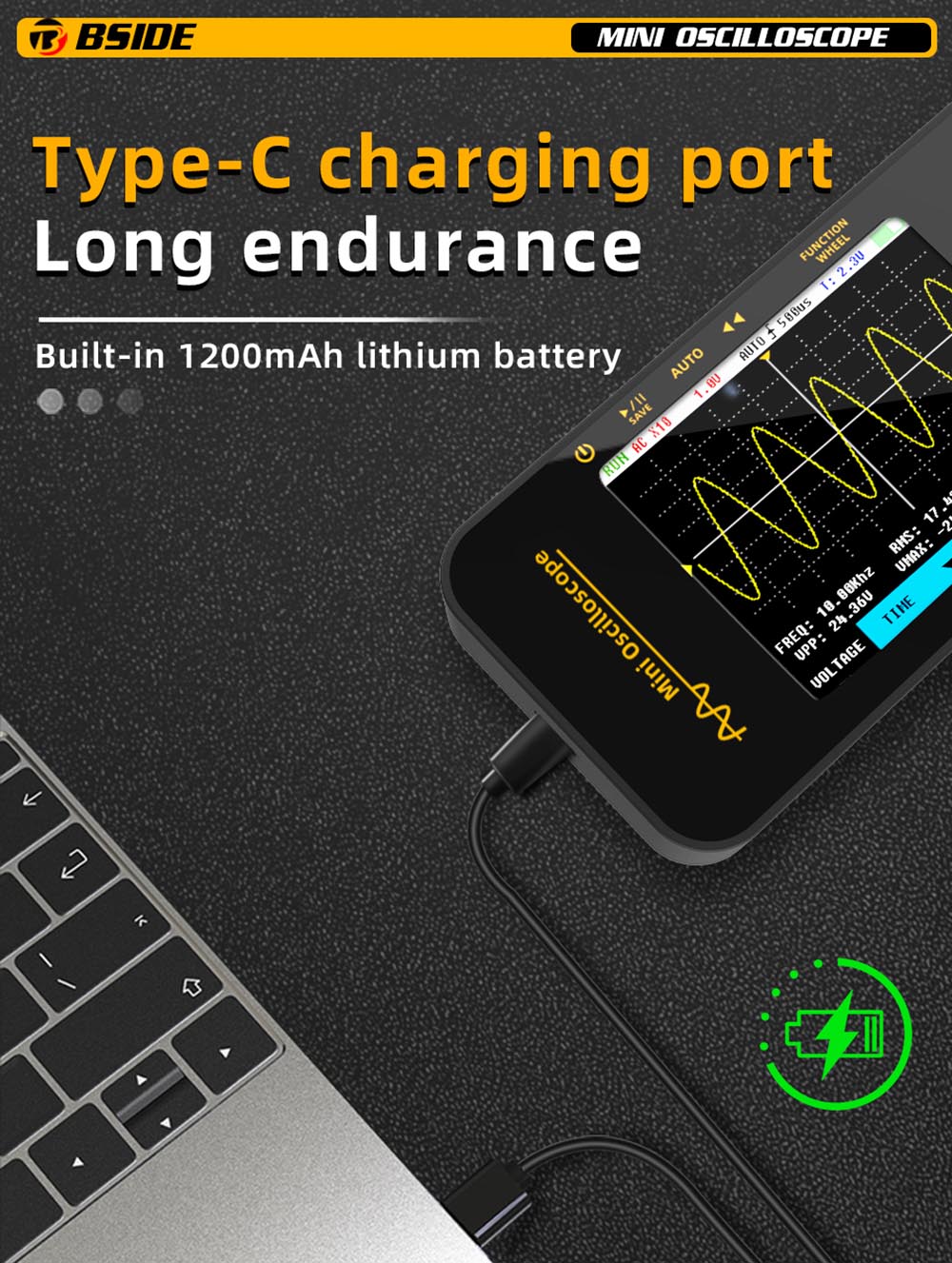

| Battery Type: 1200mAh Lithium battery | |
| Environmental Technical Index: | |
| Working Environment: | |
| Temperature: 0 ~ 40℃ | |
| Humidity: ≤75% | |
| Storage Environment: | |
| Temperature: -20 ~ 60℃ | |
| Humidity: <80% | |
| Oscilloscope Technical Indicators: | |
| Bandwidth: 10MHz | |
| Sampling Mode: Real-time sampling | |
| Real-time Sampling Rate: 48MSa/s | |
| Number of Channels: 1 single channel | |
| Input Coupling: DC, AC | |
| Input Impedance: 1MΩ, @16pF | |
| Probe Attenuation: X1, X10 | |
| Maximum Input Voltage: | |
| X1 Range: ±40V | |
| X10 Range: ±400V (DC + AC peak value) | |
| Sampling Rate Range: 1.5Sa/s - 48MSa/s | |
| Waveform Interpolation: (sinx)/x | |
| Sweep Range: 100ns/Div to 20s/Div | |
| Time Base Accuracy: 20ppm | |
| Storage Depth: Up to 128kB | |
| Sensitivity: 20mV/Div - 10V/Div | |
| Displacement Range: 4 cells (positive and negative) | |
| Analog Bandwidth: 10MHz | |
| Low-frequency Response: Greater than 10Hz | |
| Rise Time: Less than 100ns | |
| DC Gain Accuracy: ±3% | |
| Trigger Mode: Automatic, normal, single | |
| Trigger Edge: Rising edge, falling edge | |
| Weight & Size | |
| Product Weight | 144g |
| Package Weight | 366g |
| Product Size(L x W x H) | 12.9*6.3*2.2cm |
| Package Size(L x W x H) | 17*9.7*4.3cm |

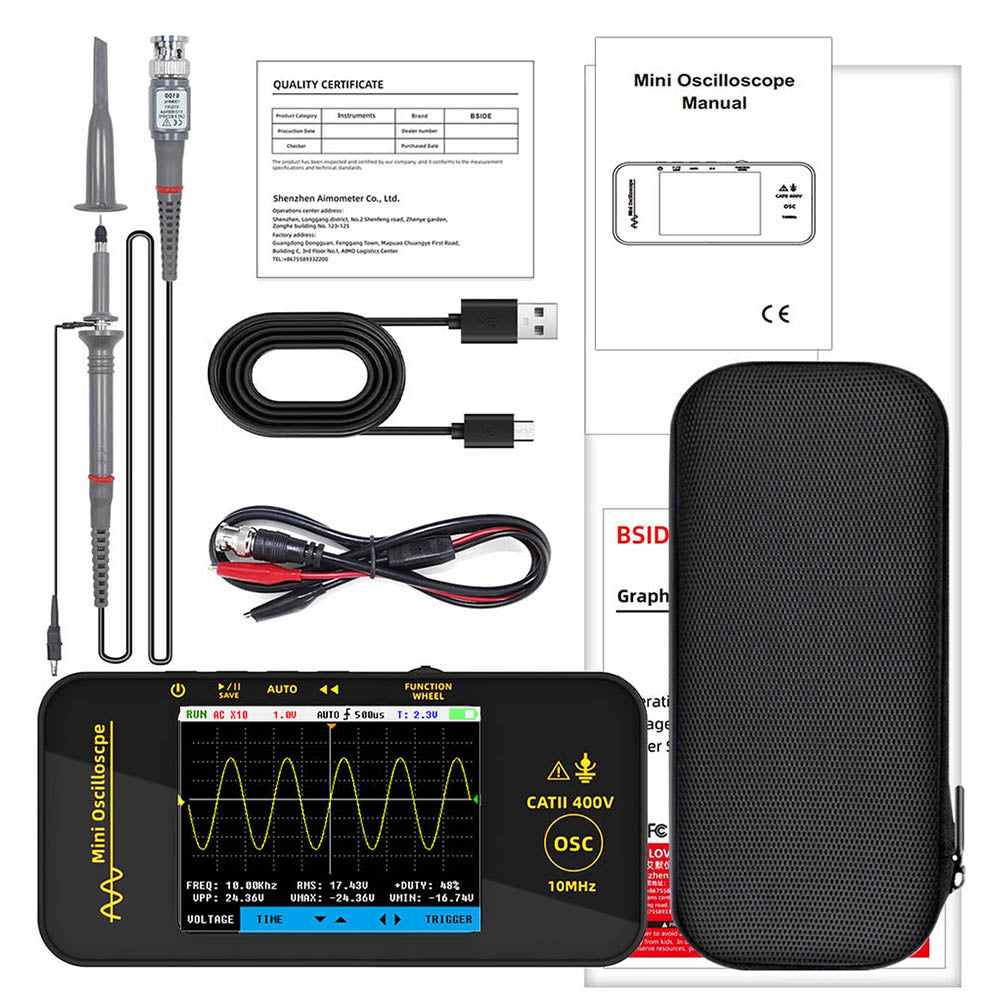

| Package Contents | |
| 1 x Oscilloscope | |
| 1 x User Manual | |
