3 in 1 Design & Comprehensive Measurement

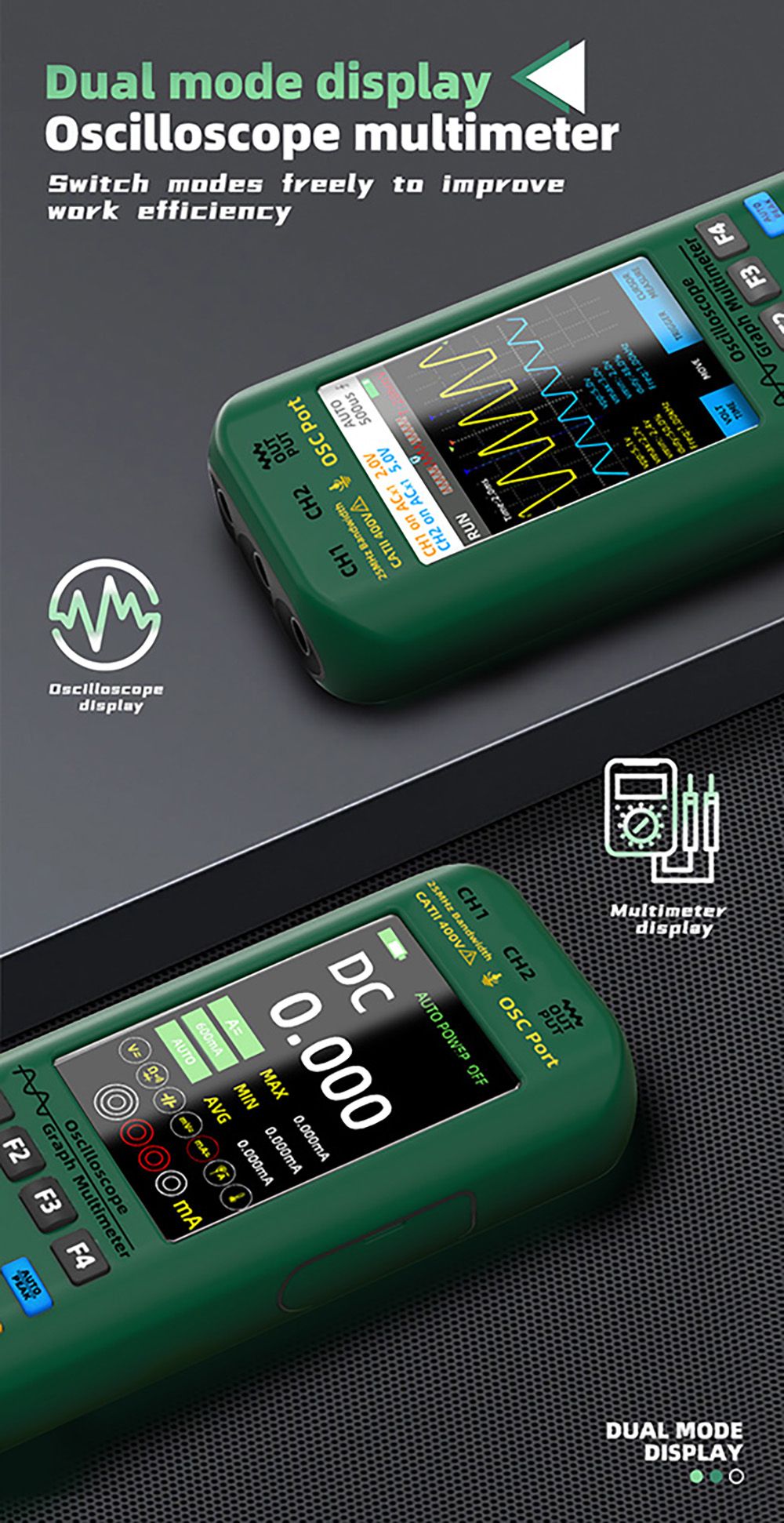

Integrates the 25MHz bandwidth oscilloscope, 6000 count multimeter, and dual channel signal generator functions into one unit. It features a 3.98-inch TFT IPS display, enabling multi-faceted and precise electronic signal detection and analysis. This versatile design fulfills both professional testing requirements and the diverse needs of teaching experimentation.
Oscilloscope Function

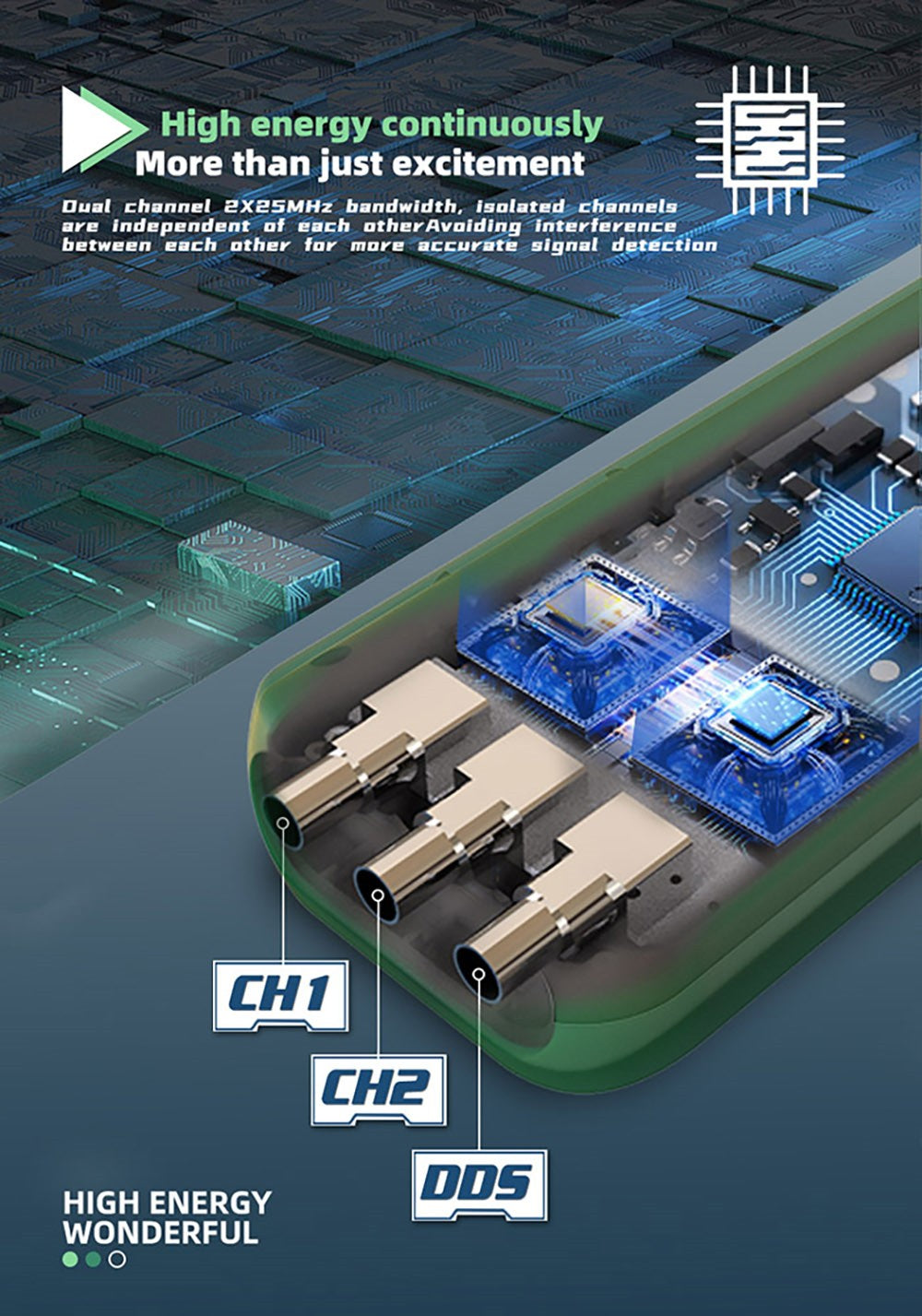

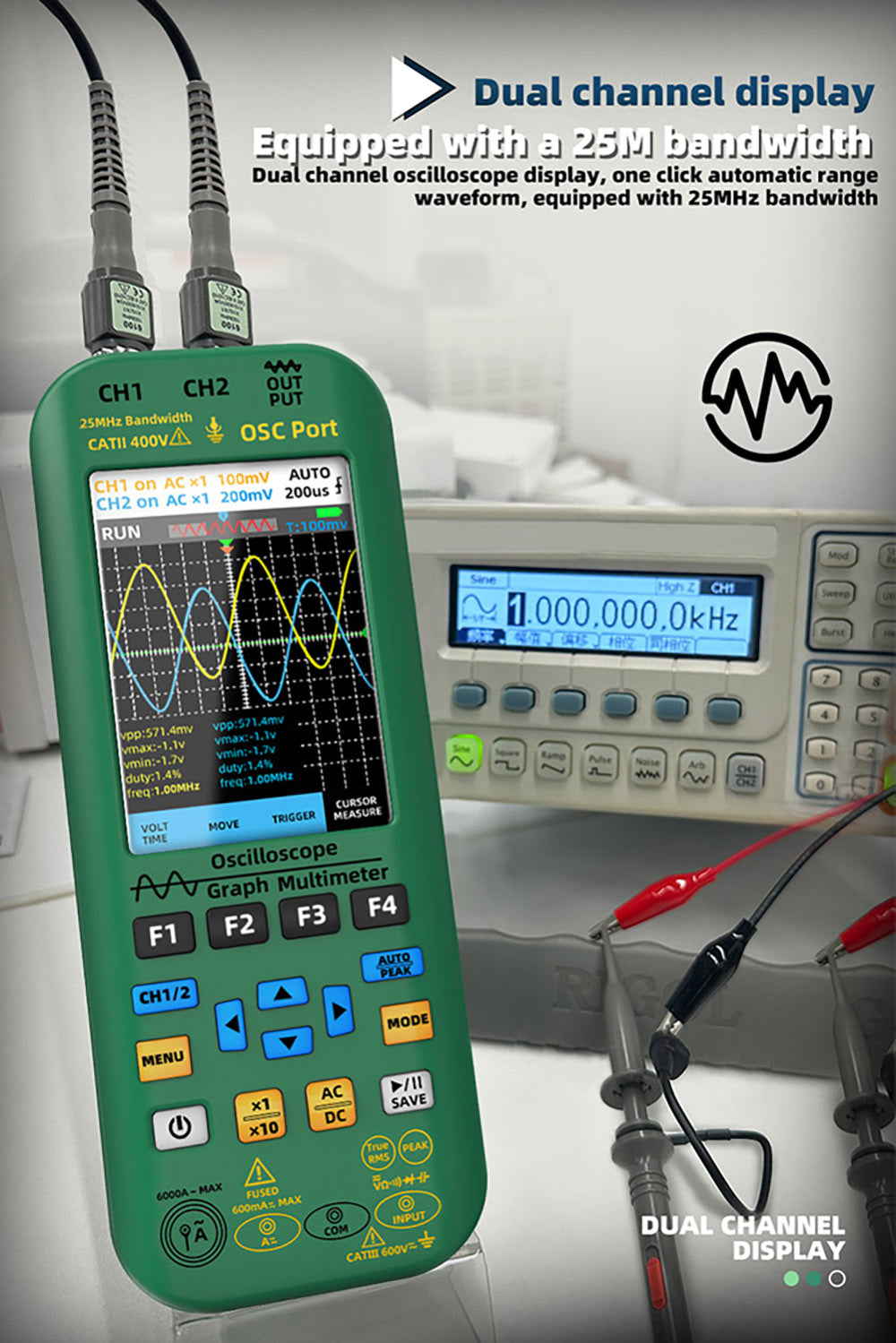

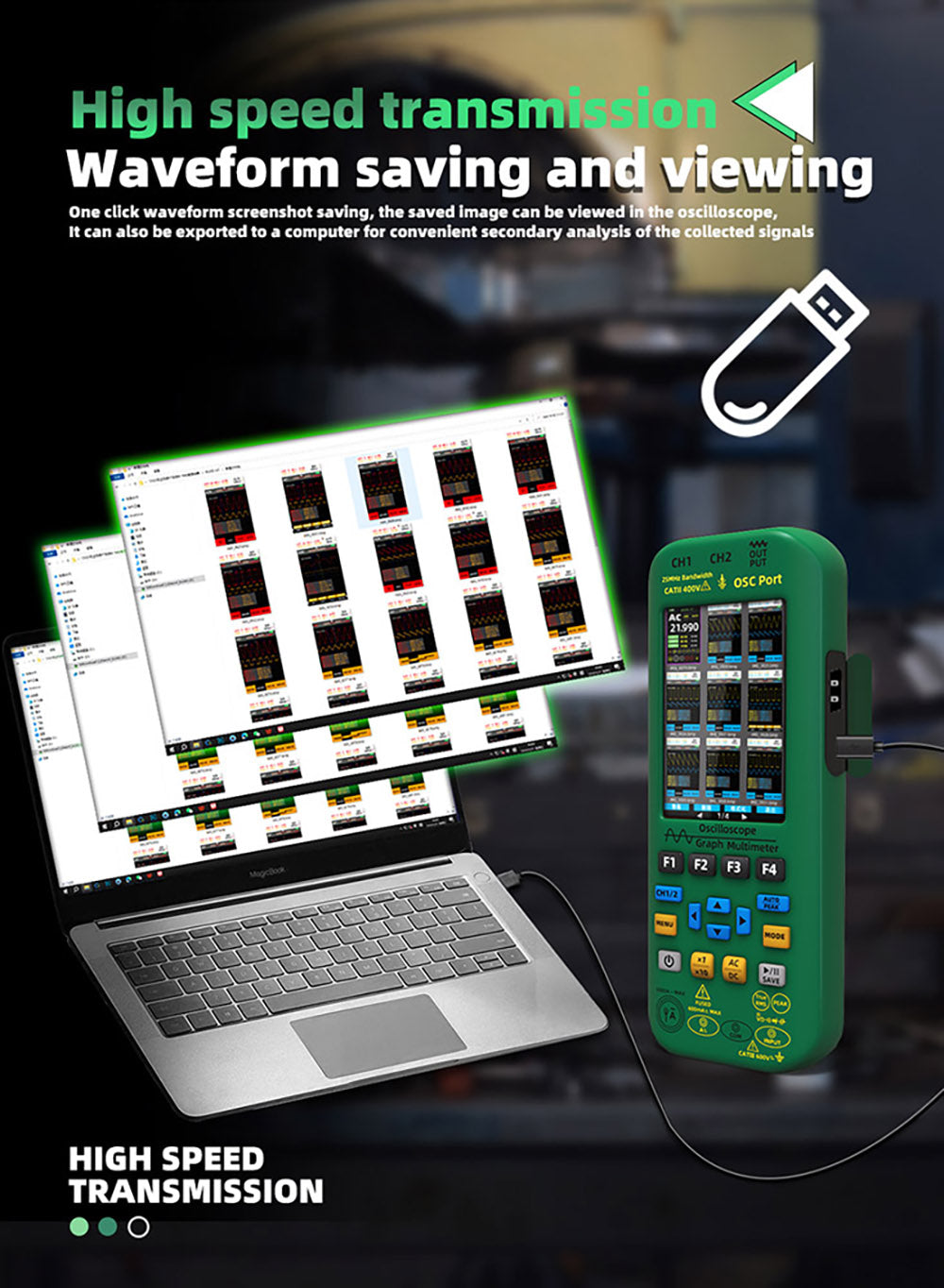

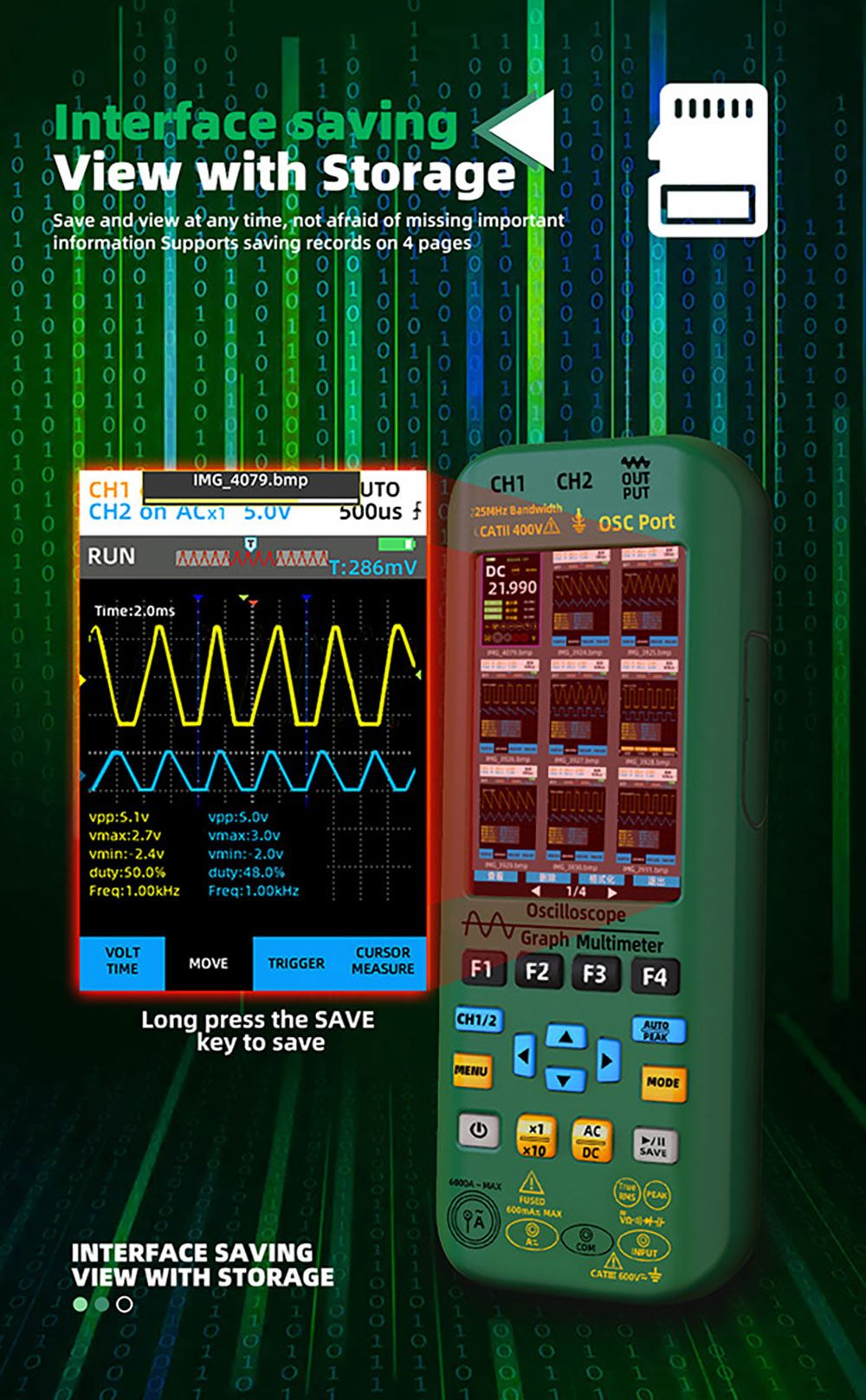

With 25MHz bandwidth, 208MSa/s sampling rate, and three waveform trigger modes (Auto, Normal, Single) for more accurate signal detection. The oscilloscope will automatically recognize the waveform type and adjust the control mode to display the waveform of the input signal accurately. Support manual setting of predicted waveform voltage, time base, cursor position, trigger, coupling mode, probe attenuation, duration, and other parameters. Support cursor measurement, language setting, auto shutdown, factory settings restoration, baseline calibration, etc. Easy to manage oscilloscope imaging, which can be connected to the computers via USB cable for secondary analysis, making professionalism more convenient. Support saving/viewing/deleting imaging to ensure professional and convenient data management and help in signal processing and troubleshooting.
Signal Source Function

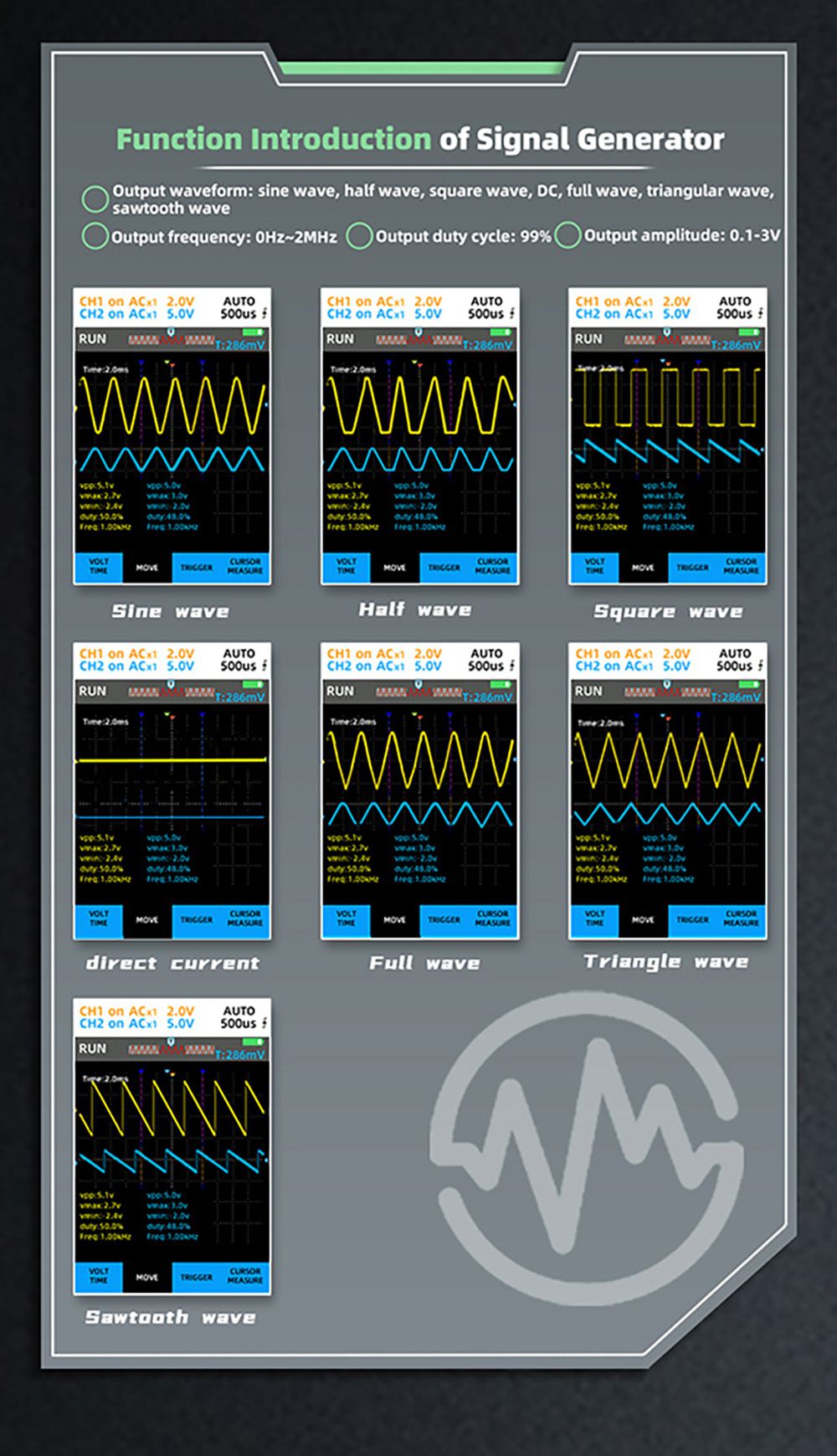

Arbitrary signal waveform measurement of sinewave, squarewave, positive wave, pulse signal, sinusoidal signal, sawtooth wave, arbitrary wave, noise, direct current, etc. This offers high flexibility and practicality for emulating various signal environments, assessing system responses, and enhancing teaching demonstrations.
Multimeter Functions

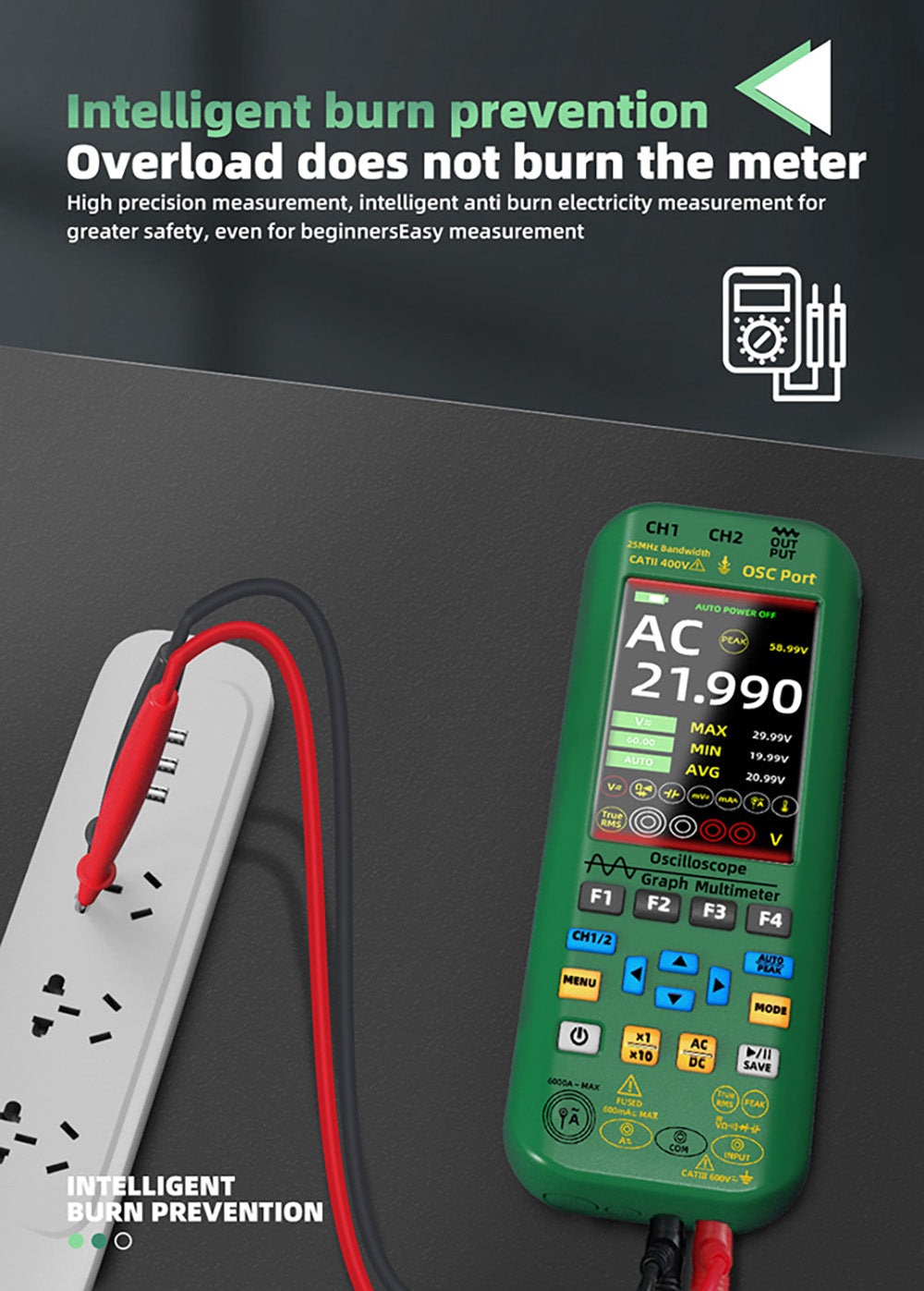

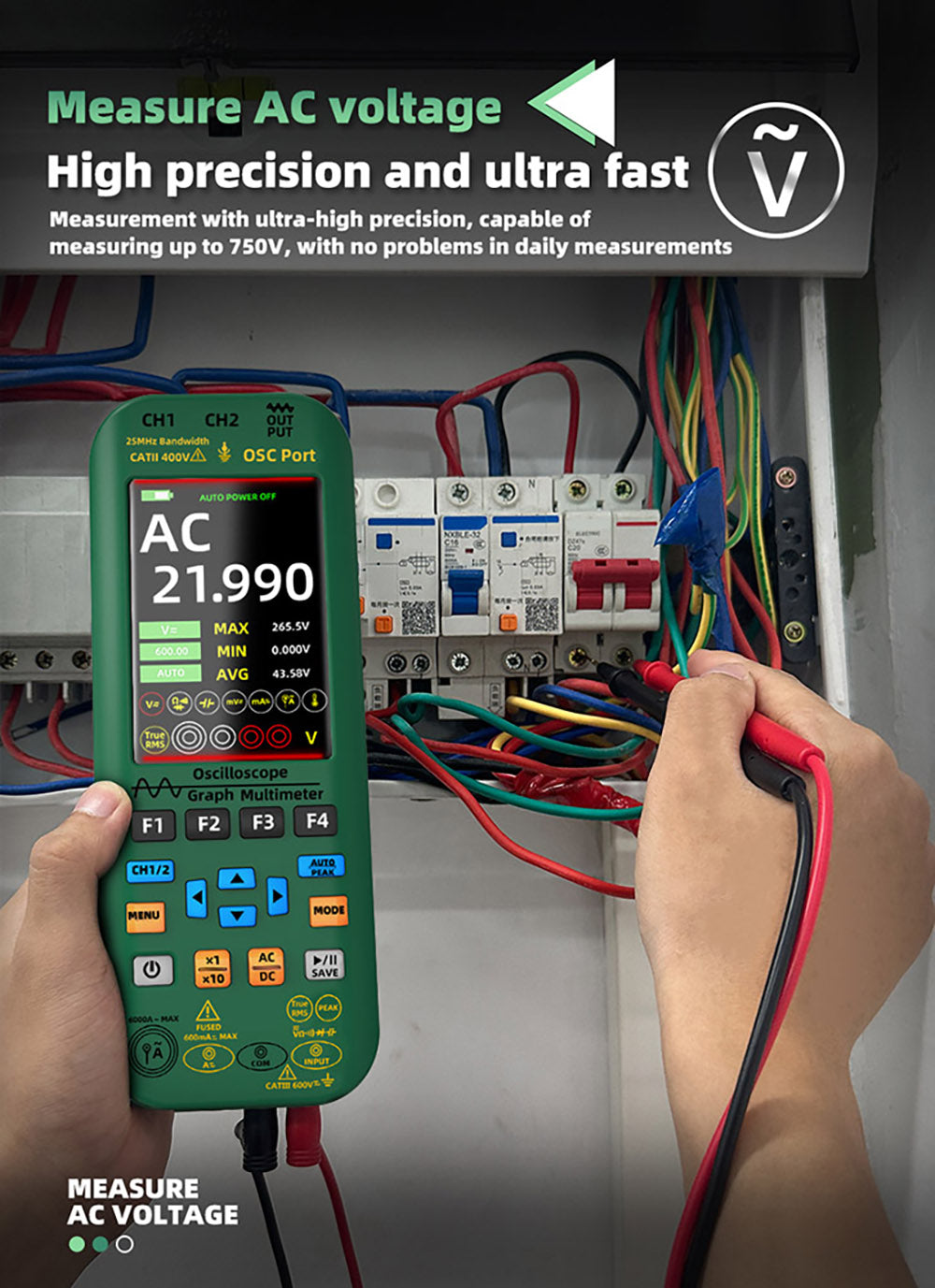

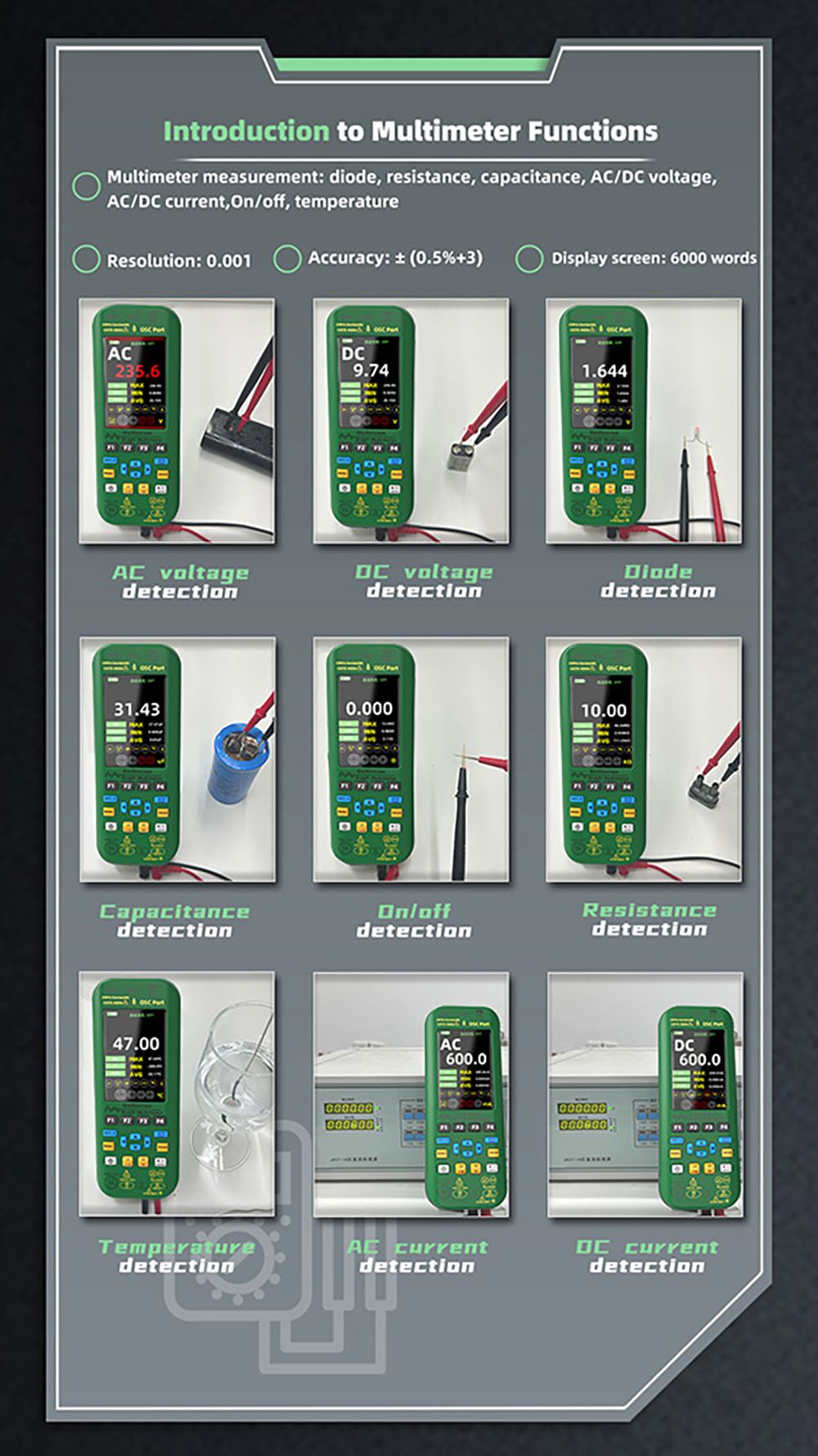

Supports DC voltage, AC voltage, current, resistance, capacitance, temperature, diode, continuity, and on/off measurements. With v-alert and on/off buzzer functions, it is a useful tool for electronic overhauling, maintenance debugging, and teaching research.
Premium Material & Digital Display

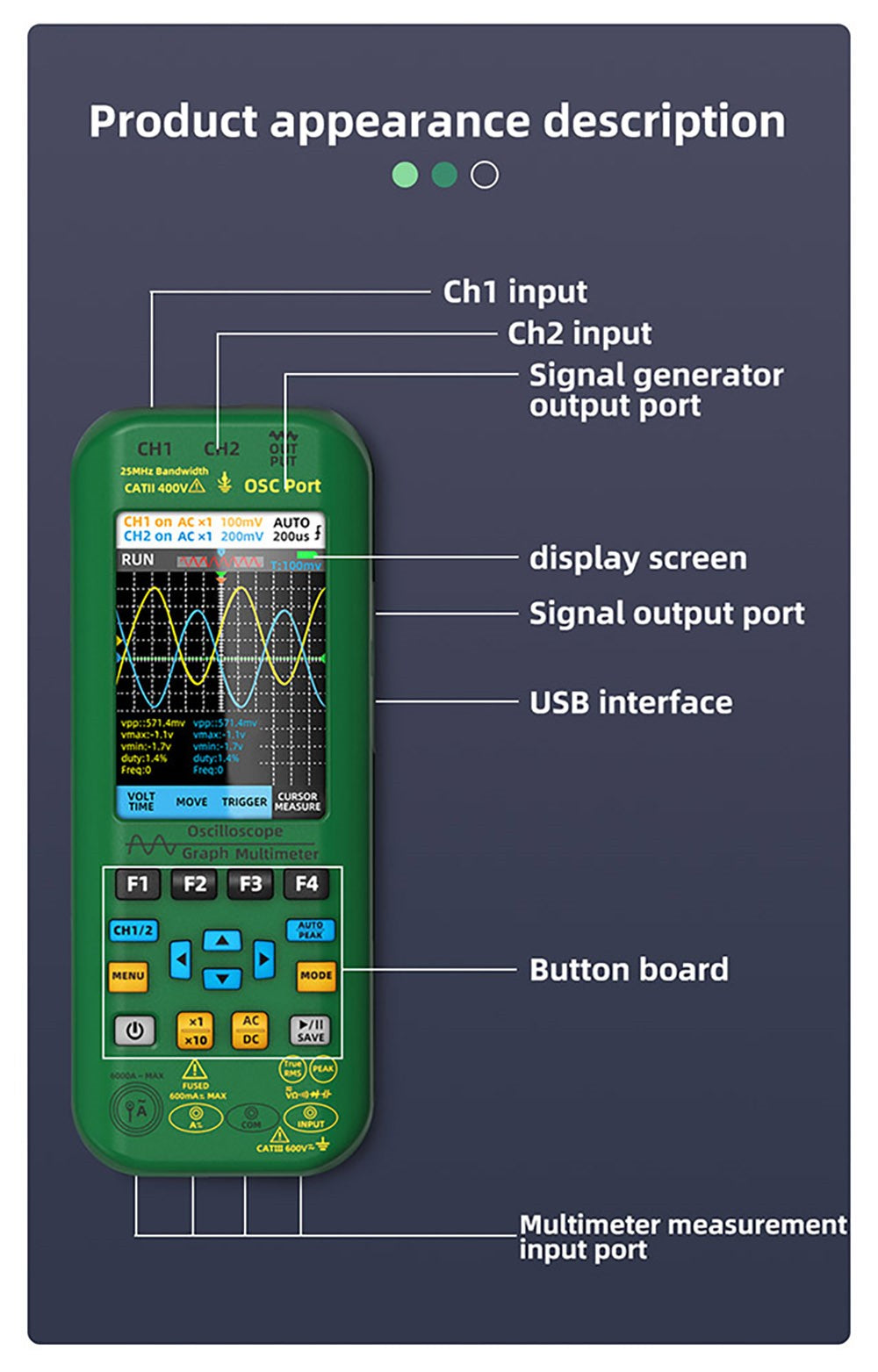

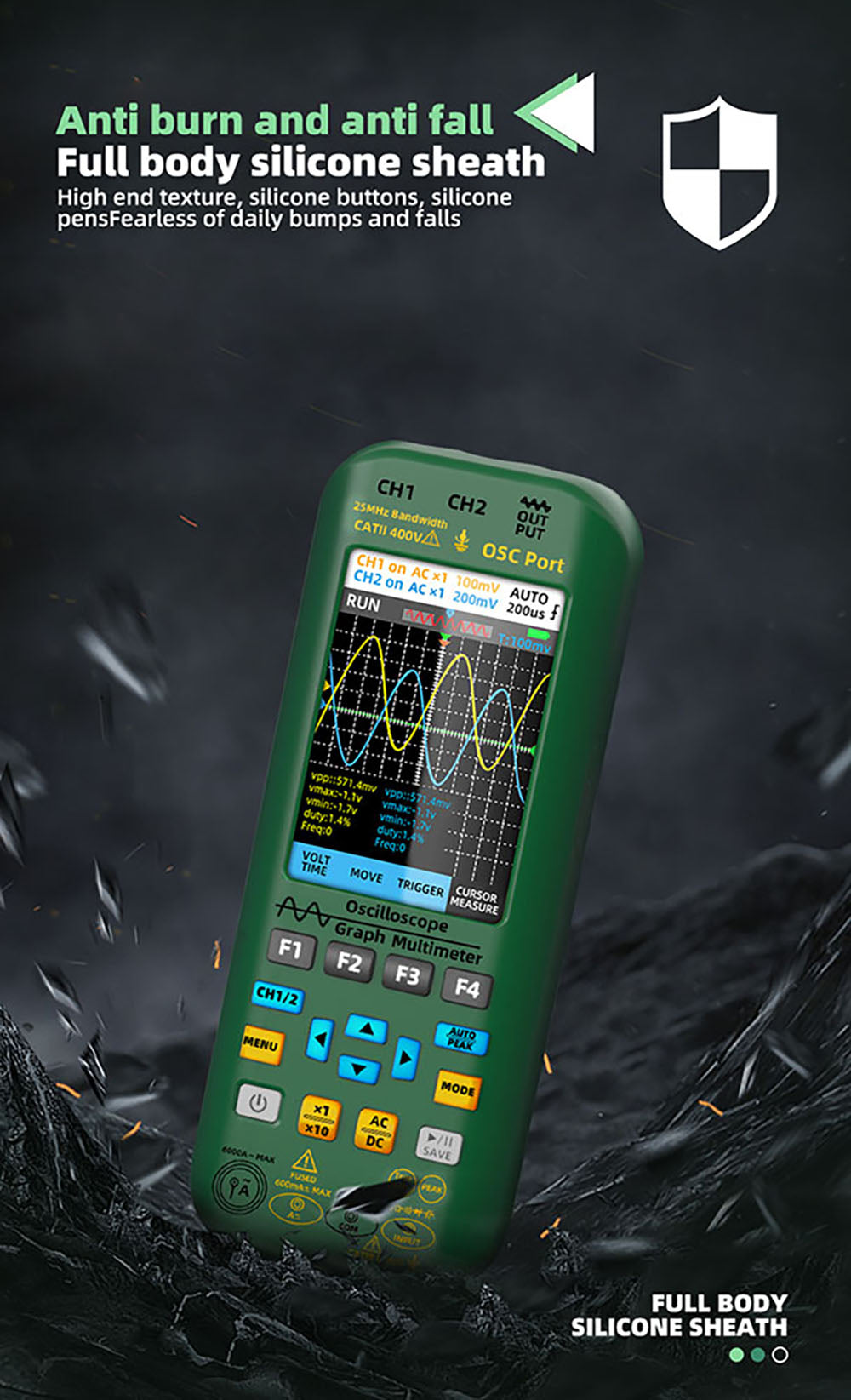

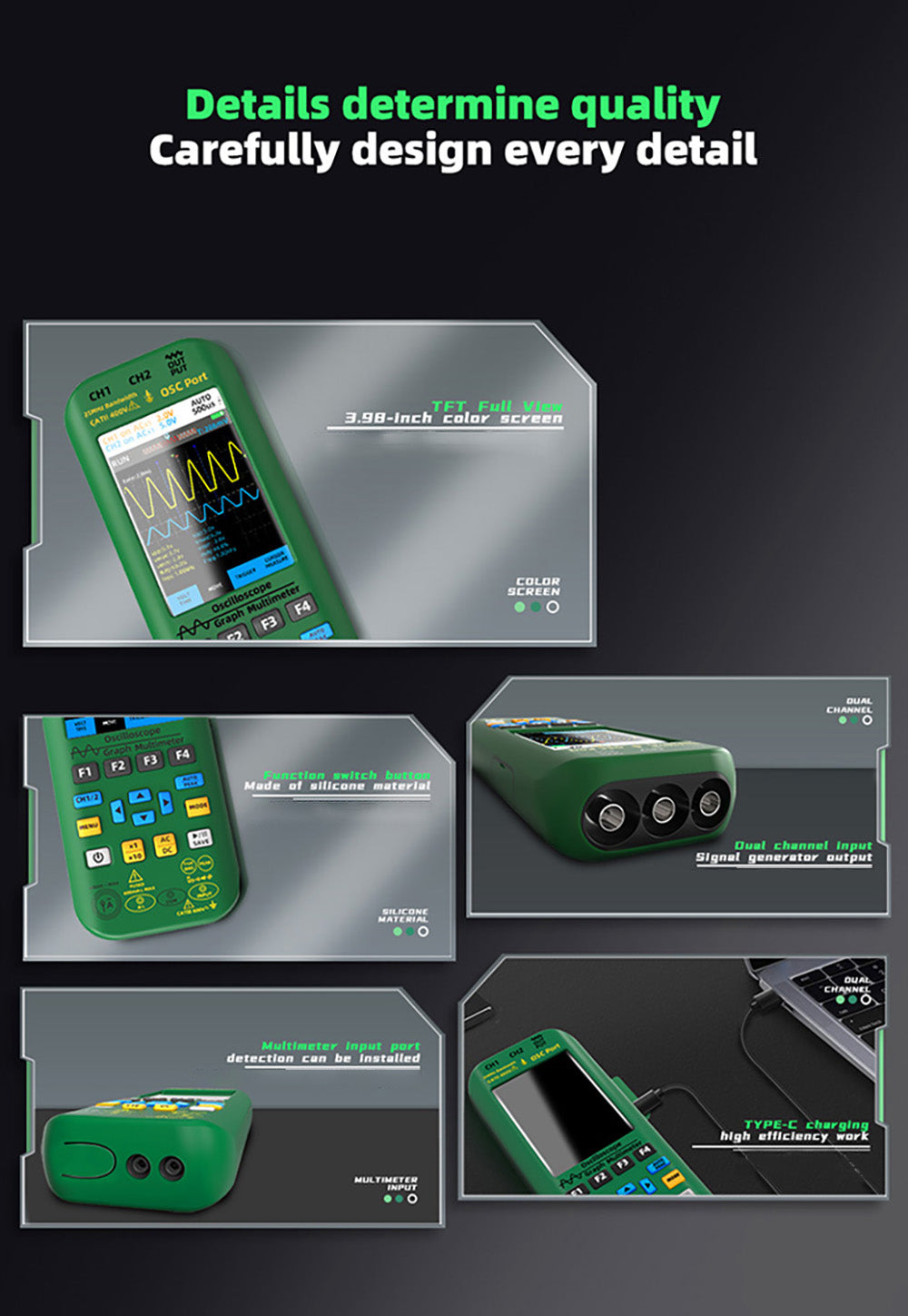

The compact, lightweight, and portable body design, makes it easy to carry around. Protective silicone coating is resistant to slip, drop, and impact, with a comfortable hand feel. The changes in various measurement parameters are captured and displayed on the 480*320 3.98-inch TFT IPS display in real time, forming a clear and concise data trend graph, and making data analysis more intuitive and accurate.
Rechargeable Battery & Wide Applications

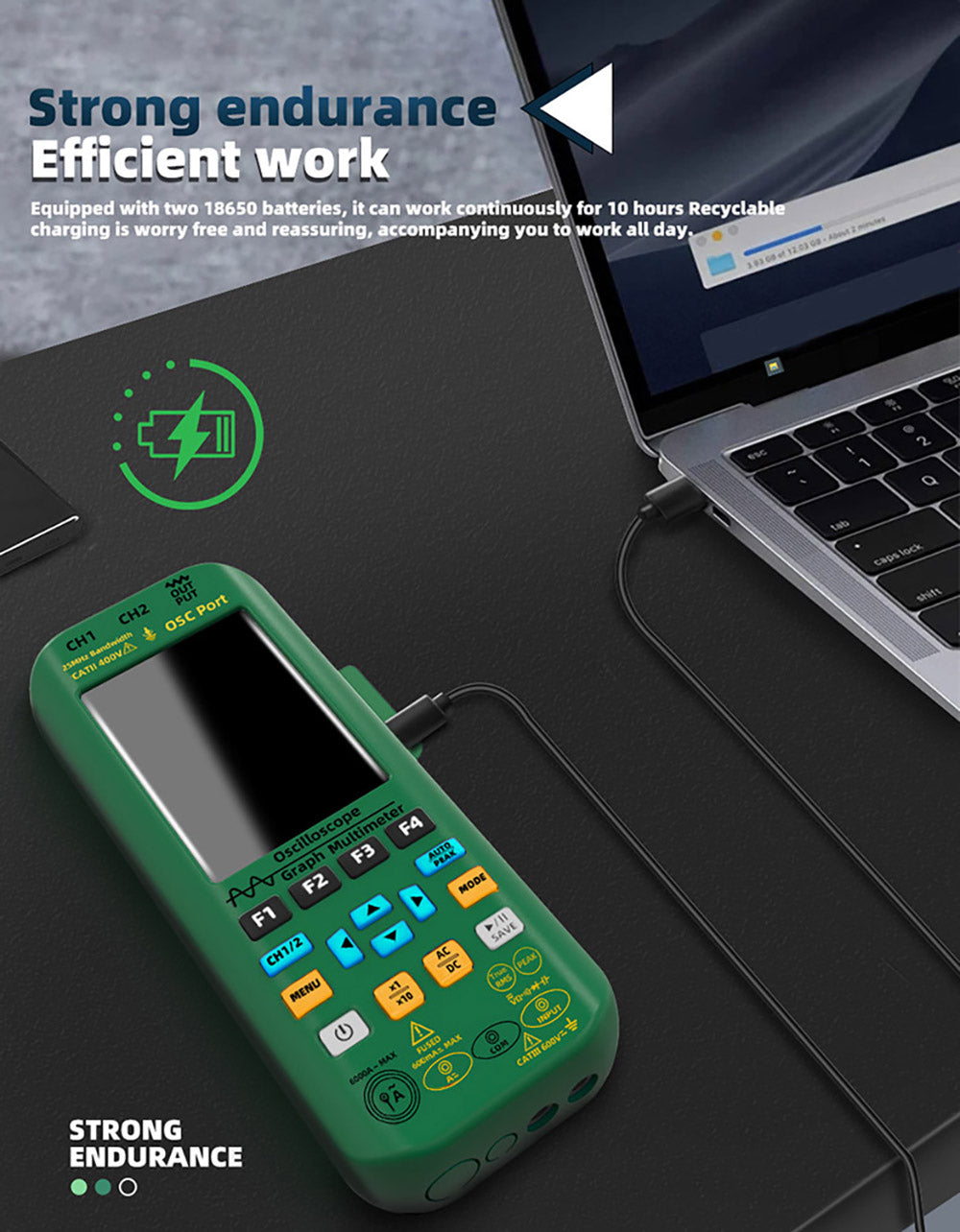

The built-in 2pcs high-capacity lithium battery provides long-lasting power support. Whether for laboratory research, teaching demonstrations, or DIY maintenance, it is a practical electronic measurement tool for you to use. Suitable for testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.
Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Oscilloscope Multimeter |
| Model | O7 |
| Color | Green |
| Specification | |
| Basic Parameter | |
| Battery: 2 x built-in 6000mAh battery (included) | |
| Screen size & resolution: 3.98 Inch (480x272 pixels) IPS display | |
| True RMS measurement: 6000 count | |
| Data hold: Yes | |
| Screen backlight: Yes | |
| Low battery reminder: Yes | |
| Automatic shutdown: Yes | |
| Working environment: 0-40°C, ＜75%RH | |
| Storage environment: -20°C to 60°C, ＜80%RH | |
| Multimeter | |
| DC voltage: 6.000V/60.00V/600.0V/1000V, ±(0.8%+3); 60.00mV/600.0mV, ±(1.0%+5) | |
| AC voltage: 6.000V/60.00V, ±(1.0%+3); 600.0V/750V, ±(1.2%+5); 60.00mV, ±(1.2%+5); 600.0mV, ±(1.0%+3) | |
| AC voltage frequency response: 40Hz-1kHz | |
| DC current: 60.00mA/600.0mA, ±(1.0%+3) | |
| AC current: 60.00mA/600.0mA, ±(1.2%+5) | |
| Flexible current clamp/AC Current(A): 600.0A/6000A, ±(1.0%+5) | |
| Resistance: 600.0Ω, ±(1.2%+5); 6.000KΩ/60.00KΩ/600.0KΩ, ±(1.0%+3); 6.000MΩ/60.00MΩ, ±(1.5%+5) | |
| Capacitance: 999.9n, ±(5.0%+20); 9.999uF/999.9uF, ±(4.5%+5); 99.99mF, ±(5.0%+10) | |
| Temperature: (-20-1000°C)/(-4-1832℉), ±(2.5%+5) | |
| Diode: Yes | |
| Connectivity: Yes | |
| Signal Generator | |
| Channel: Single channel | |
| Frequency: 0-2MHz | |
| Channel: 1 | |
| Amplitude: 0.1V-3.0V | |
| Squarewave duty cycle: 1-99% | |
| Signal type: sinewave, squarewave, sawtooth wave, halfwave, full-wave, direct current signals, direct current | |
| Oscilloscope | |
| Channel: Dual channel | |
| Analogue bandwidth: 25MHz | |
| Real-time sample rate: 208MSa/s | |
| Input coupling: Direct Current/Alternating Current | |
| Storage depth: max 64kByte | |
| Input impedance: 1MΩ, @16pf | |
| Probe attenuation: 1x/10x | |
| Maximum input voltage: X1 <150V, X10 <300V | |
| Sampling rate ranges: 1.5Sa/s-208MSa/s | |
| Waveform interpolation: (sinx)x | |
| Sweeprange: 100ns/div-20s/div | |
| Displacement ranges: 4 frames (positive and negative) | |
| Analogue bandwidth: 25MHZ | |
| Low frequency response: ＞ 10HZ | |
| Rise time: ＜10ns | |
| Direct current gain accuracy: ±3% | |
| Automatic measurement: period, frequency, peak to peak, maximum value, minimum value, duty cycle, root mean square | |
| Trigger mode: automatic/normal/single | |
| Trigger edges: rising/falling edges | |
| Signal generator output: squarewave, sawtooth wave, halfwave, full-wave | |
| Afterglow time: Min, 500ms, 1s,10s, Unlimited | |
| Weight & Size | |
| Product Weight | 384g |
| Package Weight | 999g |
| Product Size(L x W x H) | 21.66x8.45x3.6cm |
| Package Size(L x W x H) | 24x12.8x7.3cm |
| Package Contents | |
| 1 x Oscilloscope Multimeter | |
| 1 x User Manual | |
