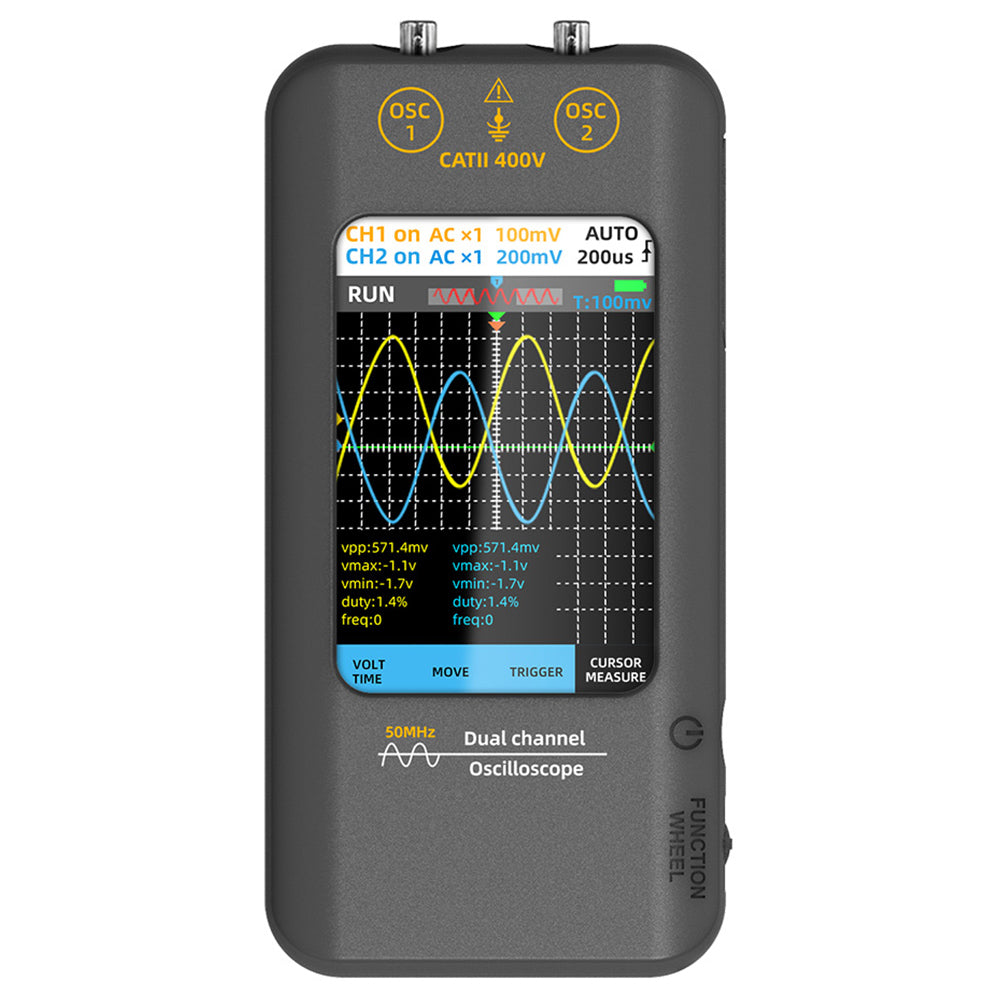

BSIDE O2 Oscilloscope

BSIDE O2 highlights

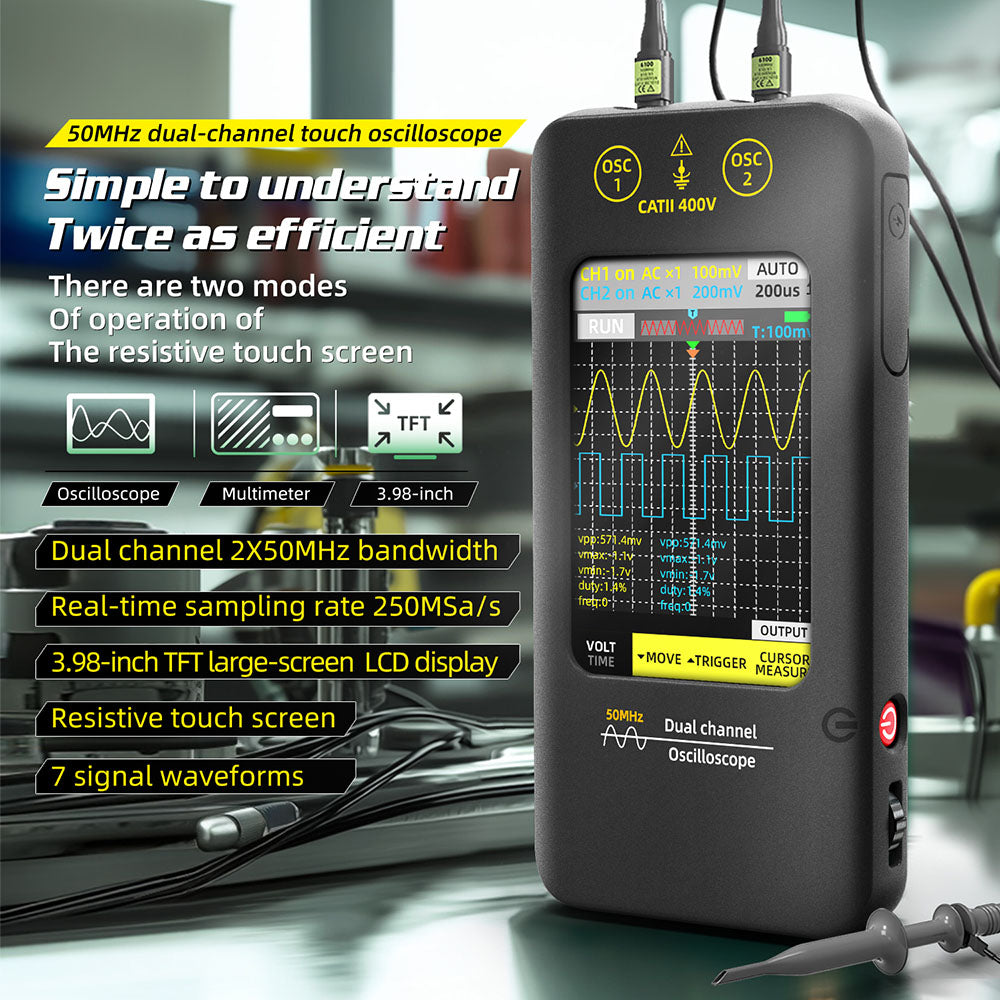

Dual-Channel Real-Time Sampling

Supports dual-channel DC and AC real-time sampling with a bandwidth of 50MHz and a sampling rate of 250MSa/s.

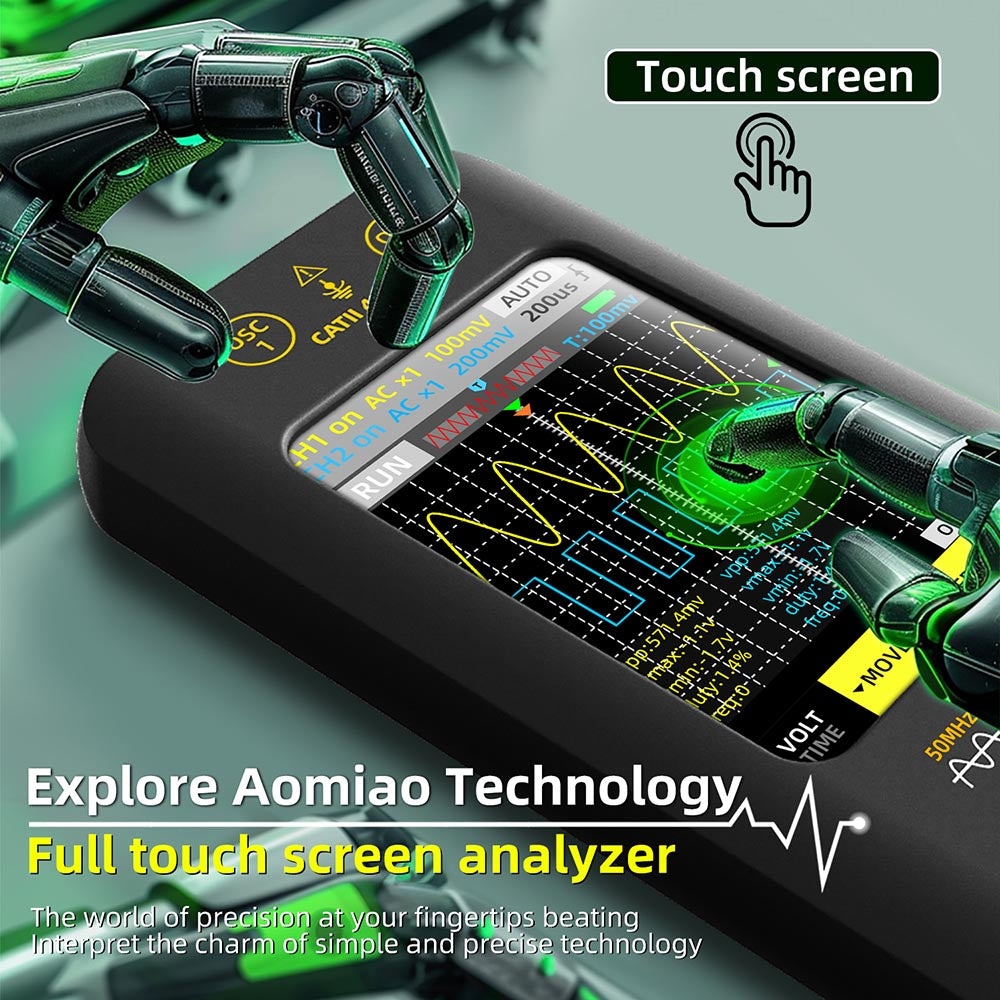

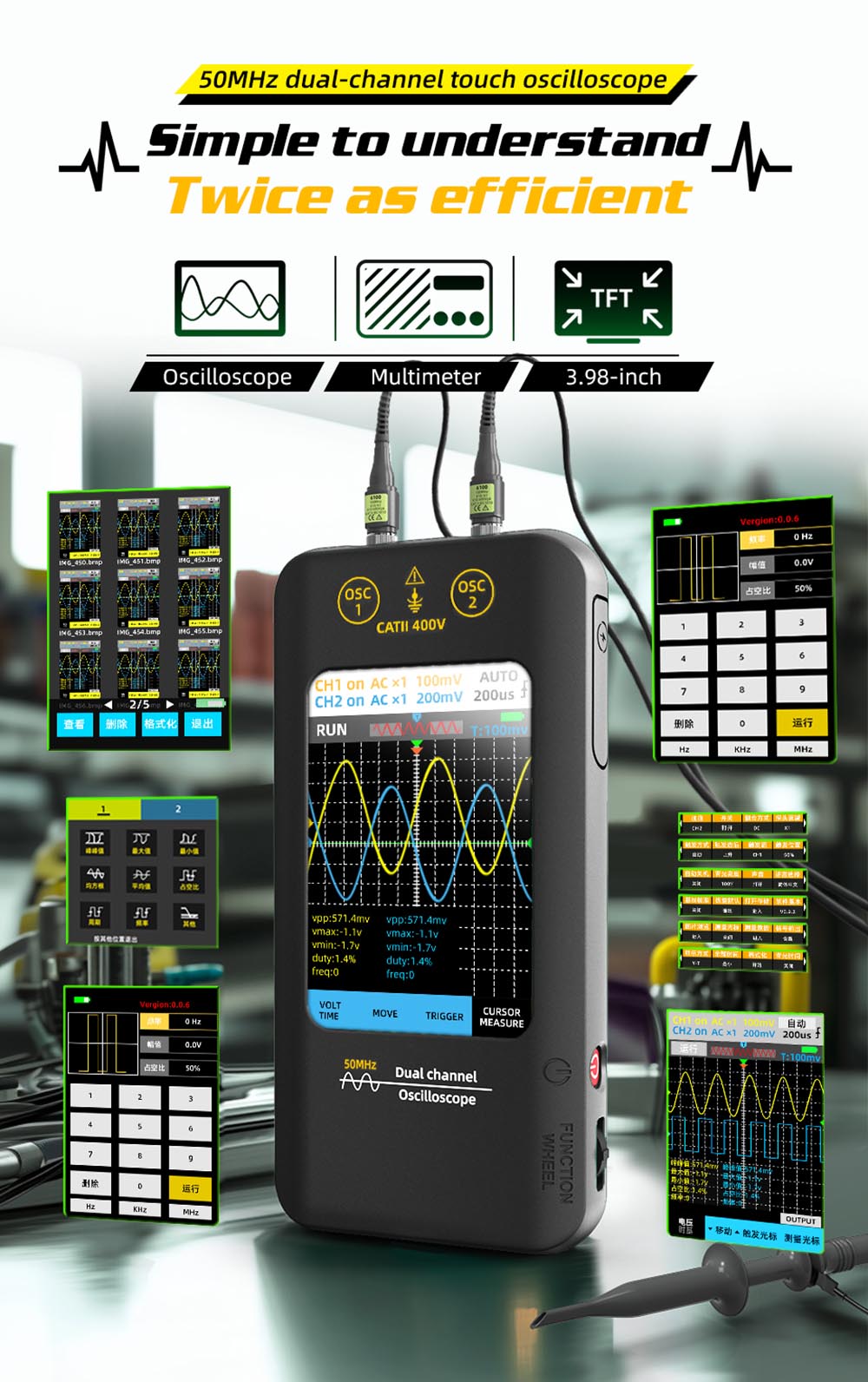

Touch Screen Convenience

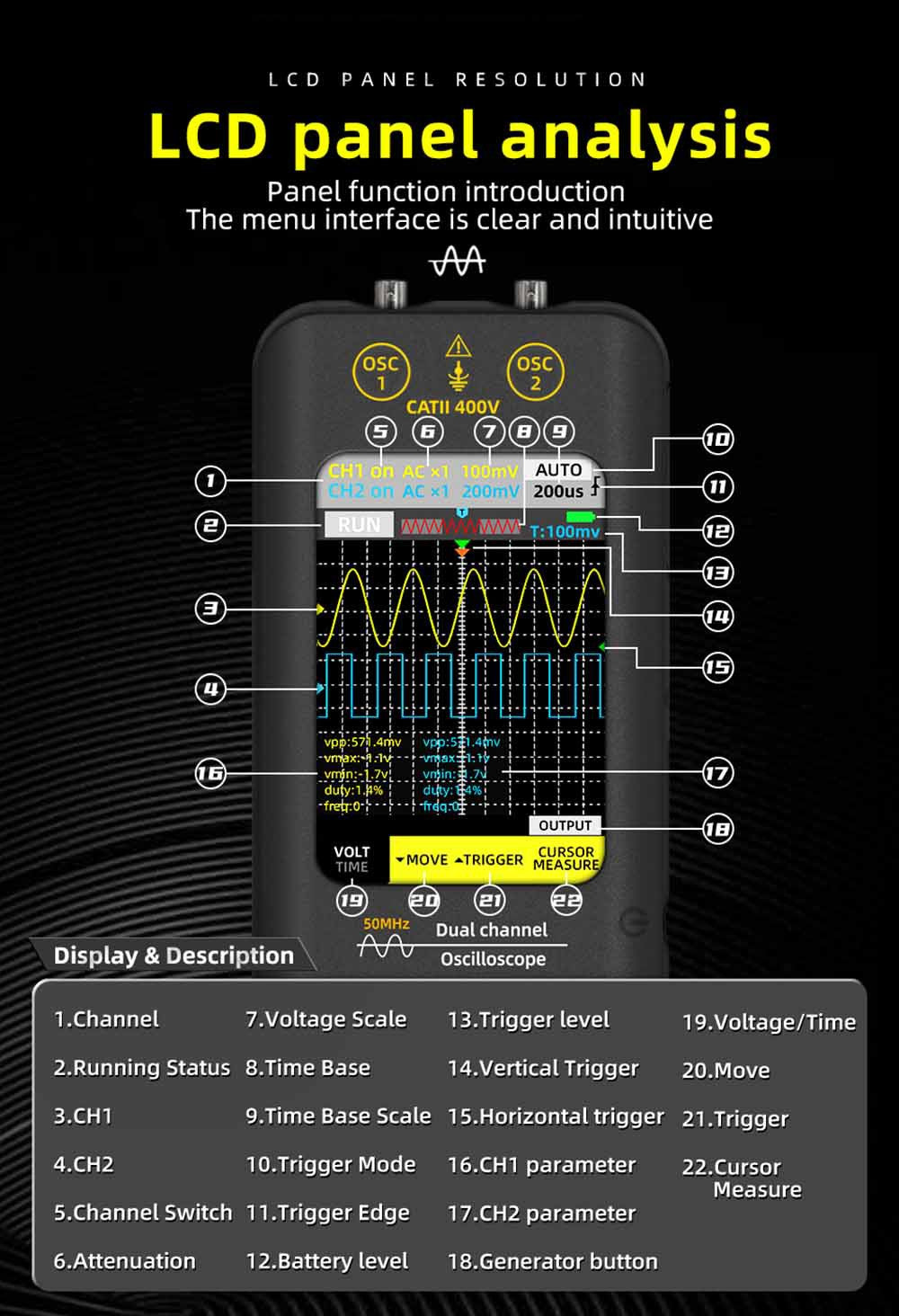

Equipped with a 3.98-inch TFT LCD touch screen, providing a user-friendly interface for easy navigation and operation.

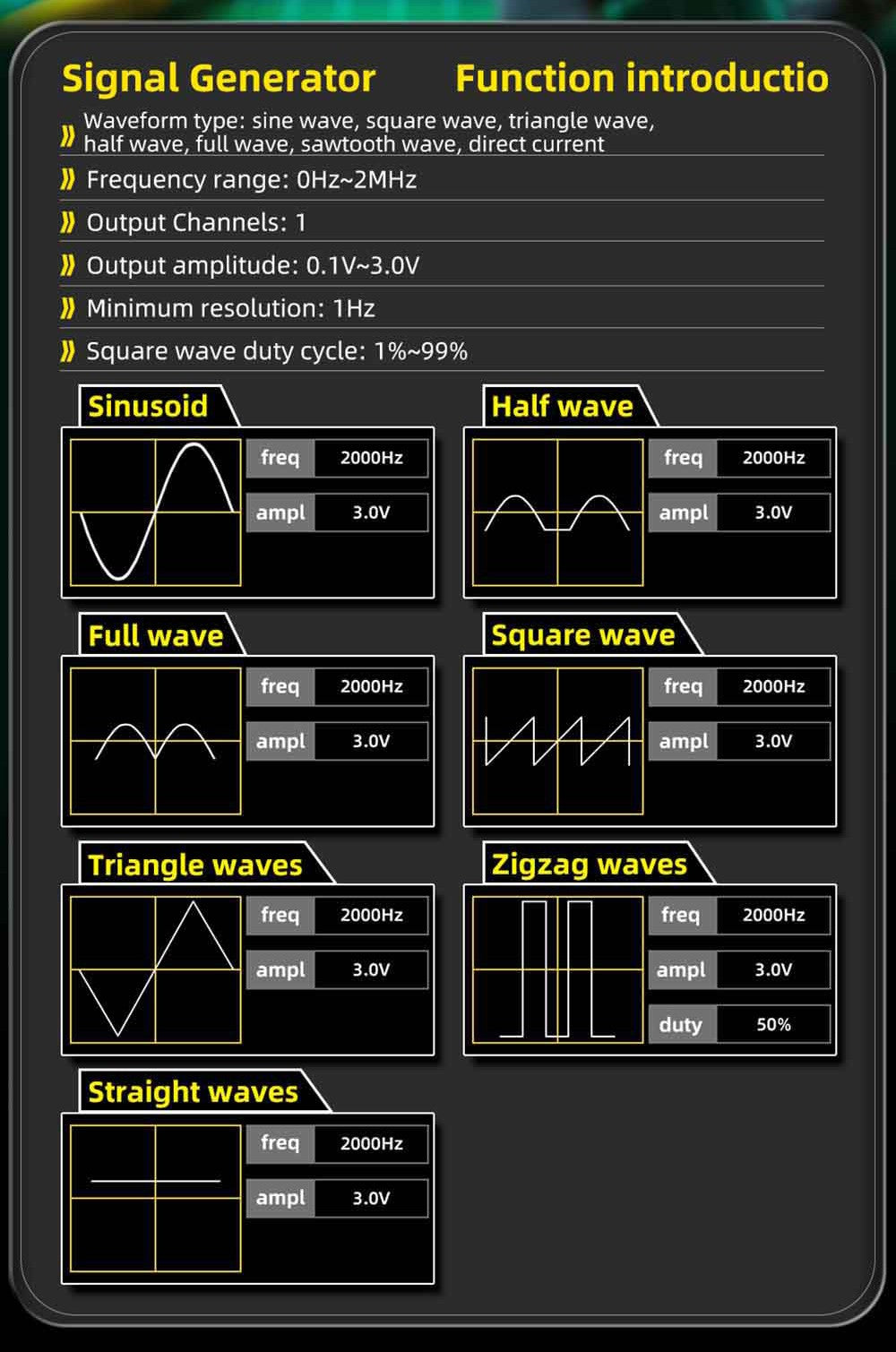

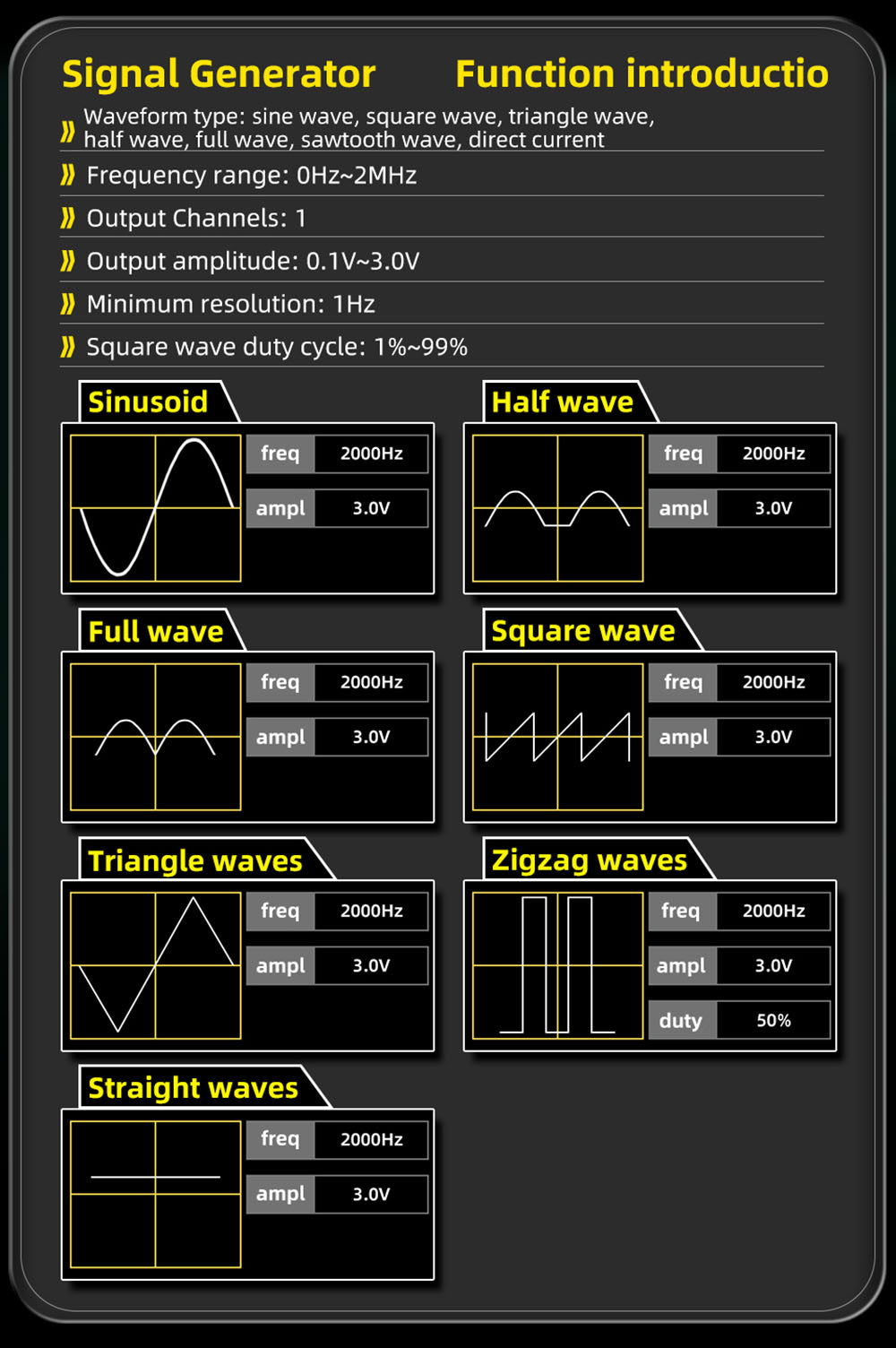

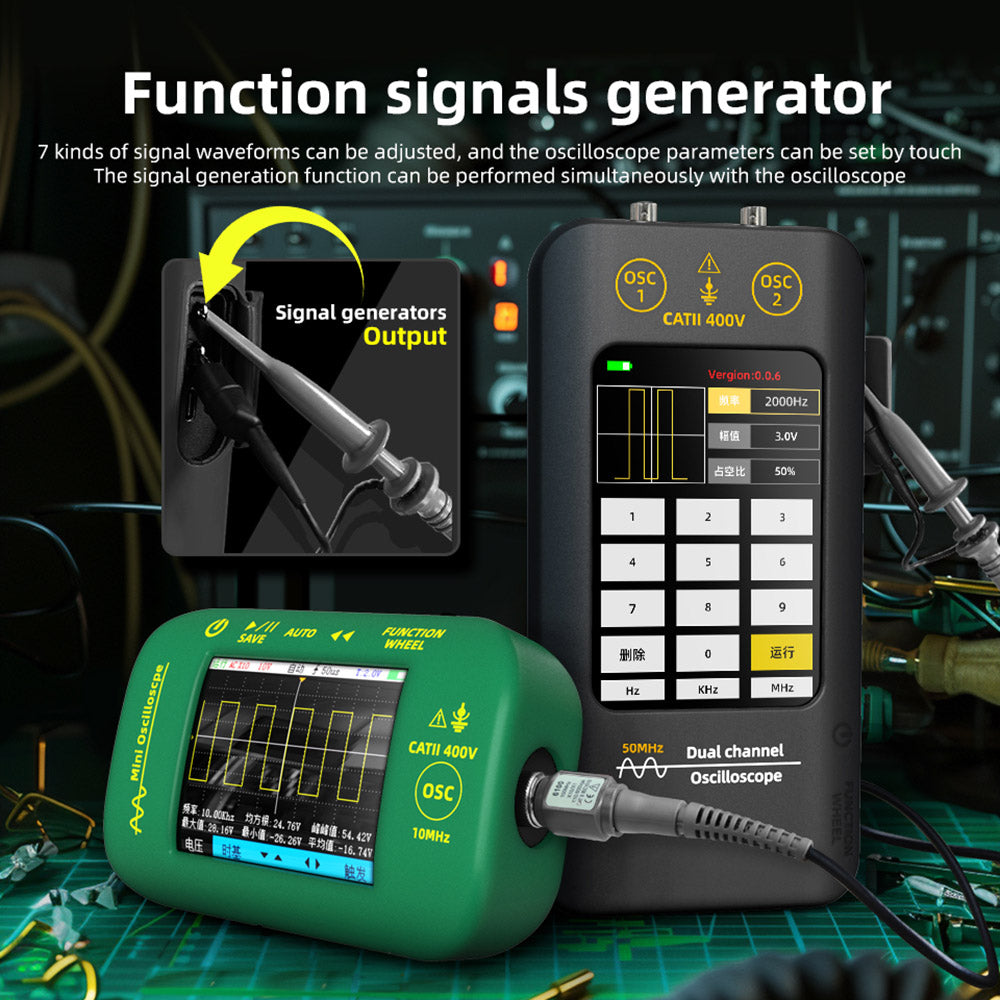

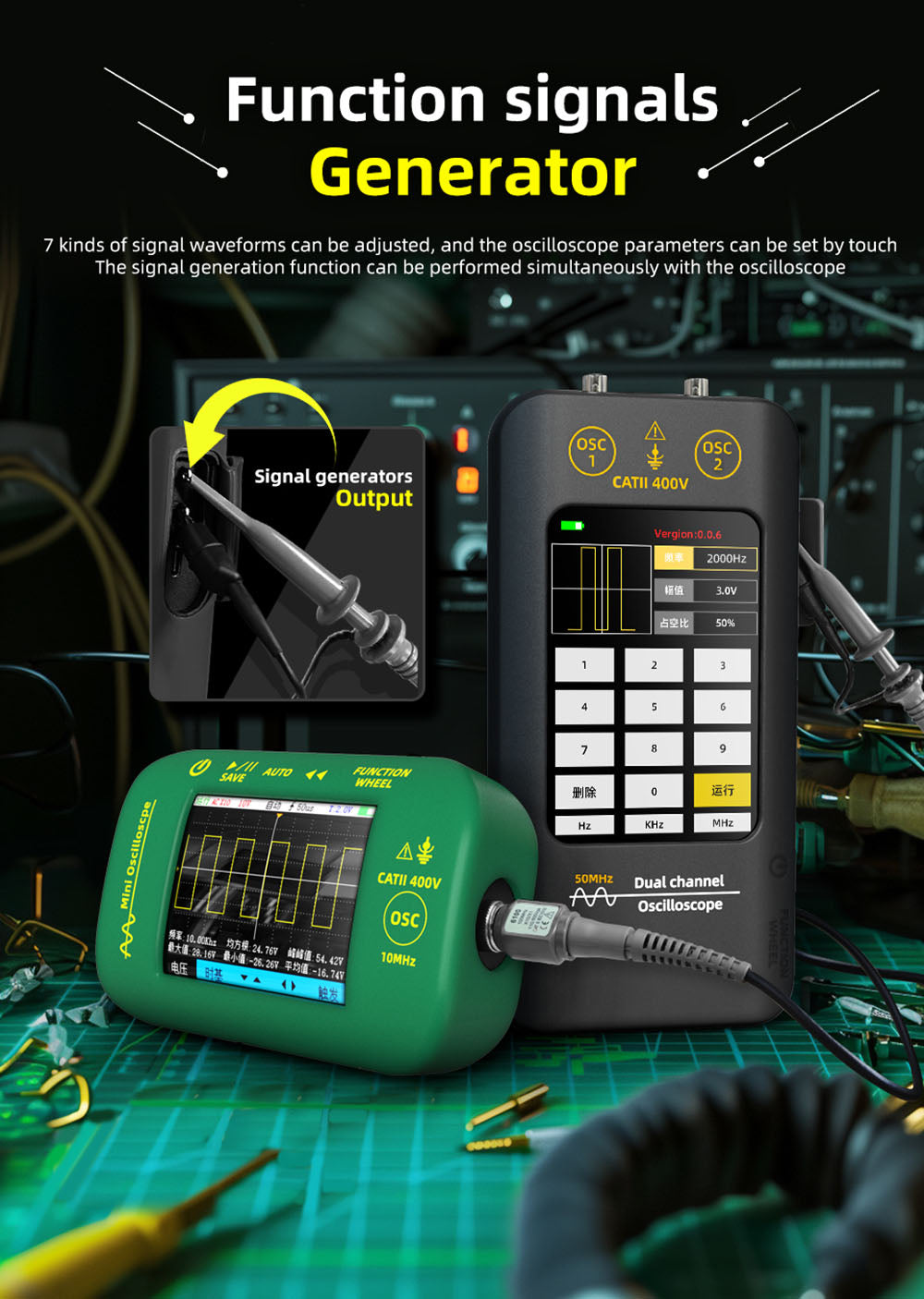

Versatile Waveform Generator

Built-in signal generator supporting sine, square, triangular, and sawtooth waves, with a frequency range of 0Hz to 2MHz.

Data Retention and Low Battery Alert

Includes data retention functionality, low battery alert, automatic power-off, and screen backlight for enhanced usability.

General
Brand	BSIDE
Type	Oscilloscope
Model	O2
Color	Gray
Specification
Display Screen	3.98-inch TFT LCD with Resistive Touch
Sampling Rate	250MSa/s
Bandwidth	50MHz
Channels	2 (DC/AC)
Battery	3000mAh lithium battery
Waveform Types	Sine, Square, Triangular, Sawtooth, DC
Frequency Range	0Hz ~ 2MHz
Weight & Size
Product Weight	274g
Package Weight	542g
Product Size(L x W x H)	170*81*24mm
Package Size(L x W x H)	220*100*75mm

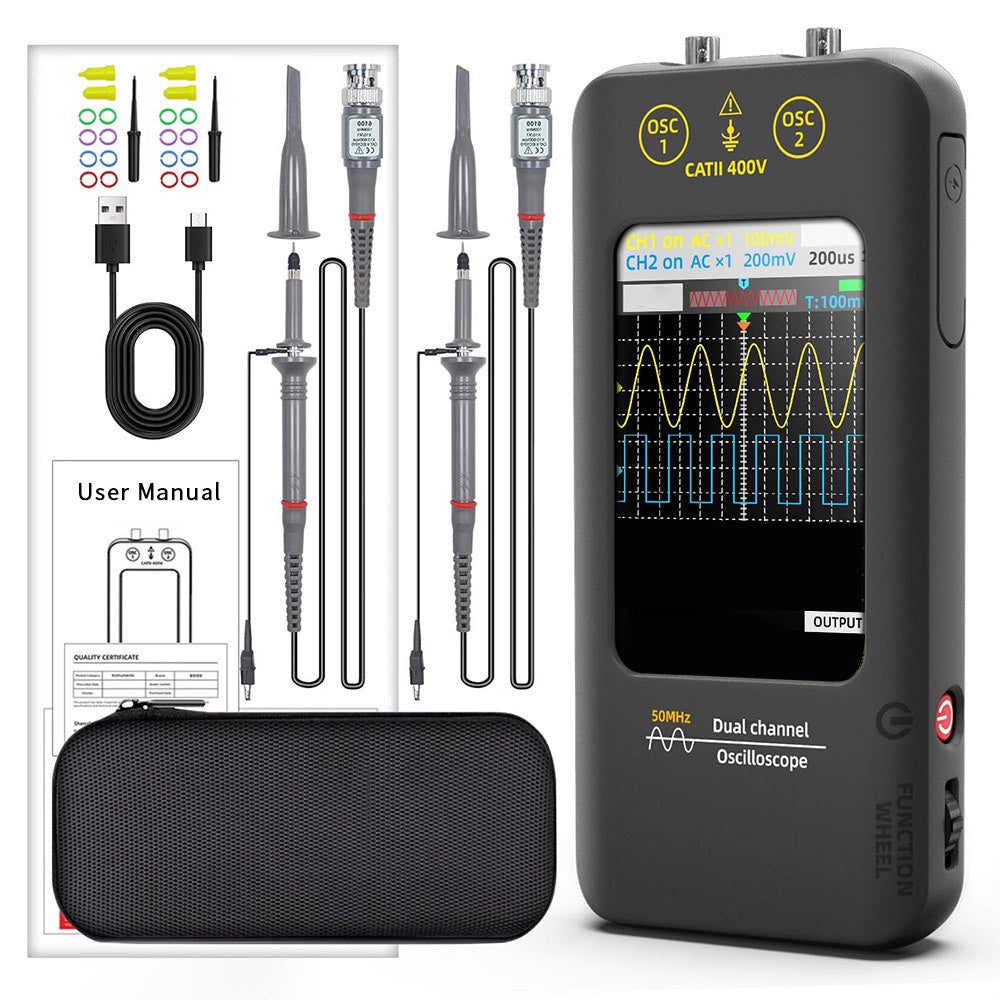

Package Contents
1 x Oscilloscope
1 x USB Type-C Cable
1 x User Manual
