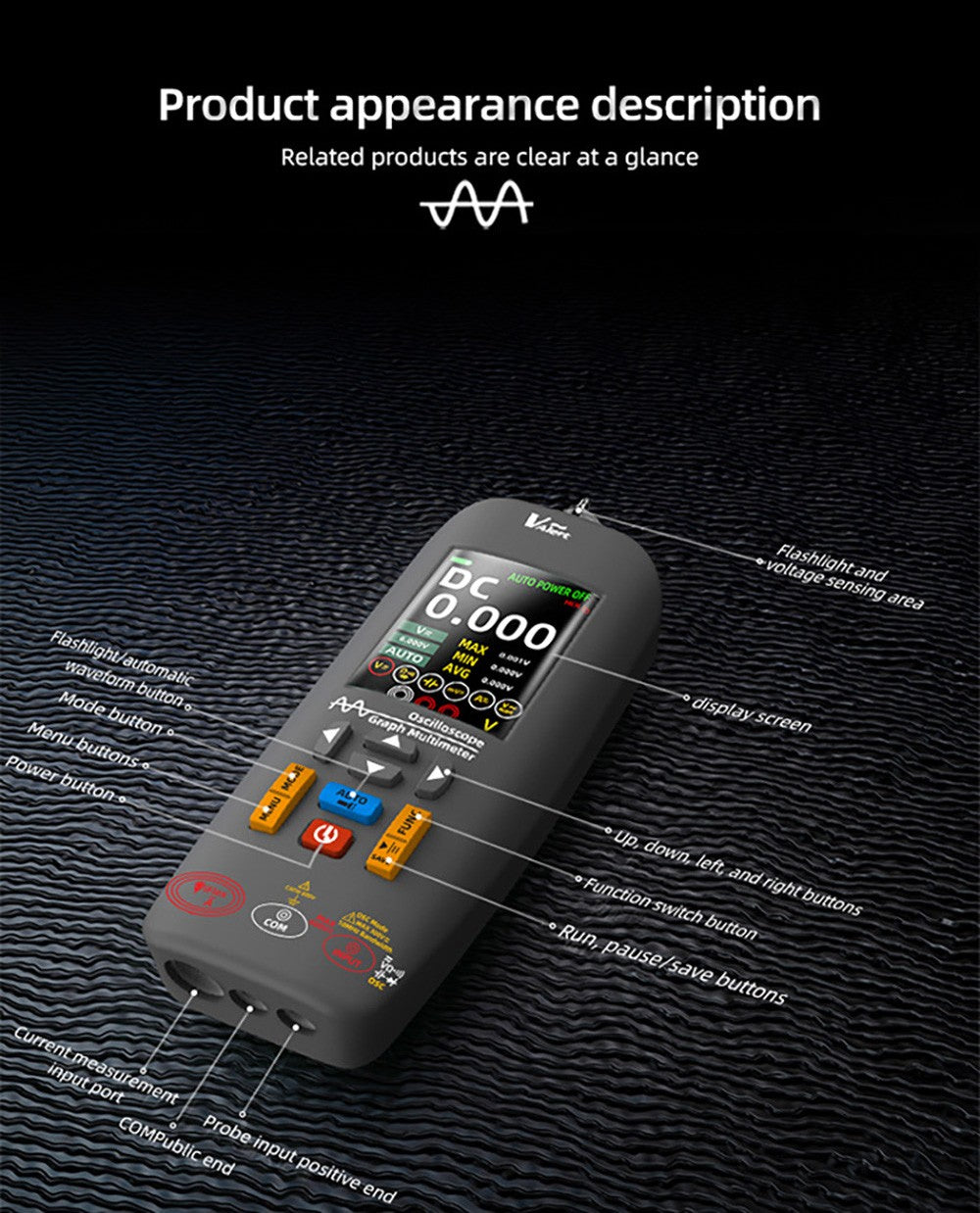

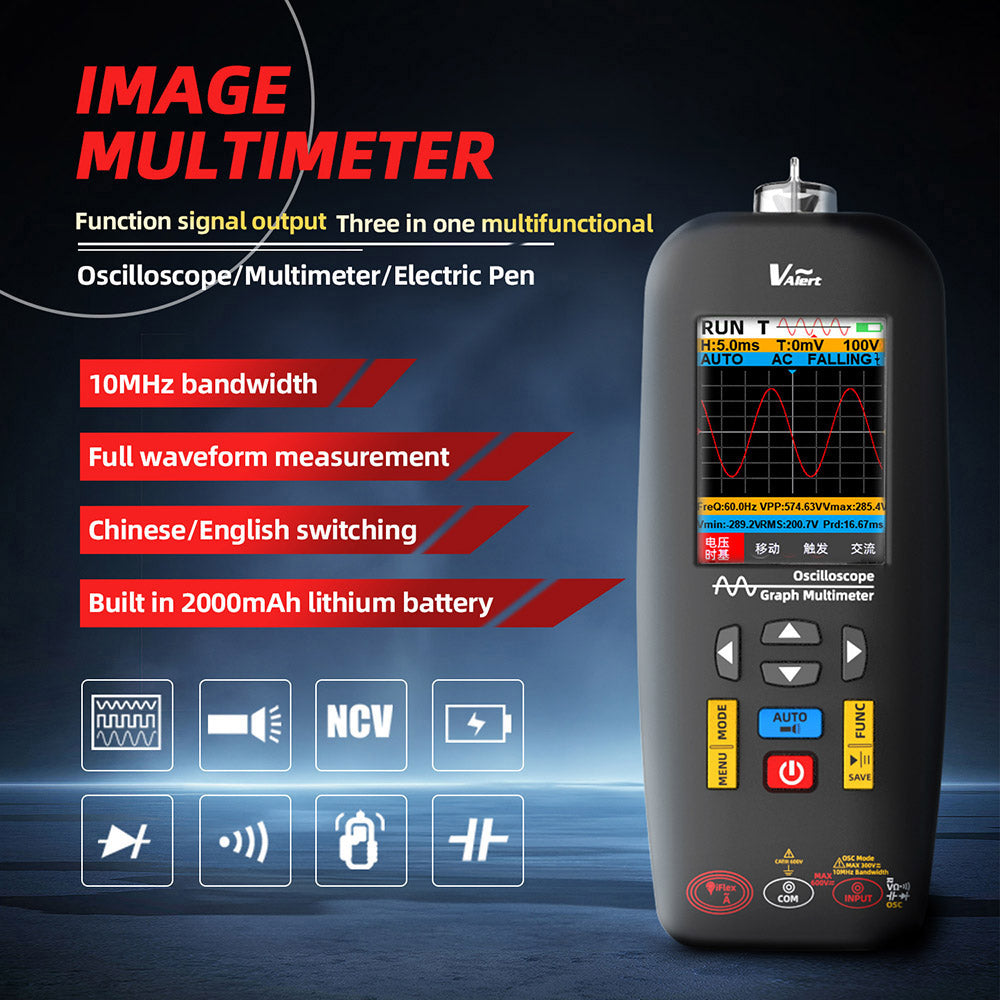

BSIDE O1X highlights

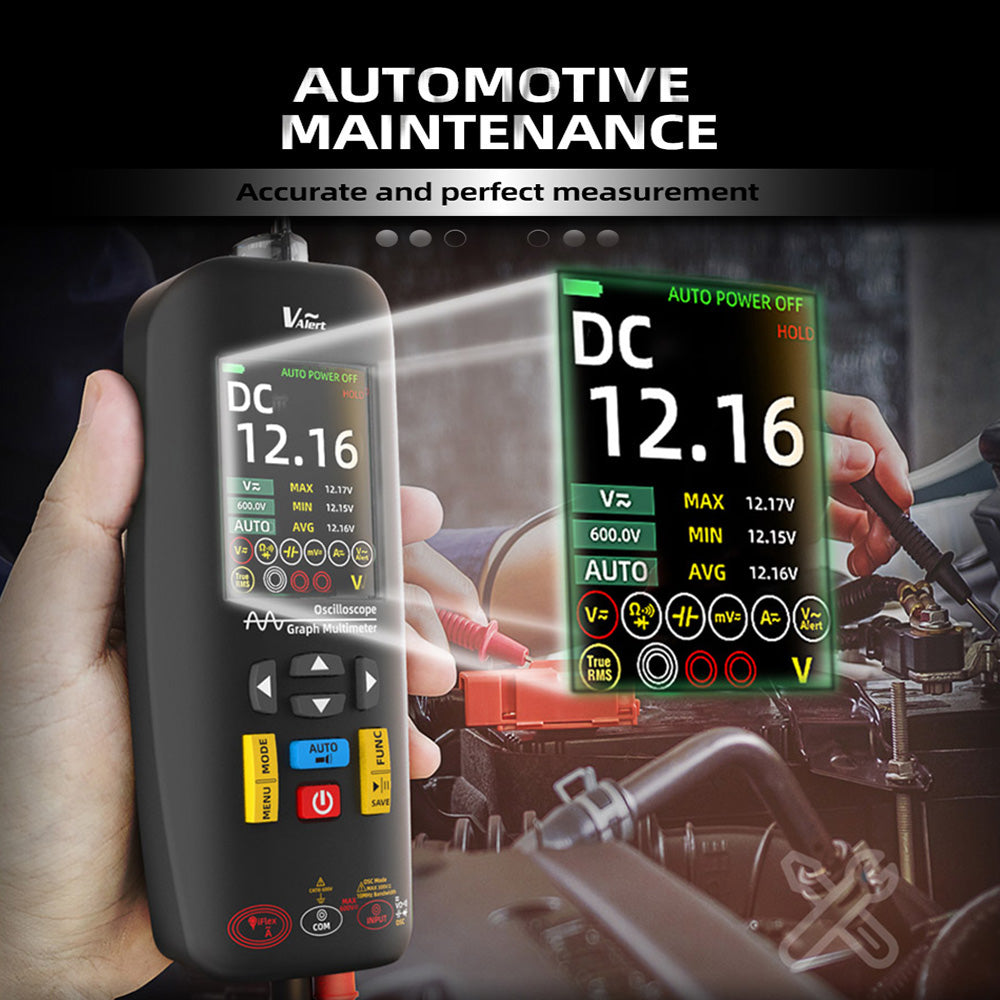

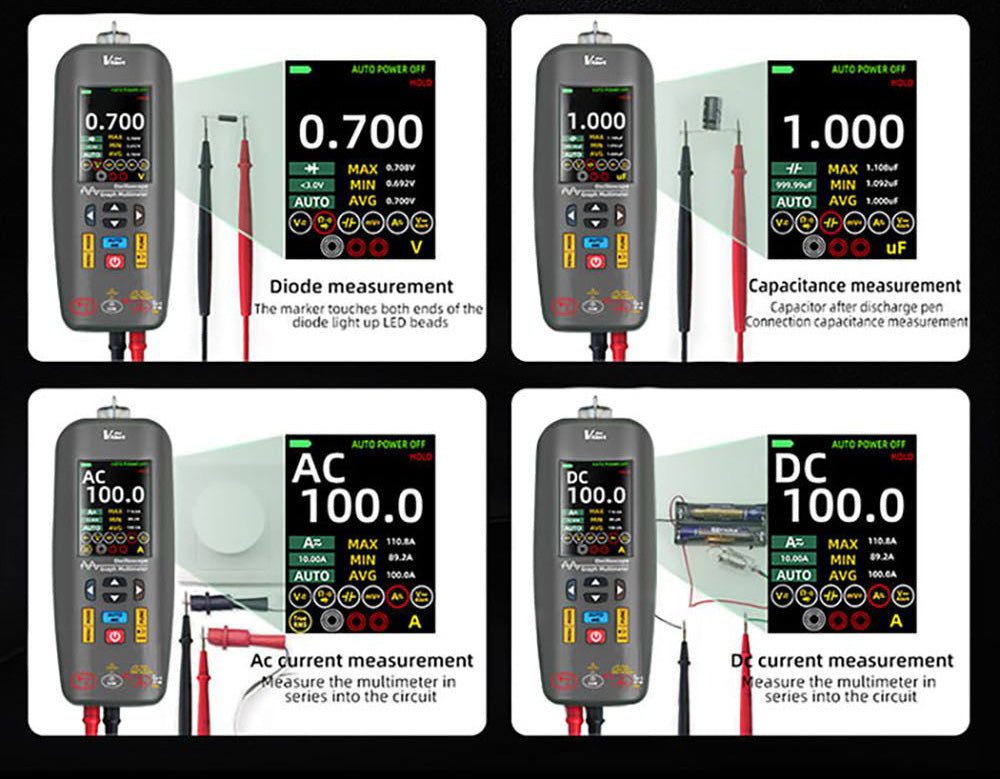

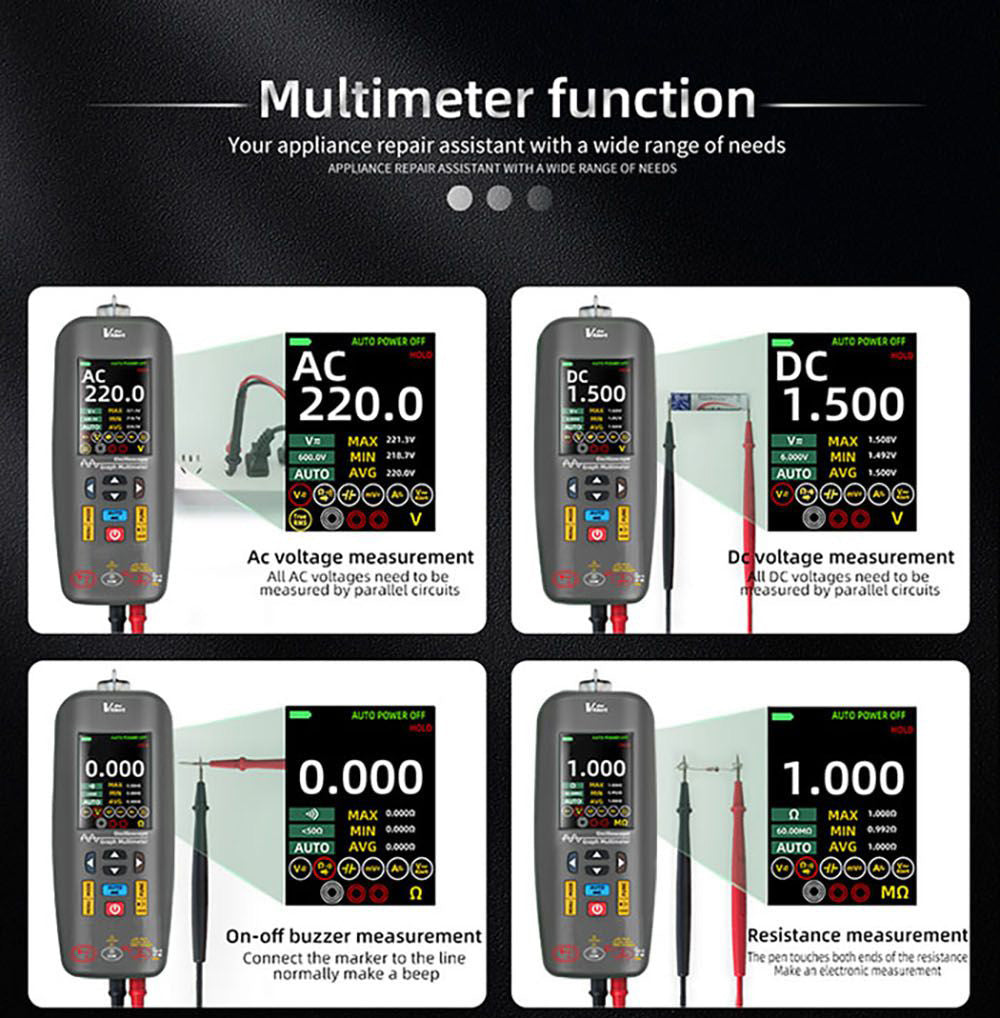

Multimeter Tester Mode
BSIDE digital multimeter tester measures MAX/MIN/AVG value, capacitance, AC and DC current, diode, AC and DC voltage, resistance, frequency, continuity, and v-alert.

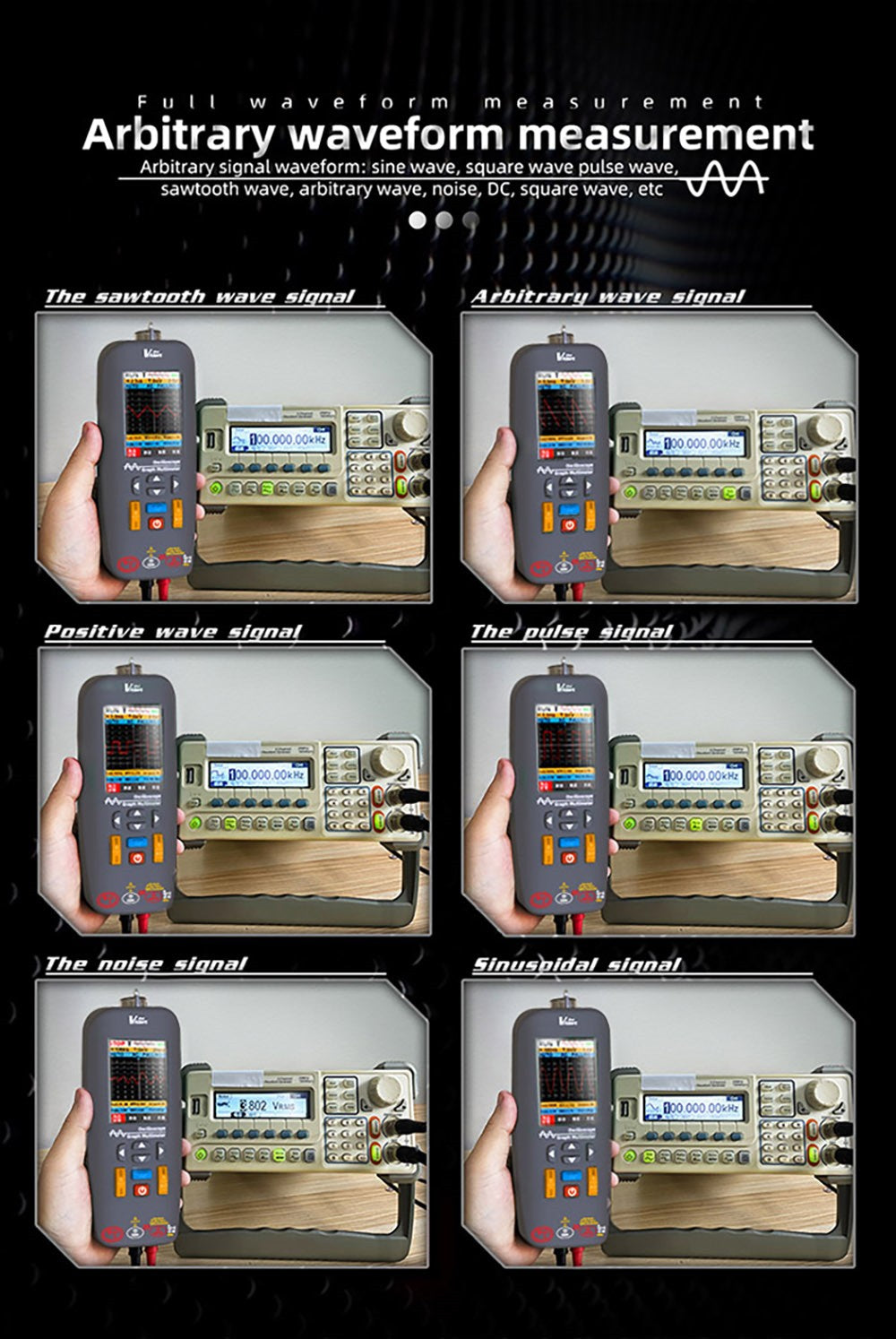

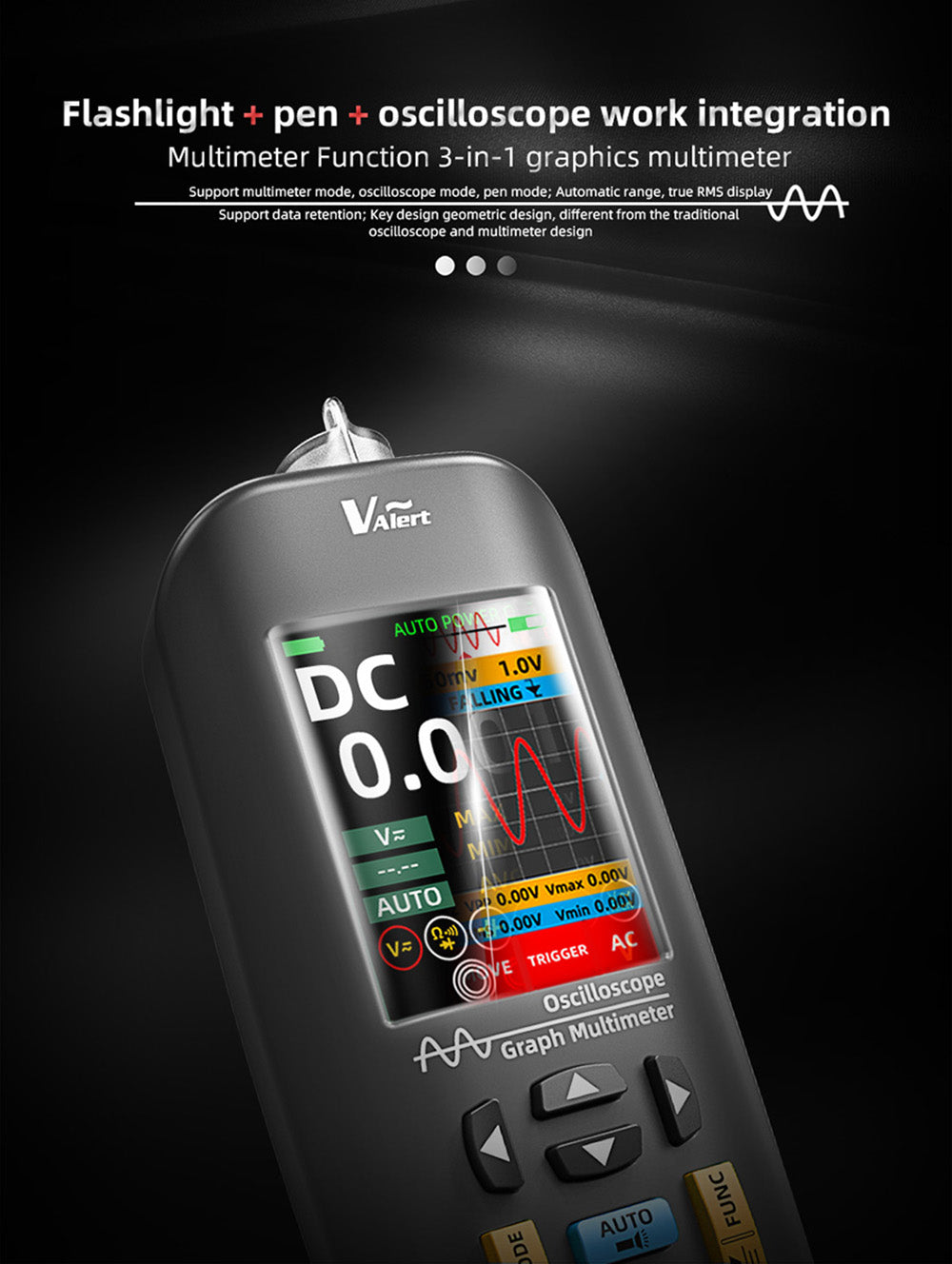

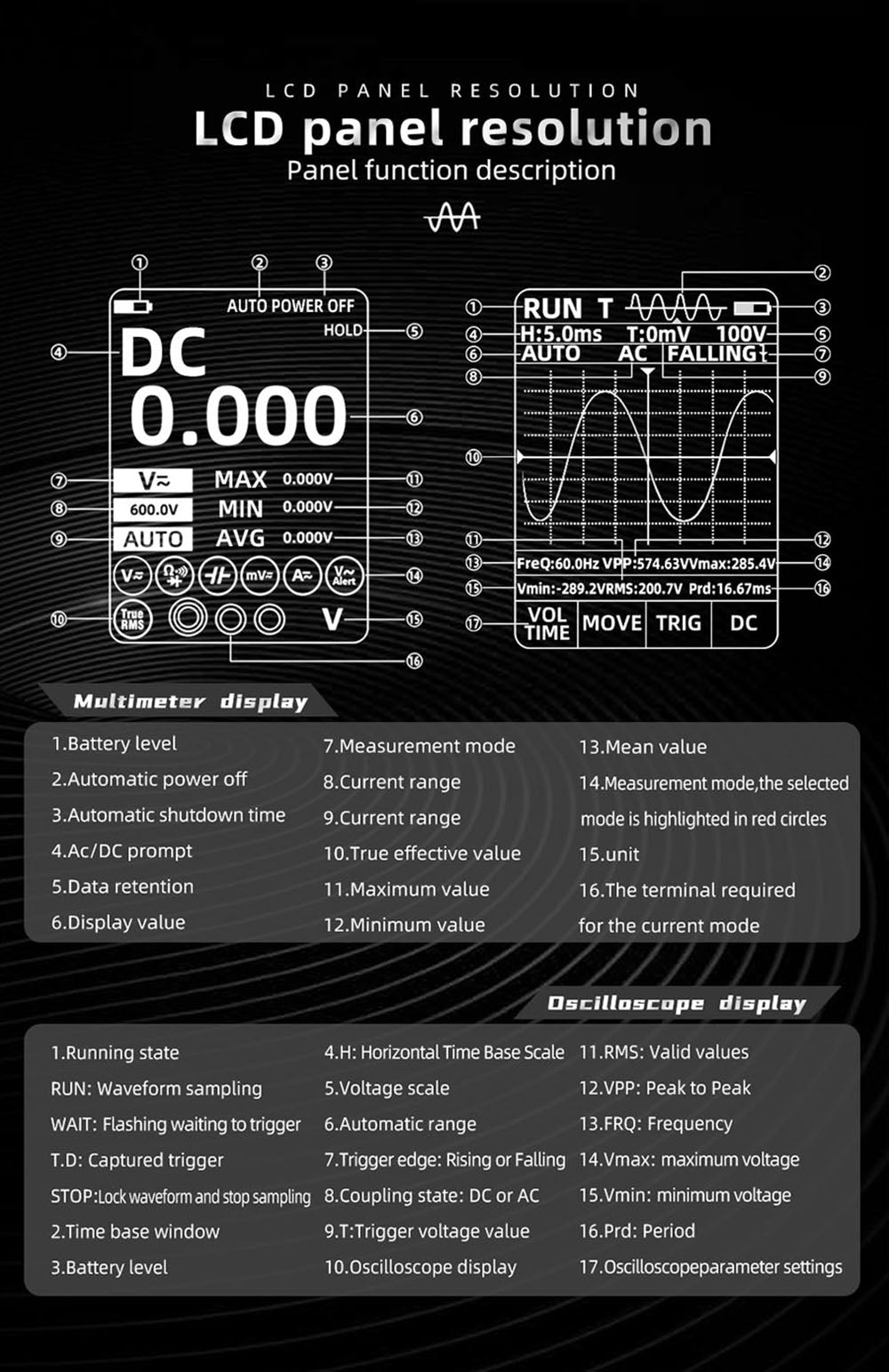

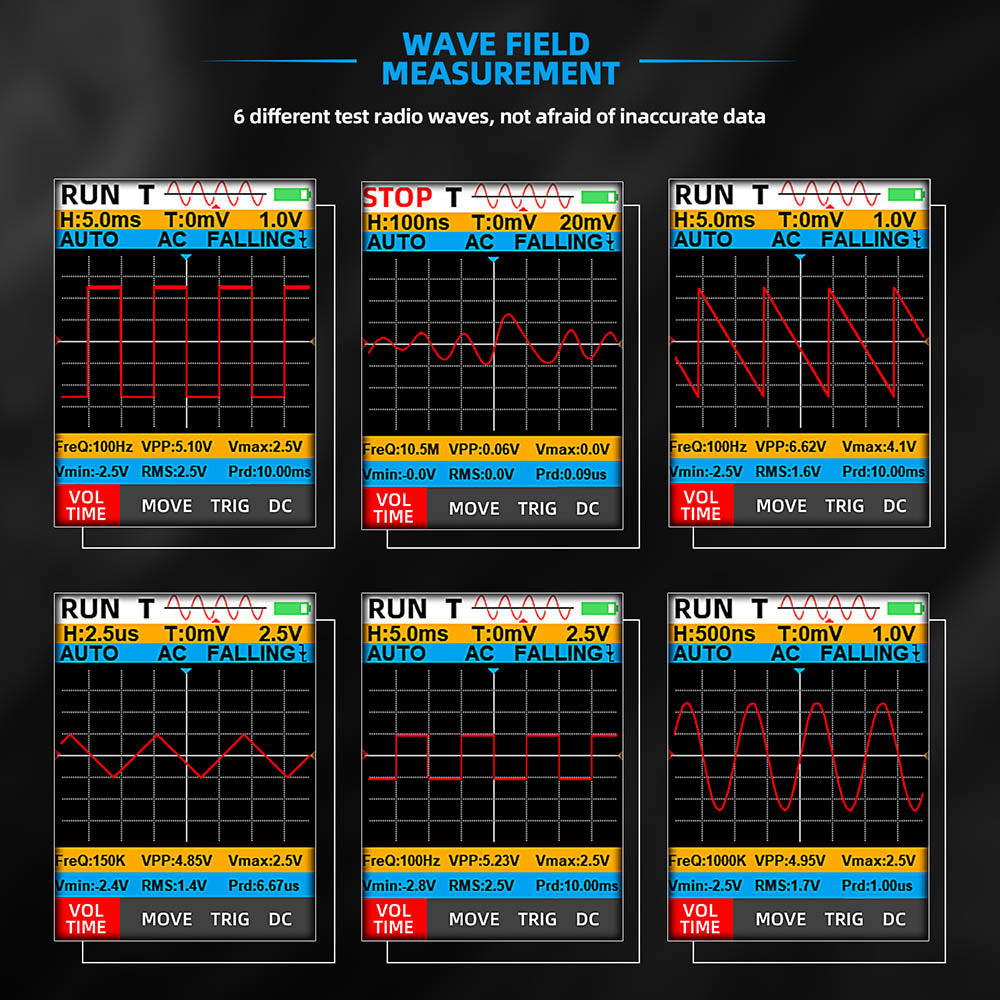

Oscilloscope Mode
The smart digital multimeter can also be used as an oscilloscope, it features a 10MHz bandwidth, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.

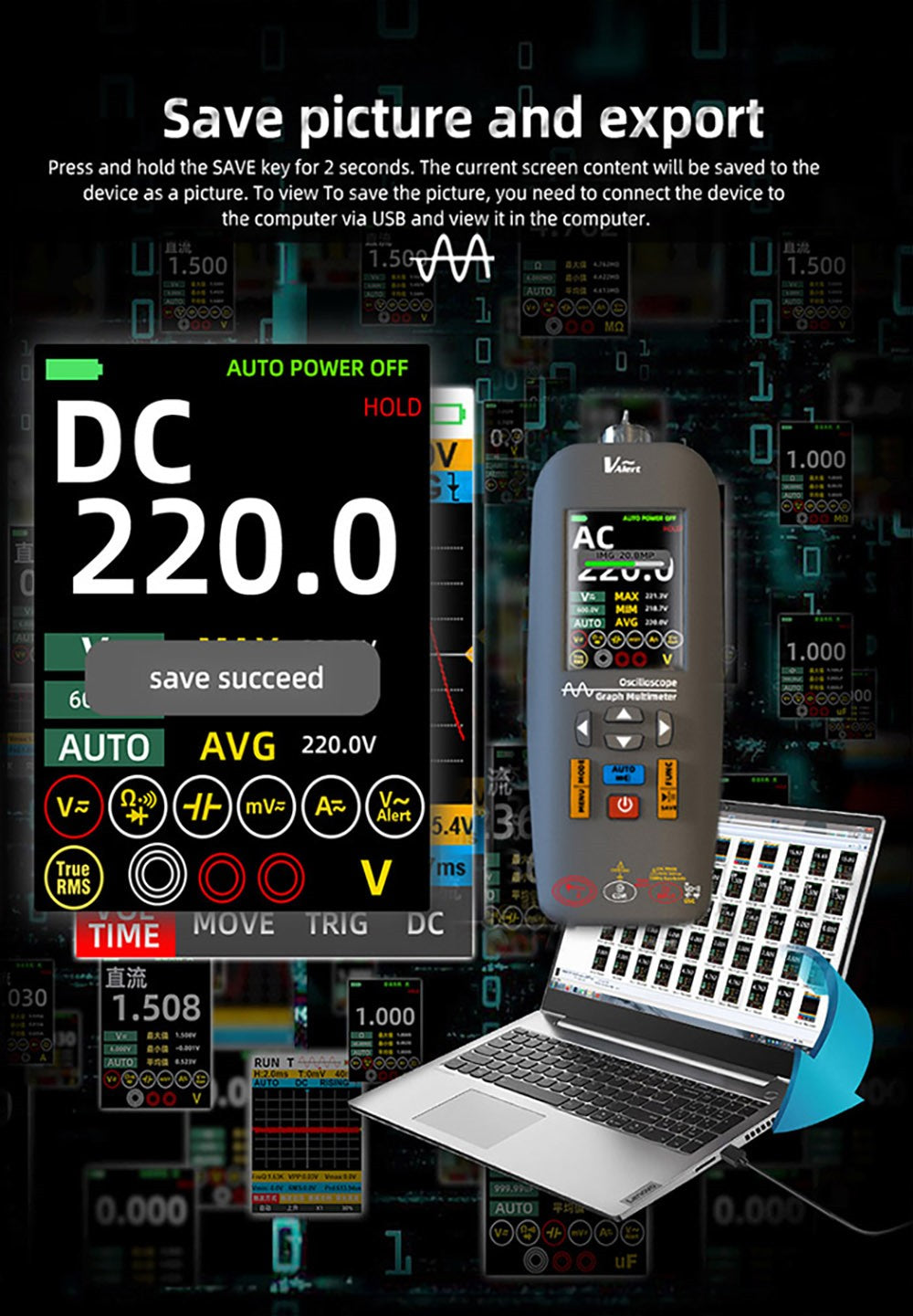

Data Storage and Export
The data of this graph oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.

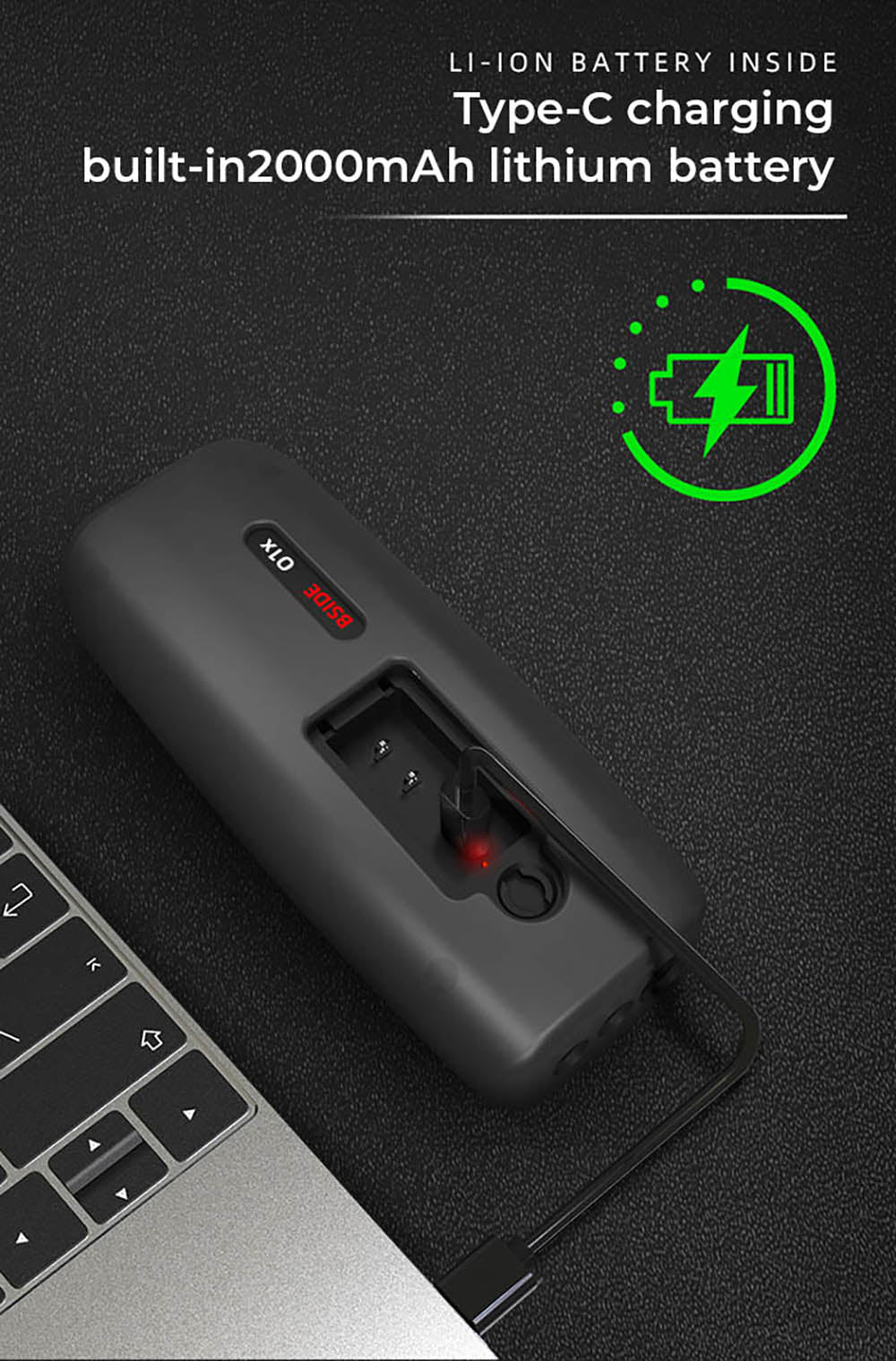

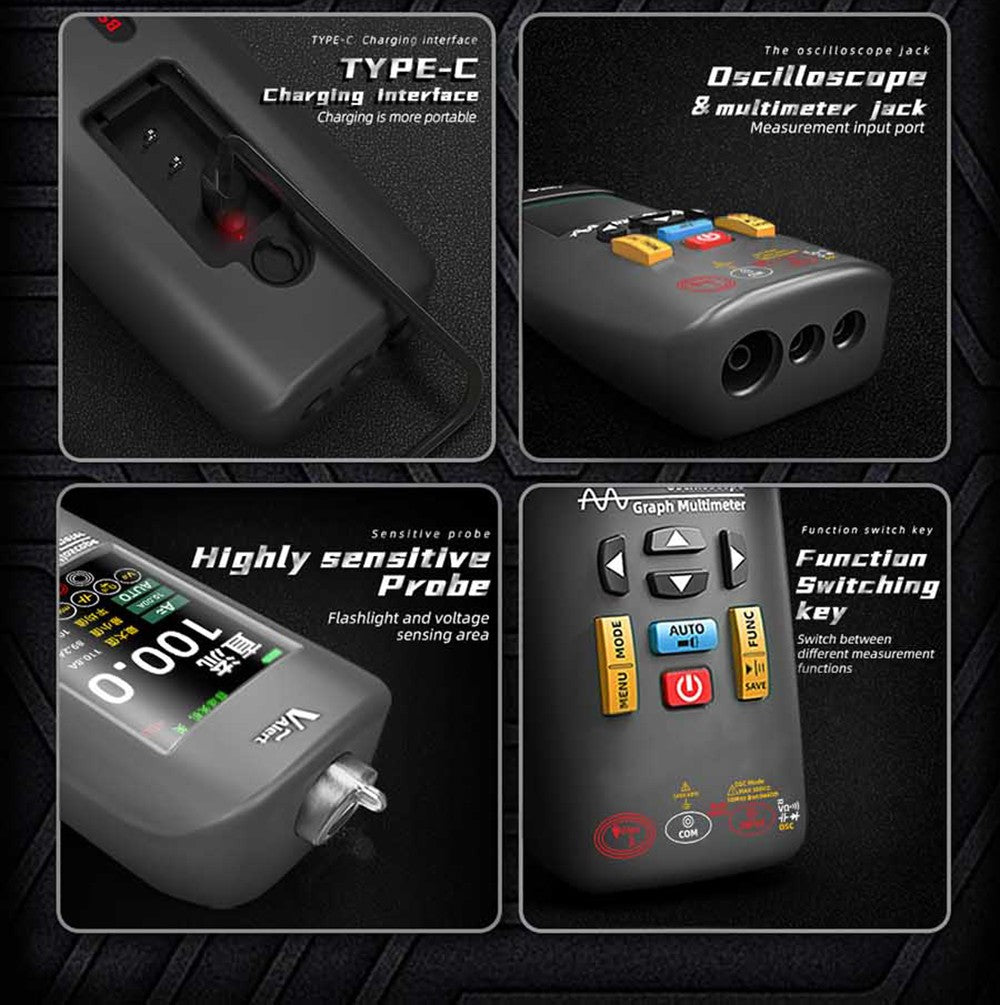

Rechargeable
The handheld oscilloscope multimeter comes with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.

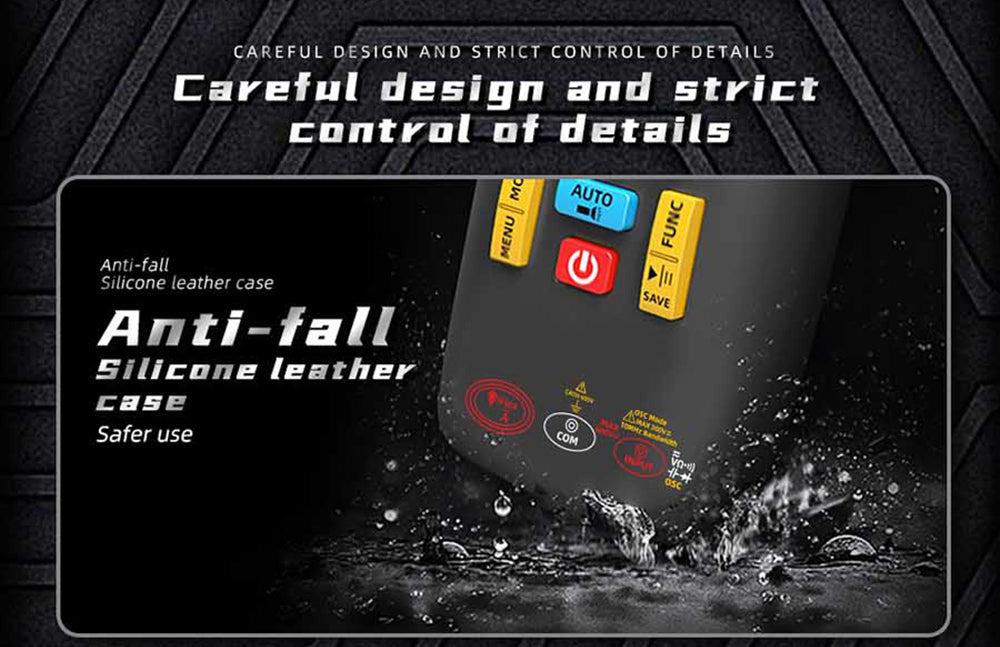

Carrying Case
The digital oscilloscope multimeter comes with a high-quality carrying case, perfect for use while you're on the go.

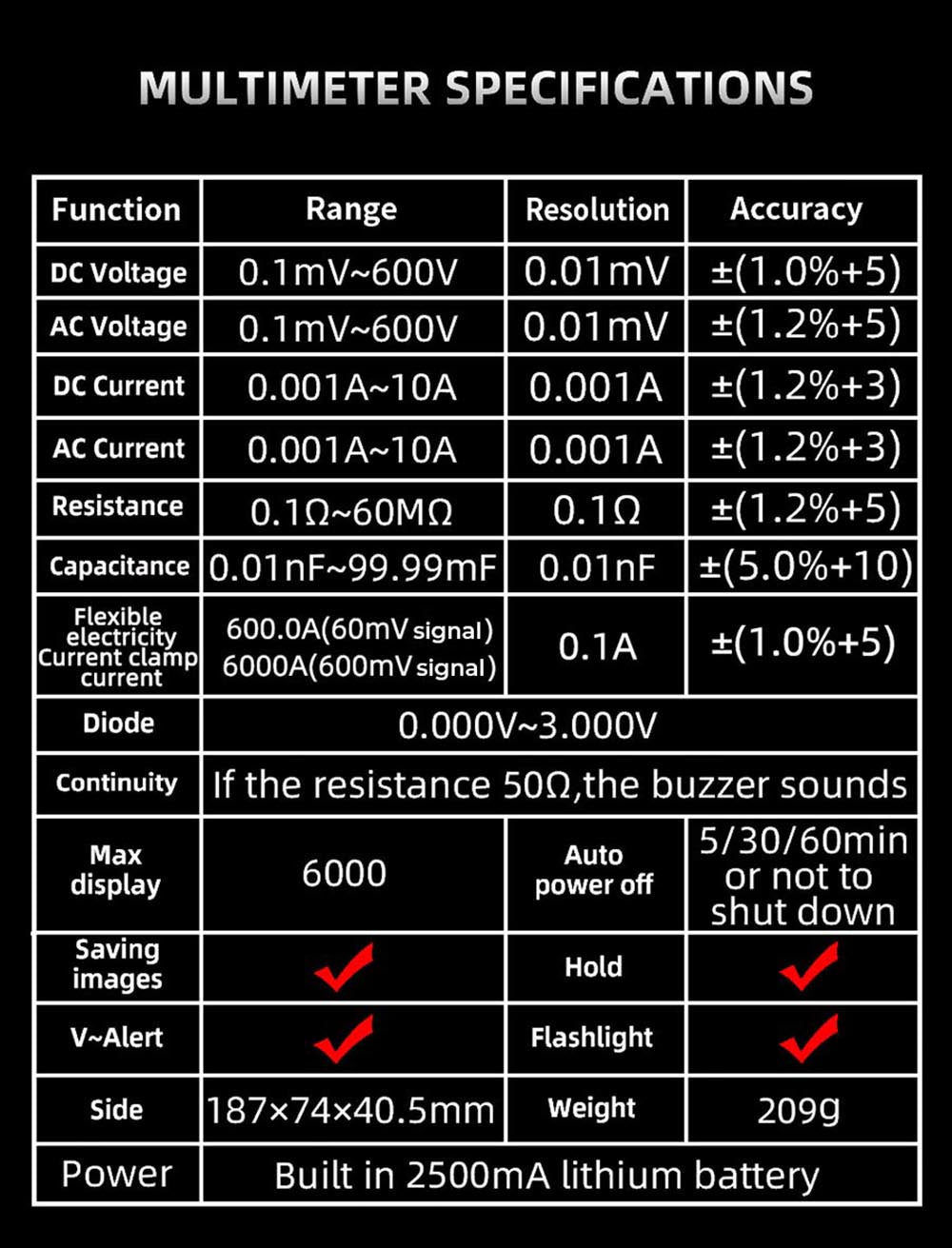

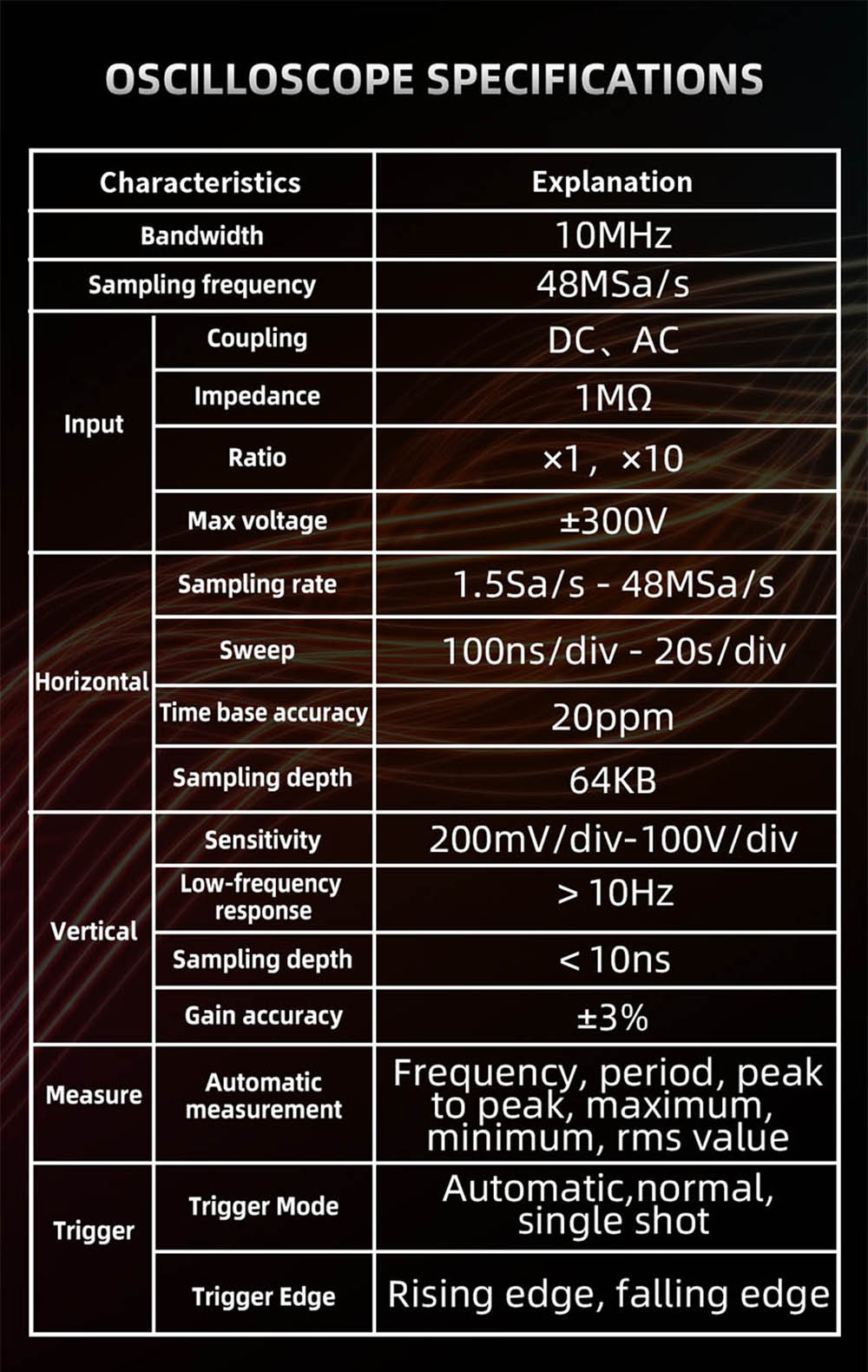

Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Oscilloscope Multimeter |
| Model | O1X |
| Color | Grey |
| Specification | |
| MAX Display | 6000 counts |
| Screen Size | 2.8 inch |
| Bandwidth | 10MHz |
| Real-time sample rate | 48MSa/s |
| Input Impedance | 1MΩ, @16pf |
| Maximum input voltage | 300V (DC+AC peak) |
| Horizontal SEC range | 100ns/div -20s/div |
| Vertical sensitivity | 20mV/div -100V/div |
| DC voltage | 60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V 0.1V ±(1%+5) |
| AC voltage | 60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5) |
| DC current | 6A/10A 0.001A/0.01A ±(1.2%+3) |
| AC current | 6A/10A 0.001A/0.01A ±(1.2%+3) |
| Resistance | 600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3); 6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5) |
| Capacitance | 99.99nF 0.01nF ±(5.0%+20); 999.9nF/9.999µF/99.99µF/999.9µF 0.1nF/0.001µF/0.01µF/0.1µF ±(4.5%+5); 9.999mF/99.99mF 0.001mF/0.01mF ±(5.0%+10) |
| Diode | Measures diodes within 3V |
| Continuity | Yes |
| V-Alert(non-contact voltage detection) | Yes |
| Power | 2000mA battery (rechargeable) |
| Weight & Size | |
| Product Weight | 209g |
| Package Weight | 512.5g |

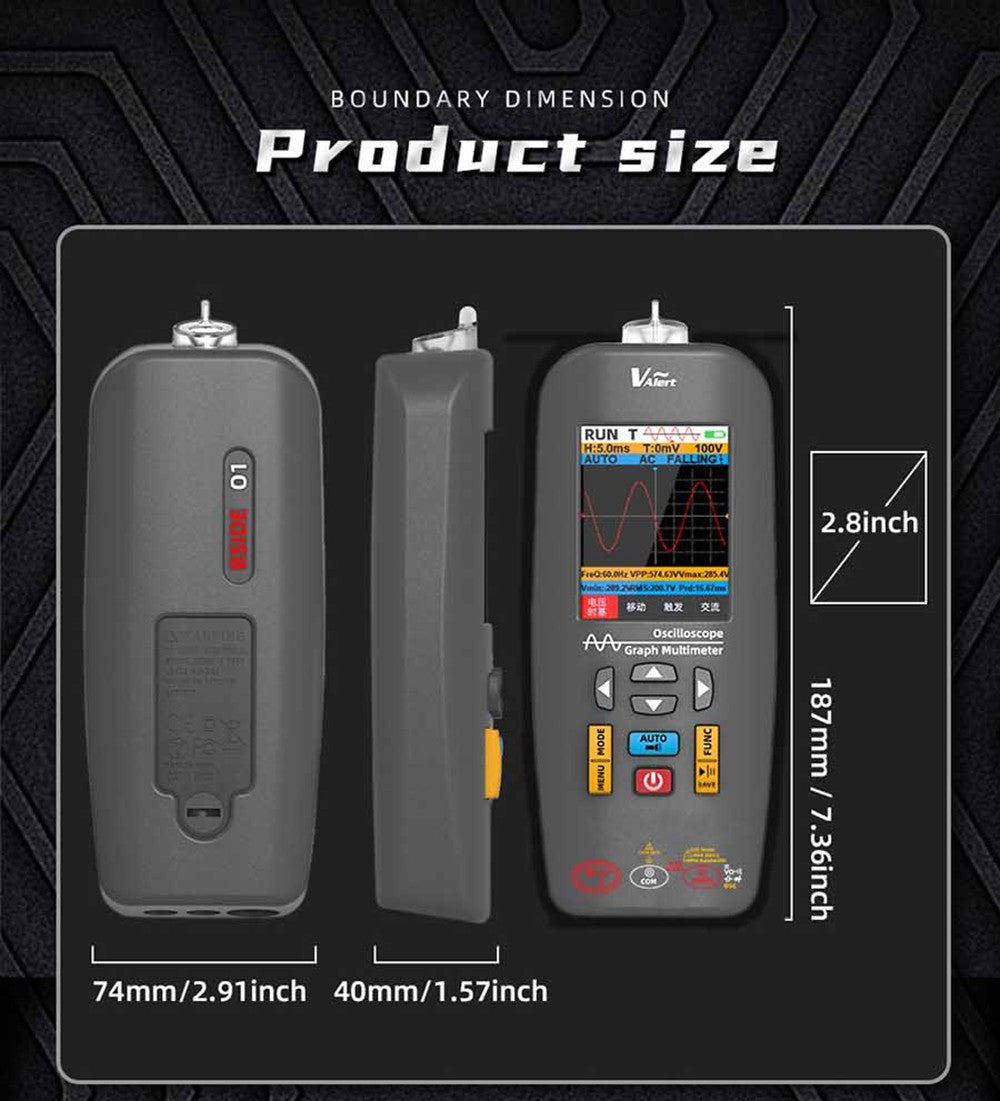

| Product Size(L x W x H) | 187*74*40mm |
| Package Size(L x W x H) | 235*135*52mm |

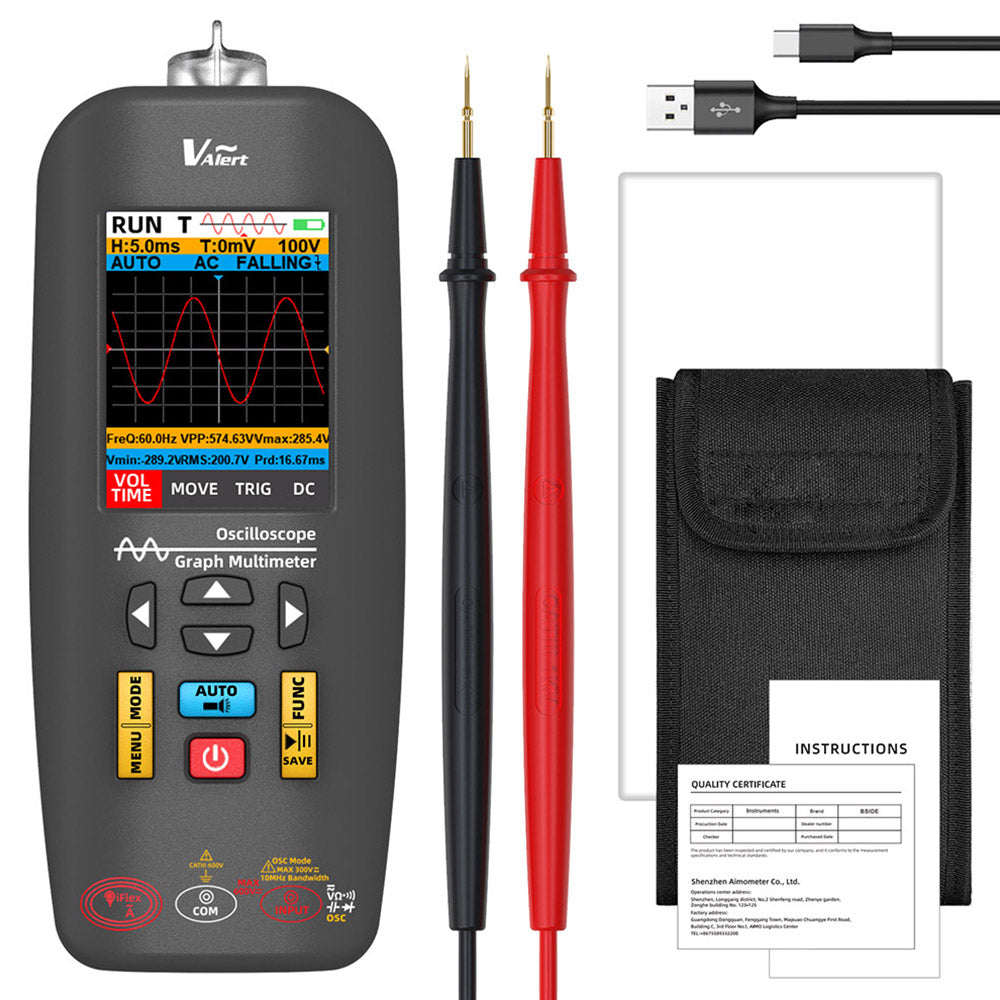

| Package Contents | |
| 1 x Oscilloscope Multimeter | |
| 1 x Test Lead | |
| 1 x Carrying Case | |
| 1 x Charging Cable | |
| 1 x User Manual | |
| 1 x 2000mA Lithium Battery (Built-in) | |
