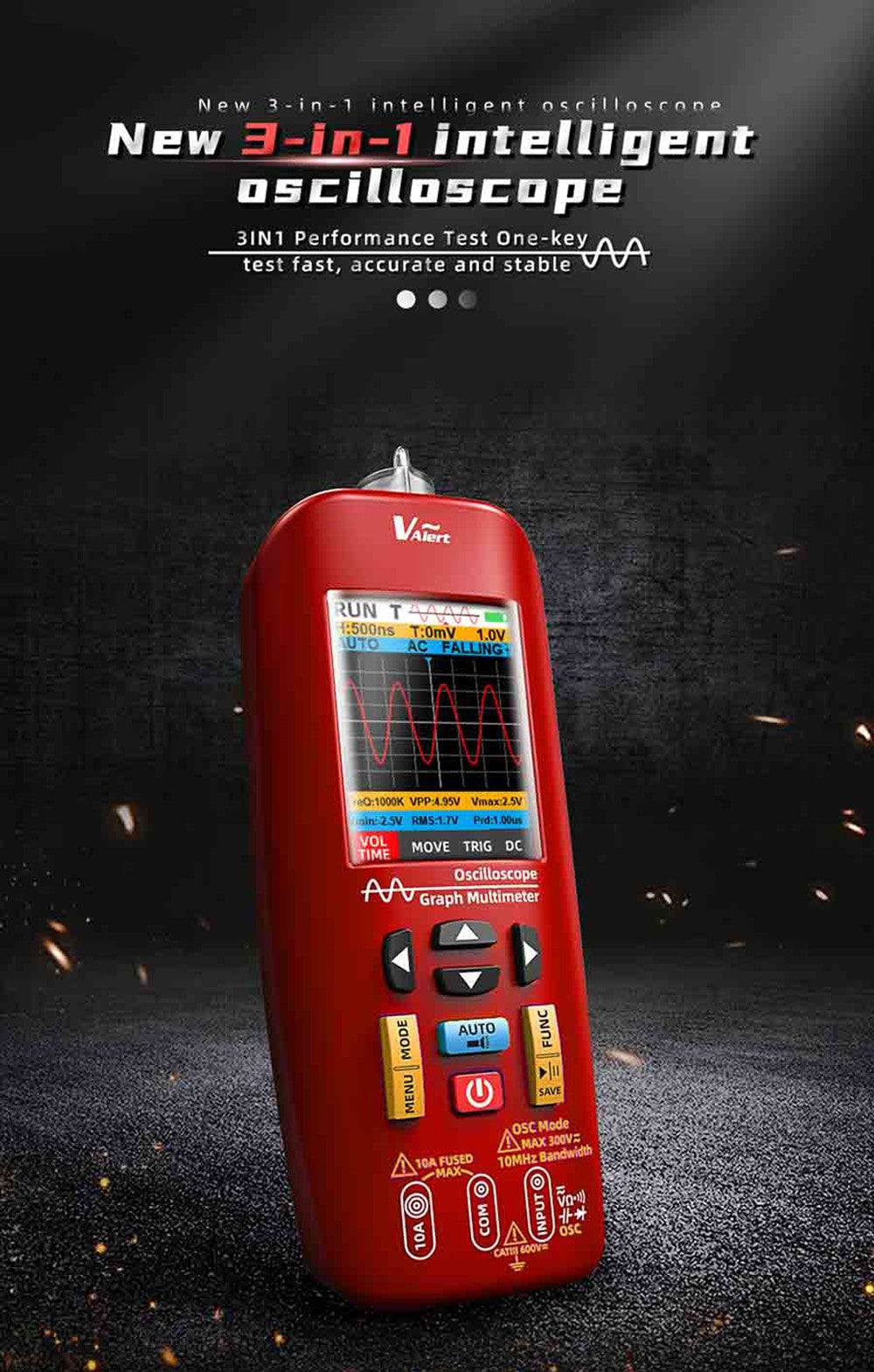

BSIDE O1 Digital Oscilloscope

BSIDE O1 highlights

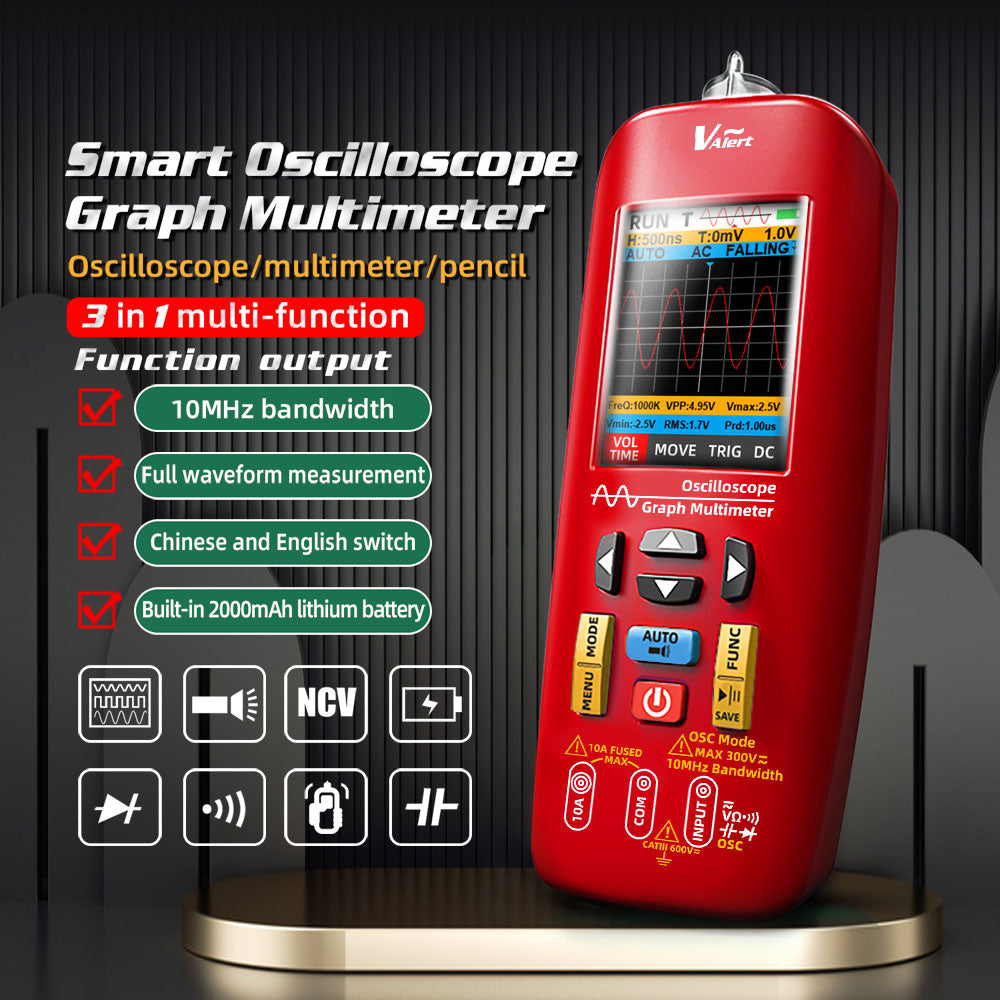

3-in-1 Performance

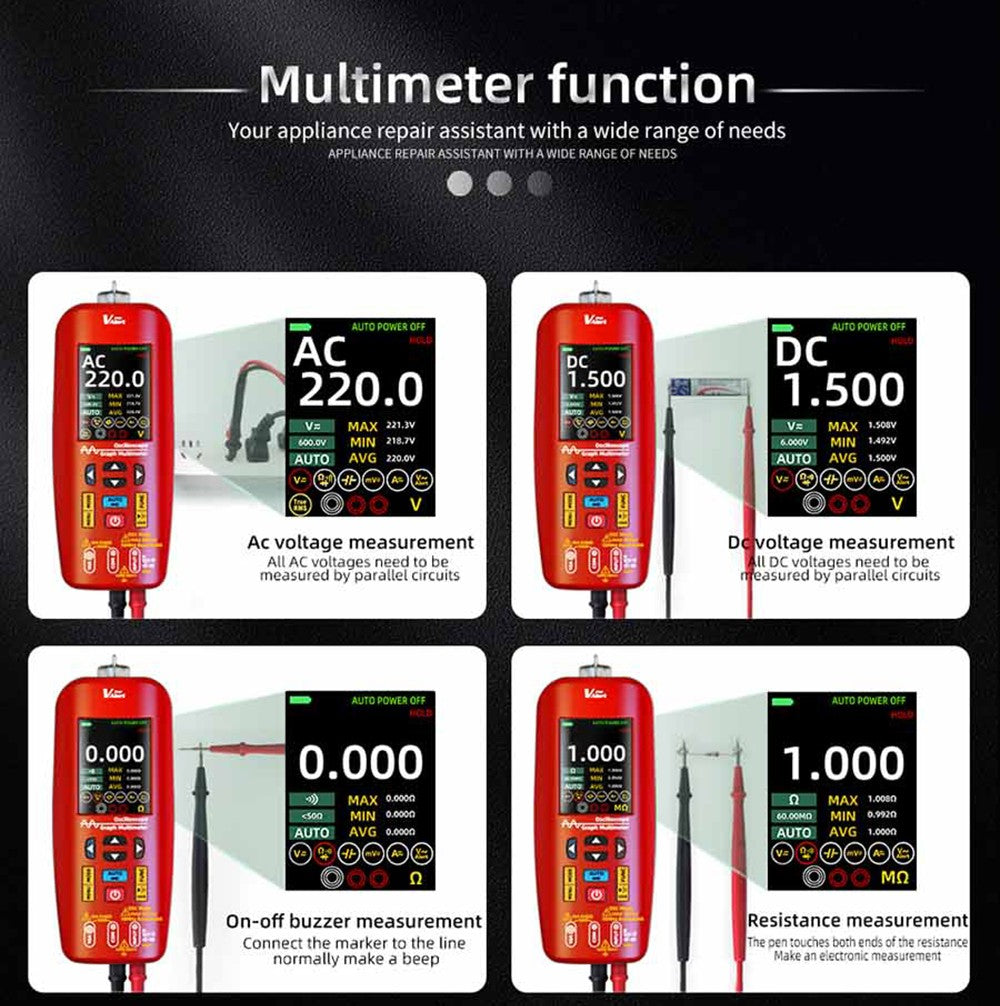

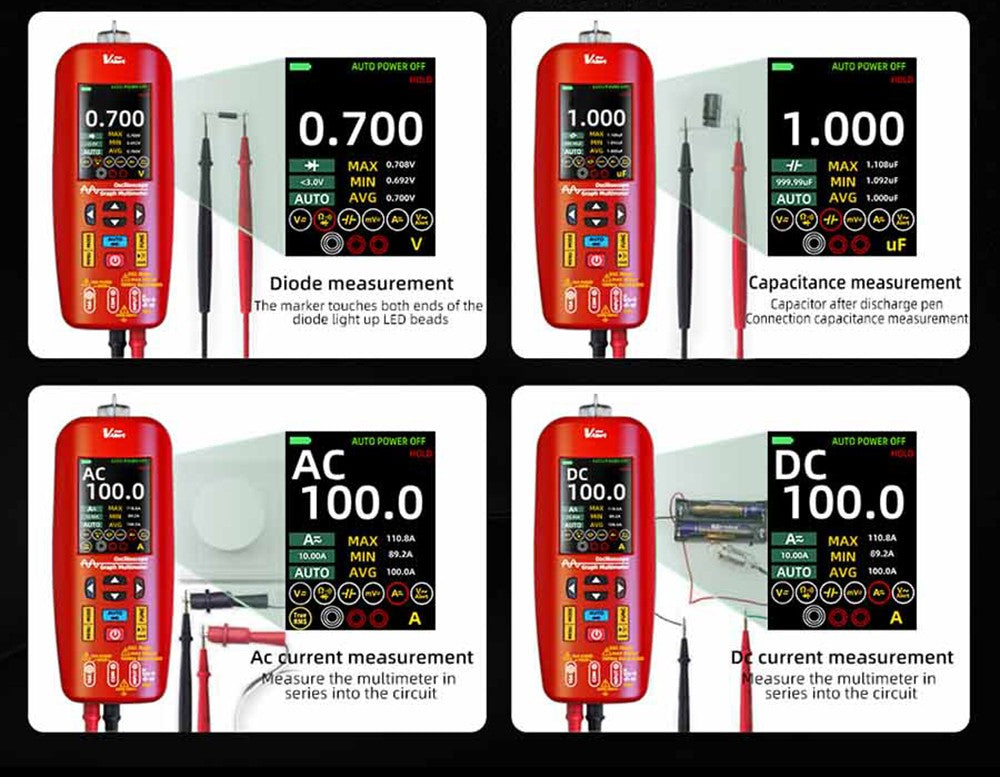

The BSIDE O1 is a digital handheld instrument that integrates the functions of an oscilloscope, multimeter, and electric pen, providing users with a wide range of measurement and testing options.

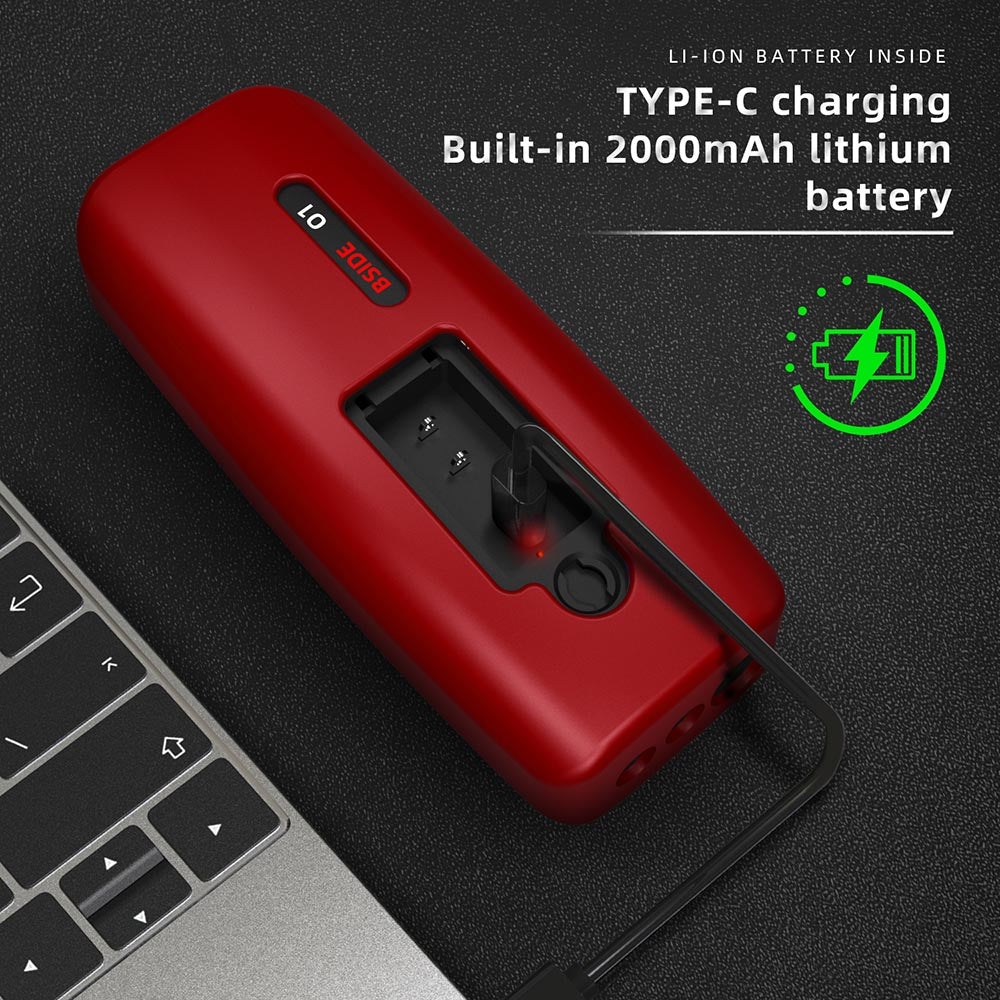

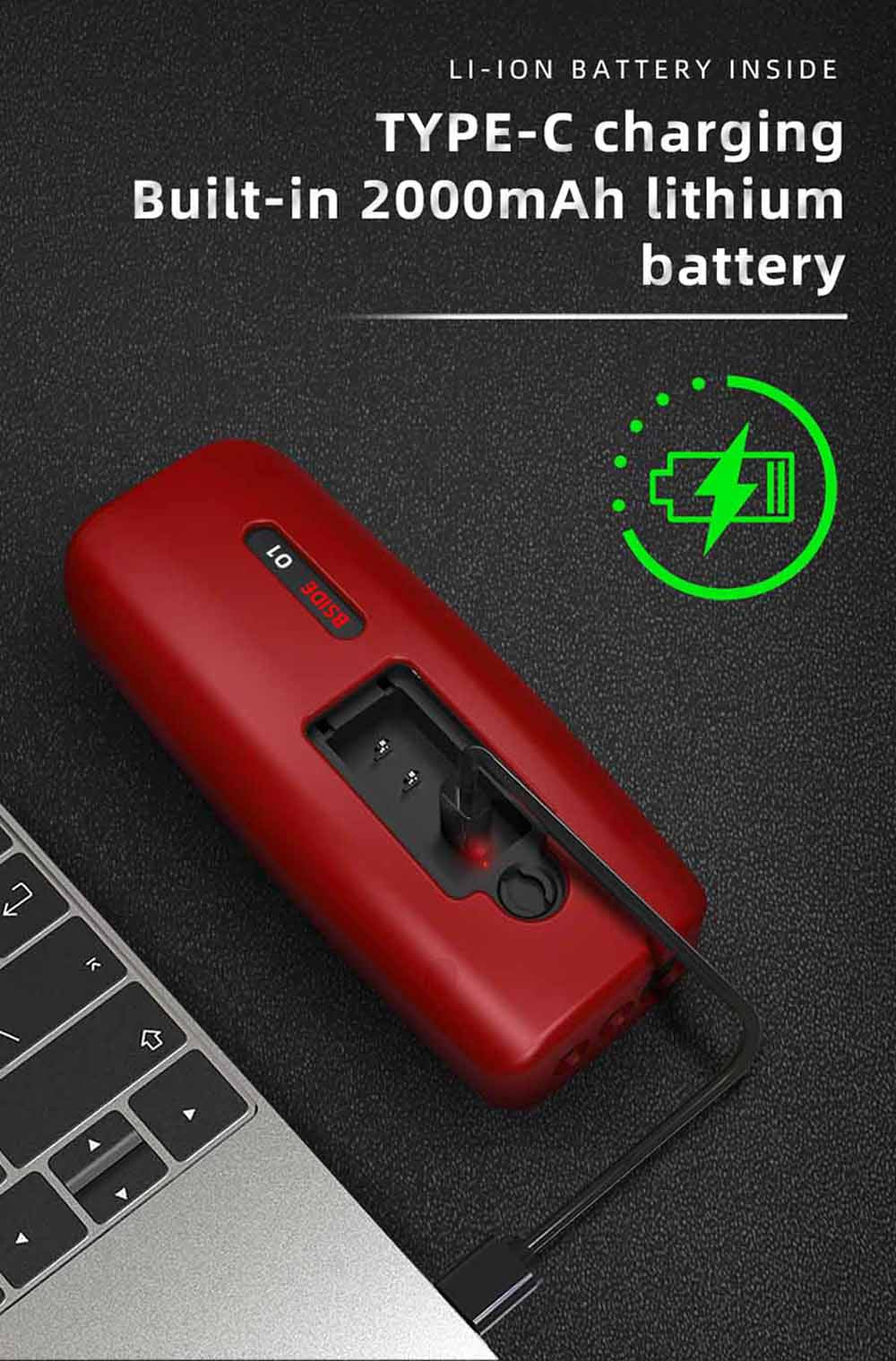

Built-in Lithium Battery

Equipped with a built-in 3.7V 2000mAh lithium battery, the device is more portable and eliminates the need for frequent battery replacements, ensuring an extended operational lifespan.

Broadband Design

With a bandwidth of 10MHz, the BSIDE O1 is capable of handling higher-frequency signals, making it suitable for a broader range of electronic measurements and experiments.

Large Record Length

Supporting a maximum record length of 64Kbyte (k), this means the device can capture and store relatively long signal waveforms, enabling users to conduct more detailed analyses and investigations into circuit behavior.

Portability and Flexibility

Due to its handheld design, the BSIDE O1 is well-suited for use in laboratories, work environments, or any other situations requiring mobility. This flexibility makes it an ideal choice for engineers, technicians, and enthusiasts alike.

General
Brand	BSIDE
Type	Digital Oscilloscope
Model	O1
Color	Red

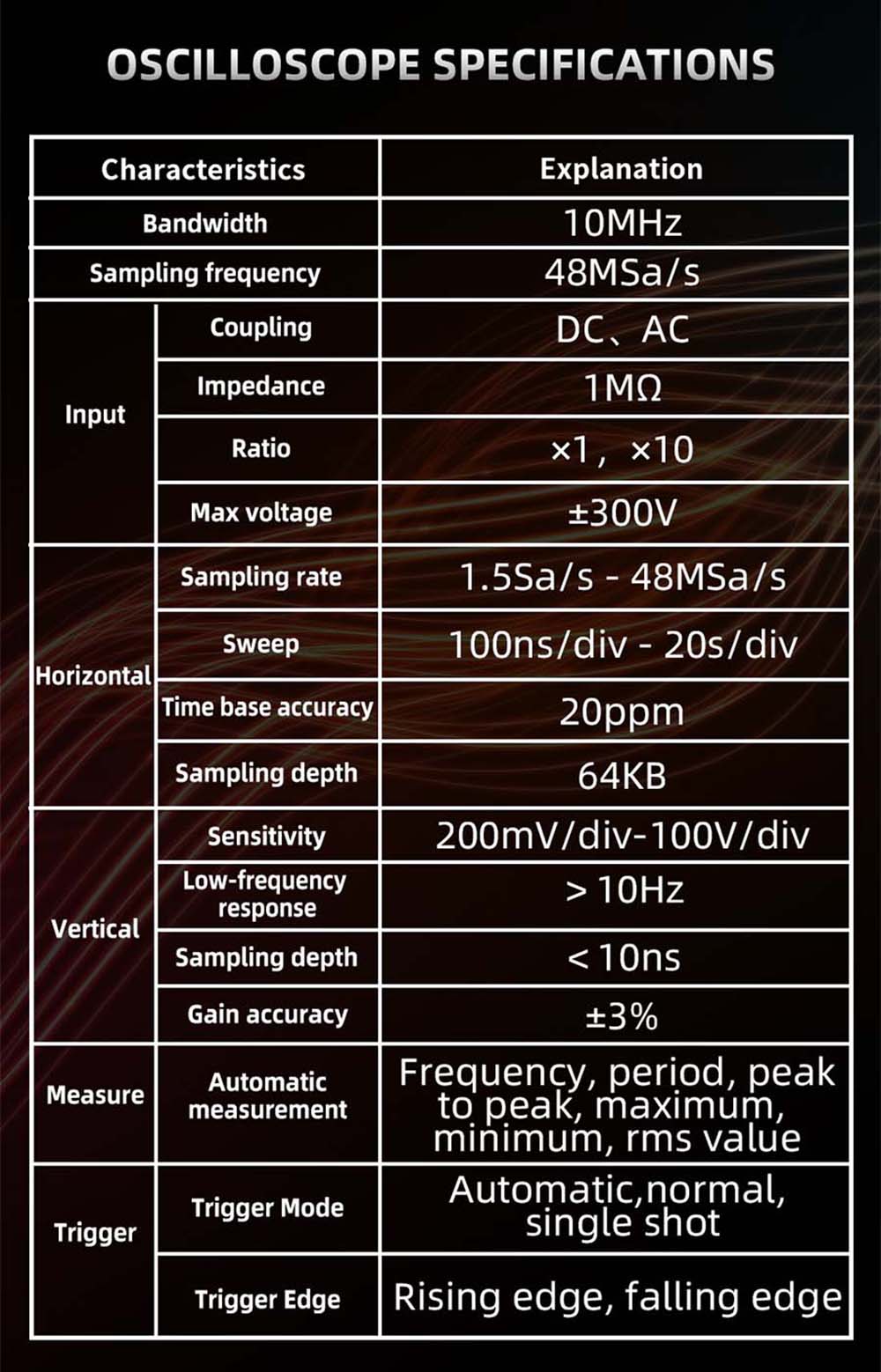

Specification
Bandwidth: 10MHz
Sampling frequency: 48MSa/s
Input
Coupling: DC, AC
Impedance: 1MΩ
Ratio: x1, x10
Max voltage: ±300V
Horizontal
Sampling rate: 1.55a/s - 48MSa/s
Sweep: 100ns/div - 20s/div
Time base accuracy: 20ppm
Sampling depth: 64KB
Vertical
Sensitivity: 200mV/div-100V/div
Low-frequency response: >10Hz
Sampling depth: <10ns
Gain accuracy: ±3%
Measure:

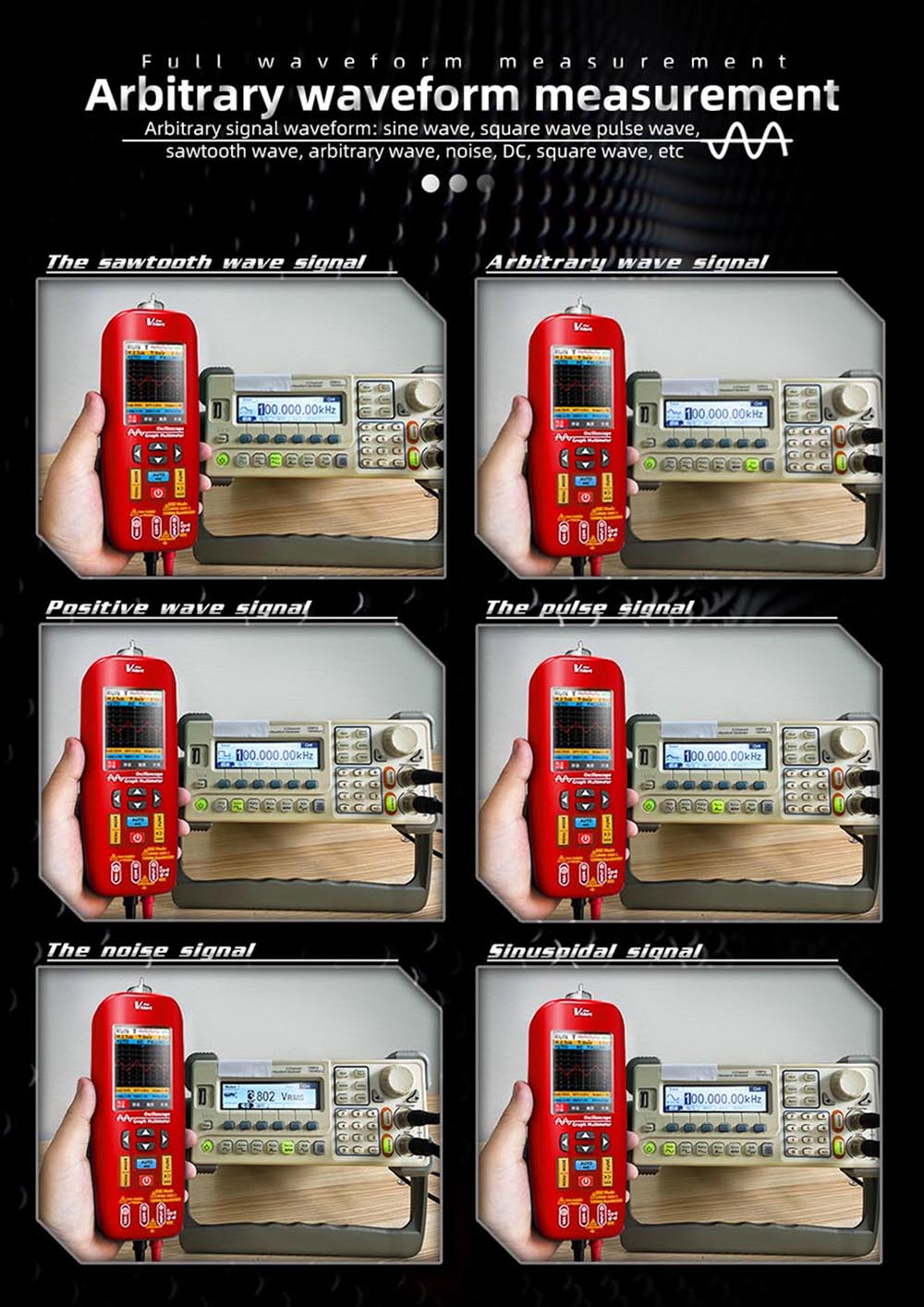

Automatic measurement: Frequency, period, peak to peak, maximum, minimum, rms value
Trigger Mode: Automatic, normal, single shot
Trigger Edge: Rising edge, falling edge

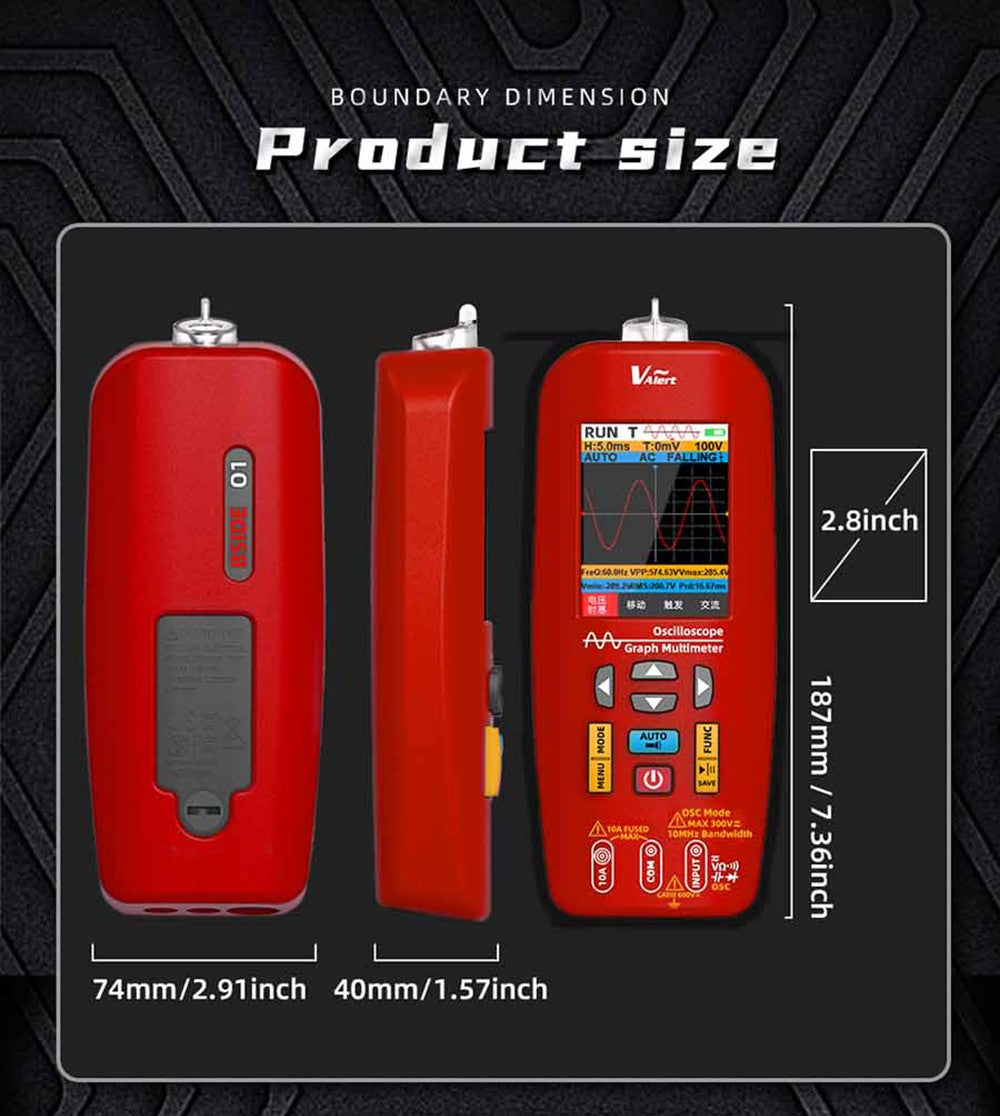

Weight & Size
Product Weight	269g
Package Weight	478g
Package Size(L x W x H)	235*130*55mm

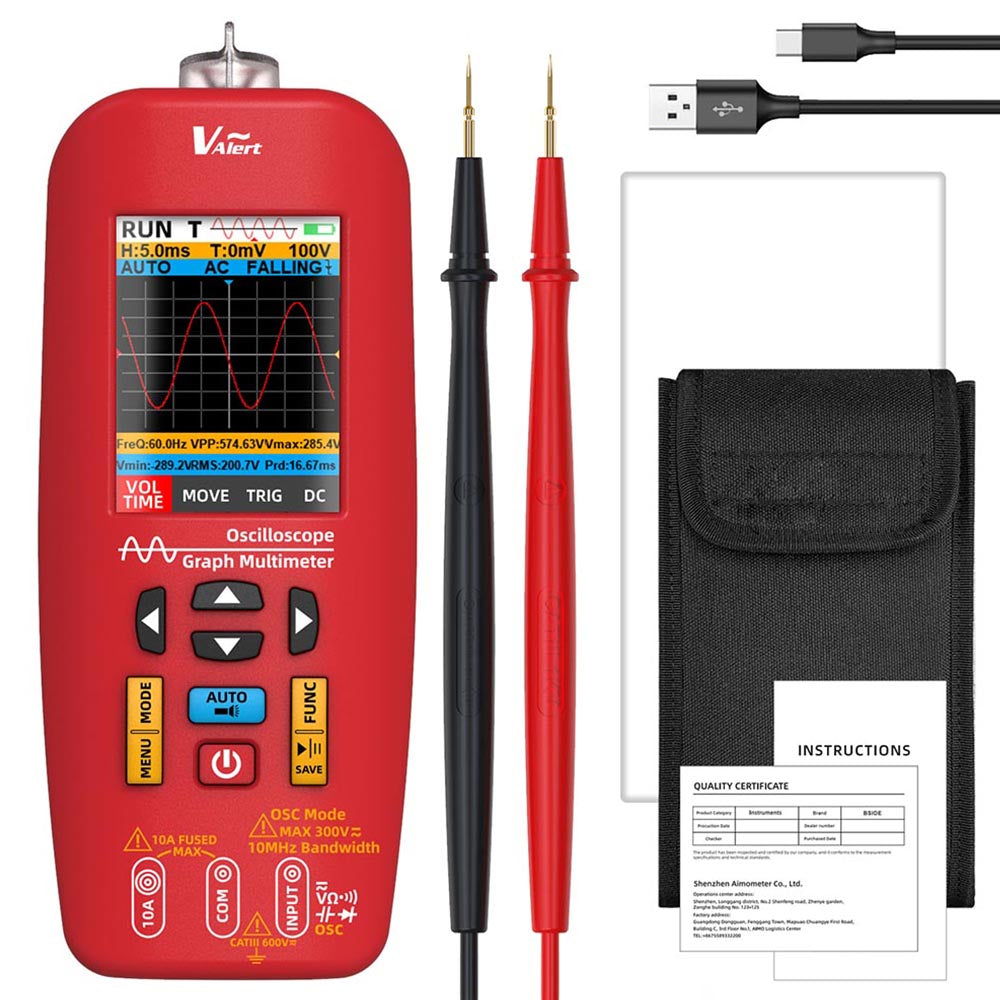

Package Contents
1 x Digital Oscilloscope
1 x User Manual
