BSIDE G1 Combustible Gases Leak Detector

BSIDE G1 highlights

High Precise Sensors

The use of high-precise NTC and gas sensors, with fast-response speed, supports more accurate measurements and easily handles a variety of detection environments.

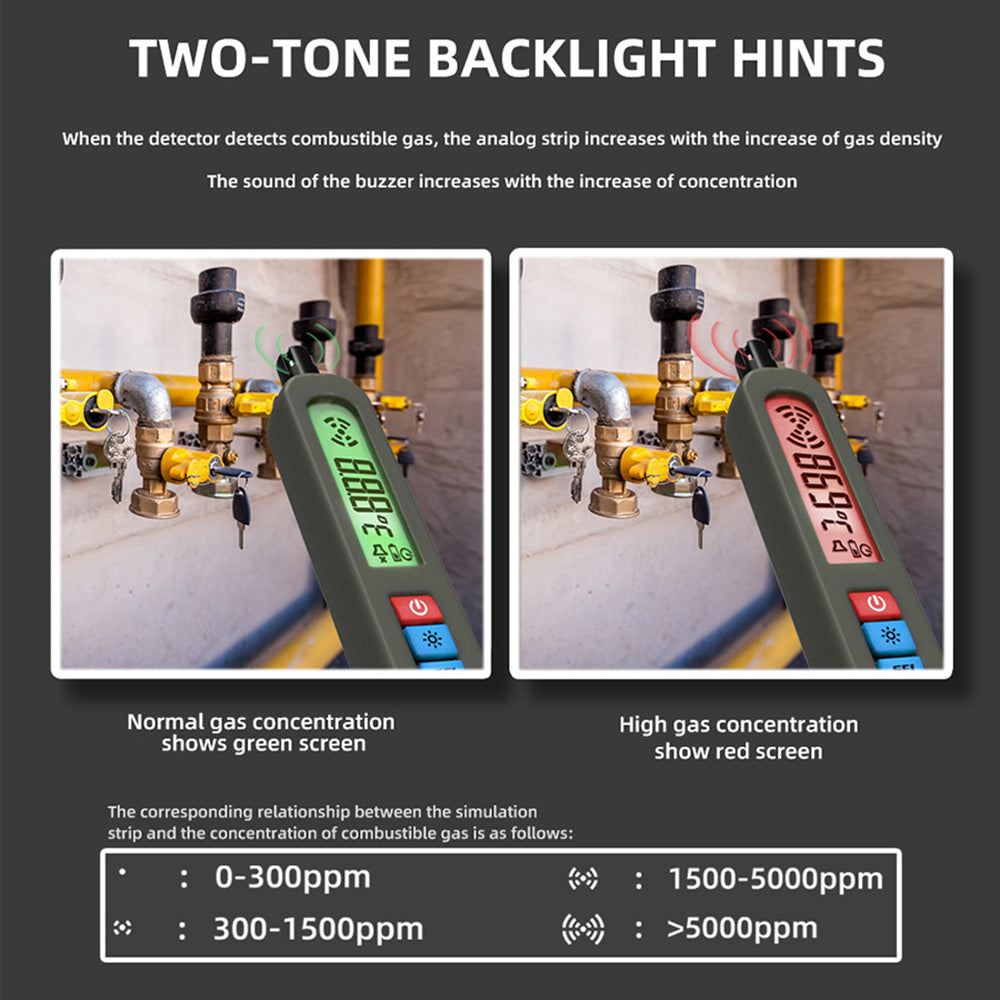

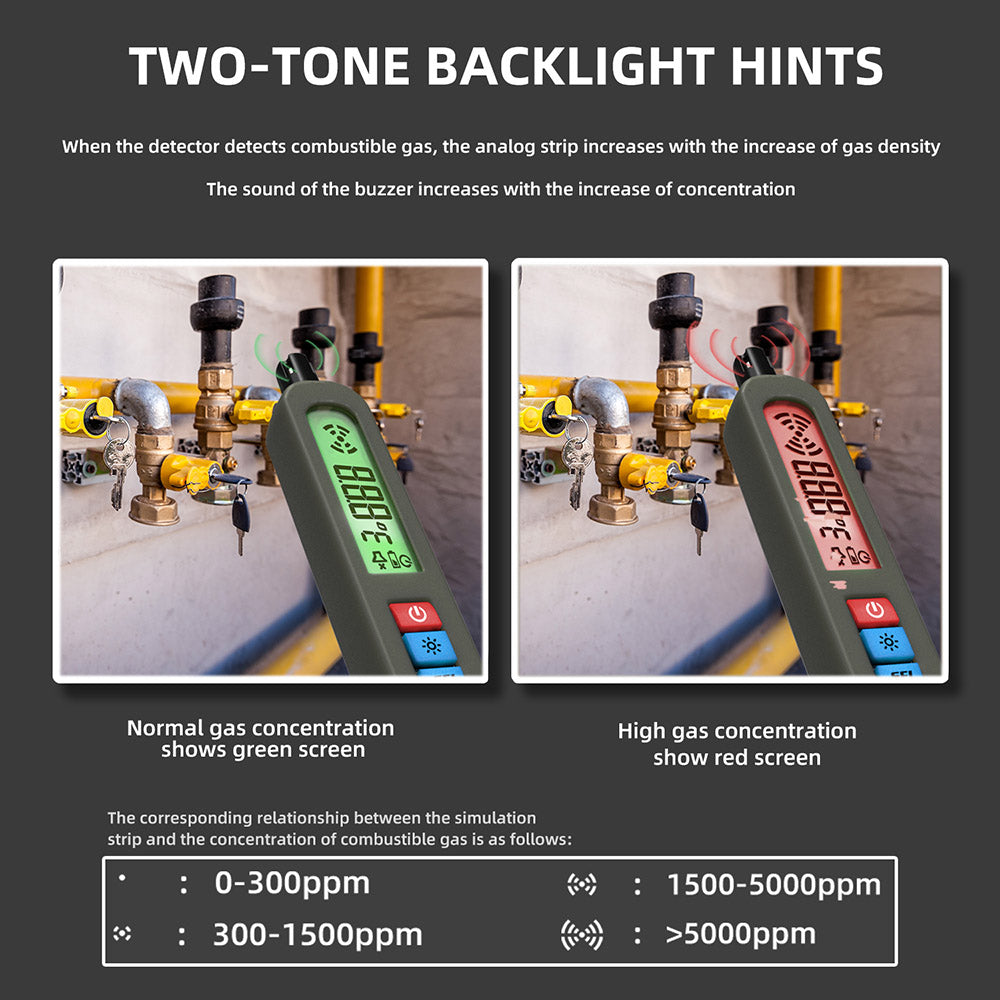

LCD Display with Backlight

Digital LCD display with backlight, with clear definition, with concentration bar display function, and the instrument can automatically adjust the appropriate color backlight according to the measured concentration, green for normal and red for over the threshold.

High and Low-sensitivity Adjustable

With high and low-sensitivity adjustable functions, it is convenient for users to safely detect and test a variety of combustible gas types, and it is easy to meet different testing needs.

Measurable Gases Types

It can detect various gases such as methane, natural gases, carbon monoxide, gasoline, alcohol, ethanol, gases, propane, benzene, ethylene oxide, ethane, acetylene, and ethylene.

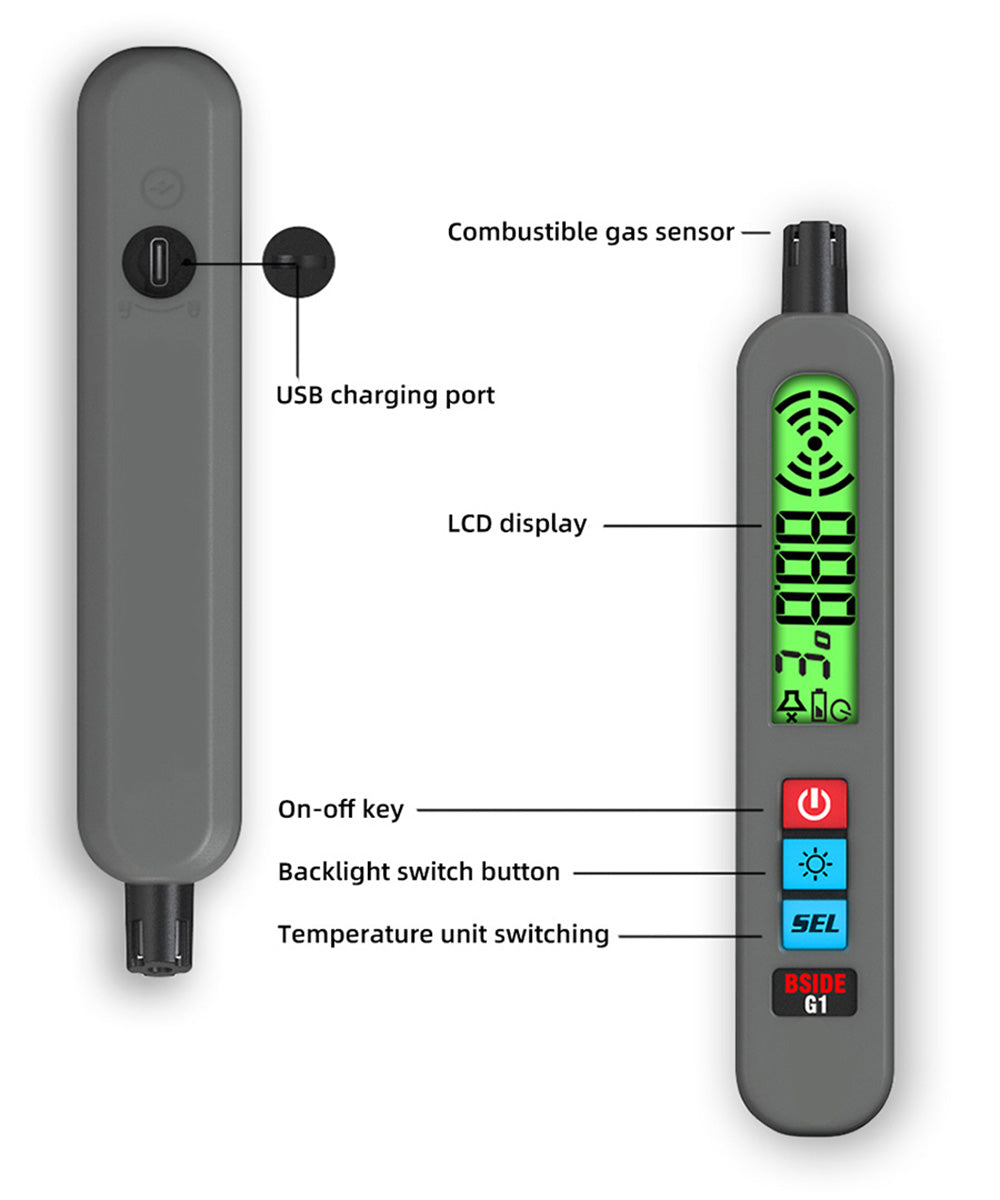

Multifunction Design

With auto power-off function, temperature, and humidity test, low battery indicator, and ℃/℉ temperature unit switching function.

Sound & Light & Vibration Alarm

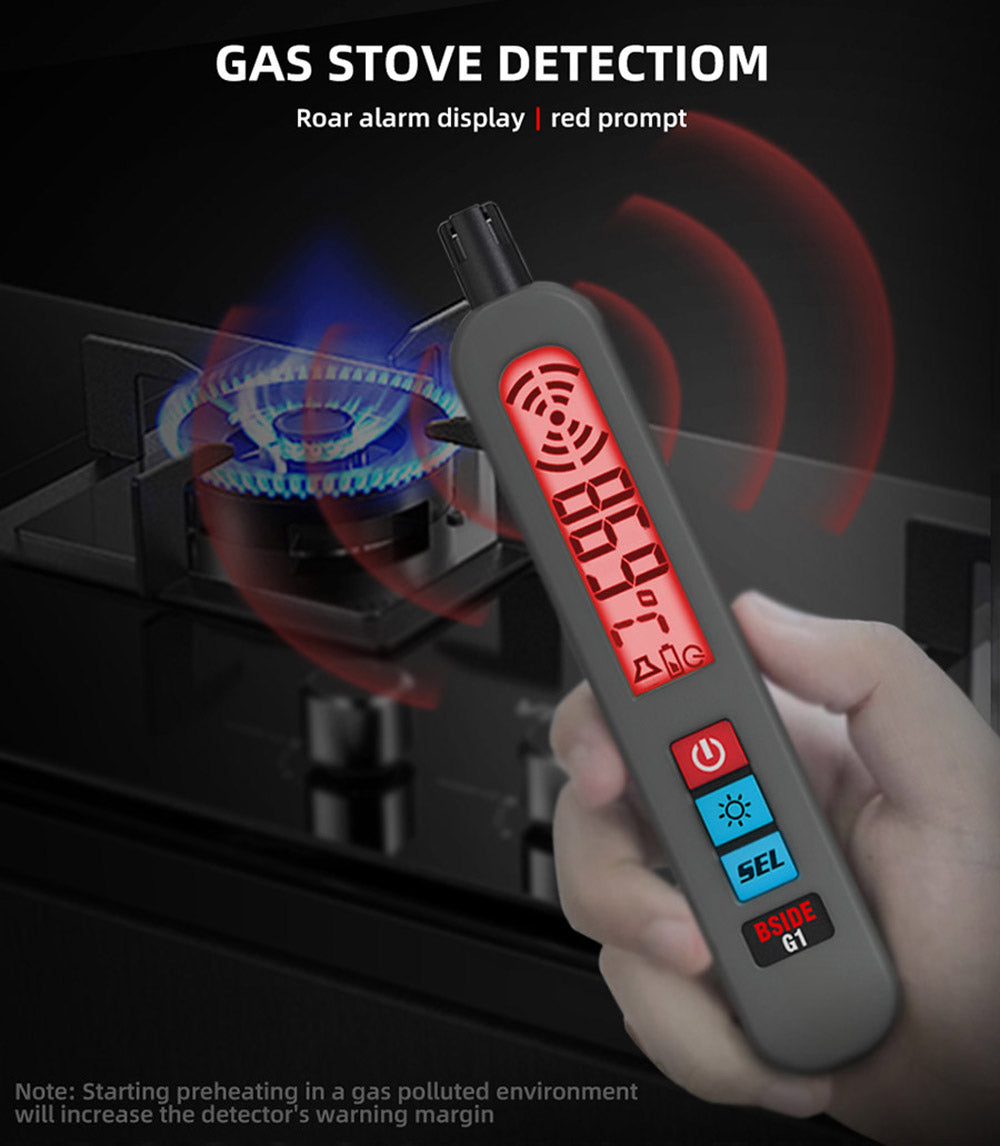

Supports sound, light, and vibration prompt function; when combustible gas leakage is detected, the concentration bar increases, the meter beeps faster, and the vibration accelerates as the tested density of the gases increases.

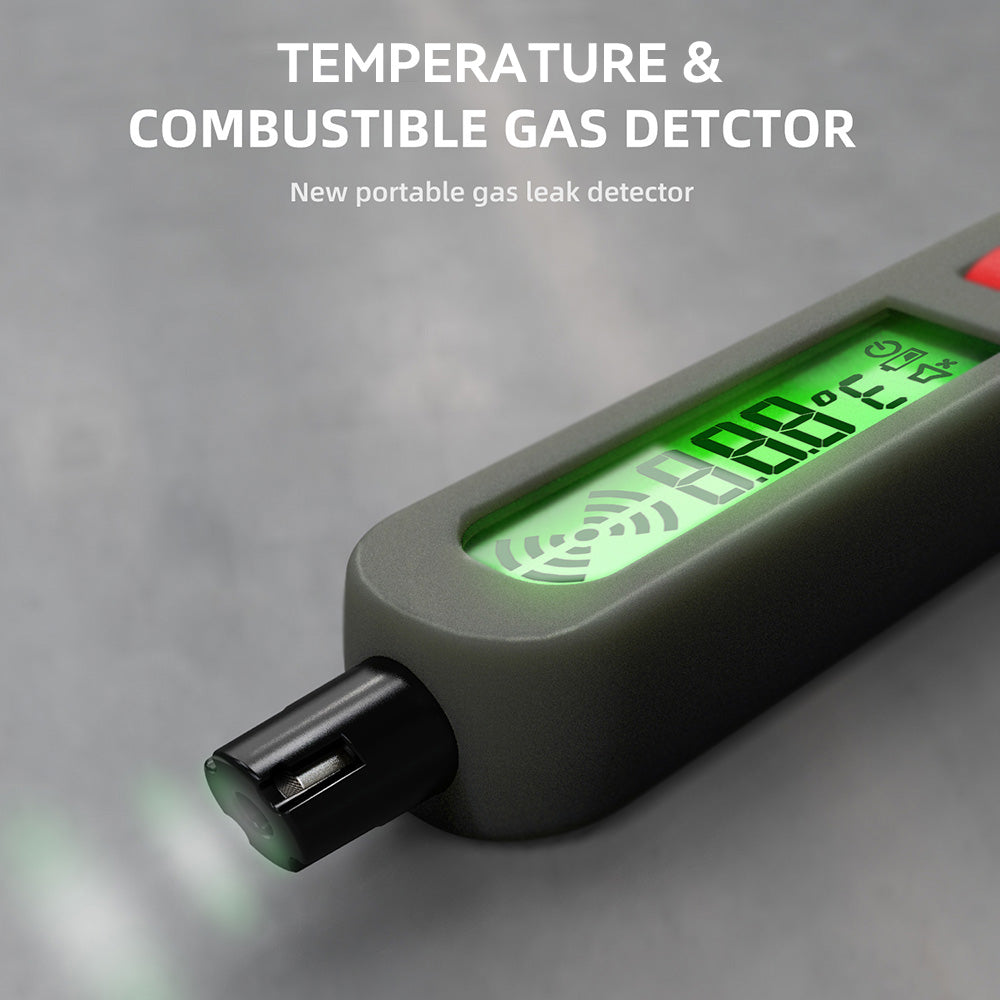

Compact Size

Portable gas detector, compact ABS body, drop and dust resistant, fast response, quick leak

Wide Applications

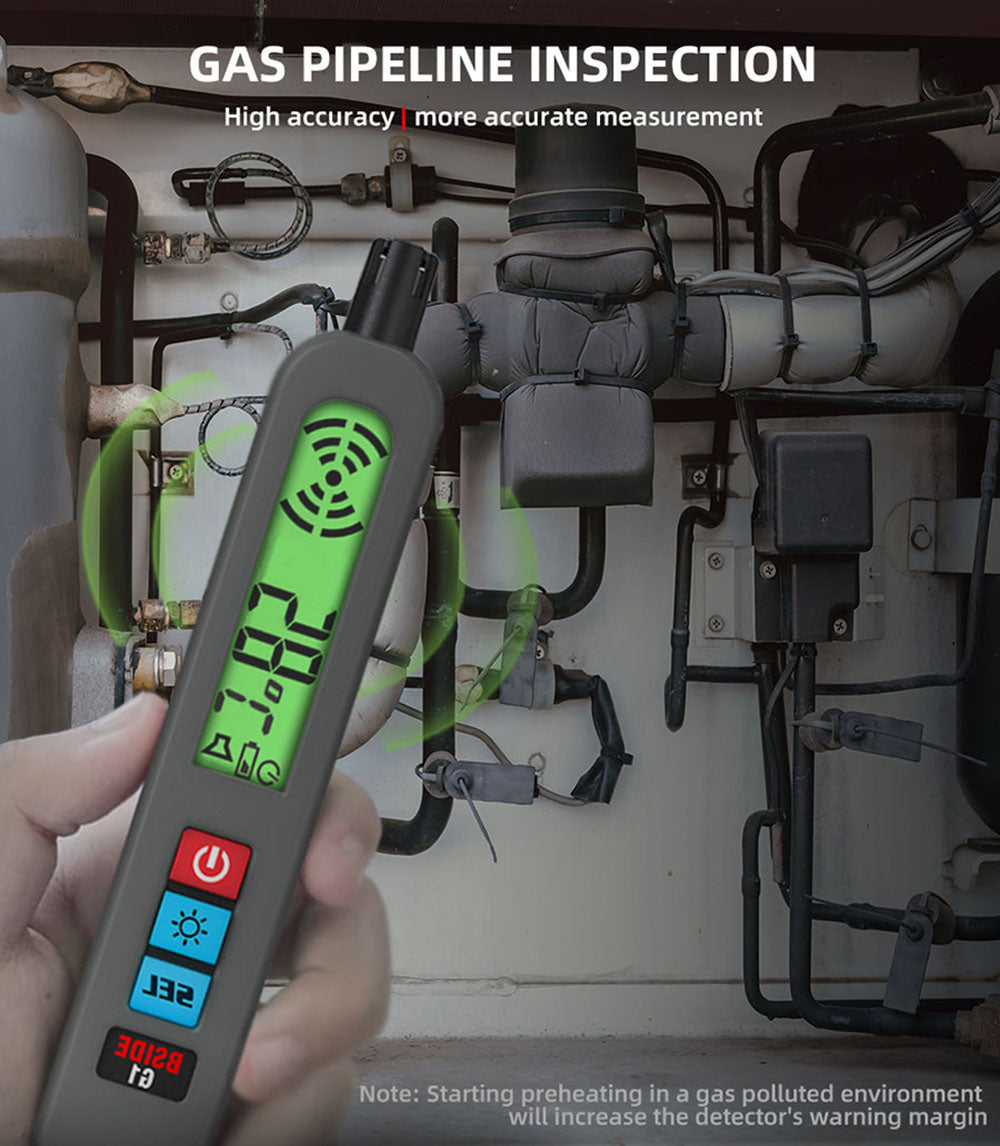

Suitable for water heating device detection, gas pipeline detection, industrial waste gas detection, gas pipeline detection, oil station operation, gas leak detection, etc.

General
Brand	BSIDE
Type	Combustible Gases Leak Detector
Model	G1
Color	Grey
Specification

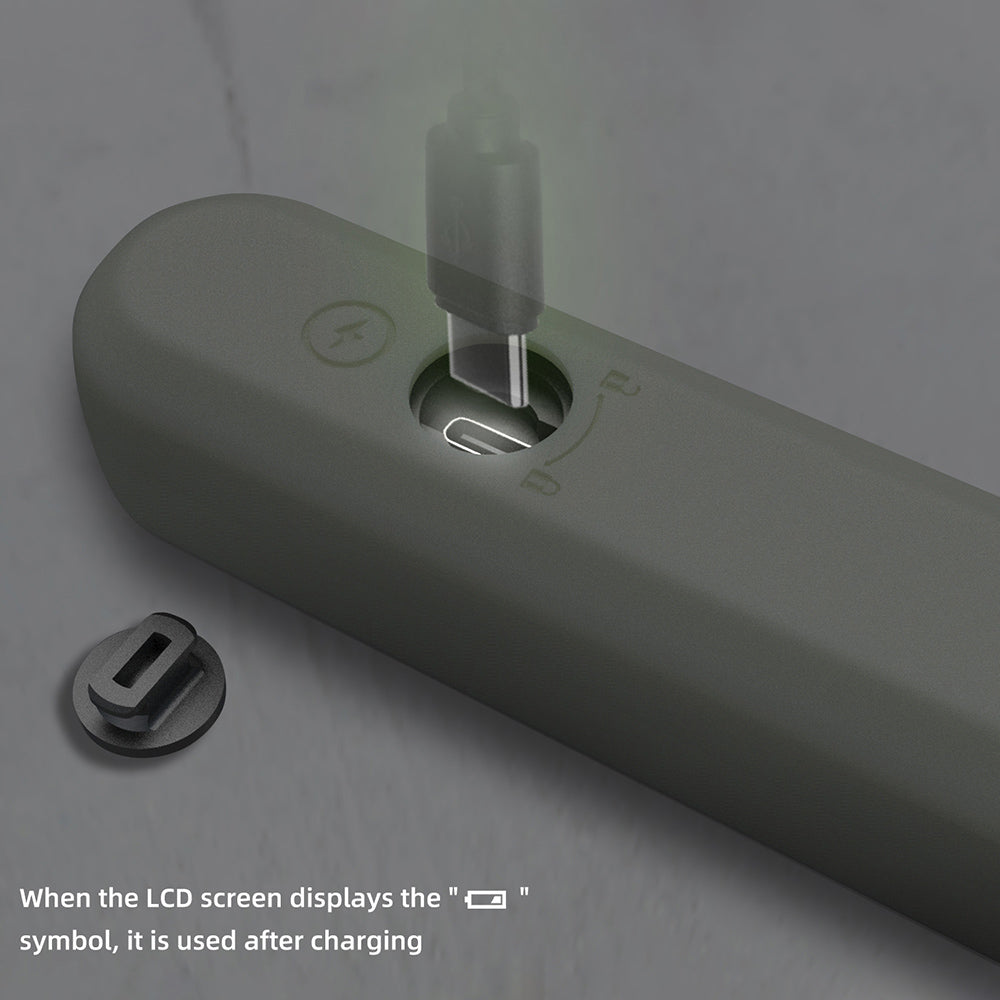

Battery	1 x 3.7V, 400mAh battery (included)
Display	color LCD display with backlight

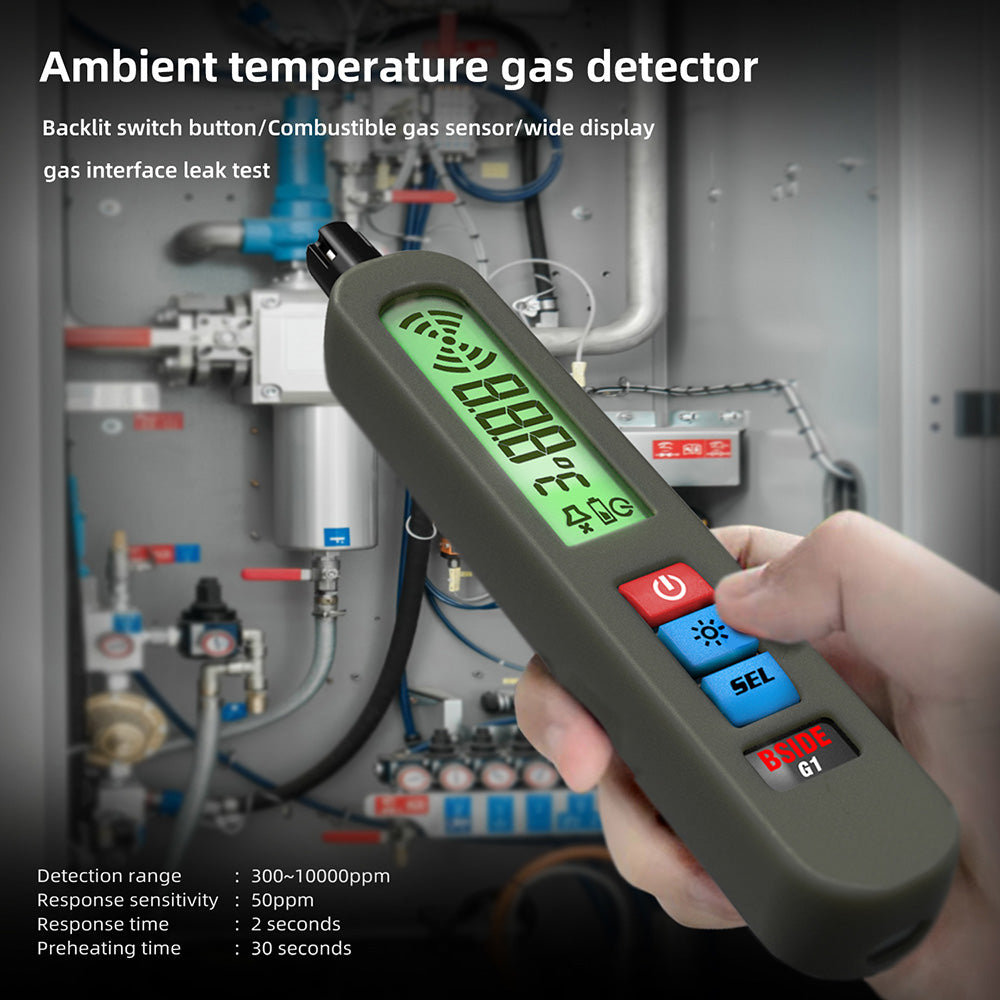

Combustible gases detection ranges	300-10000ppm
Response sensitivity	50ppm
Temperature test ranges	0-50°C/32-122℉, ±2°C/4℉
Response speed	2 seconds
Calibration mode	30 seconds auto-calibration on
Automatic shutdown	about 5 minutes
Alarm mode	sound, light and screen display, vibration
Low battery indication	Yes
Warm-up time	30 seconds
Working temperature	0-40°C
Working humidity	0-90%RH
Storage environment	-12°C to 60°C(0%-75%RH)
Detecting gases	combustible gases
Test Gases (partial list)	methane, natural gases, carbon monoxide, gasoline, alcohol, ethanol, gases, propane, benzene, ethylene oxide, ethane, acetylene, ethylene

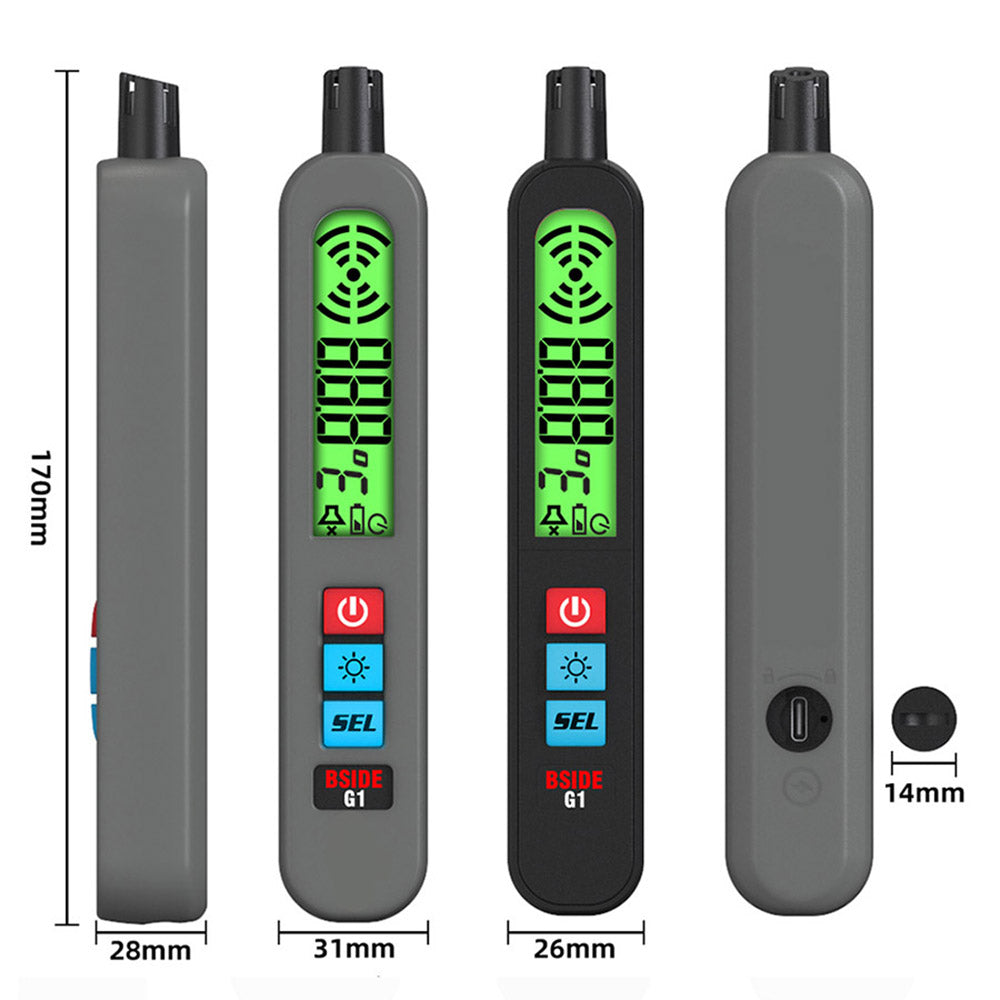

Weight & Size
Product Weight	67g
Package Weight	110g
Package Size(L x W x H)	200*47*30mm

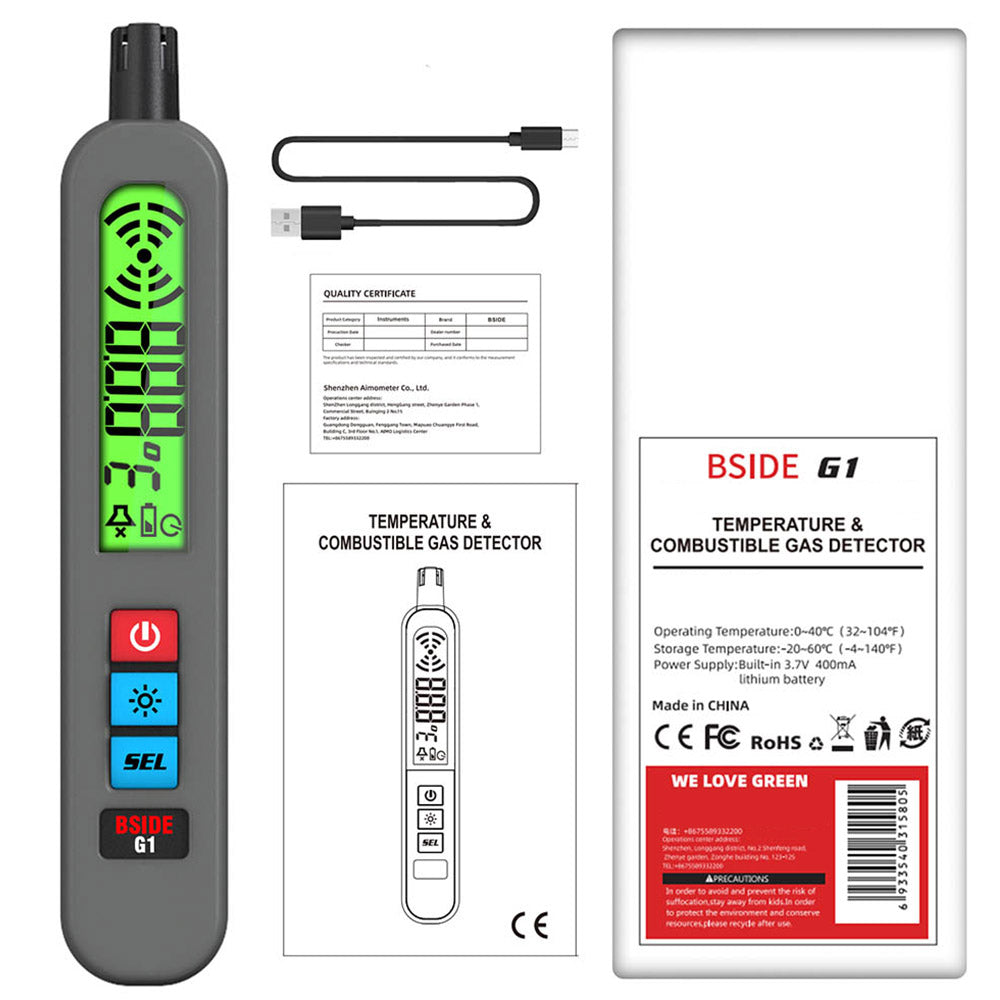

Package Contents
1 x Combustible Gases Leak Detector
1 x User Manual
