BSIDE A50 Digital Multimeter

BSIDE A50 highlights

Multi-functional Design

The product has a built-in high-precise measurement module that integrates voltage, current, resistance, capacitance, diode, frequency, duty cycle, and other parameter measurement functions, offering a holistic electrical parameter measurement solution that satisfies both professional electricians and DIY enthusiasts. It comes with a silicone meter pen to quickly identify whether the leakage voltage level is high or low to meet the electronic testing needs under high and low-temperature environments.

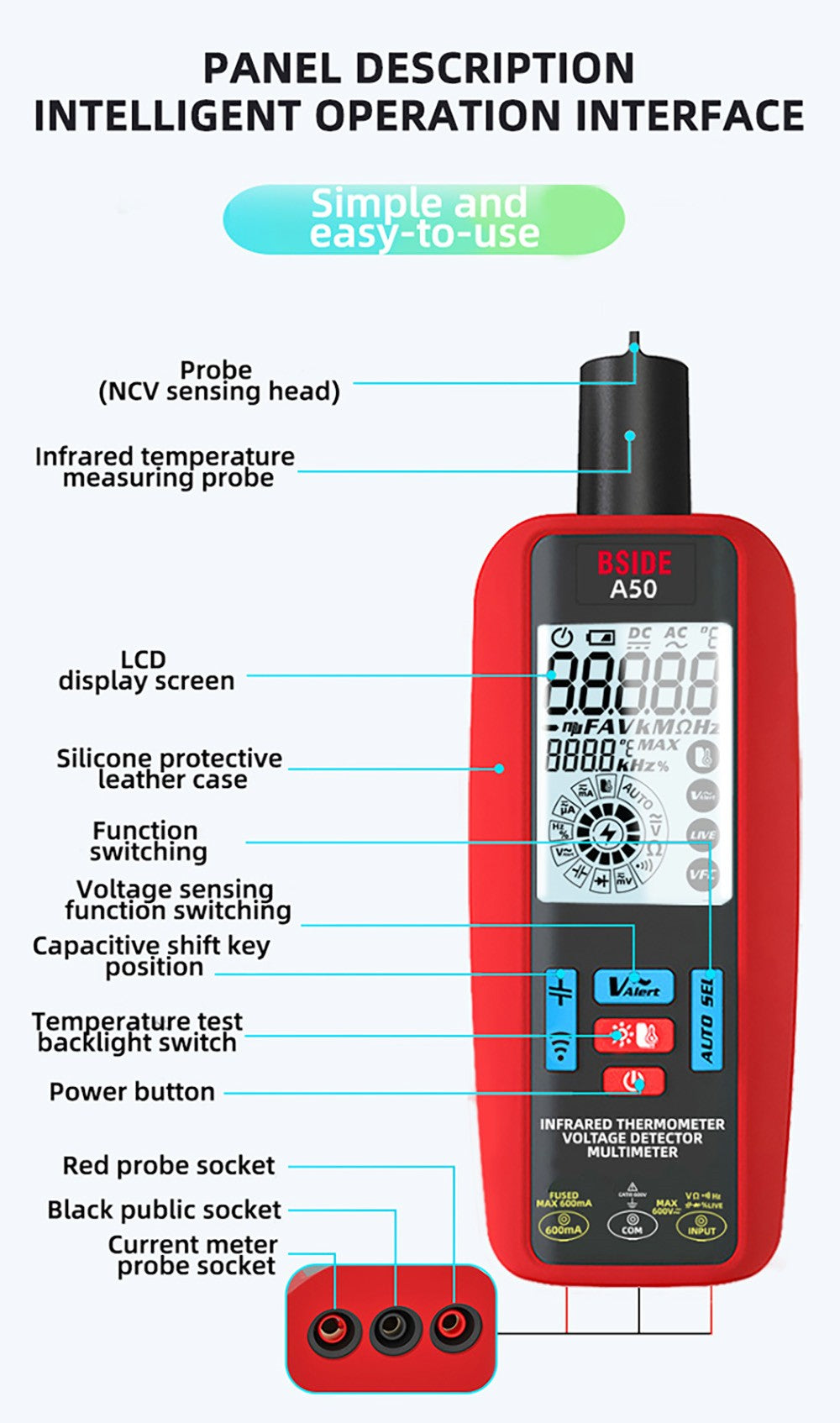

LCD Backlit Display & Convenient Operation

The LCD backlit screen configuration ensures a clear display no matter during the day or night, enhancing the user experience. With an automatic identification function, with a button to quickly identify the leakage voltage, to achieve quick and accurate leakage detection. The auto mode simplifies the operation process, and the noncontact temperature test, auto current activation function, VFD inverter output voltage test, VFC inverter output voltage measurement, data hold, LIVE zero-fire wire judgment, two sensitivity adjustments, V-alert hazardous voltage warning and other functions fully meet the needs of professionals for efficient and accurate measurement.

Energy-efficient and Long-lasting Battery Lifespan

Powered by a rechargeable lithium battery, it provides long standby and usage time to meet the needs of long-term continuous use. To conserve power, if you do not operate the multimeter for 15 minutes, the multimeter will automatically shut down to conserve battery lifespan and be more intelligent.

Wide Applications

It can easily handle measurement in various fields, such as testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc. Suitable for use in the electrical testing industry, electrician industry, electronic overhaul industry, LED industry, auto repairing industry, and so on.

General
Brand	BSIDE
Type	Digital Multimeter
Model	A50
Color	Red
Specification

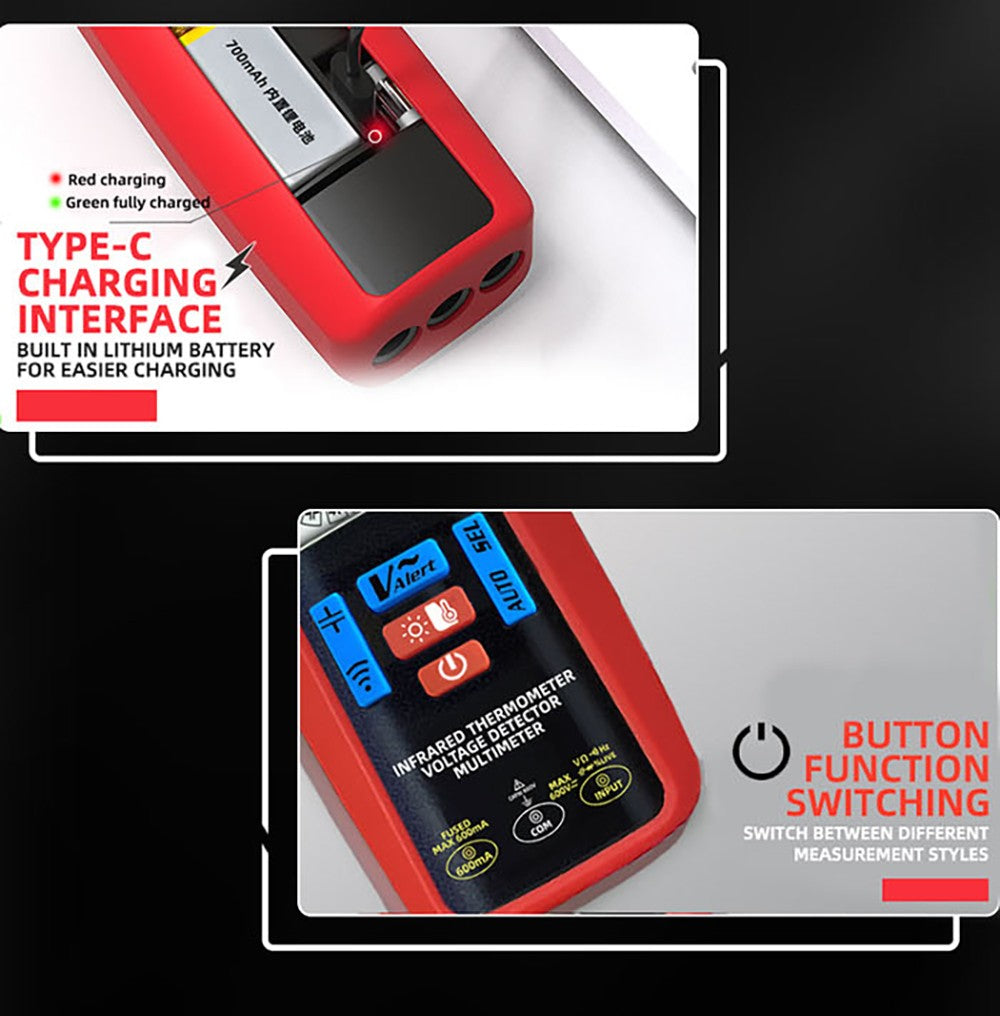

Battery	1 x built-in 3.7V, 700mAh lithium battery (included)
Display	LCD screen
Max display	6000 counts
DC current	1-610mA, ±(1.5%+3), 0.1mA resolution
AC current	1-610mA, ±(1.5%+3), 0.1mA resolution

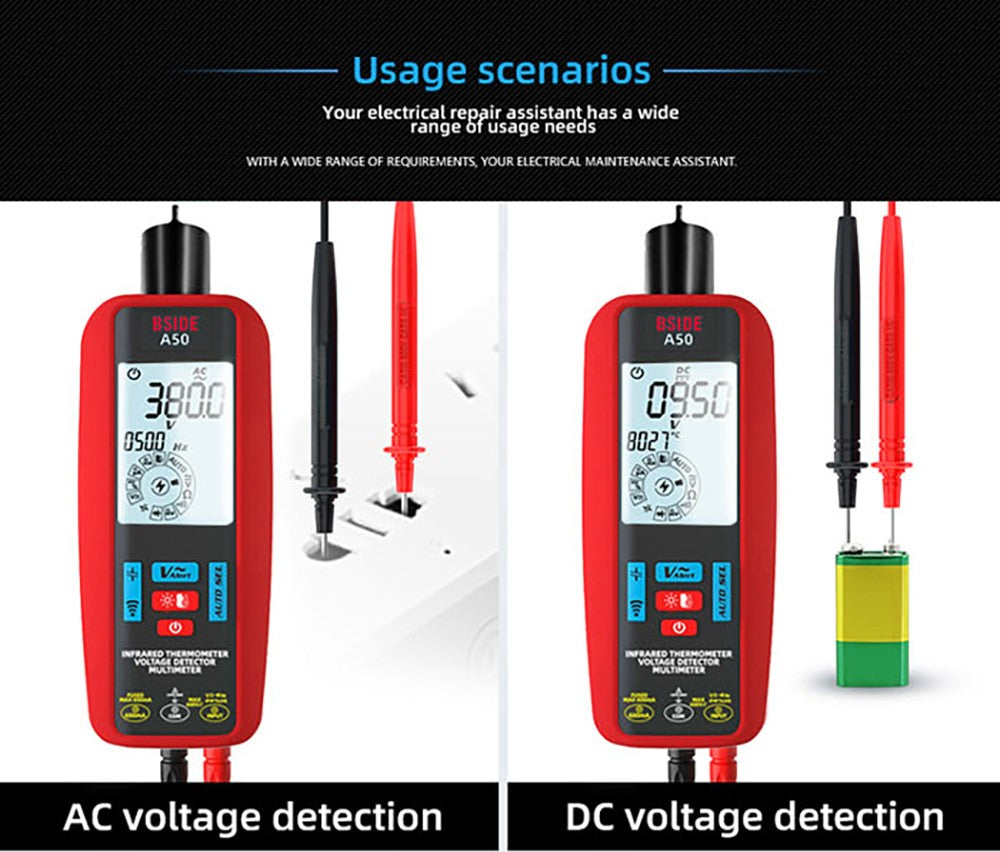

DC voltage	0.8V-620V, ±(0.8%+3), 0.01V resolution
AC voltage	0.8V-620V, ±(1.2%+5), 0.01V resolution
VFC inverter voltage	10-620V, ±(4.0%+3), 1V resolution
Resistance	0.1Ω-60.00MΩ
Capacitance	1F-60mF
Frequency	1.0Hz-9.999MHz
Diode	＜3V automatic identification
Duty cycle	10.0%-95.0%

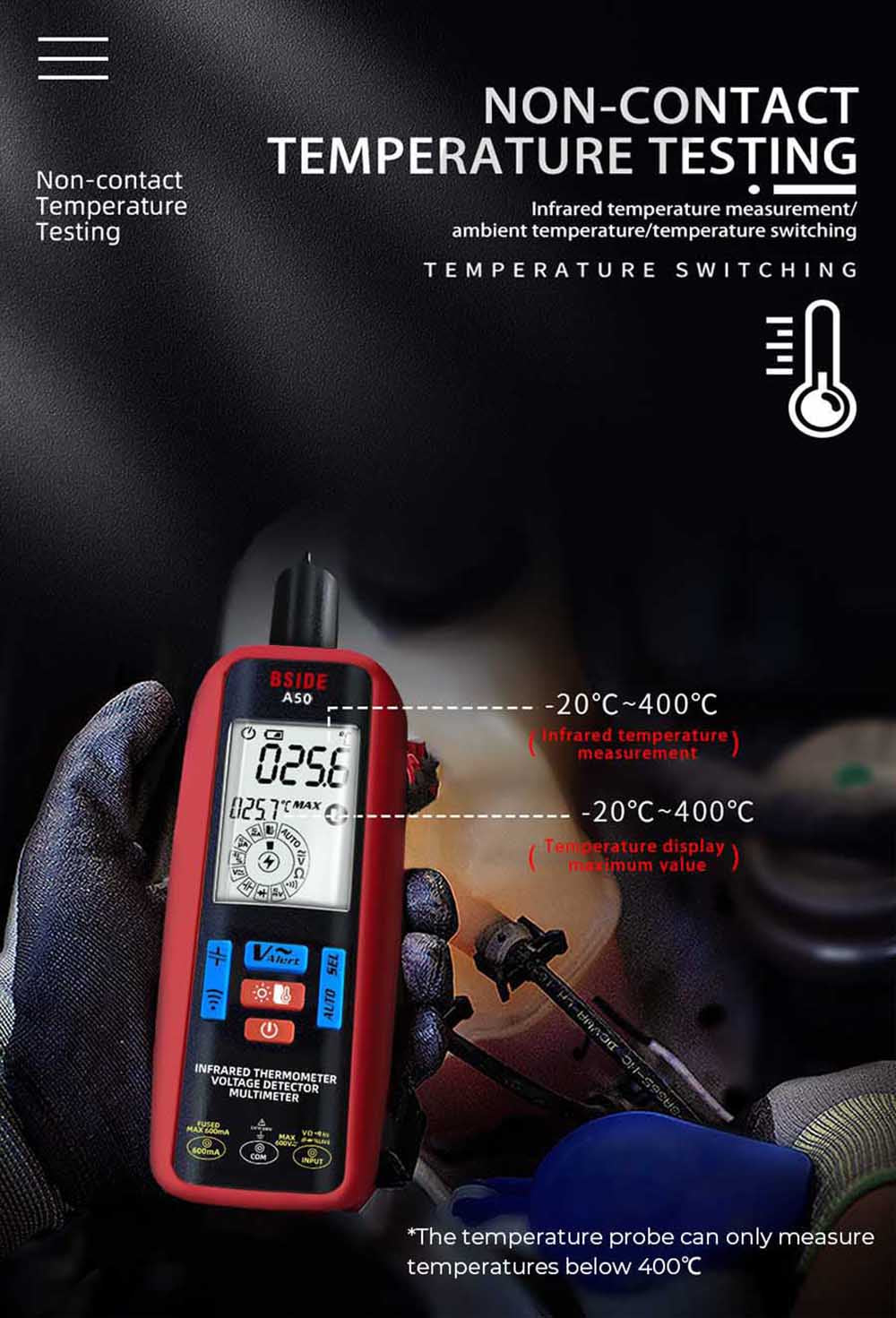

Temperature	-20°C to 400°C

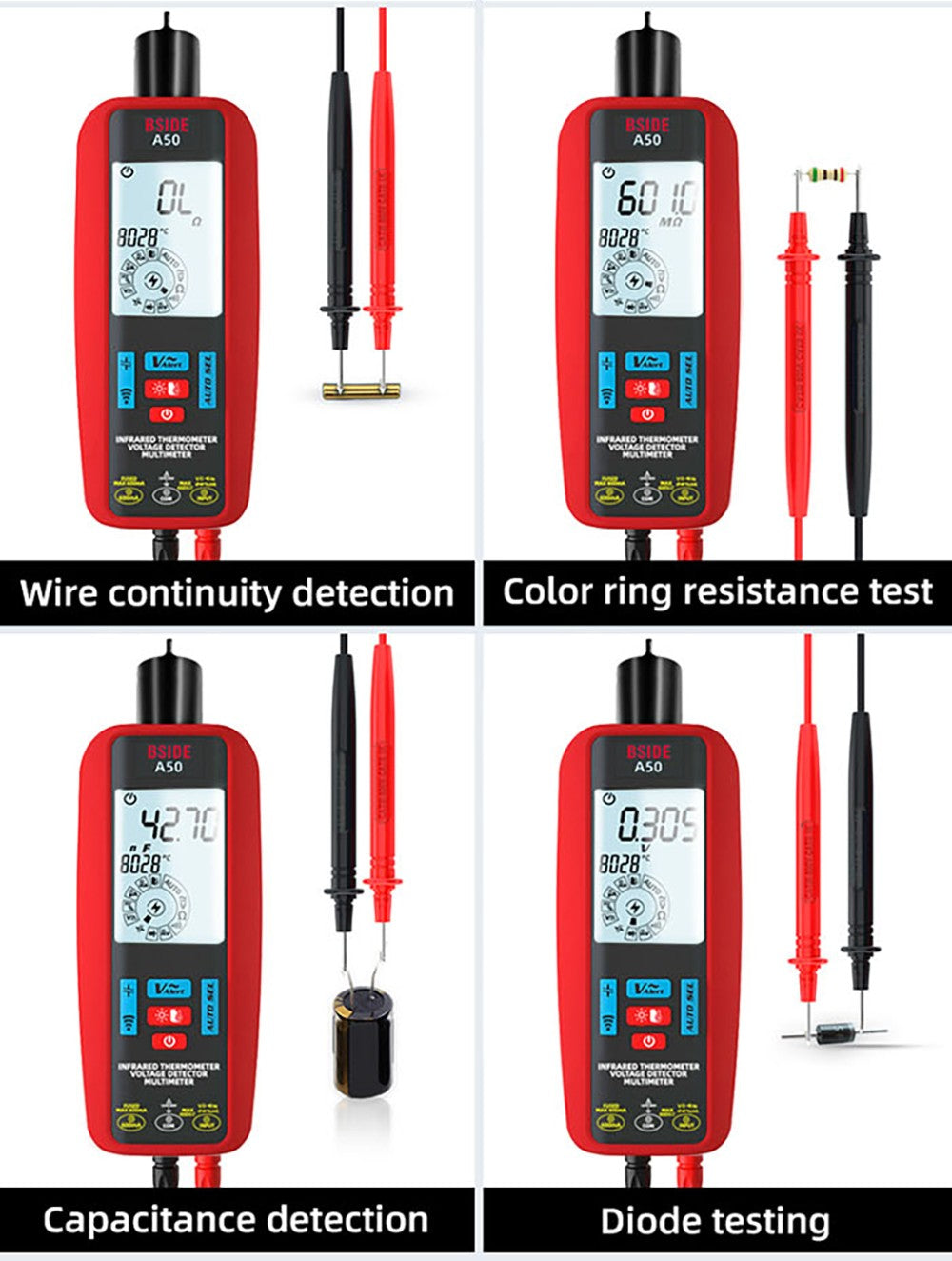

On/off	tested resistance ＜500Ω, buzzer sounds
Automatic shutdown	15min
NCV test	support
Weight & Size
Product Weight	130g
Package Weight	319g

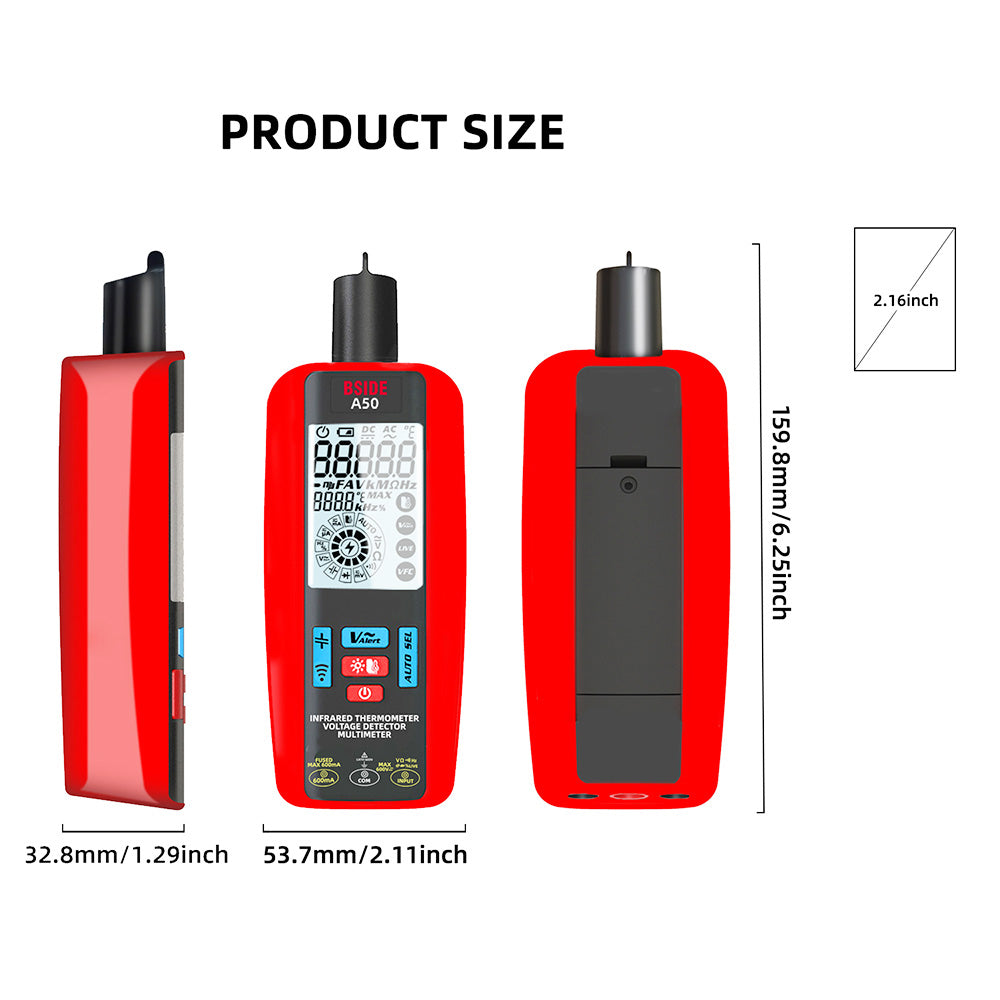

Product Size(L x W x H)	159.8x53.7x32.8mm
Package Size(L x W x H)	185x100x49mm
Package Contents
1 x Digital Multimeter
1 x USB Cable
1 x Test Pen
1 x Storage Bag
1 x User Manual
