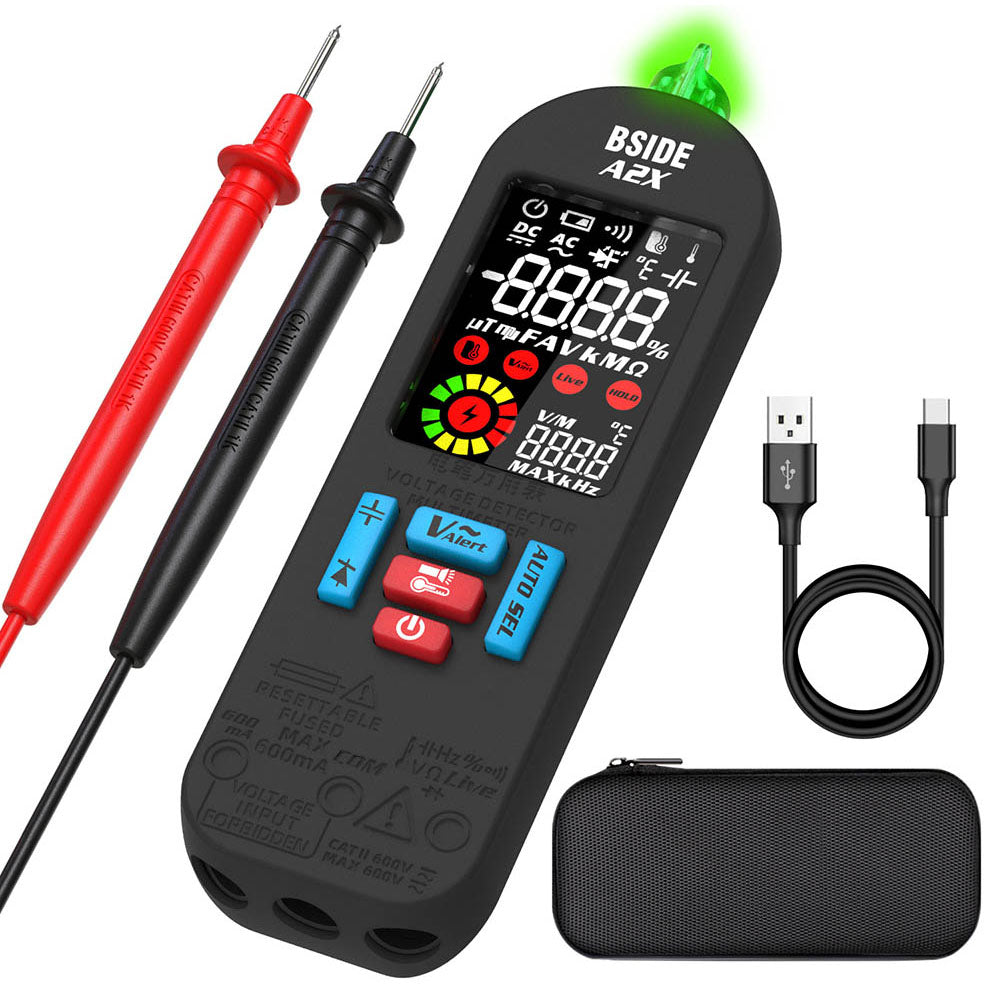

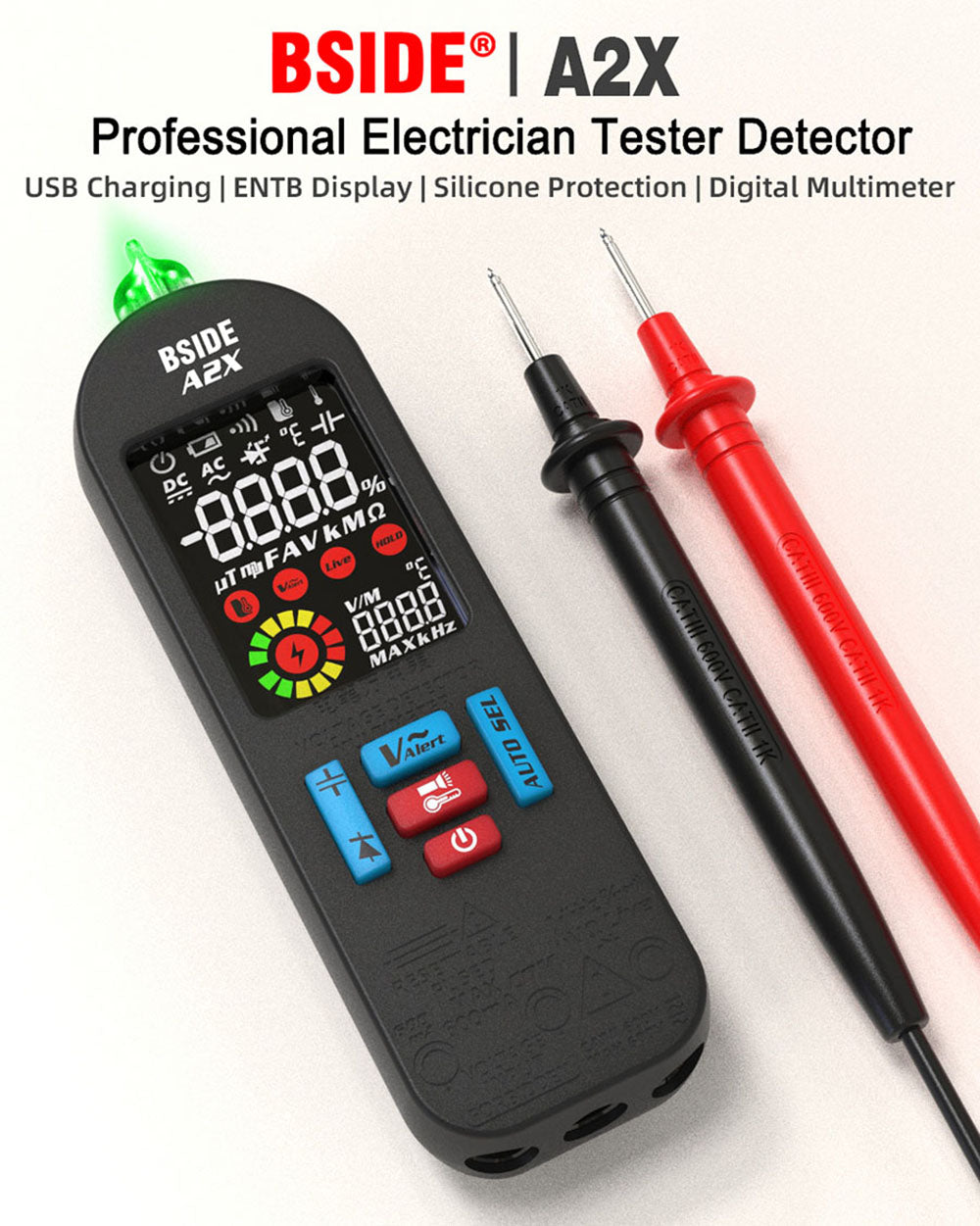

BSIDE A2X Intelligent Digital Multimeter

BSIDE A2X highlights

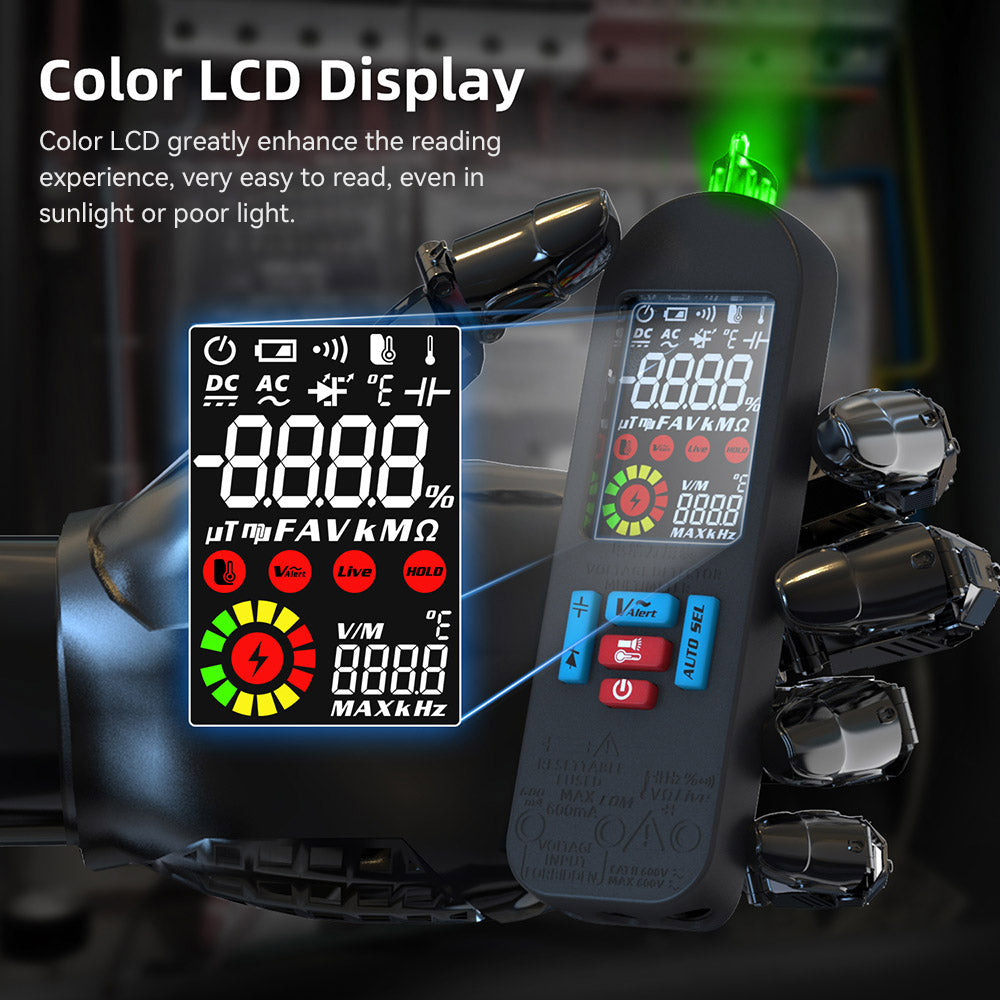

Color LCD Display

Color LCD greatly enhances the reading experience, very easy to read, even in sunlight or poor light.

Multifunctional Function

Support line breakpoint detection, it can measure AC voltage and DC voltage, resistance, on/off, frequency, diode, etc. And automatic shutdown after 15 minutes of no operation.

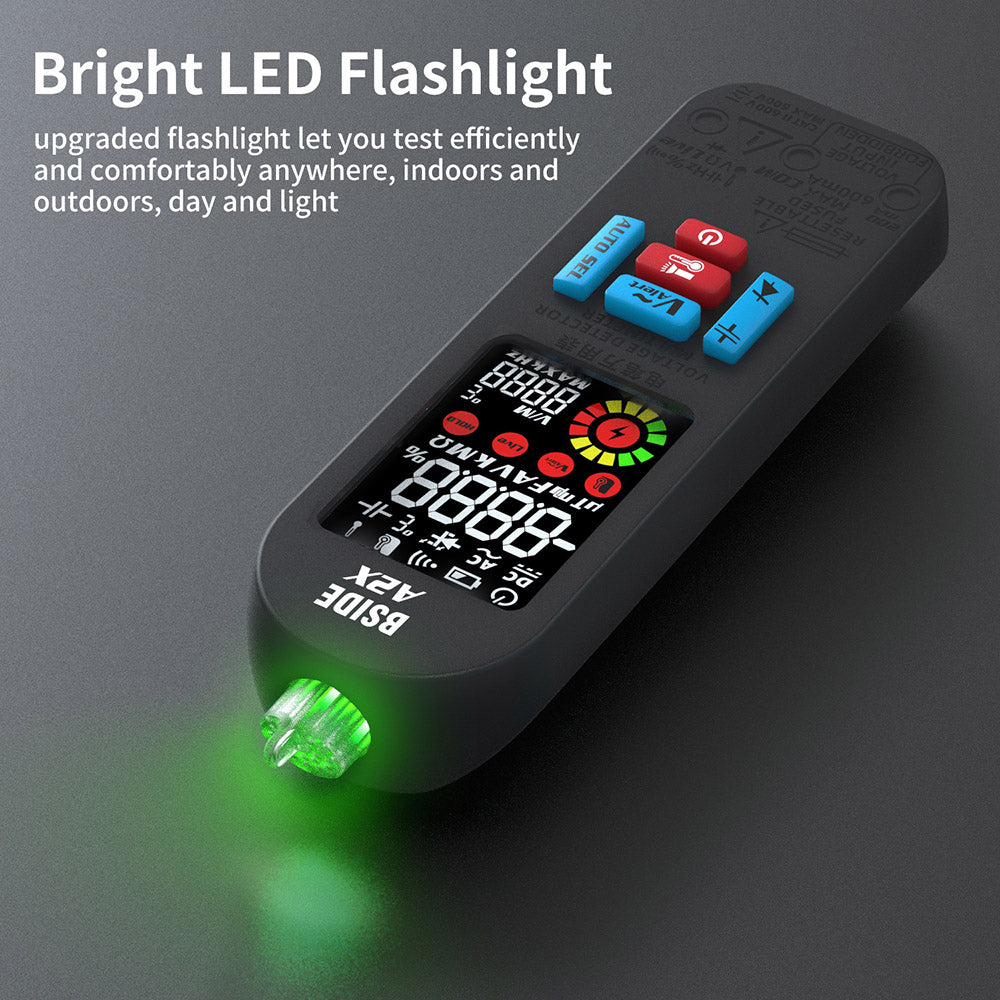

Bright LED Flashlight

With a flashlight for easy illumination and use when measuring in dark environments.

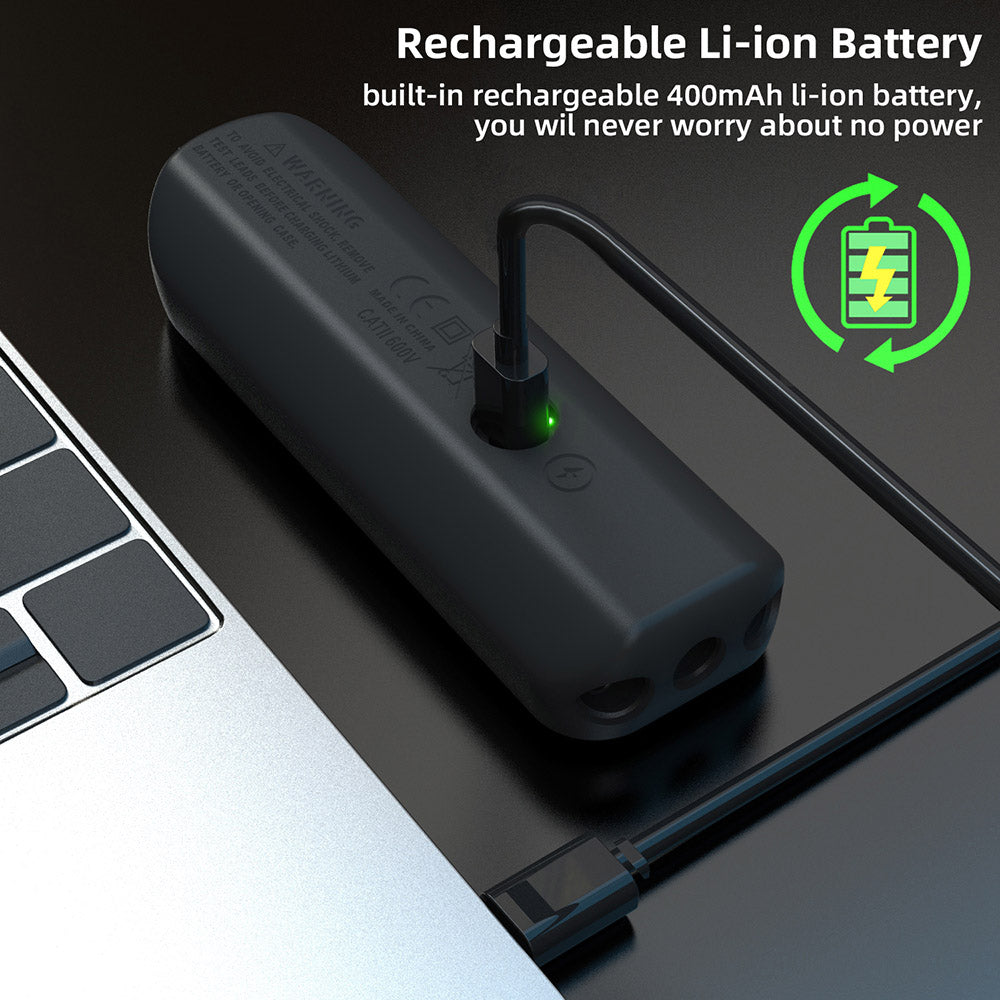

Rechargeable Li-ion Battery

Built-in rechargeable 400mAh li-ion battery, you will never worry about no power.

Concise Appearance

Compact size, easy to carry, and does not occupy an area, the portable pen type makes it can be easily carried, and say goodbye to the traditional heavy and difficult to carry.

Wide Applications

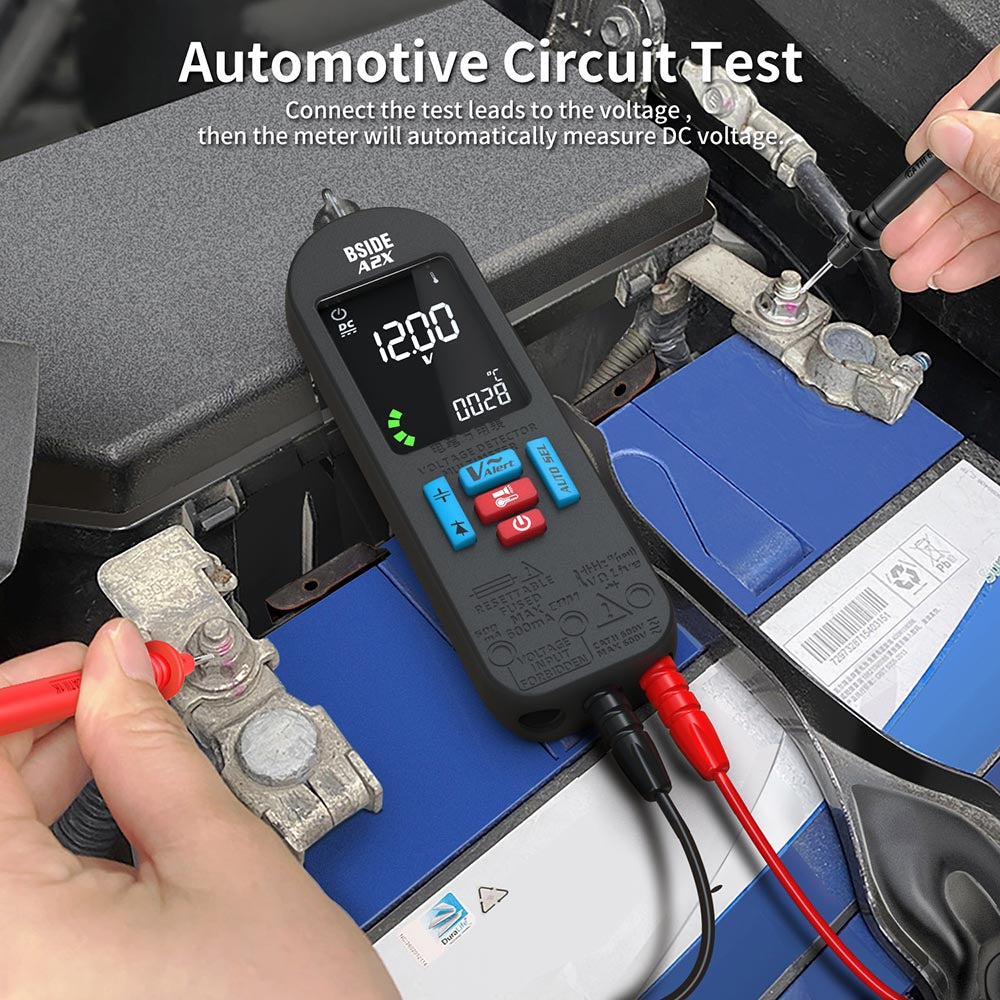

It can be widely used in electrical testing, automotive repairing, household improvements, industrial electrical maintenance, etc.

General
Brand	BSIDE
Type	Intelligent Digital Multimeter
Model	A2X
Color	Black
Specification
Screen	LCD display with red and green backlight
DC Voltage	0-620V (DC Mode), 0.8-620V(Auto Mode), 0.01V ±(0.8%+3)

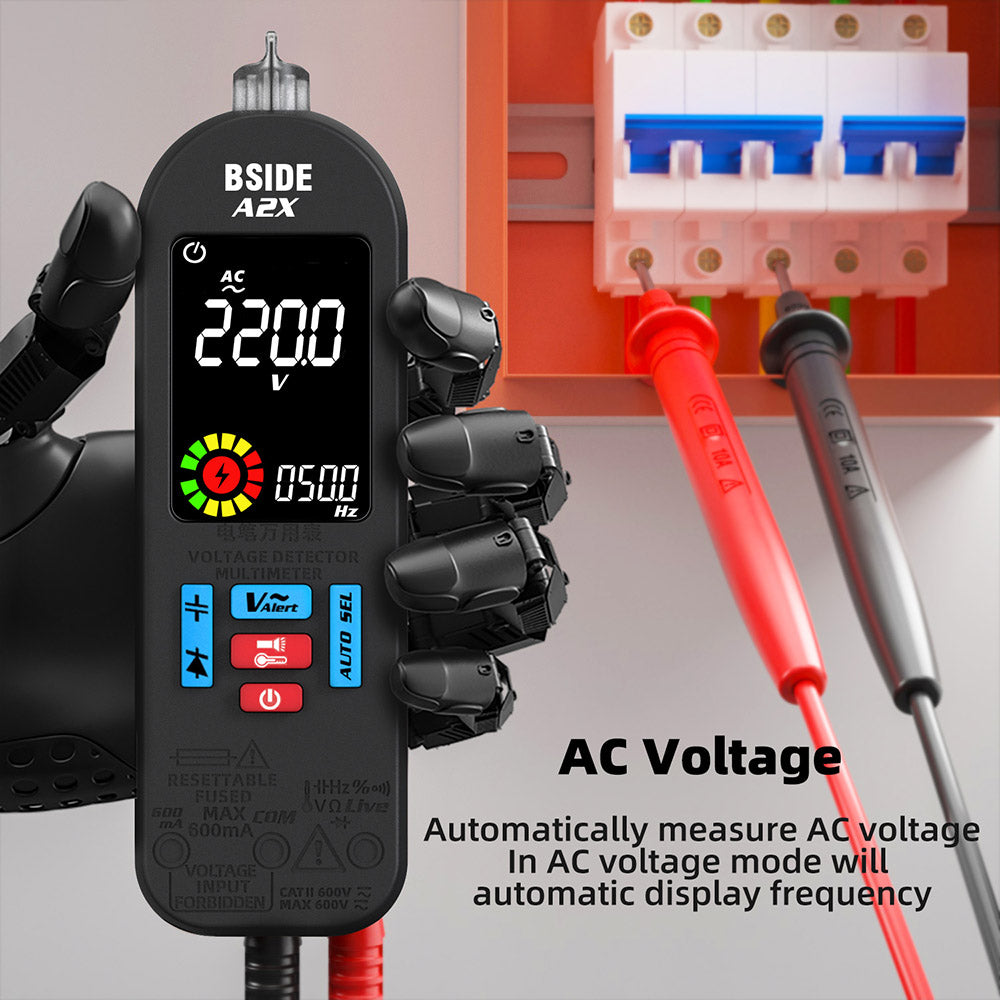

AC Voltage	0-620V (AC Mode), 0.8-620V(Auto Mode), 0.01V ±(1.2%+5)
Resistance	0Ω-6.000MΩ, 6.000MΩ-60.00MΩ, 0.1Ω, ±(1.2%+3), ±(2.0%+10)

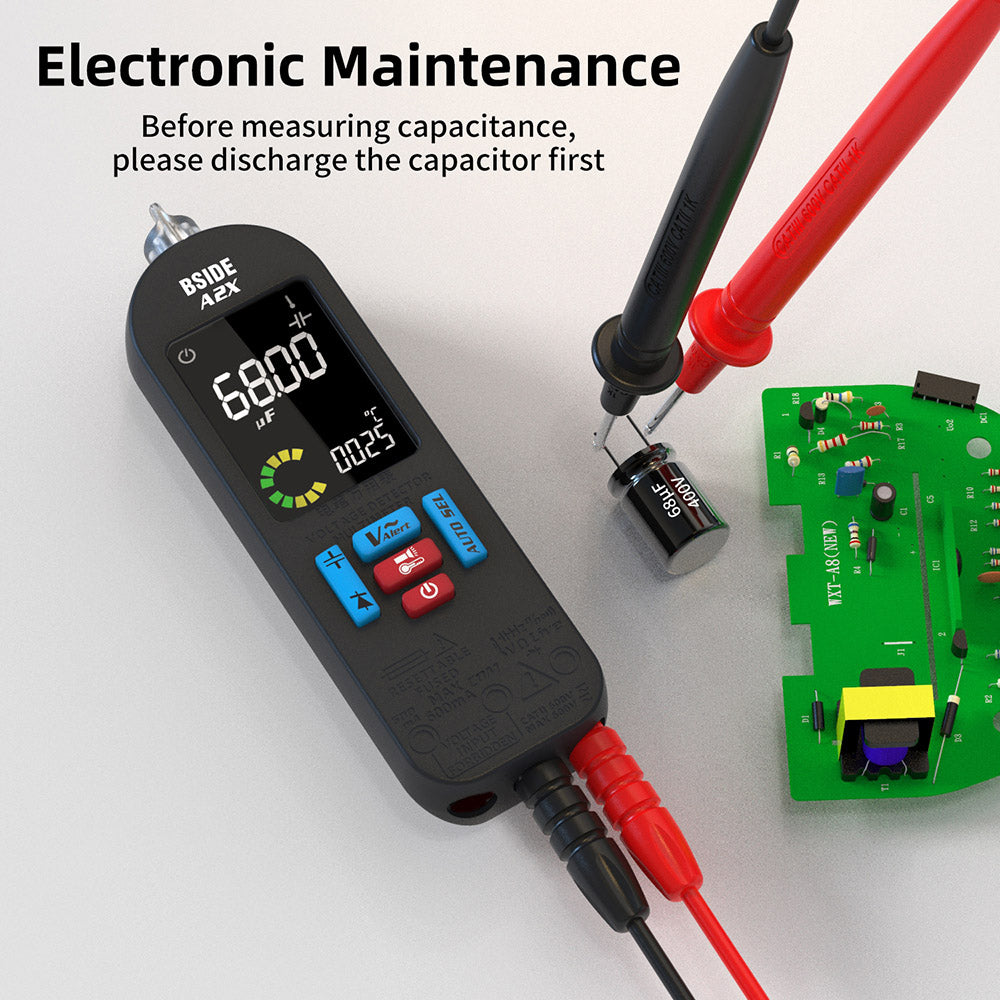

Capacitance	0.5μF-6000μF, 6000μF-60000μF, 0.001μF, ±(3.5%+8), (±4.5%+10)

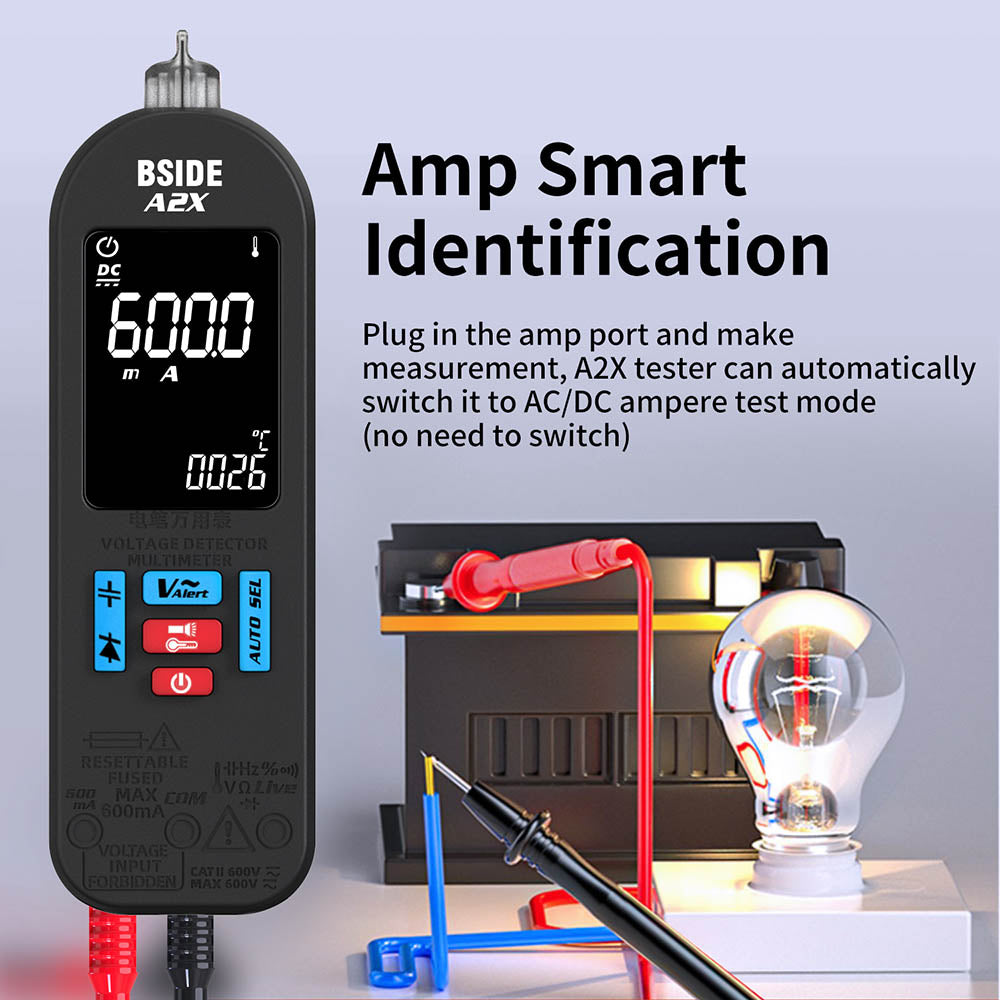

DC Current	1.0-610mA, 0.1mA, ±(1.5%+3)
AC Current	1.0-610mA(40-1000Hz), 0.1mA, ±(1.5%+3)
VFC Mode	10V-620V, 1V, ±(4.0%+3)
Temperature K-type thermocouple	0°C-50°C, 50°C-1000°C, 1°C, ±(1.5%+2), (±2.0%+3)
Frequency	0Hz-9999Hz, 0.001Hz, (±2.0%+10)
Diode	Measurement diodes within 3.0V
V~Alert	Yes
Ambient Temperature	Yes
Auto Power Off	15 minutes
Flashlight	Yes
Continuity	If the resistance <50Ω, the buzzer sounds and red blacklight on
Display Type	6000
Live Wire Check	Yes
Power	3.7V Li-ion battery inside
Fused	630mA

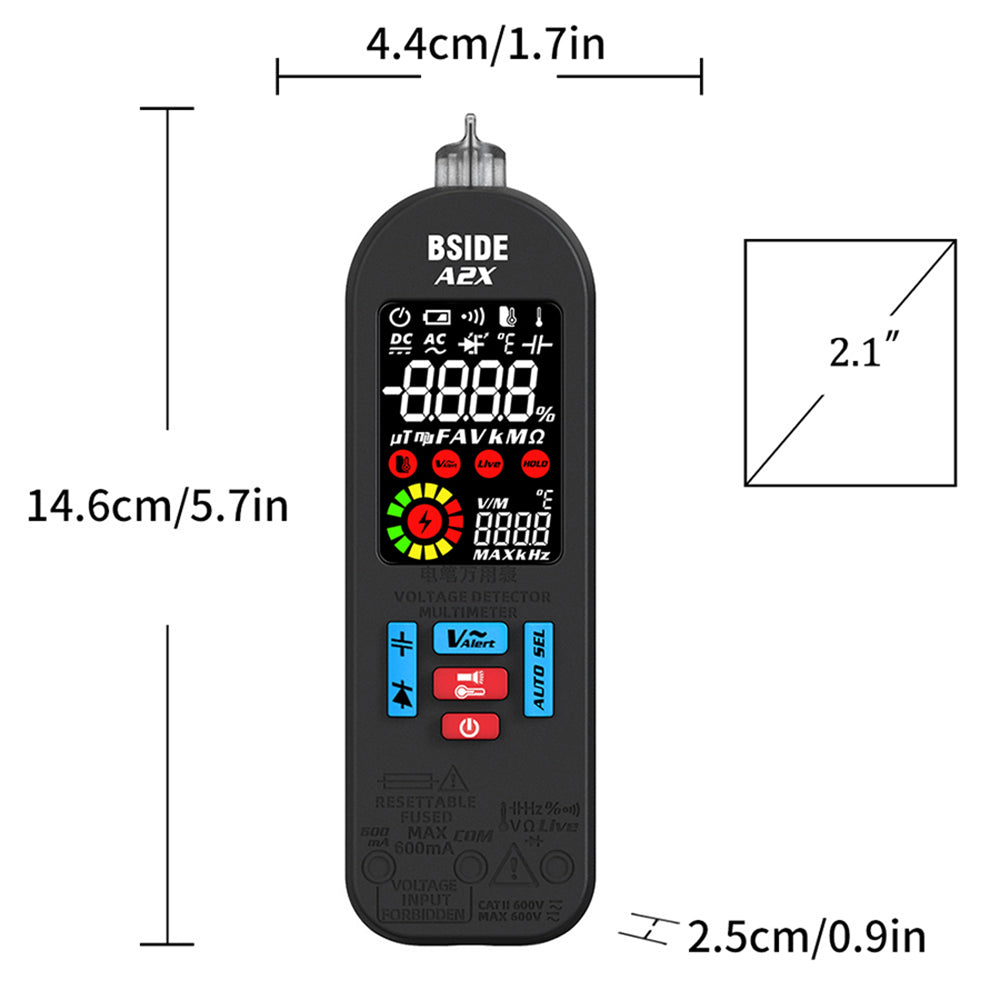

Weight & Size
Product Weight	95g
Package Weight	259g
Package Size(L x W x H)	175*85*45mm
Package Contents
1 x Intelligent Digital Multimeter
1 x User Manual
