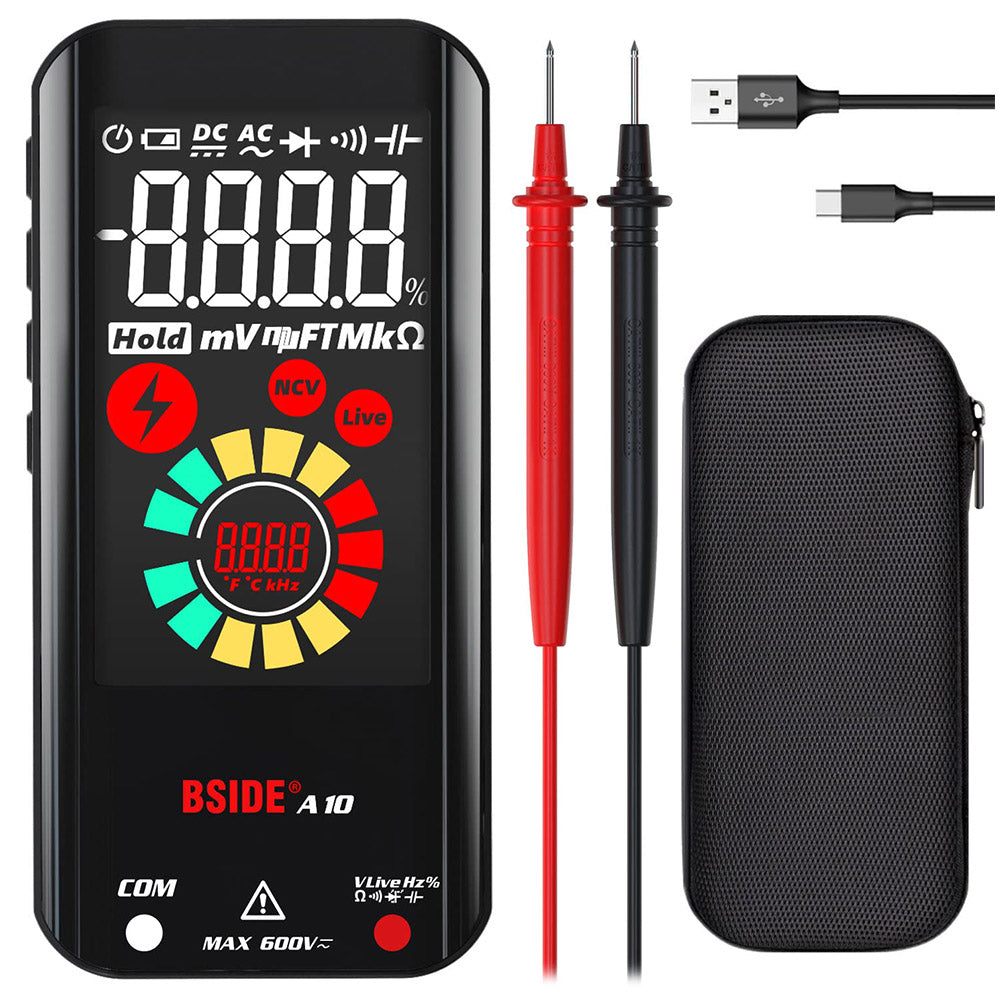

BSIDE A10 Digital Multimeter
BSIDE A10 Digital Multimeter
Regular price
$29.15 USD
Regular price
Sale price
$29.15 USD
Unit price
per
Where To Buy
Where To Buy
Description
Description
BSIDE A10 highlights

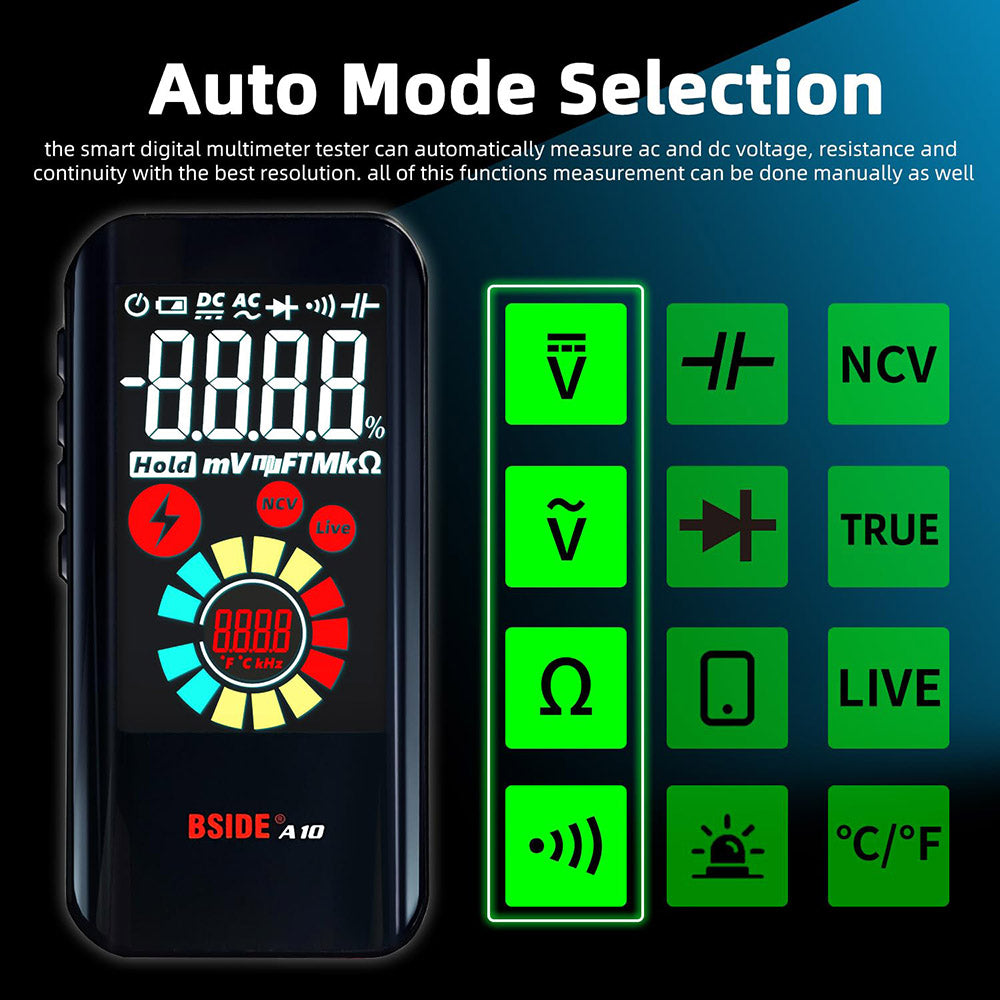

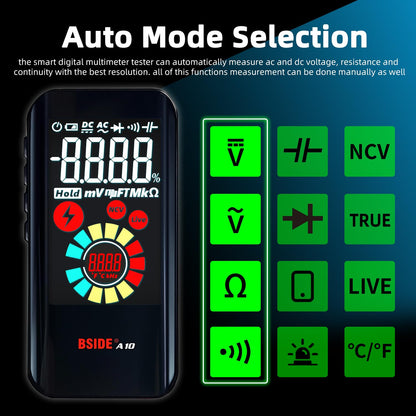

Rechargeable color screen small multimeter with full intelligent detection of voltage, resistance, capacitance, diode data retention, electrician specific circuit detection.
Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Digital Multimeter |
| Model | A10 |
| Color | Black |
| Specification | |
| Max Display: 9999 counts | |
| True RMS | |

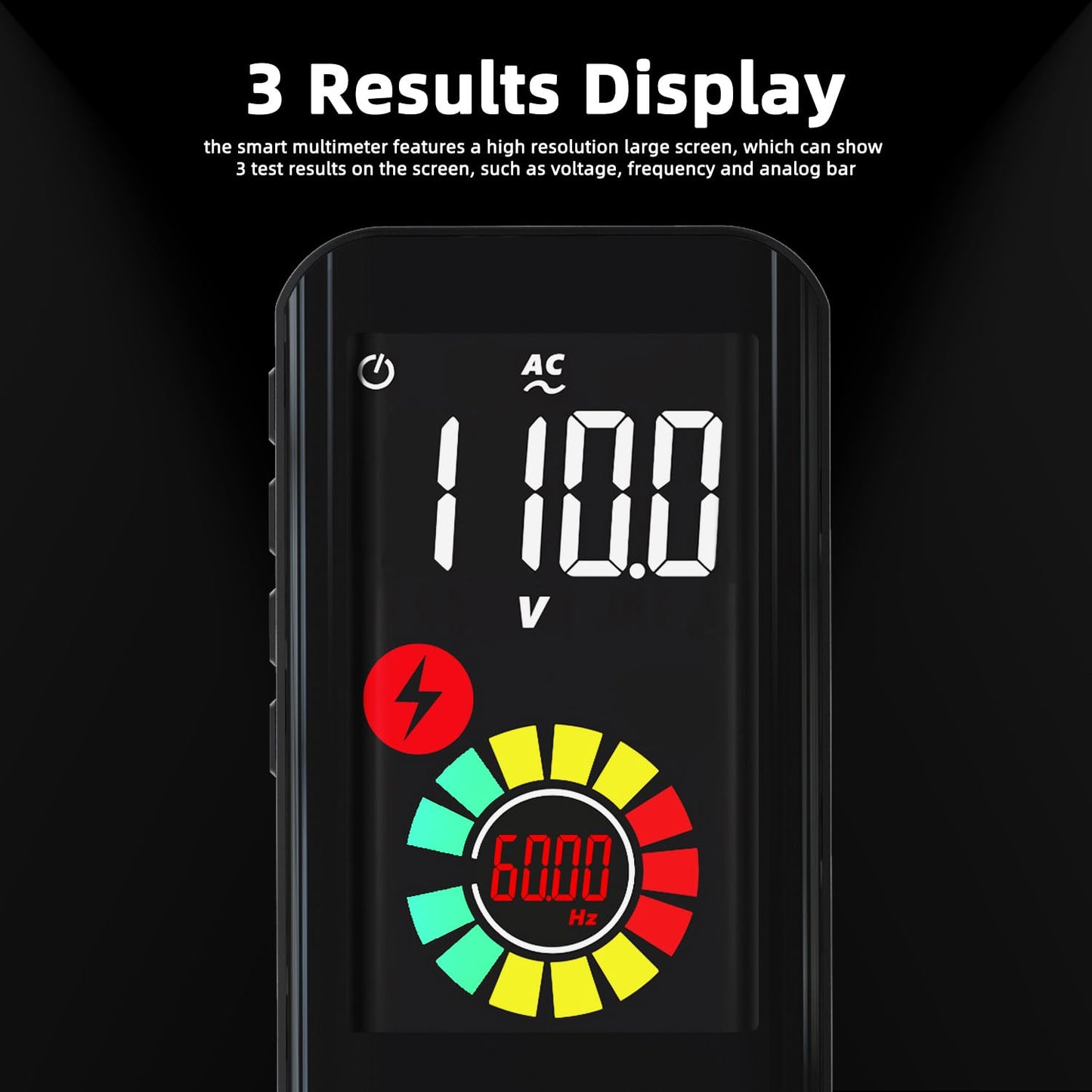

| Display Type: EBTN Color screen | |
| Screen: 3.2 inch | |

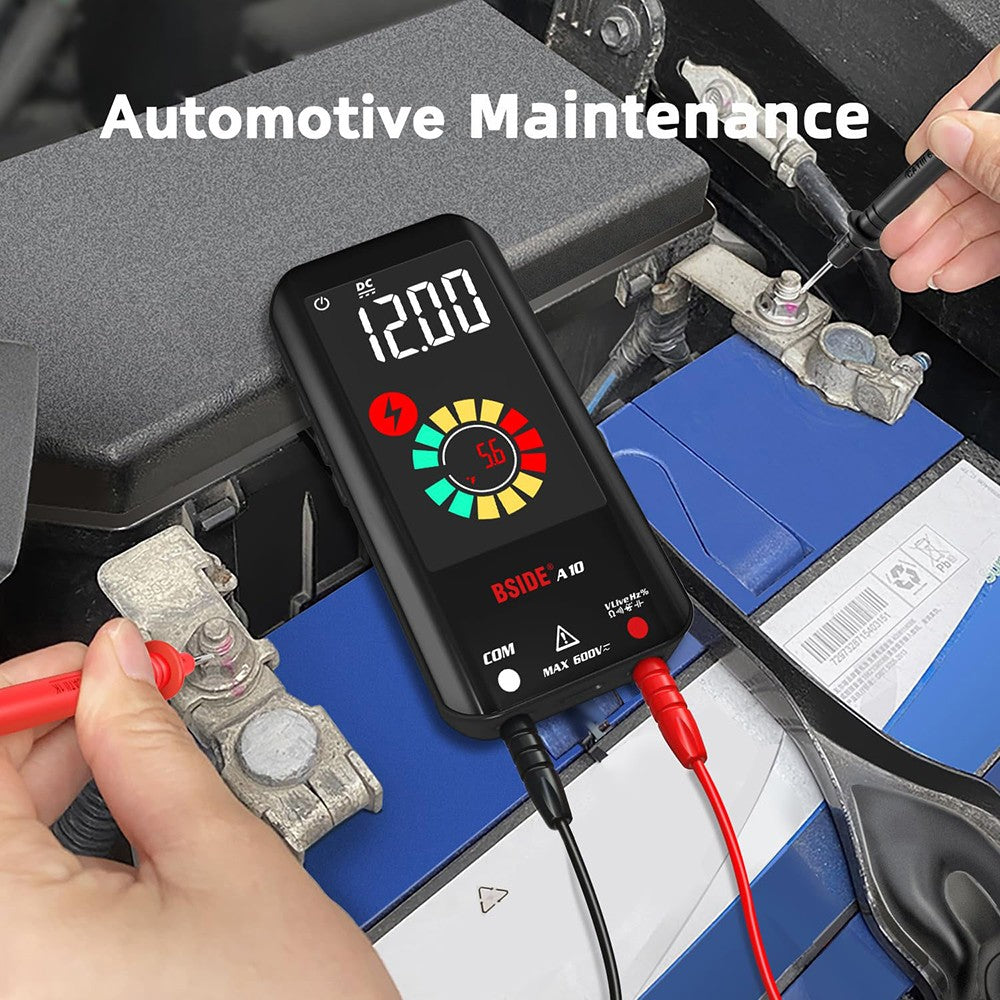

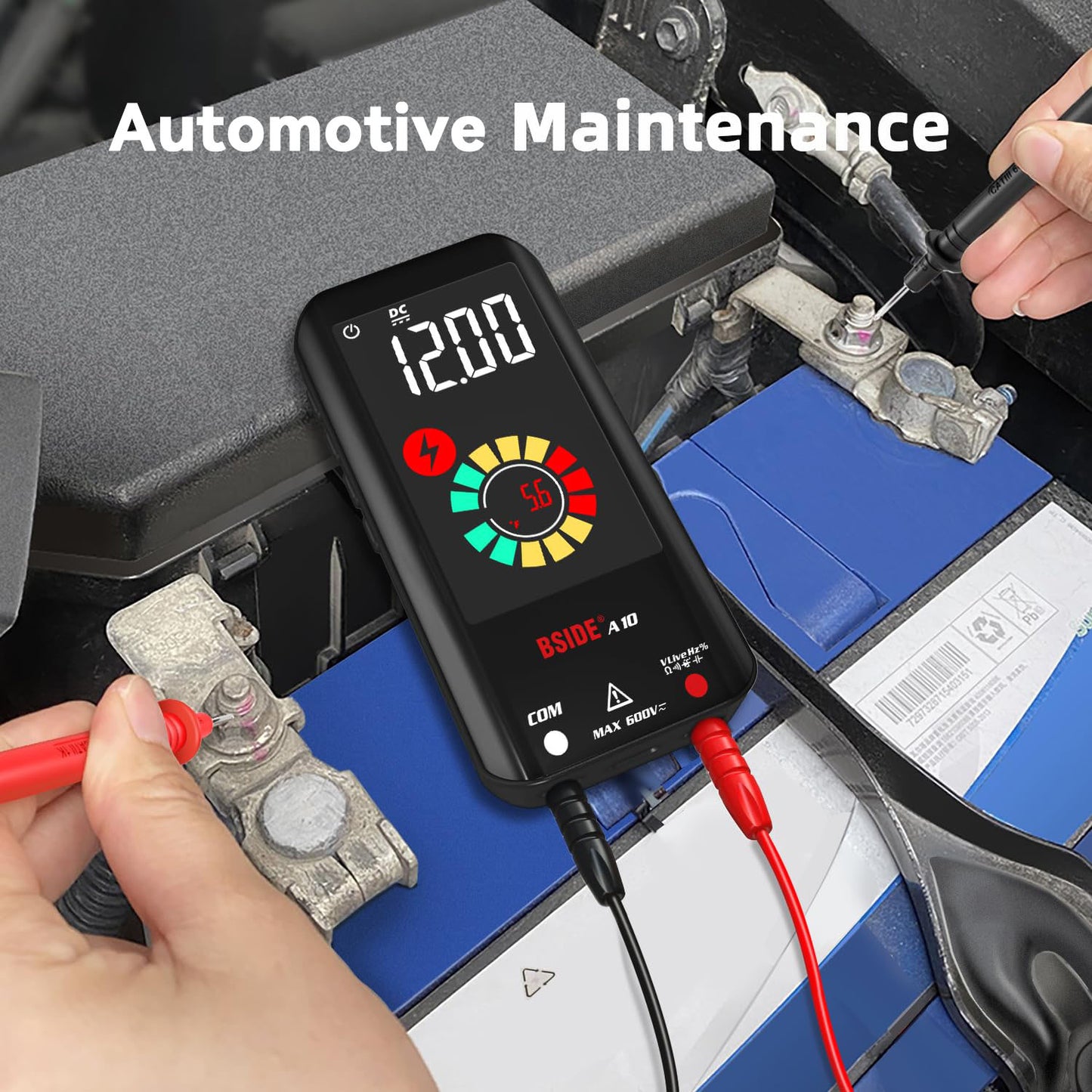

| DC Voltage: 0V-600V ±(0.8%+3); Resolution: 0.001V | |

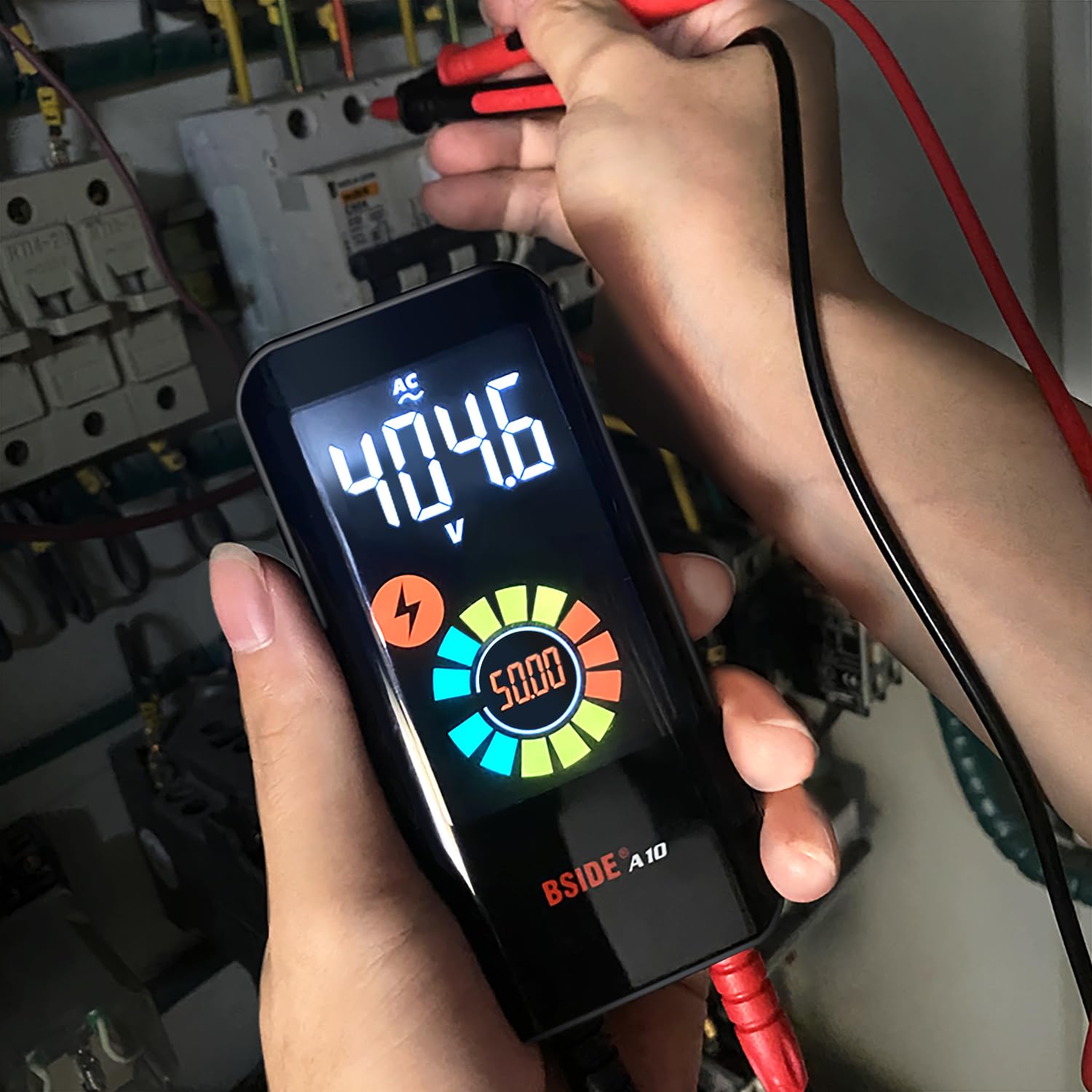

| AC Voltage: 0V-600V ±(1.2%+5); Resolution: 0.001V | |
| Resistance: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω | |

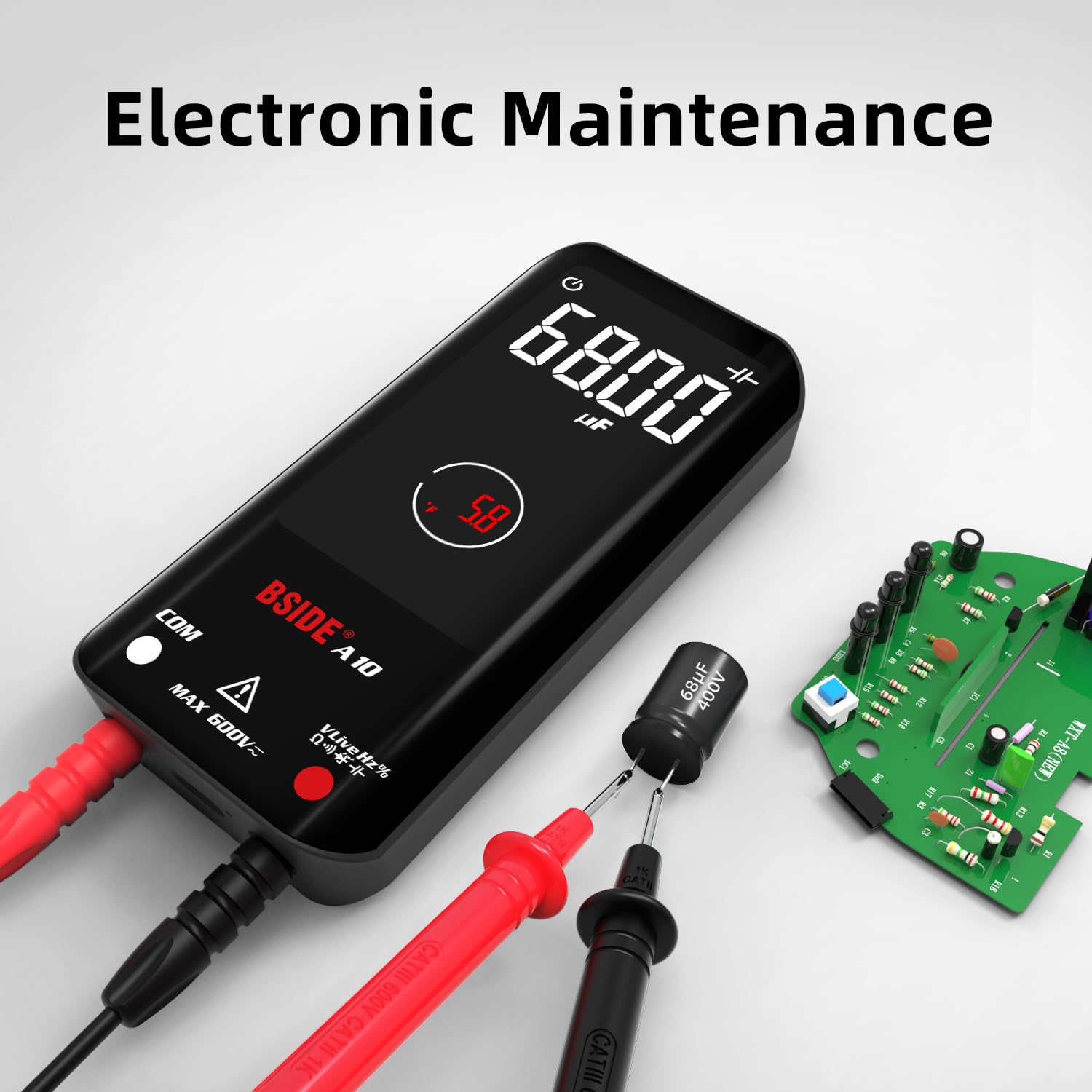

| Capacitance: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF | |
| Frequency: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz | |
| Duty Cycle: 0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1% | |

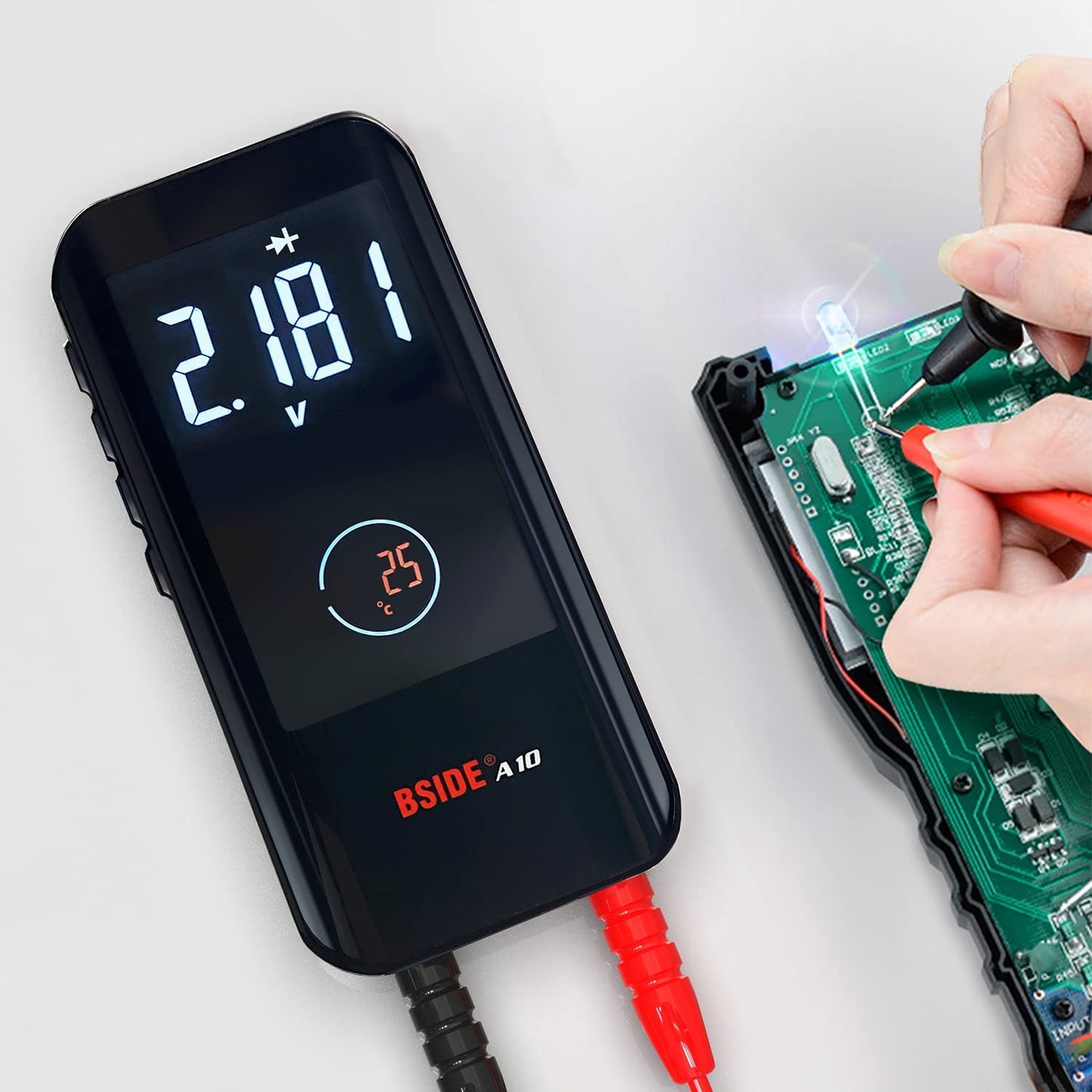

| Diode: Auto-identify diode if less than 3.0V | |
| V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe | |
| Live Check: alarm beep sounds, LCD screen display stripe | |
| Continuity: If the resistance is less than 50Ω, the beeper sounds | |

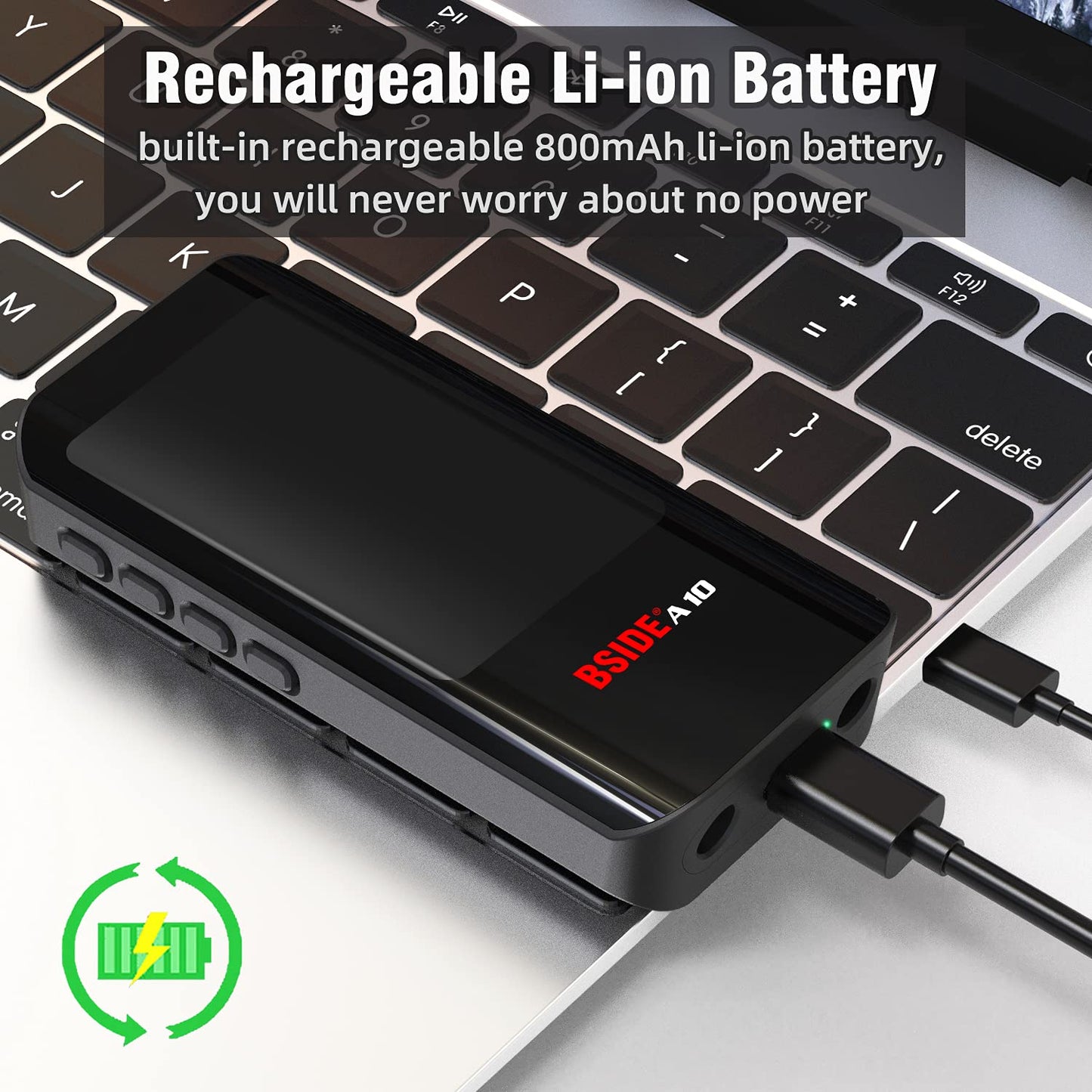

| Power: Rechargeable 3.7 V * 1 battery (built-in) | |
| Weight & Size | |
| Product Weight | 97g |
| Package Weight | 259g |
| Package Size(L x W x H) | 180*83*40mm |

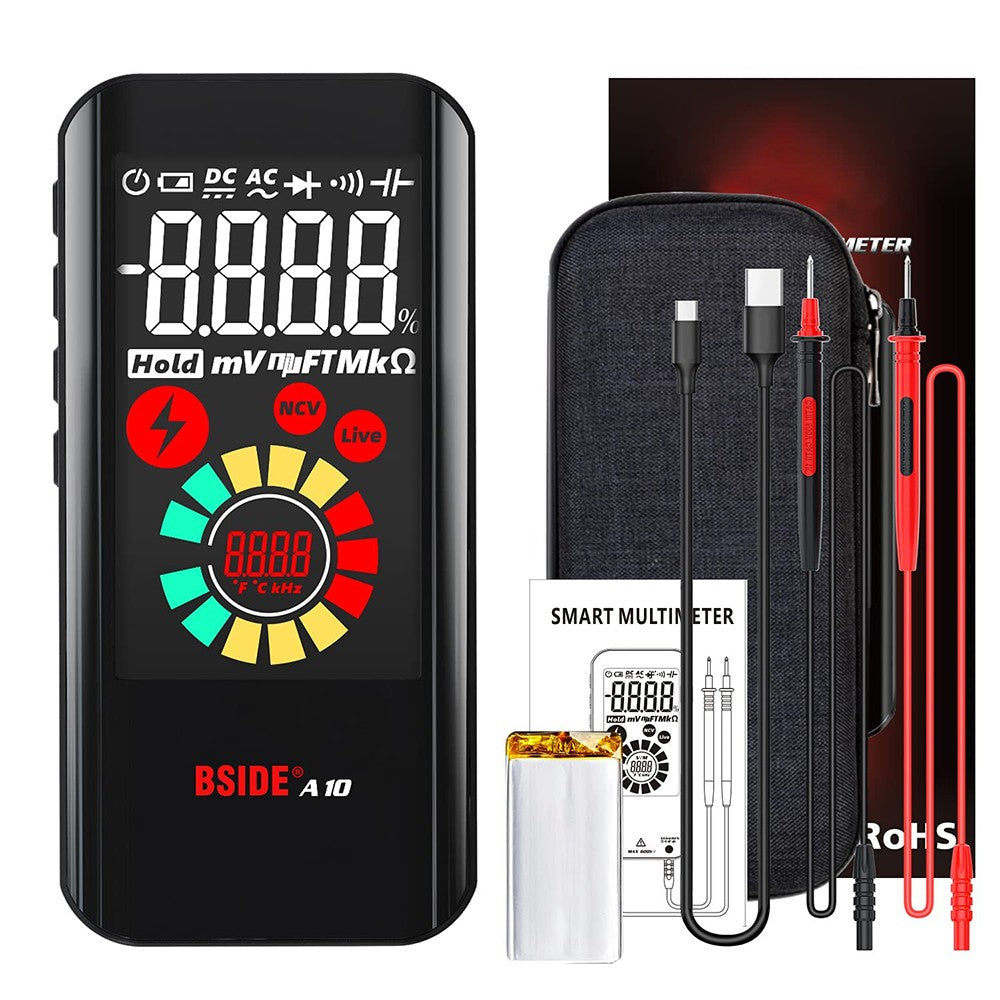

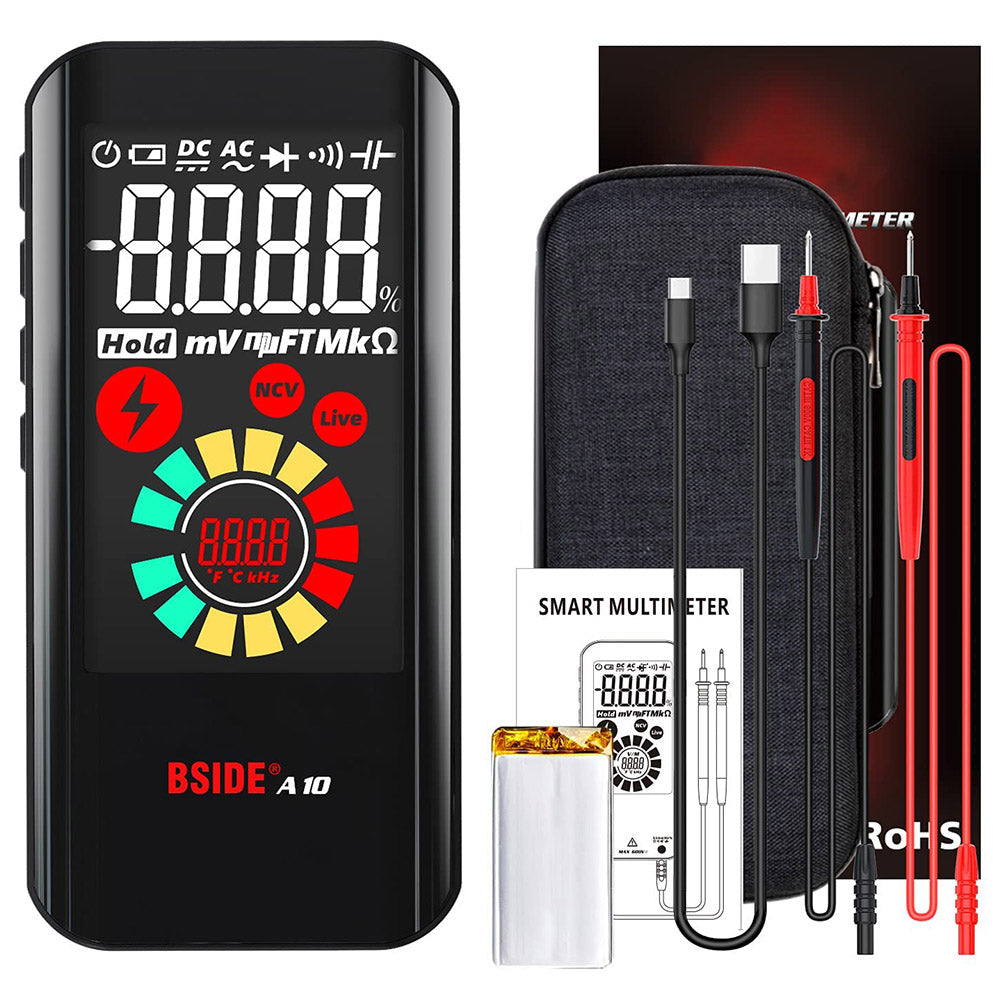

| Package Contents | |
| 1 x Digital Multimeter | |
| 1 x User Manual | |
*Price, description, package content and images are informative only, please check for details on website of concrete seller!
