BSIDE A1 Electric Pen Multimeter
BSIDE A1 Electric Pen Multimeter
Where To Buy
Where To Buy
Description
Description
BSIDE A1 highlights
Note: No batteries, customers need to buy two 1.5V AAA batteries.

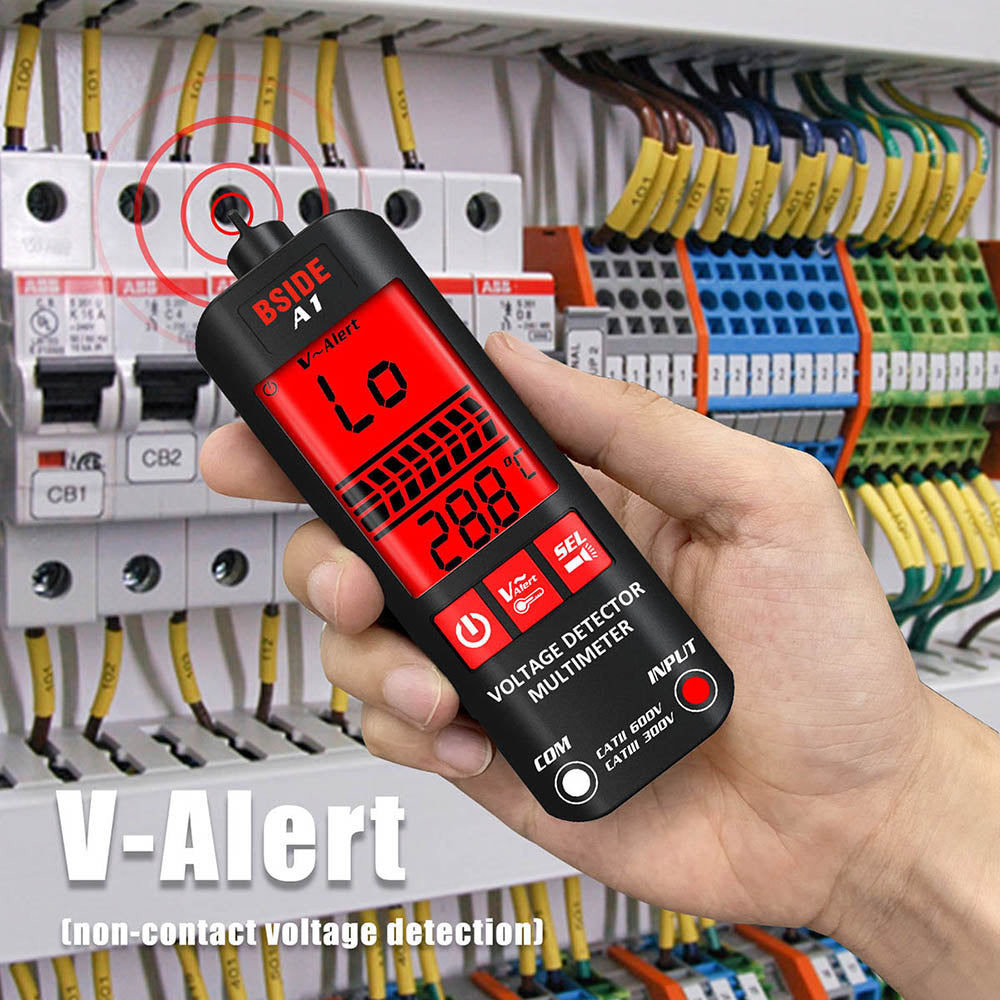

1. Touchless and pen-shaped design, convenient to use and carry.
2. Dual sensitivity mode (high: 12-1000V/low: 48-1000V). The sensitivity of the product can be adjusted freely according to the actual scene used.
3. This product has a self-test function at the time of startup. It can effectively detect whether the product can work normally and avoid wrong judgment.

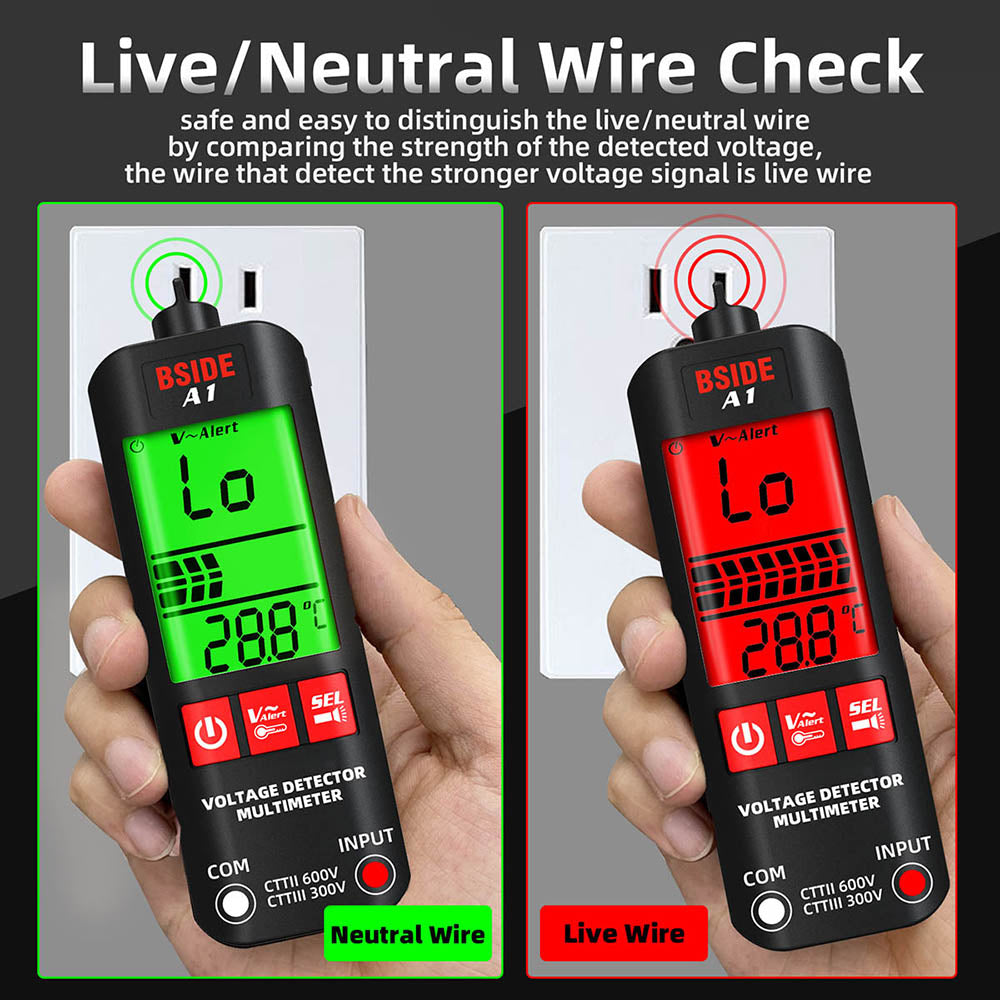

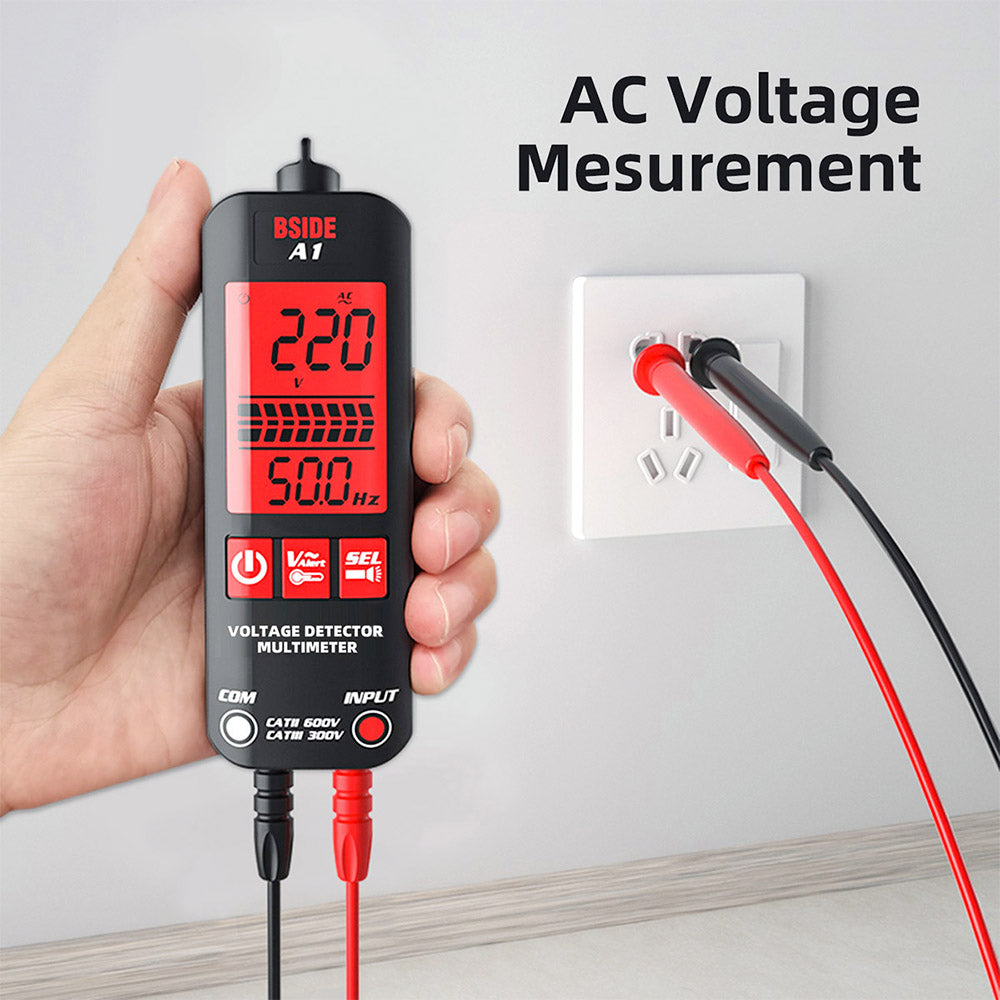

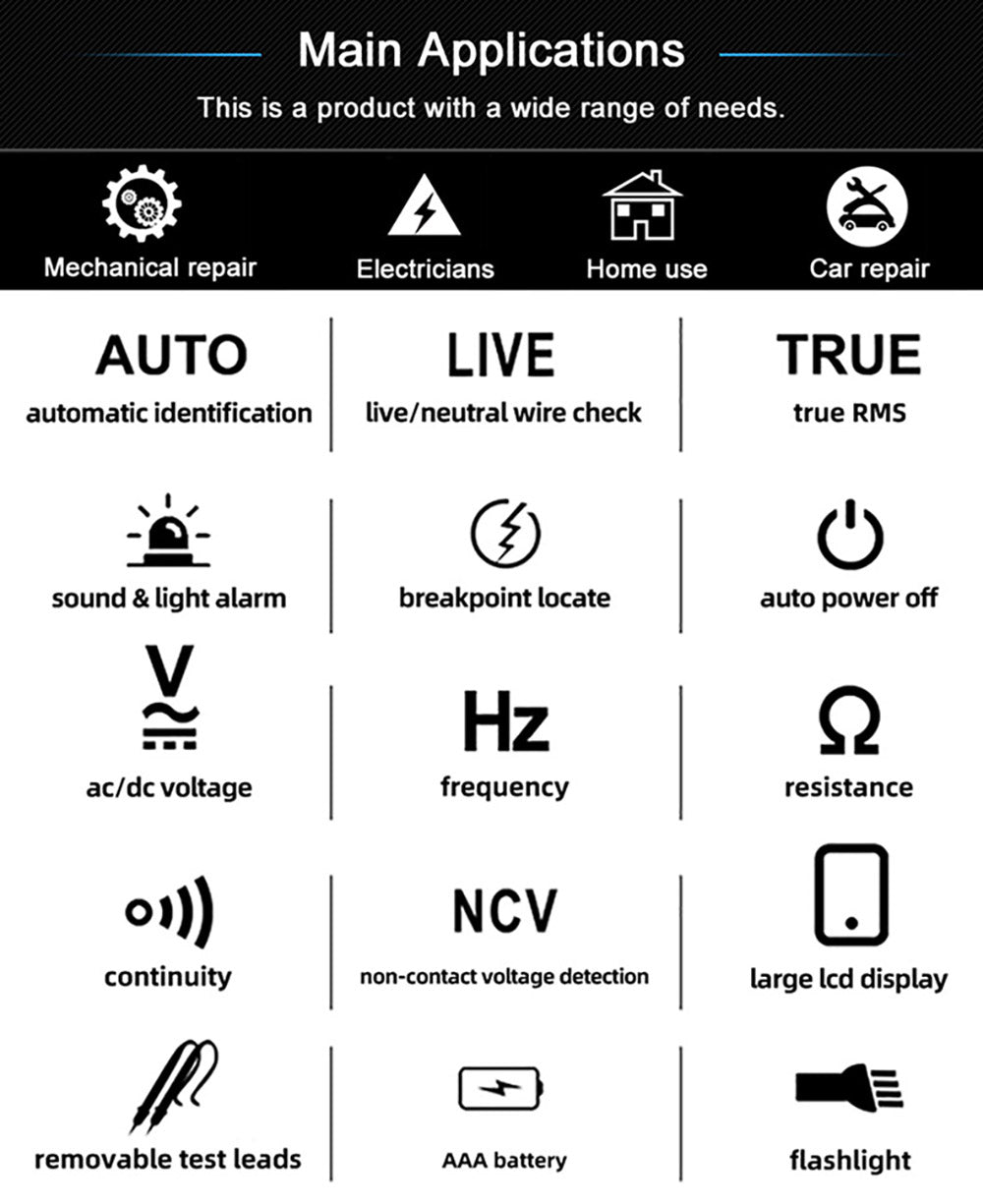

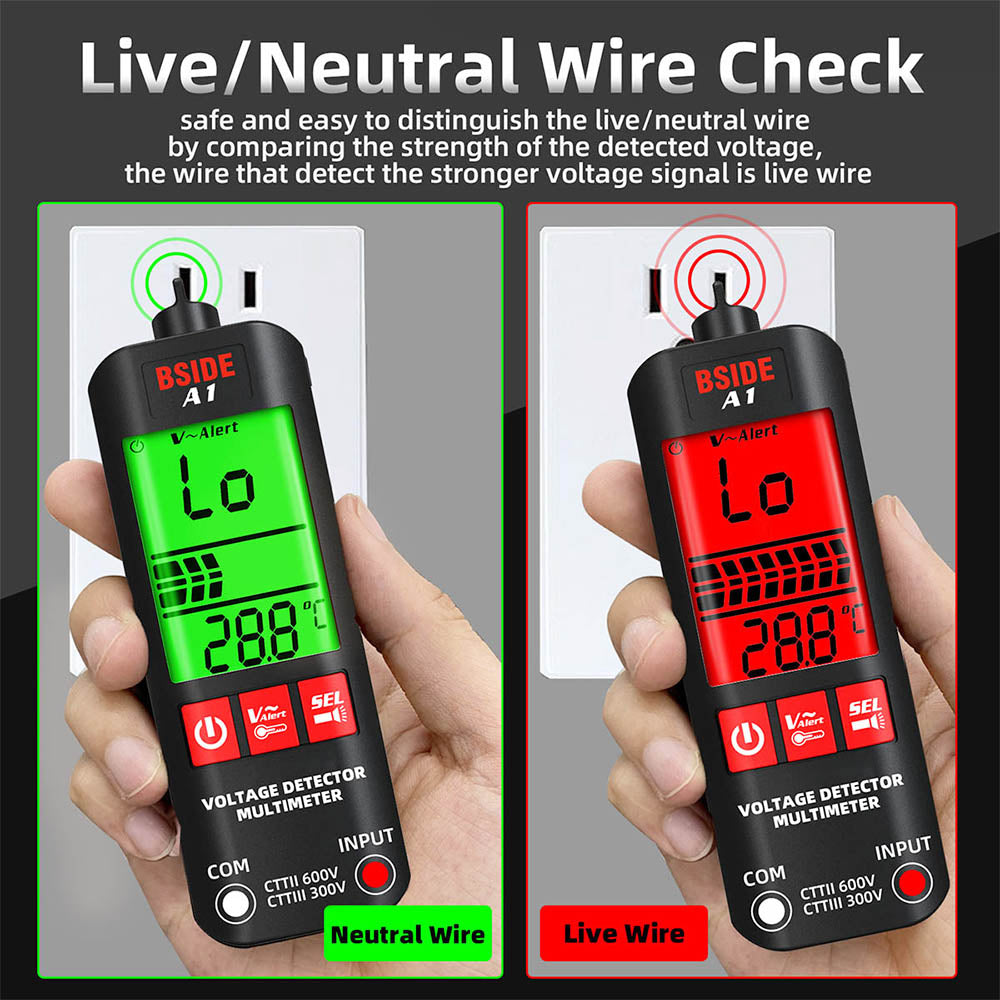

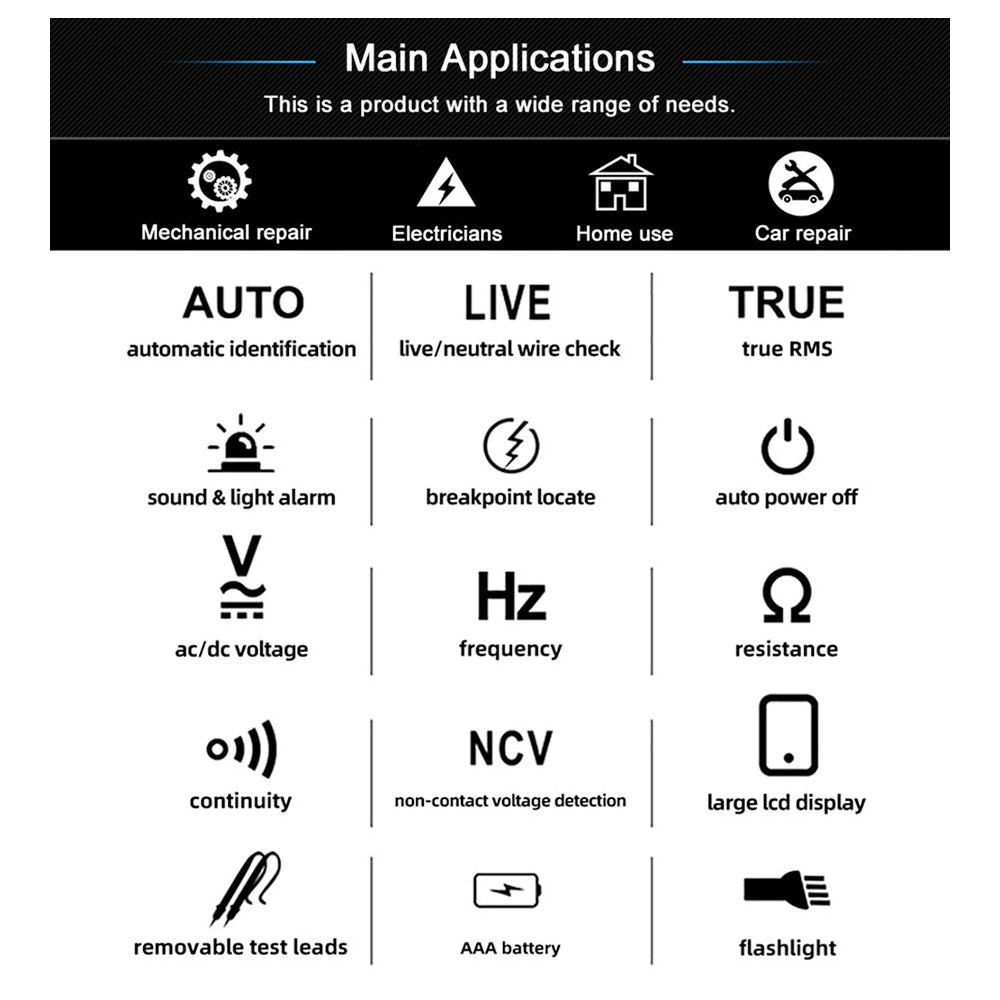

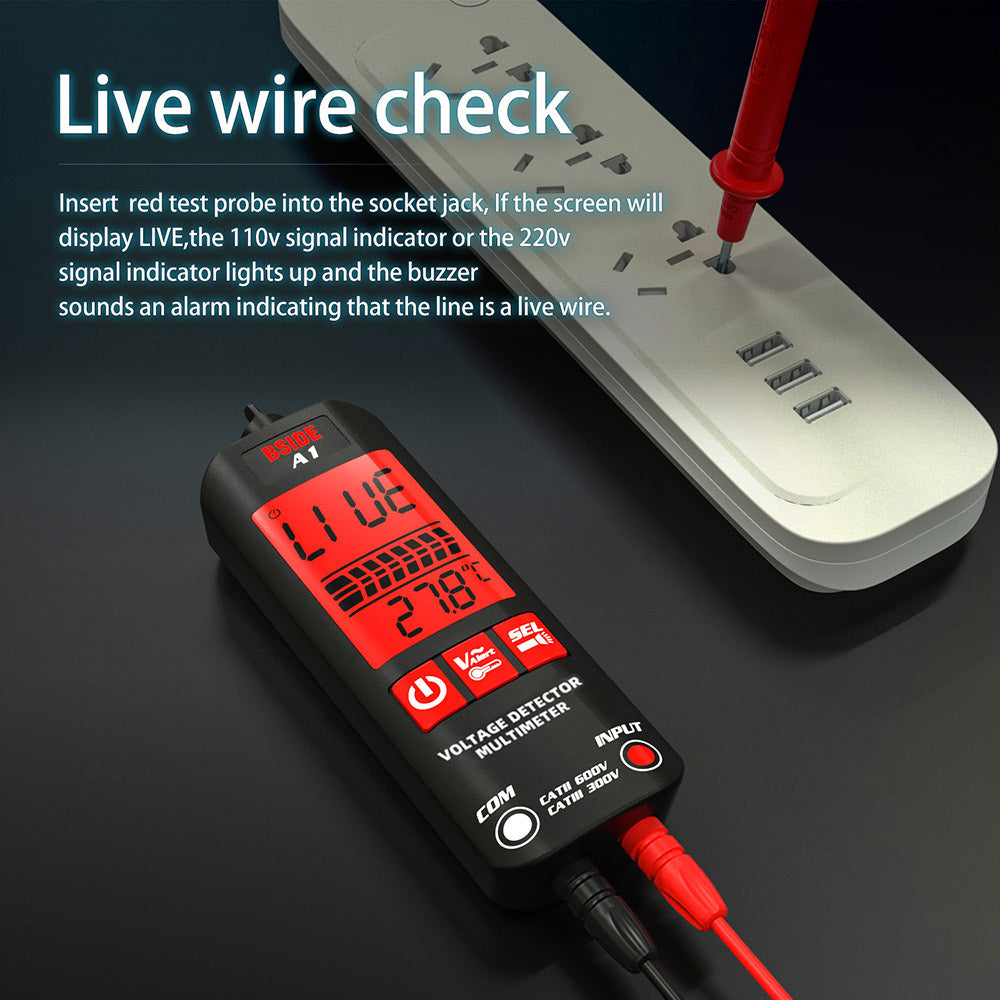

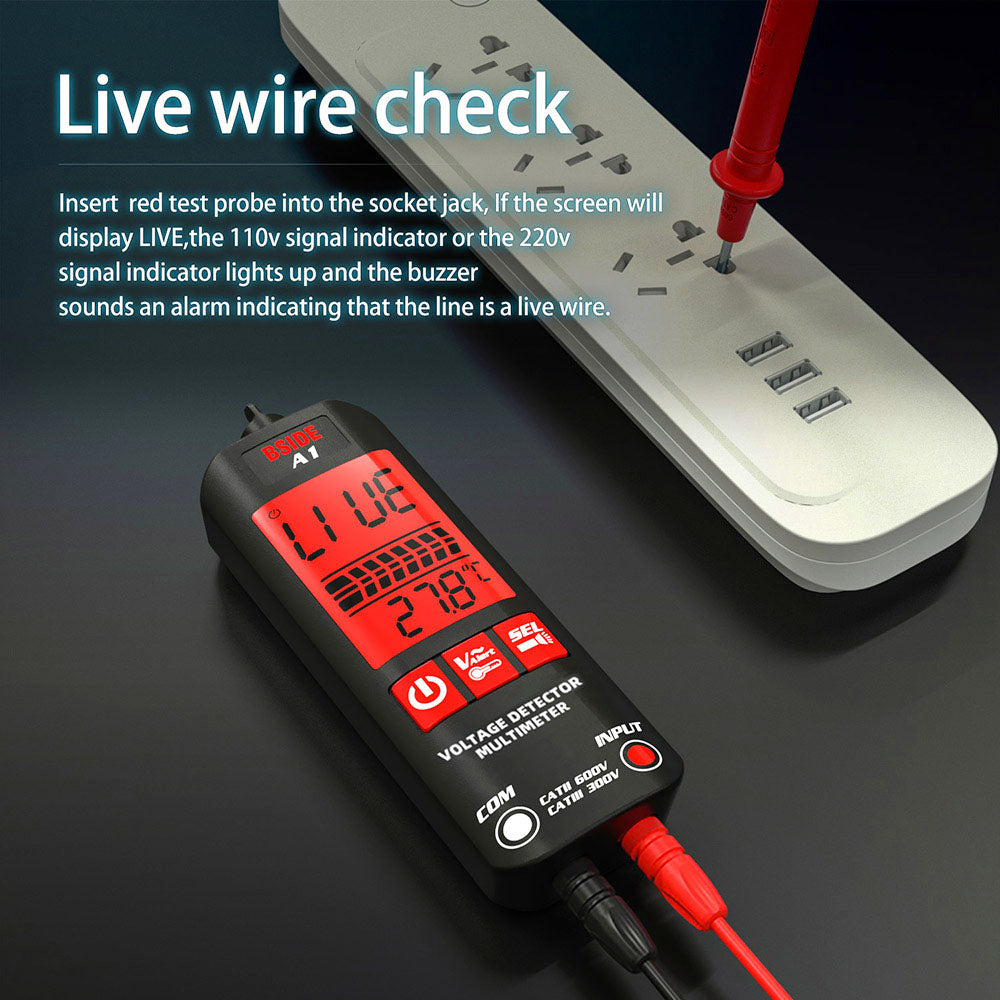

4. Has dangerous induction voltage alarm, live/neutral wire distinction, live wire breakpoint locate, continuity check, DC/AC voltage, resistance, frequency, power characteristics flashlight lighting, etc.

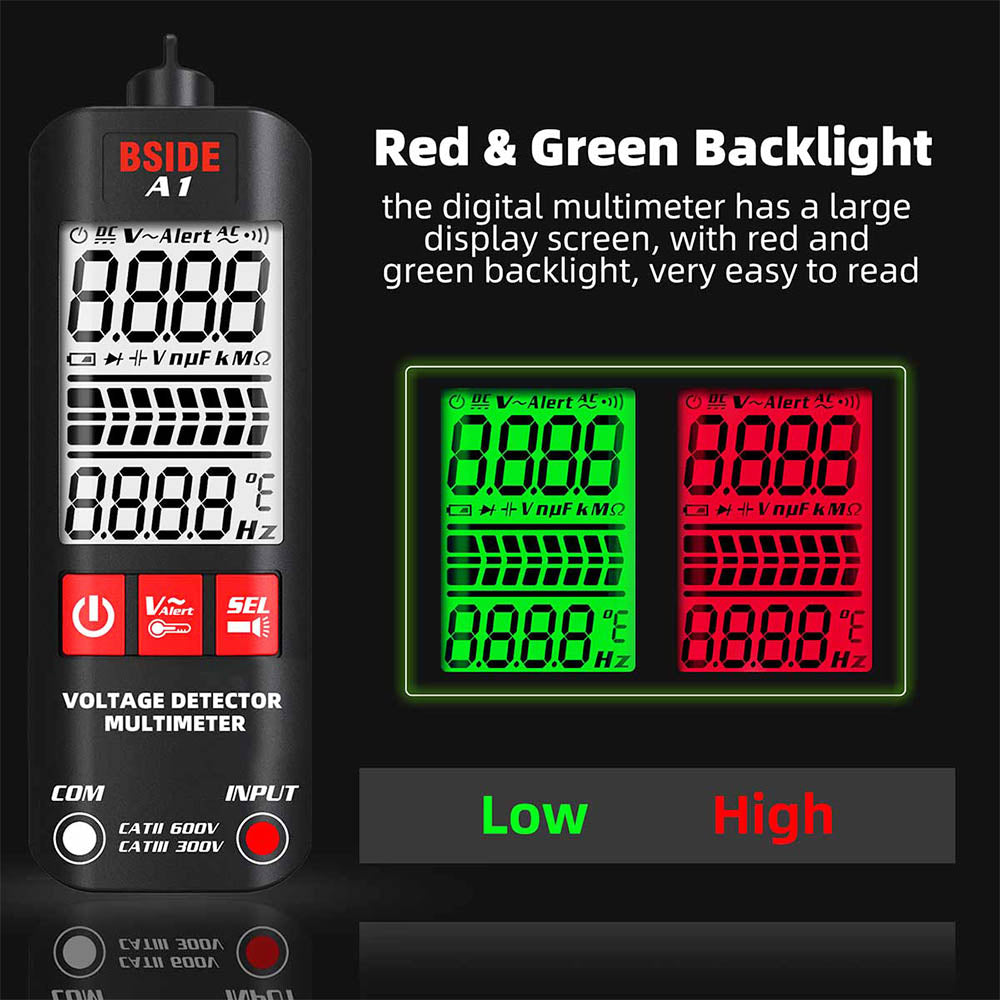

5. Alarm mode: Sound and light (red/green).
6. LED spotlight, low battery voltage reminder, auto power-off functions.
Specifications
Specifications
| General | |
|---|---|
| Brand | BSIDE |
| Type | Electric Pen Multimeter |
| Model | A1 |
| Color | Black |

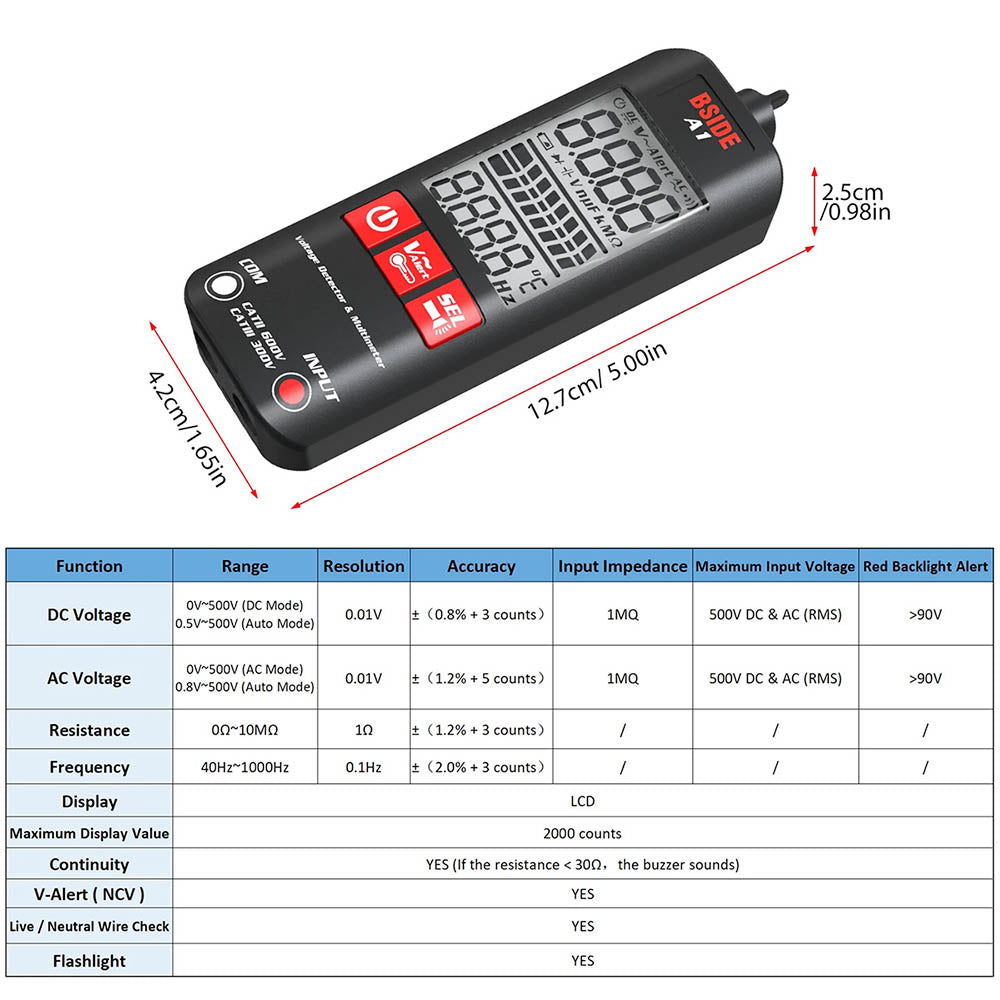

| Specification | |
| Maximum voltage allowed at the measuring end | 500V DC or 500V AC(RMS) |
| Work height | maximum 2000m |
| Display | LCD |
| Maximum display value | 2000 digits |
| Polarity indication | Self-indicating, '-' means Negative polarity |
| Over-range display | '0L' or '-0L' |
| Sampling time | The meter figures show about 0.4 seconds |
| Automatic power off time | About 5 minutes |
| Operational power | 1.5Vx2 AAA battery |
| Battery low voltage indication | LCD symbol |
| Operational temperature and humidity | 0-40 °C/32-104°F |
| Storage temperature and humidity | -10-60°C/-4-140°F |
| Weight & Size | |
| Product Weight | 67g |
| Package Weight | 214g |

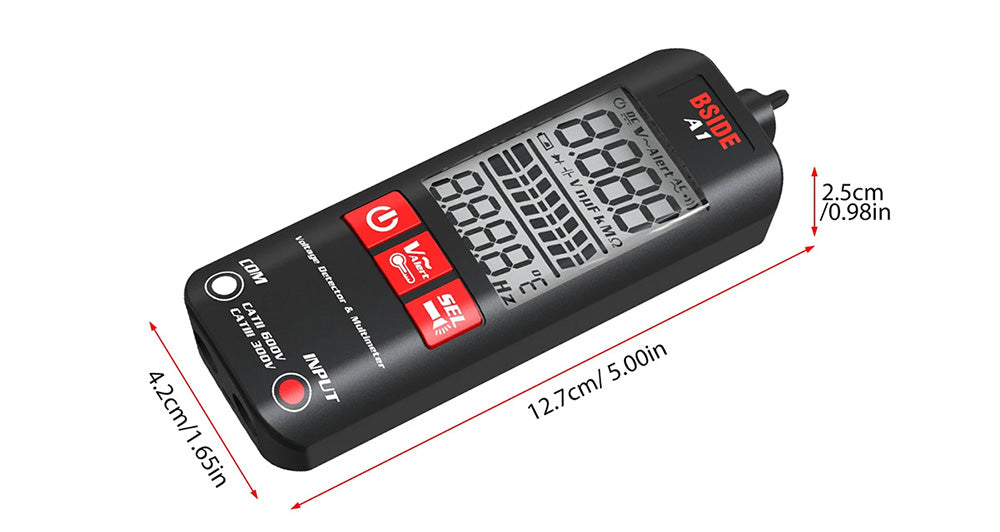

| Package Size(L x W x H) | 17x8.5x4.3cm |

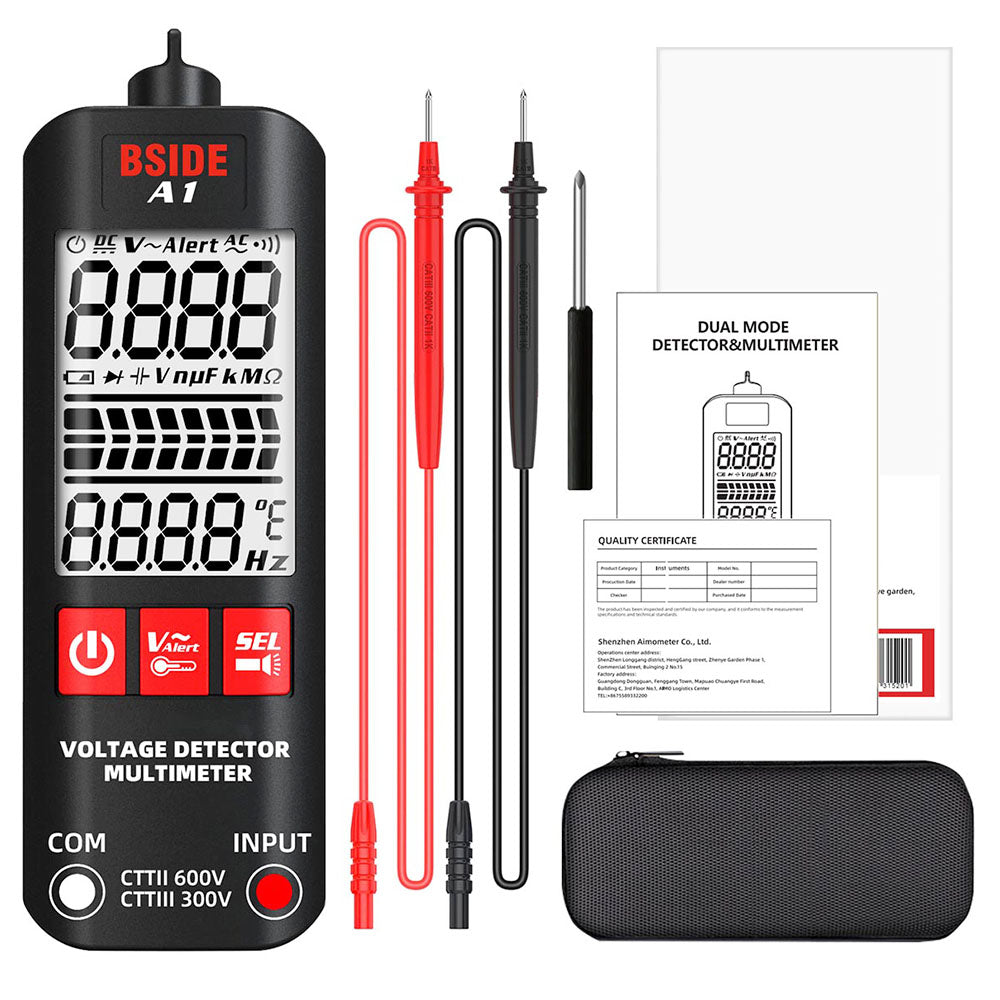

| Package Contents | |
| 1 x Electric Pen Multimeter | |
| 1 x User Manual | |
*Price, description, package content and images are informative only, please check for details on website of concrete seller!
