Description
Description
BLUETTI B230 highlights
Battery Module for Power Station
Boost your AC200Max (original expansion), AC200P/EB150/EB240 (DC-DC connection via D050S) portable power station with this 2048Wh B230 battery module.

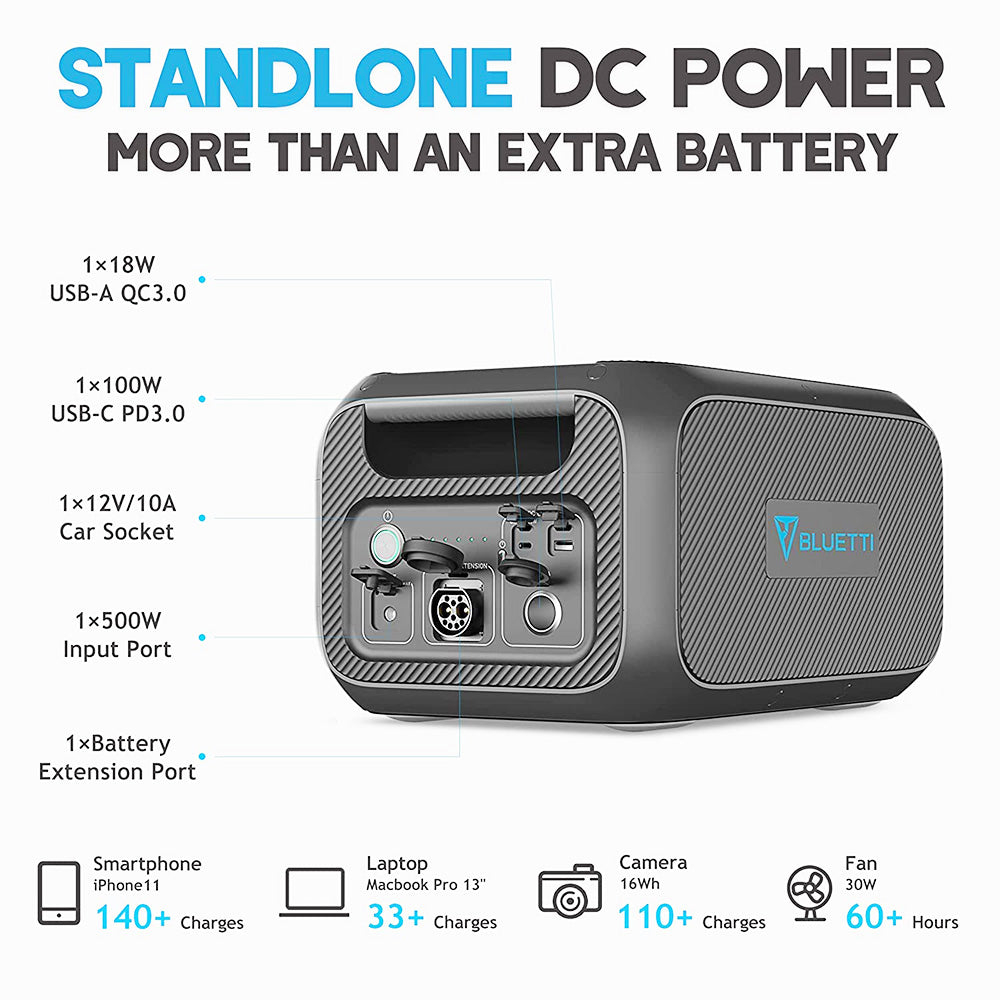

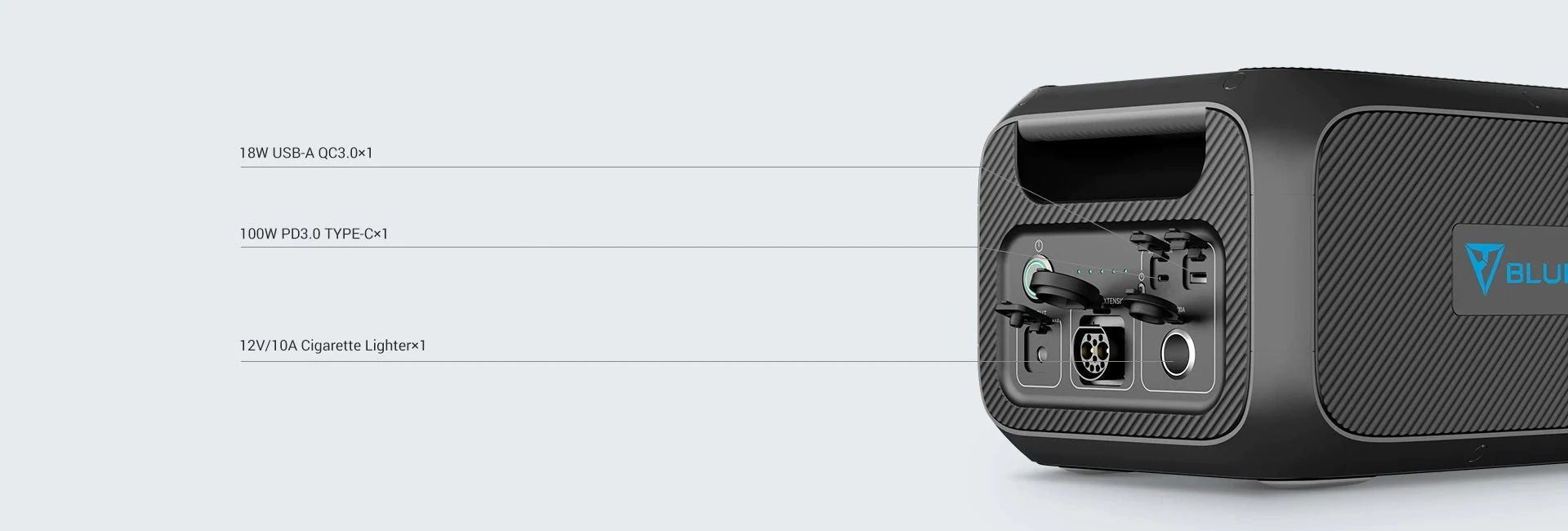

Various Ports
B230 has 1 x 100W Type-C port, 1 x 12V/10A car cigarette lighter port, and 1 x USB port to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, mini fridge, car vacuum cleaner, and so on. It is perfect for off-grid or power failure alternatives in emergencies or outdoors.

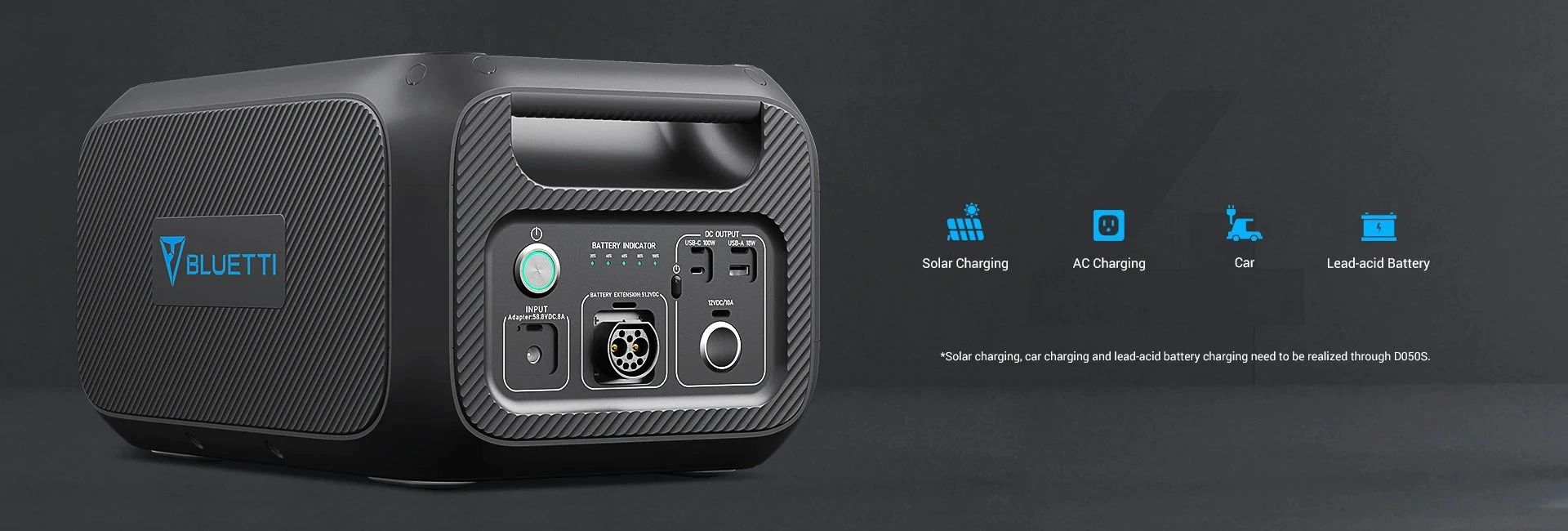

4 Recharging Modes
The B230 is really great for outdoors, RV, van, caravan, camping, hiking, excursion, and more. It comes with solar/AC/car port/lead-acid battery recharging mode to recharge itself more flexibly.
Large Battery Capacity
Top-notch LFP cells provide B230 3,500+ life cycles before even reaching its 80% capacity. It’s really durable and rugged for your long-term use.
Specifications
Specifications
| General | |
|---|---|
| Brand | BLUETTI |
| Type | Battery Module |
| Model | B230 |
| Color | Black |
| Specification | |
| Battery: | |
| Capacity: 2048Wh (51.2V, 40Ah) | |
| Type: LiFePO4 (Lithium Iron Phosphate) | |
| Life Cycles: 3,500+ Cycles to 80% Original Capacity | |
| Shelf-life: Recharge to 80% Every 3-6 Months | |
| Management System: MPPT Controller, BMS, etc. | |
| Outputs: | |
| USB-C Port: 1 x 100W Max. | |
| USB-A Port: 1 x 18W USB-A | |
| 12V DC Outlets: 1 x 12V/10A (Car Outlet) | |
| Input: | |
| AC Adapter Input: 500W Max. | |
| Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S) | |
| Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S) | |
| Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S) | |
| Max Input: 500W | |
| Recharge Time: | |
| AC Adapter (400W): about 5.5- 6 Hours | |
| Solar (500W): about 4.5 - 5 Hours (With prime sunshine, ideal orientation, and low temperature) | |
| 12V/24V Car Outlet (100W/200W): about 10 or 20 Hours | |
| Compatibility: can work with AC200Max (Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S) | |
| Pass-through Charging: Yes | |
| Storage Temperature: -20-40 Celsius (-4-104 Fahrenheit) | |
| Operation Temperature: 0-40 Celsius (32-104 Fahrenheit) | |
| Weight & Size | |
| Product Weight | 21.8kg |
| Package Weight | 28.8kg |
| Product Size(L x W x H) | 42x28x22.75cm |
| Package Size(L x W x H) | 57x44x47cm |
| Package Contents | |
| 1 x B230 Battery Module | |
| 1 x Battery Expansion Cable (P090A) | |
| 1 x User Manual | |
