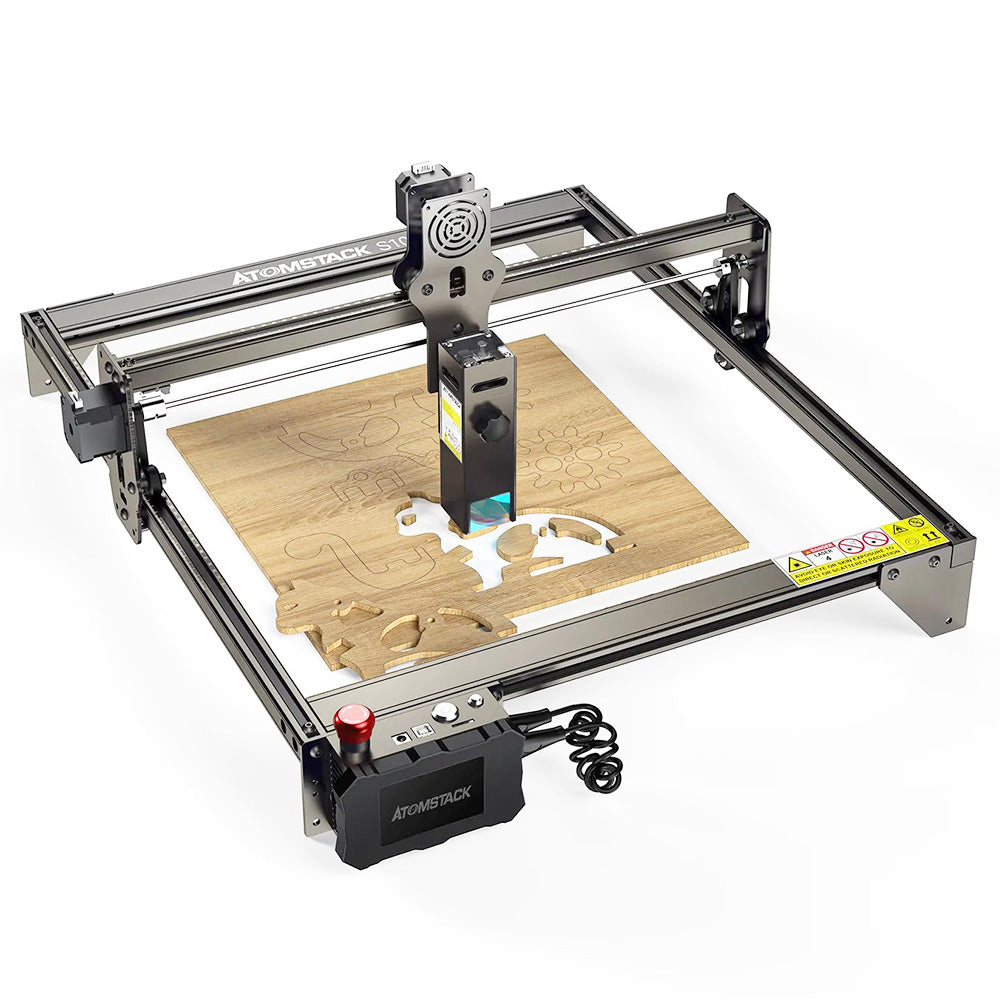

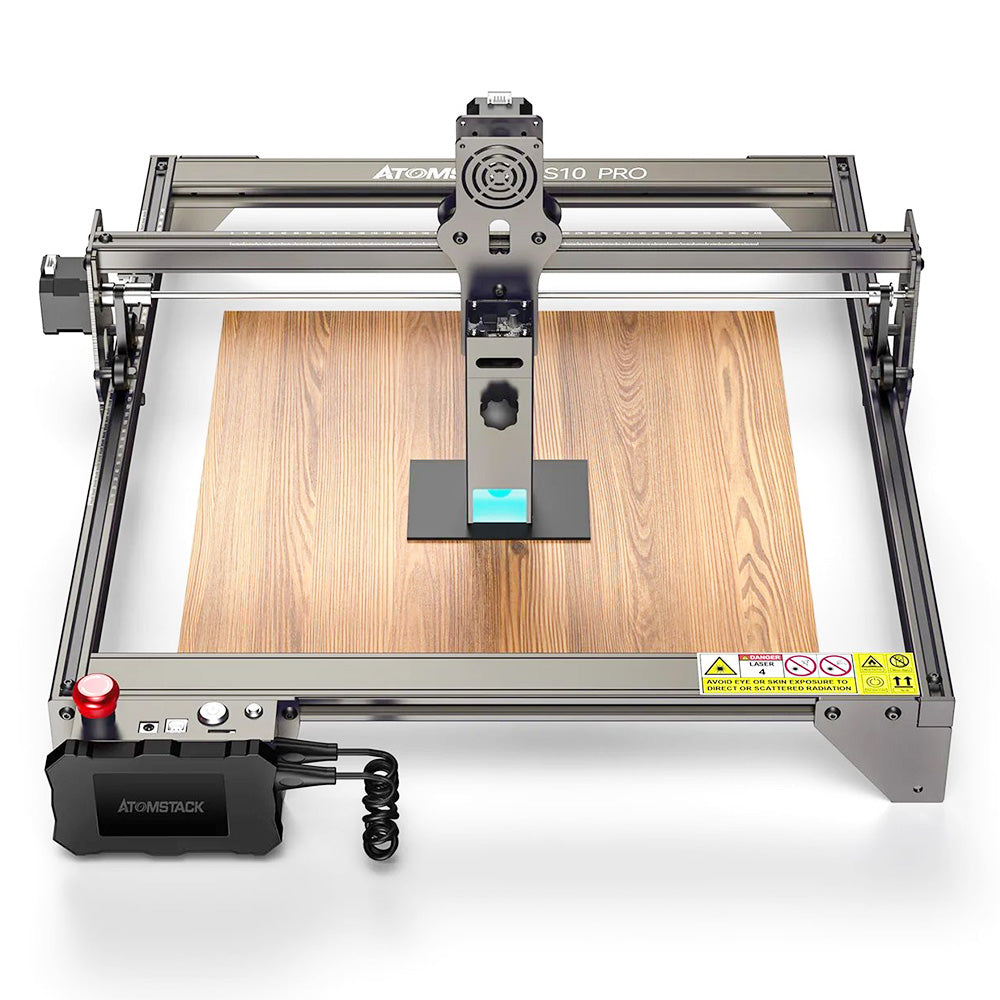

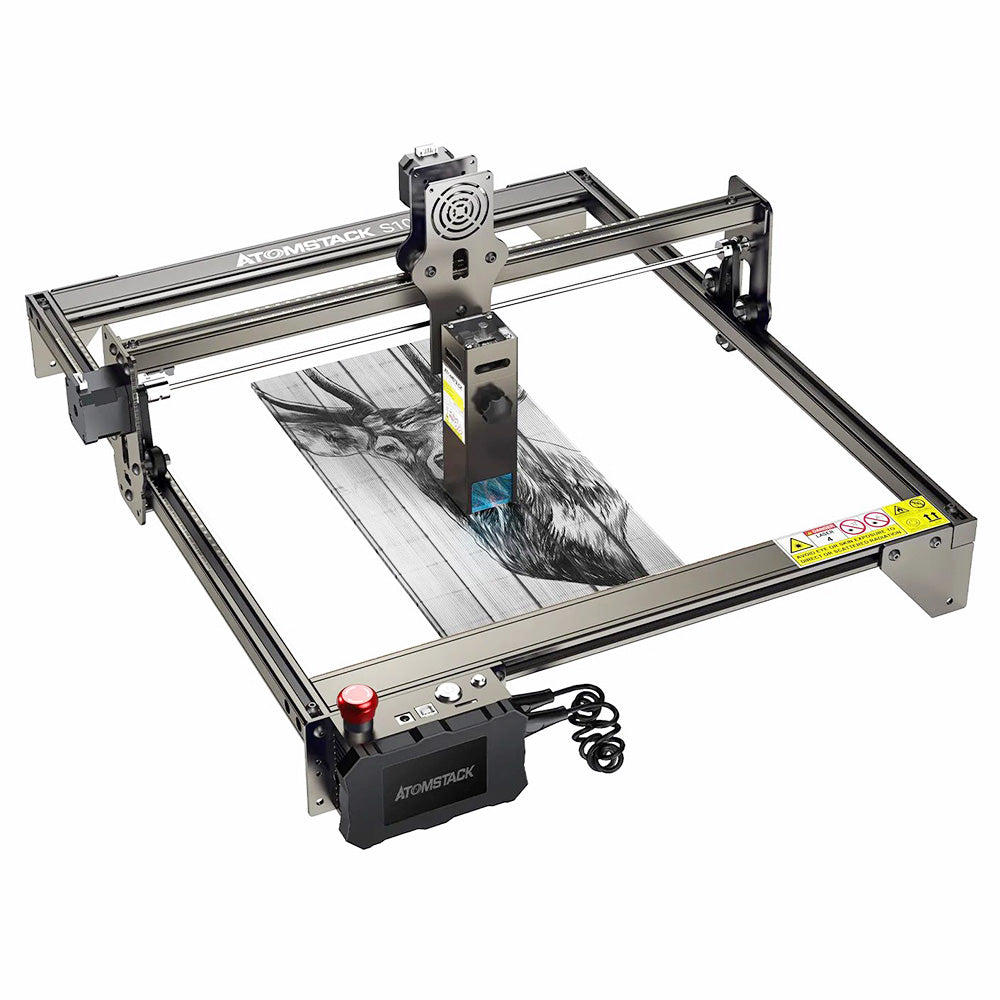

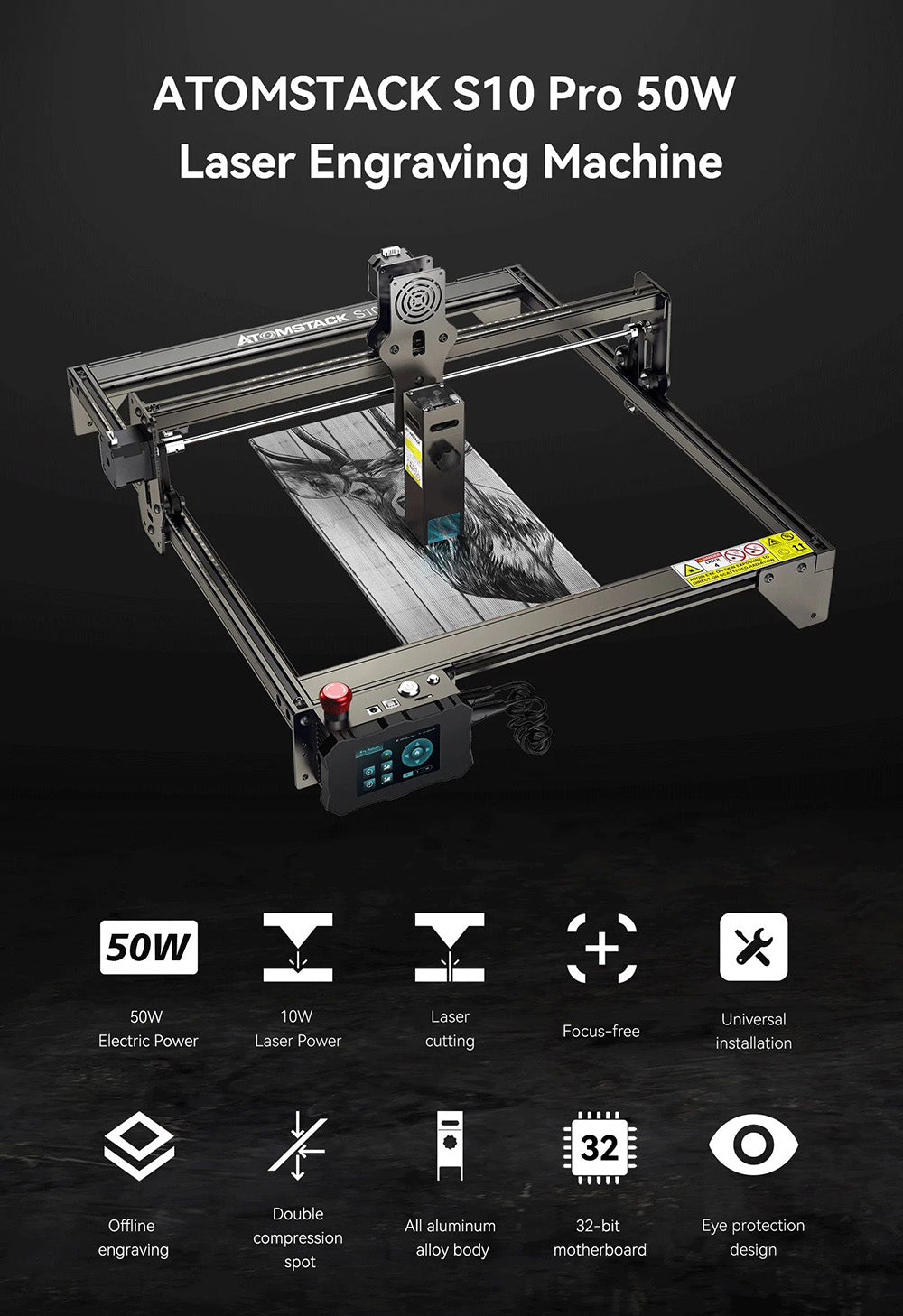

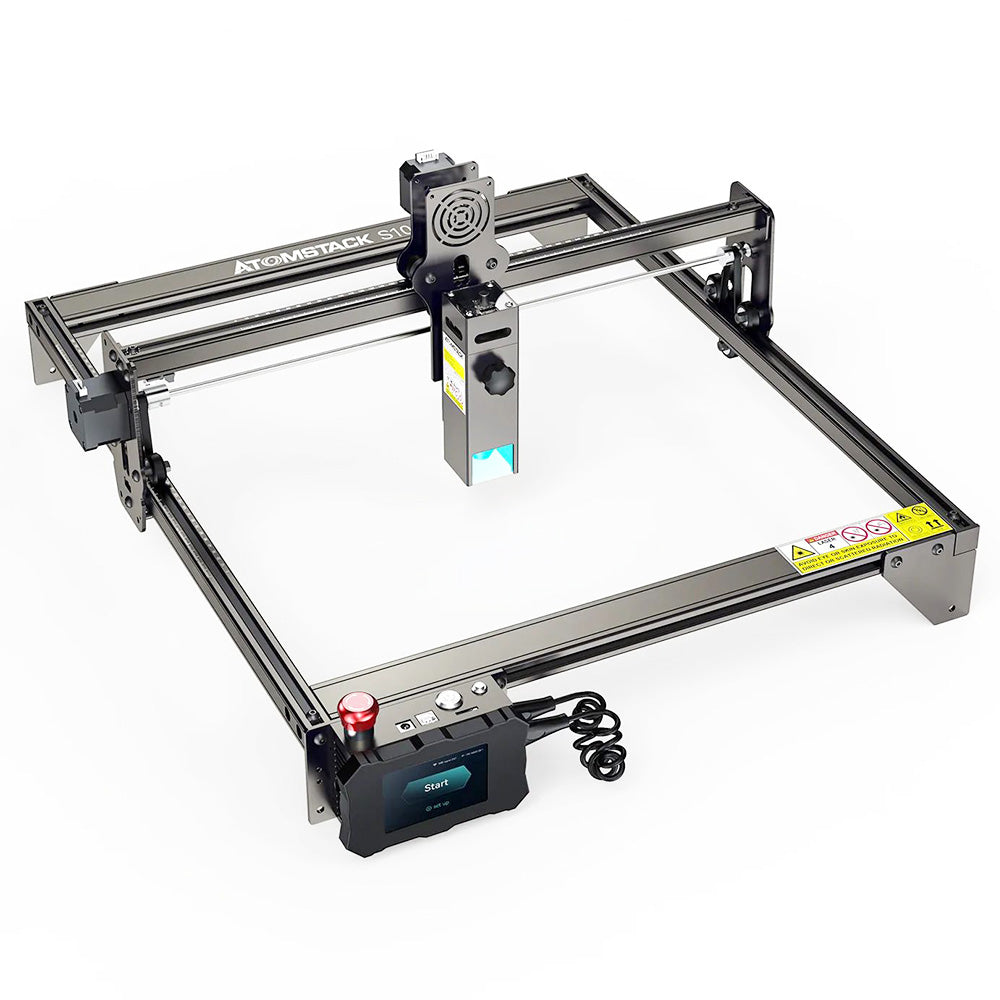

ATOMSTACK S10 Pro Laser Engraving Machine

ATOMSTACK S10 Pro highlights

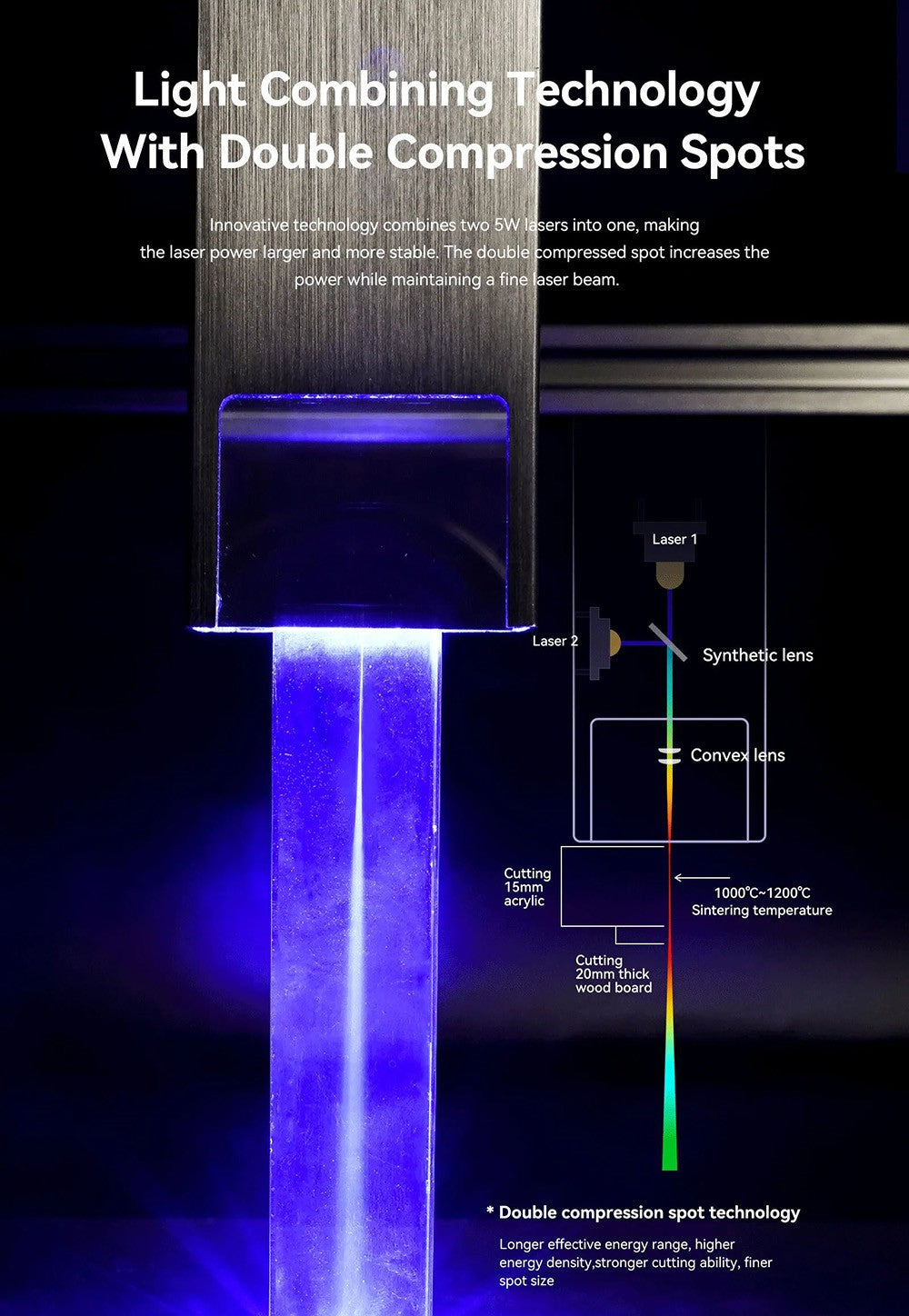

Dual Compression Spot Technology

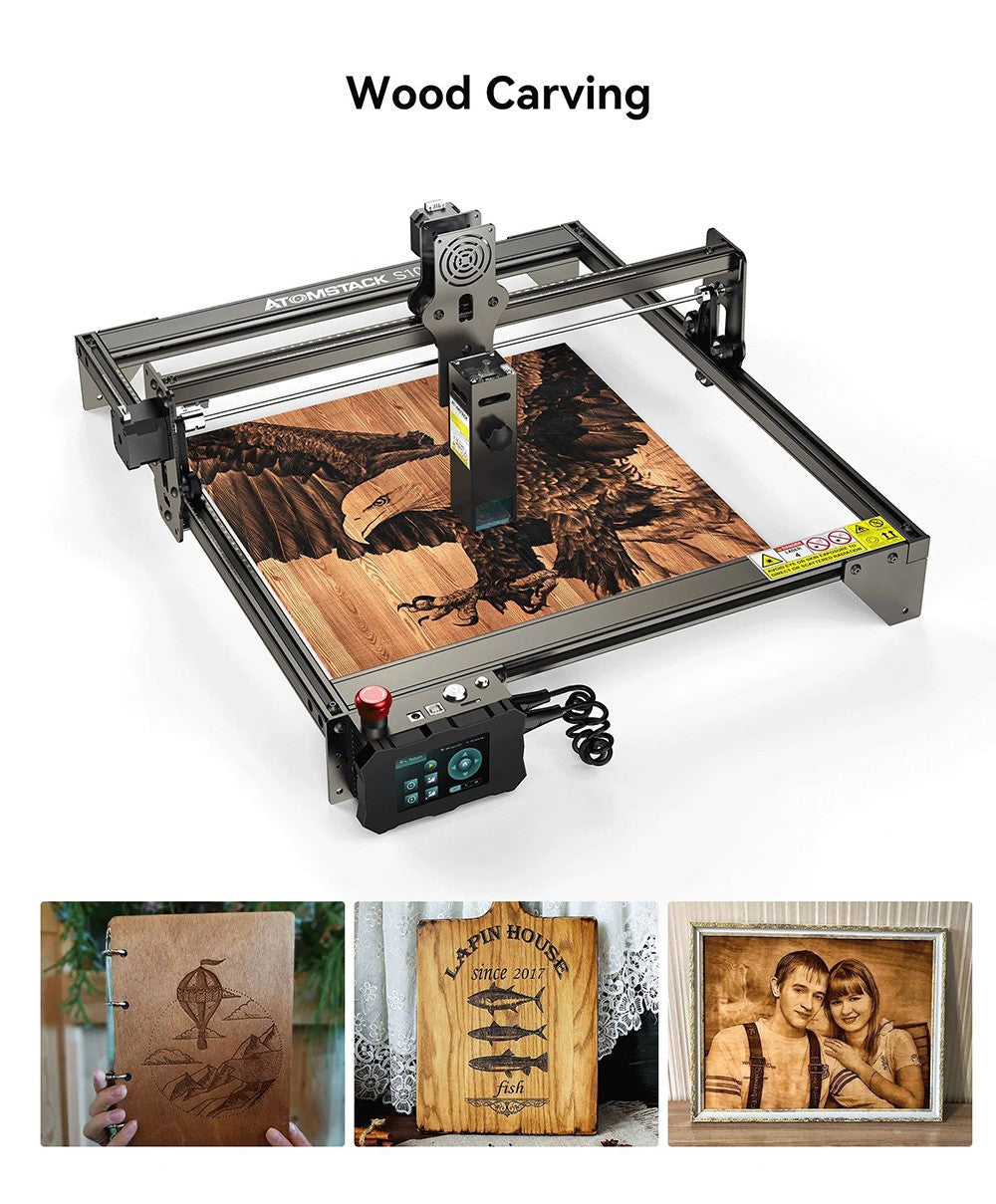

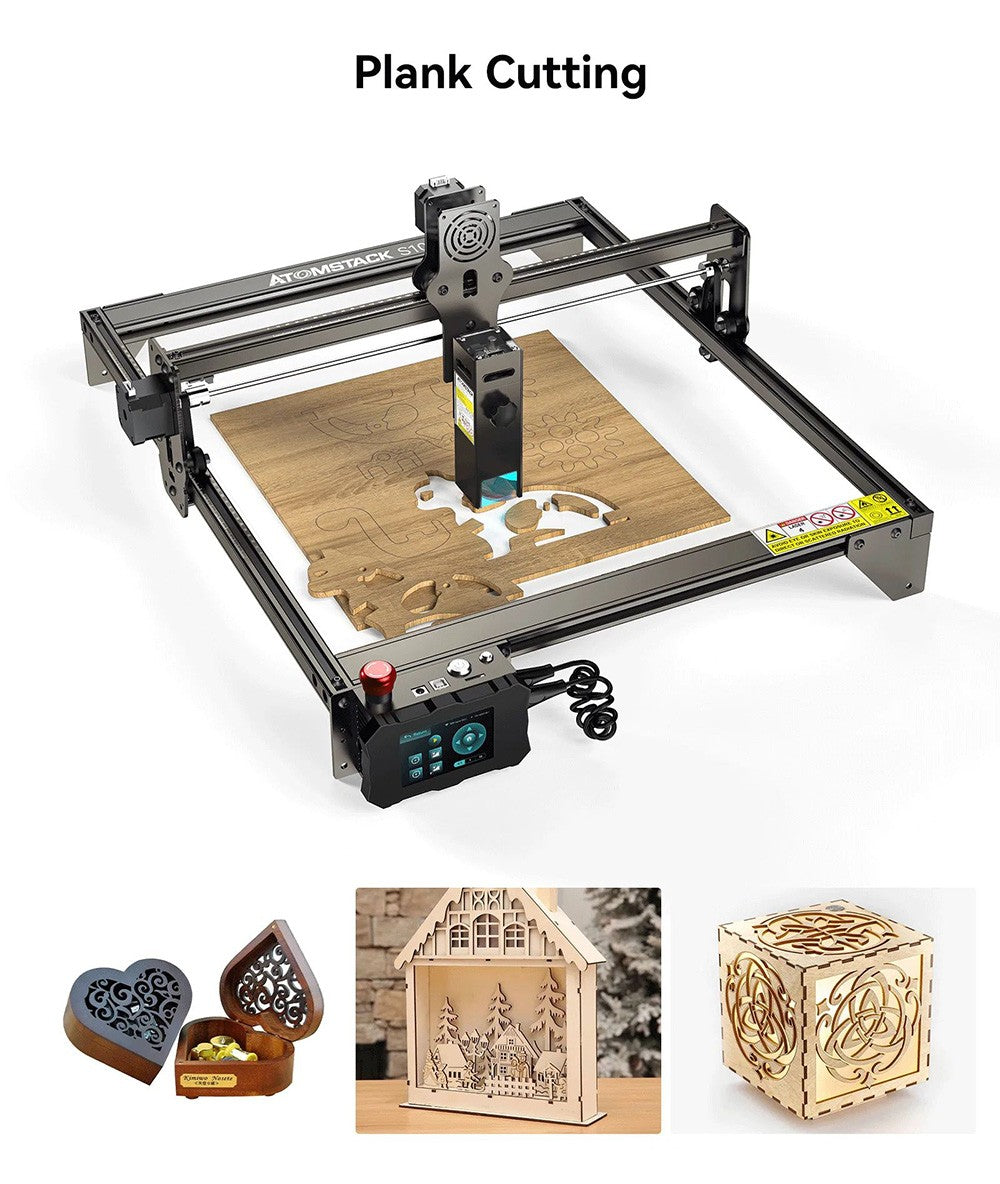

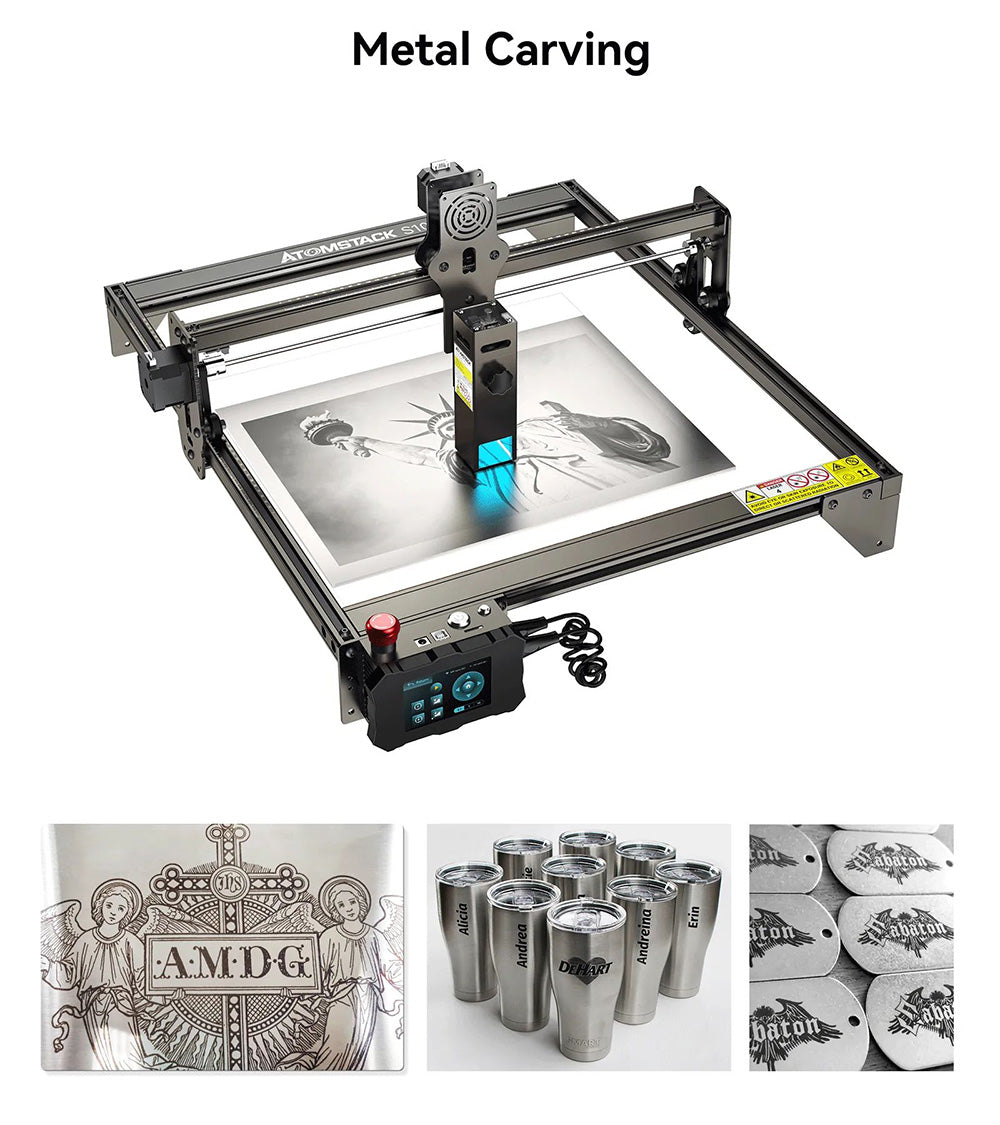

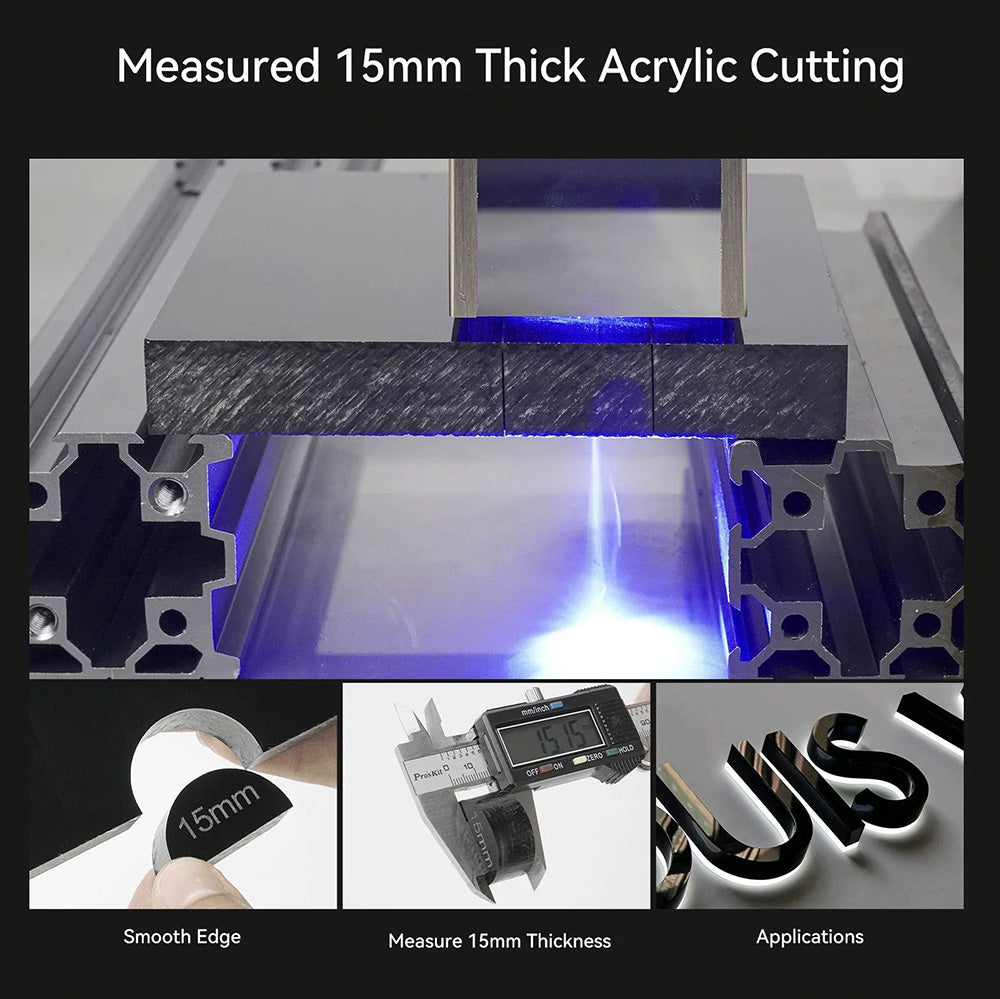

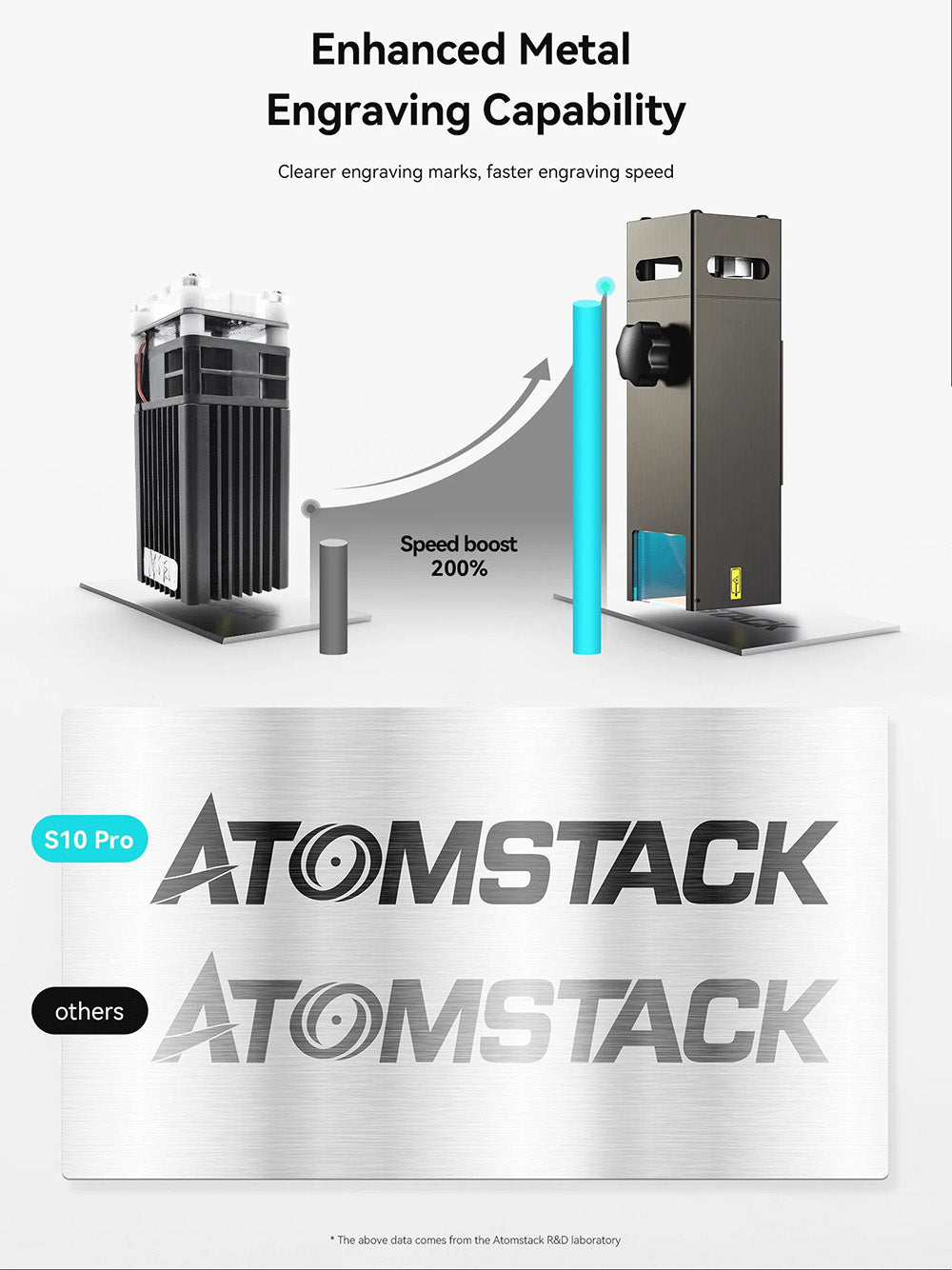

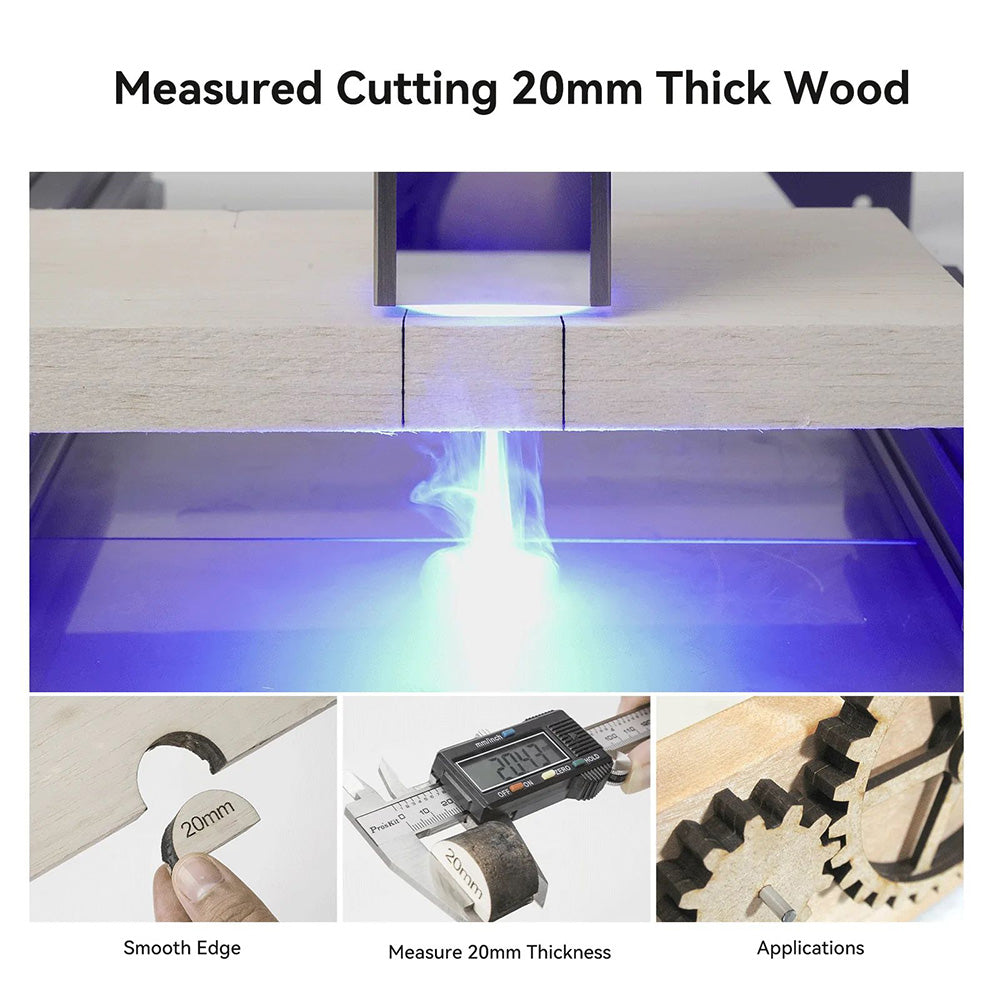

ATOMSTACK S10 Pro laser engraver features 50W machine power and 10W laser output power. The ultra-fine laser focus area is reduced to 0.08x0.06mm, so the high-density laser can cut 15 - 20mm thick wood, engrave mirrors, stainless steel metal, ceramics, and glass. The cutting speed is 40% higher than the ordinary model.

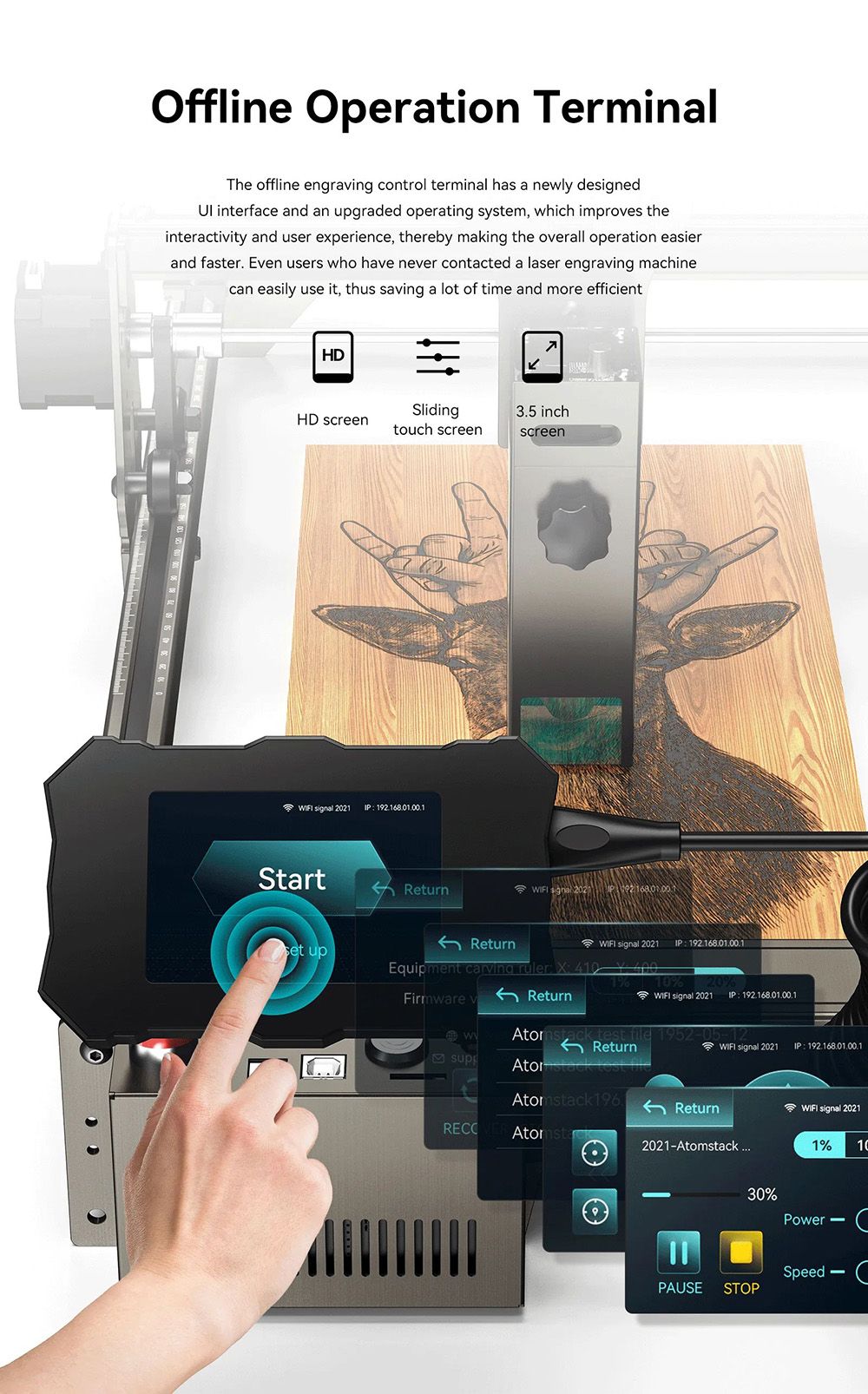

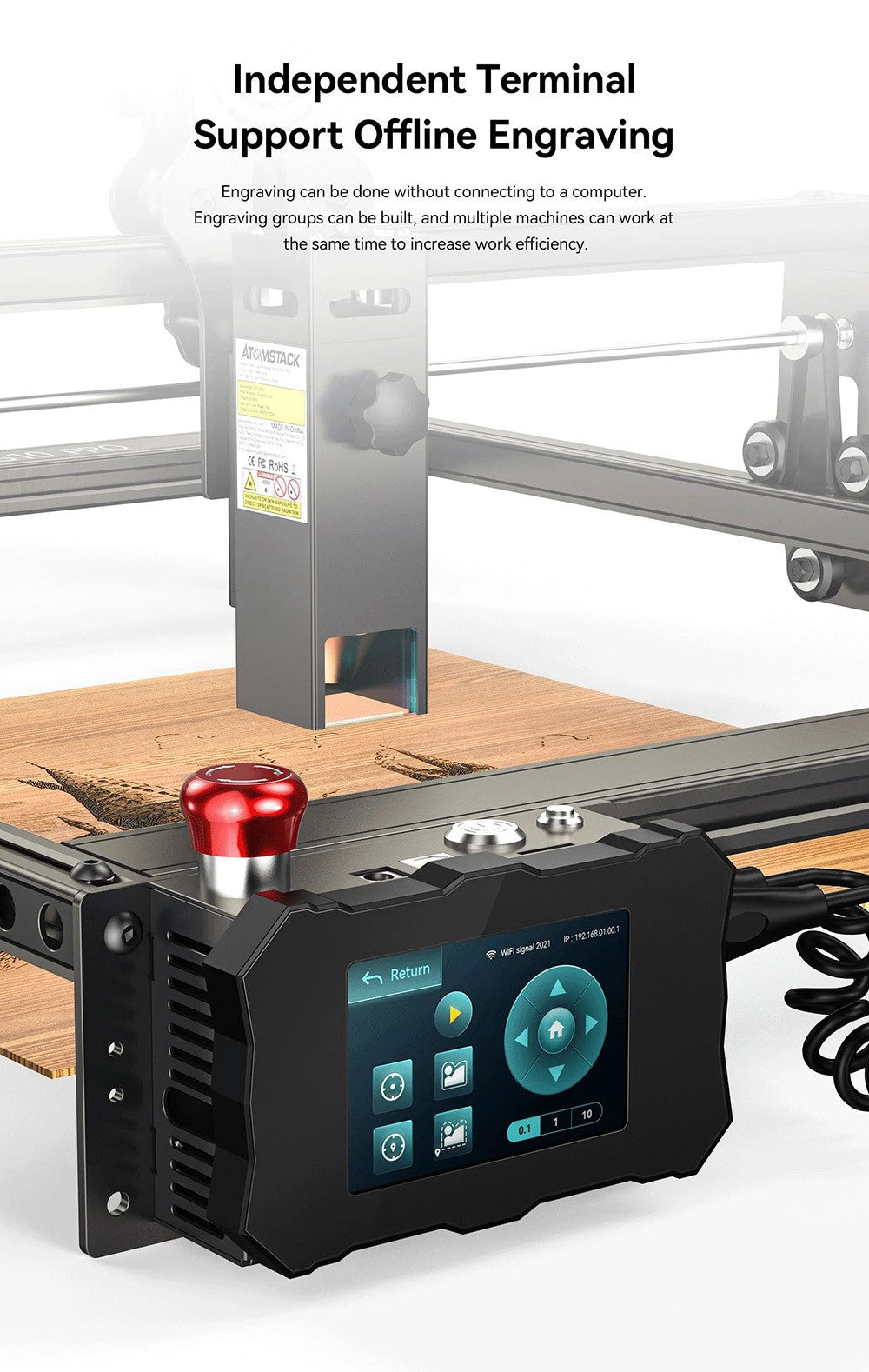

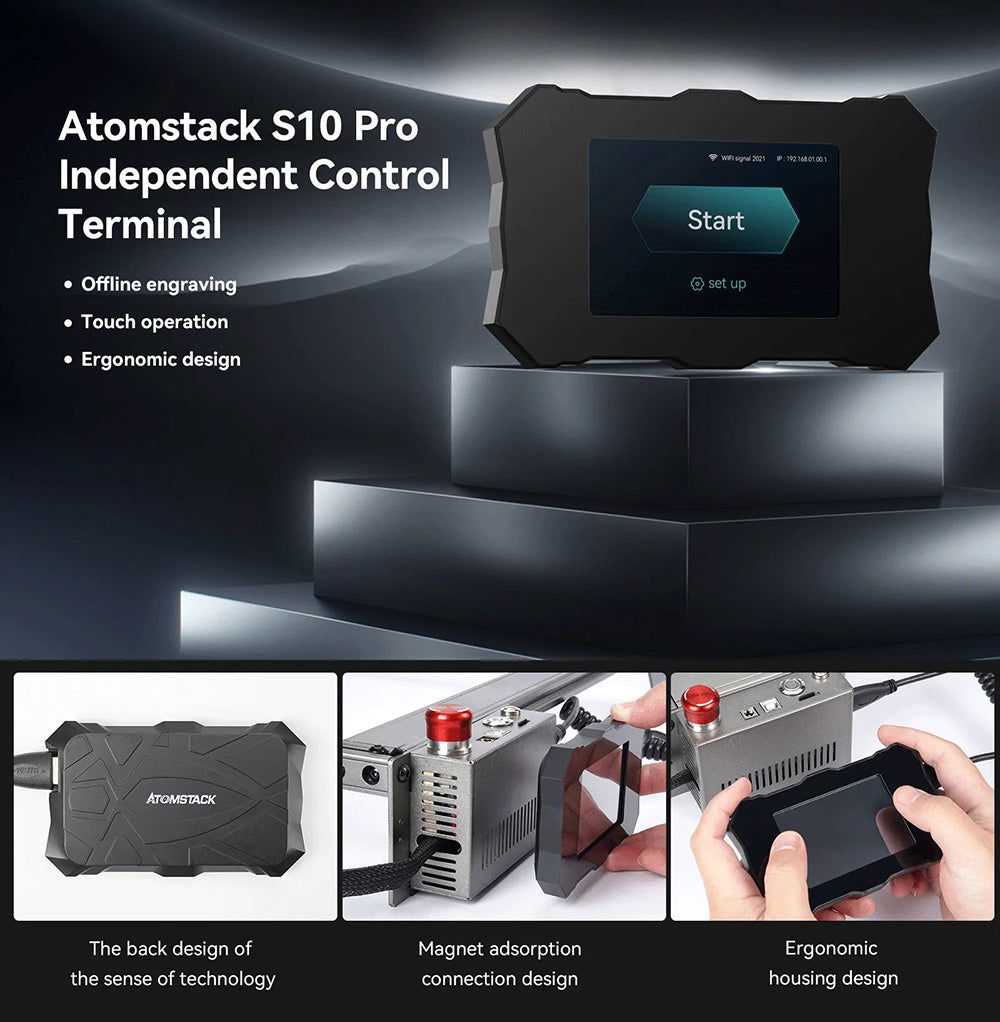

Support Offline Engraving

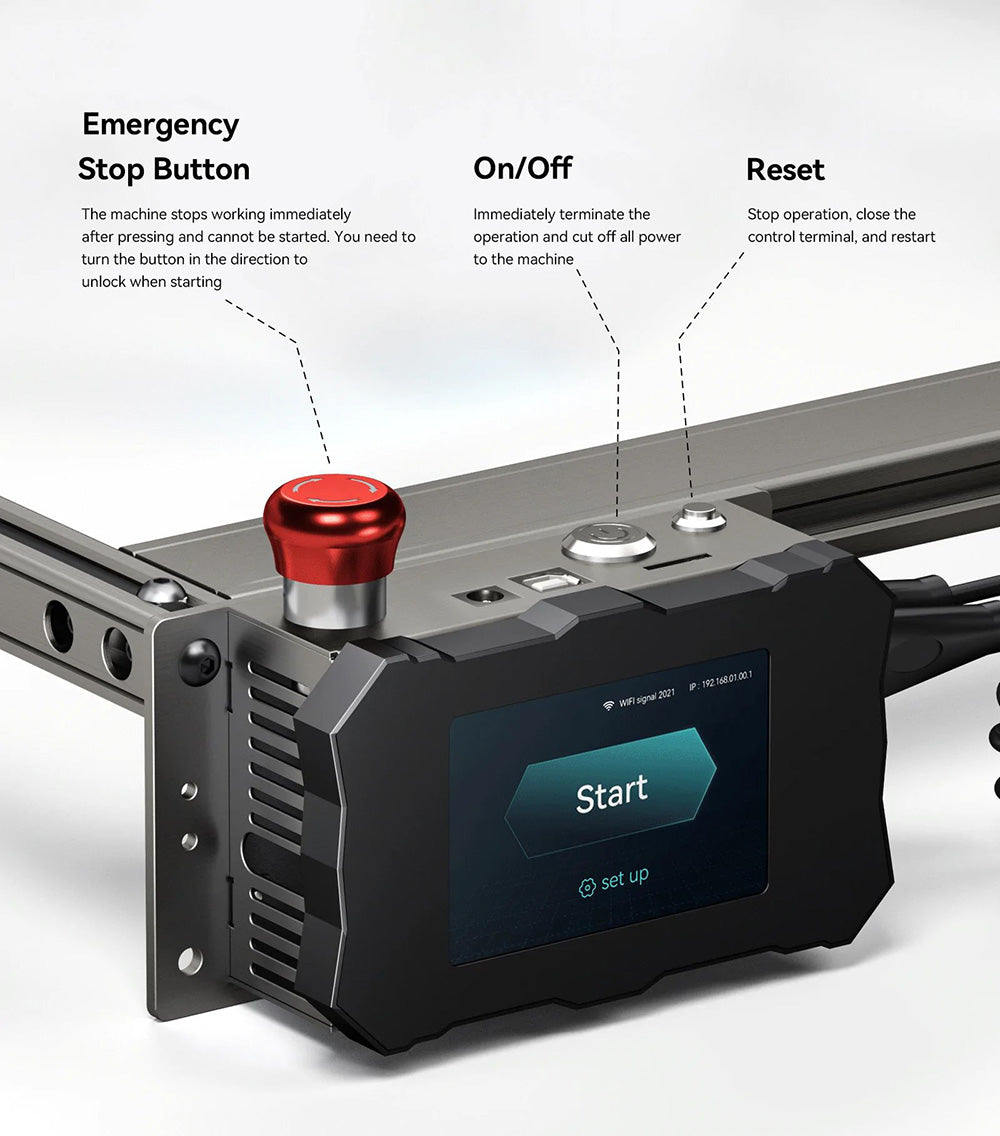

S10 PRO laser engraving machine configures the terminal control panel, supports offline engraving, and with an emergency stop button. After you install the software and upload the file, you can carry out engraving work anytime and anywhere without being restricted by the computer.

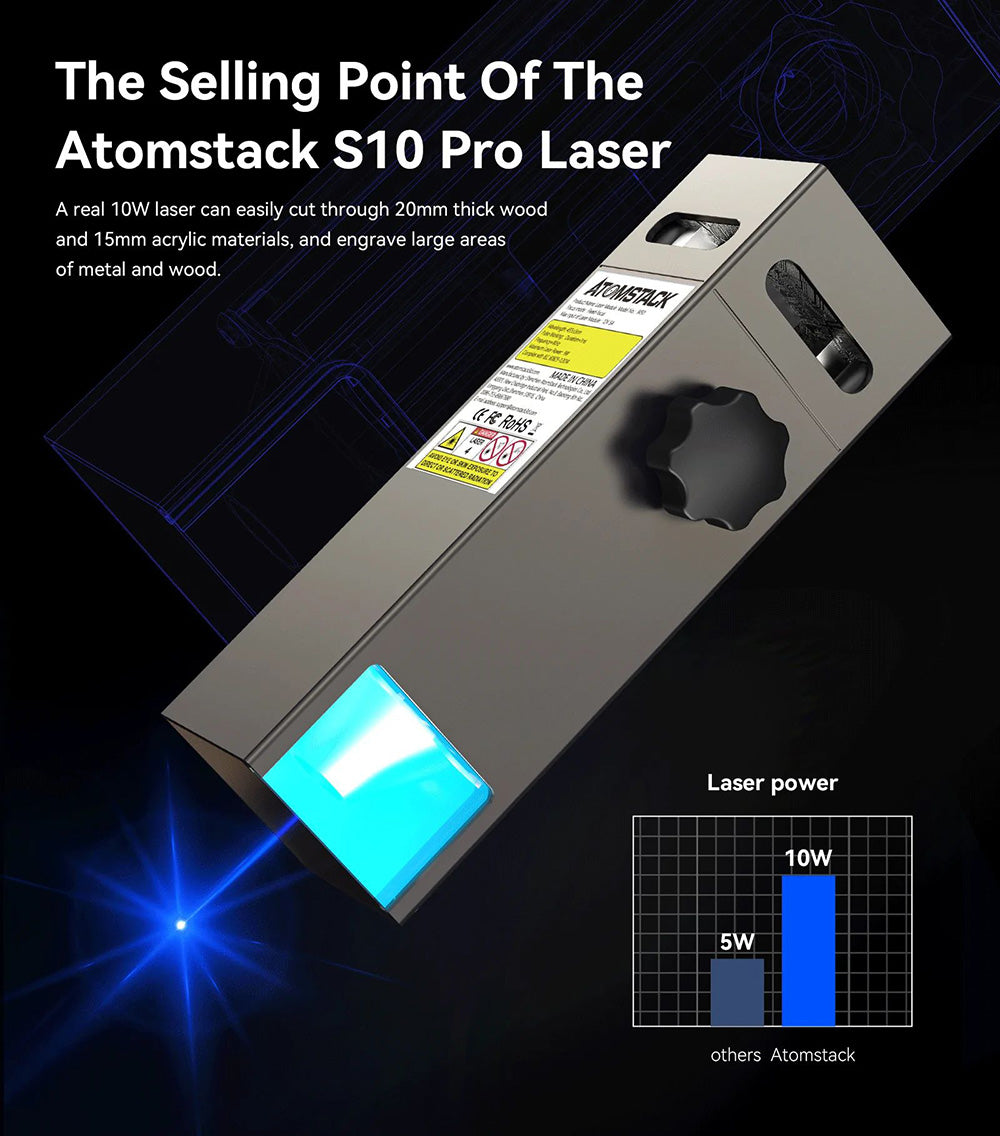

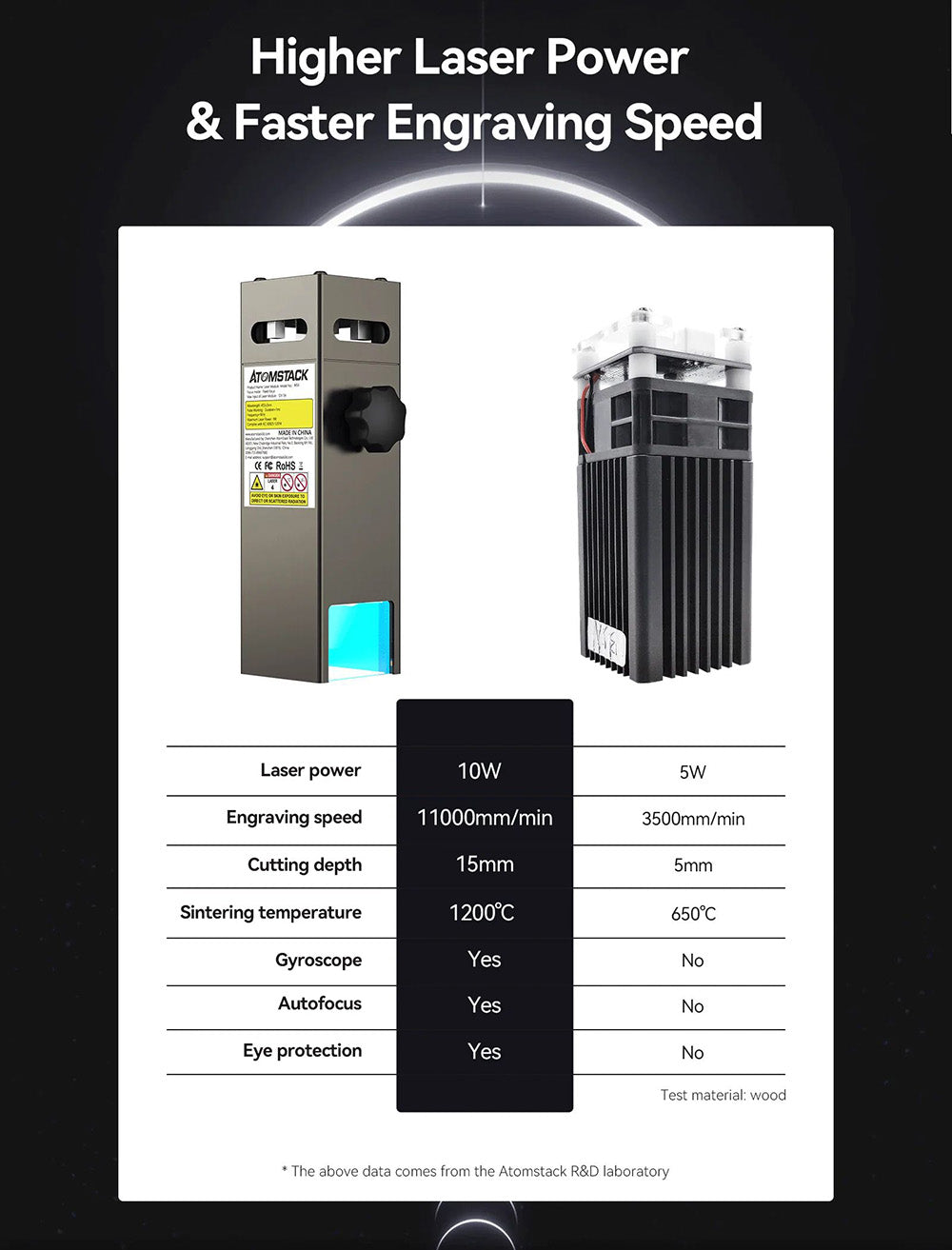

High-Performance Fixed-Focus Laser
The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers. Features automatically fixed focus, the new laser combines precision engraving and high-energy cutting at the same time.

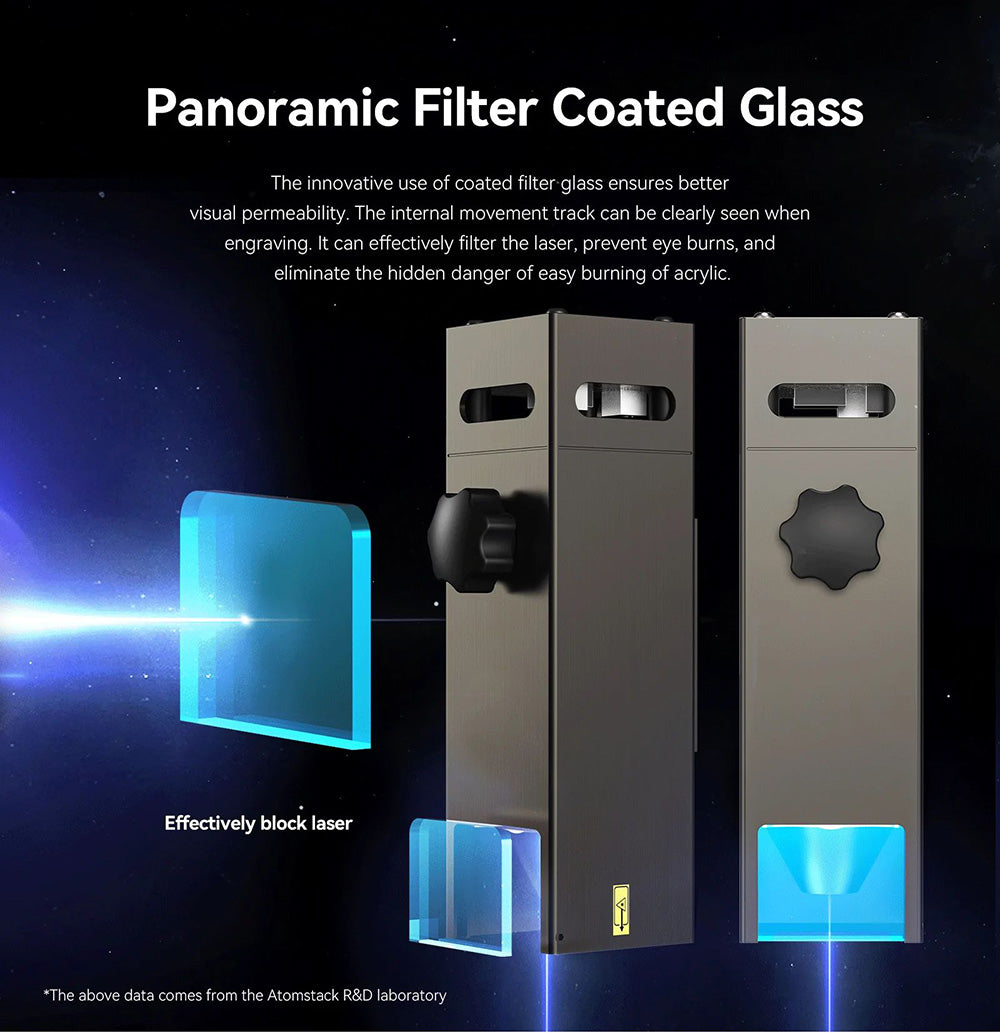

New Filter Panoramic Glass Eye Protection Design
S10 laser engraving with the newest panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you do not need to wear goggles and could watch the engraving clear.

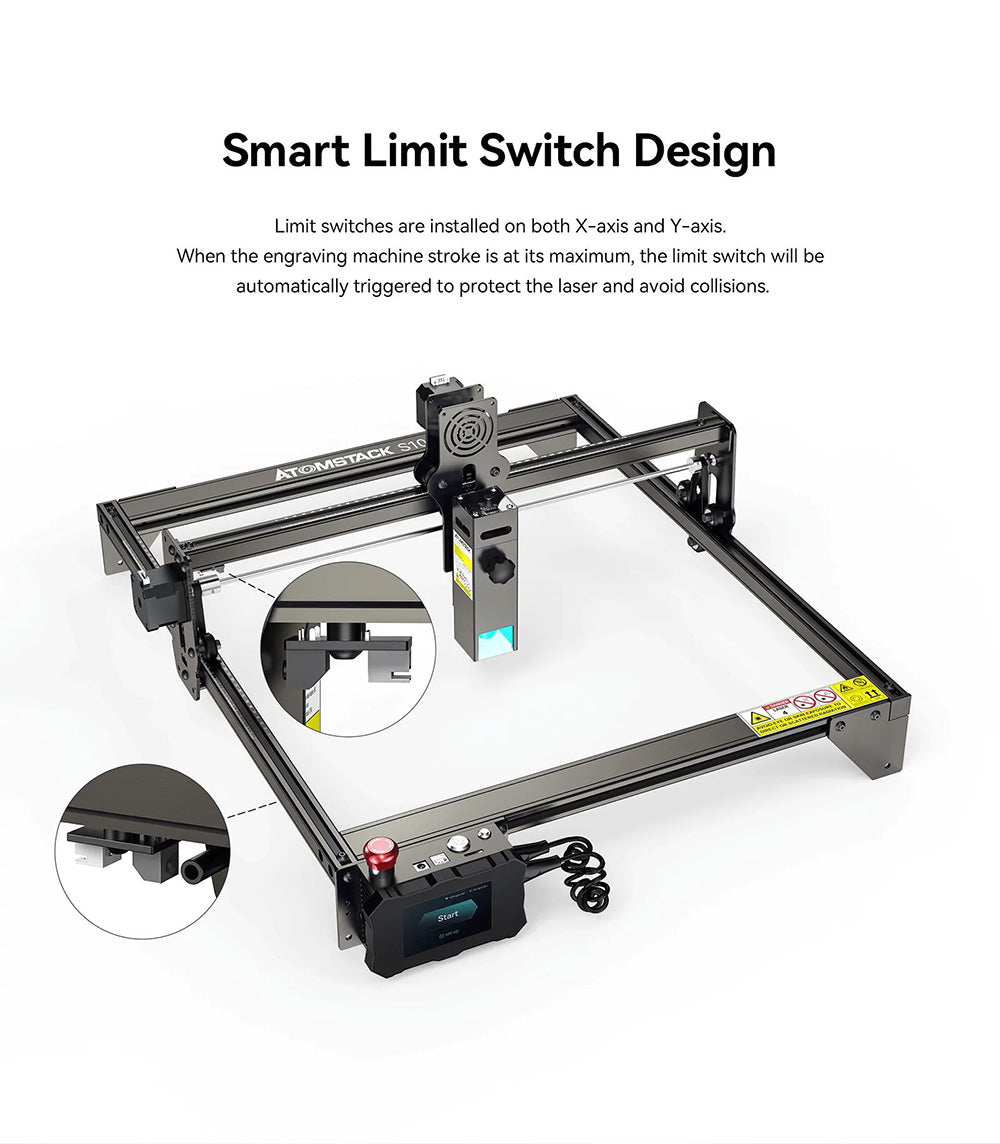

Smart Limit Switch Design
Limit switches are installed on both X-axis and Y-axis. when the engraving machine stroke is at its maximum, the limit switch will be automatically triggered to protect the laser and avoid a collision.
Wide Compatibility
The ATOMSTACK S10 Pro engraving machine is compatible with various mature engraving software, such as LaserGRBL(Free), and LightBurn(may need to be paid). It supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 and supports Mac system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

General
Brand	ATOMSTACK
Type	Laser Engraving Machine
Model	S10 Pro
Specification
Model: S10 PRO
Working Area: 410x400mm
Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and paint surface layer metal, 304 mirrors stainless steel, glass, ceramics, cotton cloth, slate
Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge
Machine Power: 50W

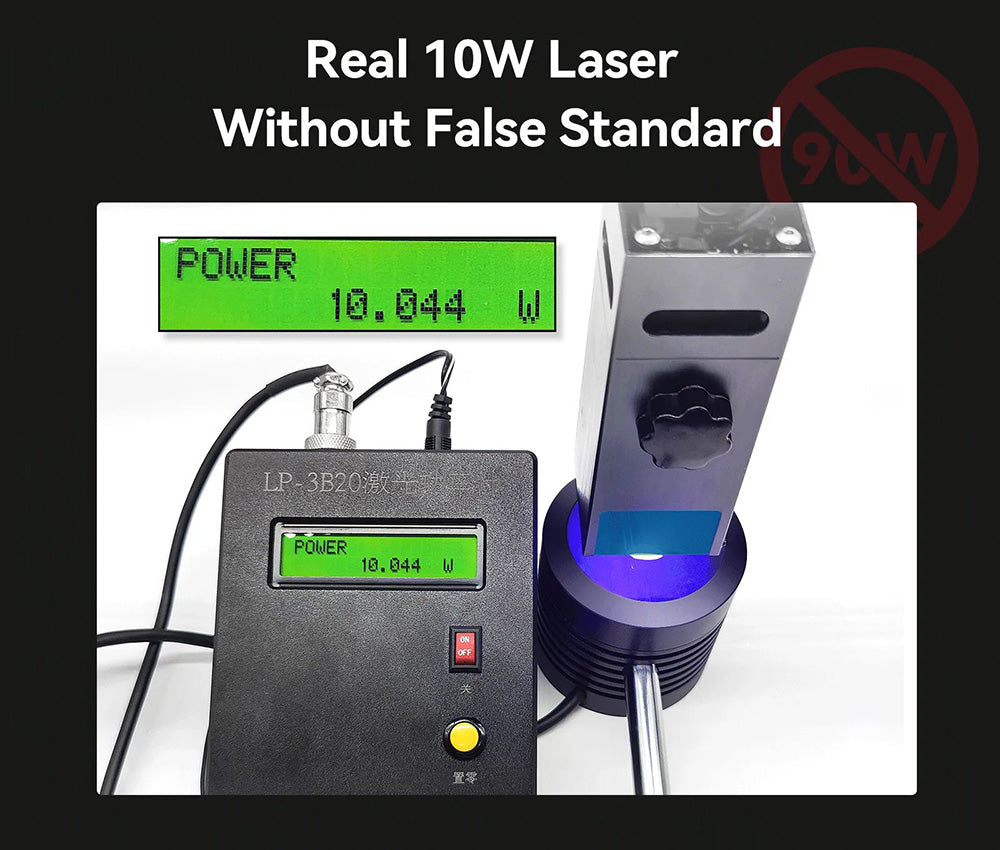

Laser Output Power: 10-11W
Wave Length: 445 ± 5nm
Engraving Accuracy: 0.01mm
Focusing Method: fixed focus laser, no need to focus
Laser Protective Cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating Software: LaserGRBL: supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system; LightBurn: supports Windows/Mac OS/Linux
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method: USB connection
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC 12V, 5A
Weight & Size
Package Weight	6.05kg
Package Size(L x W x H)	60x35x13cm

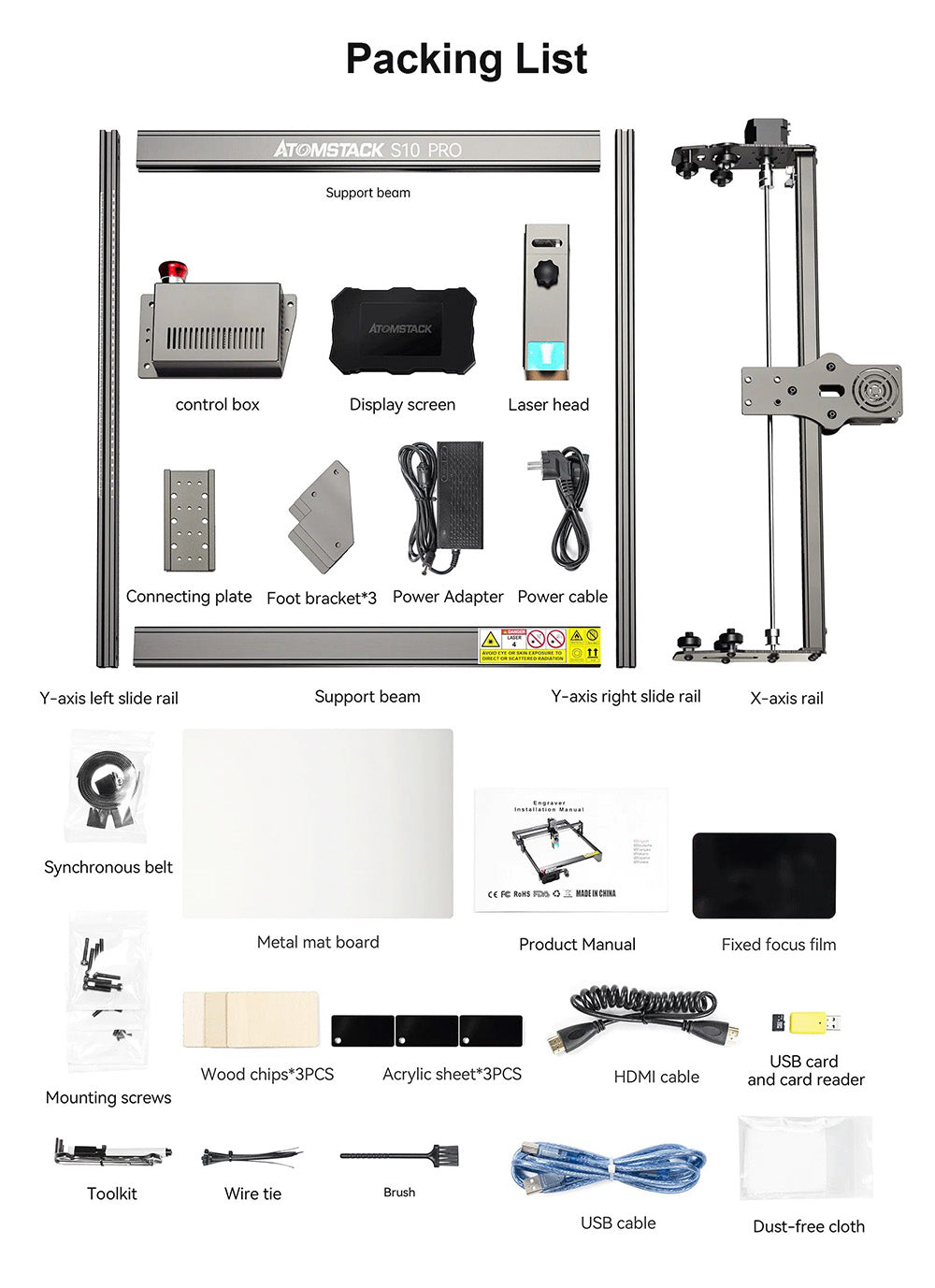

Package Contents
1 x Mounting Screw
1 x Tool Kit
4 x Foot Pad Foam
1 x Film
3 x Acrylic Sheet
3 x Wood Chips
10 x Wire Tie
1 x Desiccant
1 x Brush
1 x Clean Cloth
1 x Card Reader
1 x TF Card
1 x Power Adapter
1 x Data Line
1 x Touch Screen Components
1 x HDMI Cable
1 x Laser Module
1 x Cutting Pad
1 x X-Axis Assembly
1 x Y-Axis Left Profile
1 x Y Axis Right Profile
1 x Profile on the Base
1 x Under the Base Profile
3 x Foot Bracket
1 x User Manual
