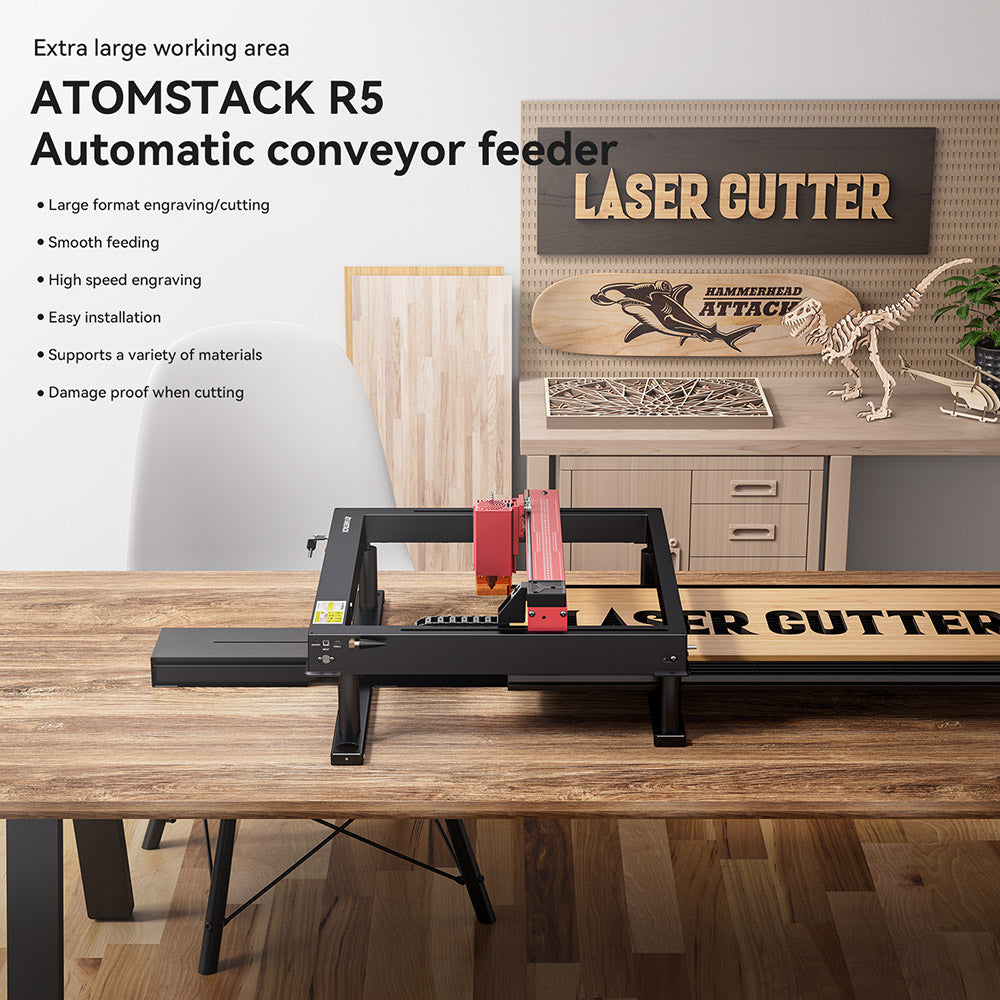

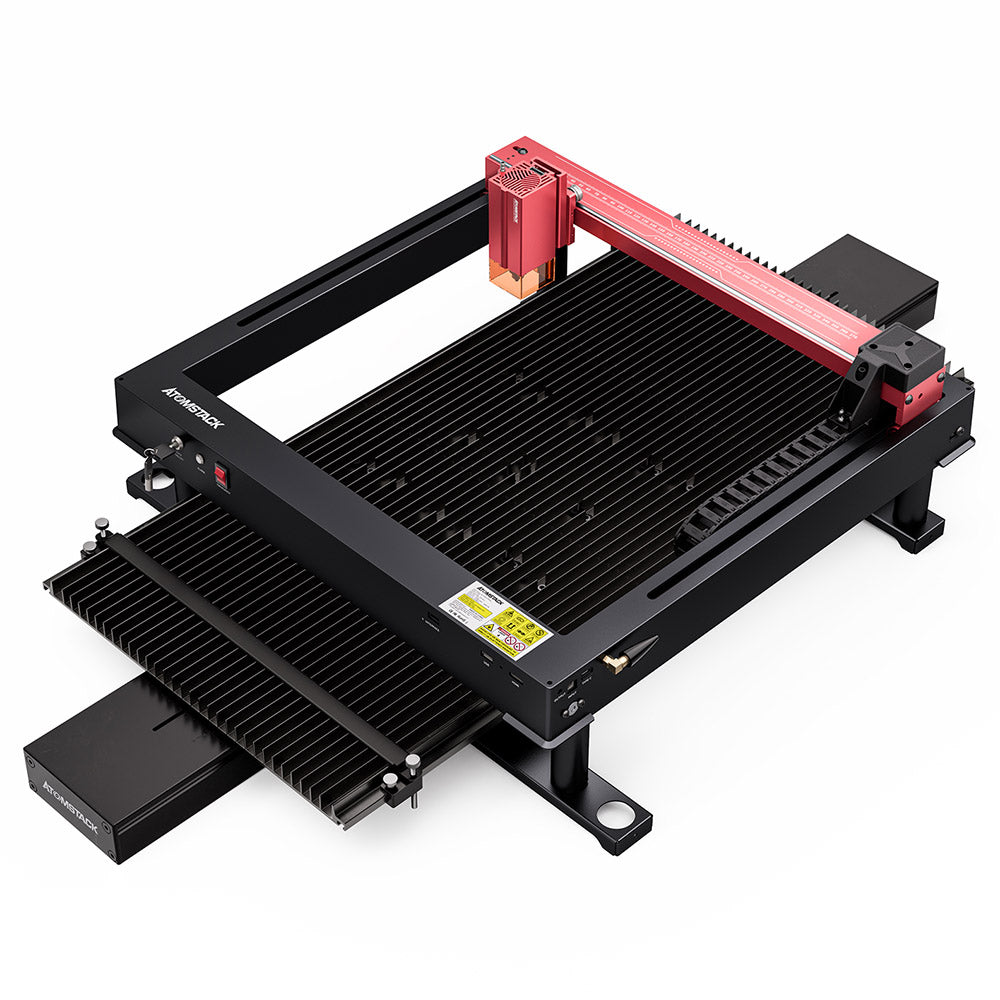

ATOMSTACK R5 Automatic Conveyor Feeder

ATOMSTACK R5 highlights

Wide Compatibility

The height is suitable for AtomStack A6 series 2 generation machine (A6/A12/A24/A48 Pro and A6/A12/A24/A48 Ultra), the maximum carving area is 800*365mm, the longest item supports 1.2 meters, and can switch the roller and plane mode with one click.

Multi-functional Fixture

With multi-functional fixture, can be adapted to AtomStack frame generation machine, at this time can support 400*800 working area. The multi-functional fixture can be fixed on thin paper leather, can be held 18mm height board, and can also be used as a two-way fixture fixed 35mm height board.

Efficient Work

Horizontal direction 24000mm/s engraving without shaking without losing a step.

Stable Work

Different from the conveyor belt, R5 can complete the task quickly and smoothly without multiple debugging.

Heightening Columns

Standard with 4 120mm heightening columns, end customers can also buy a support base to obtain a more stable and more functional experience.

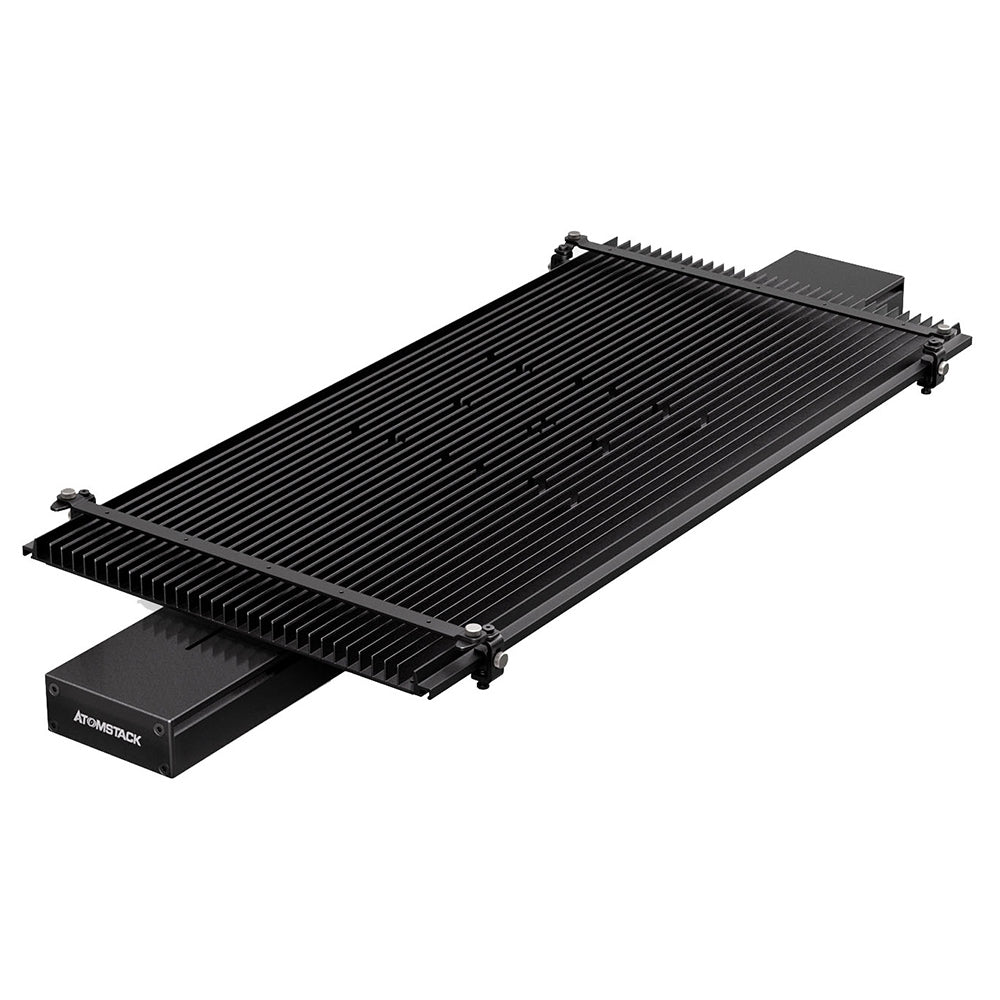

High-depth Chip Drop Trough

The moving tray adopts a high-depth chip drop trough to avoid the small brittle falling resulting in miscontact with the laser and is equipped with a special large brush for timely cleaning of debris.

General
Brand	ATOMSTACK
Type	Automatic Conveyor Feeder
Model	R5
Color	Black
Specification

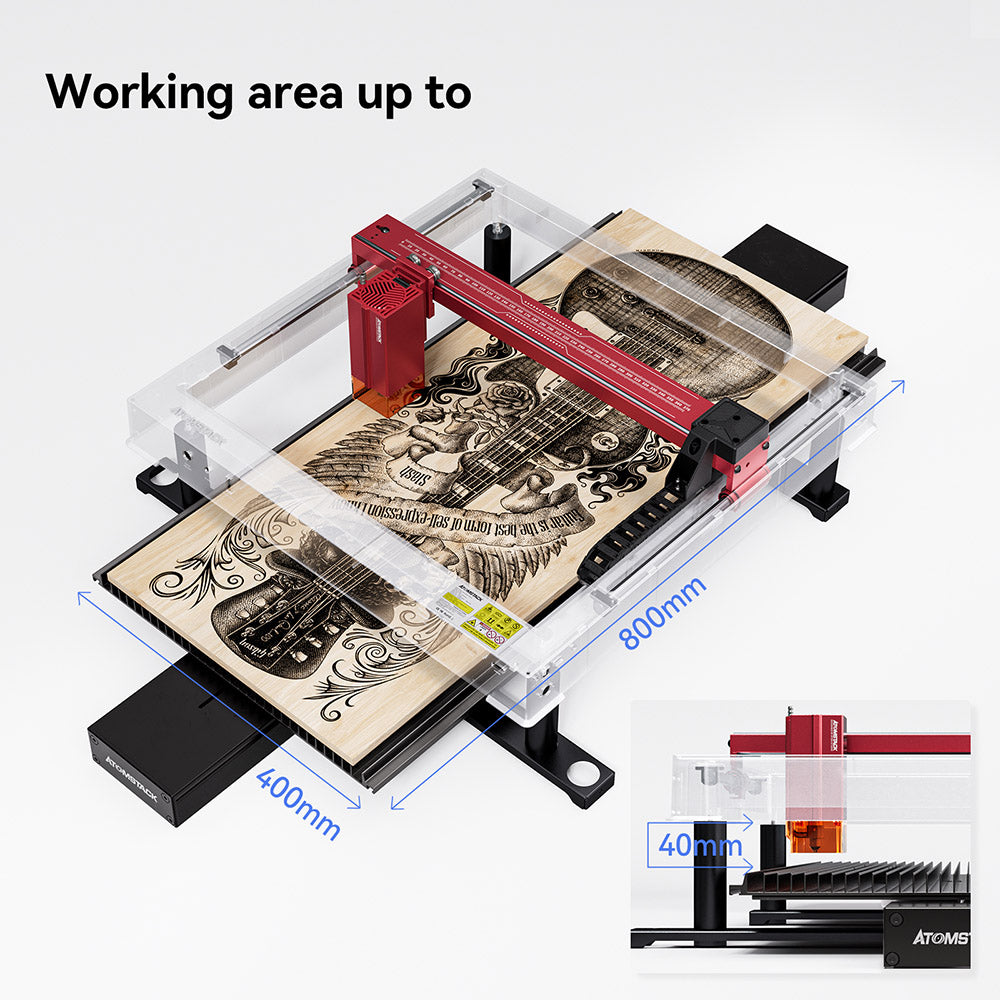

Working Area	up to 400x800mm
Applicable Model	AtomStack A6 series (A6/A12/A24/A48 Pro and A6/A12/A24/A48 Ultra)
Weight & Size
Product Weight	11.4kg
Package Weight	12.5kg
Package Size(L x W x H)	120x310x190cm
Package Contents
1 x Automatic Conveyor Feeder
1 x User Manual
