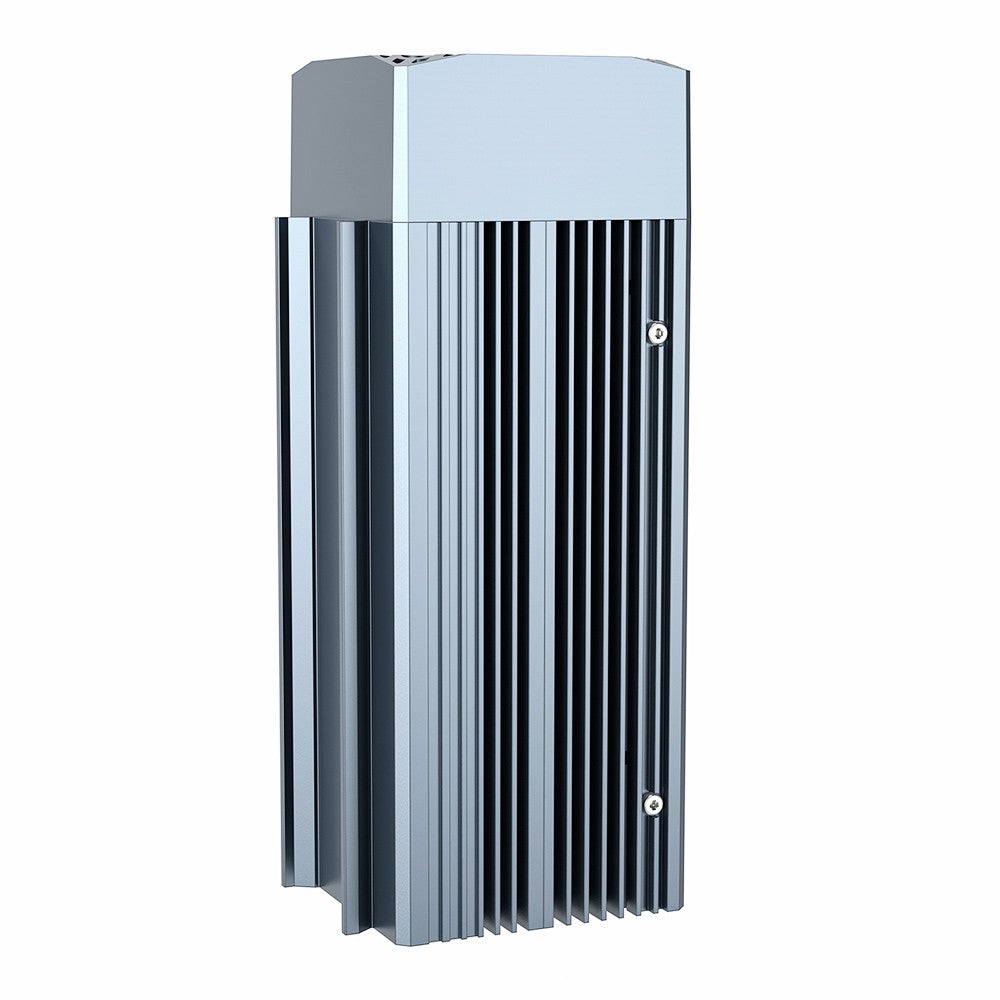

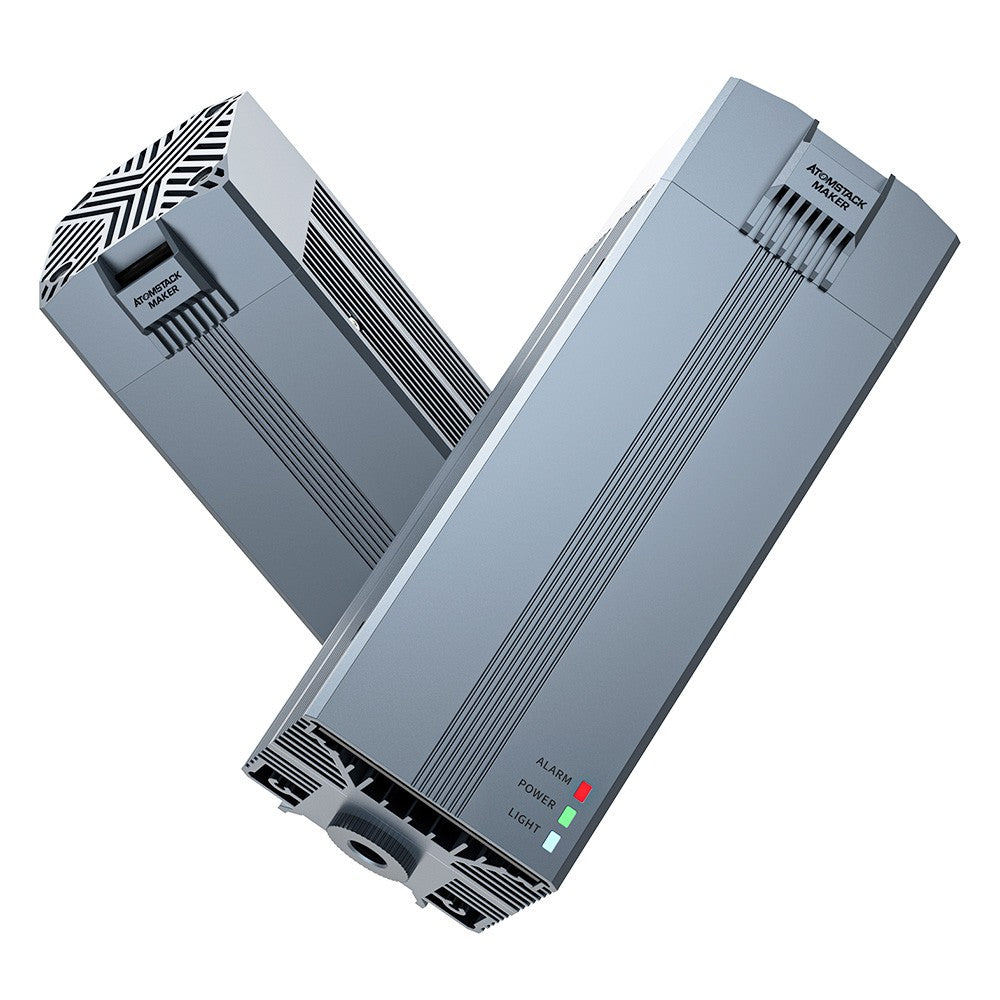

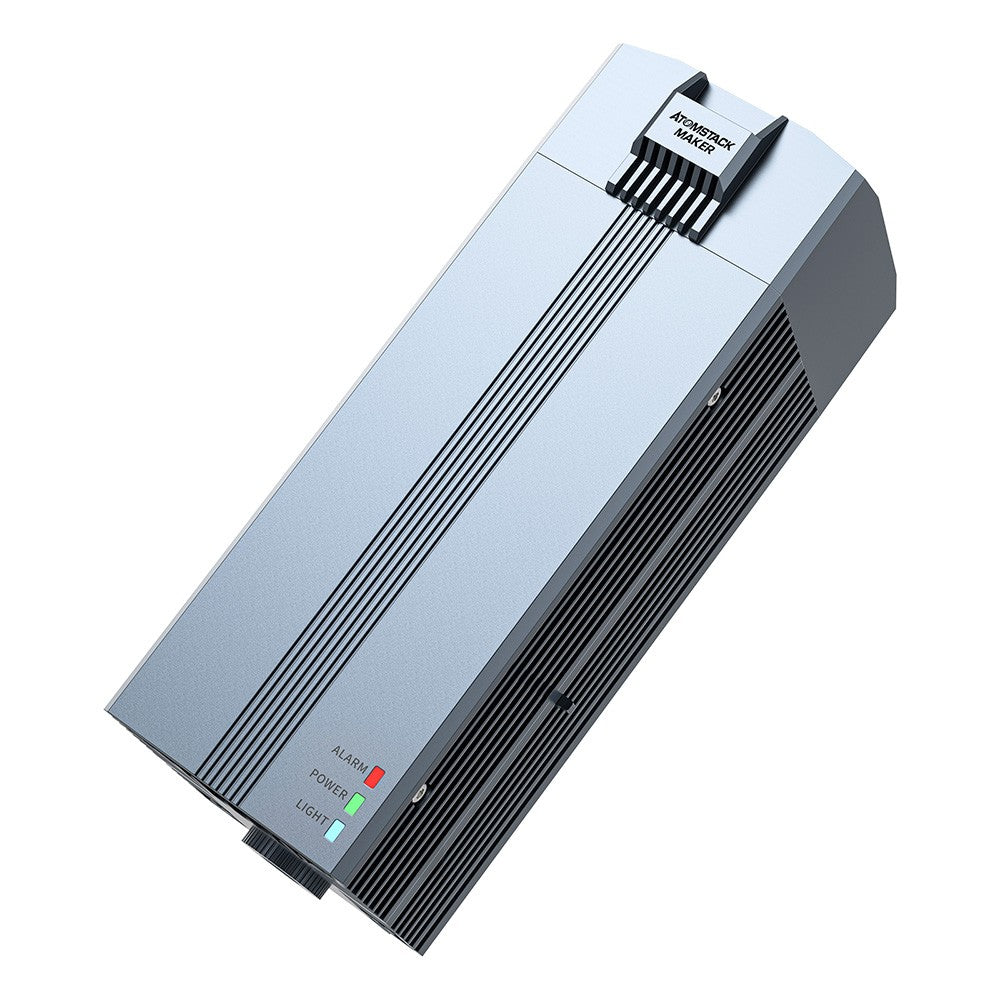

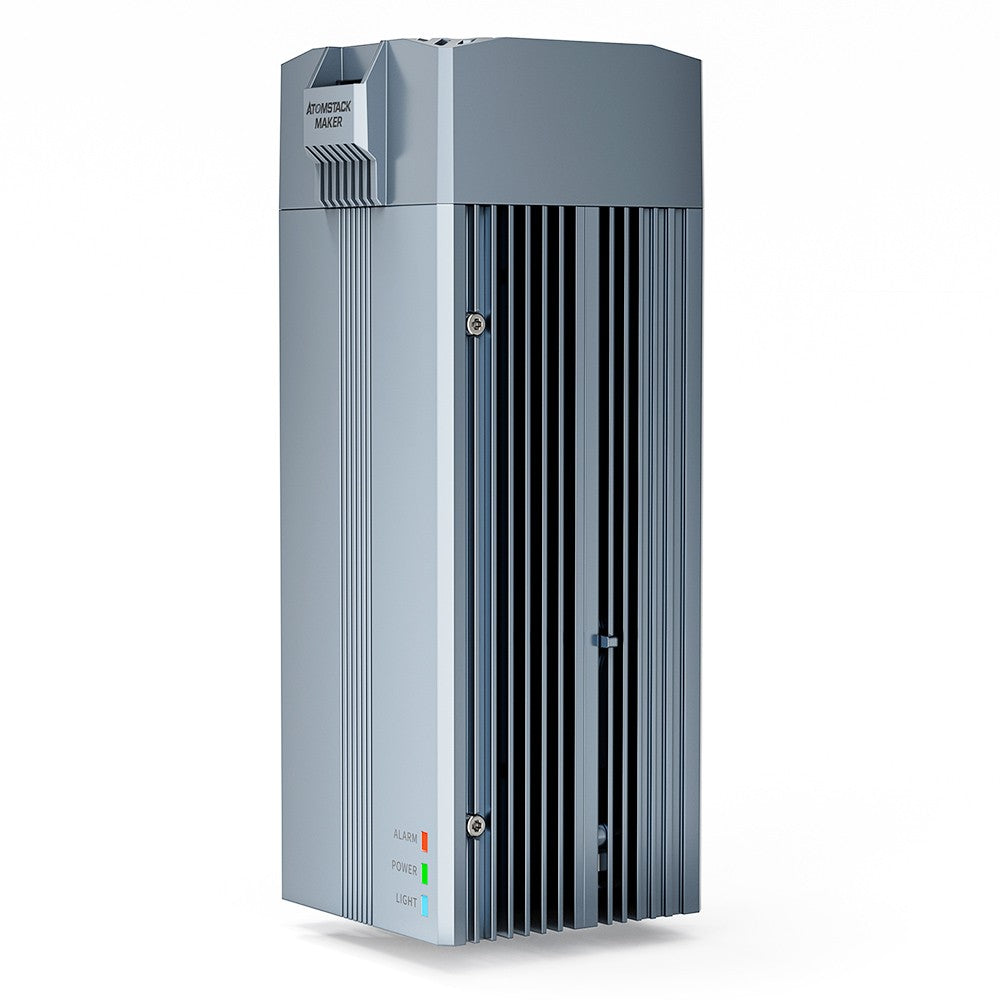

ATOMSTACK R30 V2 Laser Module

ATOMSTACK R30 V2 highlights

Industrial-grade Infrared Laser Module

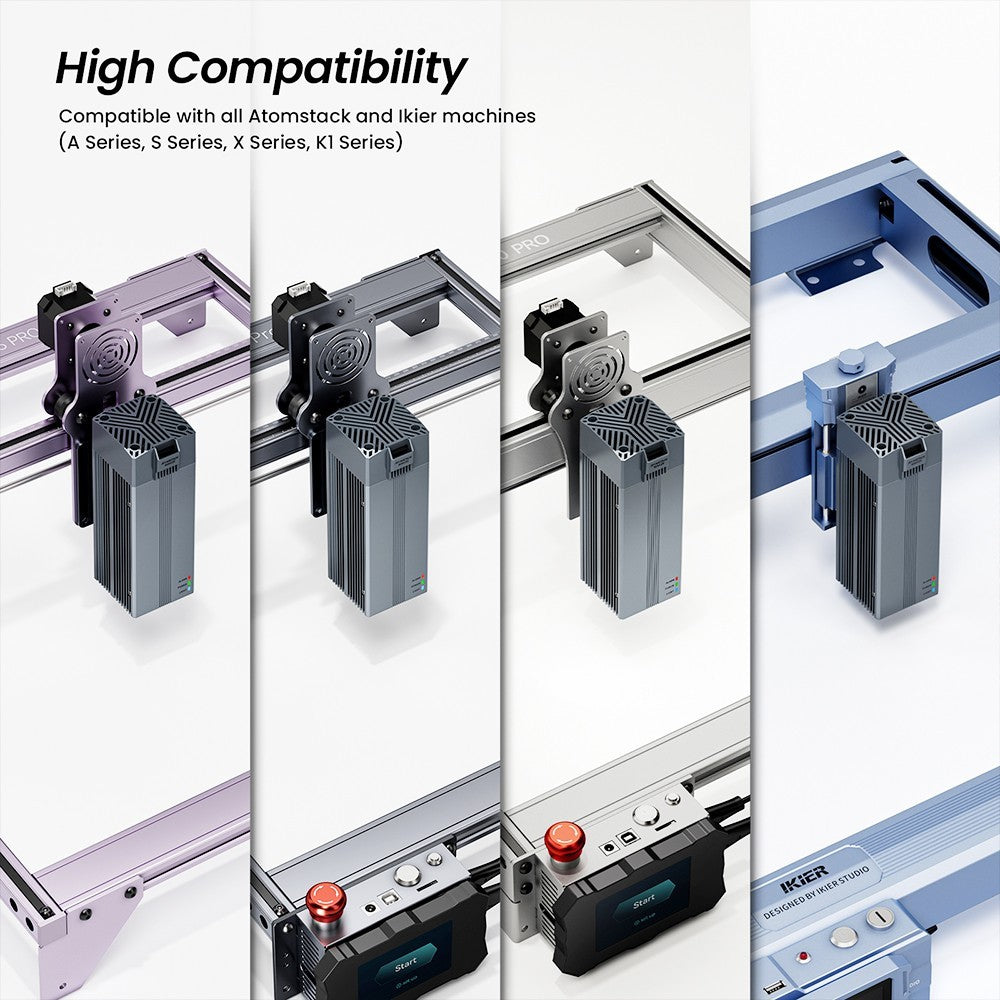

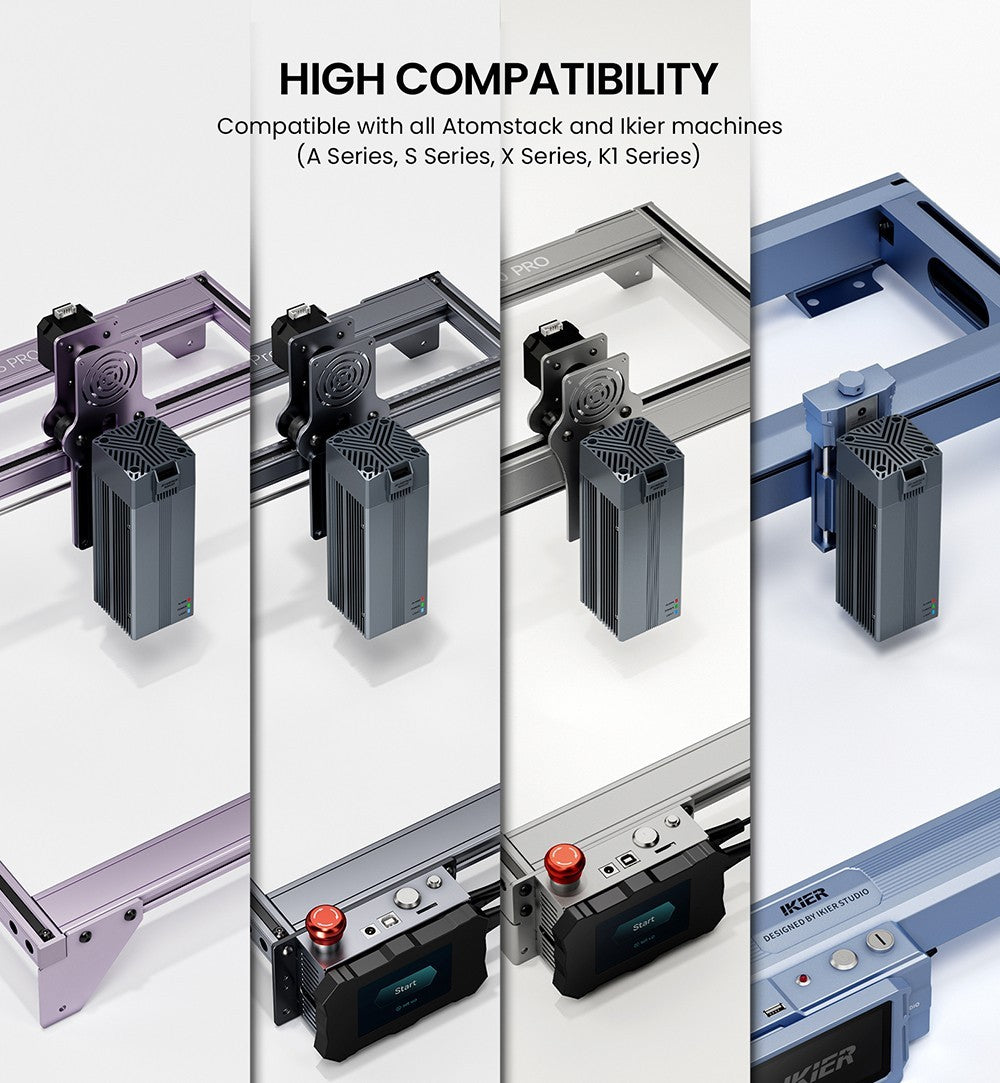

Atomstack is the first to launch an industrial-grade 1064nm infrared laser module with a repetition rate of 20,000Hz, which is suitable for fast and fine metal engraving, as well as non-metallic materials such as varnished wood furniture, ABS, and plastic. It is applicable to most Atomstack models and other brands like Ortur, NEJE, TWO TREES, etc.

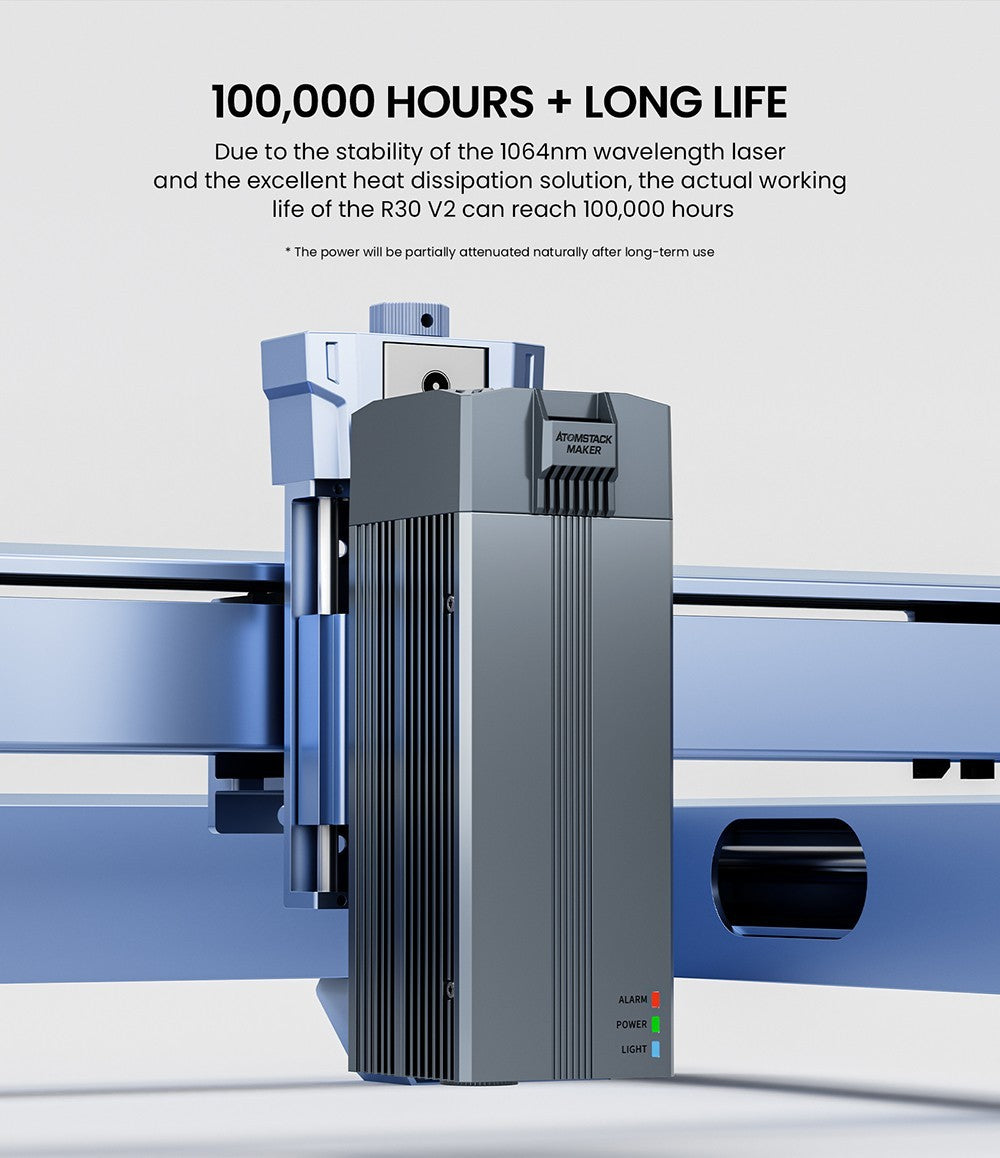

Long Service Life

1064nm laser light is stable, it has a long service life of 100,000 hours (there will be a certain power attenuation after long-term use).

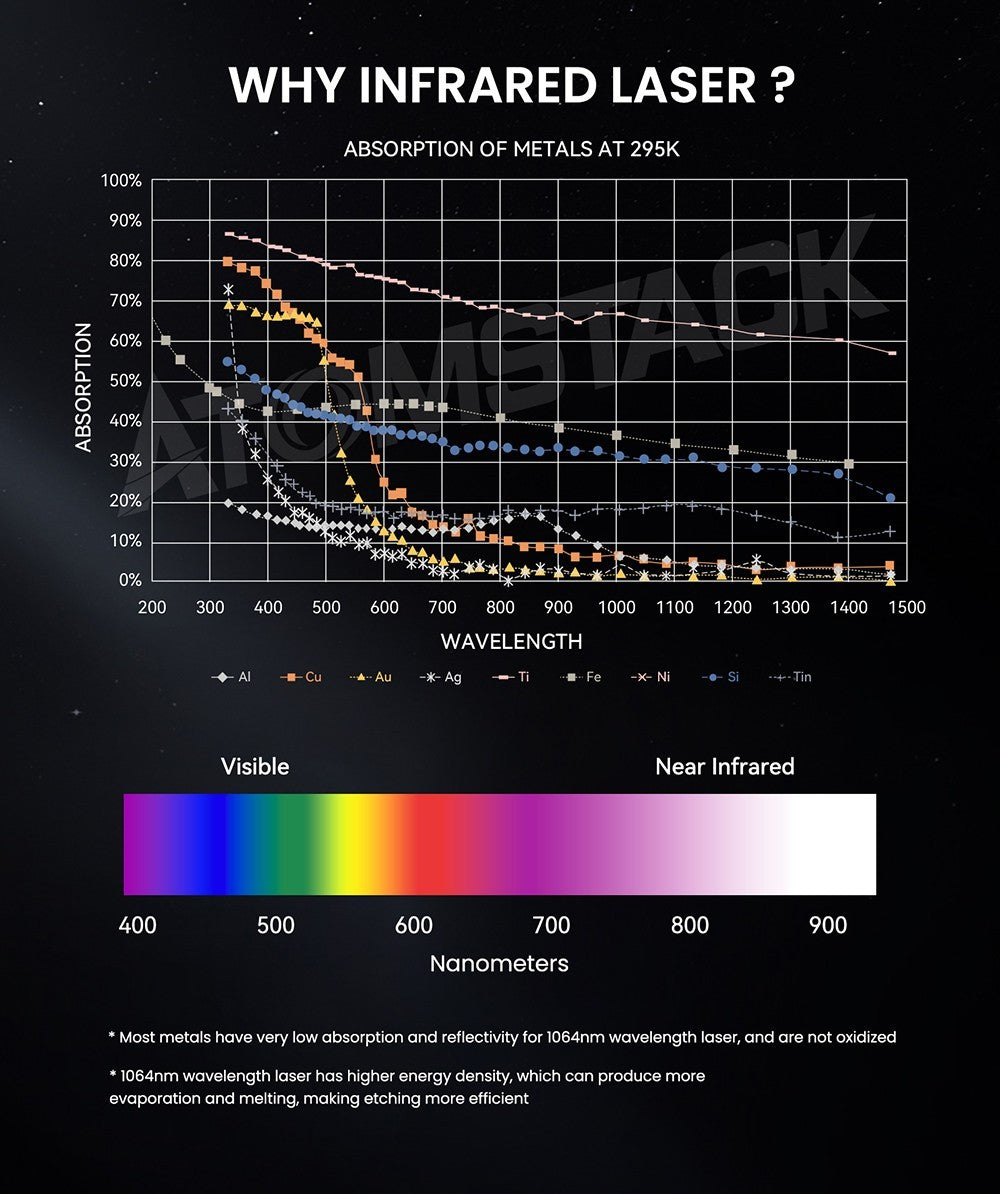

Born for Metal and Plastic Engraving

Infrared fiber laser has incomparable advantages in engraving metal and plastic surfaces. This is not possible with conventional diode blue lasers.

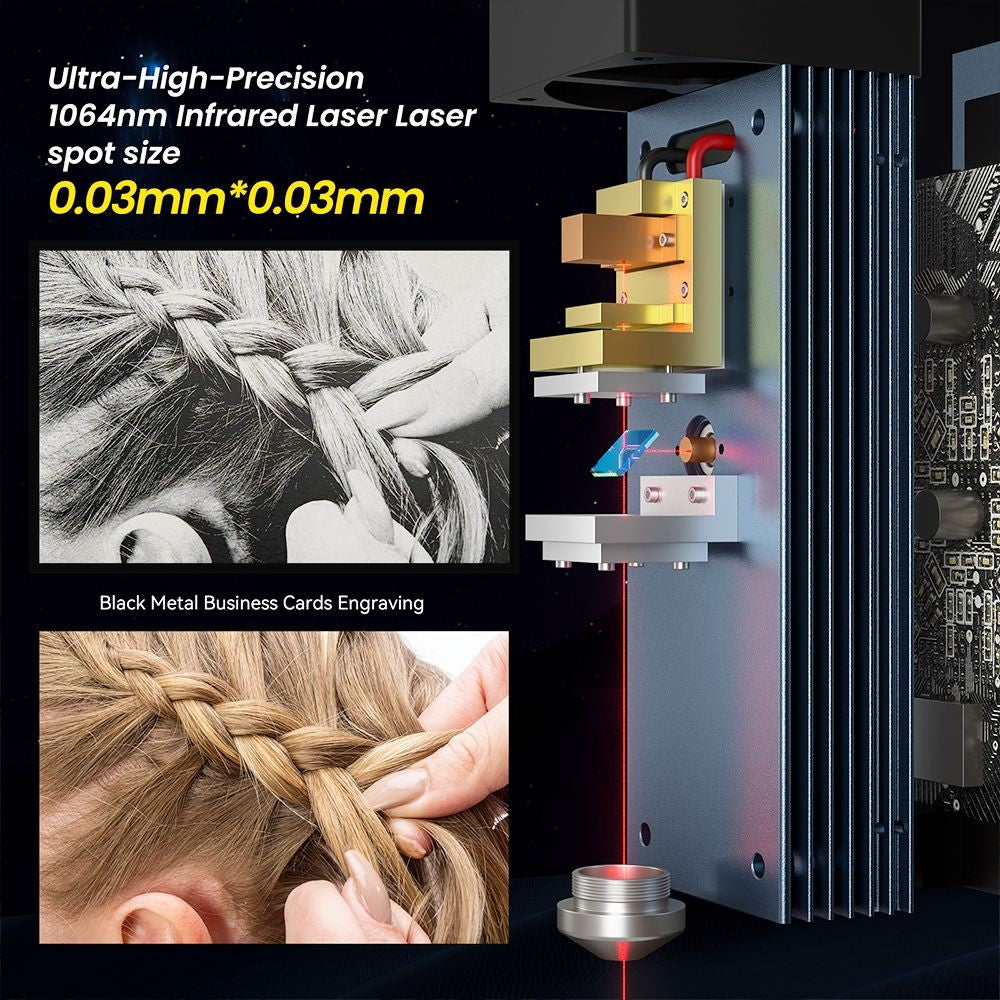

Better Engraving Effect

With the Atomstack spot compression technology, the spot of the R30 V2 laser module is compressed into a circular laser spot with a diameter of 0.03mm. This makes it ideal for engraving on custom jewelry or metal. The engraving effect on the surface of the object is finer, clearer, and less prone to oxidation.

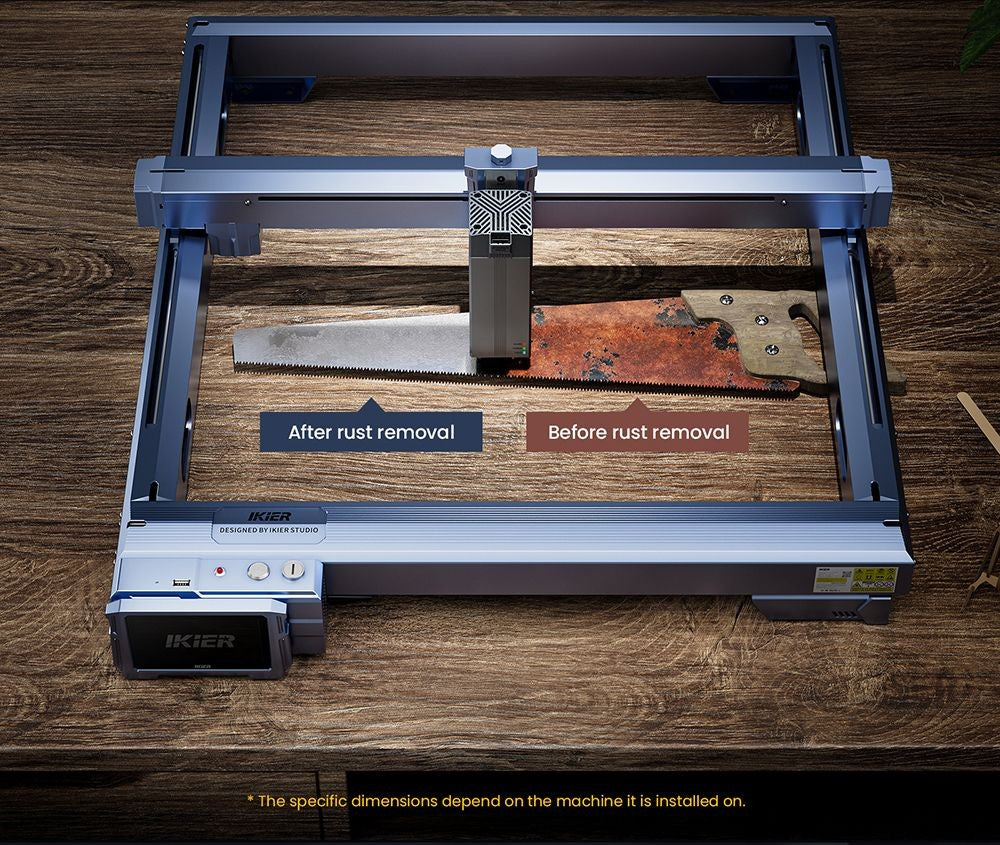

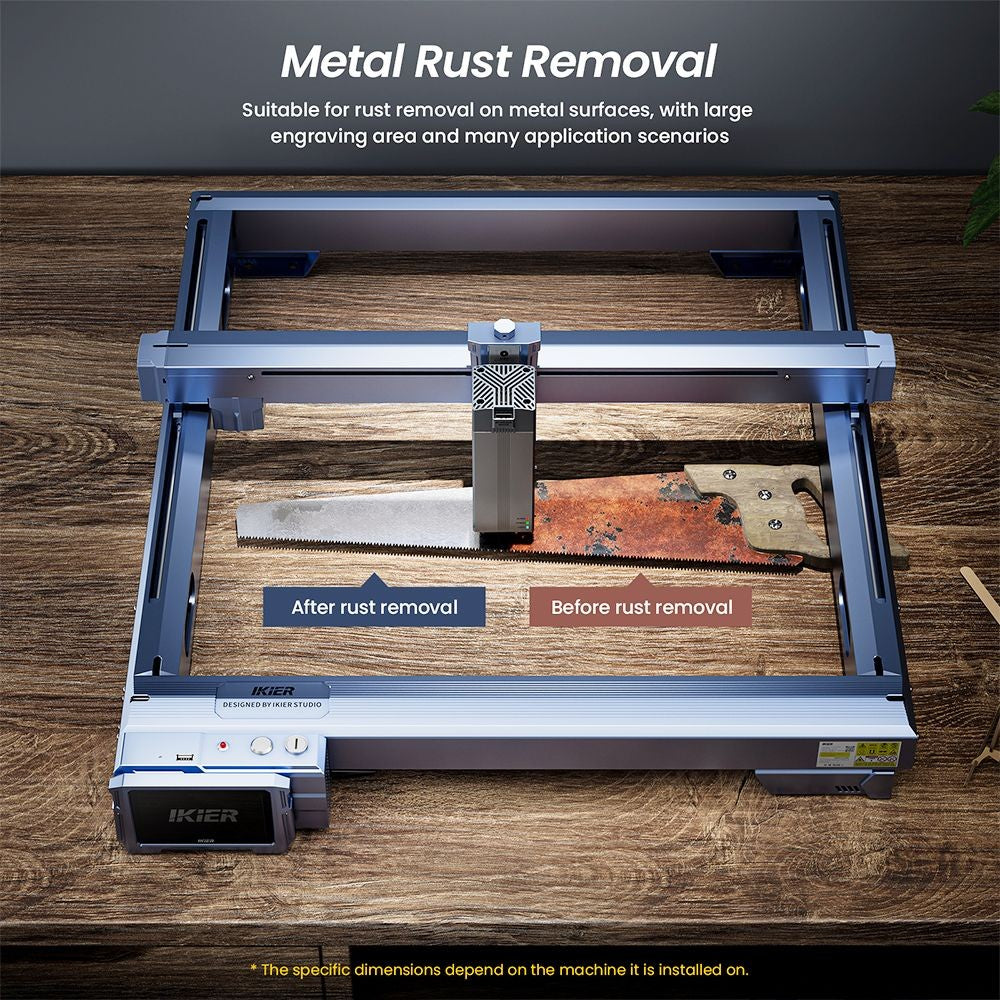

Rust Removal

The 1064nm wavelength laser has excellent absorption ability to the metal surface coating and can remove rust on a small area of rusty metal without chemical reaction or secondary electrolysis.

Safety Laser

Compared with a blue laser, the infrared laser has its own safety characteristics. The non-focused light is cold light, which will not cause burns if touched accidentally.

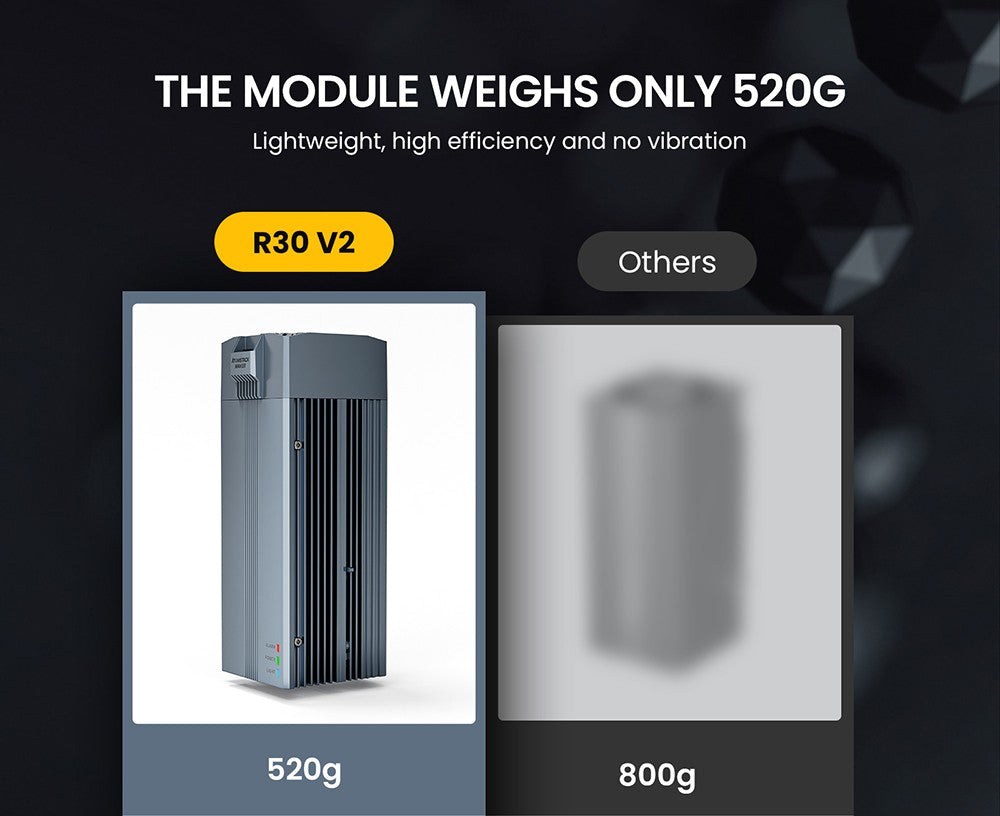

Greatly Improve Work Efficiency

After the industrial design, the net weight of the module is only 520g (the first generation and other products in the industry are 800g+). Movement speed and work efficiency can be increased by 40% under the same framework.

General
Brand	ATOMSTACK
Type	Laser Module
Model	R30 V2

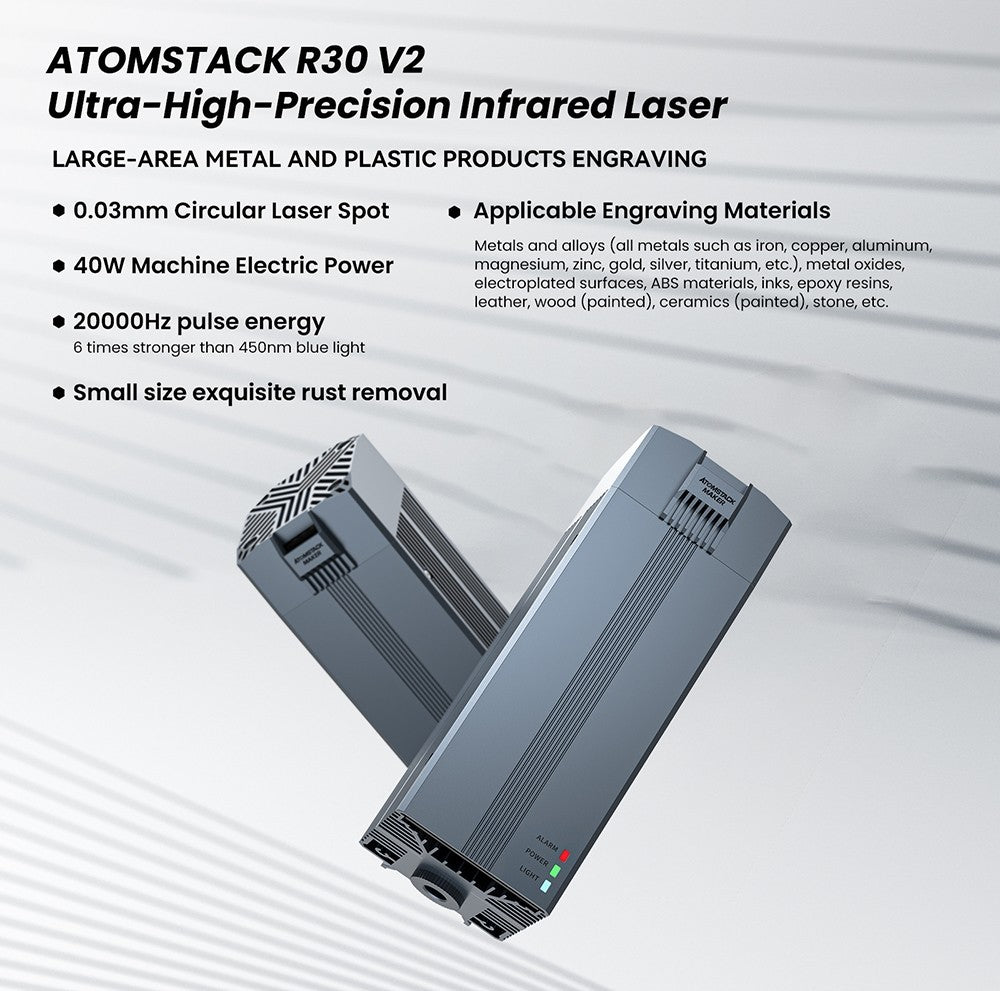

Specification
Optical Output Power: 2W
Product Material: Aluminum 6061 Anode
Circuit Board Size: 44*52mm
Laser Wavelength: 1064nm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Fan: 12V
Laser Beam Mode: Spot
Working Mode: Pulse Work
Lightspot Size: Φ0.03mm
Working Time: 100000H
Working Temperature: 0 - 70 Celsius
Storage Temperature: -40 - 85 Celsius
Light Temperature: Non-focal temperature: room temperature

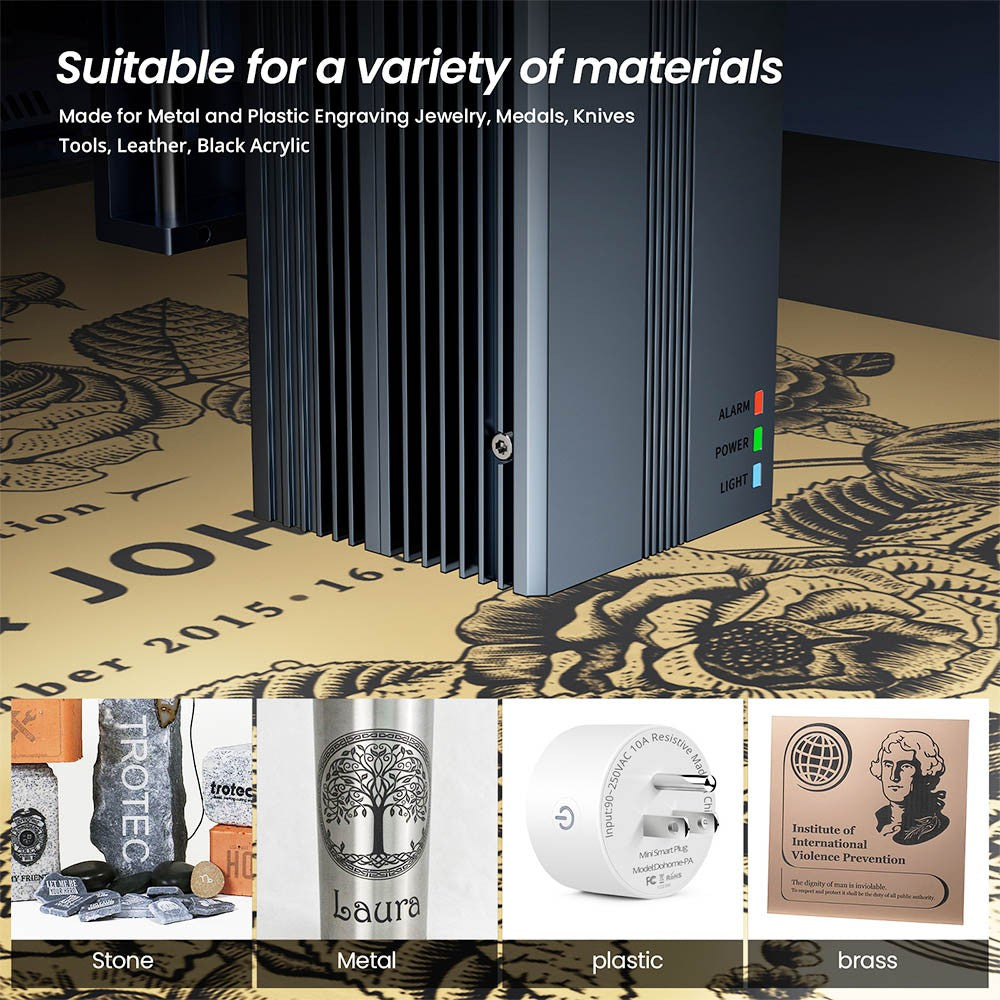

Applicable Engraving Materials: Metals and alloys (all metals such as iron, copper, aluminum, magnesium, zinc, gold, silver, titanium, etc.), metal oxides, electroplated surfaces, ABS materials, inks, epoxy resins, leather, wood (painted), ceramics (painted), stone, etc.
Weight & Size
Product Weight	0.5kg
Package Weight	1.5kg

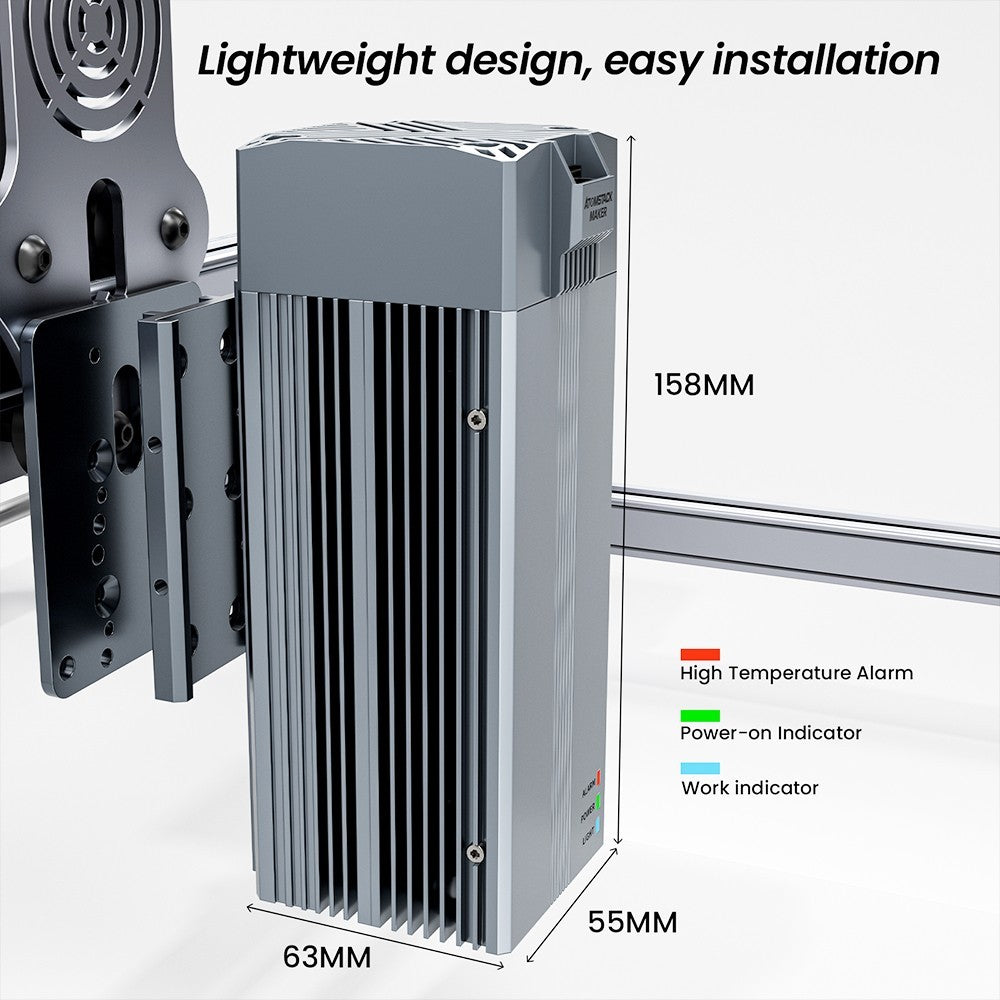

Product Size(L x W x H)	63x55x158mm
Package Size(L x W x H)	265x185x130mm

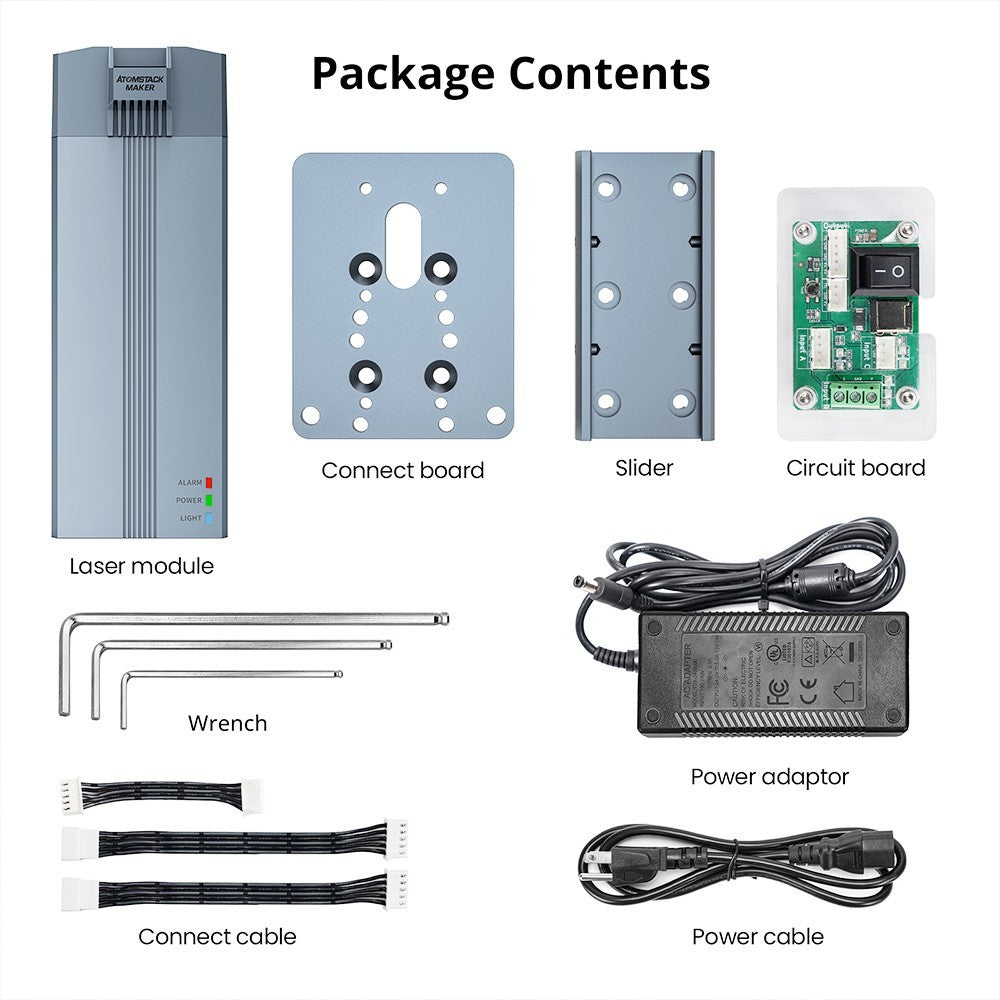

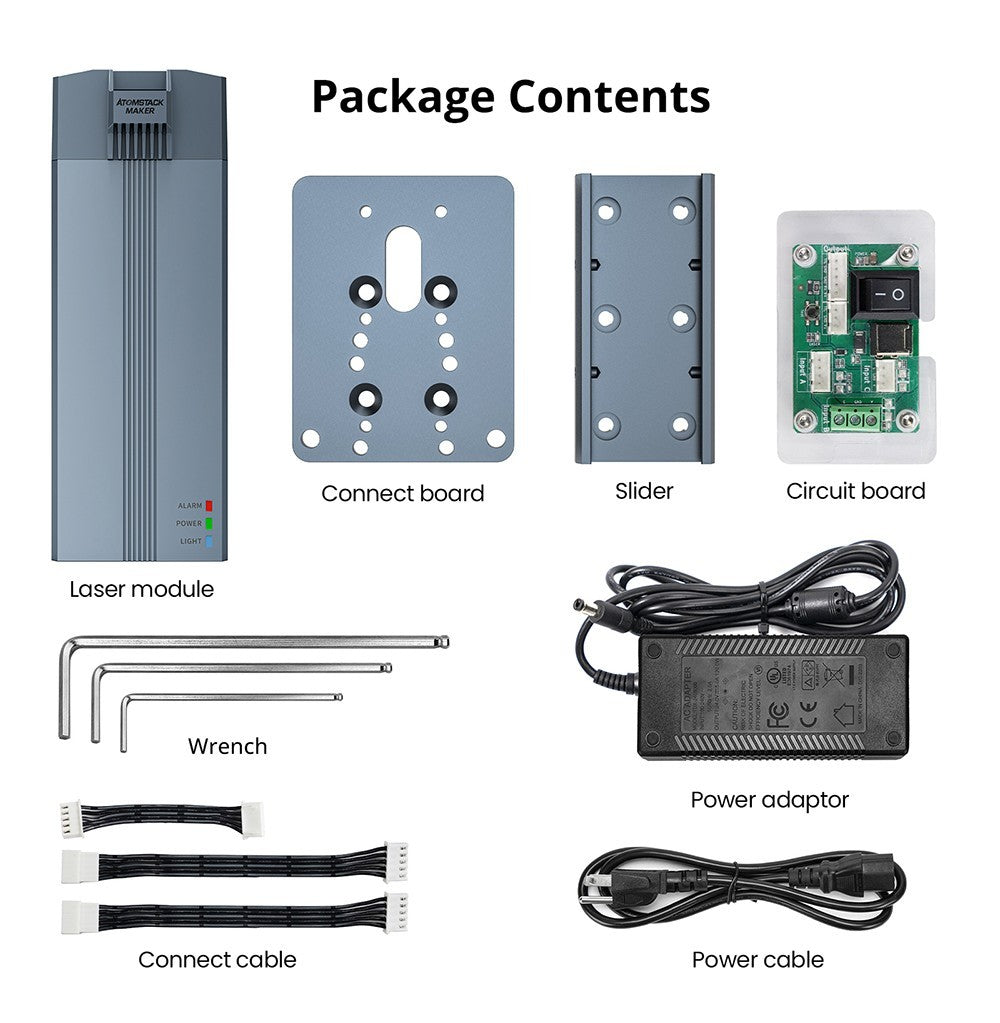

Package Contents
1 x Laser Module
1 x Connect Board
1 x Slider
1 x Circuit Board
3 x Wrench
1 x Power Adapter
1 x Power Cable
3 x Connect Cable
1 x User Manual
