ATOMSTACK A5 Pro V2 Laser Engraver

ATOMSTACK A5 Pro V2 highlights

High-Precision Engraving

Achieve stunning detail with 0.01mm engraving accuracy, perfect for intricate designs on materials like wood and acrylic. The A5 Pro V2 outperforms competitors with its superior precision.

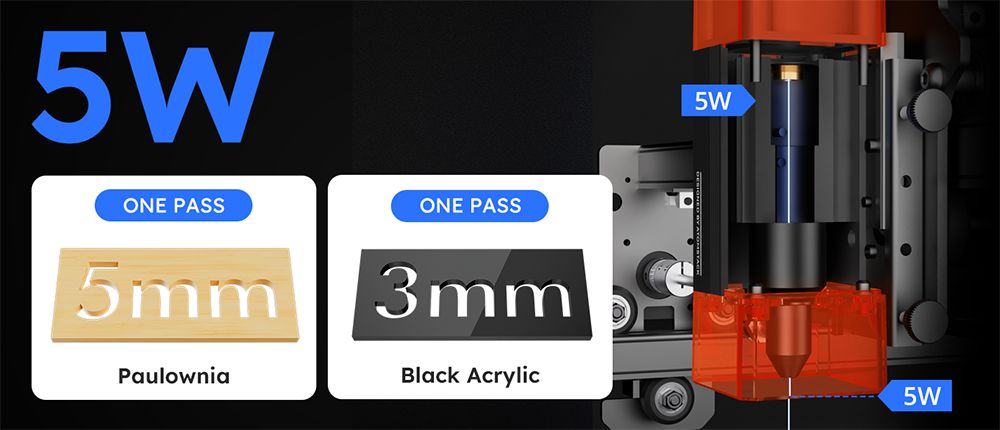

Powerful 5W Laser Output

Capable of cutting through 5mm wood and 3mm black acrylic in a single pass, this laser engraver delivers professional-grade results for both hobbyists and professionals.

Large Working Area & High Speed

Features a spacious 410mm x 380mm working area and operates at speeds up to 400mm/s, ensuring efficient and versatile project completion.

Mobile App Control & Wide Compatibility

Easily control the engraver via a mobile app and enjoy compatibility with various software (LightBurn, LaserGRBL) and file formats (JPG, SVG, DXF, etc.). Supports Android, iOS, Windows, and macOS.

User-Friendly Features

Includes an eye protection design with a magnetic filter cover, resume engraving function to minimize material waste after power outages, and an aluminum alloy frame for durability.

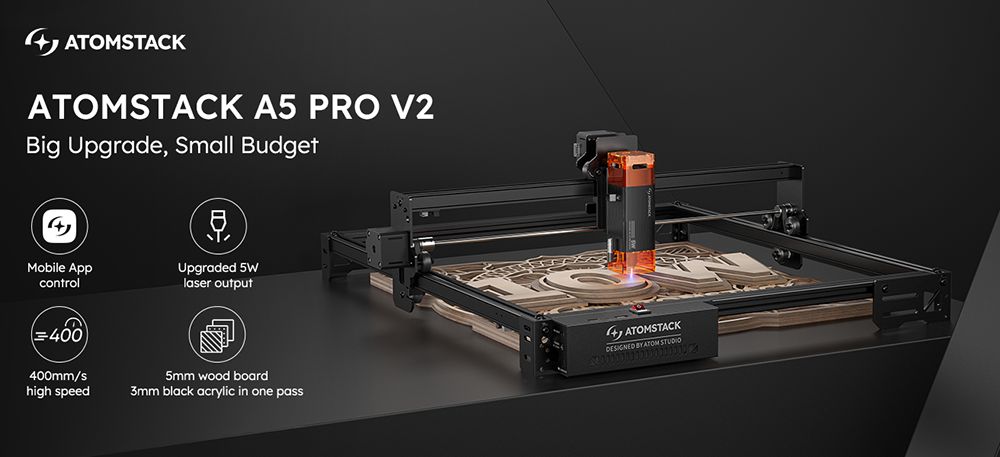

ATOMSTACK A5 PRO V2 Big Upgrade, Small Budget

• Mobile App Control
• Upgraded 5w laser output
• 400mm/s high speed
• 5mm wood board 3mm black acrylic in one pass

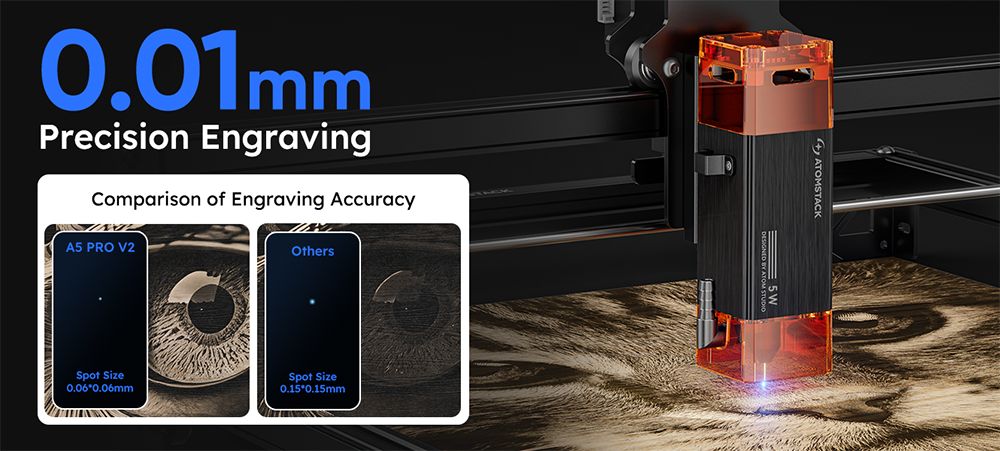

0.01mm Precision Engraving

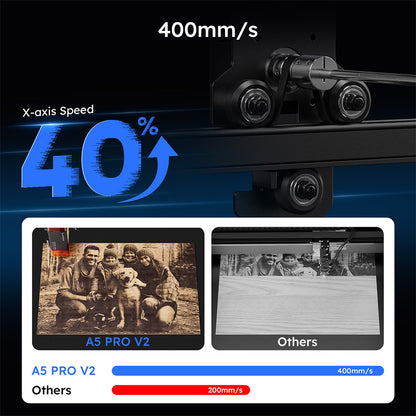

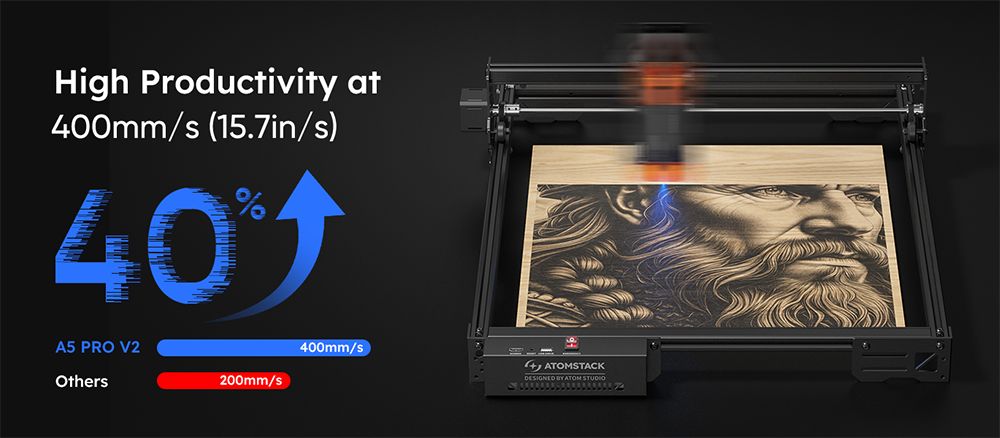

High Productivity at 400mm/s (15.7in/s)

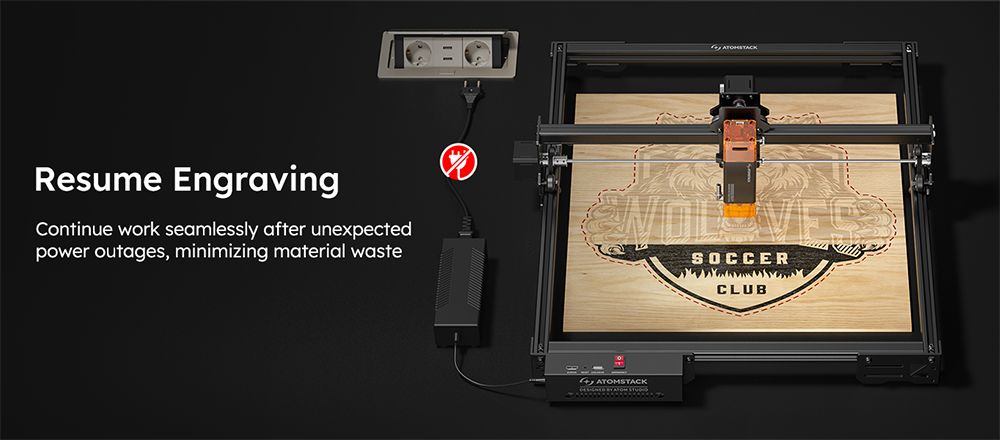

Resume Engraving

Continue work seamlessly after unexpected power outages, minimizing material waste

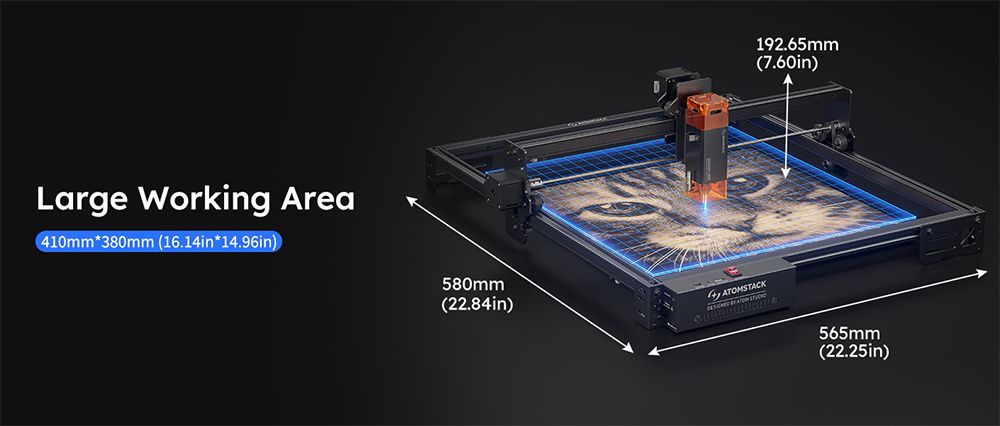

Large Working Area

410mm*380mm(16.14in*14.96in)

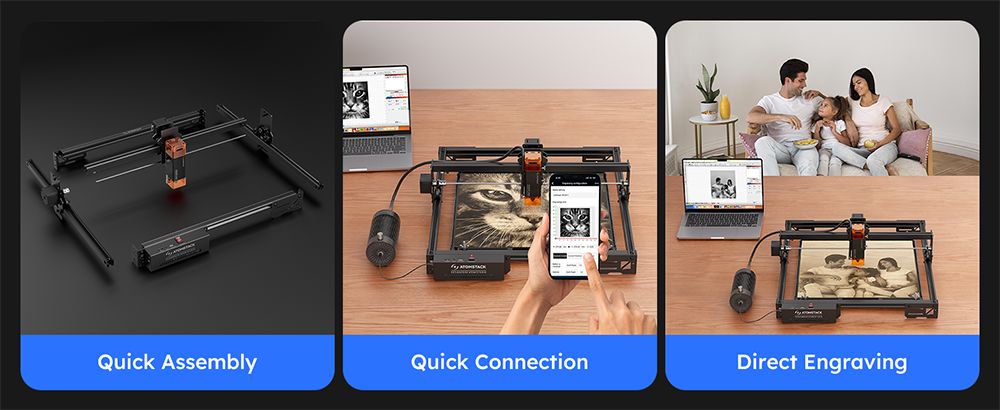

• Quick Assembly
• Quick Connection
• Direct Engraving

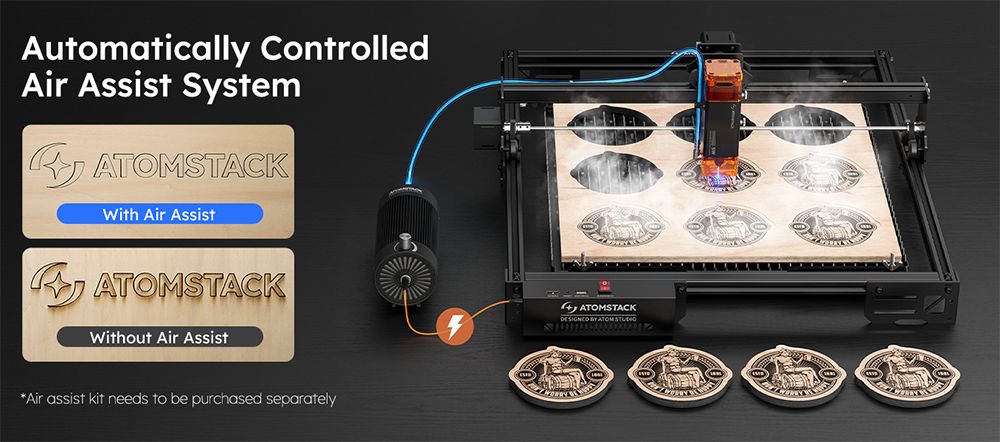

Automatically Controlled Air Assist System

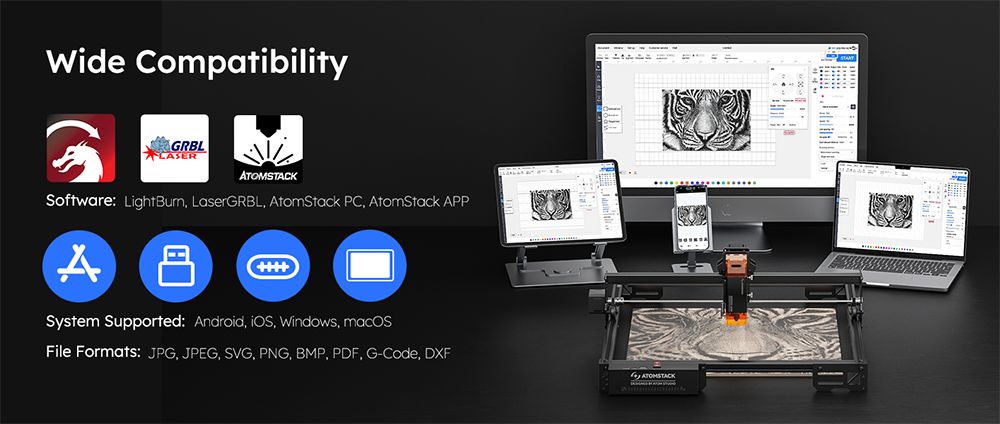

Wide Compatibility

Software: LightBur, LaserGRBL, AtomStack PC, AtomStack APP

System Supported: Android, iOS, Windows, macOS

File Formats: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF

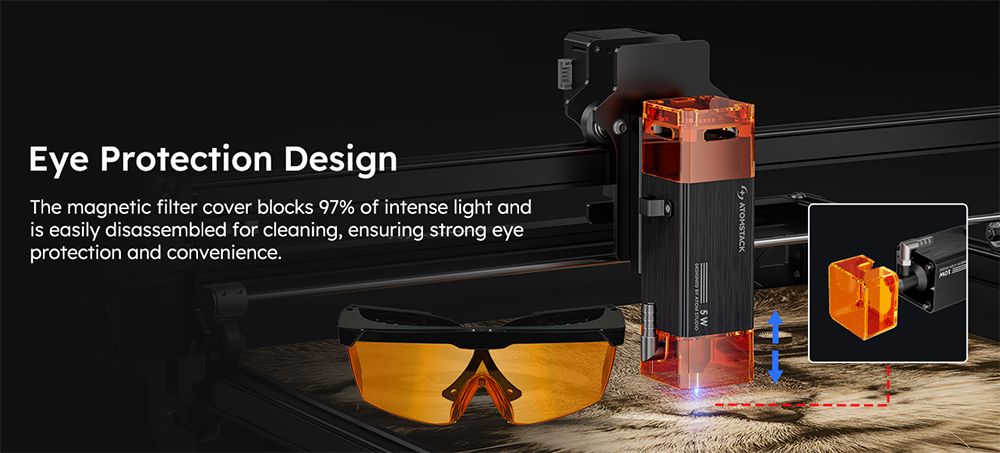

Eye Protection Design

The magnetic filter cover blocks 97%of intense light and is easily disassembled for cleaning, ensuring strong eye protection and convenience.

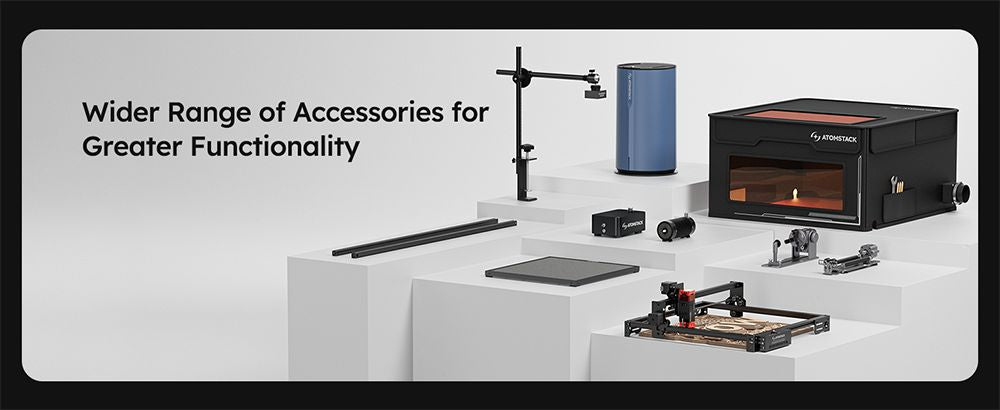

Wider Range of Accessories for Greater Functionality

General
Brand	ATOMSTACK
Type	Laser Engraver
Model	A5 Pro V2
Specification
Engraving size: 410*380mm
Can carve/cut material
Engraving material: Wood, bamboo, cardboard, plastic, leather, PCB, alumina, non reverse
Electroplated and lacquered metal, 304 mirror stainless steel, glass, ceramic, cotton, SLATE;
Cutting material: cardboard, non-woven fabric, wood, acrylic, some thin plastic board, sponge;
Laser electric power: 40W
Laser output optical power: 5.5-6W
Laser wavelength: 455±5nm
Engraving accuracy: 0.01mm
Focusing mode: fixed focus laser, no focusing

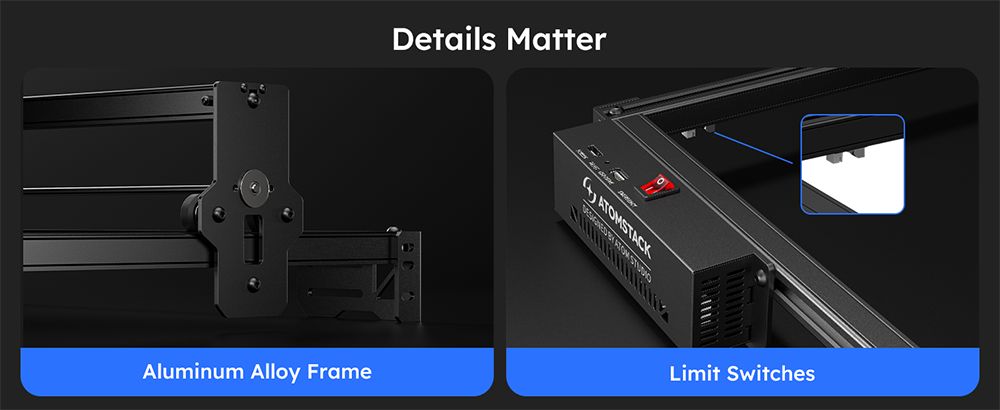

Limit switch: 2 (X axis 1, Y axis 1)
Laser protective cover: There is a protective cover on the laser to protect the user's eyes without the need to wear additional protective glasses. And keep pets from grabbing the laser spot
Operating software: LaserGRBL, LightBurn, support Win XP/Win 7 / Win 8 / XP/Win 10 system
Supported file formats NC, BMP, JPG, PNG, DXF,
Data transfer mode: USB connection
Power supply: International standard Power input: 100-240V AC, 50/60HZ output: 12V 3A
Certification: CE FCC RoHS FDA PSE
Weight & Size
Product Weight	5kg
Package Weight	6kg
Package Size(L x W x H)	59x26x18cm
Package Contents
1 x Laser Engraver
1 x User Manual
