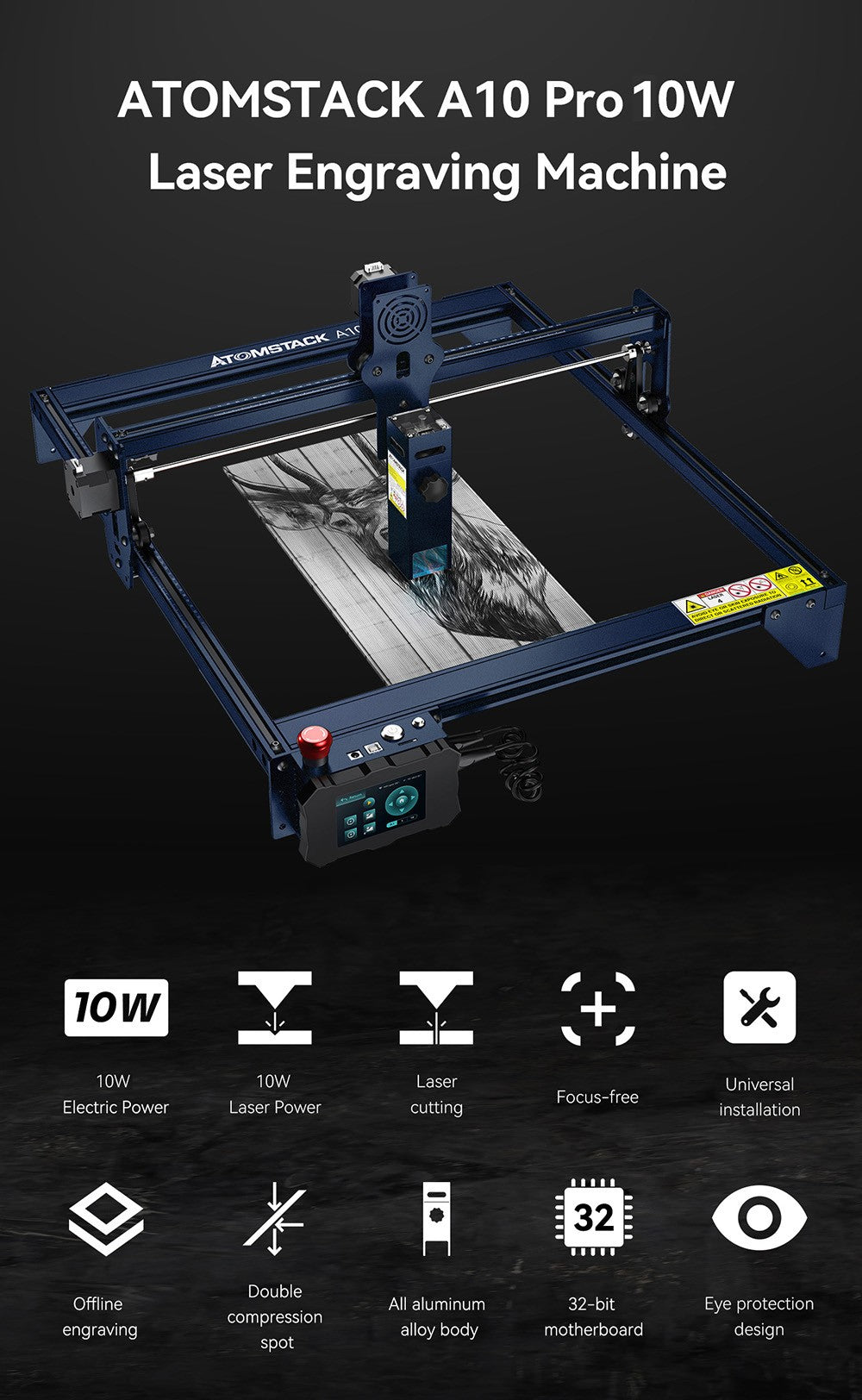

ATOMSTACK A10 Pro highlights

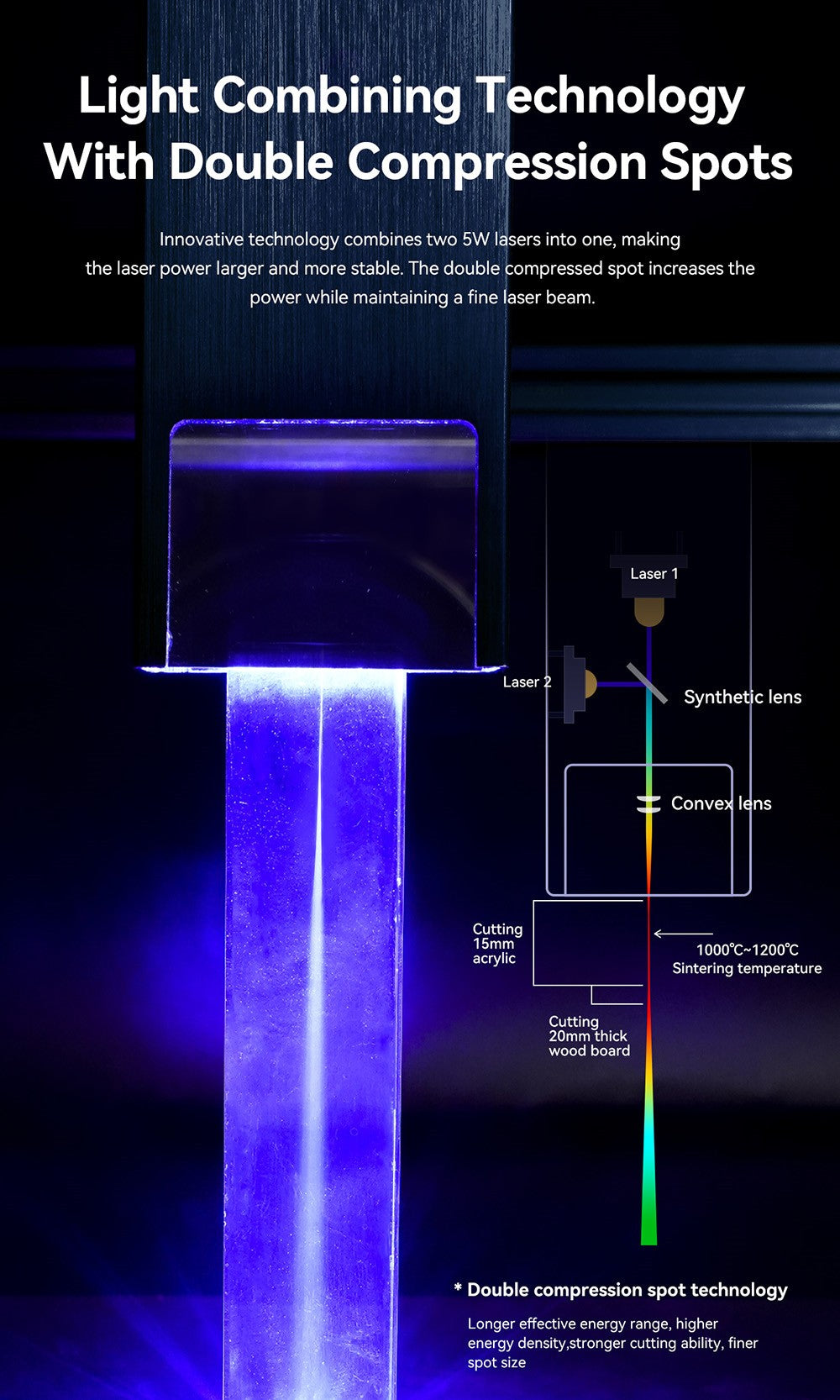

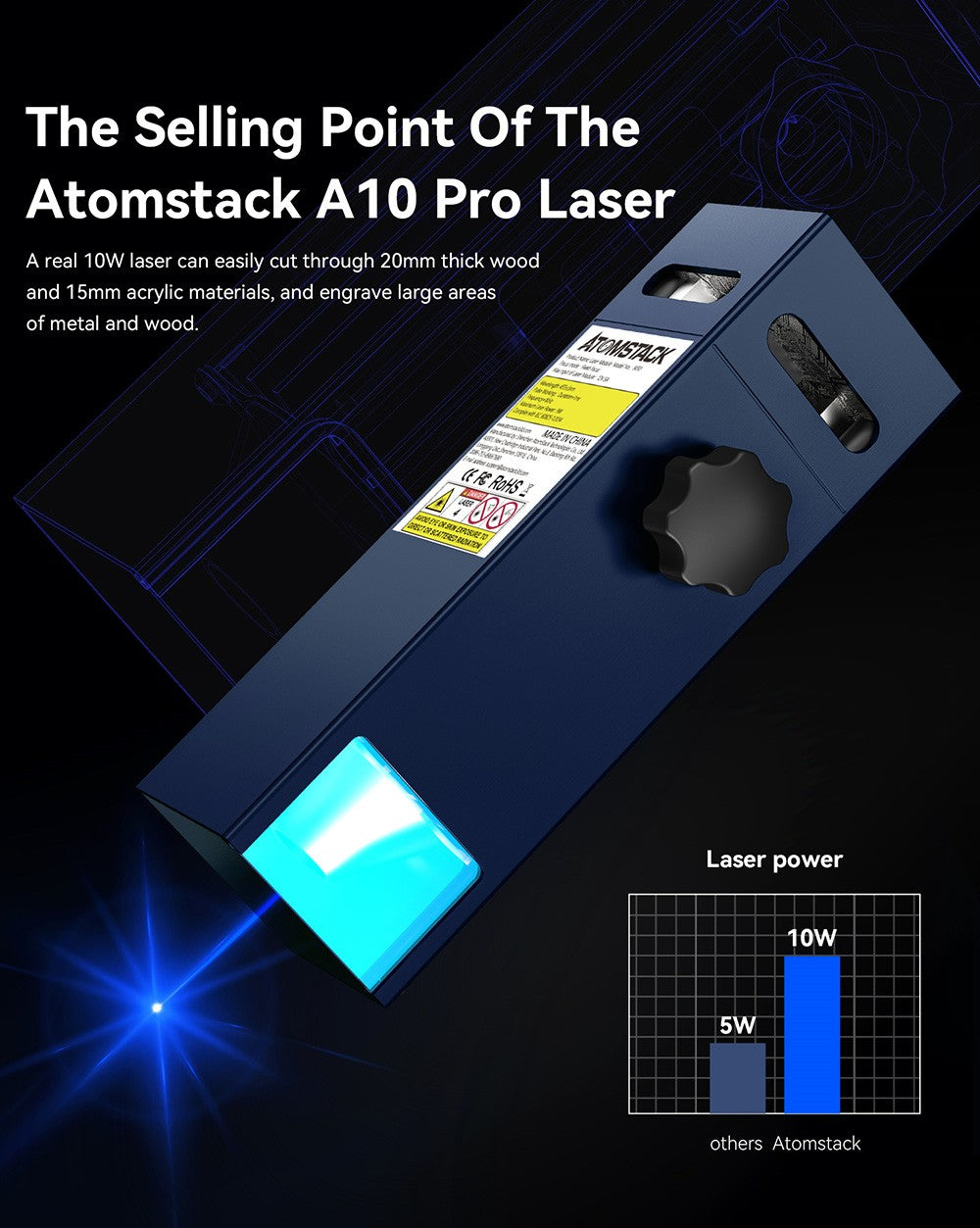

Dual Compression Spot Coupling Technology

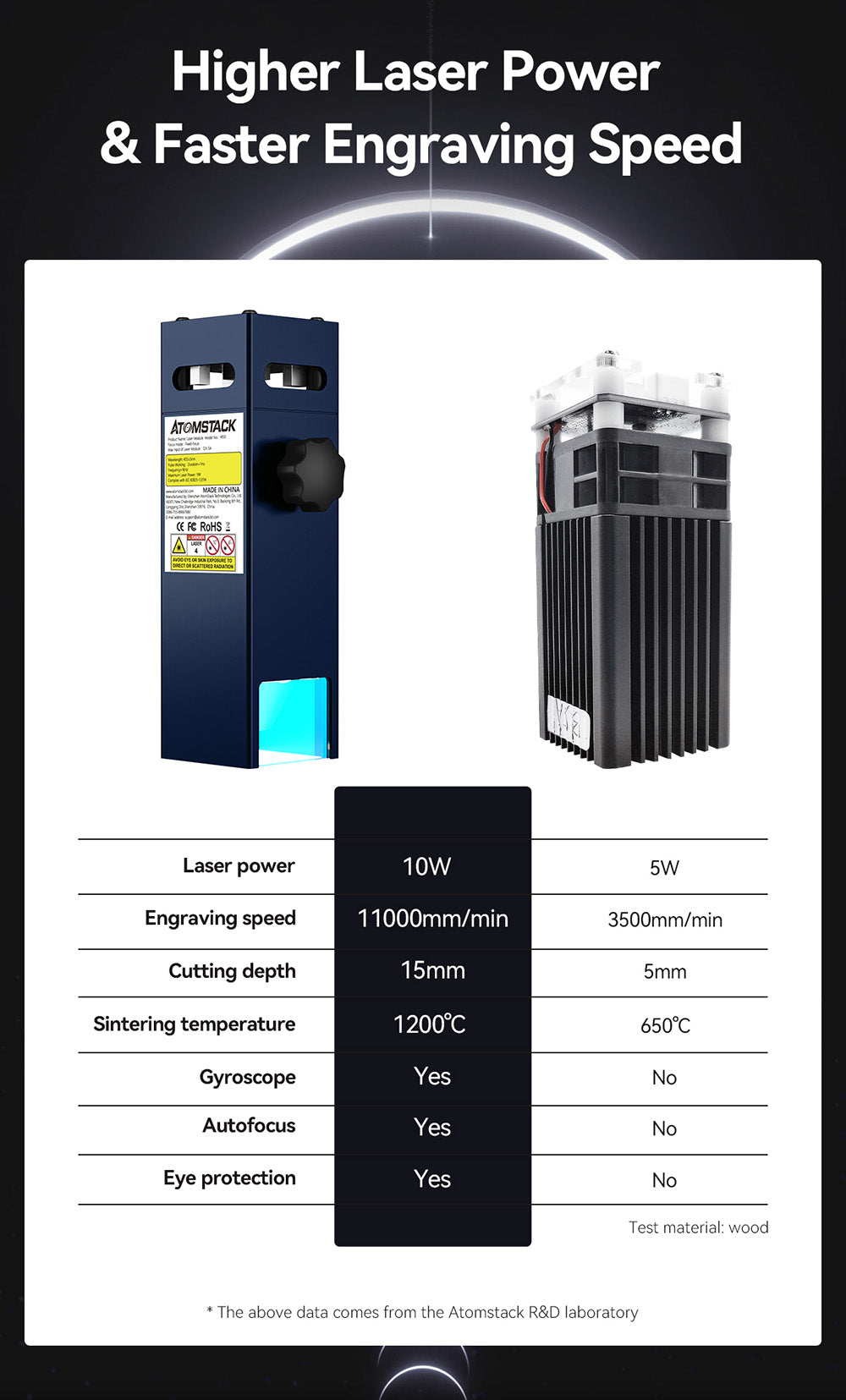

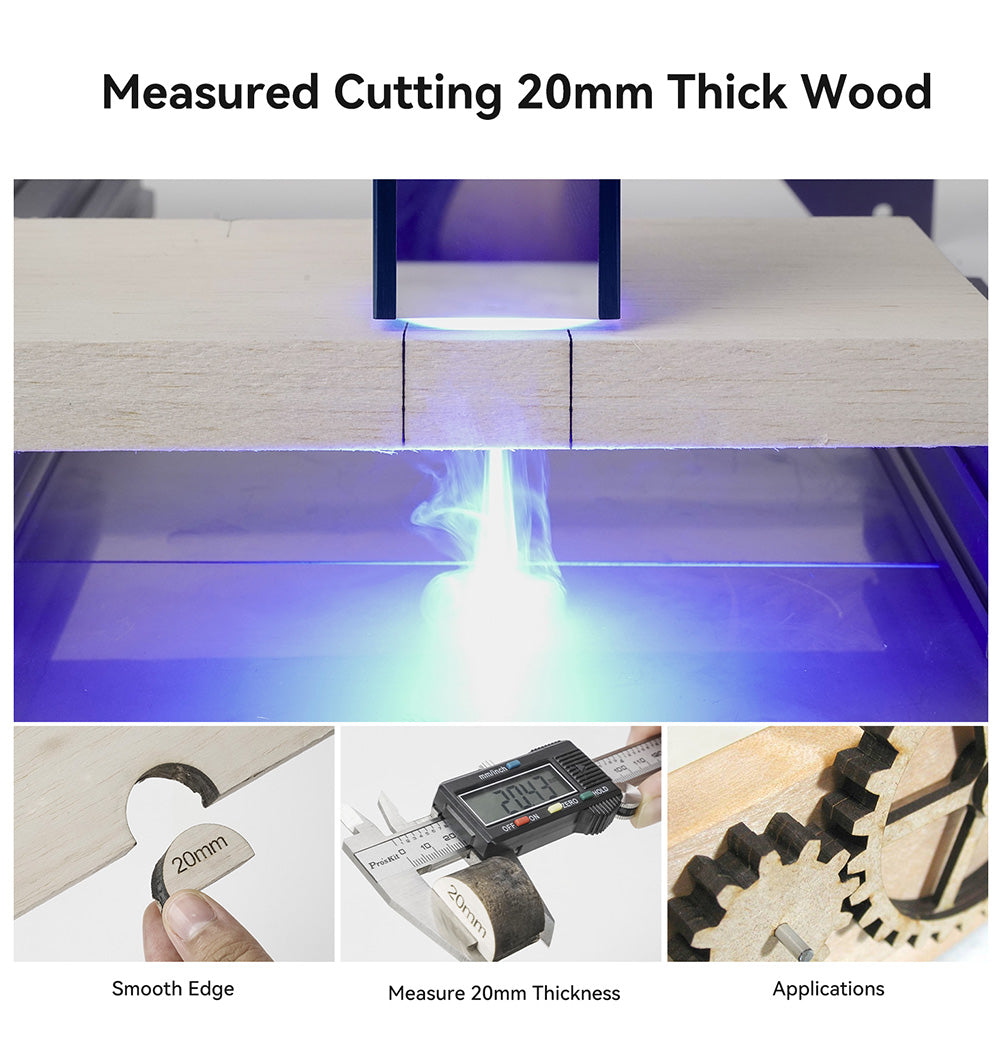

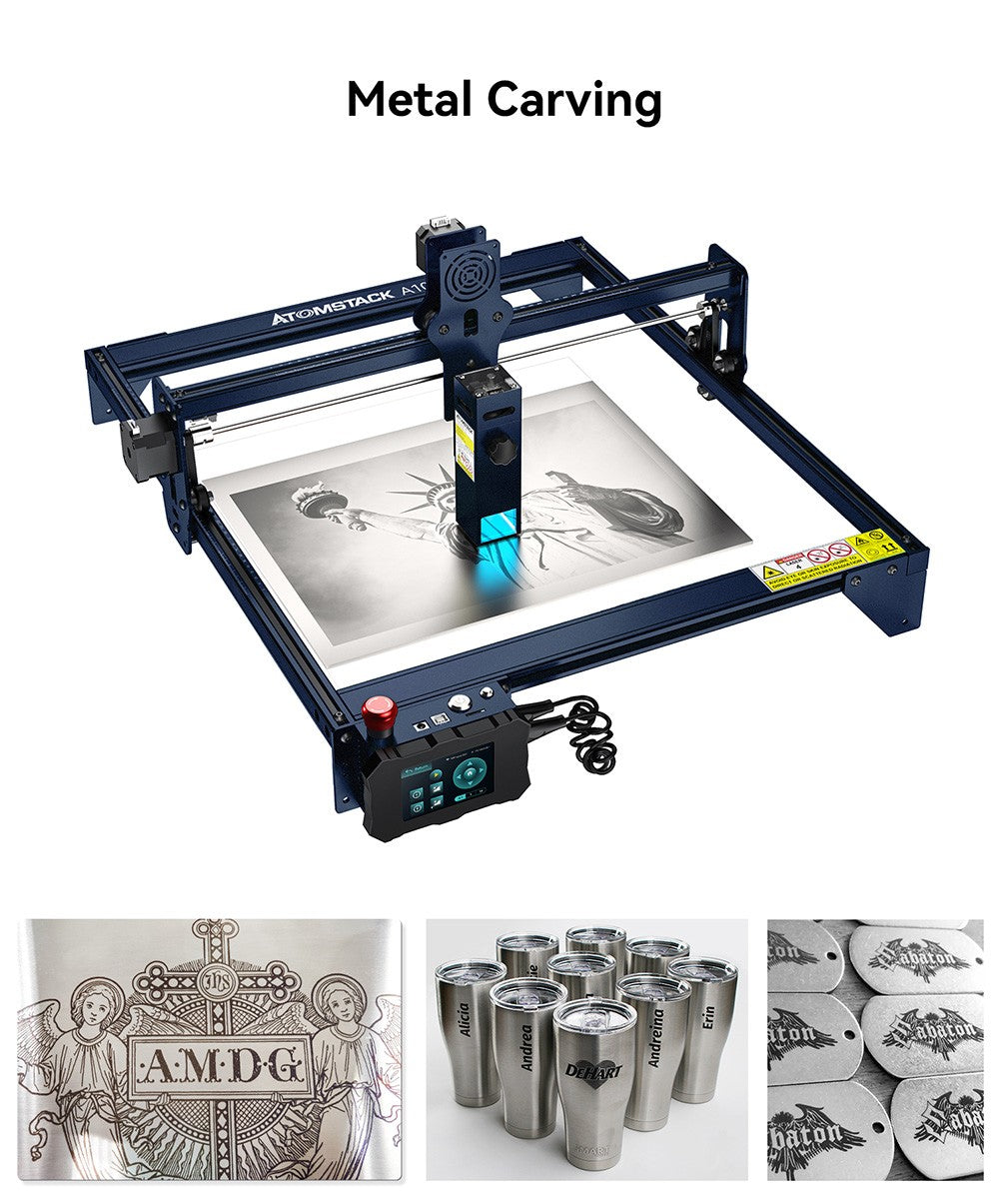

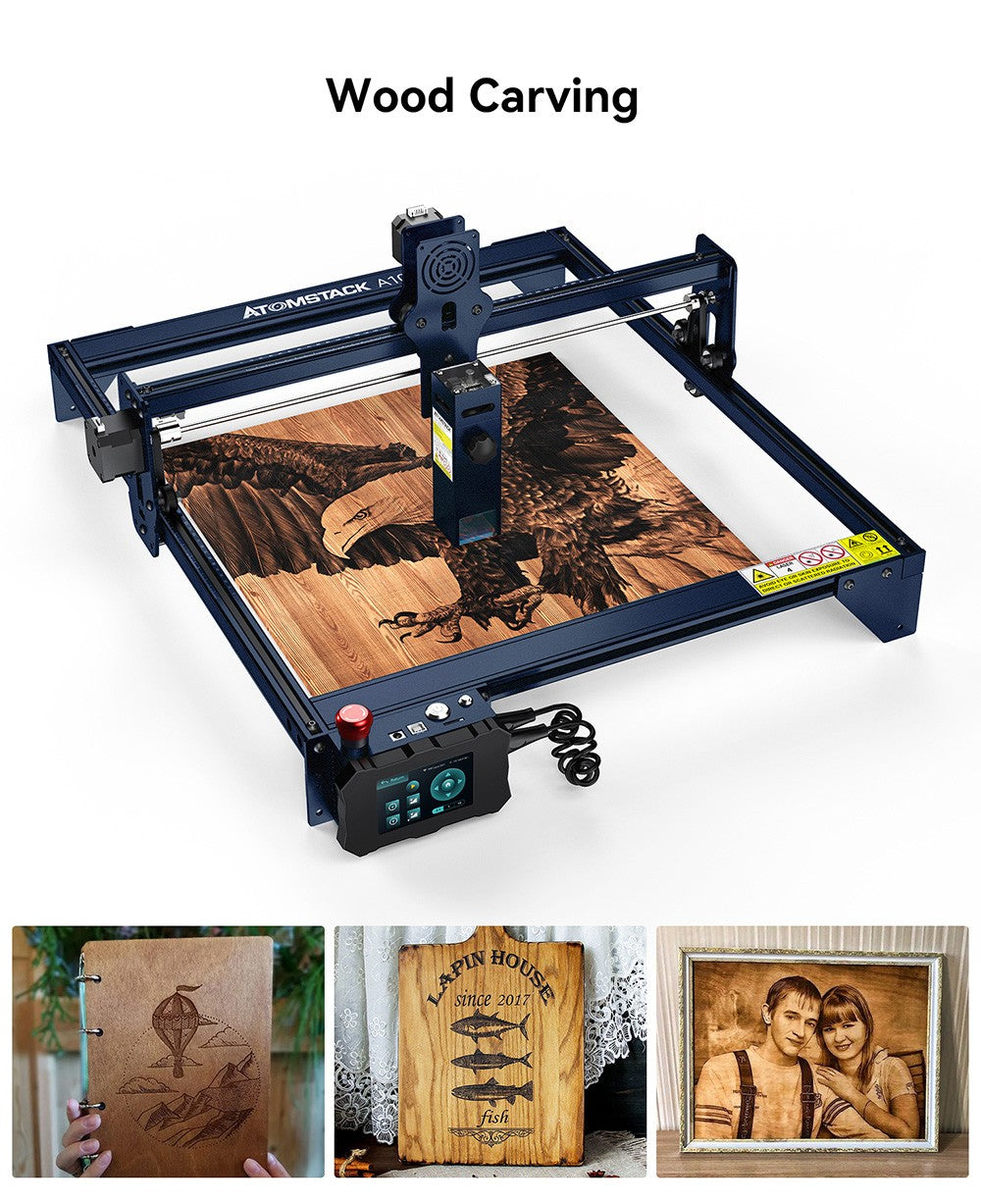

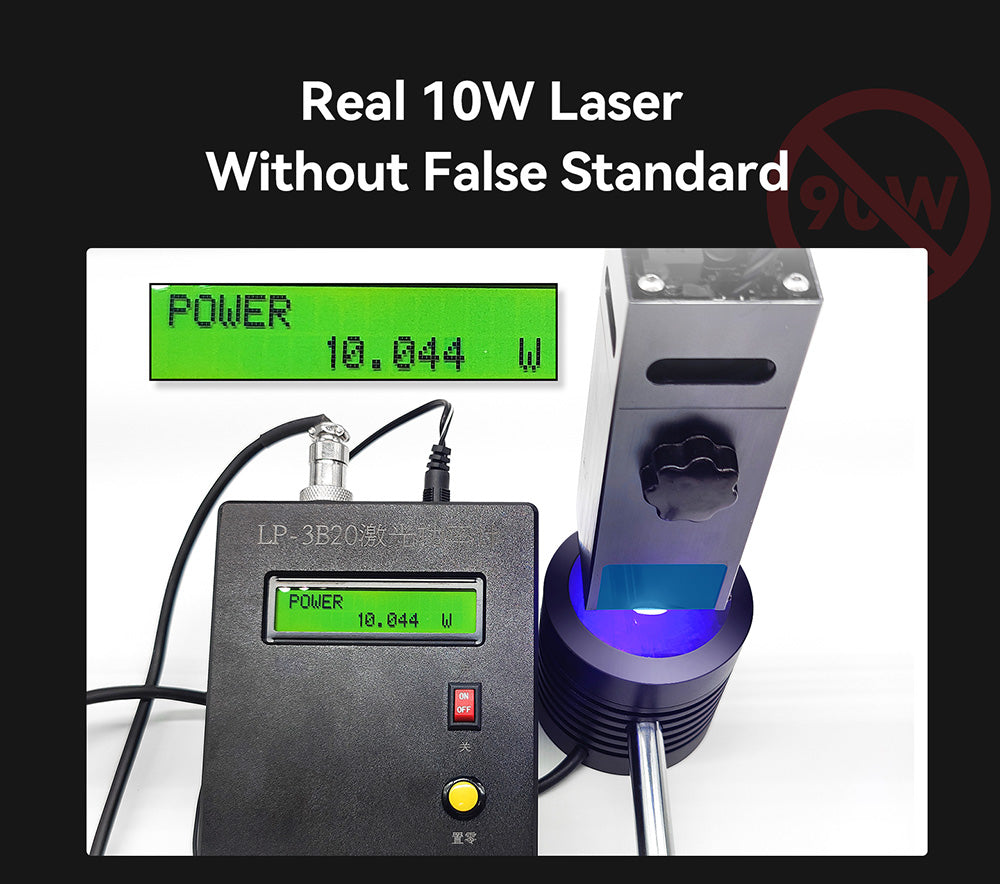

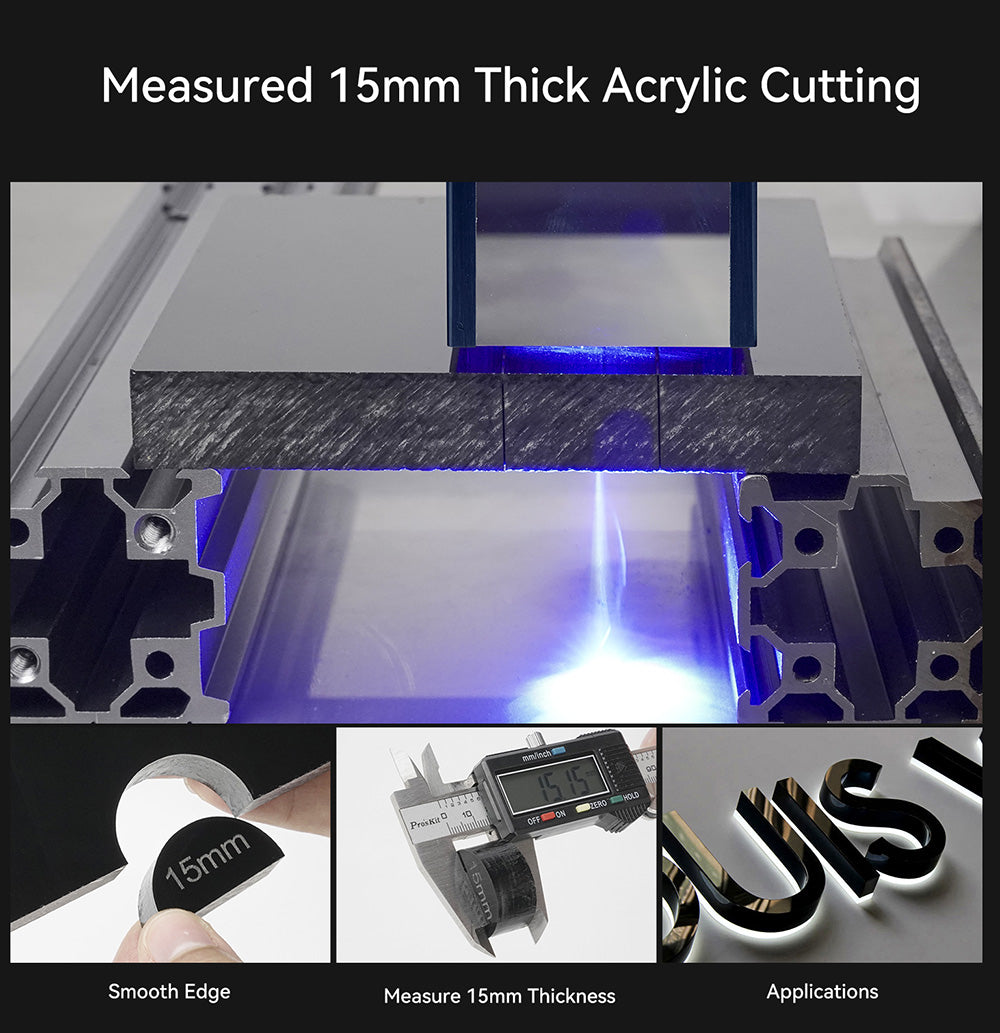

ATOMSTACK A10 Pro laser engraver features 50W electric power and 10W laser output power. The ultra-fine laser focus area is reduced to 0.08*0.08mm, so the high-density laser can easily cut 20mm thick wood, and 15mm thick black acrylic; can directly engrave mirrors, stainless steel metal, ceramics, and glass. The cutting speed is 40% higher than the ordinary model.

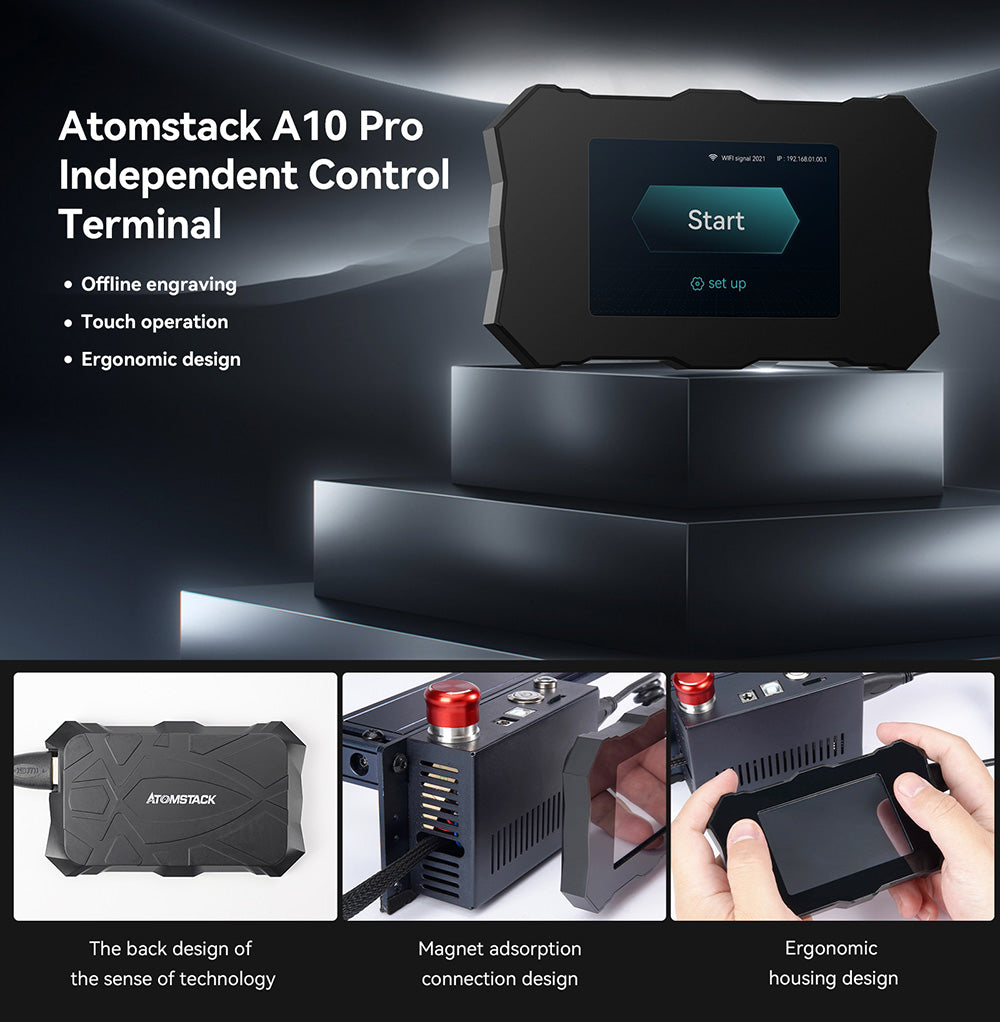

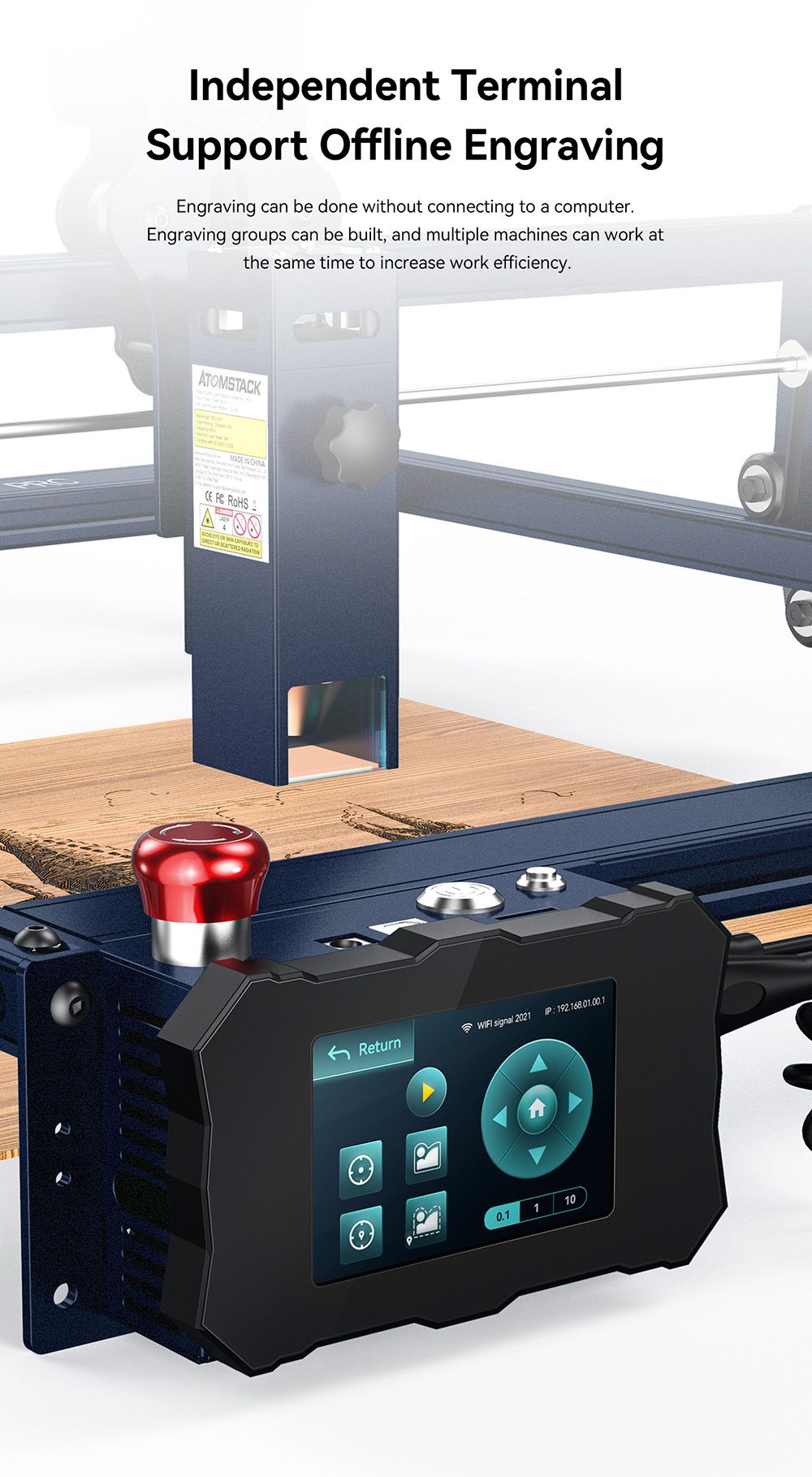

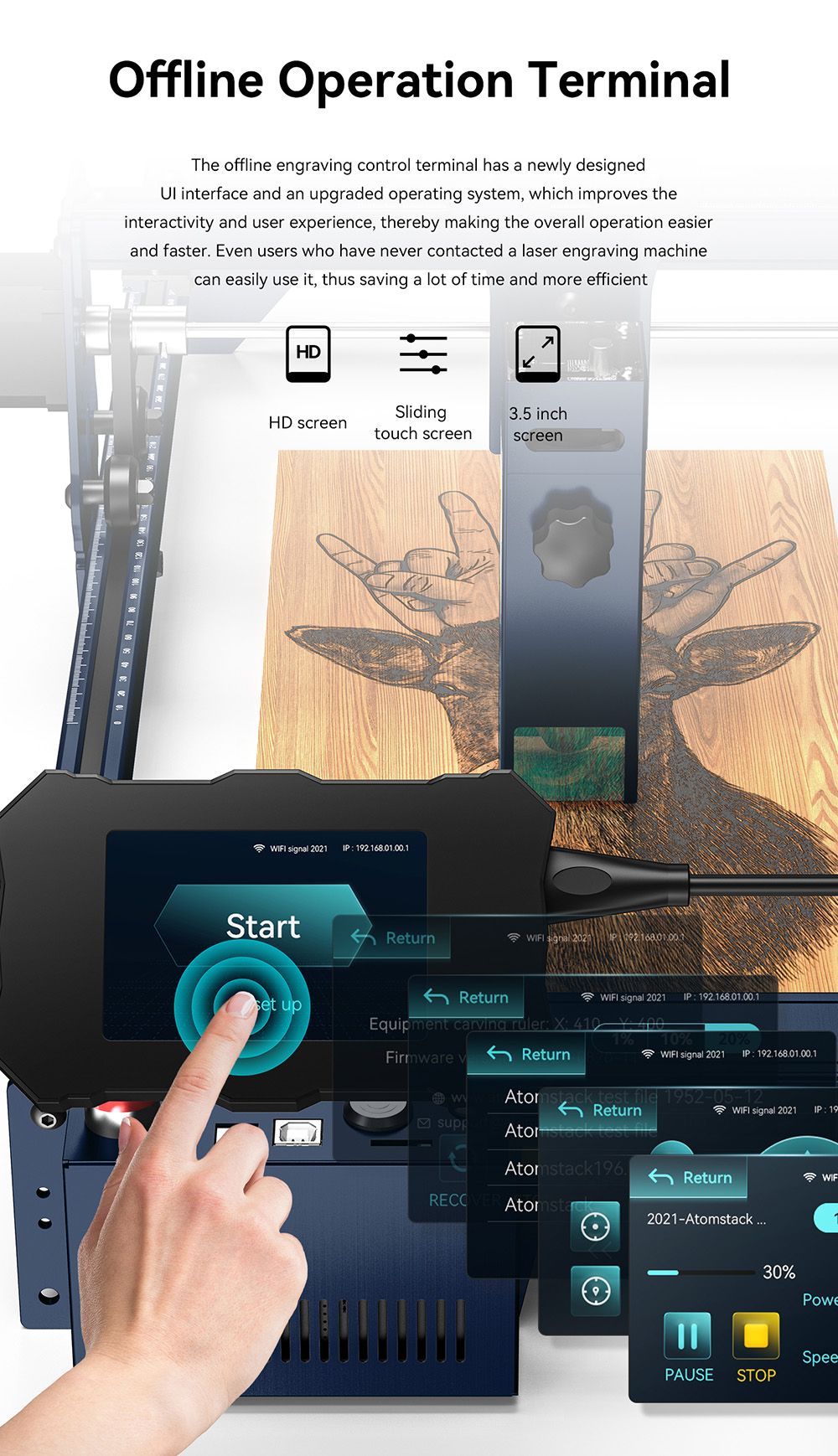

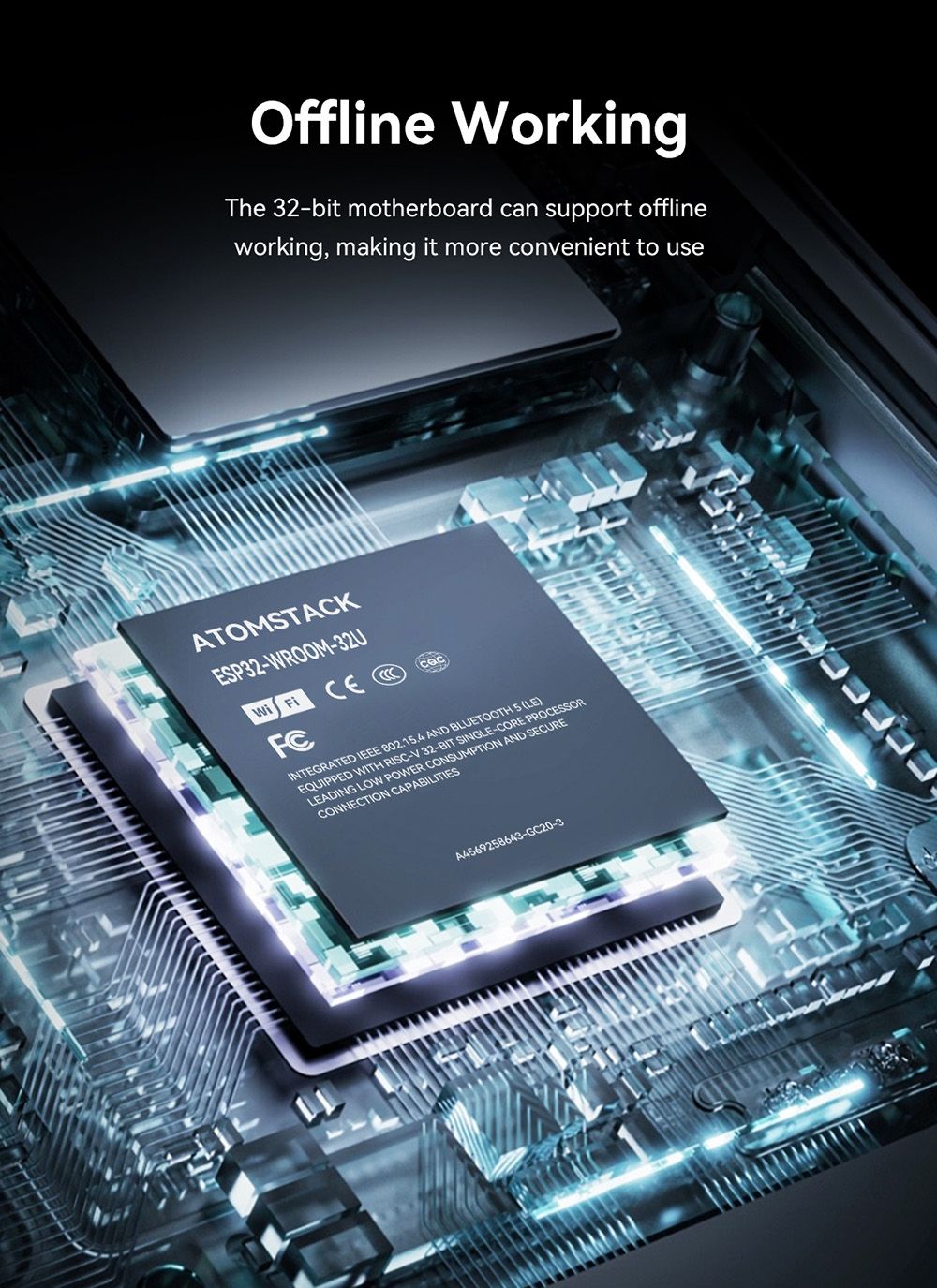

Support Offline Engraving

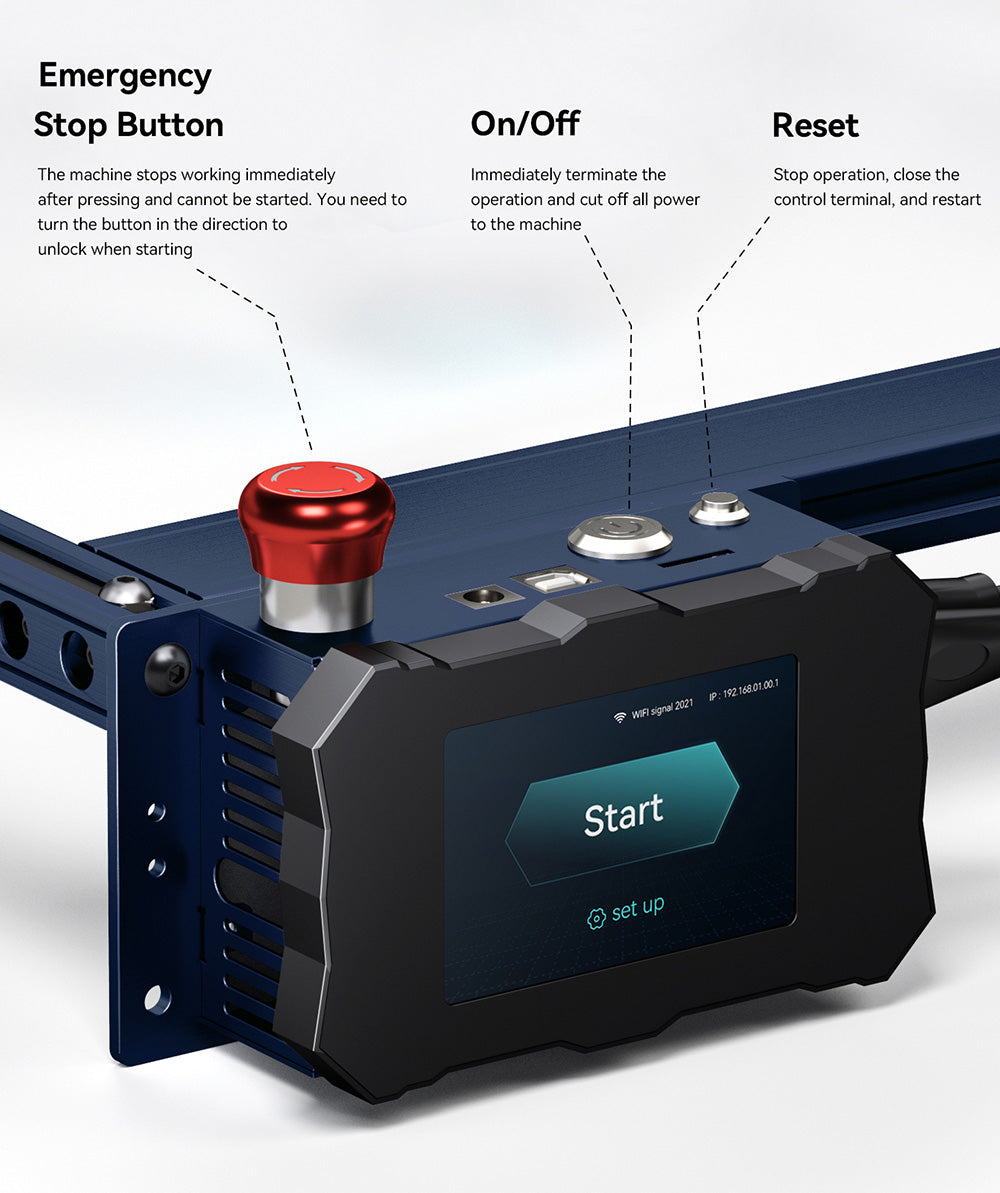

A10 Pro laser engraving machine configures the terminal control panel, supports offline engraving, and with an emergency stop button. After you install the software and upload the file, you can carry out engraving work anytime and anywhere without being restricted by the computer.

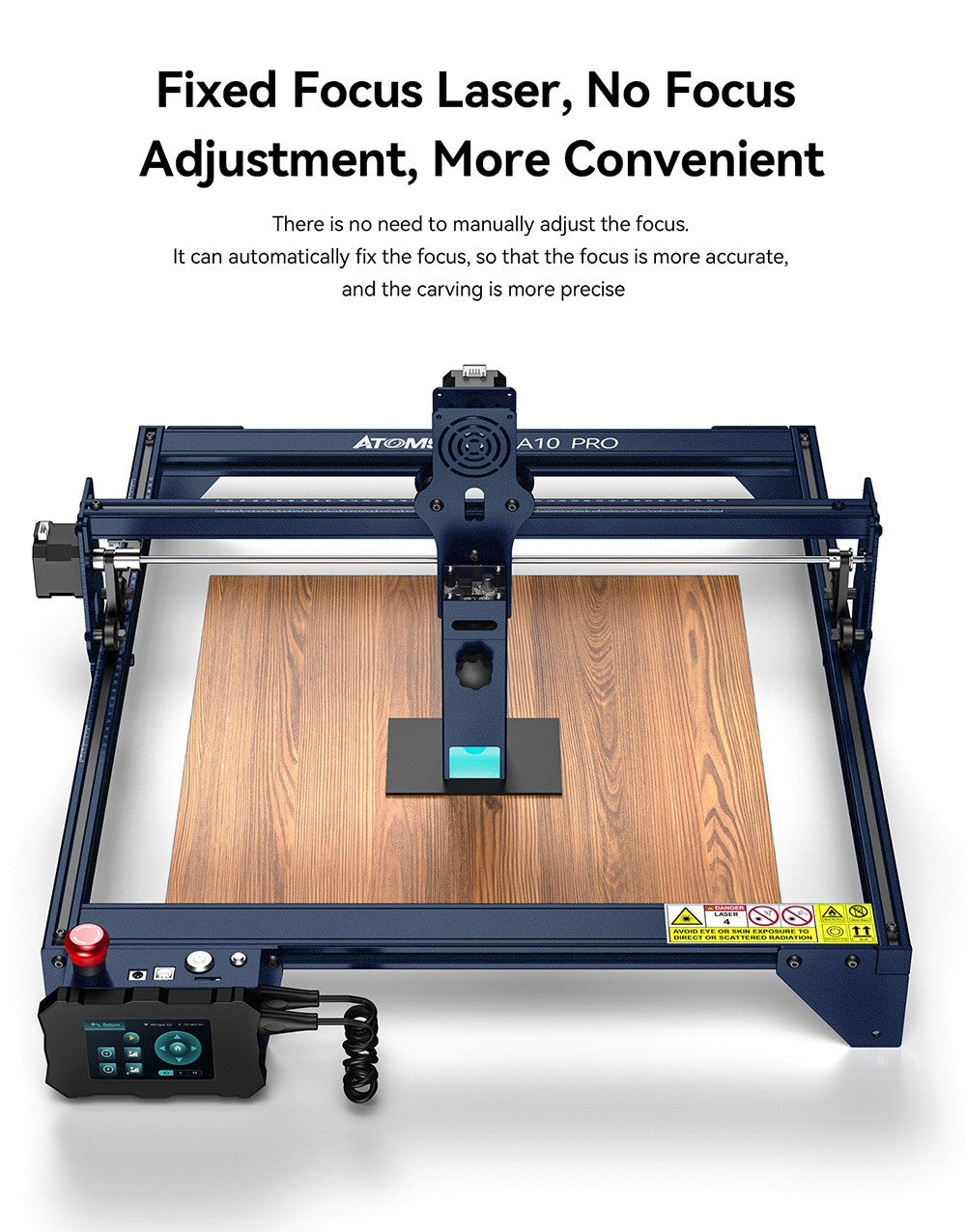

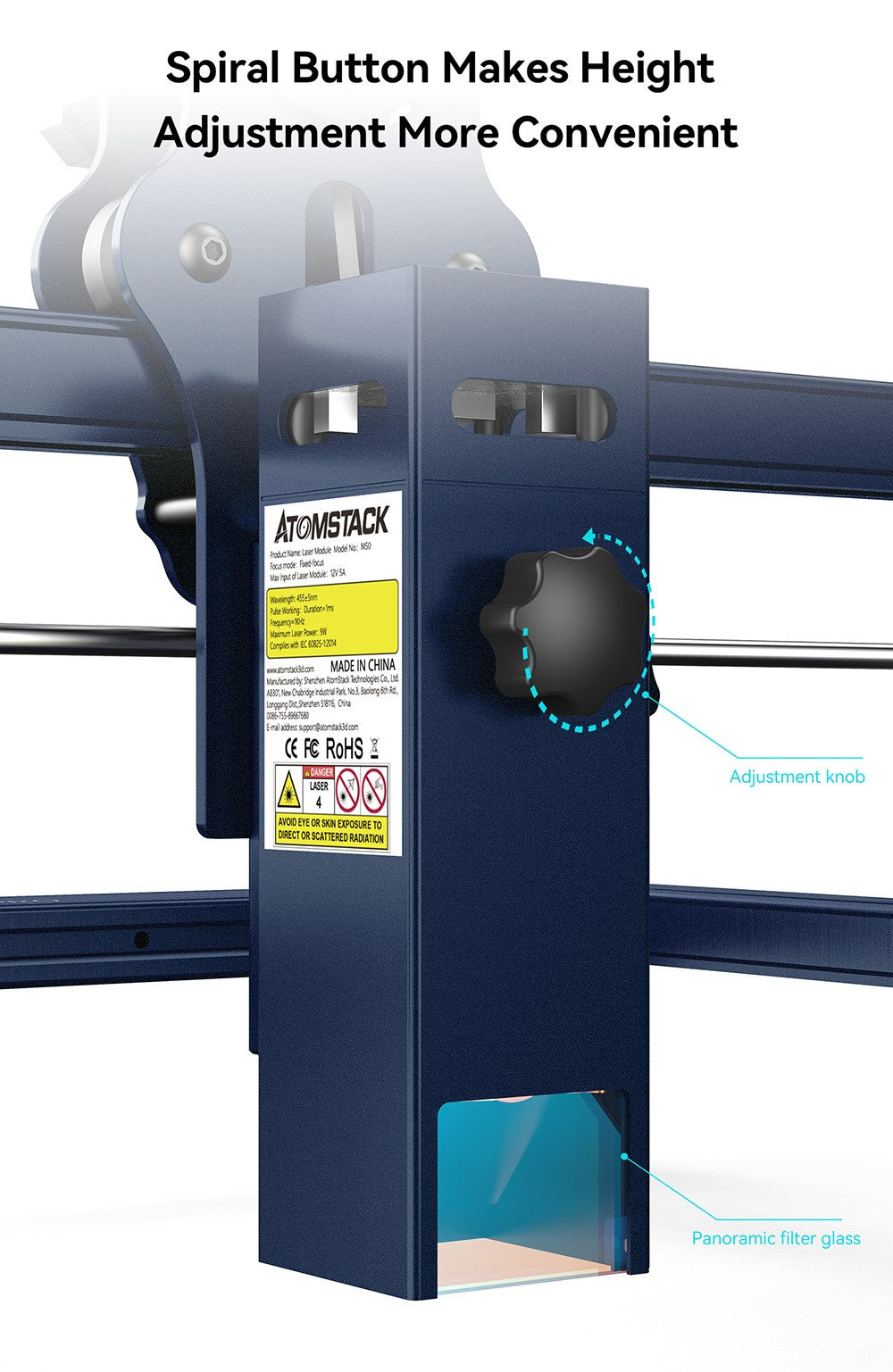

High-Performance Fixed-Focus Laser
The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers. Features automatically fixed focus, the new laser combines precision engraving and high-energy cutting at the same time.

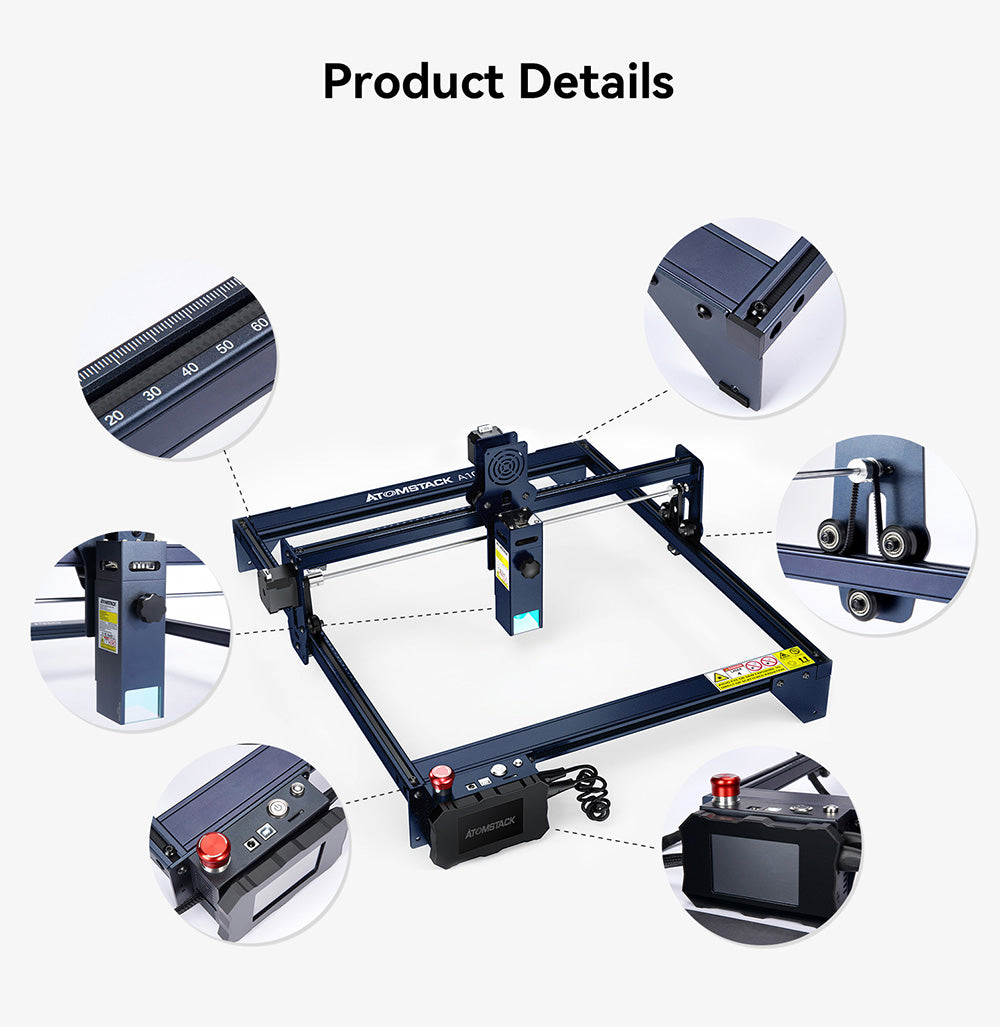

Precise Scale Lines Axis
There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

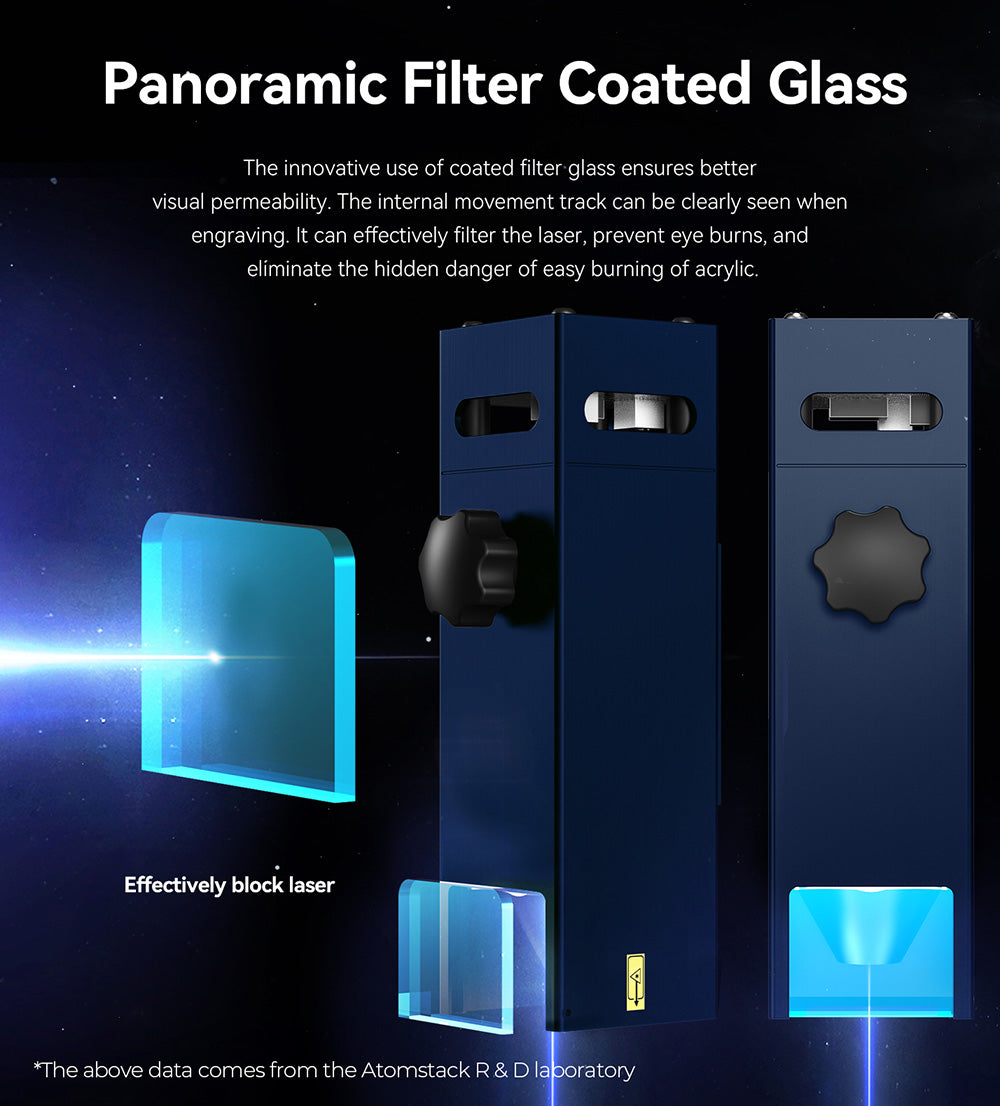

New Filter Panoramic Glass Eye Protection Design
The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you do not need to wear goggles and could watch the engraving clear.

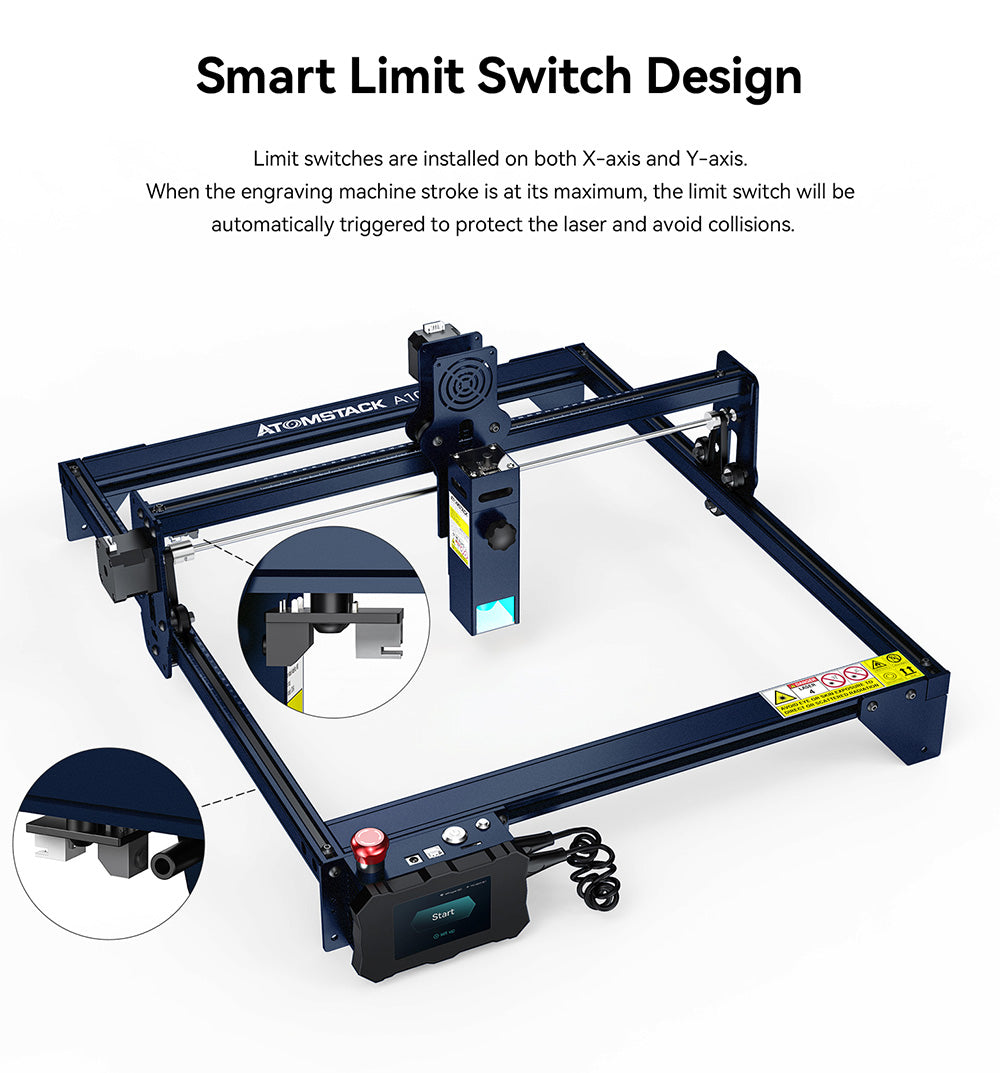

Smart Limit Switch Design
Limit switches are installed on both X-axis and Y-axis. when the engraving machine stroke is at its maximum, the limit switch will be automatically triggered to protect the laser and avoid a collision.

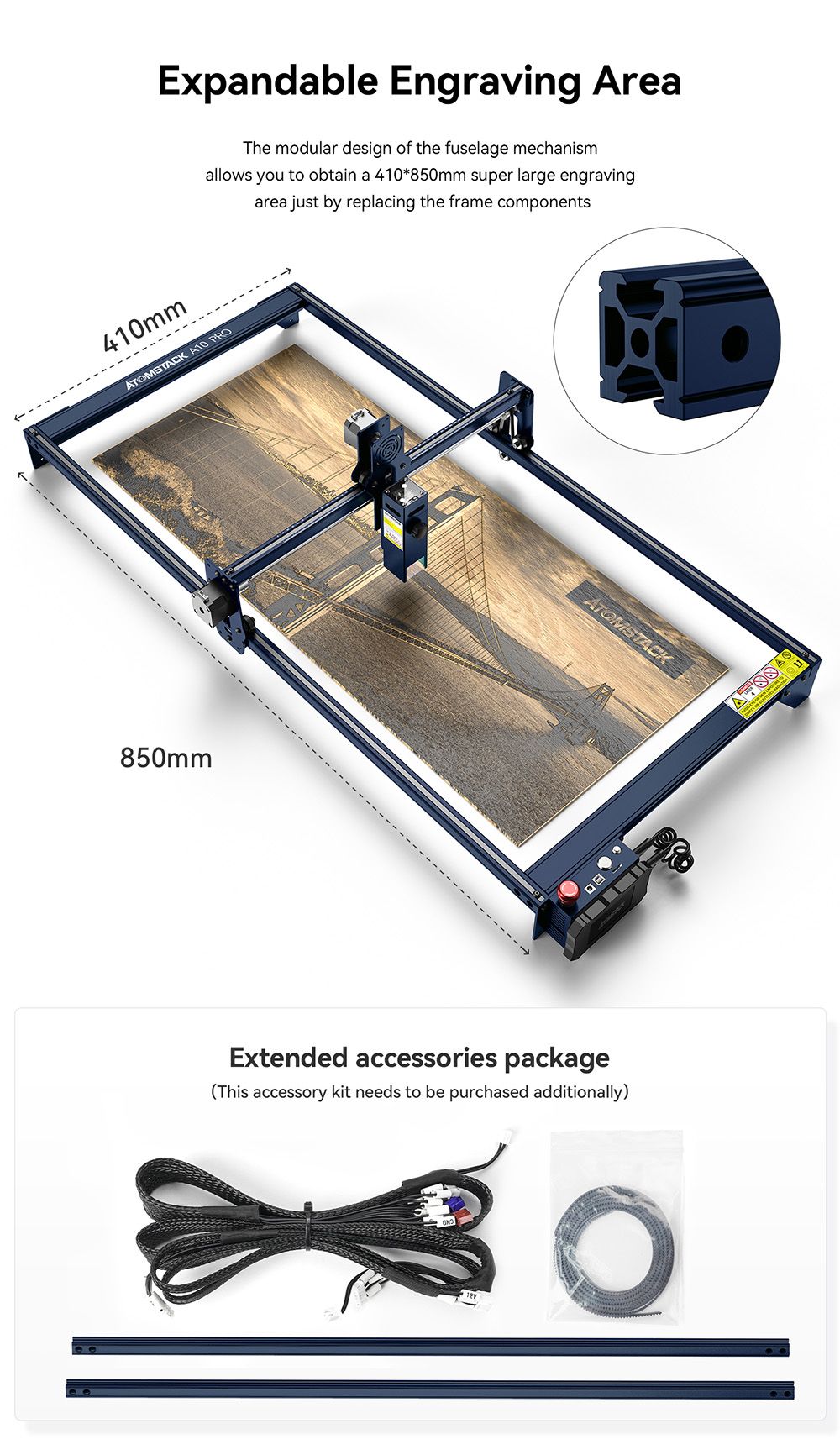

Expandable Engraving Size
The modular design of the body mechanism enables you only need to replace the frame components to get a 410x850mm super large engraving size.
Sturdy & Easy-to-install Structural Design
The all-aluminum alloy anodized structure design and integral screw rod make the laser movement more accurate, the coupling more durable, and improve the engraving accuracy. The entire structure is designed for quick assembly, which can generally be completed within 10-20 minutes.
Wide Compatibility
The machine can be compatible with various mature engraving software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / Win 10 / Win 11 and also supports Mac system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

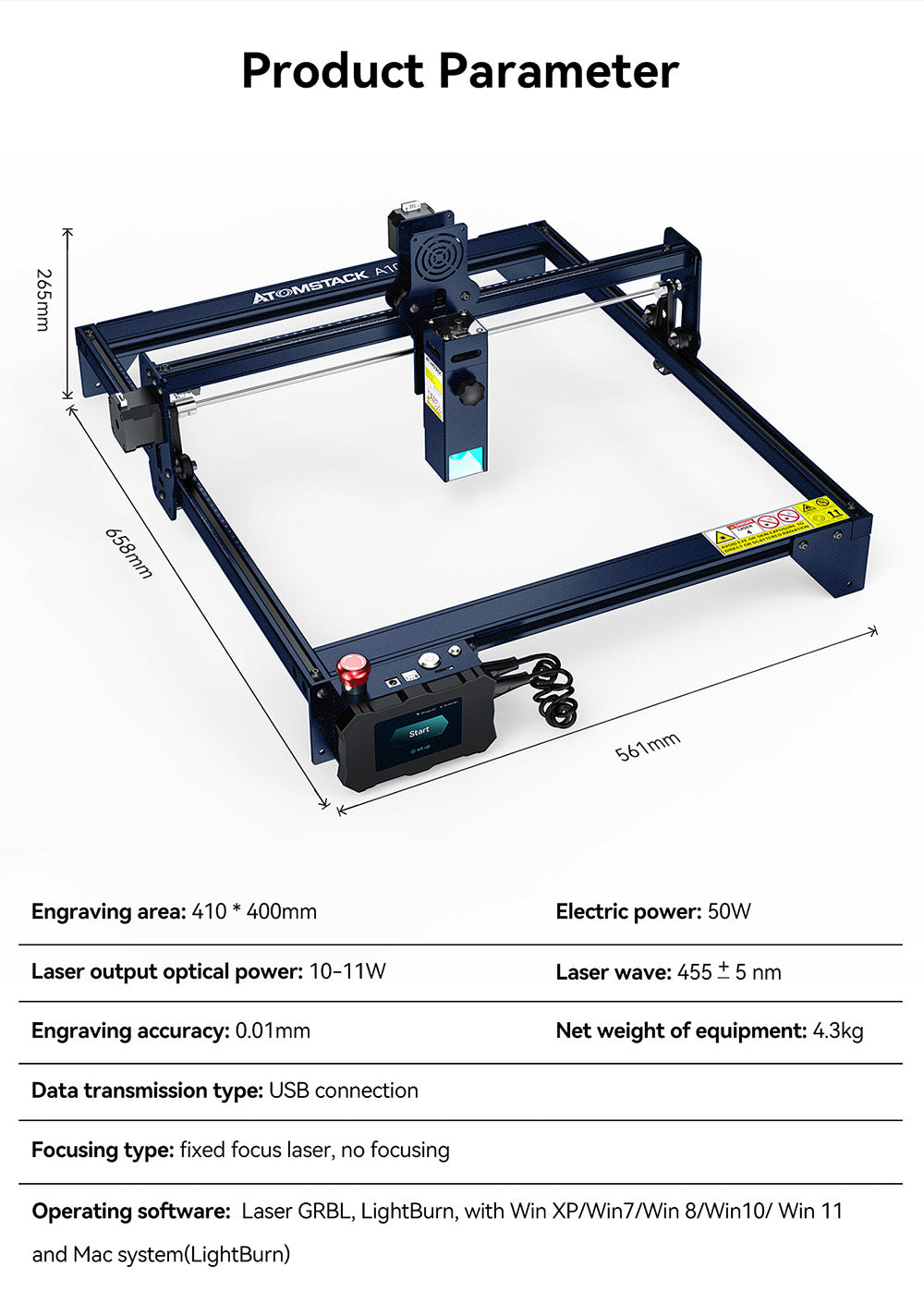

Specifications
Specifications
| General | |
|---|---|
| Brand | ATOMSTACK |
| Type | Laser Engraving Machine |
| Model | A10 Pro |
| Specification | |
| Engraving Area: 410x400mm | |
| Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and paint surface layer metal, 304 mirrors stainless steel, glass, ceramics, cotton cloth, slate | |

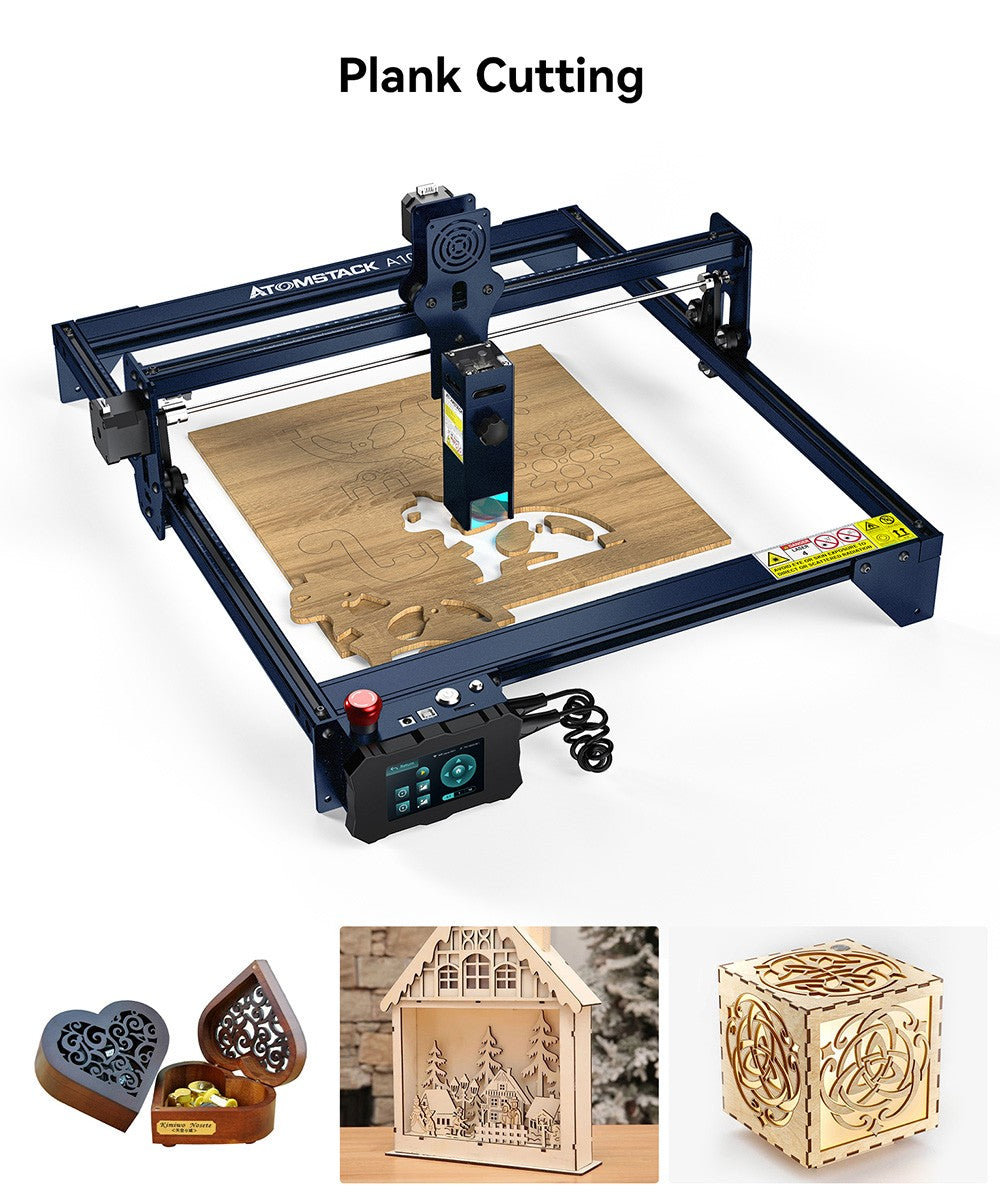

| Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge | |
| Electric Power: 50W | |
| Laser Output Power: 10-11W | |
| Wave Length: 445 ± 5nm | |
| Engraving Accuracy: 0.01mm | |
| Focusing Type: fixed focus laser, no need to focus | |
| Laser Protective Cover: Protect the user's eyes and prevent pets from grabbing the laser spot. | |
| Operating Software: LaserGRBL: supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system; LightBurn: supports Windows/Mac OS/Linux | |
| Input Format: NC, BMP, JPG, PNG, DXF, etc. | |
| Data Transmission Method: USB connection | |
| Input Voltage: AC100-240V, 50/60Hz | |
| Output Voltage: DC 12V, 5A | |
| Sintering Temperature: 1200 Celsius | |
| Weight & Size | |
| Product Weight | 4.3kg |
| Package Weight | 6.05kg |
| Finished Engraver Size(L x W x H) | 56.1x65.8x26.5cm |
| Package Size(L x W x H) | 60x35x13cm |

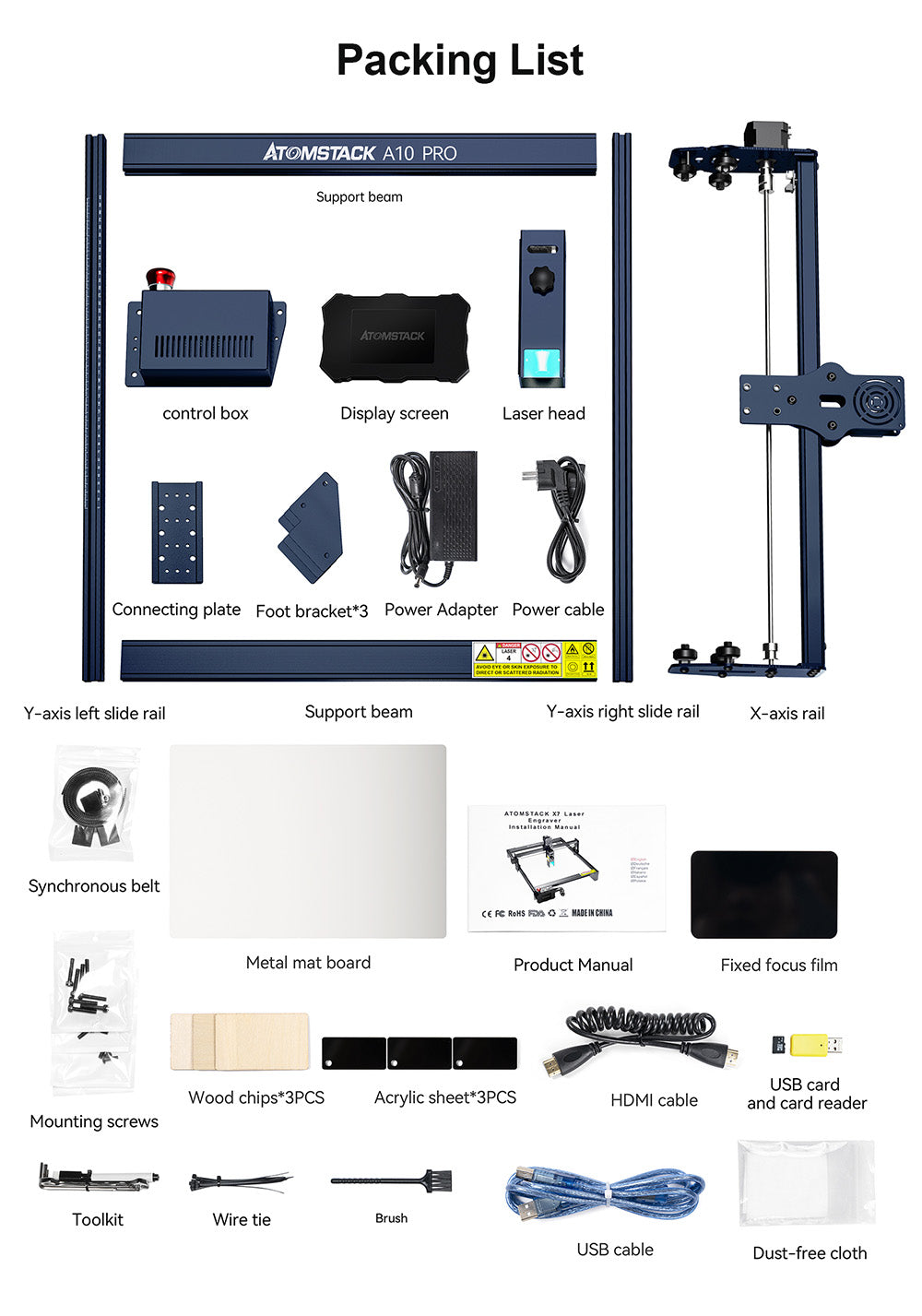

| Package Contents | |
| 1 x Mounting Screw | |
| 1 x Tool Kit | |
| 4 x Foot Pad Foam | |
| 1 x Film | |
| 3 x Acrylic Sheet | |
| 3 x Wood Chips | |
| 10 x Wire Tie | |
| 1 x Desiccant | |
| 1 x Brush | |
| 1 x Clean Cloth | |
| 1 x Card Reader | |
| 1 x TF Card | |
| 1 x Power Adapter | |
| 1 x Data Line | |
| 1 x Touch Screen Components | |
| 1 x HDMI Cable | |
| 1 x Laser Module | |
| 1 x Cutting Pad | |
| 1 x X-Axis Assembly | |
| 1 x Y-Axis Left Profile | |
| 1 x Y Axis Right Profile | |
| 1 x Profile on the Base | |
| 1 x Under the Base Profile | |
| 3 x Foot Bracket | |
| 1 x User Manual | |
