AOOSTAR XG76XT highlights

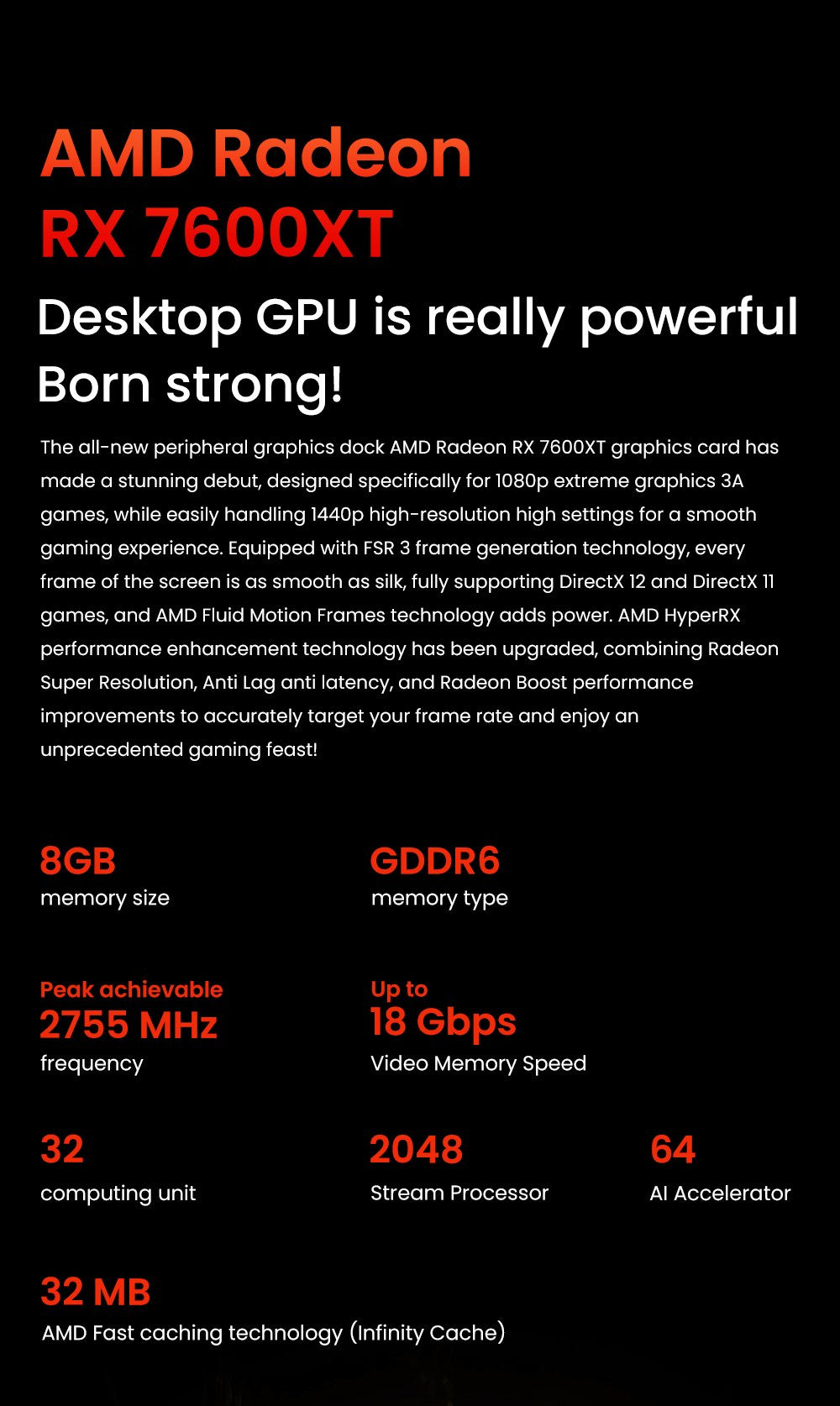

AMD Radeon RX 7600XT Graphics Card

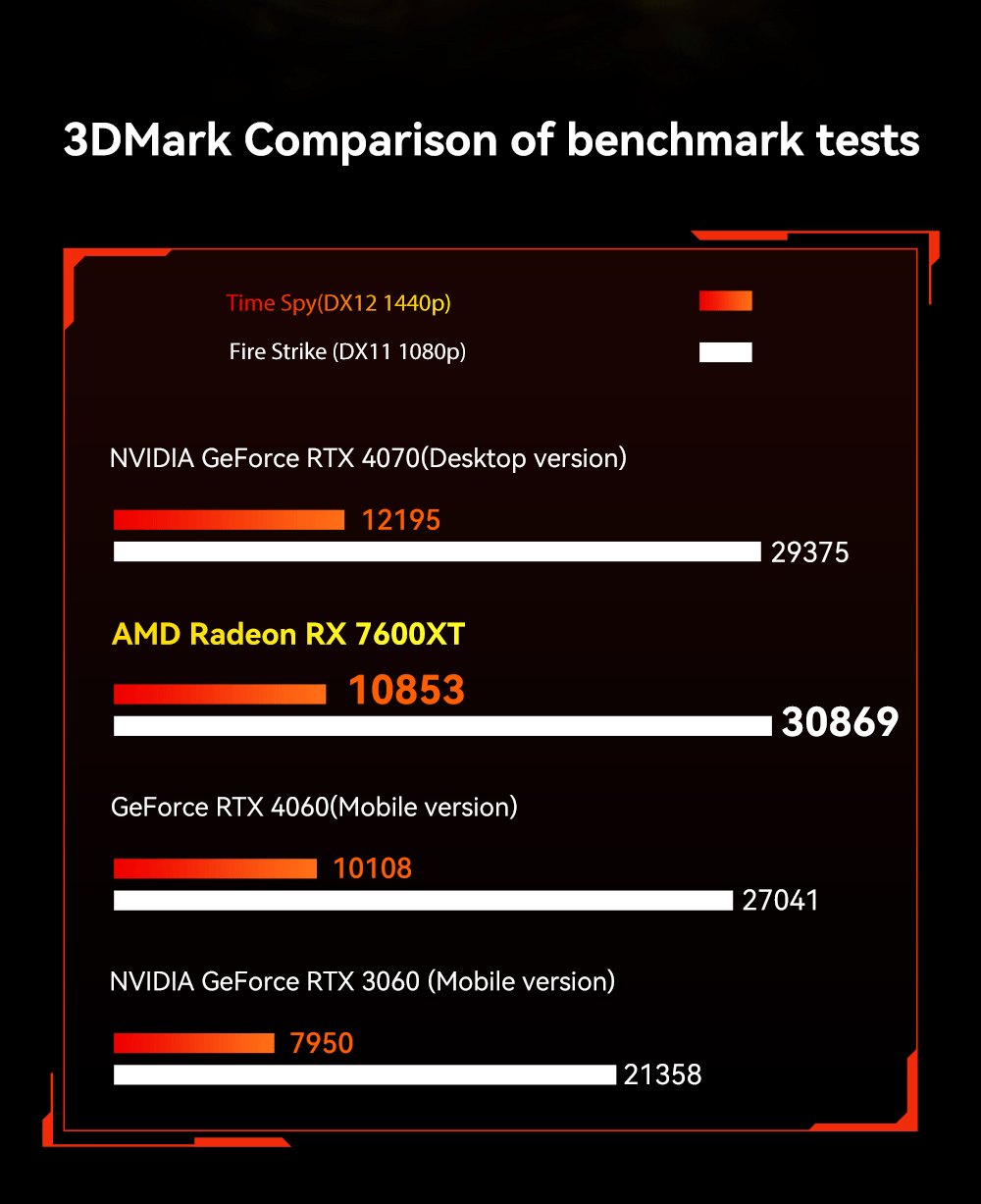

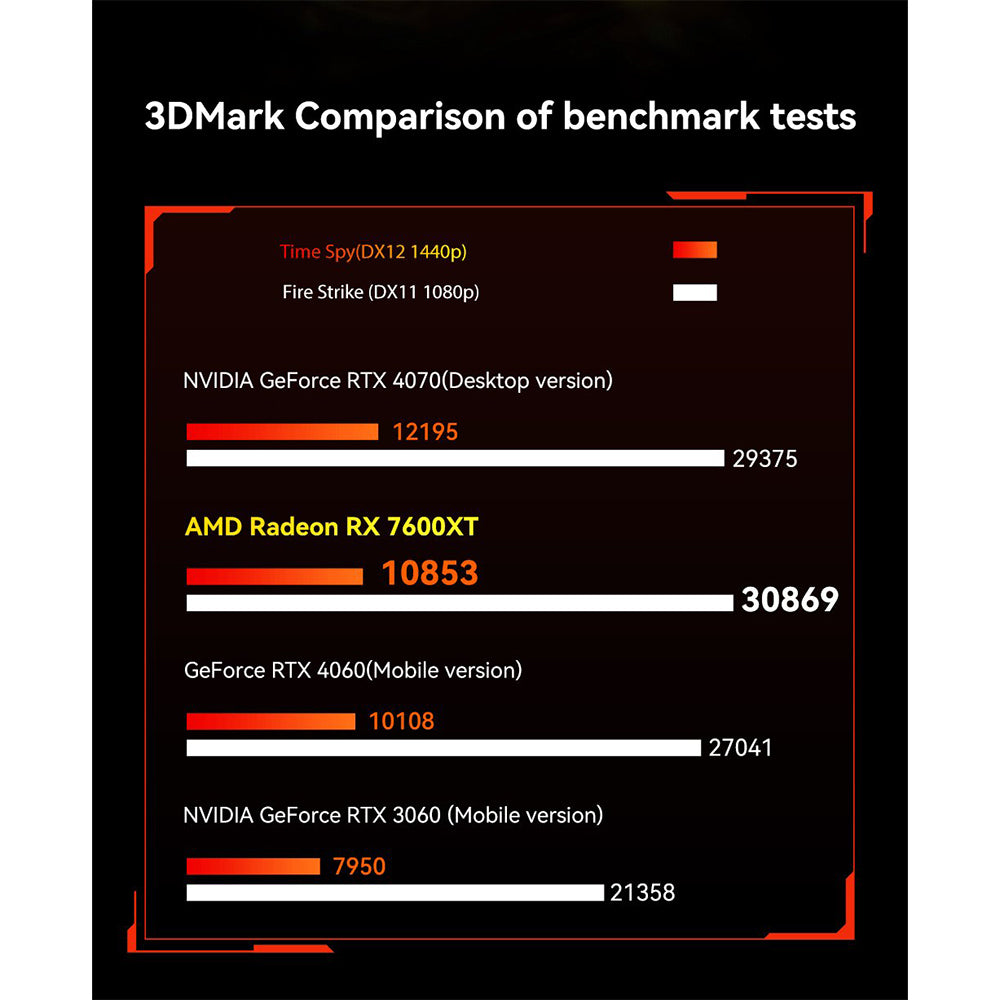

AOOSTAR XG76XT with independent graphics AMD Radeon RX 7600XT graphics card expansion dock is designed for 1080p extreme graphics card 3A games, and can easily cope with 1440p high-resolution and high-quality settings, bringing a smooth gaming experience.

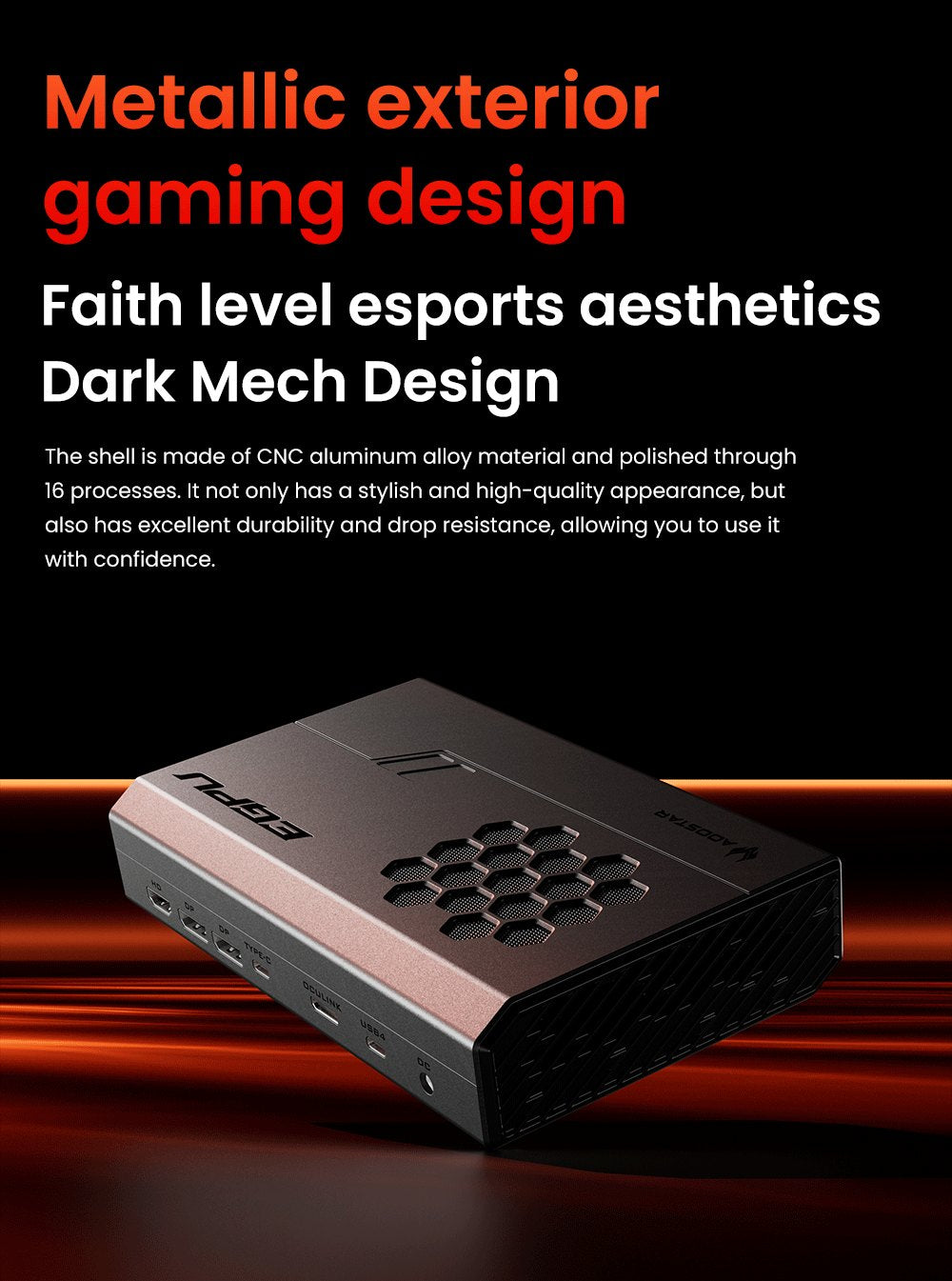

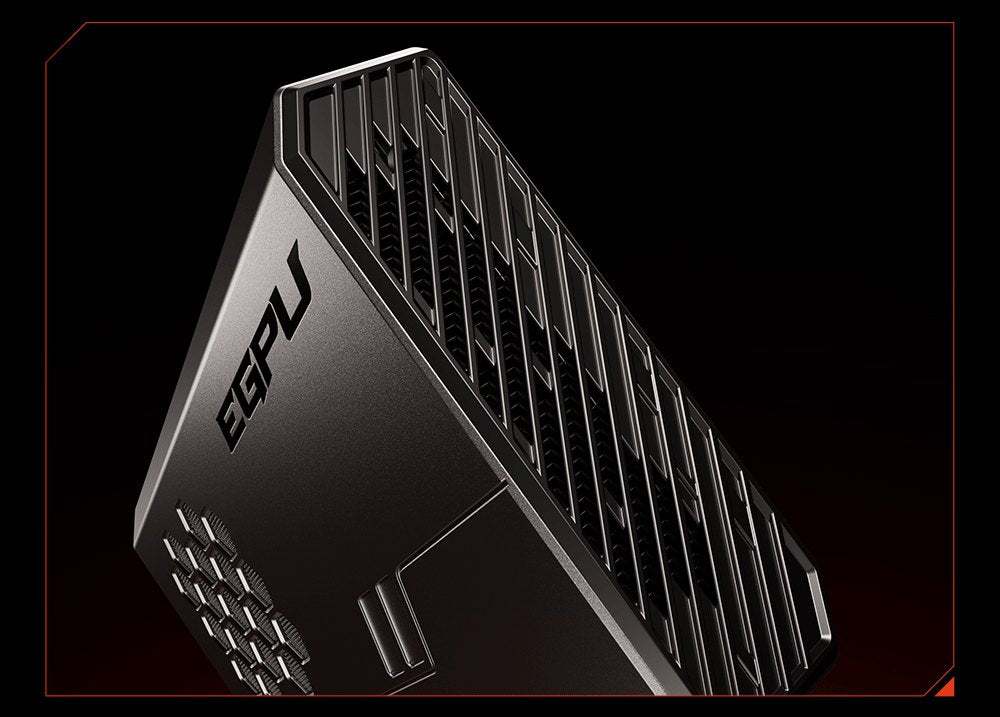

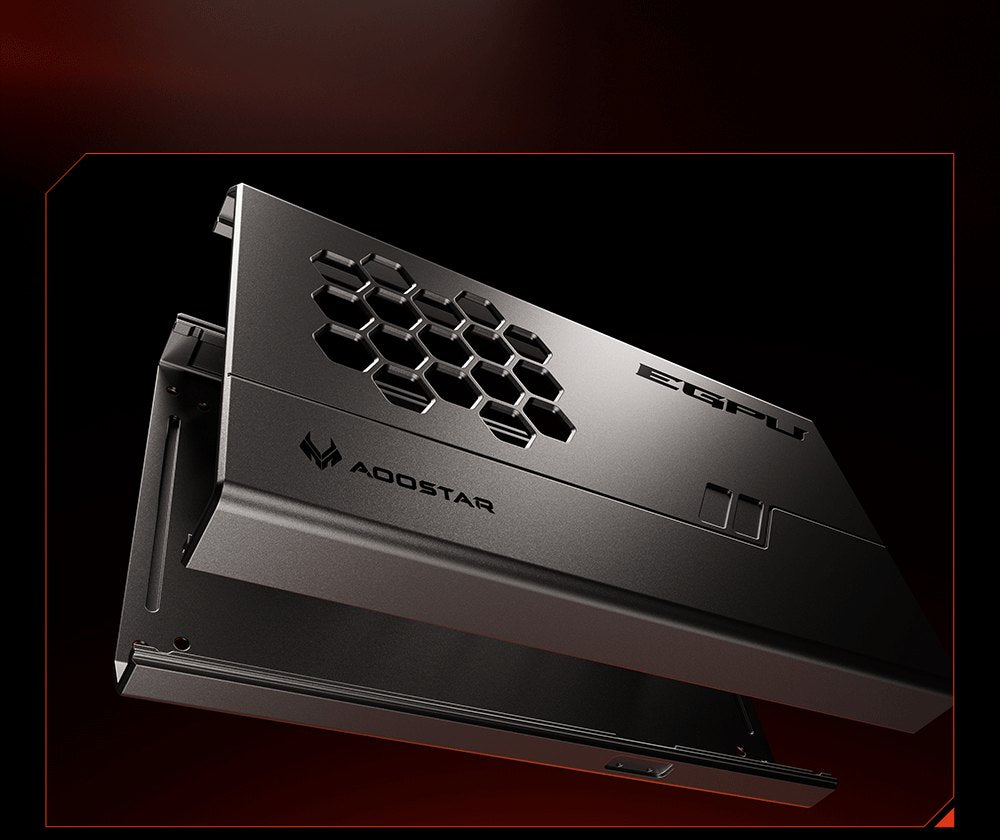

Durable Shell
The shell is made of CNC aluminum alloy and polished through 16 processes. It not only has a stylish and high-quality appearance, but also has excellent durability and anti-fall performance, allowing you to use it with confidence.

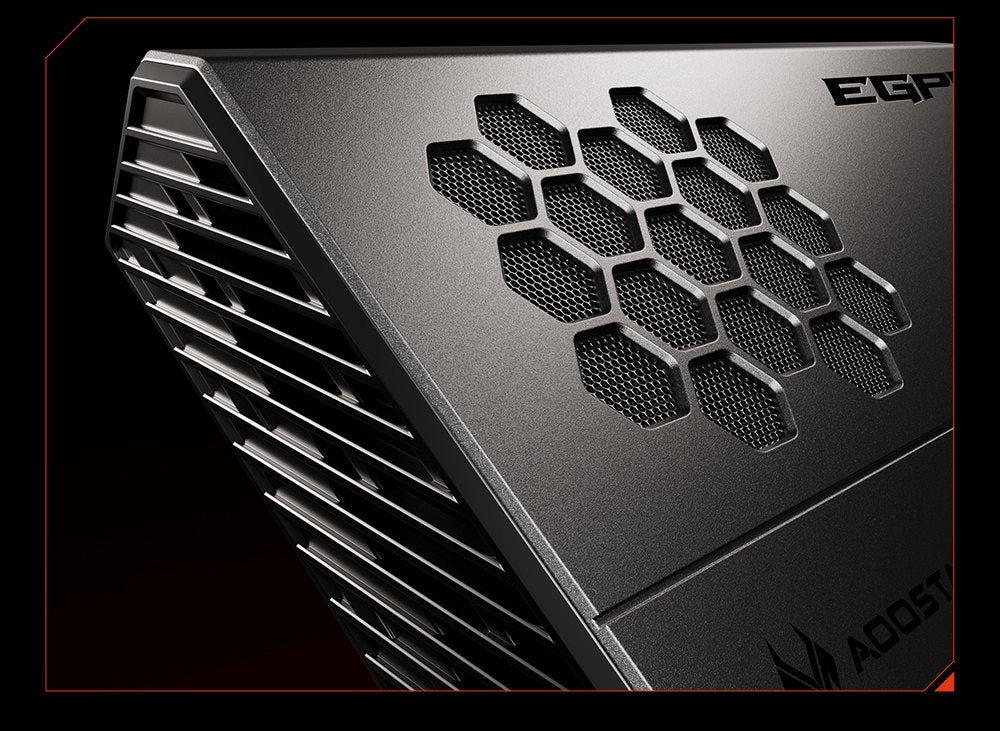

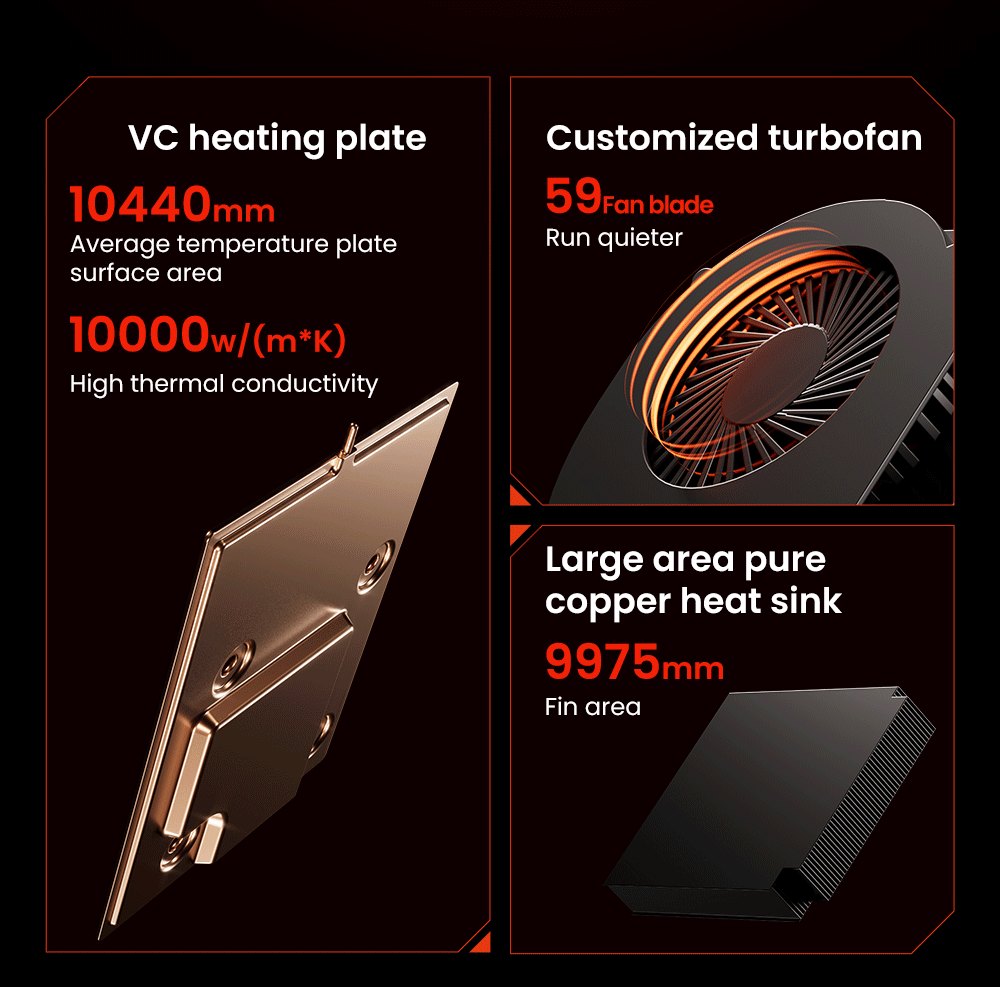

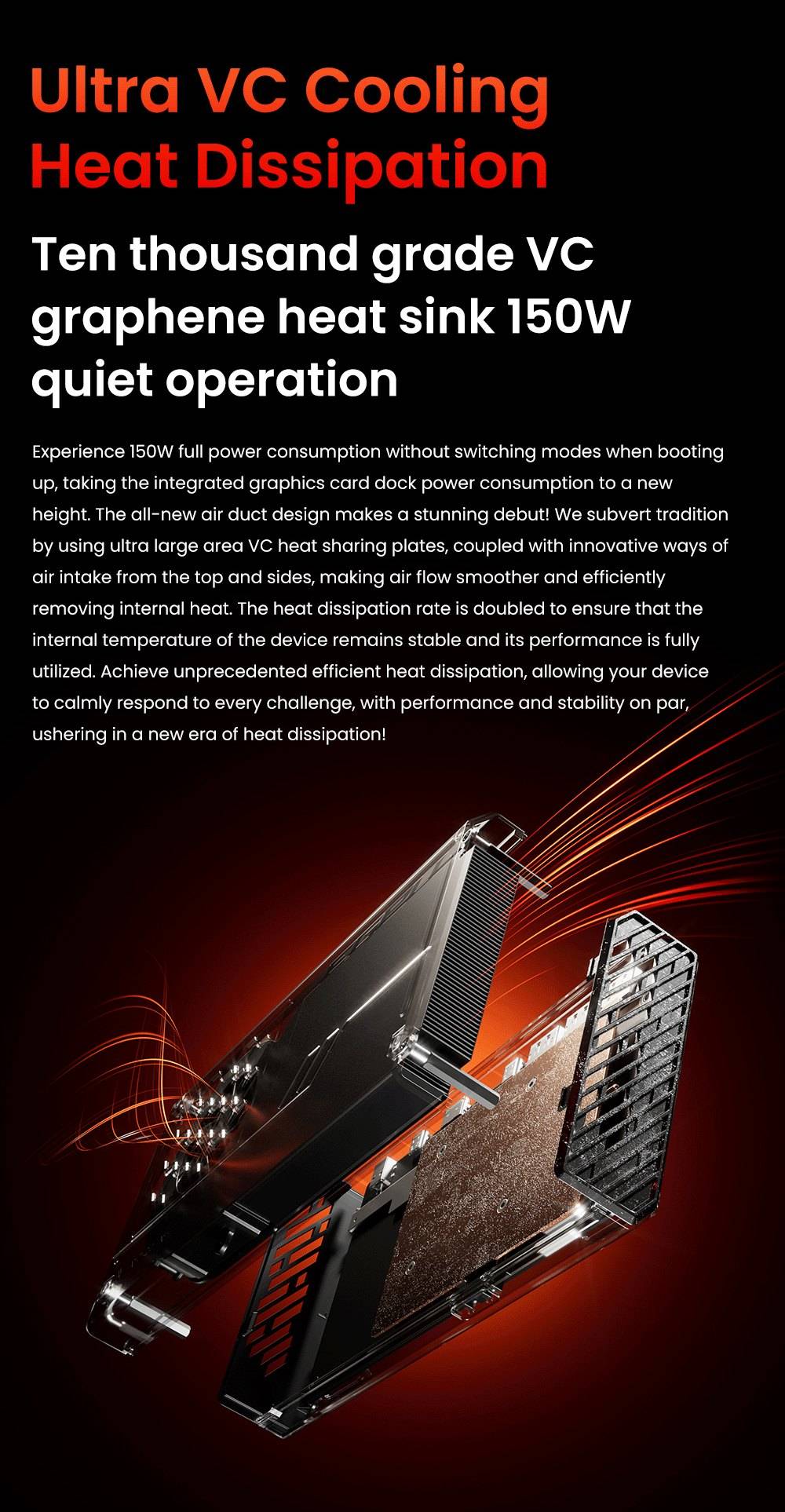

Effective Heat Dissipation
You can experience 150W full power consumption without switching modes when turning on. The use of ultra-large area VC heat spreader, combined with the top and side innovative air intake methods, makes the airflow smoother, ensures the internal temperature of the device is stable, and maximizes the performance.
100W Reverse Power Supply

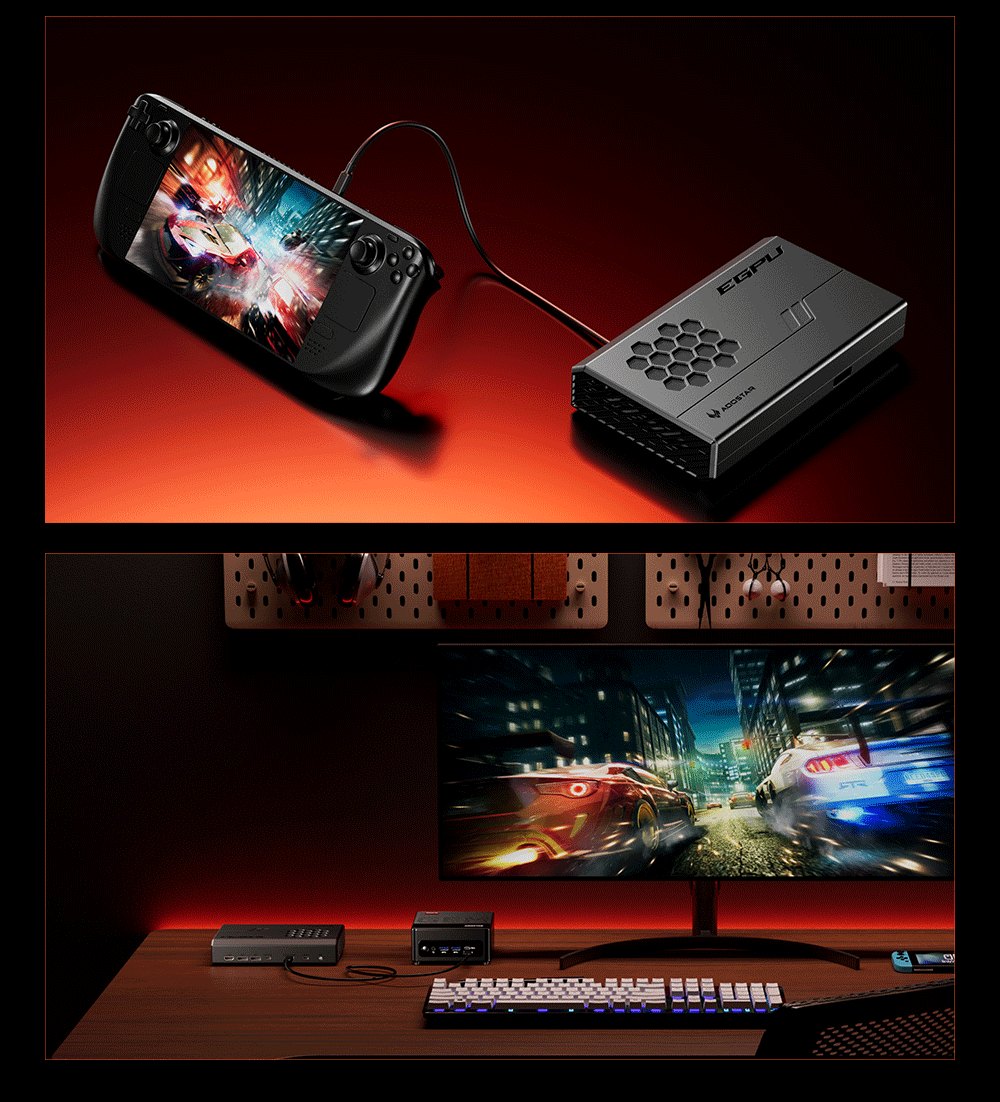

Equipped with USB4 100W reverse power supply technology, one data cable realizes GPU data transmission and power supply. When connected to handheld devices, mini hosts, and notebooks, it can improve GPU performance and achieve real-time power supply.

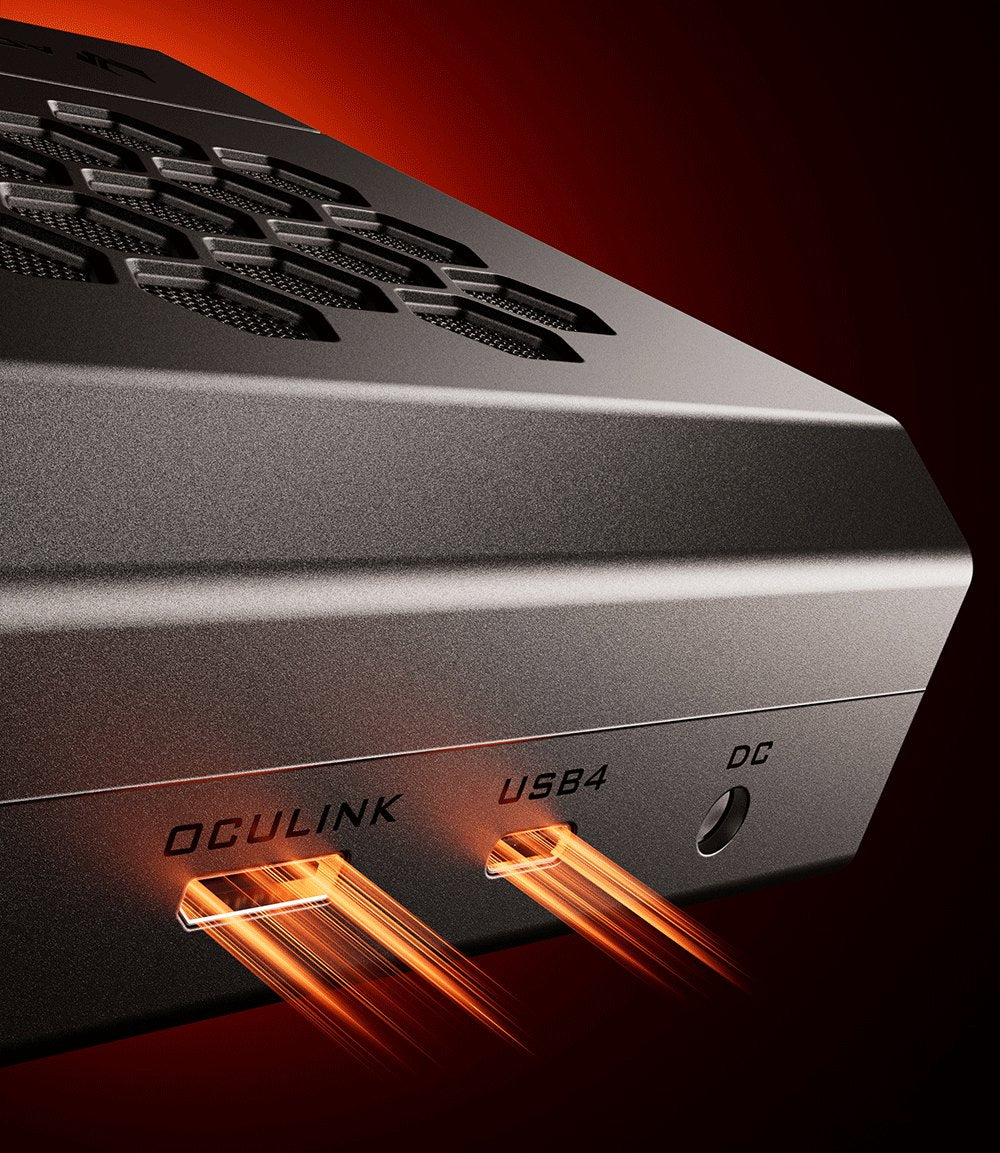

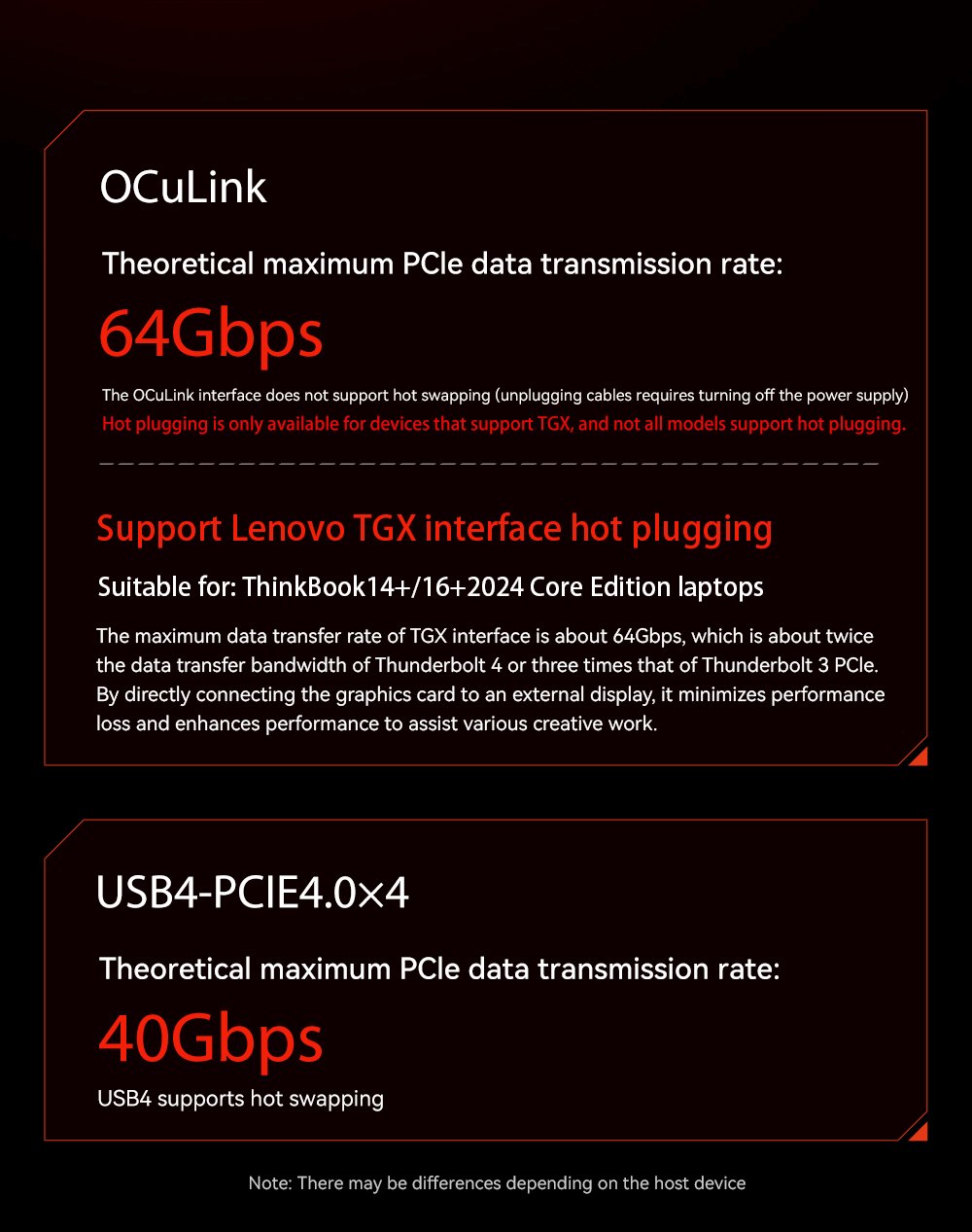

USB4+OCuLink Dual-mode Selection
OCuLink provides the ultimate performance of the graphics card and higher bandwidth speed. USB4 provides a more convenient way to use and can be hot-swapped at any time. No longer limited by the built-in graphics card performance of handheld or other host devices, players can enjoy high frame rate games, eliminate lags and delays, and make the game smoother.

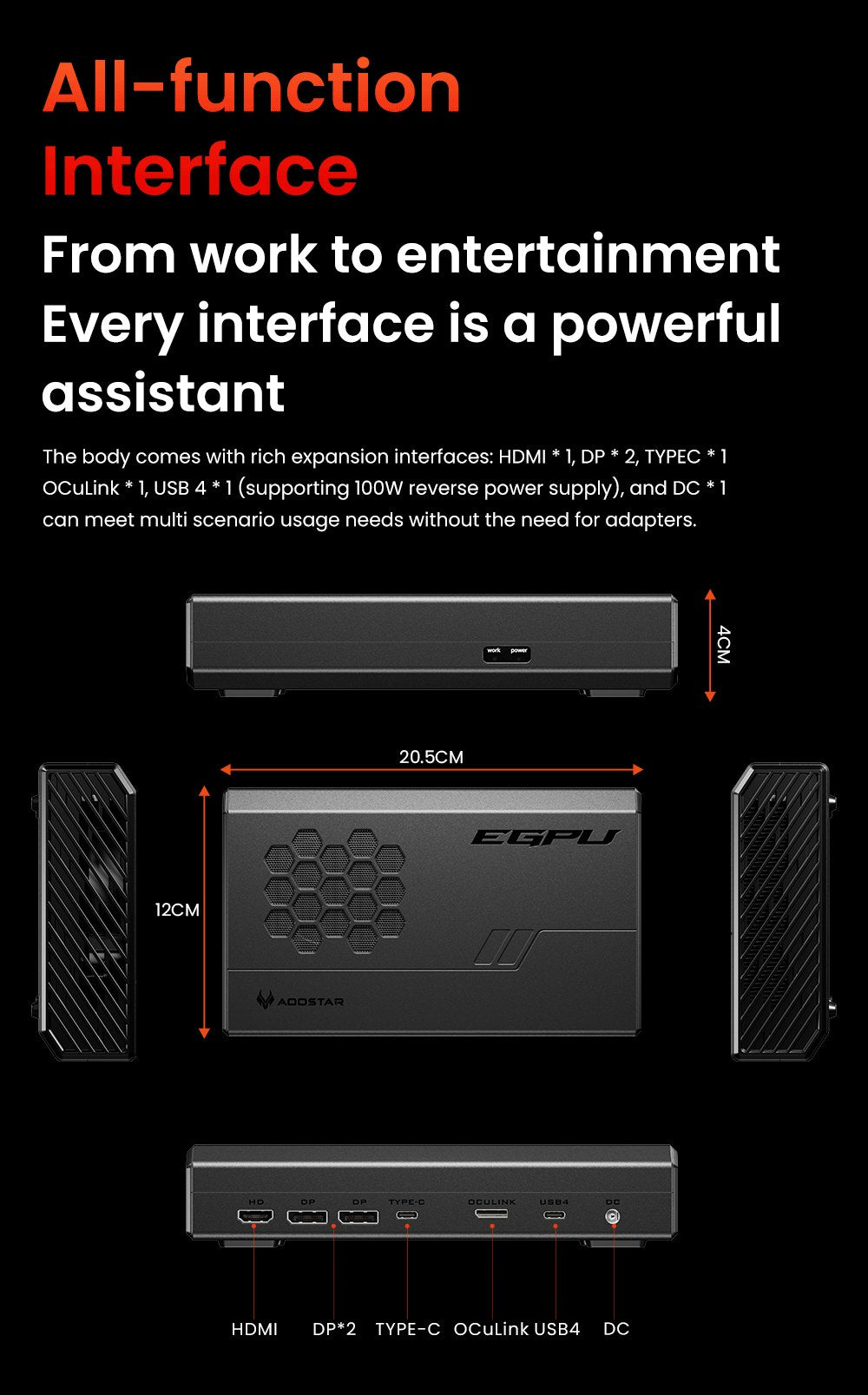

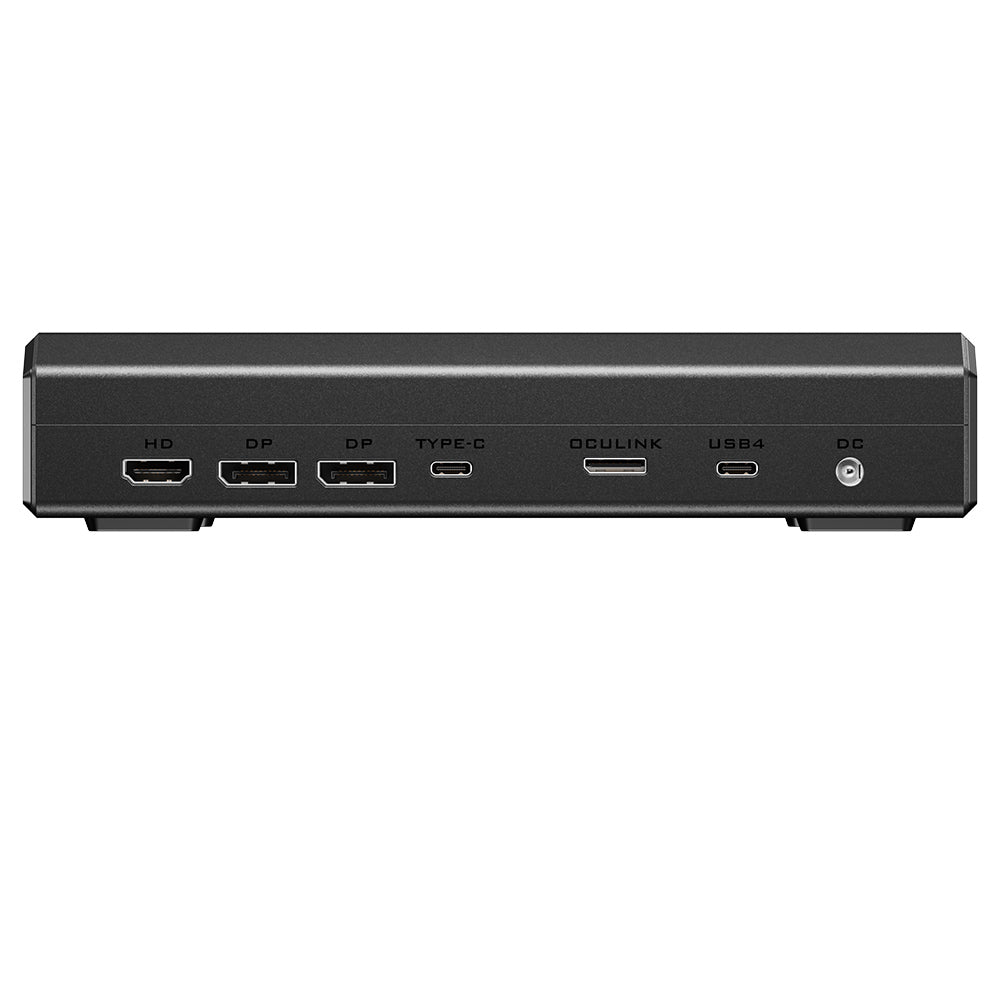

Rich Interfaces
Comes with rich expansion interfaces: HDMI*1, DP*2, Type-C*1, OCuLink*1, USB 4*1 (supports 100W reverse power supply), DC*1 can meet the needs of multiple scenarios without the need for adapters.

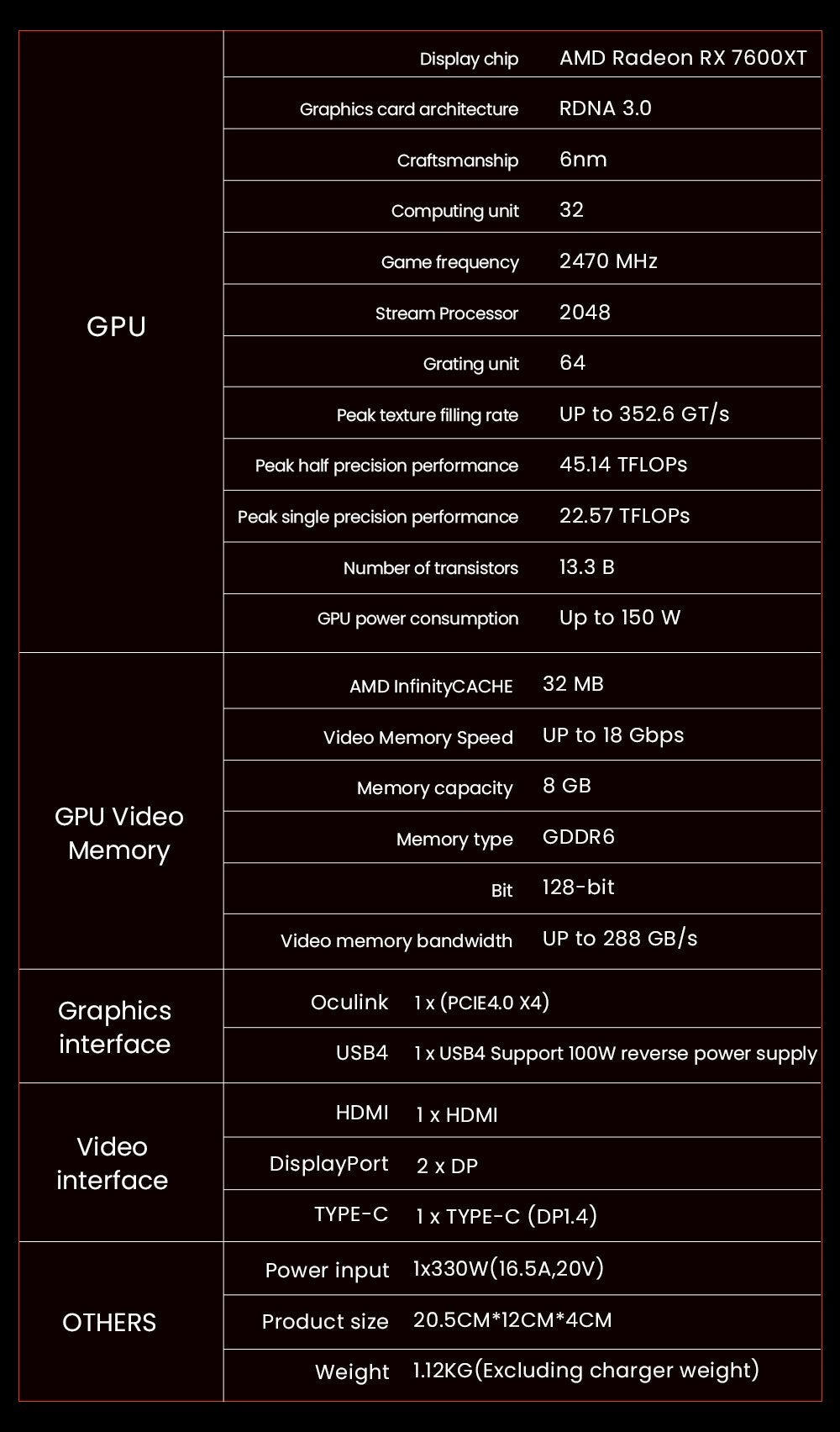

Specifications
Specifications
| General | |
|---|---|
| Brand | AOOSTAR |
| Type | eGPU Dock |
| Model | XG76XT |
| GPU | |
| Display Chip | AMD Radeon RX 7600XT |
| Graphics Card Architecture | RDNA 3.0 |
| Craftsmanship | 6nm |
| Computing Unit | 32 |
| Game Frequency | 2470MHz |
| Stream Processor | 2048 |
| Grating Unit | 64 |
| Peak Texture Filling Rate | Up to 352.6 GT/s |
| Peak Half Precision Performance | 45.14 TFLOPs |
| Peak Single Precision Performance | 22.57 TFLOPs |
| Number of Transistors | 13.3 B |
| GPU Power Consumption | Up to 150W |
| GPU Video Memory | |
| AMD Infinity Cache | 32MB |
| Video Memory Speed | Up to 18Gbps |
| Memory Capacity | 8GB |
| Memory Type | GDDR6 |
| Bit | 128-bit |
| Video Memory Bandwidth | Up to 288 GB/s |
| Graphics Interface | |
| Oculink | 1 x (PCIE4.0 x4) |
| USB4 | 1 x USB4 Support 100W reverse power supply |
| Video Interface | |
| HDMI | 1 x HDMI |
| DisplayPort | 2 x DP |
| Type-C | 1 x Type-C (DP1.4) |
| Power | |
| Power Input | 1 x 330W (16.5A,20V) |
| Weight & Size | |
| Product Weight | 1.12kg |
| Product Size(L x W x H) | 20.5 x 12 x 4cm |
| Package Size(L x W x H) | 21 x 15 x 10cm |
| Package Contents | |
| 1 x eGPU Dock with GPU | |
| 1 x Power Adapter | |
| 1 x USB4.0 Cable | |
| 1 x OCulink Cable | |
| 1 x User Manual | |
