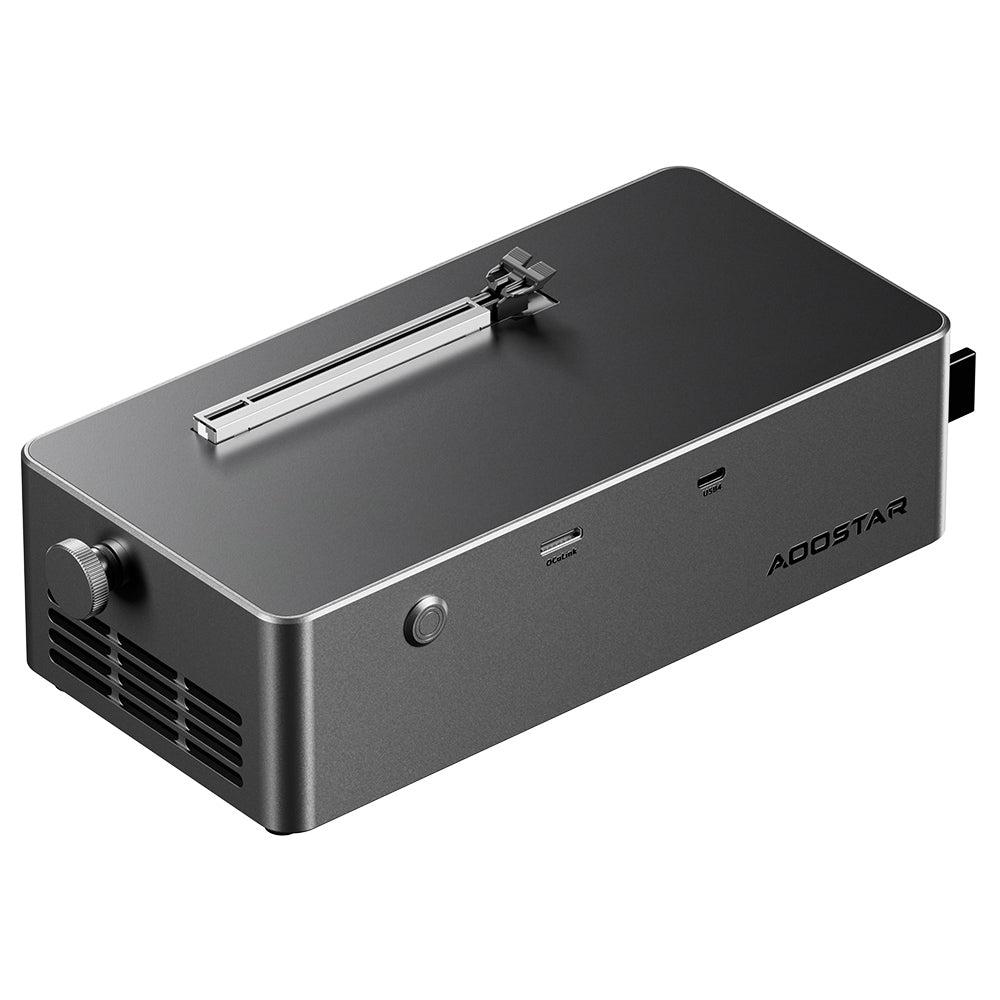

AOOSTAR AG02 eGPU Dock
AOOSTAR AG02 eGPU Dock
Where To Buy
Where To Buy
Description
Description
AOOSTAR AG02 highlights

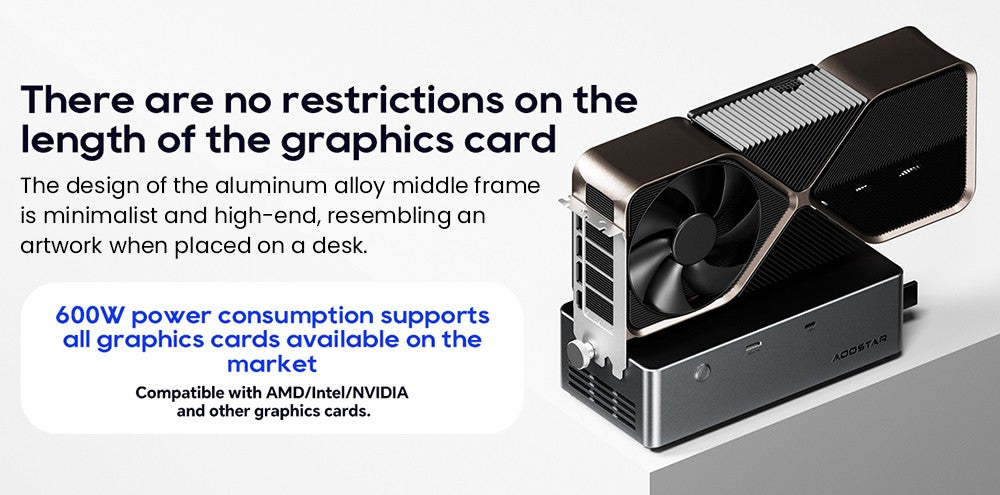

Wide Compatibility
AOOSTAR AG02 eGPU Dock adopts an open metal body design with a size of 22.5 x 11 x 6cm. The graphics card is not limited in length and is compatible with graphics cards such as AMD/Intel/NVIDIA.

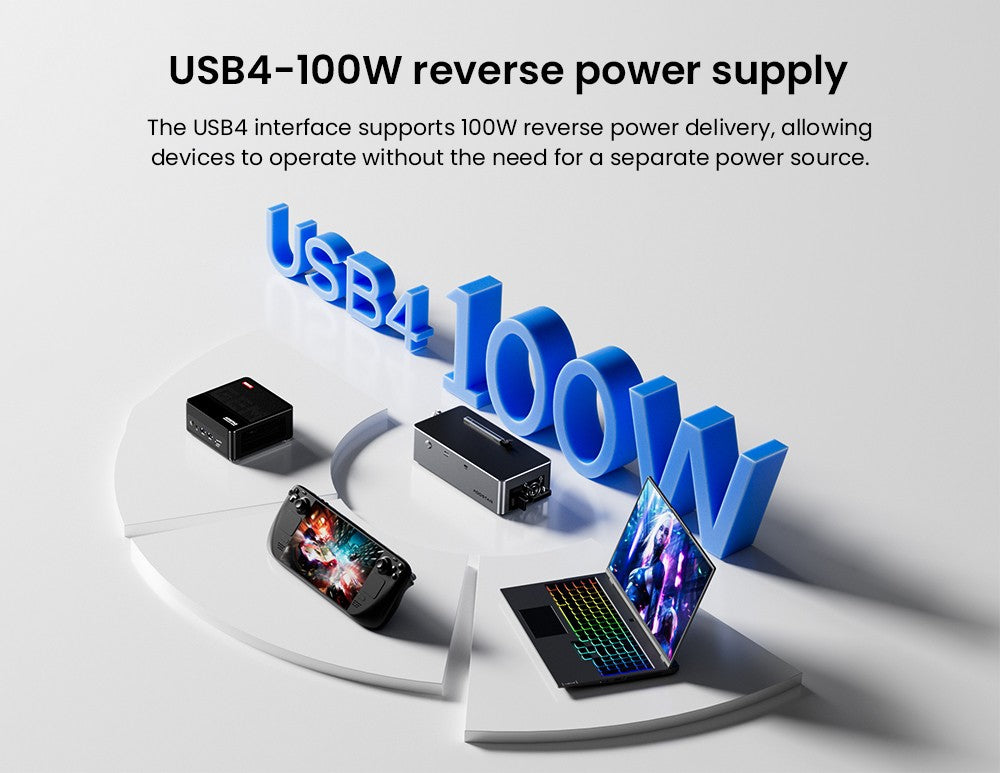

100W Reverse Charging
The USB4 interface supports data transfer and 100W reverse power delivery, allowing devices to operate without the need for a separate power source.

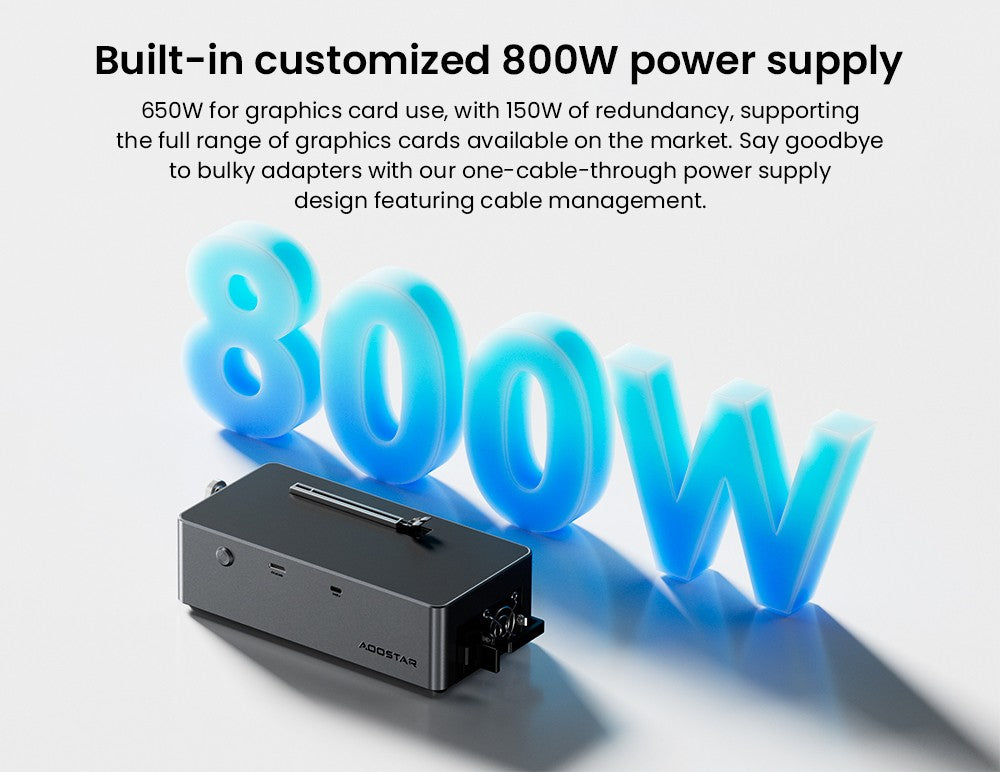

Built-in 800W Power Supply
AOOSTAR AG02 eGPU Dock has a built-in customized Huntkey 800W power supply, which can achieve one-line power supply and comes with a hub design.

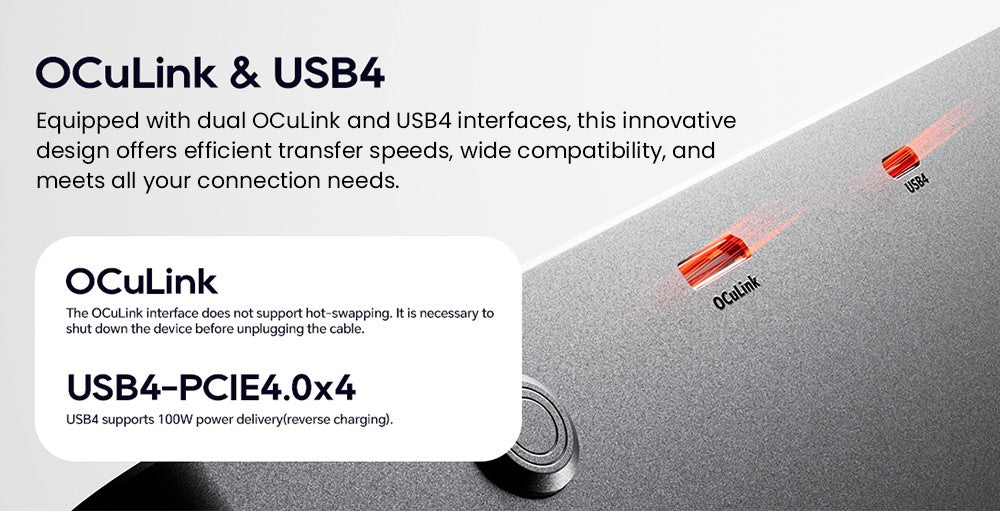

OCuLink Interface
The direct PCIEx4 channel provides 64Gbps effective bandwidth, providing users with more affordable expansion solutions and faster connection speeds than USB4 or Thunderbolt 4 interfaces.
Specifications
Specifications
| General | |
|---|---|
| Brand | AOOSTAR |
| Type | eGPU Dock |
| Model | AG02 |
| Specification | |
| Power | 800W |
| Interface Configuration | 1 x OCuLink interface, 1 x USB4 port, 2 x 8-pin graphics card power connectors |
| Device Support | Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards. |
| Power Input | AC 220V~ 50/60Hz |
| OS | Support Mac & Windows (Win 11 22h2 or higher recommended) |
| Weight & Size | |
| Product Weight | 1.5kg |

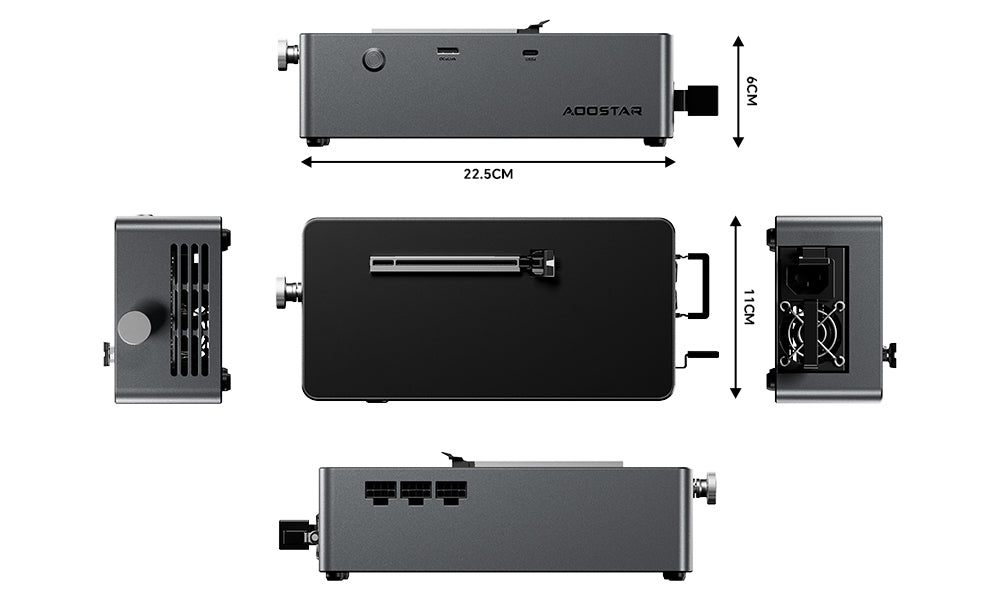

| Product Size(L x W x H) | 22.5 x 11 x 6cm |
| Package Size(L x W x H) | 30 x 23 x 11cm |
| Package Contents | |
| 1 x eGPU Dock | |
| 1 x Oculink Cable | |
| 1 x Power Supply | |
| 2 x Switch Cable | |
| 1 x USB4 Cable | |
| 1 x User Manual | |
*Price, description, package content and images are informative only, please check for details on website of concrete seller!
