AOOSTAR AG01 eGPU Dock

AOOSTAR AG01 highlights

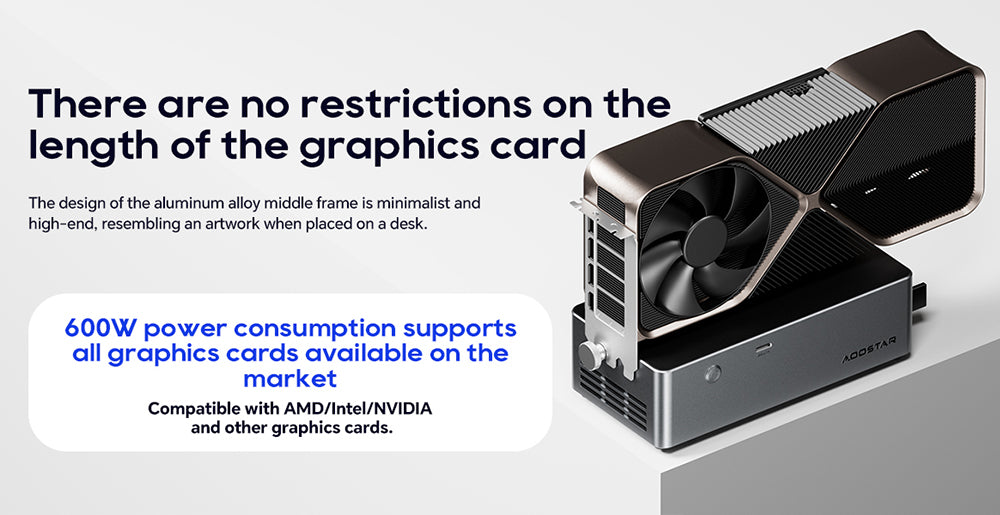

Wide Compatibility

AOOSTAR AG01 eGPU Dock adopts an open metal body design with a size of 22.5 x 11 x 6cm. The graphics card is not limited in length and is compatible with graphics cards such as AMD/Intel/NVIDIA.

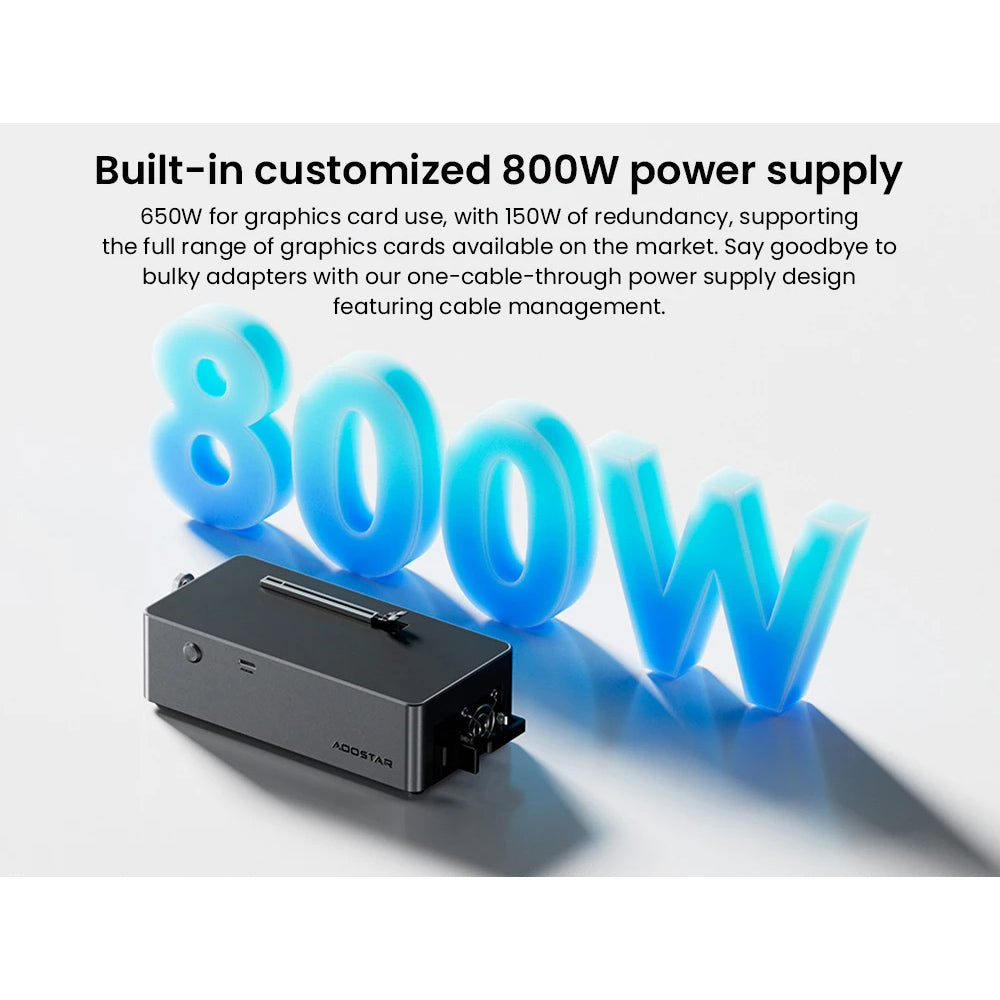

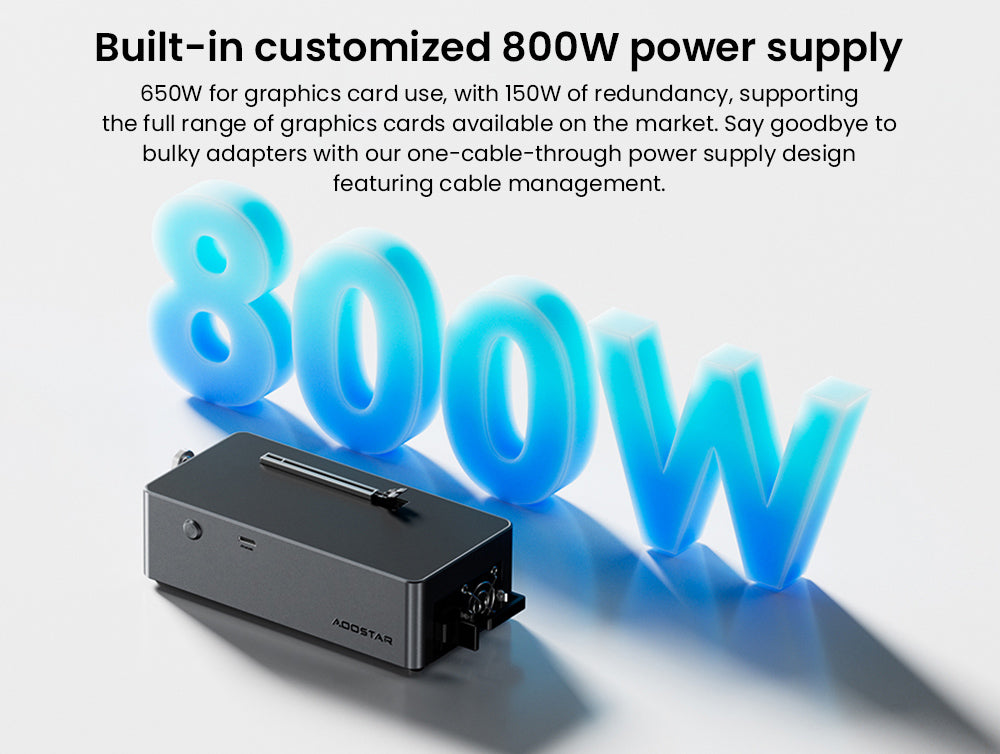

Built-in 800W Power Supply

AOOSTAR AG01 eGPU Dock has a built-in customized Huntkey 800W power supply, which can achieve one-line power supply and comes with a hub design.

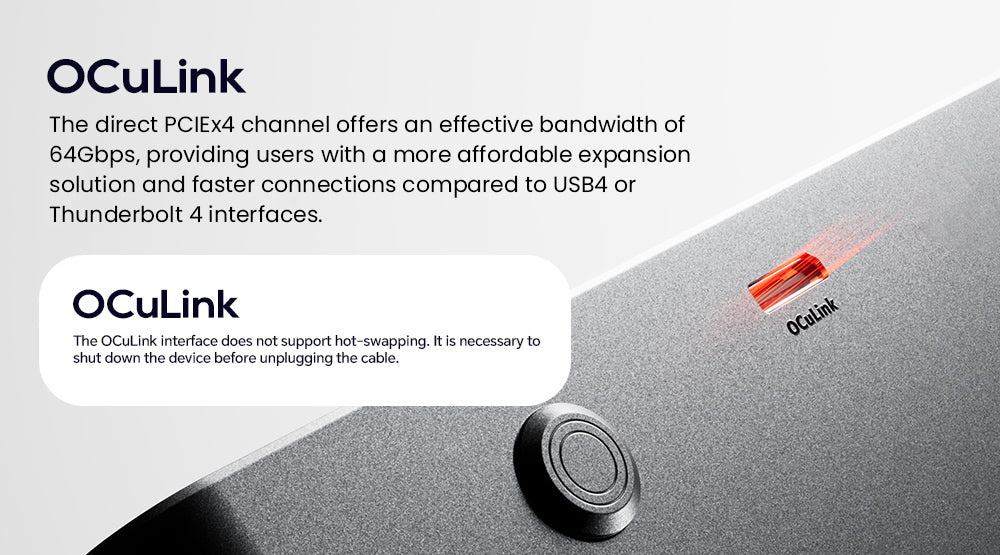

OCuLink Interface

The direct PCIEx4 channel provides 64Gbps effective bandwidth, providing users with more affordable expansion solutions and faster connection speeds than USB4 or Thunderbolt 4 interfaces.

General
Brand	AOOSTAR
Type	eGPU Dock
Model	AG01
Specification
Power	800W
Interface Configuration	1 x OCuLink interface, 2 x 8-pin graphics card power connectors
Device Support	Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power Input	AC 220V~ 50/60Hz
OS	Support Mac & Windows (Win 11 22h2 or higher recommended)
Weight & Size
Product Weight	1.5kg

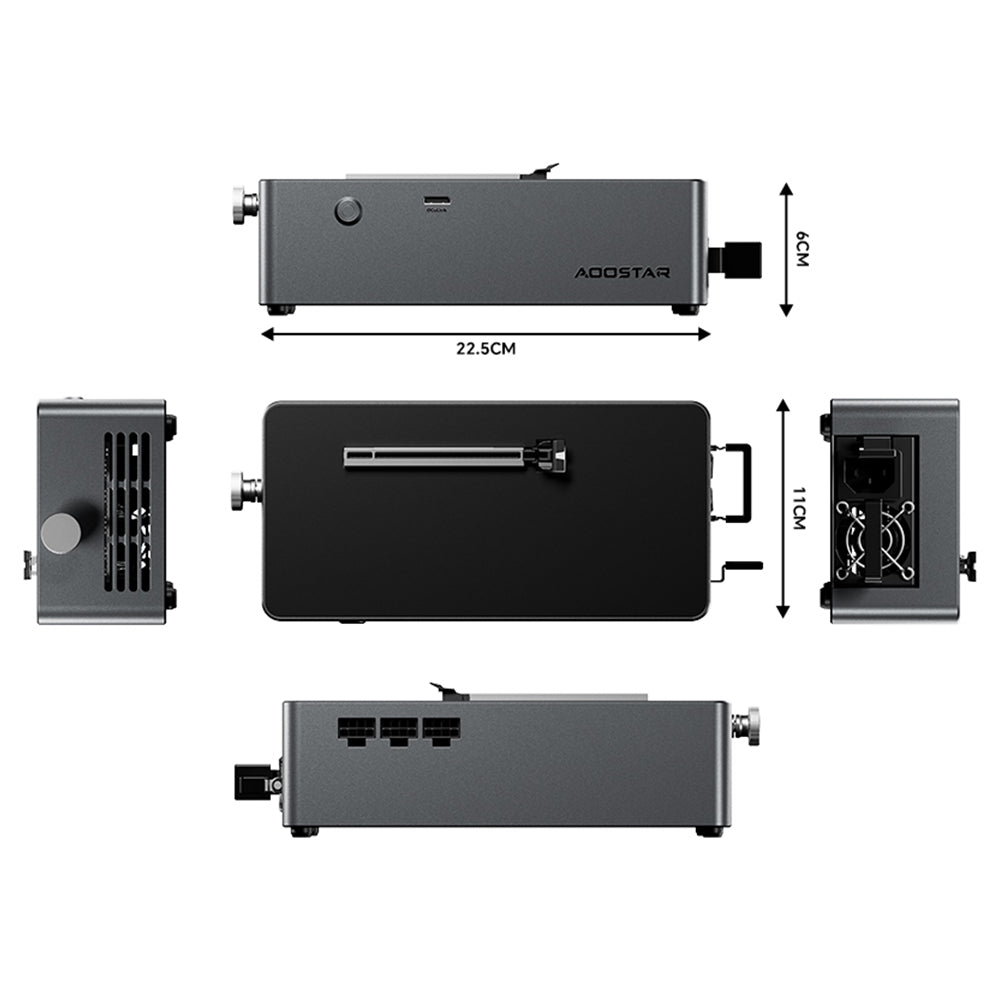

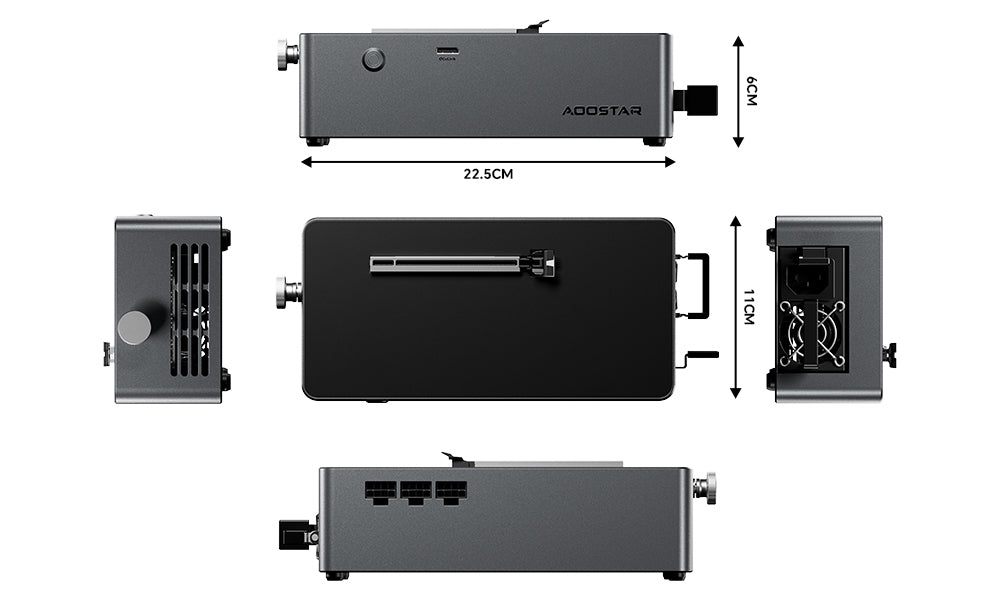

Product Size(L x W x H)	22.5 x 11 x 6cm
Package Size(L x W x H)	30 x 23 x 11
Package Contents
1 x eGPU Dock
1 x Oculink Cable
1 x Power Supply
2 x Switch Cable
1 x User Manual
