ANNOYTOOLS 3018 Pro Max CNC Router Machine

ANNOYTOOLS 3018 Pro Max highlights

High Speed CNC Router Machine

Annoytools 3018 Pro Max CNC router machine has a 500W spindle. Its high-power output enables it to deliver consistent performance, even when cutting through dense materials like aluminum and copper. The maximum movement speed can reach 5000mm/min, and the spindle speed range is 0-12000 rpm/min.

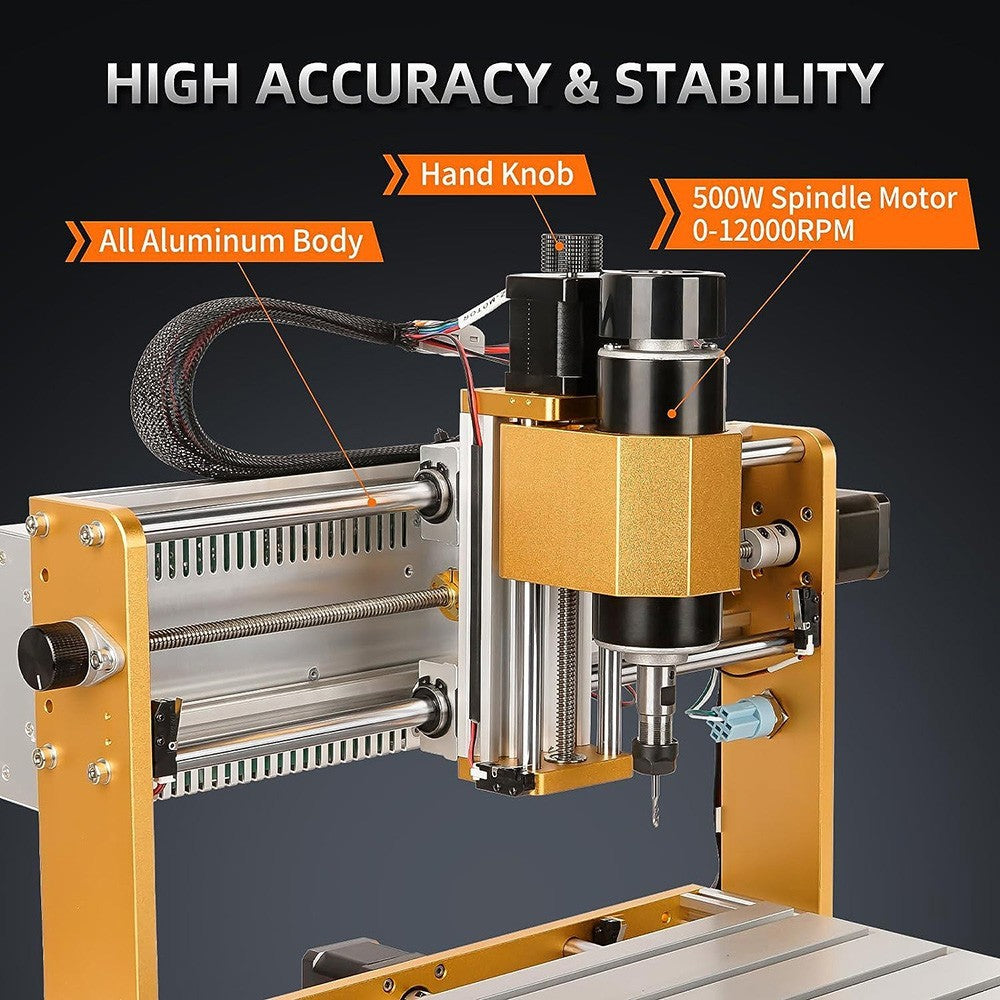

All Metal Structure

By using reinforced aluminum profiles, the machine frame can withstand heavy loads and resist wear and tear over time. Furthermore, no plastic parts (except for electrical components), ensure that the frame maintains its structural integrity even in harsh operating conditions.

Extra Long Z-Axis Travel

The new design makes this machine have the longest Z-axis stroke among (80mm) the standard models on the market. Additionally, our machine frame incorporates a 12mm optical axis, which provides precise linear motion and accurate positioning. This feature is crucial for maintaining the performance and efficiency of various machinery and automated systems. (Upgrade kit is sold separately).

Unparalleled Security

3018 Pro Max CNC router machine boasts a robust safety system with 6 limit switches and an emergency stop button, ensuring optimal user safety while effectively preventing any potential abnormal machine conditions. Moreover, the XYZ axis is thoughtfully outfitted with manual handwheels, enabling seamless and accurate positioning of the machine origin, thereby enhancing overall operational efficiency and facilitating a highly convenient working process.

2-in-1 CNC Machine

The ability to switch between spindle and laser modes allows users to perform a wide range of tasks with a single machine, from cutting and engraving to marking and etching. Having versatile equipment that can adapt to different tasks and materials is essential for maximizing productivity and efficiency.

General
Brand	Annoytools
Type	CNC Router Machine
Model	3018 Pro Max
Color	Golden
Specification

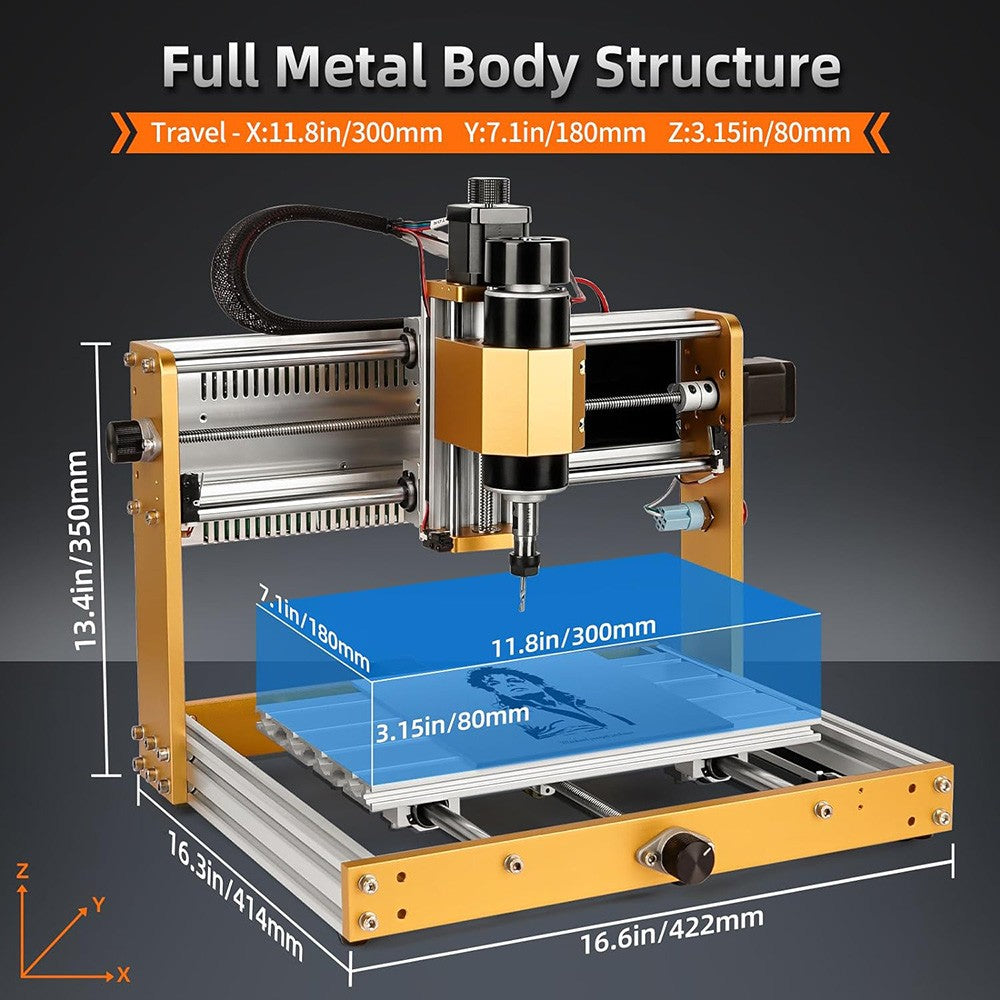

Work Area	300x180x80mm
Drive Type	Chrome Plated Shaft & T-Shaped Screw Rod
Control Board	3 Axis V5.2 GRBL 1.1f
Stepper Motor	nema17 42x48mm
Stepper Motor Drive	A4988
Spindle	52mm, 500W, 12000RPM
Power	48V 500W
Max Motion Speed	5000mm/min
Max Process Speed	2000mm/min
Max Accelerated Speed	200mm/s2
Accuracy	±0.1mm
Limit Switch	Yes (X1, X2, Y1, Y2, Z1, Z2)
E-Stop	Yes
Z-Probe	Yes
Software	Candle
Laser	Support laser module with 40mm width 12V
Operating System	Windows XP/7/8/10, Linux, Mac OS
Weight & Size
Product Weight	12kg
Package Weight	13kg
Product Size(L x W x H)	485x415x374mm
Package Size(L x W x H)	450x520x300mm

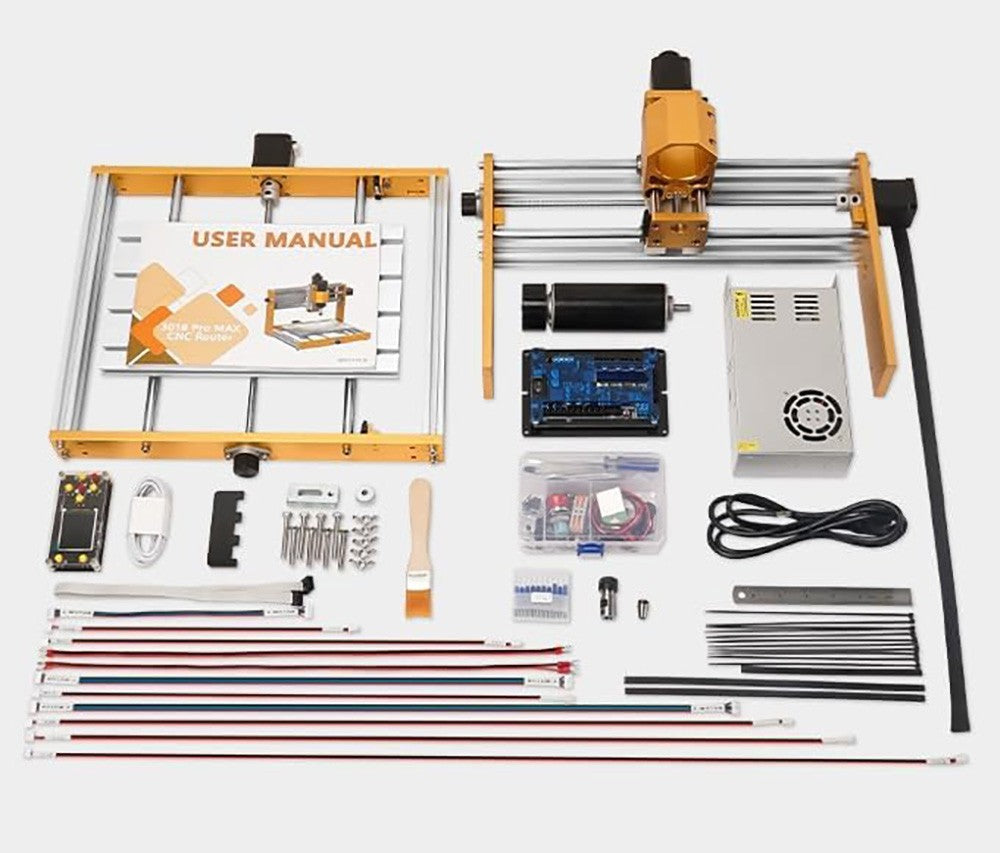

Package Contents
1 x 3018 Pro Max CNC Router Kit
1 x 500W Spindle
1 x Z-Probe
1 x ER11-1/8" Collet

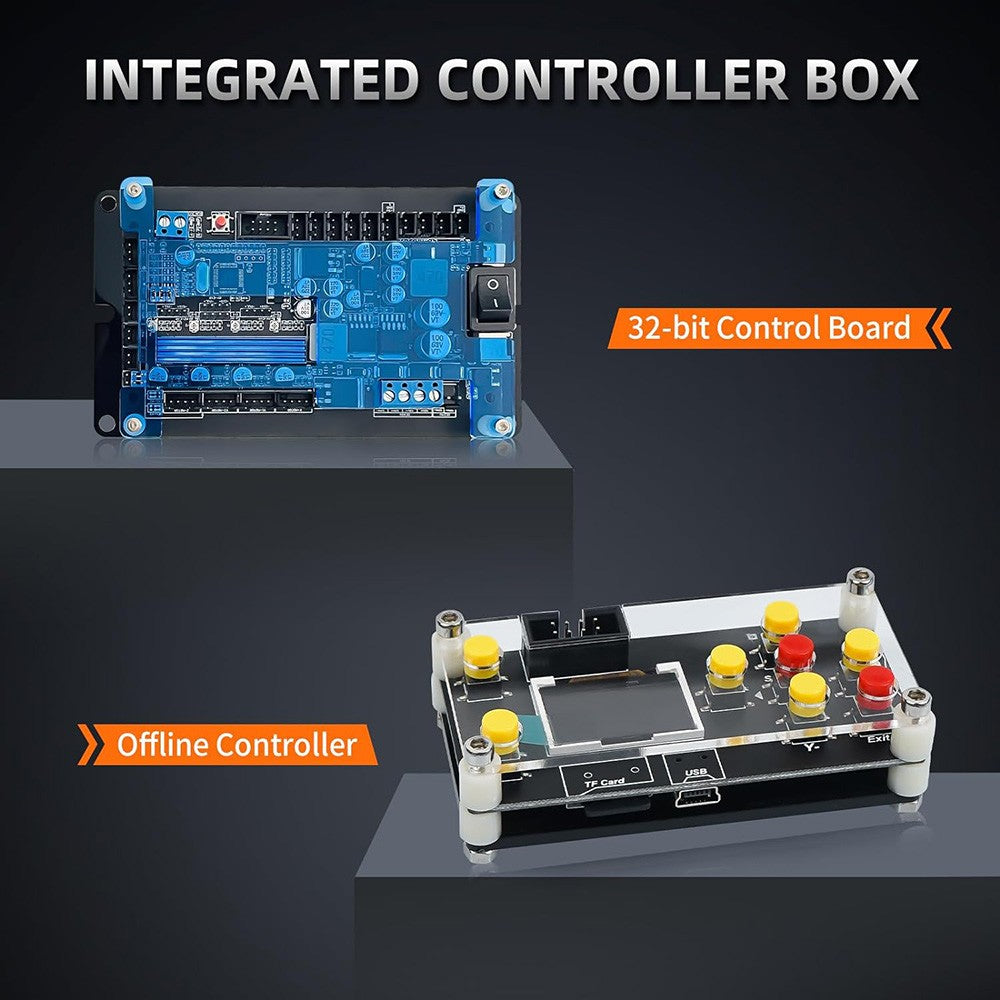

1 x Control board and Offline Controller
1 x Switching Power Supply
1 x USB Cable & U Disk
1 x US Standard Power Cord
1 x Wrenches and Screw
1 x Screw Positioning Module
4 x Mini Hold Down Clamp Kit
1 x User Manual
