ALGOLASER 5W Laser Engraver
ALGOLASER 5W Laser Engraver
Where To Buy
Where To Buy
Description
Description
ALGOLASER 5W highlights

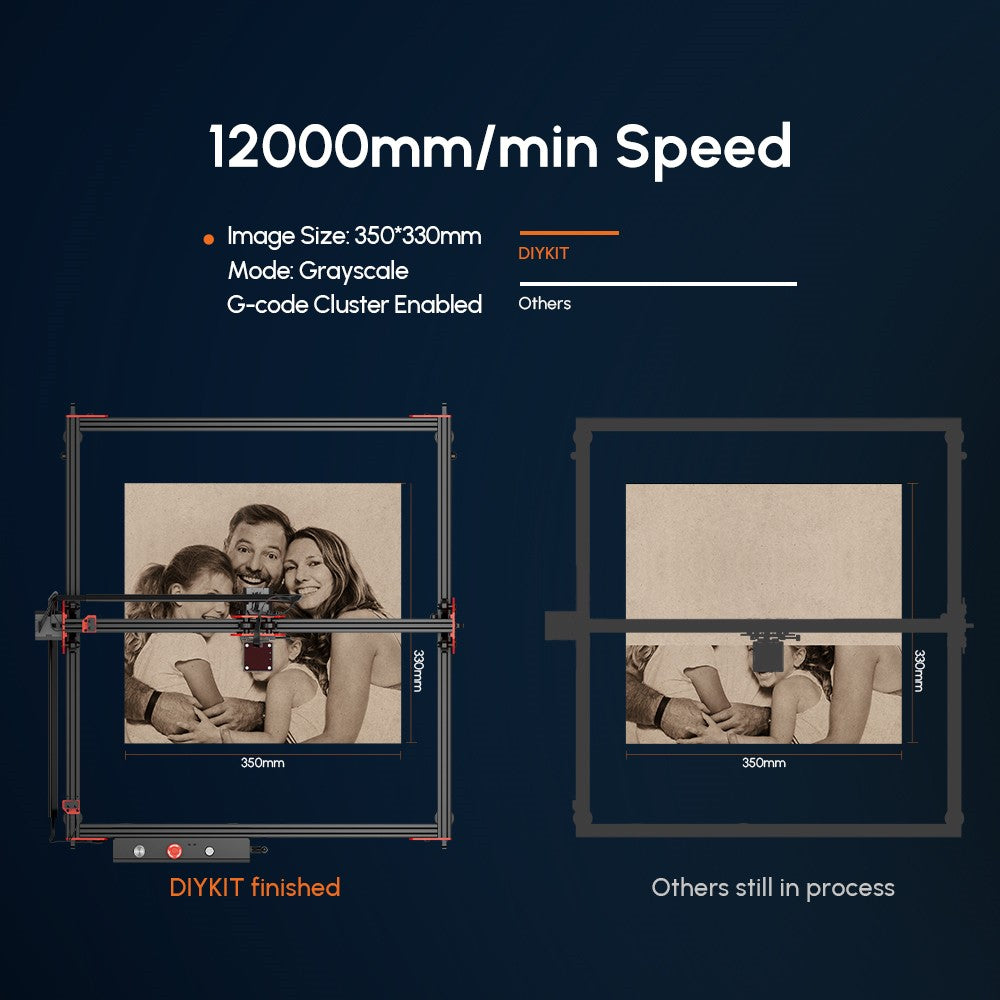

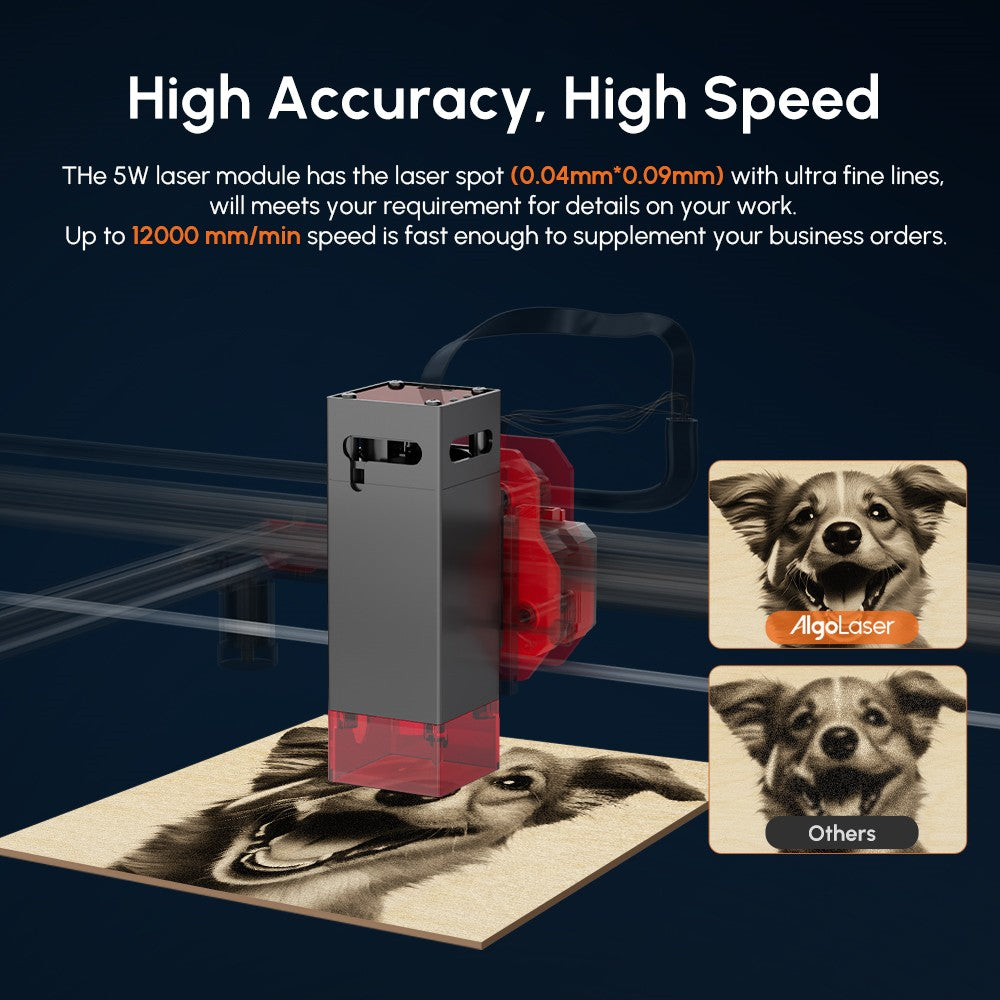

High Accuracy, High Speed
The 5W laser module has a laser spot (0.04mm*0.09mm) with ultra-fine lines, which will meet your requirement for details on your work. Up to 12000mm/min speed is fast enough to supplement your business orders.

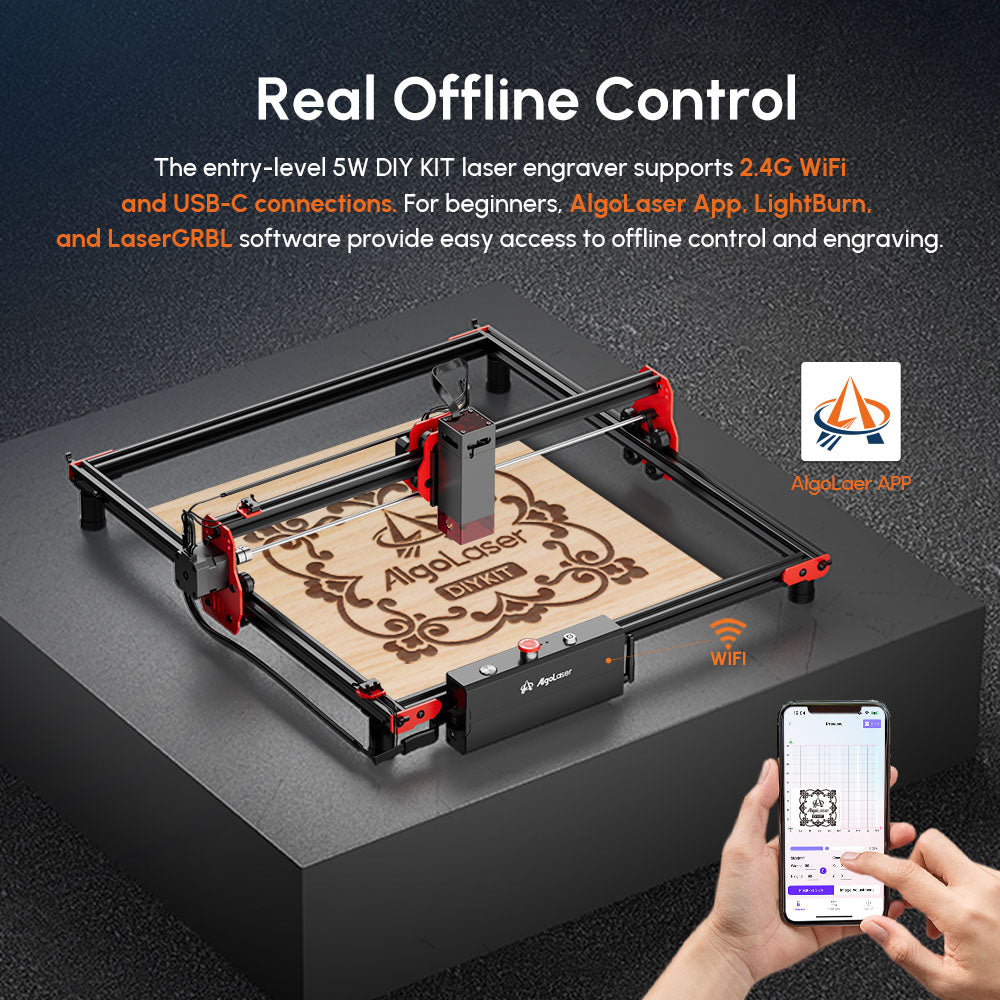

Real Offline Control
The entry-level 5W DIY KIT laser engraver supports 2.4G WiFi and USB-C connections. For beginners, AlgoLaser App, LightBurn, and LaserGRBL software provide easy access to offline control and engraving.
Dual-core CPU
With 8 MB of RAM, 8 MB of storage, and built-in 32 GB high-speed storage, the speed of uploading and reading files gets faster.
Strong Compatibility
Safe and reliable high-power motherboard compatible with 5W laser module, which is convenient for upgrading laser engraver machine by replacing the module.

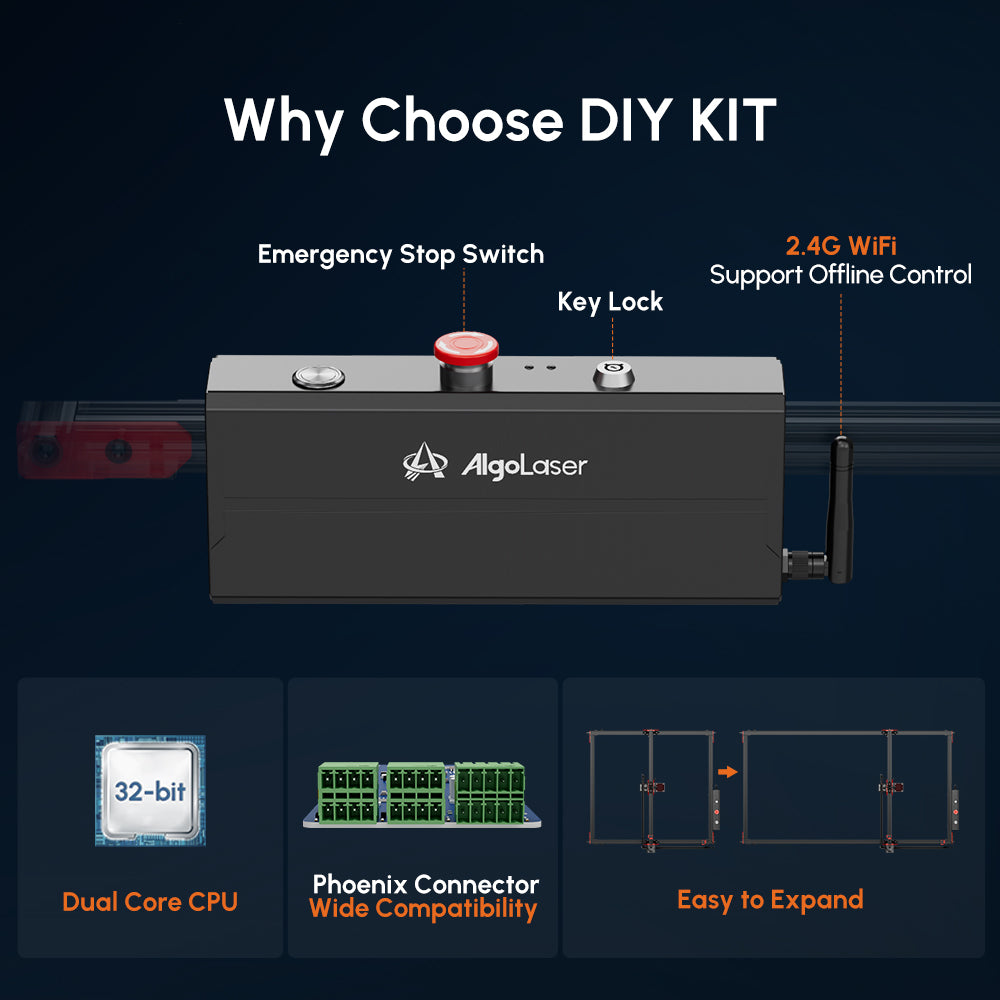

Multi-functional Motherboard
Thanks to the motherboard's screen structure, the machine can be controlled with an external smart screen. Besides, the Smart I/O interface can be linked to the external Smart HUB, promoting a smart air pump, smart protection box, and smart filter expansion to ensure joint control automation, is simple and user-friendly.

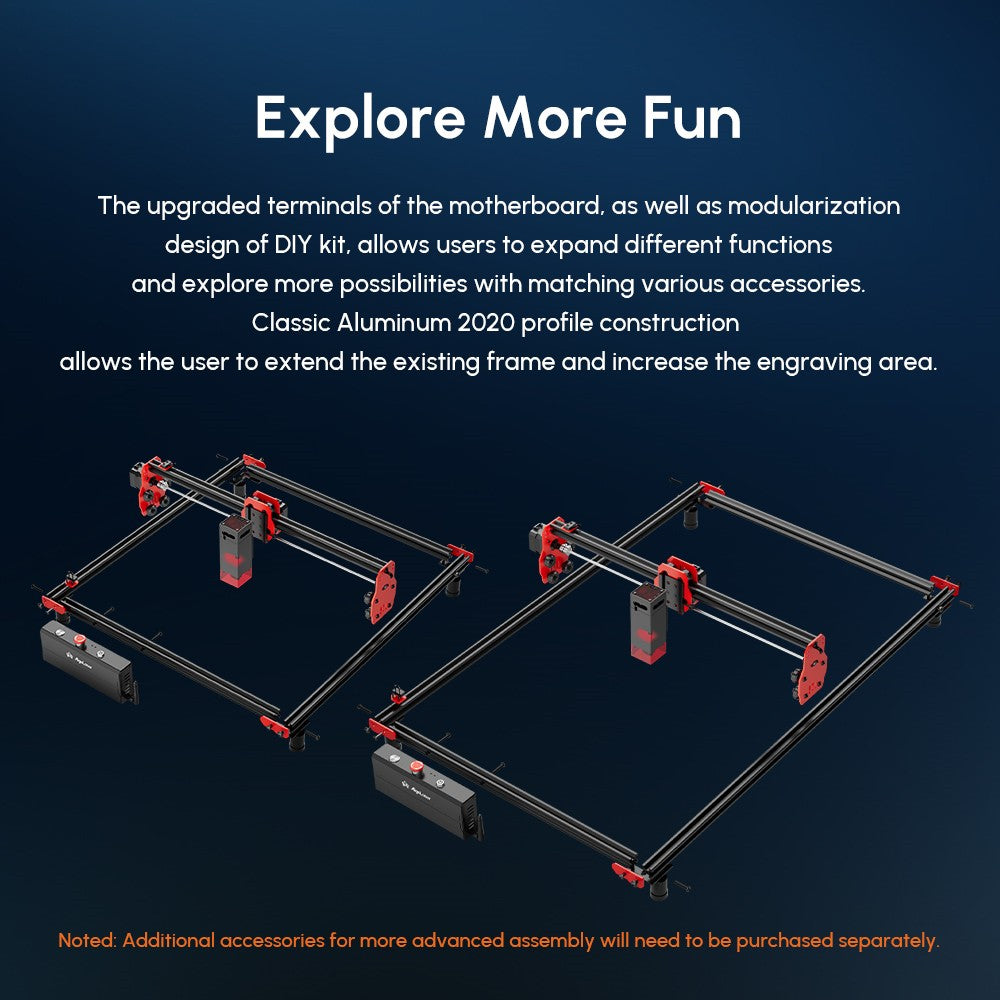

Explore More Fun
The upgraded terminals of the motherboard, as well as modularization design of DIY kit, allows users to expand different functions and explore more possibilities with matching various accessories. Classic Aluminum 2020 profile construction allows the user to extend the existing frame and increase the engraving area.

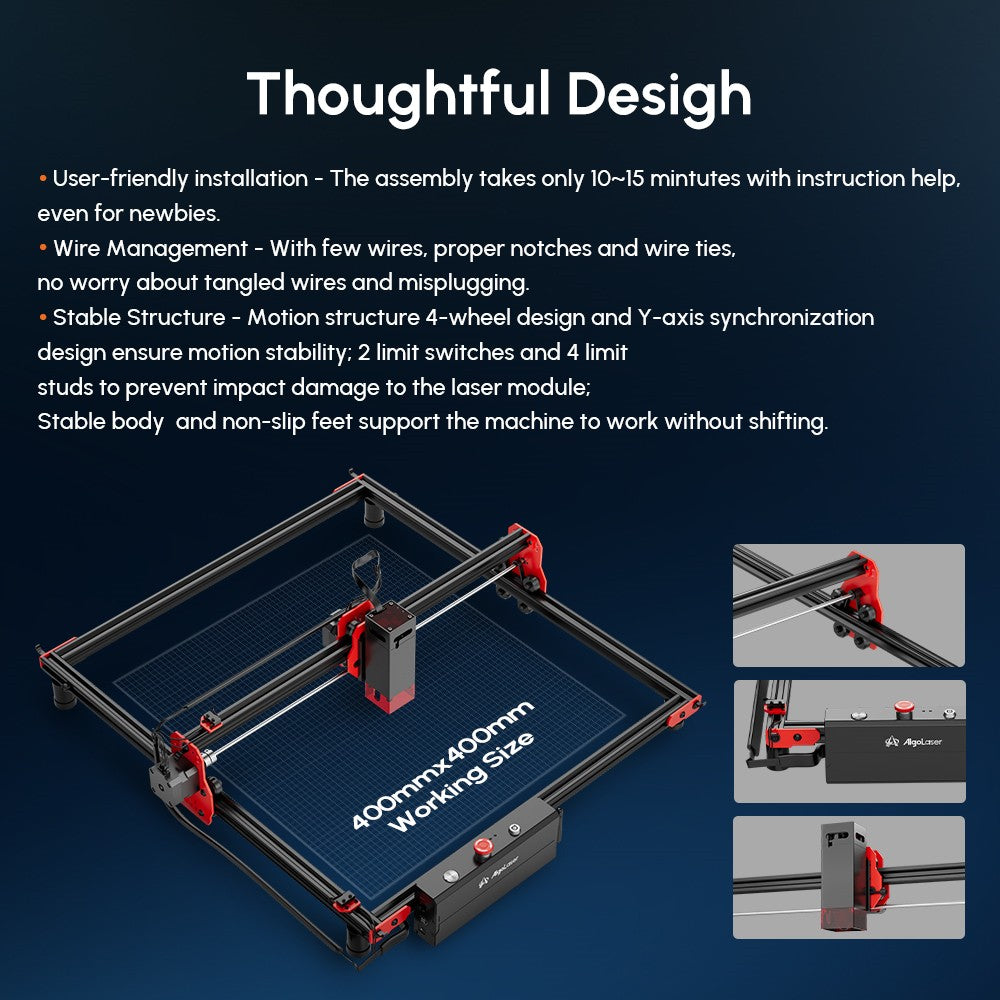

Thoughtful Design
· User-friendly installation - The assembly takes only 10~15 minutes with instruction help, even for newbies.
· Wire Management - With few wires, proper notches and wire ties, no worry about tangled wires and misplugging.
· Stable Structure - Motion structure 4-wheel design and Y-axis synchronization design ensure motion stability; 2 limit switches and 4 limit studs to prevent impact damage to the laser module; Stable body and non-slip feet support the machine to work without shifting.
Specifications
Specifications
| General | |
|---|---|
| Brand | AlgoLaser |
| Type | Laser Engraver |
| Model | 5W |
| Color | Black |
| Specification | |
| Laser Power | 5W |
| Working Space | 400mm*400mm |
| Max. Working Speed | 12000mm/min |
| Laser Source | Diode Laser |
| Laser Spot | 0.04mm*0.09mm |
| Laser Head Life | >10000 Hours |
| Laser Wavelength | 455±5nm |
| Support File | jpg, svg, png, bmp, G code, dwg |
| Support Systems | Android / iOS / iPad / Windows / macOS |
| Software | AlgoLaser APP / Lightburn / LaserGRBL |
| Input Voltage | 100-240~50/60Hz |
| Output Voltage | 24V 2.5A (6A Max) |
| Weight & Size | |
| Product Weight | 4.5kg |
| Package Weight | 4.6065kg |
| Package Size(L x W x H) | 64.5cm*23cm*14cm |

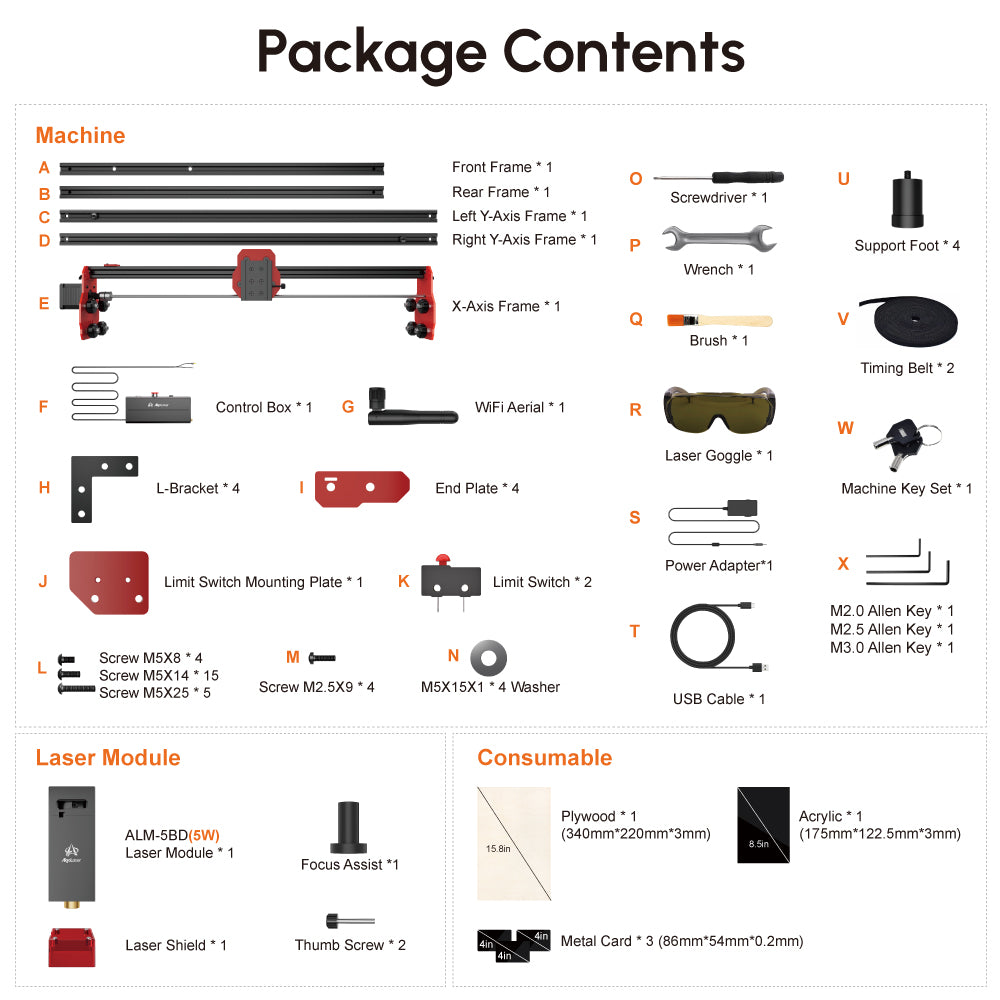

| Package Contents | |
| 1 x Front Frame | |
| 1 x Rear Frame | |
| 1 x Left Y-Axis Frame | |
| 1 x Right Y-Axis Frame | |
| 1 x X-Axis Frame | |
| 1 x Screwdriver | |
| 1 x Wrench | |
| 1 x Brush | |
| 4 x Support Foot | |
| 2 x Timing Belt | |
| 1 x Control Box | |
| 1 x WiFi Aerial | |
| 1 x Laser Goggle | |
| 4 x L-Bracket | |
| 4 x End Plate | |
| 1 x Limit Switch Mounting Plate | |
| 2 x Limit Switch | |
| 4 x Screw M5X8 | |
| 15 x Screw M5X14 | |
| 5 x Screw M5X25 | |
| 4 x Screw M2.5X9 | |
| 4 x M5X15X1 Washer | |
| 1 x Power Adapter | |
| 1 x USB Cable | |
| 1 x Machine Key Set | |
| 1 x M2.0 Allen Key | |
| 1 x M2.5 Allen Key | |
| 1 x M3.0 Allen Key | |
| 1 x ALM-5BD(5W) Laser Module | |
| 1 x Laser Shield | |
| 1 x Focus Assist | |
| 2 x Thumb Screw | |
| 1 x Plywood (340mm*220mm*3mm) | |
| 3 x Metal Card (86mm*54mm*0.2mm) | |
| 1 x Acrylic (175mm*122.5mm*3mm) | |
| 1 x User Manual | |
