3DMAKERPRO Seal Lite 3D Scanner

3DMAKERPRO Seal Lite highlights

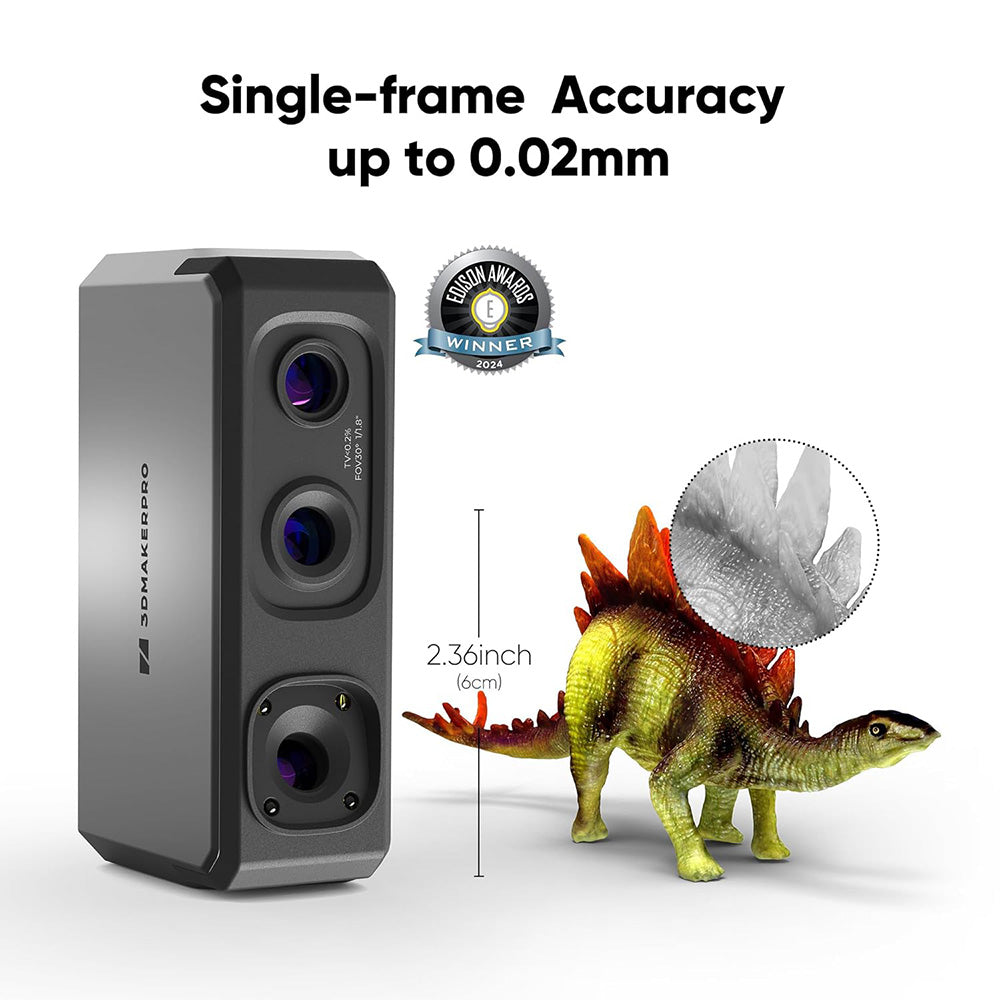

Capture Accuracy Precise Details

The 3DMakerpro Seal Lite 3D scanner utilizes refined structured light technology to achieve an accuracy of 0.02mm. With a shorter wavelength (400 to 500 nanometers), it delivers impressive detail, boasting a minimum point spacing of 0.07mm. The Precision Blue imaging system ensures highly detailed 3D models with ease.

Smooth Scanning

The advanced optical system and JMStudio algorithms in the handheld 3D scanner improve the scanning process. Equipped with anti-shake lenses and an optical stabilization function, it filters out unwanted jitter, ensuring smooth and continuous scanning.

Lightweight and Quiet

Designed for convenience, the Seal Lite 3D scanner is lightweight, weighing only 226g, making it portable for on-the-go use. With excellent heat dissipation and no fan noise, it provides a quiet scanning process. Constructed from plastic (Seal is made of aluminum alloy), it combines durability with portability.

9-Level Light Adjustment

The Seal Lite 3D model scanner supports scanning in low light conditions with 9 levels of light adjustment, enabling versatile scanning of different colors, materials, and lighting environments. With a scanning rate of 100,000 points per second, it captures details of body parts, models, art, and more.

Wide Compatibility

The official software JMStudio supports file export in OBJ/STL/PLY/ASC formats. Compatible with Windows 10/11 64bit and MacOS 12/13 operating systems.

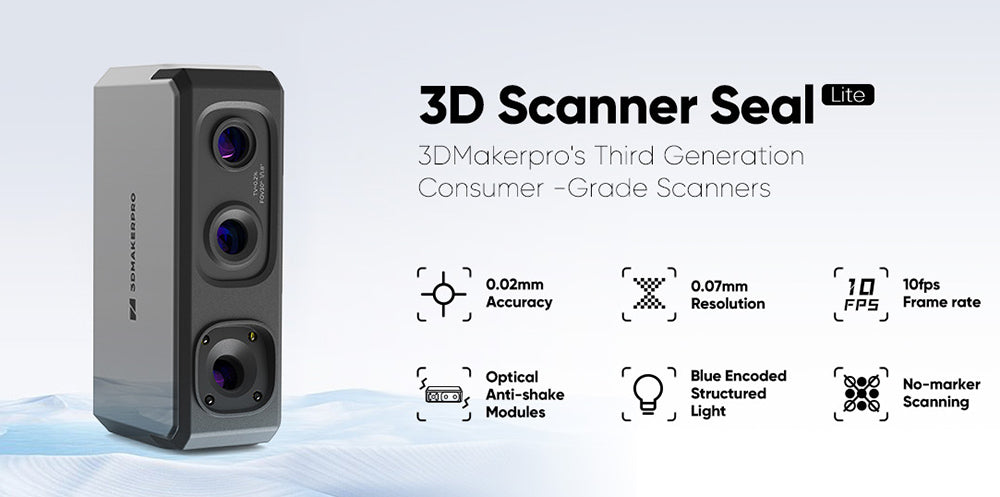

3D Scanner Seal Lite

3DMakerpro's Third Generation Consumer-Grade Scanners

• 0.02mm Accuracy
• 0.07mm Resolution
• 10fps Frame Rate
• Optical Anti-shake Modules
• Blue Encoded Structured Light
• No-marker Scanning

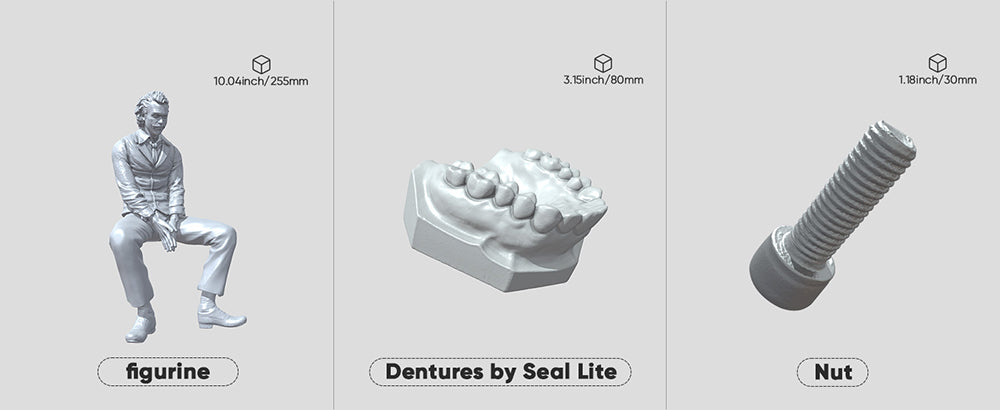

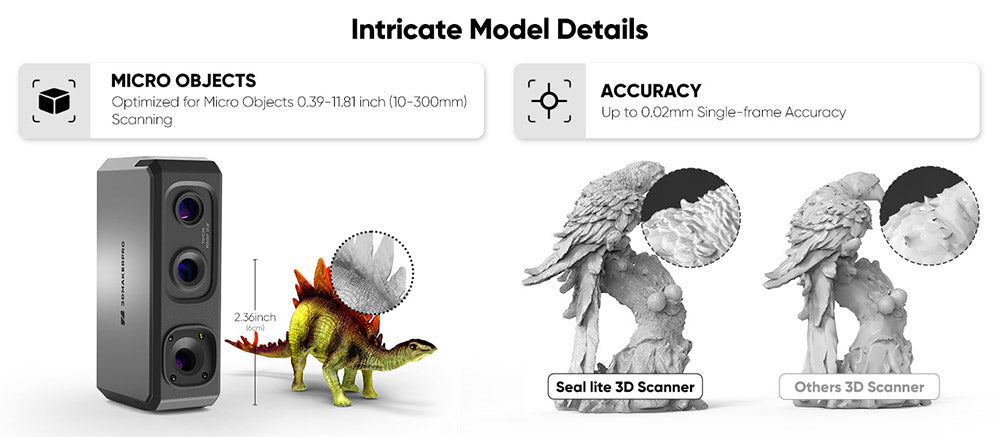

Intricate Model Details

MICRO OBJECTS

Optimized for Micro Objects 0.39-11.81 inch (10-300mm) Scanning

ACCURACY

Up to 0.02mm Single-frame Accuracy

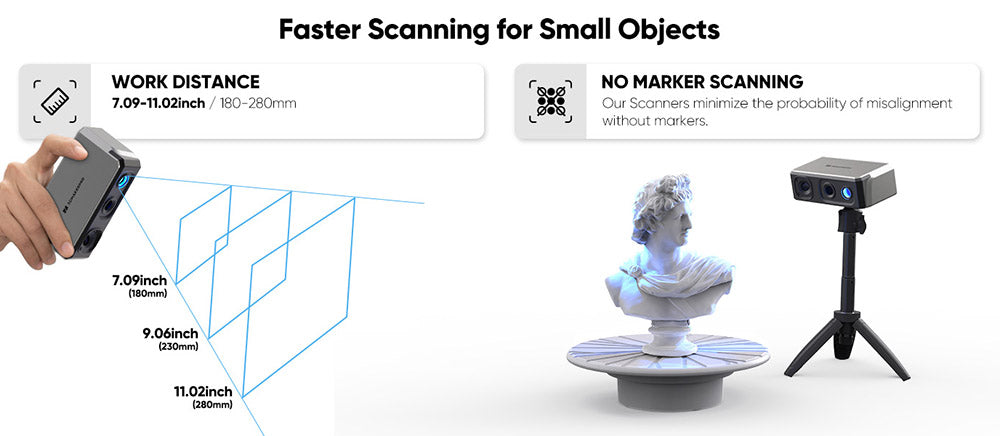

Faster Scanning for Small Objects

WORK DISTANCE

7.09-11.02inch/180-280mm

NO MARKER SCANNING

Our Scanners minimize the probability of misalignment without markers.

Runs on Nearly Everything

• All-in-one Scanning & Editing
• Fast Model Sharing
• Easy-to-use Ul
• Compatible with Leading 3D Software
• Exports OBJ/STL/PLY/ASC

Requiring Special Treatment Before Scanning

• Transparant Objects (glass products, plasticbottles, etc.)
• Deformable Objects (clothes, animals, etc.)
• Reflective, Shinny Objects (metal products, electroplated parts, etc.)

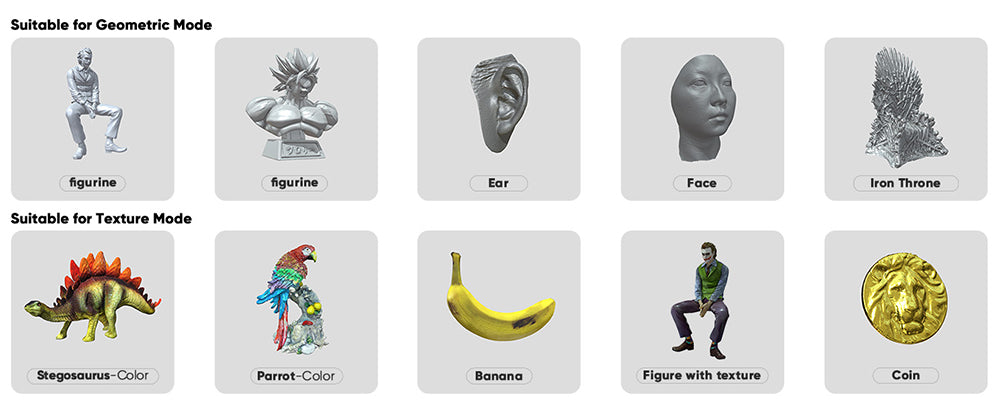

Suitable for Geometric Mode

• Figurine
• Figurine
• Ear
• Face
• Iron Throne

Suitable for Texture Mode

• Stegosaurus-Color
• Parrot-Color
• Banana
• Figure with texture
• Coin

General
Brand	3DMakerpro
Type	3D Scanner
Model	Seal Lite
Color	Black
Specification
Scan Performance Parameters:
Accuracy: 0.02mm
Resolution: 0.07mm
Frame rate: 10fps
Tracking mode: Visual tracking
Work distance: 180-280mm
Single capture range: 100x75mm
Typical object sizes: 10-300mm
Software System Requirements:
Output format: OBJ/STL/PLY/ASC
Compatible system: Windows10/11 64bit, MacOS12/13
Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM
Hardware Parameters:
Light source: Blue light
Color texture: Mono textures
USB interface: USB2.0
Weight & Size
Product Weight	0.25kg
Package Weight	0.8kg
Product Size(L x W x H)	110×60×35mm
Package Size(L x W x H)	22x15x7cm

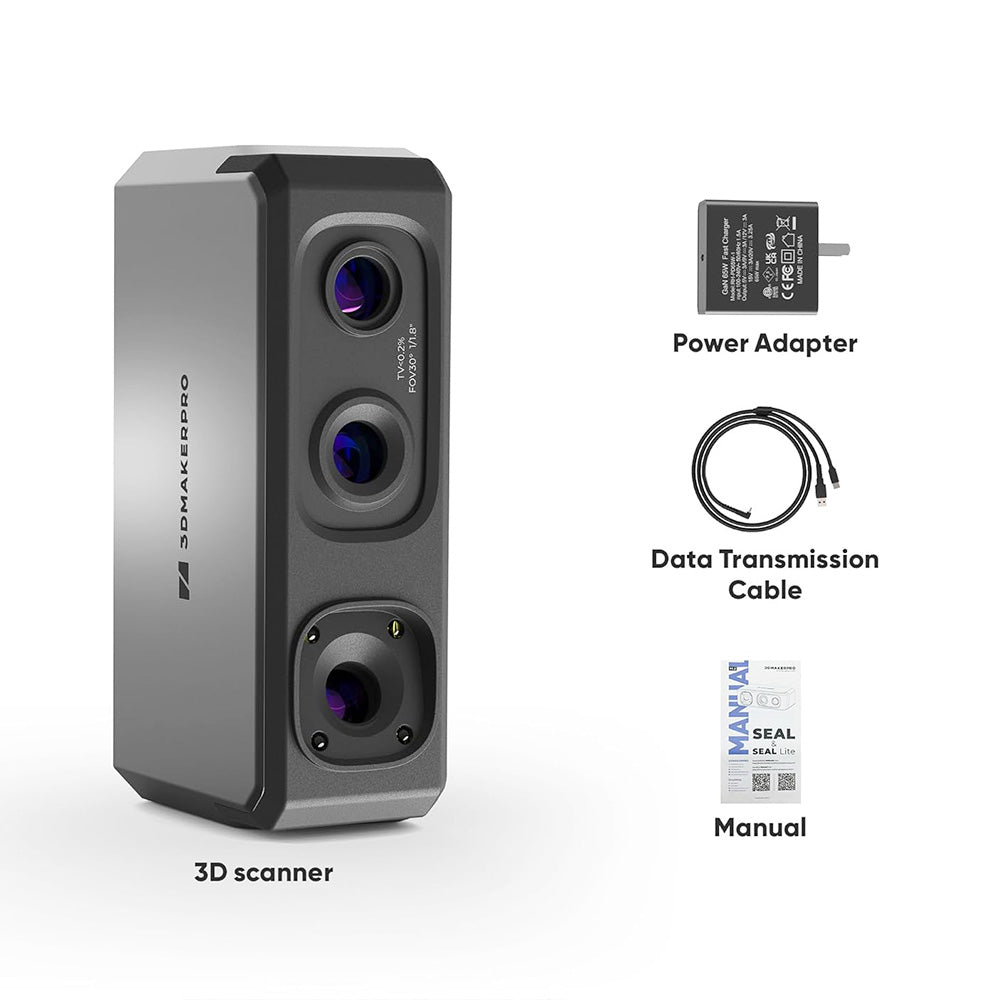

Package Contents
1 x Seal Lite 3D Scanner
1 x PD65W Charger
1 x Data Cable
