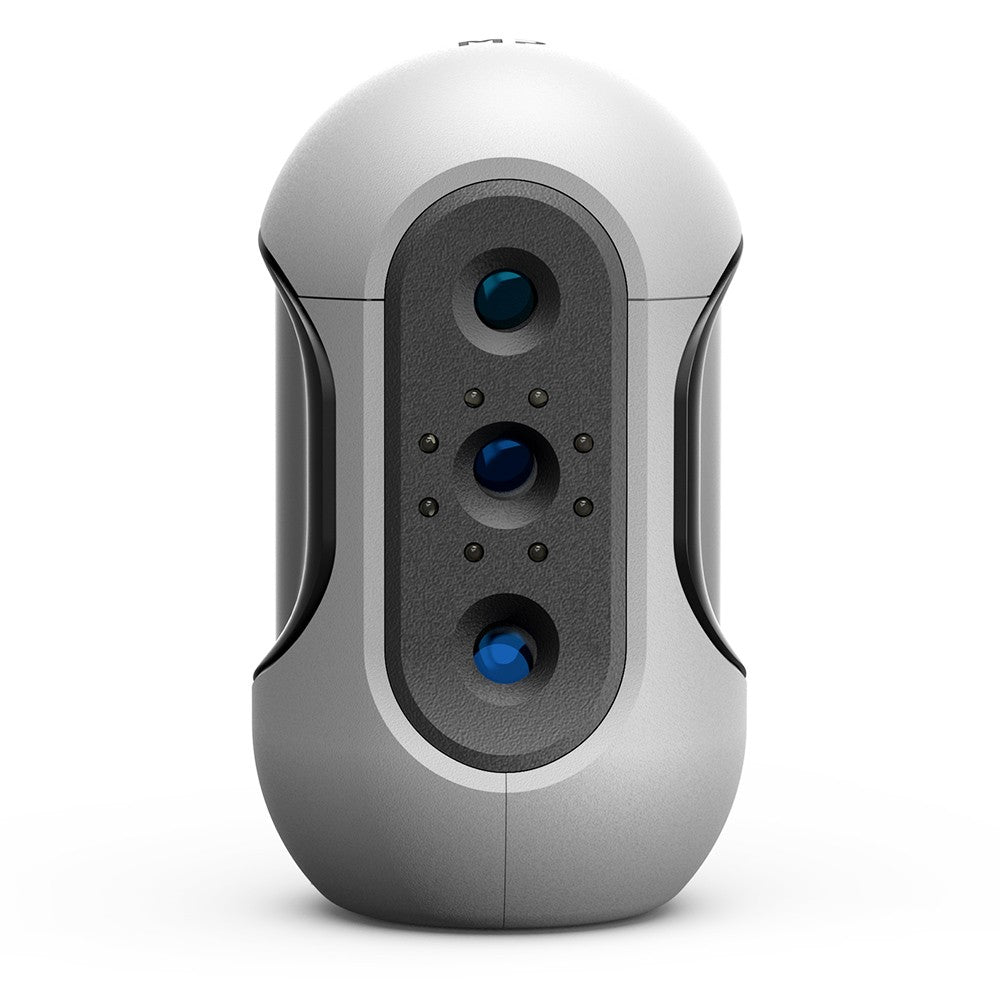

3DMAKERPRO Mole 3D Scanner

3DMAKERPRO Mole highlights

3DMakerpro Mole - precise and seamless tracking

3DMakerpro Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.

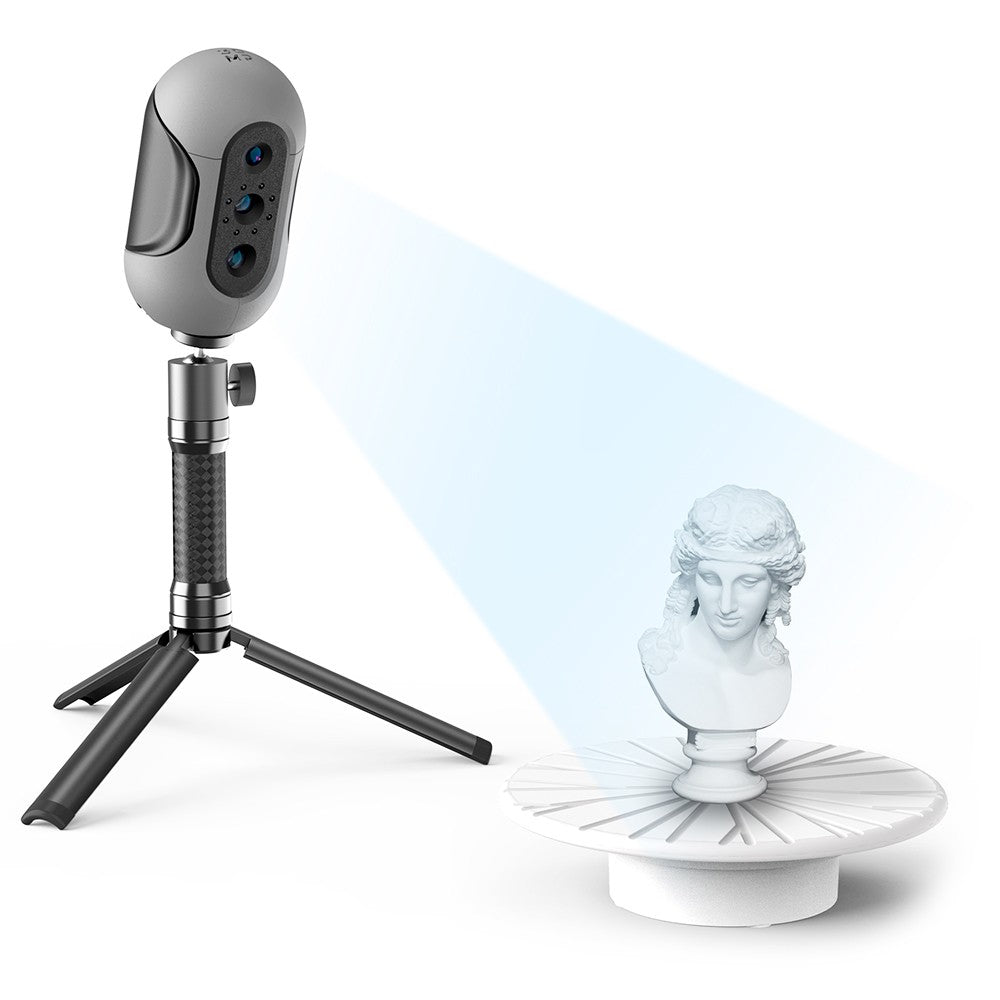

The scanning process is straightforward! To start, you can pick between easy scan, where you can manually move around the scanner, or table scan, where the object is turned around on a turntable.

• 0.05mm accuracy
• 0.1mm resolution
• multispectral technology
• Dedicated mobile APP

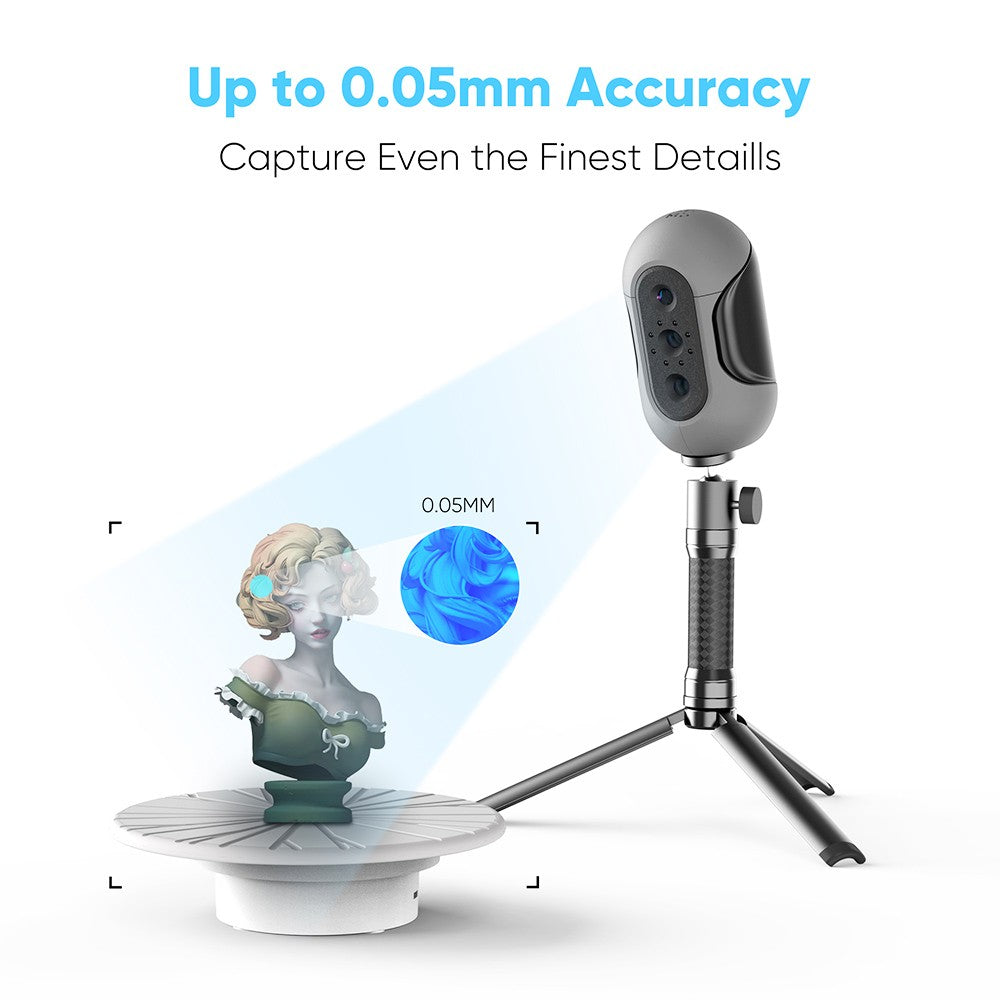

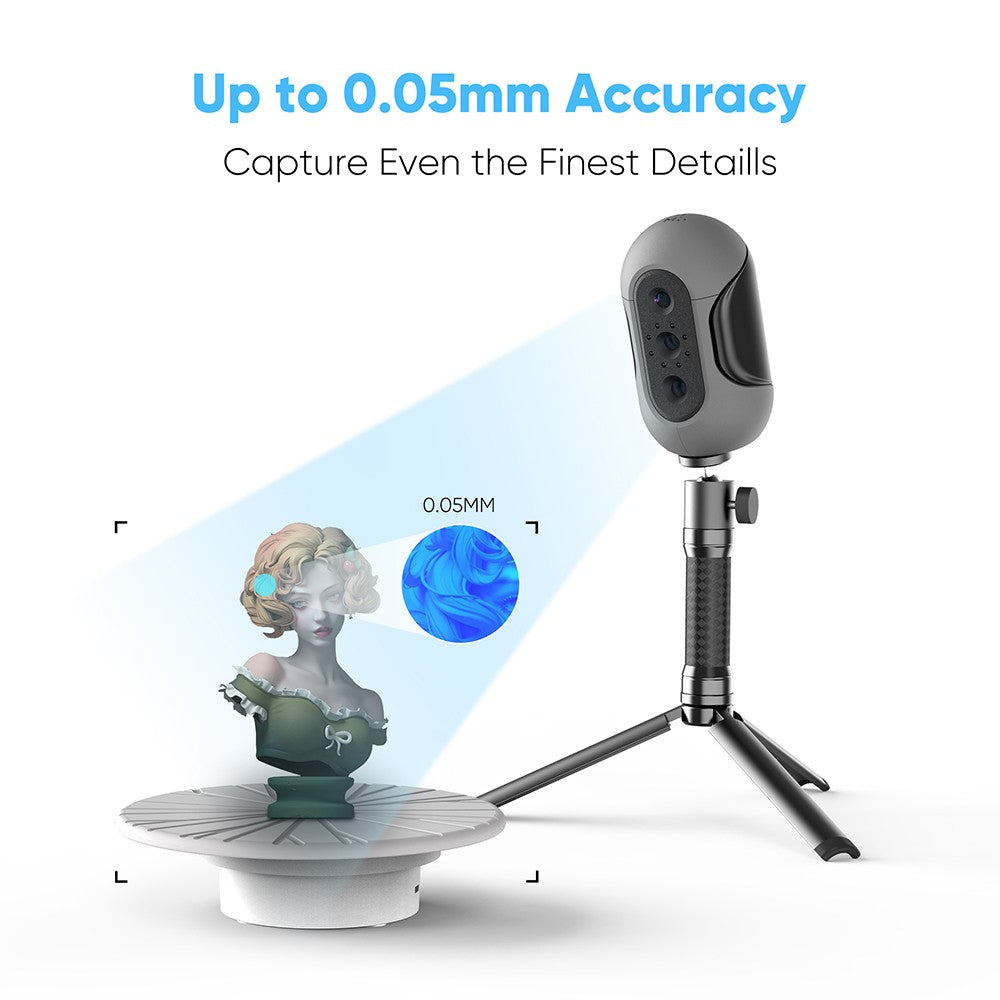

Capture Even the Finest Details

The Mole 3D scanner we bring can acutely capture the finest detail with a whopping accuracy of up to 0.05mm.

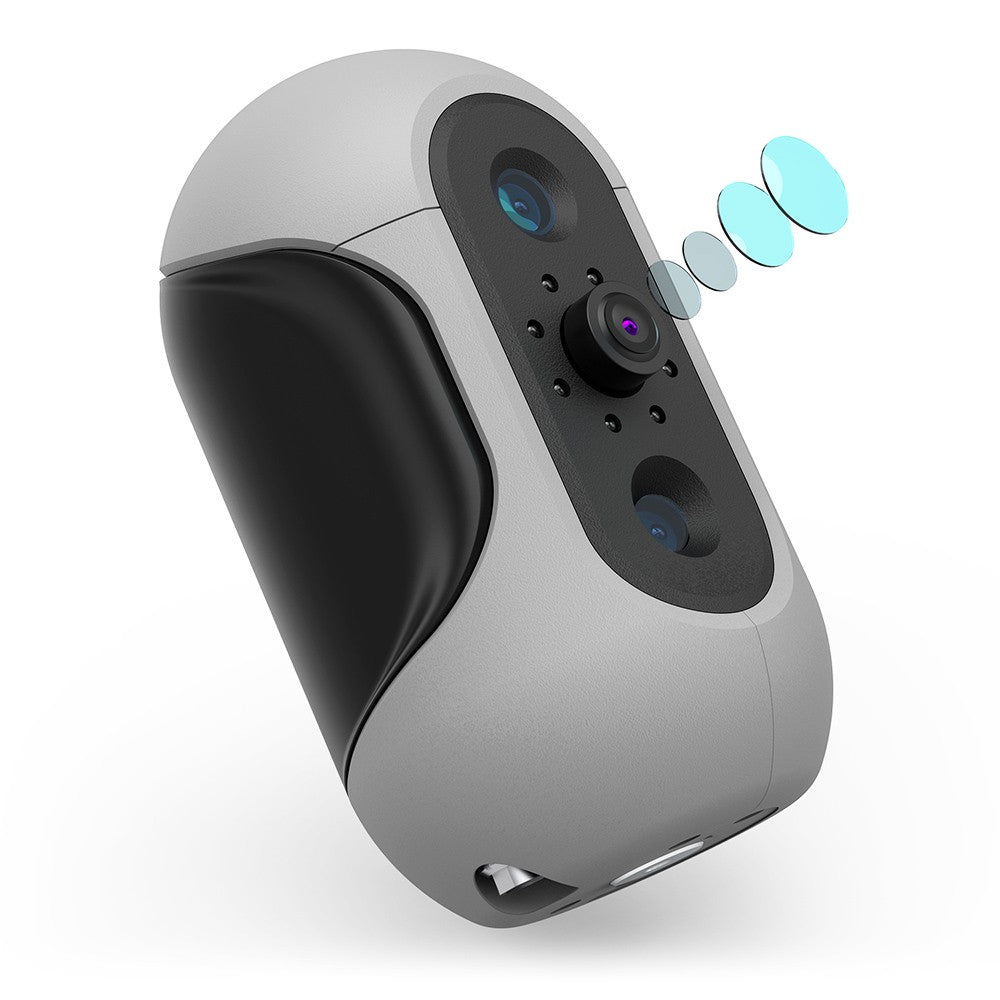

Optical Anti-shake Modules

Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.

No-marker Scanning

The intelligent algorithm makes 3D scanning as easy as shooting a video. Stick markers are no longer needed, even for big parts like engine hood, car door, front or rear bumpers and so on.

Scan Black Objects

Near Infrared (NIR) has excellent optical compatibility, so even black objects are clearly visible. Mole now includes NIR in its configuration list, enabling it to produce excellent scanning results for objects of different colors.

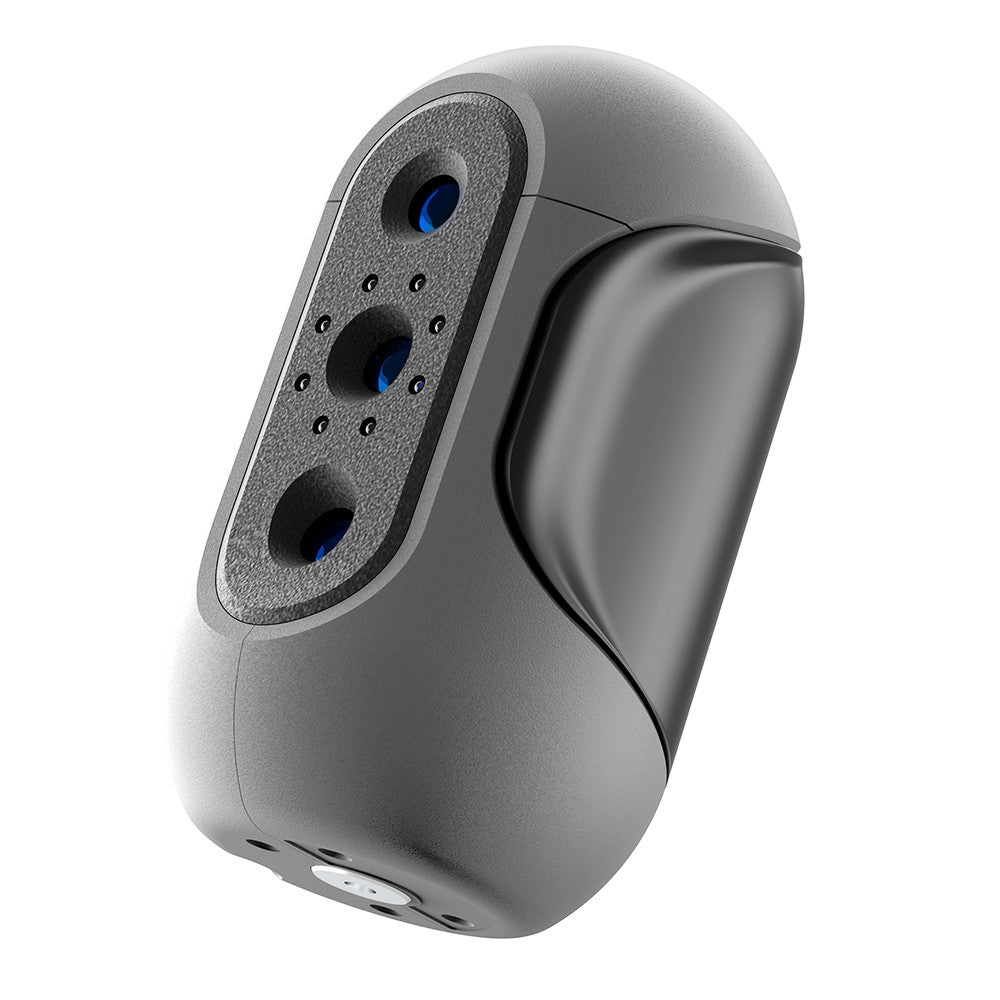

Comfortable to Use

Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly yet significantly reduces the temperature, ensuring that Mole can operate for extended periods.

General
Brand	3DMakerpro
Type	3D Scanner
Model	Mole
Color	Grey
Specification
Accuracy	0.05mm
Resolution	0.1mm
Frame rate	10fps
Tracking mode	Visual tracking
Work distance	150-400mm
Single capture range	200x100mm
Typical object sizes	15-1500mm
Light source	NIR
Color texture	Extended support
USB interface	USB2.0
Output format	OBJ/STL/PLY
Compatible system	Windows10/11 64bit, MacOS12/13
Compatible mobile	Android 10.0 or later, iOS 15.0 or later (Extended support)
Minimum computer requirements	Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
Recommended computer requirements	Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Weight & Size
Product Weight	0.39 kg
Package Weight	2.5 kg
Product Size(L x W x H)	14.1 x 8 x 8 cm
Package Size(L x W x H)	34.5 x 25.8 x 11.3 cm

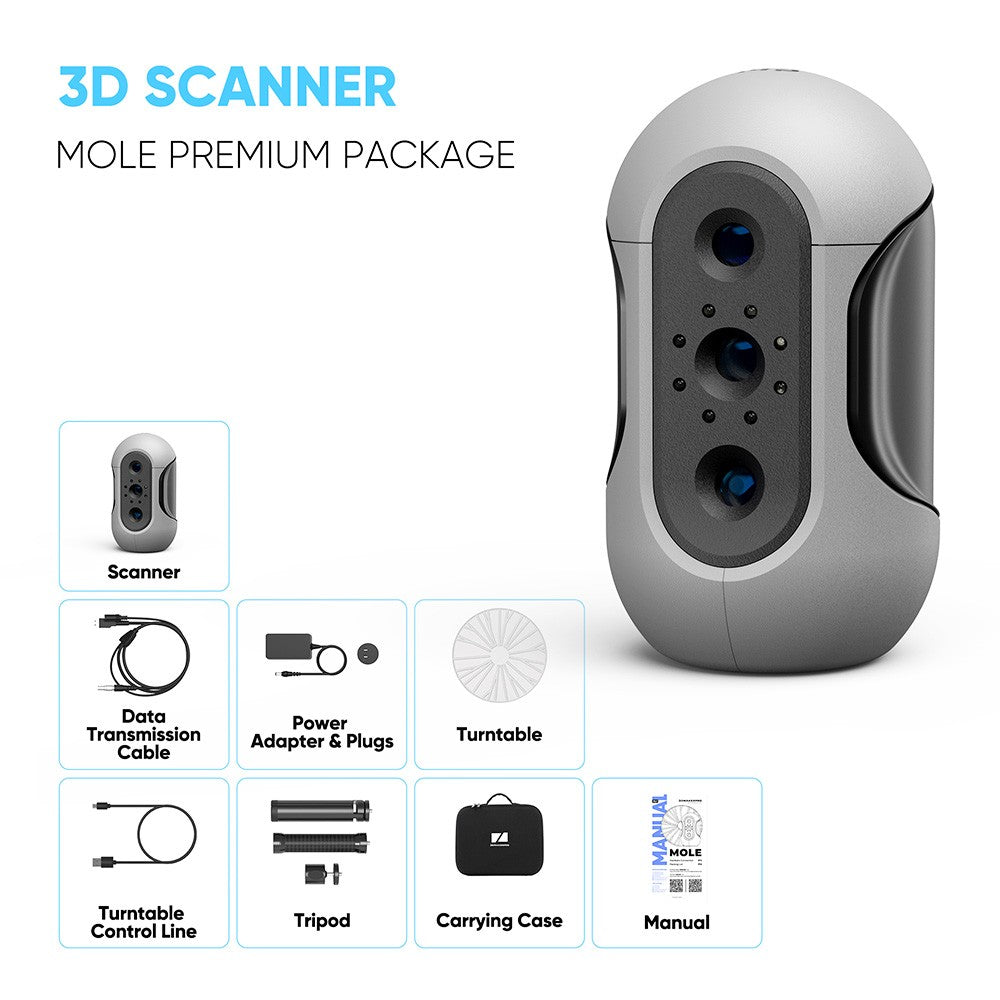

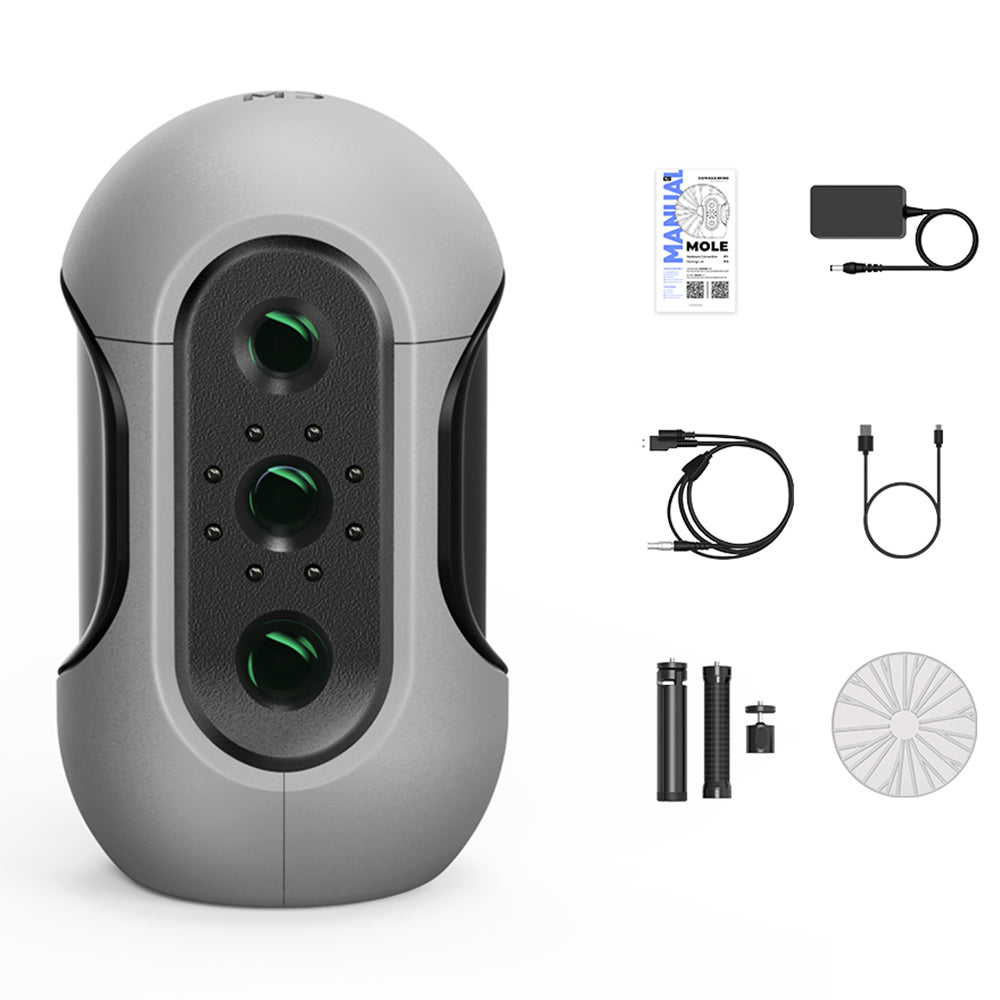

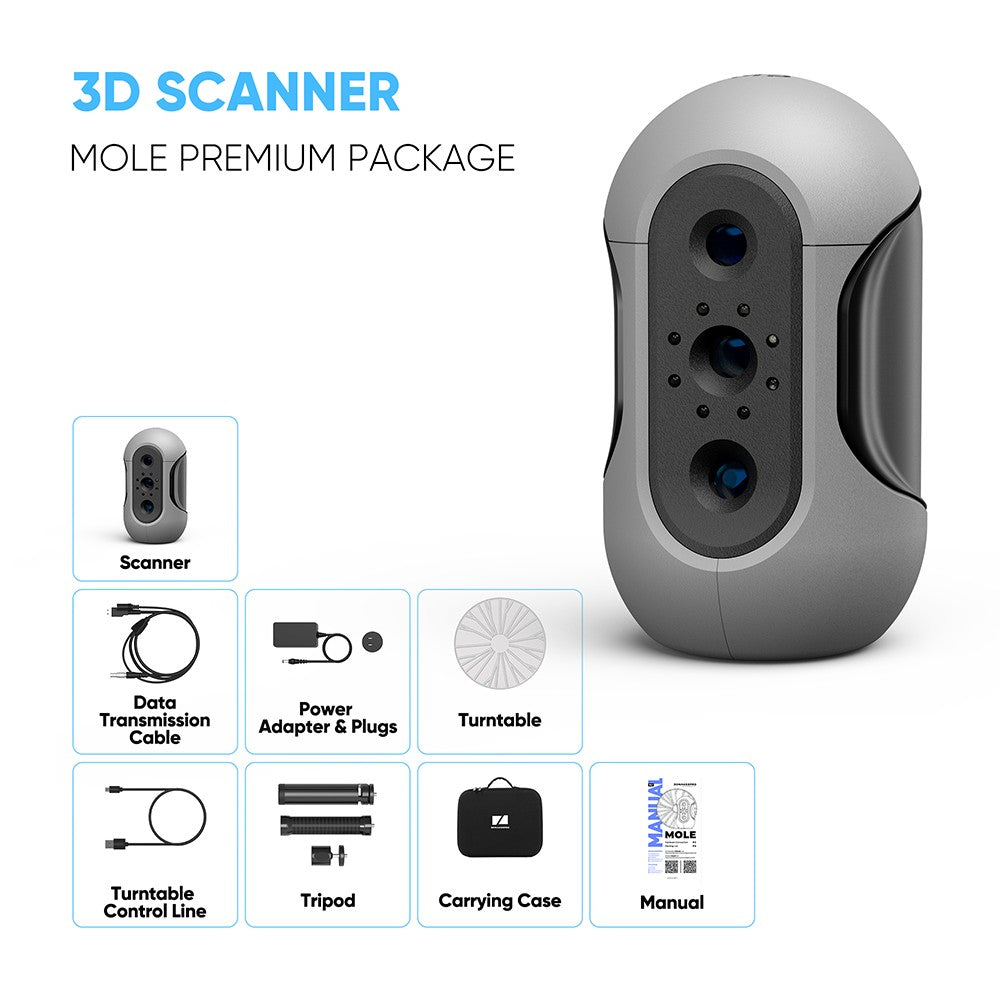

Package Contents
1 x Mole 3D scanner
1 x Date cable
1 x Power adapter
1 x Turntable
1 x Turntable control line
1 x Tripod
1 x Carrying case
1 x User manual
